Model Electrolux TGF336AWA RANGE – Common Parts & Diagrams

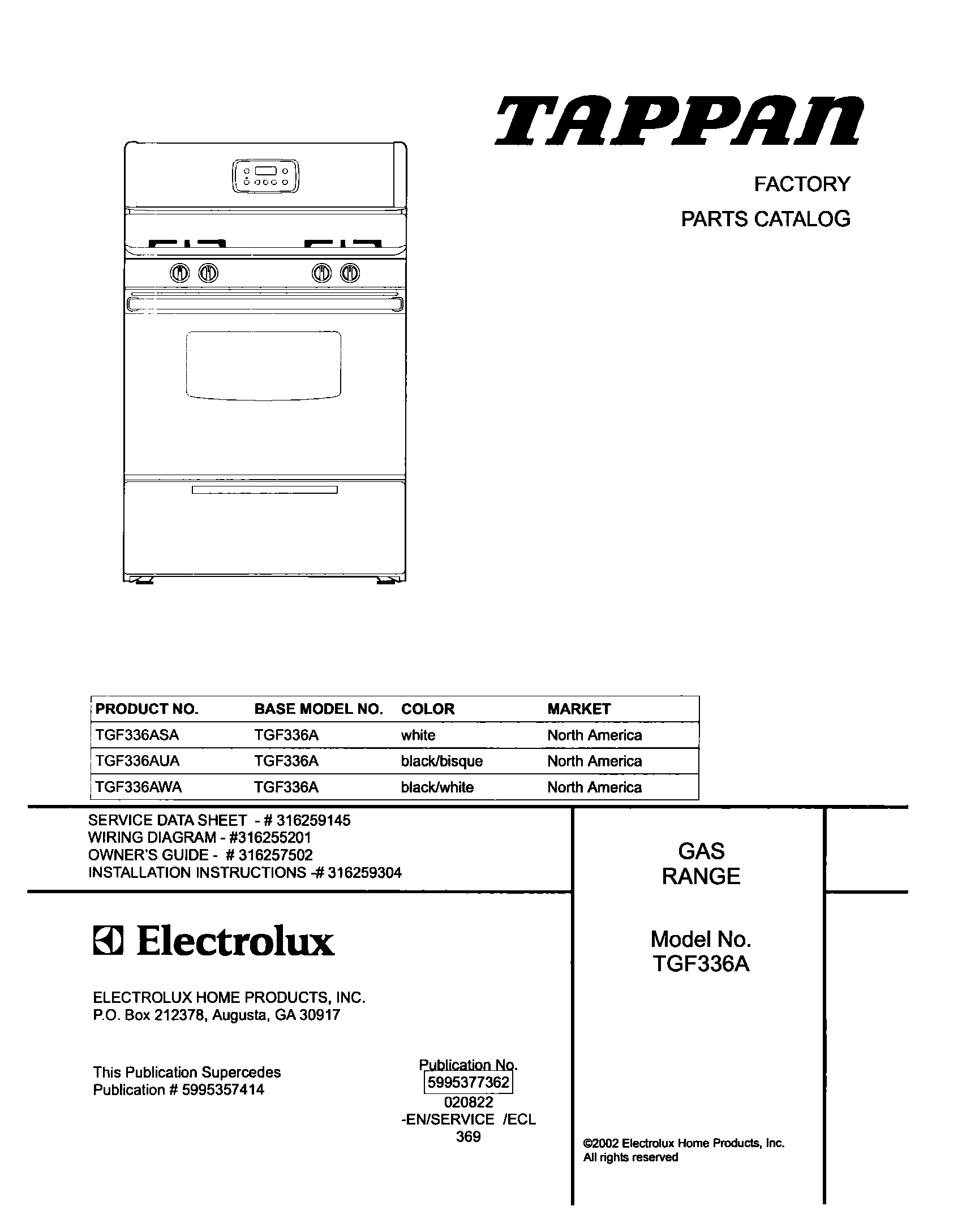

01 - COVER

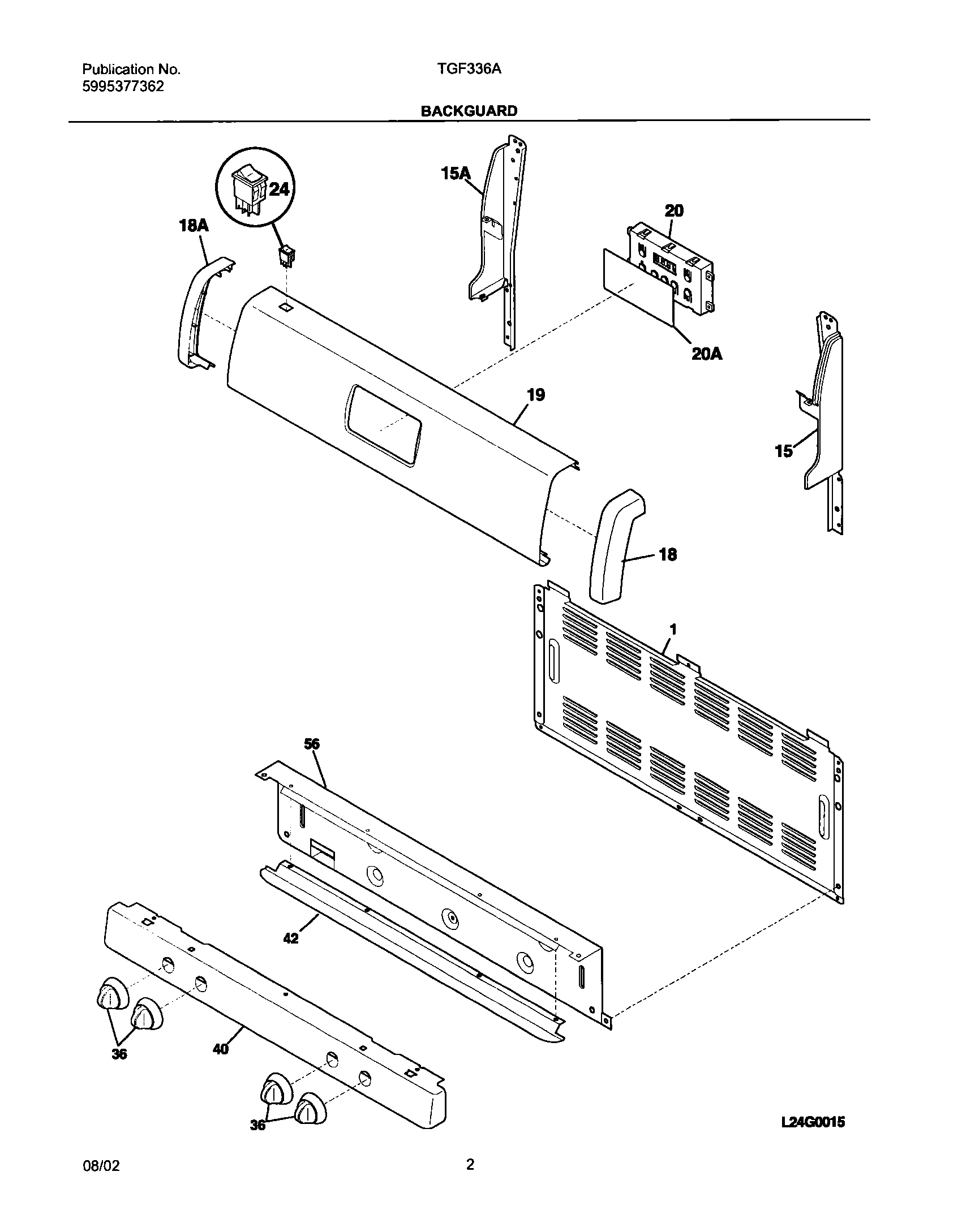

03 - BACKGUARD

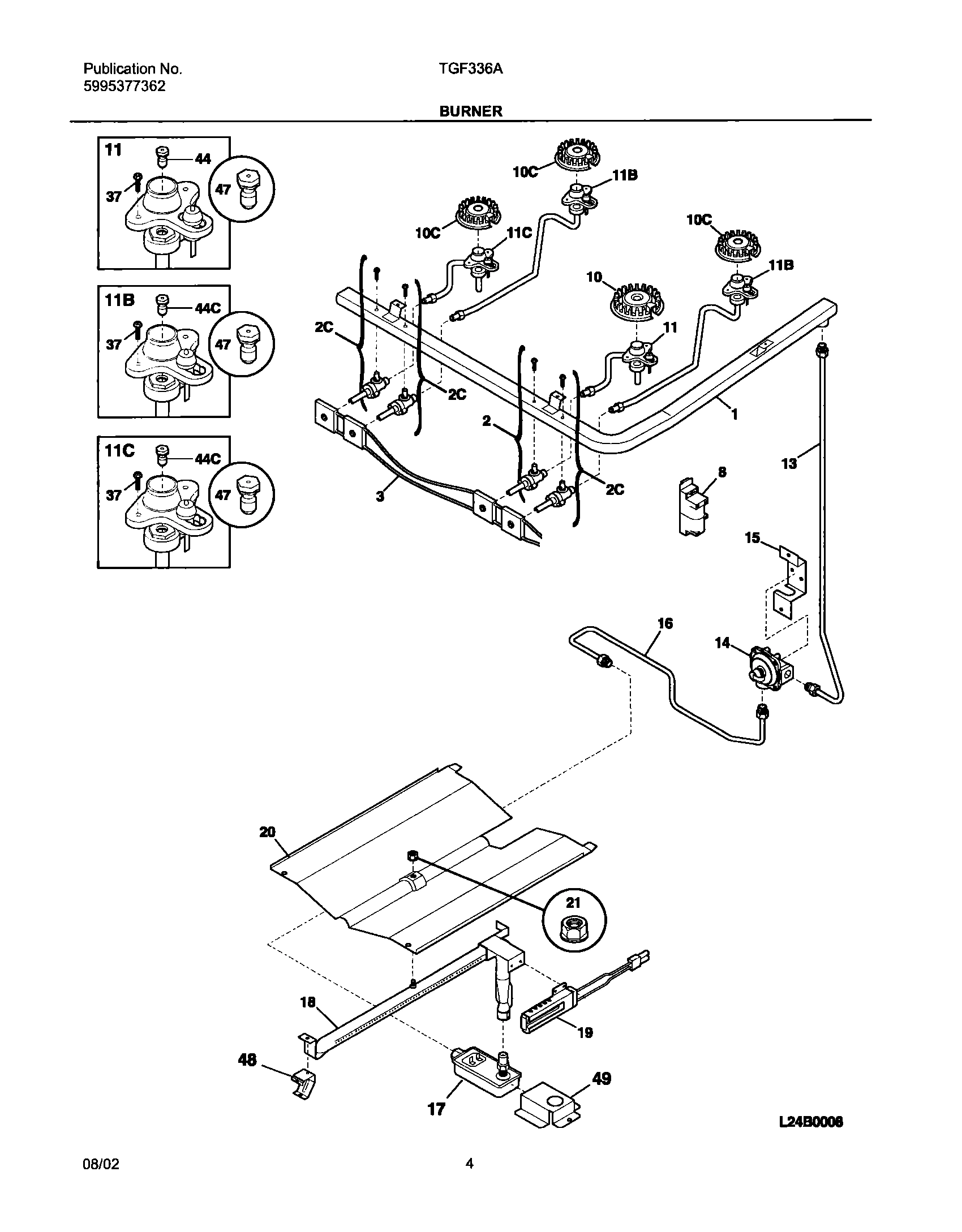

05 - BURNER

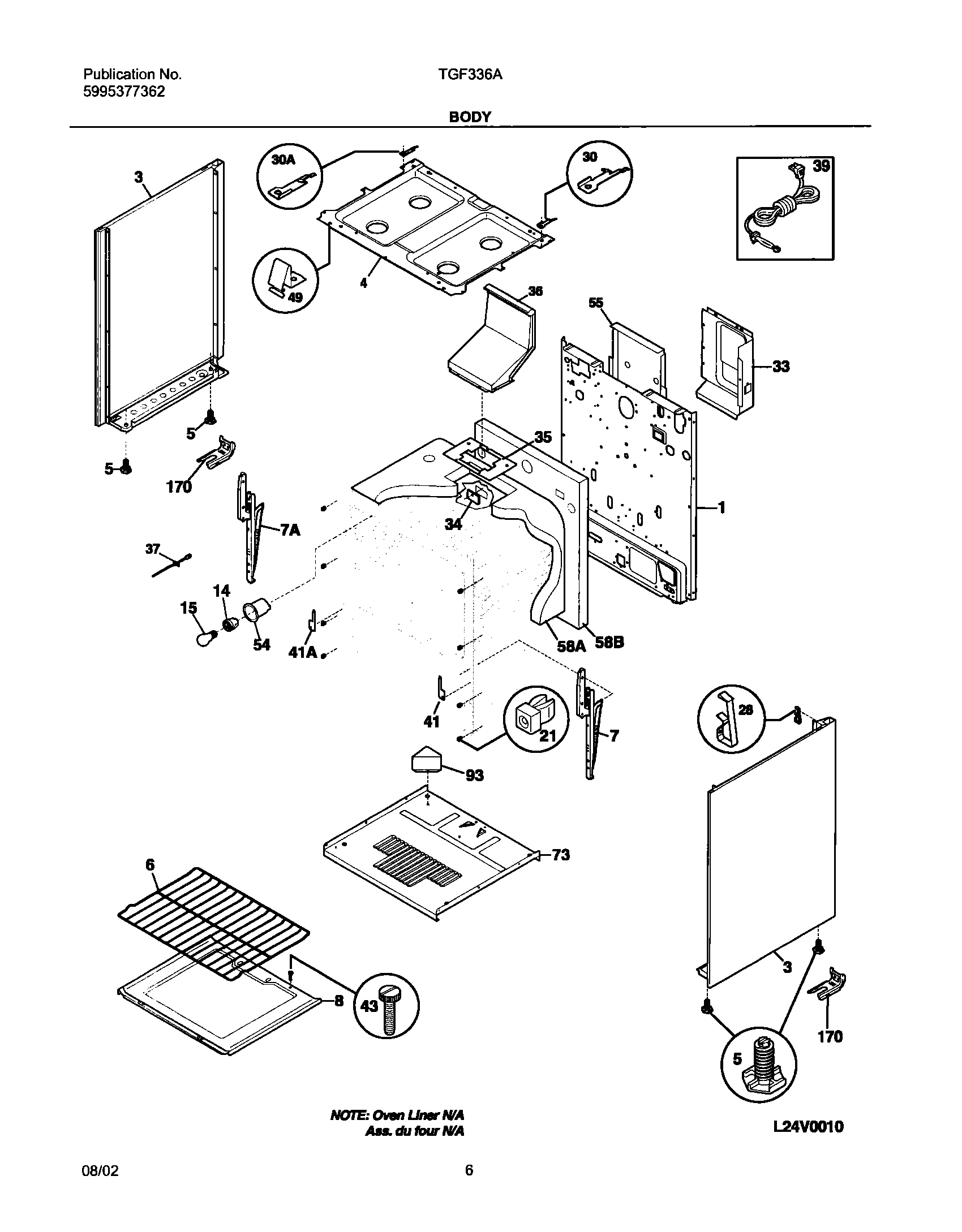

07 - BODY

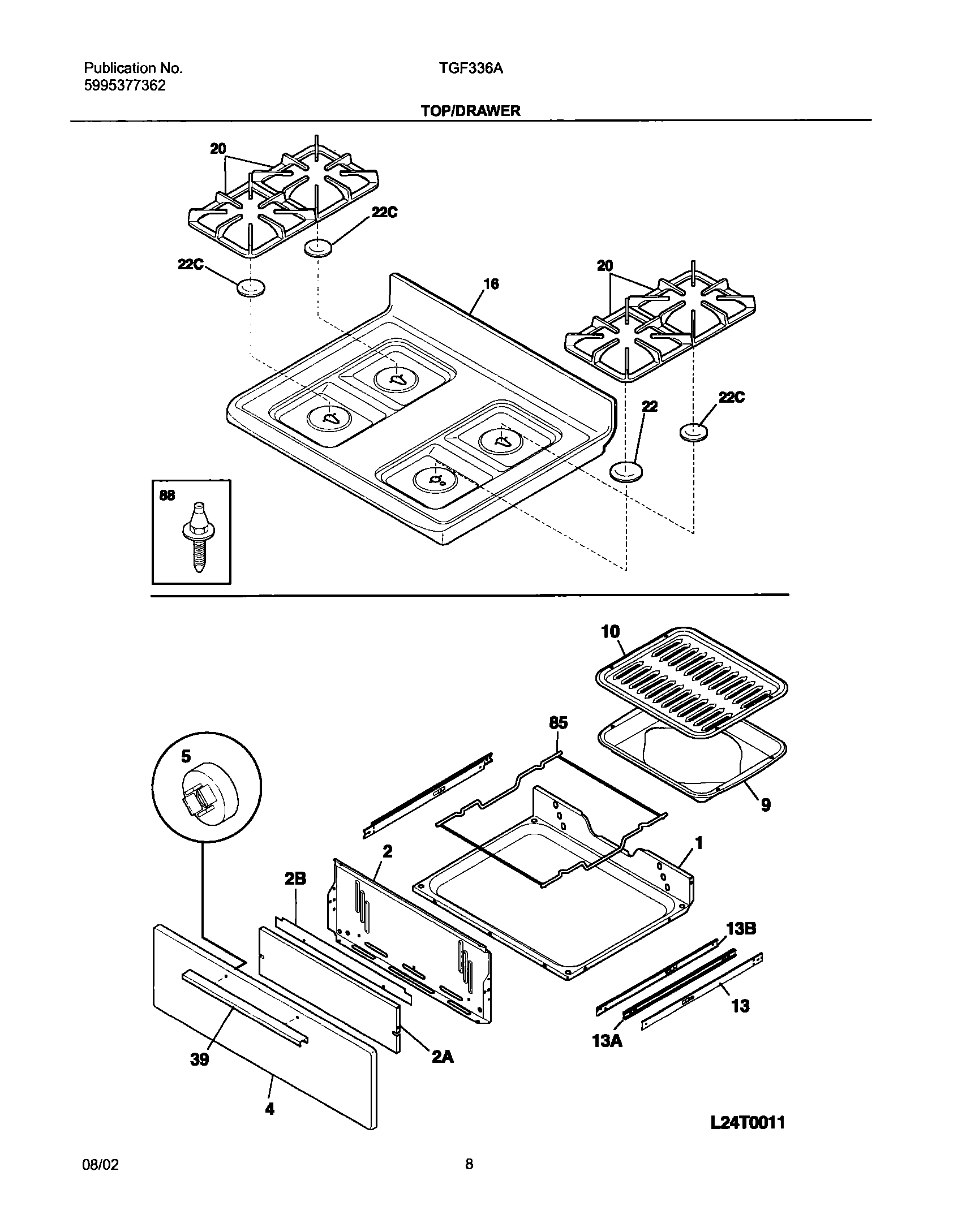

09 - TOP/DRAWER

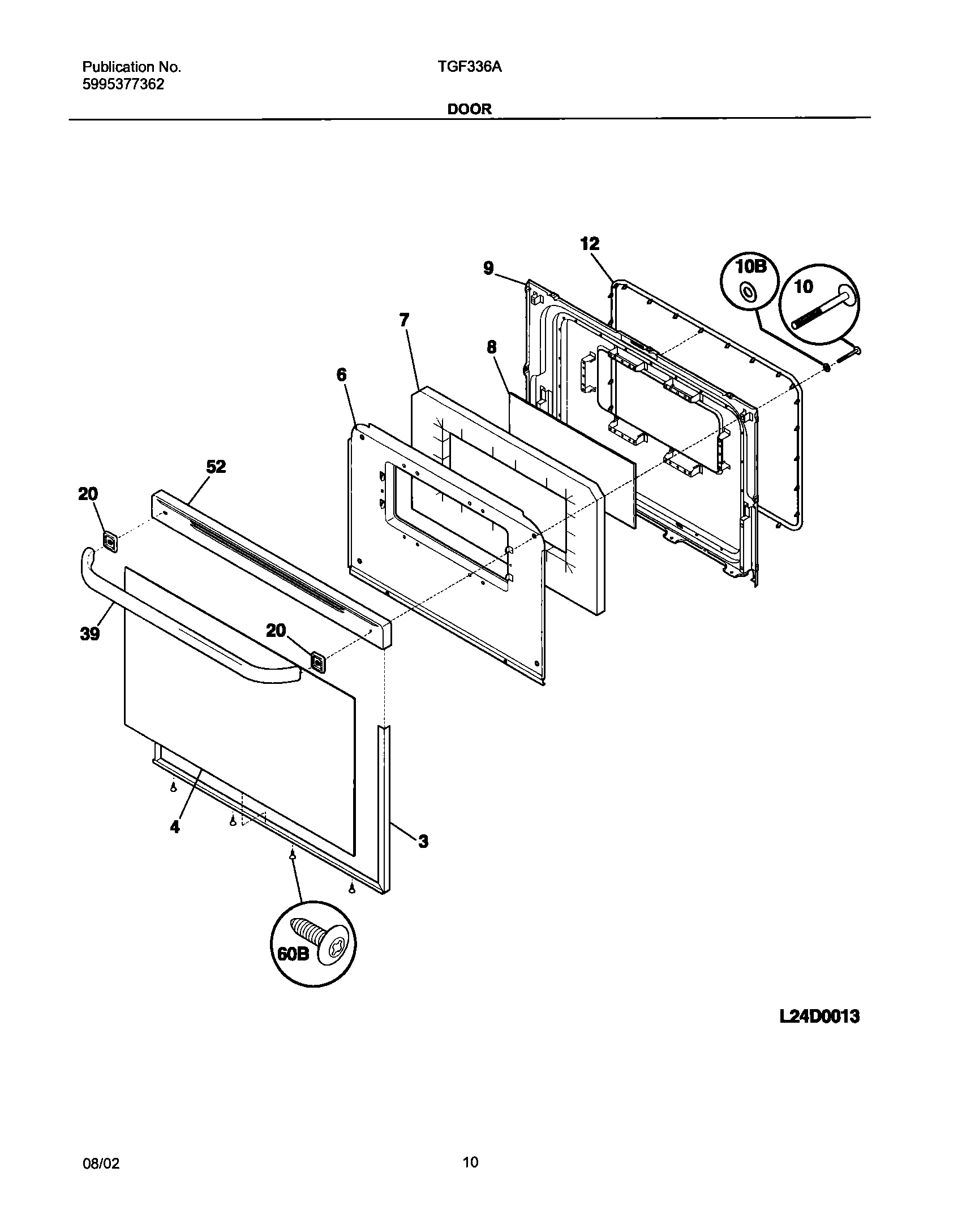

11 - DOOR

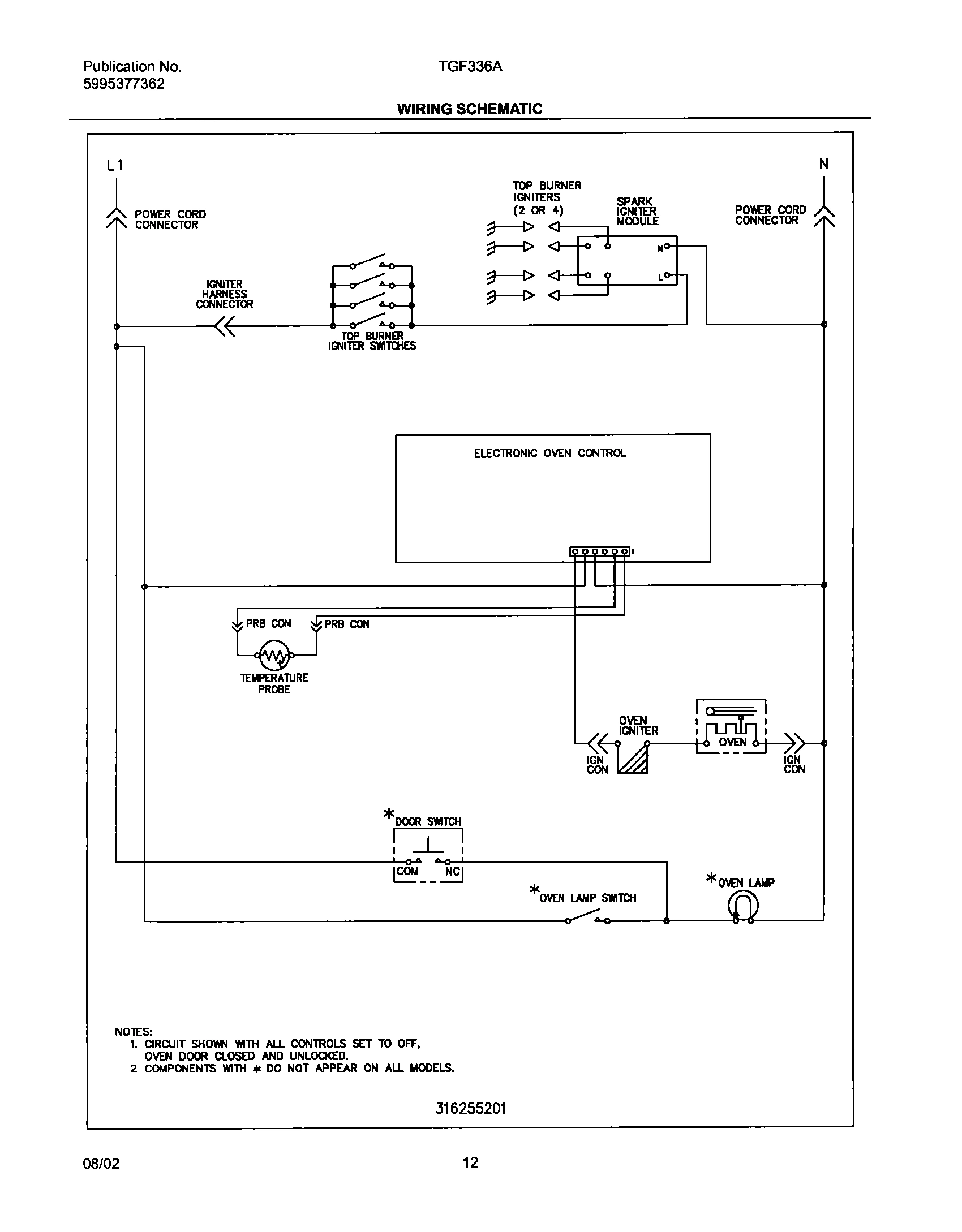

12 - WIRING SCHEMATIC

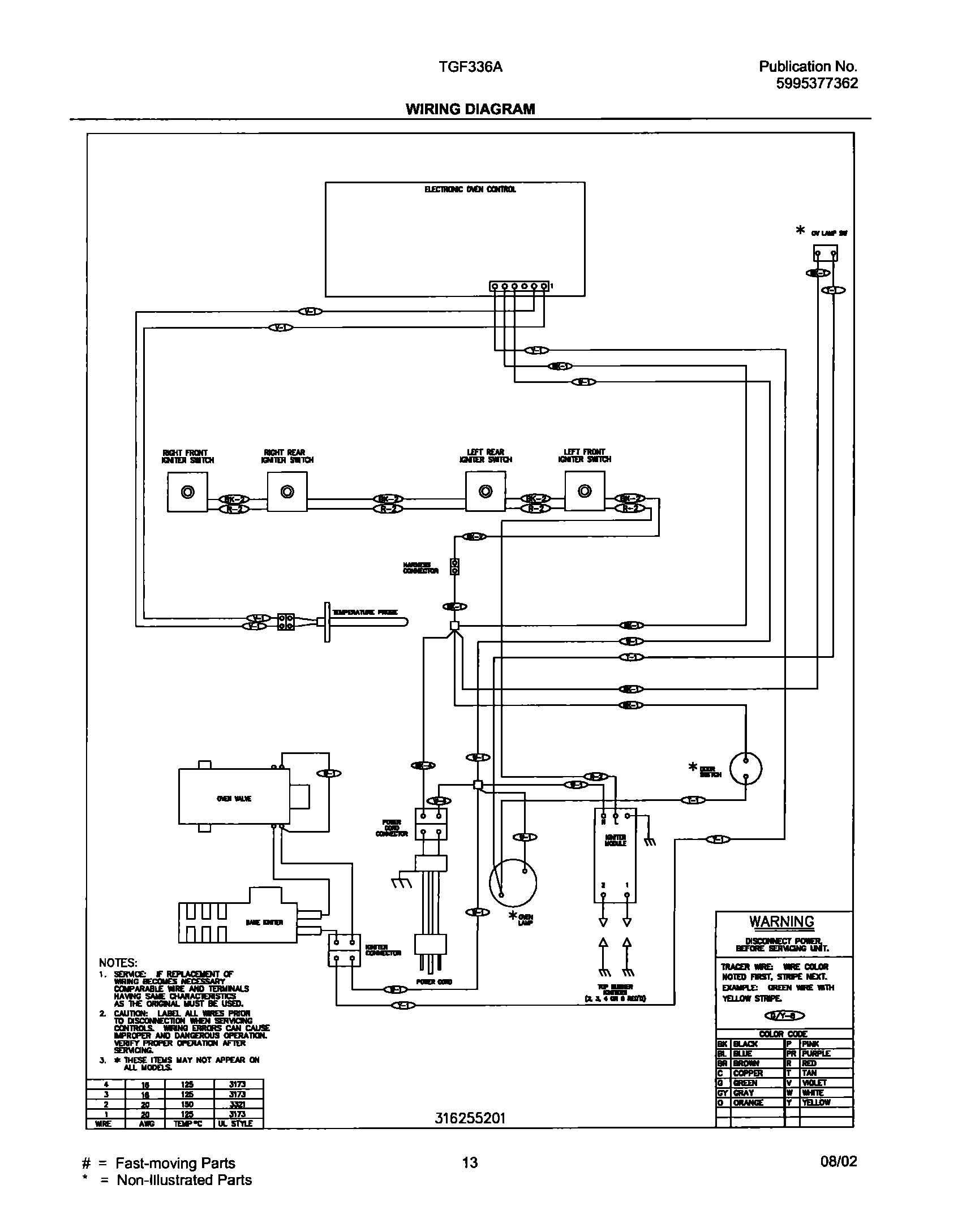

13 - WIRING DIAGRAM
Common parts from model Electrolux TGF336AWA RANGE
1
WCI 316110201 WCI 316110201 Contact Us For Availability
2
WCI 5303935210 WCI 5303935210 Contact Us For Availability
2
WCI 316236401 WCI 316236401 Contact Us For Availability
2C
WCI 5303935213 WCI 5303935213 Contact Us For Availability
3
WCI 5303935191 WCI 5303935191 Contact Us For Availability
4
WCI 5303935203 WCI 5303935203 Contact Us For Availability
4
WCI 316231211 WCI 316231211 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316129100 WCI 316129100 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
WCI 316212300 WCI 316212300 Contact Us For Availability
10
WCI 316001014 WCI 316001014 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10B
WCI 316008401 WCI 316008401 Contact Us For Availability
10C
WCI 316212400 WCI 316212400 Contact Us For Availability
11
WCI 316237801 WCI 316237801 Contact Us For Availability
12
WCI 316239700 WCI 316239700 Contact Us For Availability
13
WCI 316207000 WCI 316207000 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
14
WCI 316116400 WCI 316116400 Contact Us For Availability
15
WCI 316091600 WCI 316091600 Contact Us For Availability
16
Tube,valve to regul ,3/8 WCI 316065006 Contact Us For Availability
17
WCI 3203459 WCI 3203459 Contact Us For Availability
18
WCI 316114300 WCI 316114300 Contact Us For Availability
18
WCI 316240905 WCI 316240905 Contact Us For Availability
18A
WCI 316240904 WCI 316240904 Contact Us For Availability
19
Ignitor,oven kit ,w/nut & instr WCI 5303935066 Contact Us For Availability
20
WCI 316248400 WCI 316248400 Contact Us For Availability
20A
WCI 316220705 WCI 316220705 Contact Us For Availability
21
Nut,hex head sems WCI 5303013272 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
22
WCI 316213600 WCI 316213600 Contact Us For Availability
22C
WCI 316213500 WCI 316213500 Contact Us For Availability
30
WCI 316217700 WCI 316217700 Contact Us For Availability
34
Plate,cover WCI 3018607 Contact Us For Availability
37
Screw,assy mtg ,ignitor/orifice WCI 316240600 Contact Us For Availability
39
WCI 316019511 WCI 316019511 Contact Us For Availability
41
WCI 316233400 WCI 316233400 Contact Us For Availability
44
WCI 316237901 WCI 316237901 Contact Us For Availability
44C
Orifice,top burner ,9.5K WCI 316237902 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
60B
Screw,wafer hd sq dr ,8-18AB x 0.5 WCI 5303271648 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
88
WCI 316099500 WCI 316099500 Contact Us For Availability
170
WCI 316112500 WCI 316112500 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 316253700 WCI 316253700 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316248105 WCI 316248105 Contact Us For Availability
NI
Screw`hex ,8-18 x 3/8 `nick `(3) `regulator b WCI 316021104 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
× ![]()
