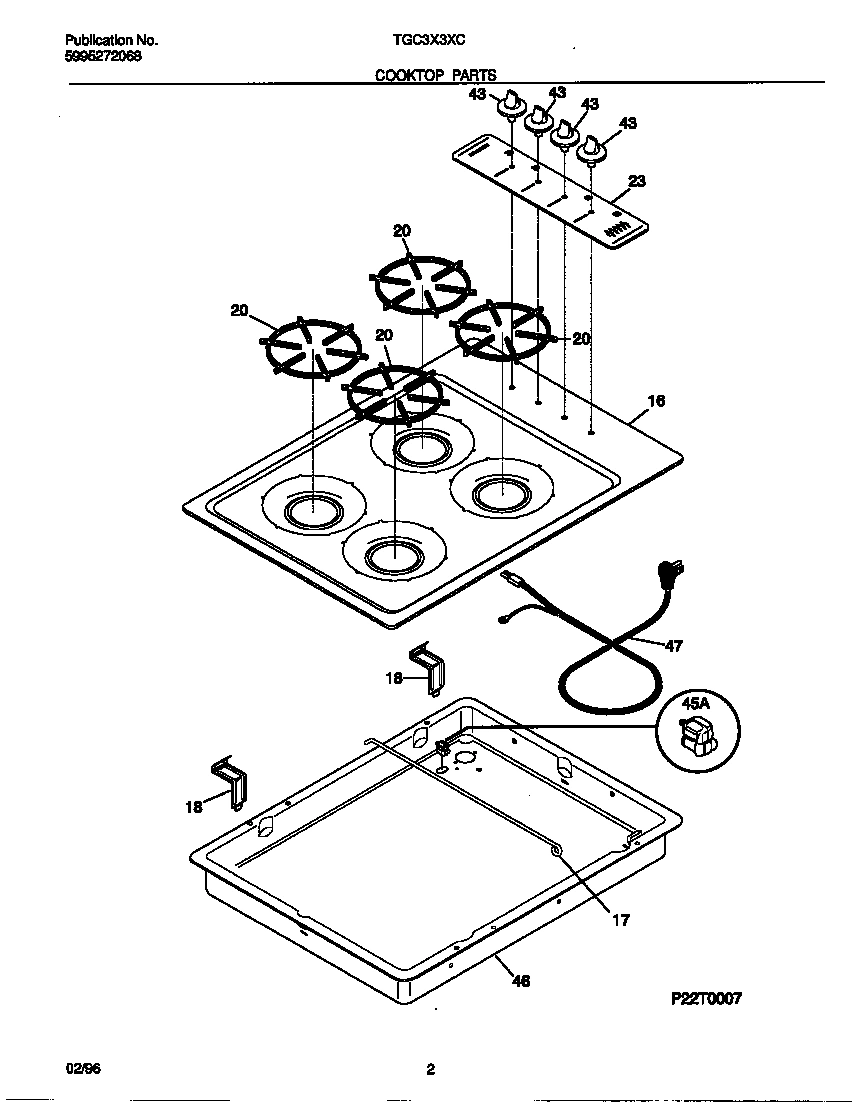

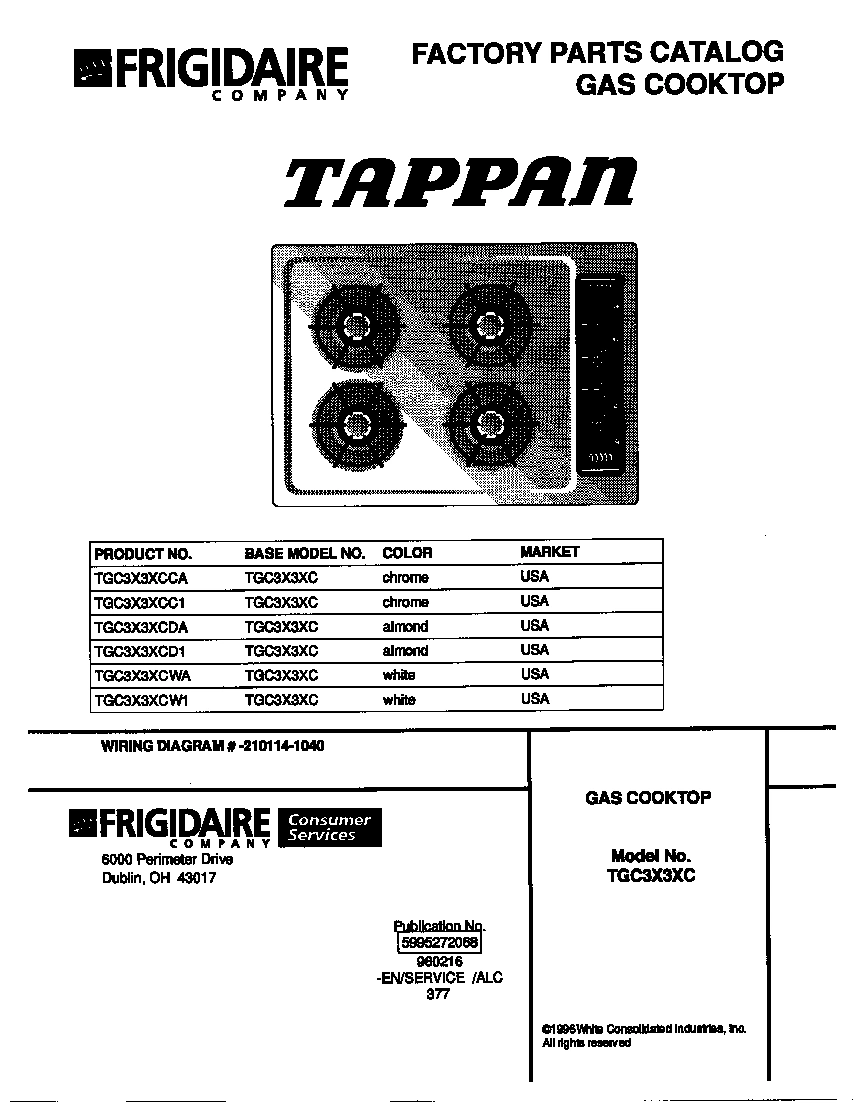

Model Electrolux TGC3X3XCDA COOK-TOP – Common Parts & Diagrams

*73642
HARNESS-WIRING, MAIN
HARNESS-WIRING, MAIN WCI 5303307979 Contact Us For Availability
View on Model
*73643
SCREW, TRUSS HEAD, 8-18 X 3/8, (4)
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
View on Model
1
WCI 5303287976
WCI 5303287976 WCI 5303287976 Contact Us For Availability
View on Model
2A

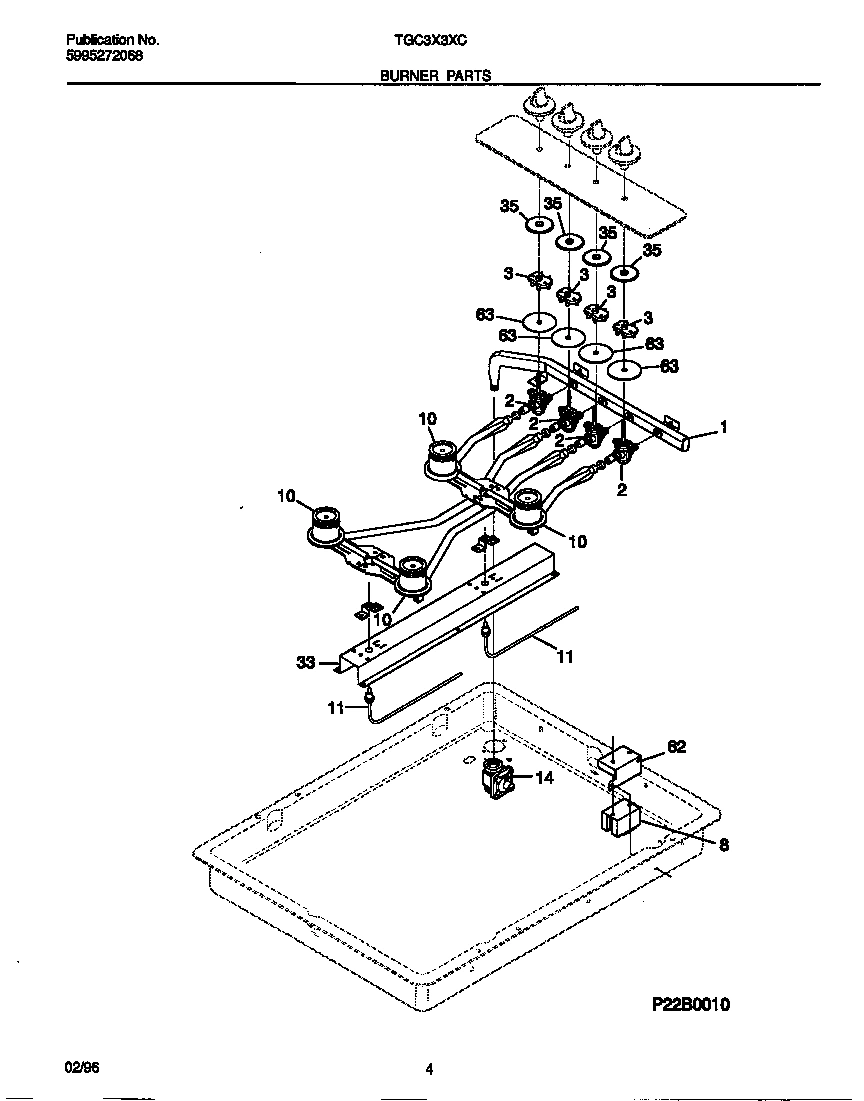

VALVE-TOP BURNER, (4), WITH MTG SCREWS
VALVE-TOP BURNER, (4), WITH MTG SCREWS WCI 316036600 Contact Us For Availability
View on Model
3
SWITCH-IGNITER, (4)
SWITCH-IGNITER, (4) WCI 316032002 Contact Us For Availability
View on Model
10A
WCI 3201432
WCI 3201432 WCI 3201432 Contact Us For Availability
View on Model
10B
WCI 3201433
WCI 3201433 WCI 3201433 Contact Us For Availability
View on Model
10C
WCI 3201434
WCI 3201434 WCI 3201434 Contact Us For Availability
View on Model
10D
WCI 3201435
WCI 3201435 WCI 3201435 Contact Us For Availability
View on Model
11A
IGNITOR-TOP BURNER, 24``, (2)
IGNITOR-TOP BURNER, 24``, (2) WCI 3201447 Contact Us For Availability
View on Model
11B
IGNITOR-TOP BURNER, 30``, (2)
IGNITOR-TOP BURNER, 30``, (2) WCI 3201448 Contact Us For Availability
View on Model
23
WCI 318021204
WCI 318021204 WCI 318021204 Contact Us For Availability
View on Model
33
BRACKET-BURNER MTG
BRACKET-BURNER MTG WCI 3201449 Contact Us For Availability
View on Model
35
WCI 5303307978
WCI 5303307978 WCI 5303307978 Contact Us For Availability
View on Model
43
WCI 318016206
WCI 318016206 WCI 318016206 Contact Us For Availability
View on Model
46
WCI 3201436
WCI 3201436 WCI 3201436 Contact Us For Availability
View on Model
47
WCI 5303303991
WCI 5303303991 WCI 5303303991 Contact Us For Availability
View on Model
62
COVER, SPARK MODULE
COVER, SPARK MODULE WCI 3201439 Contact Us For Availability
View on Model
63
SEAL-SWITCH
SEAL-SWITCH WCI 5303017004 Contact Us For Availability
View on Model
