Model Electrolux TGB557CEB2 WALL OVEN – Common Parts & Diagrams

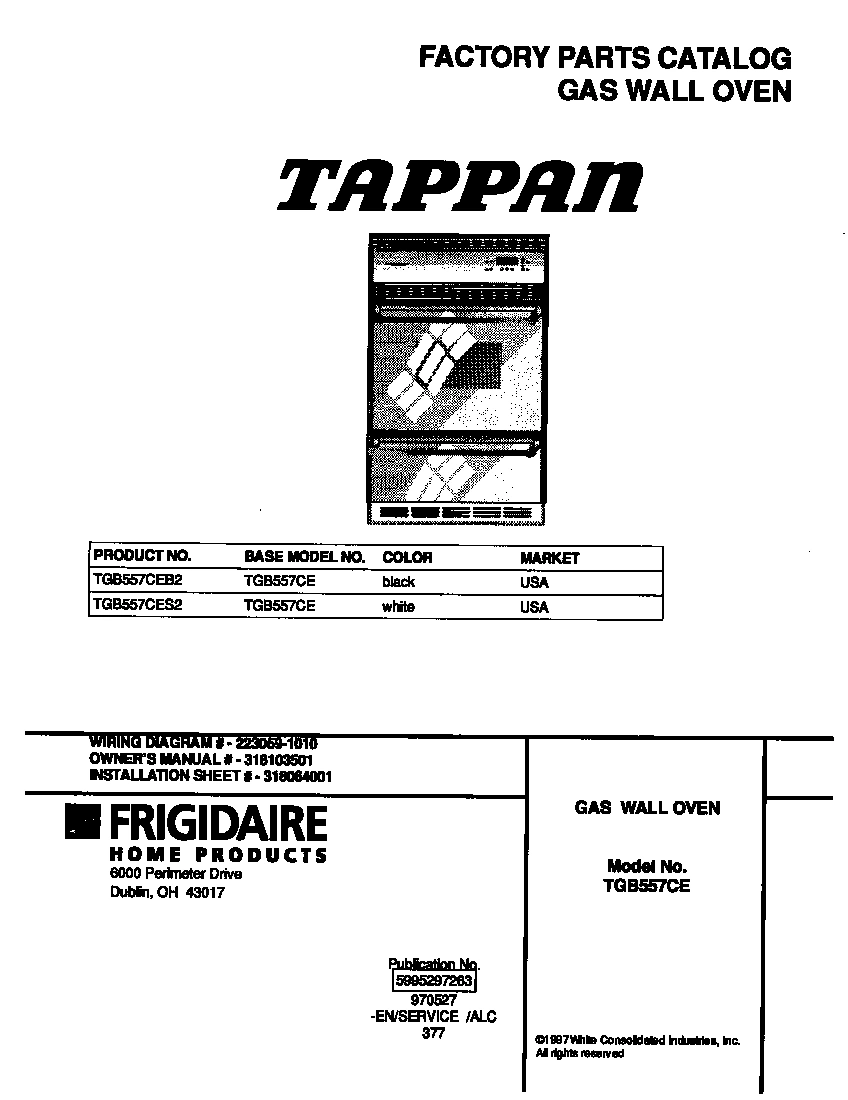

01 - COVER

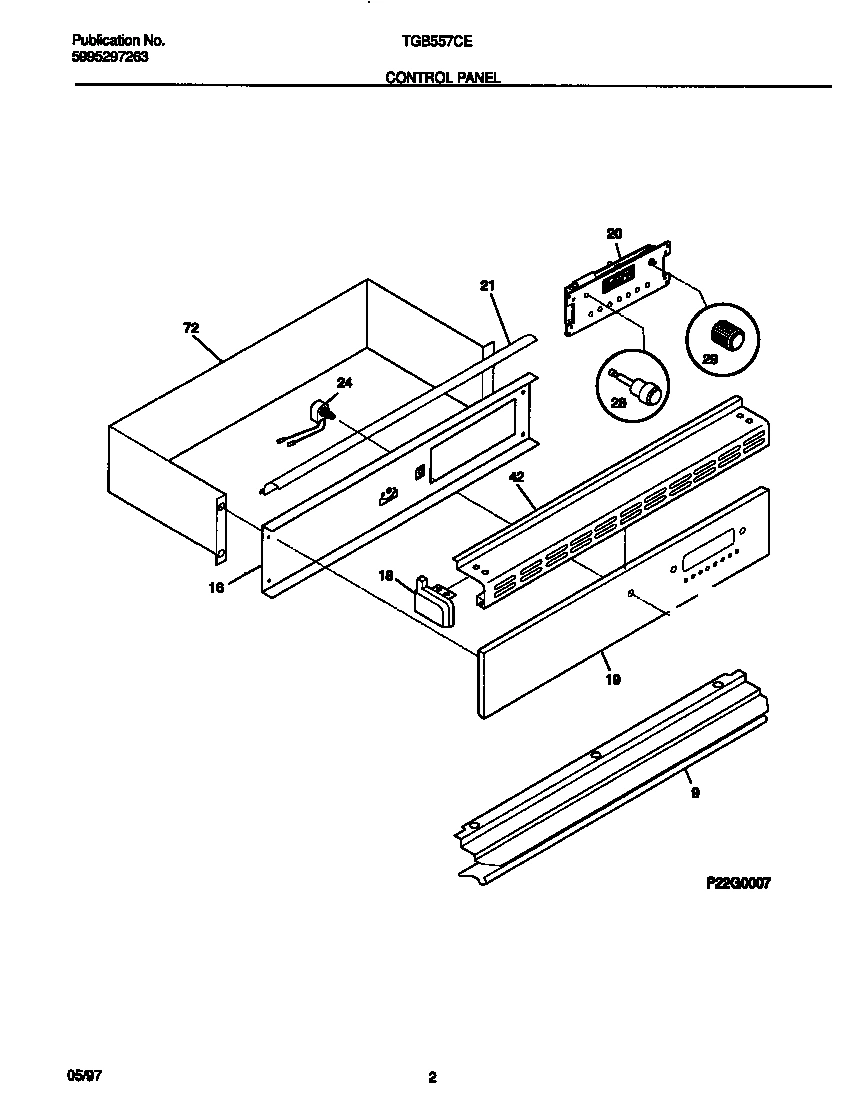

02 - CONTROL PANEL
03 - BURNER
04 - BODY
06 - DOOR/DRAWER
07 - WIRING DIAGRAM
Common parts from model Electrolux TGB557CEB2 WALL OVEN
*03126
CLIP-WIRE WCI 3015722 Contact Us For Availability
*03128
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
*03129
WCI 3016303 WCI 3016303 Contact Us For Availability
*03130
WCI 3018802 WCI 3018802 Contact Us For Availability
*03132
SCREW, 8 X 5/8 WCI 3131048 Contact Us For Availability
*03133
SPACER-OVEN WCI 3201632 Contact Us For Availability
*03134
WCI 3201881 WCI 3201881 Contact Us For Availability
*03137
WCI 318108900 WCI 318108900 Contact Us For Availability
*03138
WCI 318119300 WCI 318119300 Contact Us For Availability
*03139
ANGLE-BURNER BOX WCI 5303210705 Contact Us For Availability
*03140
WCI 5303210709 WCI 5303210709 Contact Us For Availability
*03141
INSULATION, OVEN BOTTOM WCI 5303210710 Contact Us For Availability
*03142
SHIELD, BURNER BOX WCI 5303210851 Contact Us For Availability
*03146
SCREW, OVAL HD, 6-20 X 5/8, BLACK WCI 5303311528 Contact Us For Availability
*03148
WCI 5303317978 WCI 5303317978 Contact Us For Availability
*03149
WCI 5303321212 WCI 5303321212 Contact Us For Availability
*03150
PLUG, DOOR LINER WCI 5308007939 Contact Us For Availability
*03151
WCI 318139201 WCI 318139201 Contact Us For Availability
*03152
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
*03153
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*03154
WCI 318122101 WCI 318122101 Contact Us For Availability
*03155
REFLECTOR, ALUMINUM FOIL WCI 5303271093 Contact Us For Availability
*03157
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*03161
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 5303212560 Contact Us For Availability
4
WCI 5303280375 WCI 5303280375 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3202420 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303323828 Contact Us For Availability
6
WCI 5303299366 WCI 5303299366 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
8
WCI 318121400 WCI 318121400 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318038600 WCI 318038600 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
Bracket,light switch WCI 5303271097 Contact Us For Availability
11
STRIKE PLATE WCI 5301167830 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3205189 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
RETAINER-LENS, OVEN WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 318139100 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
18A
LATCH-DOOR WCI 3051648 Contact Us For Availability
18B
HOUSING-LATCH (NOT ILLUSTRATED) WCI 3019069 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
23
WCI 318074100 WCI 318074100 Contact Us For Availability
24B
MIXER ELBOW, BROILER WCI 5303210807 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210792 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 5303210844 Contact Us For Availability
25
WCI 318048300 WCI 318048300 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, BLACK WCI 316080600 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
29
KNOB-CLOCK, (8) WCI 318017800 Contact Us For Availability
30
MIXER WCI 5303305657 Contact Us For Availability
33
GLASS-DRAWER, FRONT WCI 3203715 Contact Us For Availability
33
WCI 5303302719 WCI 5303302719 Contact Us For Availability
34
PANEL-INNER DRAWER WCI 5303210010 Contact Us For Availability
35
DRAWER-UTILITY WCI 3051058 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
TUBING-THERMO/SAFETY WCI 5303210796 Contact Us For Availability
36
WCI 3203725 WCI 3203725 Contact Us For Availability
37
PROBE-OVEN TEMP WCI 5303210806 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 318040201 Contact Us For Availability
39
SCREW-HANDLE, (2) (NOT ILLUSTRATED) WCI 5303316748 Contact Us For Availability
39A
WCI 5303308453 WCI 5303308453 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
55
SHIELD-FLUE WCI 5303210822 Contact Us For Availability
56
WCI 318145508 WCI 318145508 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
57
WCI 5303308476 WCI 5303308476 Contact Us For Availability
58
WCI 318123600 WCI 318123600 Contact Us For Availability
58
WCI 5303210708 WCI 5303210708 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303210713 Contact Us For Availability
58A
INSULATION, TOP & SIDES WCI 5303210707 Contact Us For Availability
58B
INSULATION, OVEN TOP WCI 5303210714 Contact Us For Availability
70
WCI 318071410 WCI 318071410 Contact Us For Availability
70
SHIELD-INSULATION WCI 5303210843 Contact Us For Availability
76
WCI 318056133 WCI 318056133 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089401 WCI 318089401 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
WCI 5303308443 WCI 5303308443 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89A
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
96
DUCT-BLOWER WCI 5303210839 Contact Us For Availability
97
WCI 318102400 WCI 318102400 Contact Us For Availability
97A
WCI 318066800 WCI 318066800 Contact Us For Availability
97B
WCI 318145000 WCI 318145000 Contact Us For Availability
98A
WCI 318029401 WCI 318029401 Contact Us For Availability
98B
TRIM-SIDE, INNER, RH (NOT ILLUSTRATED) WCI 318029400 Contact Us For Availability
100
WCI 5303302715 WCI 5303302715 Contact Us For Availability
102
WCI 3203688 WCI 3203688 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
104
ADAPTER-FLUE WCI 3203730 Contact Us For Availability
106
BRACKET-MOTOR MTG WCI K001324830 Contact Us For Availability
108
WCI 318073000 WCI 318073000 Contact Us For Availability
117
BRACKET-THERMO PROTECTOR WCI 5303302718 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
119
WCI 5303326252 WCI 5303326252 Contact Us For Availability
121
WCI 318145001 WCI 318145001 Contact Us For Availability
122
WCI 5303210706 WCI 5303210706 Contact Us For Availability
× ![]()
