Model Electrolux TGB504CFS3 WALL OVEN – Common Parts & Diagrams
01 - COVER

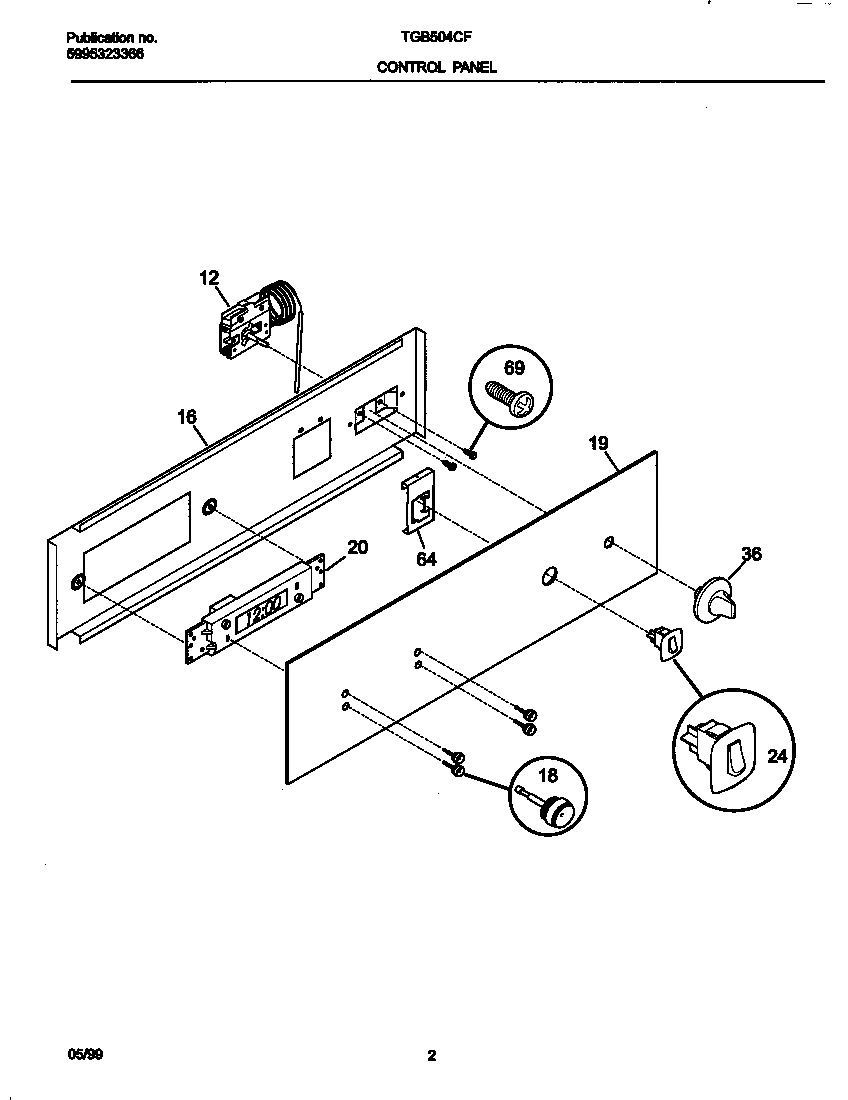

02 - CONTROL PANEL
03 - BURNER
04 - BODY
05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux TGB504CFS3 WALL OVEN
*64443
SCREW,TRUSS HEAD ,8-18 X 0.375 ,(4) WCI 08016432 Contact Us For Availability
3
WCI 318026501 WCI 318026501 Contact Us For Availability
4
WCI 318178500 WCI 318178500 Contact Us For Availability
6
WCI 318116600 WCI 318116600 Contact Us For Availability
7
HINGE ASS,Y LOWER,RH LOWER WCI 5303298313 Contact Us For Availability
7
INSULATION,OVEN DOOR WCI 3200314 Contact Us For Availability
8
WCI 318136500 WCI 318136500 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048900 WCI 318048900 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW-HANDLE MTG,WAFER HEAD ,10-24 X 3.25 WCI 316001001 Contact Us For Availability
12
WCI 318059202 WCI 318059202 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR,HEAT BARRIER ,(2) WCI 318042310 Contact Us For Availability
17
WCI 5304400397 WCI 5304400397 Contact Us For Availability
18
BUTTON-CLOCK,WHITE , CLOCK SET WCI 316017303 Contact Us For Availability
18
WCI 5303207603 WCI 5303207603 Contact Us For Availability
24
SWITCH-LIGHT/LAMP,WHITE WCI 316090901 Contact Us For Availability
25
WCI 5303317712 WCI 5303317712 Contact Us For Availability
29
GLIDE-BROILER RACK WCI 5303209887 Contact Us For Availability
29
SPACER-HANDLE,(2) WCI 08010461 Contact Us For Availability
33
WCI 5303317128 WCI 5303317128 Contact Us For Availability
36
FLUE WCI 5303298341 Contact Us For Availability
39
WCI 318040205 WCI 318040205 Contact Us For Availability
56
WCI 318028201 WCI 318028201 Contact Us For Availability
58
WCI 5304400183 WCI 5304400183 Contact Us For Availability
58
WCI 5304400184 WCI 5304400184 Contact Us For Availability
62
WCI 08010463 WCI 08010463 Contact Us For Availability
83
WCI 318109510 WCI 318109510 Contact Us For Availability
85
SPRING-OVEN DOOR,UPPER WCI 5303207651 Contact Us For Availability
85
BRACKET-SPRING,UPPER WCI 5303317126 Contact Us For Availability
85
SLEEVE-DOOR SPRING WCI 08012781 Contact Us For Availability
85
BRACKET-SPRING,UPPER WCI 318113300 Contact Us For Availability
85
WCI 5303317711 WCI 5303317711 Contact Us For Availability
97
WRAPPER-TOP WCI 5303317130 Contact Us For Availability
98
WCI 318029002 WCI 318029002 Contact Us For Availability
98
TRIM-BODYSIDE,RH WCI 318029003 Contact Us For Availability
121
WCI 5303317131 WCI 5303317131 Contact Us For Availability
124
BOX-FLUE WCI 318076801 Contact Us For Availability
130
WCI 318034601 WCI 318034601 Contact Us For Availability
136
WCI 5303317129 WCI 5303317129 Contact Us For Availability
158A
SEAL-DOOR,BLACK ,TOP BROILER WCI 5303207644 Contact Us For Availability
158B
SEAL-SIDE,BAKE OVEN WCI 5303295311 Contact Us For Availability
216
WCI 318034502 WCI 318034502 Contact Us For Availability
216
WCI 318034503 WCI 318034503 Contact Us For Availability
242
WCI 318027201 WCI 318027201 Contact Us For Availability
244B
WCI 3201495 WCI 3201495 Contact Us For Availability
246
WCI 318133600 WCI 318133600 Contact Us For Availability
247
GLIDE-OVEN RACK WCI 3018717 Contact Us For Availability
248
WCI 5303317121 WCI 5303317121 Contact Us For Availability
249
WCI 5304400385 WCI 5304400385 Contact Us For Availability
250
WCI 318106003 WCI 318106003 Contact Us For Availability
251
WCI 318106004 WCI 318106004 Contact Us For Availability
× ![]()
