Model Electrolux TGB500CCB3 WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

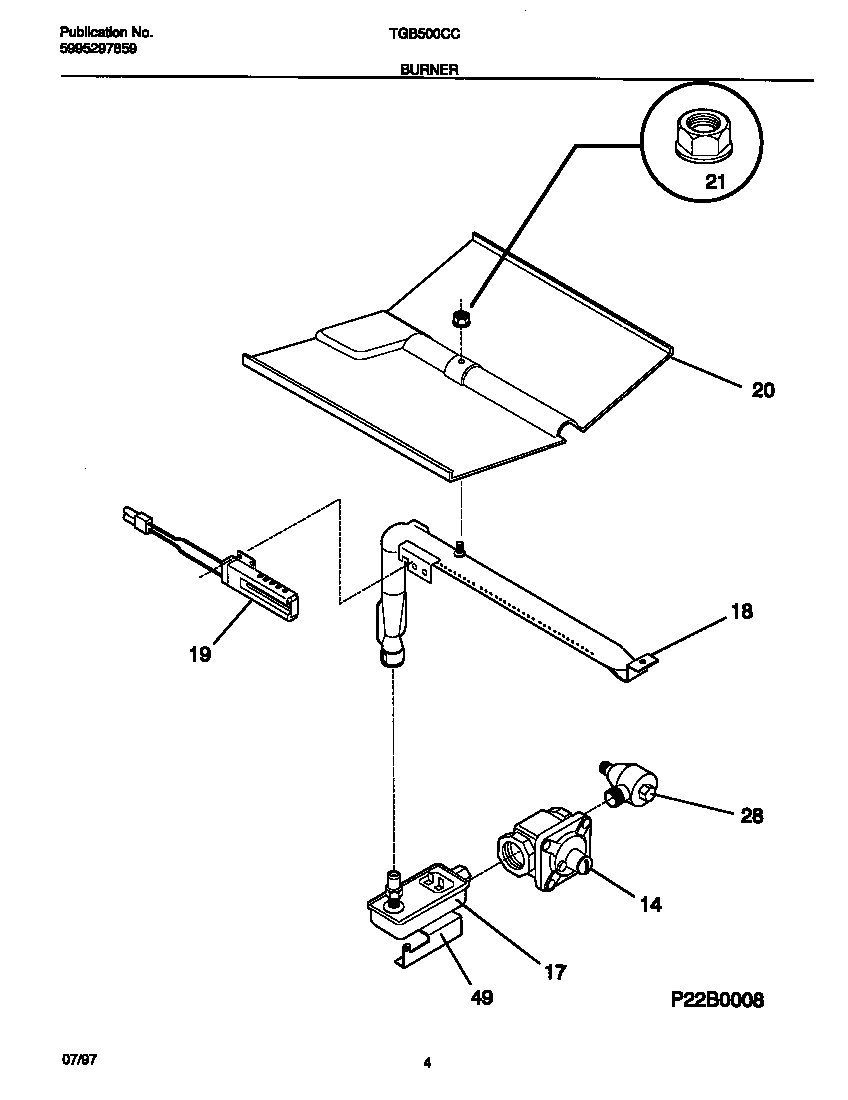

03 - BURNER

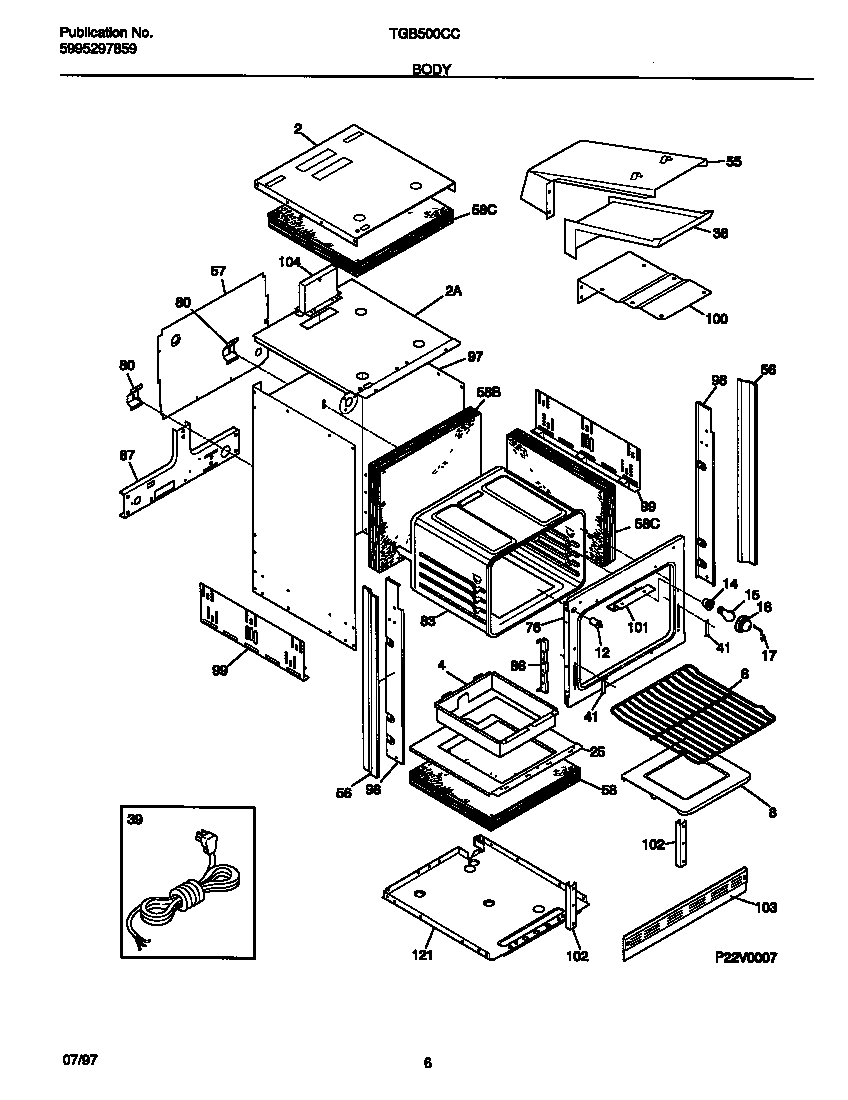

04 - BODY

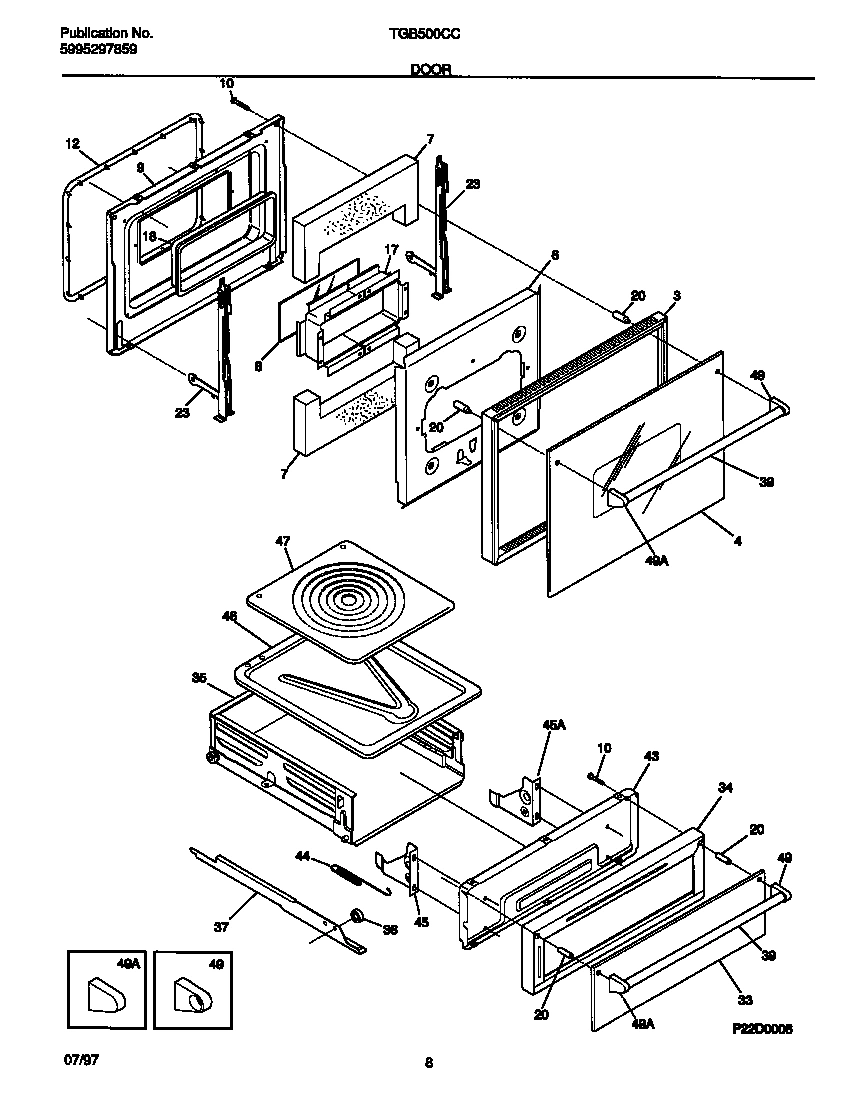

05 - DOOR

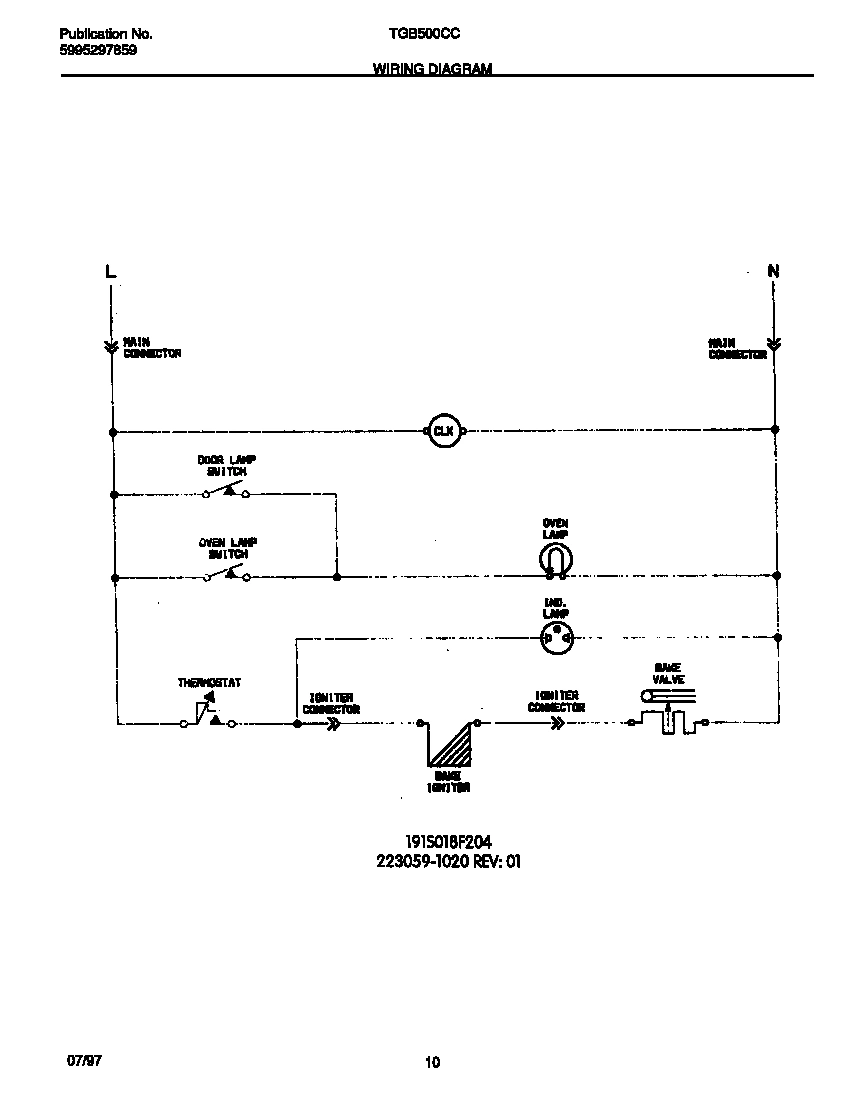

06 - WIRING DIAGRAM
Common parts from model Electrolux TGB500CCB3 WALL OVEN
*36291
WCI 08002868 WCI 08002868 Contact Us For Availability
*36293
ANGLE-BURNER BOX WCI 5303210705 Contact Us For Availability
*36296
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*36297
SCREW, OVAL HD, 6-20 X 5/8, BLACK WCI 5303311528 Contact Us For Availability
*36298
WCI 5303300414 WCI 5303300414 Contact Us For Availability
2
WCI 318101900 WCI 318101900 Contact Us For Availability
2
WCI 5303305035 WCI 5303305035 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 5303212560 Contact Us For Availability
4
WCI 318161500 WCI 318161500 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3202420 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
8
WCI 318121400 WCI 318121400 Contact Us For Availability
9
WCI 318048400 WCI 318048400 Contact Us For Availability
10
WCI 5303316748 WCI 5303316748 Contact Us For Availability
12
WCI 5303316768 WCI 5303316768 Contact Us For Availability
12
SWITCH-LIGHT WCI 5301314211 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
17
WCI 3203702 WCI 3203702 Contact Us For Availability
17
RETAINER-GLASS WCI 318162601 Contact Us For Availability
17
RETAINER-LENS, OVEN WCI 3204483 Contact Us For Availability
18
SEAL-ROPE WCI 3016338 Contact Us For Availability
20
WCI 318011100 WCI 318011100 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
23
WCI 318074103 WCI 318074103 Contact Us For Availability
25
WCI 5303210706 WCI 5303210706 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
29
KNOB-CLOCK, (3) WCI 318036310 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
32
WCI 318016814 WCI 318016814 Contact Us For Availability
33
GLASS-DRAWER, FRONT WCI 3203715 No Longer Available
34
PANEL-INNER DRW WCI 318116000 Contact Us For Availability
35
PANEL, BROILER DRAWER, BOTTOM (NOT ILLUSTRATE WCI 318136000 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 3203725 WCI 3203725 Contact Us For Availability
39
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 318040201 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
43
WCI 318107800 WCI 318107800 Contact Us For Availability
44
SPRING-BROILER WCI 5303131030 Contact Us For Availability
45
WCI 5303308471 WCI 5303308471 Contact Us For Availability
45
WCI 5303308472 WCI 5303308472 Contact Us For Availability
46
PAN-BROILER WCI 318126200 Contact Us For Availability
47
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303308469 WCI 5303308469 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
55
SHIELD-FLUE COVER WCI 3204210 Contact Us For Availability
56
WCI 318145508 WCI 318145508 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
57
WCI 5303308476 WCI 5303308476 Contact Us For Availability
58
INSULATION, TOP & SIDES WCI 5303210707 Contact Us For Availability
58
WCI 5303280377 WCI 5303280377 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
76
WCI 318056120 WCI 318056120 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089400 WCI 318089400 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
WCI 5303308475 WCI 5303308475 Contact Us For Availability
97
WCI 318066800 WCI 318066800 Contact Us For Availability
98
WCI 318029400 WCI 318029400 Contact Us For Availability
98
WCI 318029401 WCI 318029401 Contact Us For Availability
100
WCI 5303302715 WCI 5303302715 Contact Us For Availability
101
WCI 5303308474 WCI 5303308474 Contact Us For Availability
102
WCI 3203688 WCI 3203688 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
103
WCI 5303308473 WCI 5303308473 Contact Us For Availability
104
ADAPTER-FLUE WCI 3203730 Contact Us For Availability
121
WCI 318145001 WCI 318145001 Contact Us For Availability
× ![]()
