Model Electrolux TGB500CCB1 WALL OVEN – Common Parts & Diagrams

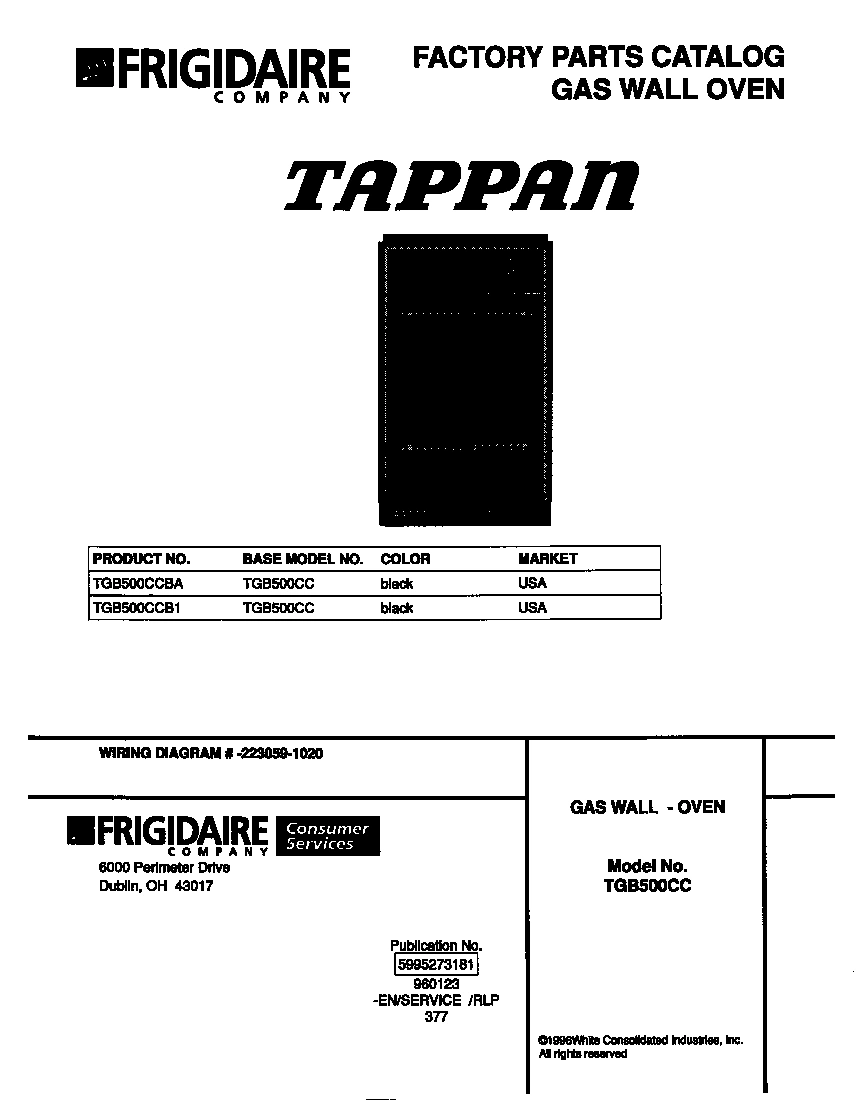

01 - COVER

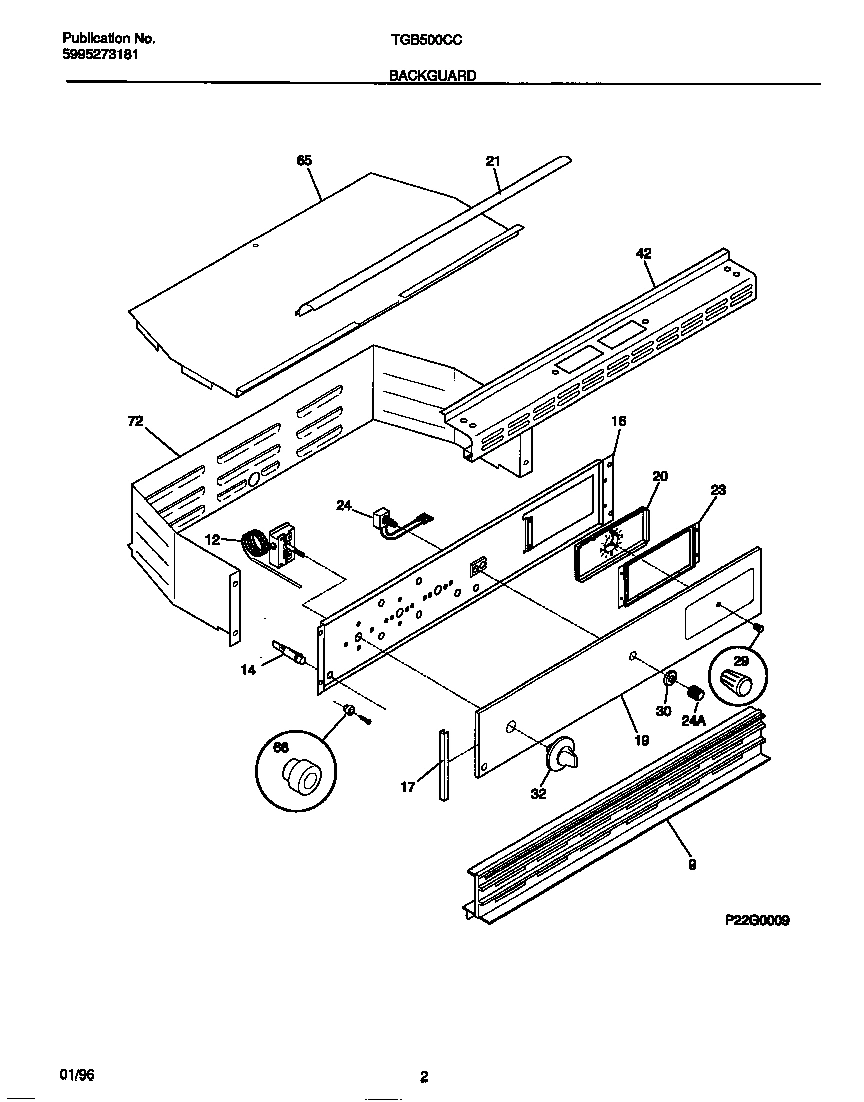

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - DRAWER/DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux TGB500CCB1 WALL OVEN
*52560
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*52562
SPACER-OVEN WCI 3201632 Contact Us For Availability
*52563
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*52564
TAPE-INNER DOOR WCI 5303212886 Contact Us For Availability
*52565
WCI 5303296967 WCI 5303296967 Contact Us For Availability
2
WCI 3203690 WCI 3203690 Contact Us For Availability
2
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
3
TRIM-OVEN DOOR WCI 5303212560 Contact Us For Availability
4
WCI 5303280375 WCI 5303280375 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3202420 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303296327 Contact Us For Availability
8
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303296860 Contact Us For Availability
10
WCI 5303282419 WCI 5303282419 Contact Us For Availability
12
WCI 5303316768 WCI 5303316768 Contact Us For Availability
12
WCI 5301314211 WCI 5301314211 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
17
WCI 3203702 WCI 3203702 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE WCI 3016338 Contact Us For Availability
20
WCI 318011100 WCI 318011100 Contact Us For Availability
20
WCI 5303308480 WCI 5303308480 Contact Us For Availability
20
SPACER-DOOR, (2) WCI 5303210003 Contact Us For Availability
25
WCI 5303210706 WCI 5303210706 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
32
WCI 318016814 WCI 318016814 Contact Us For Availability
33
GLASS-DRAWER, FRONT WCI 3203715 No Longer Available
34
PANEL-INNER DRW WCI 318116000 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 3203725 WCI 3203725 Contact Us For Availability
39
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 318040201 Contact Us For Availability
39
SCREW-HANDLE, (2) (NOT ILLUSTRATED) WCI 5303316748 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
41
HINGE-OVEN DOOR WCI 3202464 Contact Us For Availability
43
LINER-BROILER DOOR WCI 5303296966 Contact Us For Availability
44
SPRING-BROILER WCI 5303131030 Contact Us For Availability
45
WCI 5303308471 WCI 5303308471 Contact Us For Availability
45
WCI 5303308472 WCI 5303308472 Contact Us For Availability
46
WCI 5303286736 WCI 5303286736 Contact Us For Availability
47
WCI 5303017712 WCI 5303017712 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303308469 WCI 5303308469 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
55
SHIELD-FLUE COVER WCI 3204210 Contact Us For Availability
56
TRIM-BODYSIDE WCI 5303280347 Contact Us For Availability
57
COVER-ACCESS WCI 5303308476 Contact Us For Availability
58
INSULATION, TOP & SIDES WCI 5303210707 Contact Us For Availability
58
WCI 5303280377 WCI 5303280377 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
72
WRAPPER-SHIELD, HOUSING CONTROL WCI 5303302397 Contact Us For Availability
76
FRONT-OVEN WCI 5303296866 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY WCI 5303296968 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
WCI 5303308475 WCI 5303308475 Contact Us For Availability
97
WRAPPER, BACK & SIDES WCI 5303210686 Contact Us For Availability
98
TRIM-SIDE, INNER, RH (NOT ILLUSTRATED) WCI 3203664 Contact Us For Availability
98
TRIM-SIDE, INNER, LH WCI 3203665 Contact Us For Availability
100
WCI 5303302715 WCI 5303302715 Contact Us For Availability
101
WCI 5303308474 WCI 5303308474 Contact Us For Availability
102
WCI 3203688 WCI 3203688 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
103
WCI 5303308473 WCI 5303308473 Contact Us For Availability
104
ADAPTER-FLUE WCI 3203730 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
× ![]()
