Model Electrolux TFU16F7AW2 FREEZER – Common Parts & Diagrams

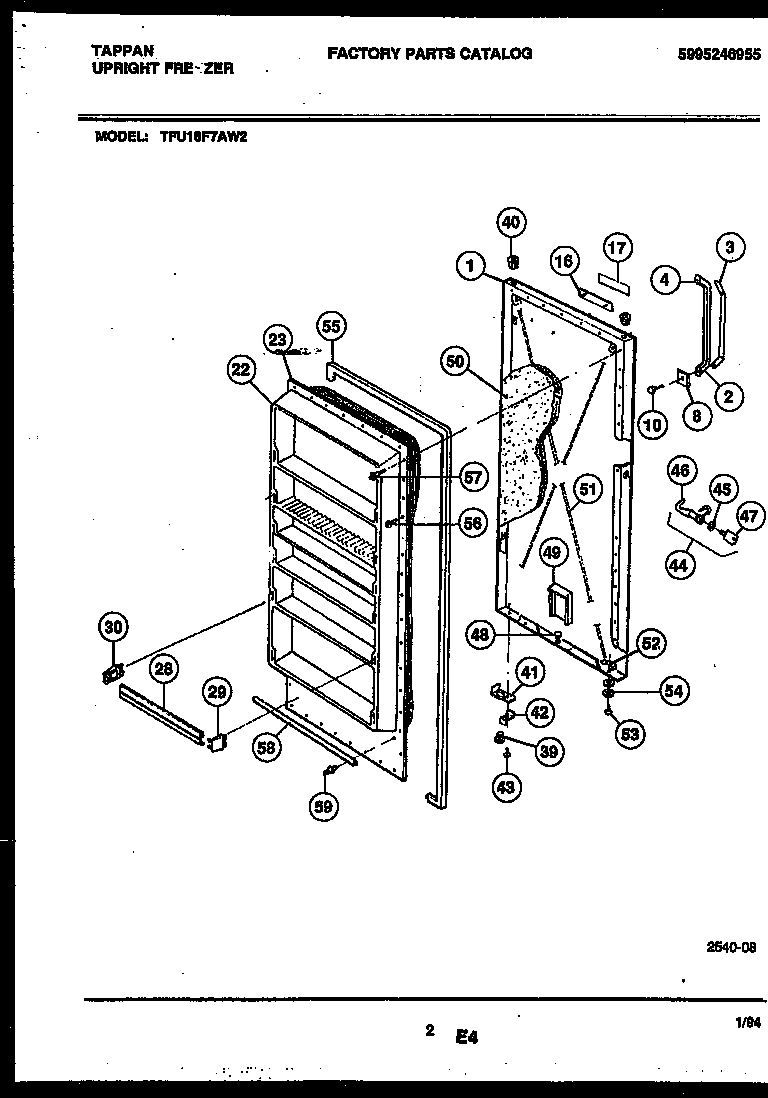

02 - DOOR PARTS

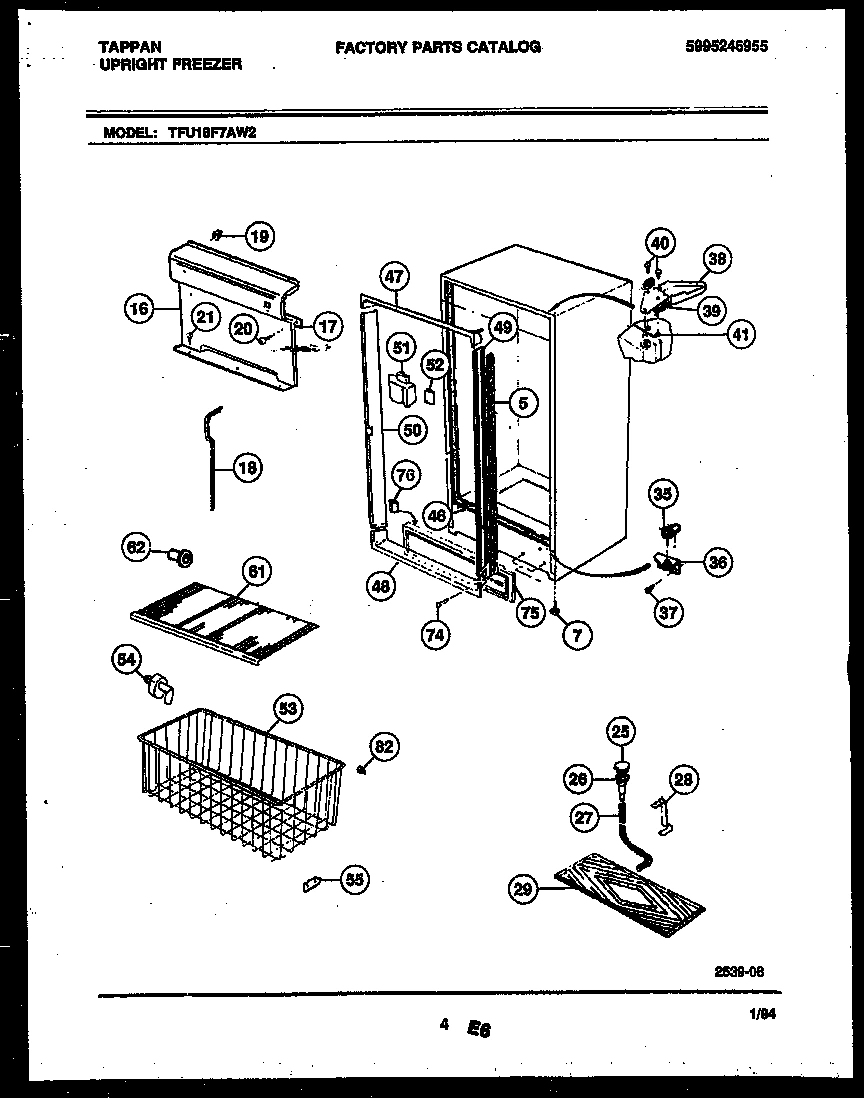

03 - CABINET PARTS
04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux TFU16F7AW2 FREEZER
*95383
WCI 06594651 WCI 06594651 Contact Us For Availability
1
EVAPORATOR ASSEMBLY WCI 5303288322 Contact Us For Availability
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
SPACER EVAPORATOR (2) WCI 08013198 Contact Us For Availability
3A
WCI 06599546 WCI 06599546 Contact Us For Availability
4
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
5
INSULATION (1/2`` X 2``) WCI 09950831 Contact Us For Availability
7
LEG LEVELER (4) WCI 216218100 Contact Us For Availability
7
WCI 08013207 WCI 08013207 Contact Us For Availability
14
FAN BLADE WCI 3205520 Contact Us For Availability
16
PANEL-EVAPORATOR WCI 216084100 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
18
GASKET-PANEL (2) WCI 216204900 Contact Us For Availability
21
SCREW-PANEL TO EVAPORATOR (2) WCI 216283900 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
DEFROST DRAIN PAN WCI 5308016387 Contact Us For Availability
30
WCI 06594625 WCI 06594625 Contact Us For Availability
31
INSULATION WCI 09948773 Contact Us For Availability
35
WCI 5303210424 WCI 5303210424 Contact Us For Availability
36
WCI 5303210383 WCI 5303210383 Contact Us For Availability
38
COVER, HINGE WCI 5303212912 Contact Us For Availability
39
HINGE, TOP WCI 5303212935 Contact Us For Availability
40
SCREW-HINGE WCI 5303212937 Contact Us For Availability
40A
SPACER-TOP BREAKER (2) (NON-ILLUSTRATED) WCI 08037937 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
43
WASHER BRACKET WCI 5300095480 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
WCI 216085900 WCI 216085900 Contact Us For Availability
47
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
48
WCI 216085800 WCI 216085800 Contact Us For Availability
49
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
49
WCI 216108801 WCI 216108801 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 216108901 WCI 216108901 Contact Us For Availability
51
WIRE, ADJUSTING (2) WCI 08037415 Contact Us For Availability
51
WCI 216013600 WCI 216013600 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
CLIP LOCK WCI 216013700 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
WCI 09948791 No Longer Available
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
SCREW TIMER TO BRACKET WCI 08037849 Contact Us For Availability
55
WCI 3206254 WCI 3206254 Contact Us For Availability
55A
SPACERS-BASKET (4) (NON-ILLUSTRATED) WCI 5303288196 Contact Us For Availability
56
SCREW-DOOR PANEL (22) WCI 216022800 Contact Us For Availability
57
SCREW PANEL (24) WCI 08009384 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
61
WCI 216266701 WCI 216266701 Contact Us For Availability
61
WCI 216266801 WCI 216266801 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
62
AIR SEAL, LH WCI 3017674 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
66
SPACER BAFFLE PLATE (2) WCI 08000456 Contact Us For Availability
68
SCREW SHIELD (2) WCI 5303283898 Contact Us For Availability
69
WCI 08037401 WCI 08037401 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
74
PIN BASE TRIM (2) WCI 5309950066 Contact Us For Availability
75
WCI 3017667 WCI 3017667 Contact Us For Availability
75
BRACKET, SIGNAL LIGHT WCI 216009101 Contact Us For Availability
76
WCI 5300118003 WCI 5300118003 Contact Us For Availability
76
SCREW-BRACKET WCI 08037851 Contact Us For Availability
77
WCI 06594648 WCI 06594648 Contact Us For Availability
80
LIGHT SHIELD WCI 216241601 Contact Us For Availability
81
BAFFLE WCI 5303288233 Contact Us For Availability
82
WCI 216215900 WCI 216215900 Contact Us For Availability
83
COVER, CONTROL WCI 216230300 Contact Us For Availability
84
WCI 216008801 WCI 216008801 Contact Us For Availability
84A
WCI 06599553 WCI 06599553 Contact Us For Availability
85
COMPRESSOR WCI 5303917190 Contact Us For Availability
86
WCI 5308037789 WCI 5308037789 Contact Us For Availability
87
RELAY WCI 216008900 Contact Us For Availability
89
CLIP WCI 215012000 Contact Us For Availability
92
SLEEVE (3) WCI 5306594529 Contact Us For Availability
93
SCREW (3) WCI 5303272328 Contact Us For Availability
94
HARNESS WCI 216267700 Contact Us For Availability
96
SOCKET WCI 5300136117 Contact Us For Availability
× ![]()
