Model Electrolux TFU09M4AW3 FREEZER – Common Parts & Diagrams

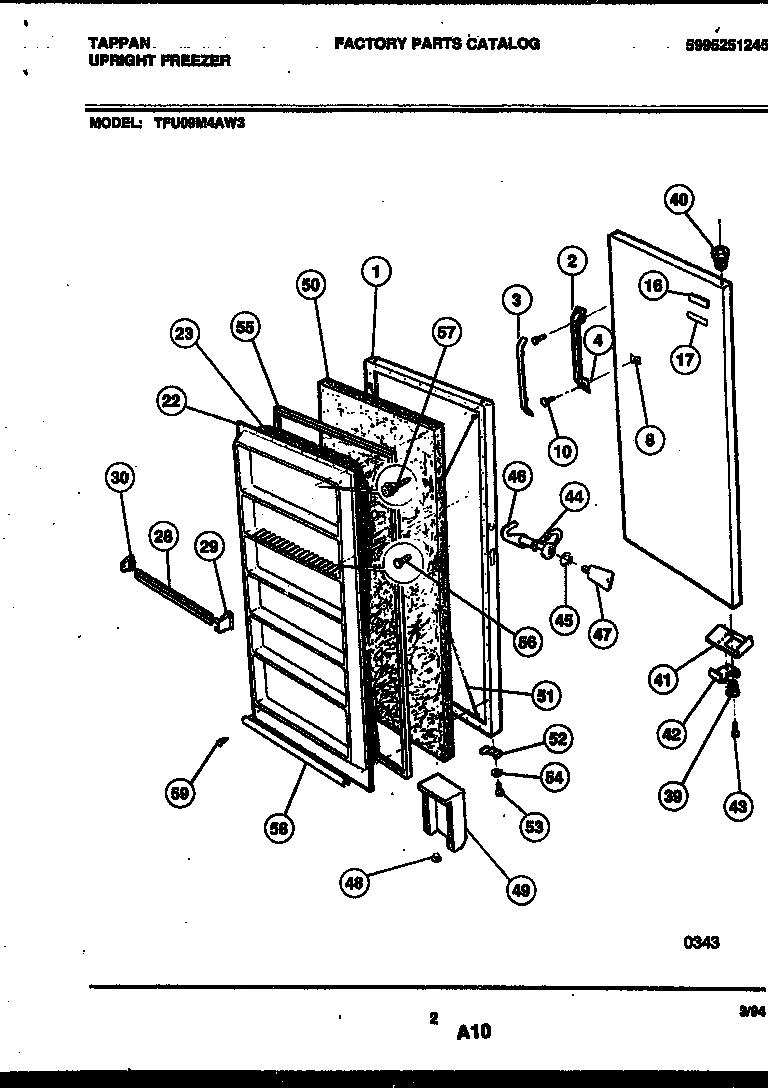

02 - DOOR PARTS

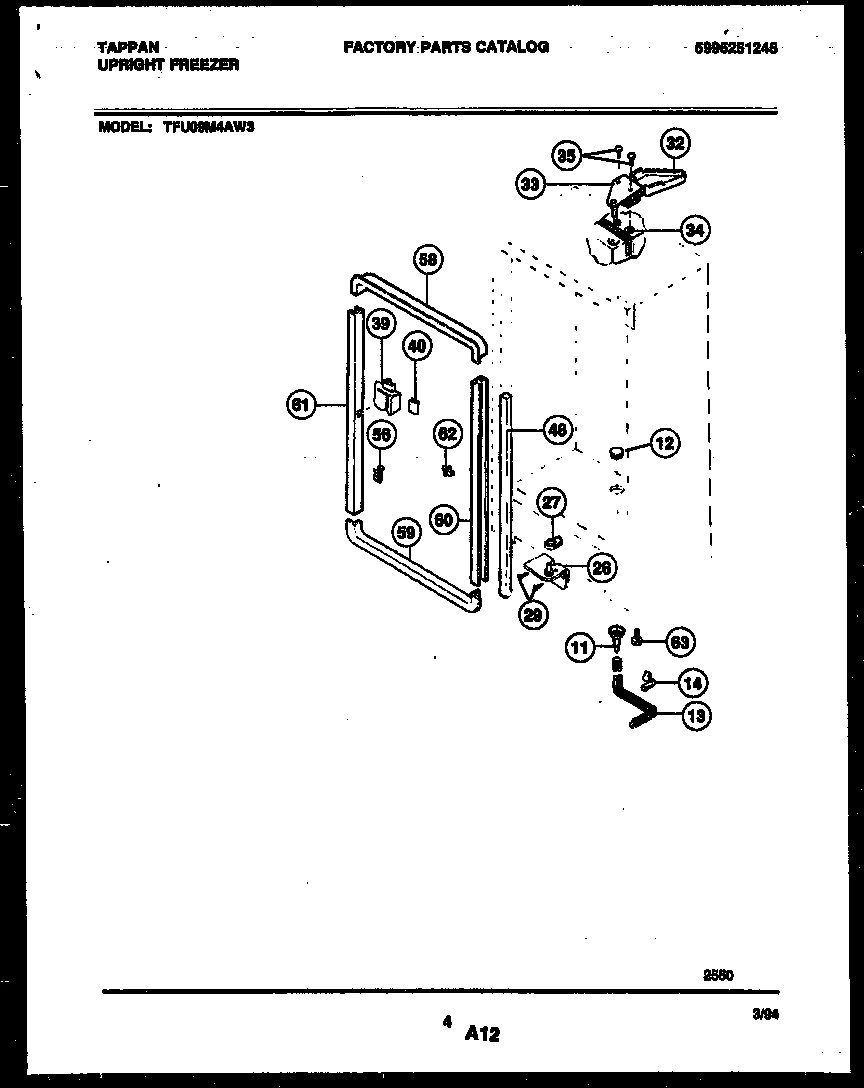

03 - CABINET PARTS

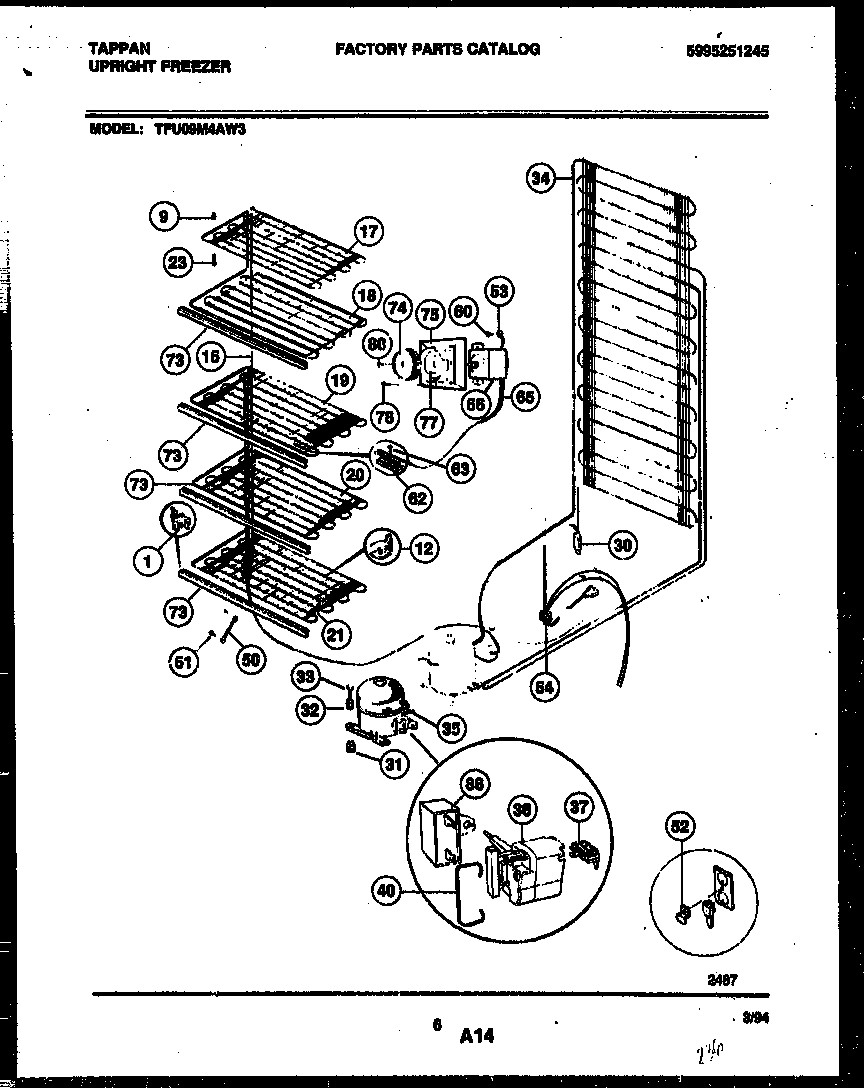

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux TFU09M4AW3 FREEZER
9
SPACER TOP GRID (3) WCI 216225700 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
SUPPORT REAR (6) WCI 216225600 Contact Us For Availability
13A
HOSE-ADAPTER (NON-ILLUSTRATED) WCI 216269500 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
17
TOP GRID WCI 216069300 Contact Us For Availability
17A
TAPE NAMEPLATE (NON-ILLUSTRATED) WCI 5300460947 Contact Us For Availability
18
FIRST SHELF WCI 216069400 Contact Us For Availability
19
SECOND SHELF WCI 216069500 Contact Us For Availability
21
BOTTOM SHELF WCI 216069600 Contact Us For Availability
23
SCREW TOP GRID WCI 216138900 Contact Us For Availability
26
WCI 216247400 WCI 216247400 Contact Us For Availability
27
WCI 5303210424 WCI 5303210424 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
WCI 5303212935 WCI 5303212935 Contact Us For Availability
33
WCI 08002679 WCI 08002679 Contact Us For Availability
34
WCI 5303294372 WCI 5303294372 Contact Us For Availability
34
EXTERNAL CONDENSER (NOT ORIGINAL EQUIPMENT. S WCI 5303304537 Contact Us For Availability
35
WCI 5303212937 WCI 5303212937 Contact Us For Availability
35
WCI 216138400 WCI 216138400 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206885 WCI 5303206885 Contact Us For Availability
39
WCI 216013700 WCI 216013700 Contact Us For Availability
40
SUPPORT WCI 216013600 Contact Us For Availability
40
CLAMP WCI 216147800 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
48
WCI 5309950074 WCI 5309950074 Contact Us For Availability
48
WCI 09950831 WCI 09950831 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WCI 08037986 WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
ASSY-CLAMP-POWER CORD WCI 08016777 Contact Us For Availability
53
WCI 5300057906 WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WCI 09950839 WCI 09950839 Contact Us For Availability
54
WIRING HARNESS W/POWER CORD WCI 216232800 Contact Us For Availability
55
GASKET DOOR-GRAY WCI 3206236 Contact Us For Availability
56
WCI 216260400 WCI 216260400 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
SCREW-PANEL (16) WCI 216022800 Contact Us For Availability
58
GASKET WCI 08009385 Contact Us For Availability
58
WCI 216073100 WCI 216073100 Contact Us For Availability
59
WCI 216073000 WCI 216073000 Contact Us For Availability
60
WCI 216102600 WCI 216102600 Contact Us For Availability
61
WCI 216102701 WCI 216102701 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG ADJ. (4) WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
73
SHELF TRIM (3) WCI 216097700 Contact Us For Availability
74
WCI 216008700 WCI 216008700 Contact Us For Availability
75
HOUSING COLD CONTROL WCI 5303288184 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
× ![]()
