Model GE TFF20VAB – Common Parts & Diagrams
0

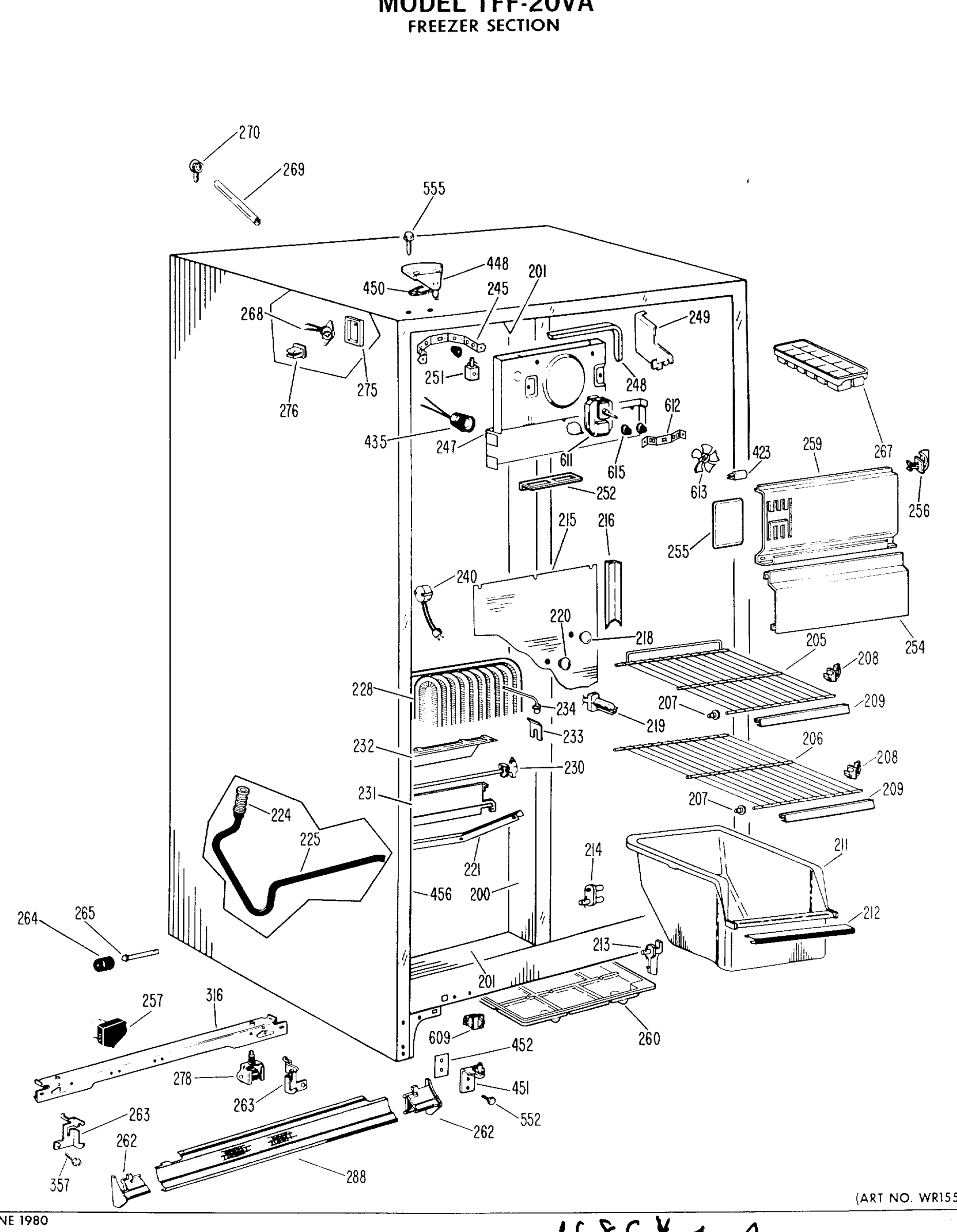

FREEZER SECTION
Common parts from model GE TFF20VAB
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
BRACKET DEF HTR GEN WR02X7012 Contact Us For Availability
205
SHELF FZ GEN WR71X1514 Contact Us For Availability
206
SHELF FRZ. BTM GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X0949 GEN WR38X0949 Contact Us For Availability
210
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
211
GEN WR21X5014 GEN WR21X5014 Contact Us For Availability
212
TRIM HANDLE GEN WR17X1522 Contact Us For Availability
213
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
214
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
215
COVER EVAP GEN WR17X1566 Contact Us For Availability
216
GEN WR14X0274 GEN WR14X0274 Contact Us For Availability
217
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
218
PLUG HOLE GEN WR02X6008 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
223
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
TUBE DRAIN EXTENSION GEN WR02X4969 Contact Us For Availability
227
CLAMP TUBE GEN WR02X4818 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
229
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
229
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
229
REFRIGERANT GEN WR97X5036 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
231
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
233
SHIELD DEF HTR GEN WR17X1216 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR07X0567 GEN WR07X0567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
258
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
COVER FAN GEN WR17X1568 Contact Us For Availability
260
PAN WATER DISPOSAL GEN WR32X0687 Contact Us For Availability
262
CAP GRILLE R. SIDE GEN WR02X4668 Contact Us For Availability
262
CAP GRILLE L. SIDE GEN WR02X4669 Contact Us For Availability
263
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
263
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0191 Contact Us For Availability
269
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
269
WR2X6087 GEN WR29X5104 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
288
GRILLE BASE GEN WR74X0146 Contact Us For Availability
316
RAIL MACH MTG FRT GEN WR17X1491 Contact Us For Availability
325
GEN WR02X4396 GEN WR02X4396 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
SCREWBOTTOM GEN WZ05X0196 Contact Us For Availability
564
SCREW 1 4-14X3/4 GEN WR01X1194 Contact Us For Availability
565
RIVET POP GEN WR01X1361 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
MOTOR EVAP FAN GEN WR60X0108 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
BRACKET EVAP FAN GEN WR02X4793 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
BAFFLE SOUND REAR GEN WR82X0207 Contact Us For Availability
627
BAFFLE AIR COND. FAN GEN WR17X1488 Contact Us For Availability
631
SEAL POUR HOLE GEN WR02X4829 Contact Us For Availability
631
PLUG BUTTON GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
651
BLADE COND. FAN GEN WR60X0042 Contact Us For Availability
652
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
BRACKET COND. FAN GEN WR02X4801 Contact Us For Availability
675
SCREW 8-15X1/2 GEN WZ06X0096 Contact Us For Availability
677
GEN WR01X1467 GEN WR01X1467 Contact Us For Availability
680
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
683
SCREW 8-36X3/8 GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
730
GEN WR84X0036 GEN WR84X0036 Contact Us For Availability
731
CLIP COND. GEN WR02X4621 Contact Us For Availability
731
CLIP COND. GEN WR02X4850 Contact Us For Availability
732
CUP & BRACKET R. SIDE GEN WR02X1864 Contact Us For Availability
733
CUP & BRACKET L. SIDE GEN WR02X1865 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
734
RELAY COMP. GEN WR07X0138 Contact Us For Availability
735
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
737
SLEEVE COMP. MTG. GEN WR02X2202 Contact Us For Availability
738
TUBE COND. LOOP ASM. GEN WR84X0045 Contact Us For Availability
743
EXT. CONIP. MTG. GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP. MTG. GEN WR02X3904 Contact Us For Availability
746
BAFFLE COMP. FRT. GEN WR17X1489 Contact Us For Availability
747
BAFFLE COMP. FLR. GEN WR17X1494 Contact Us For Availability
9999
PM GUIDE OWNERS GEN 49-6287-2 Contact Us For Availability
× ![]()
