Model Whirlpool TF4600XTP1 TRASH COMPACTOR – Common Parts & Diagrams
04 - CONTAINER
01 - MOTOR AND DRIVE , LIT/OPTIONAL

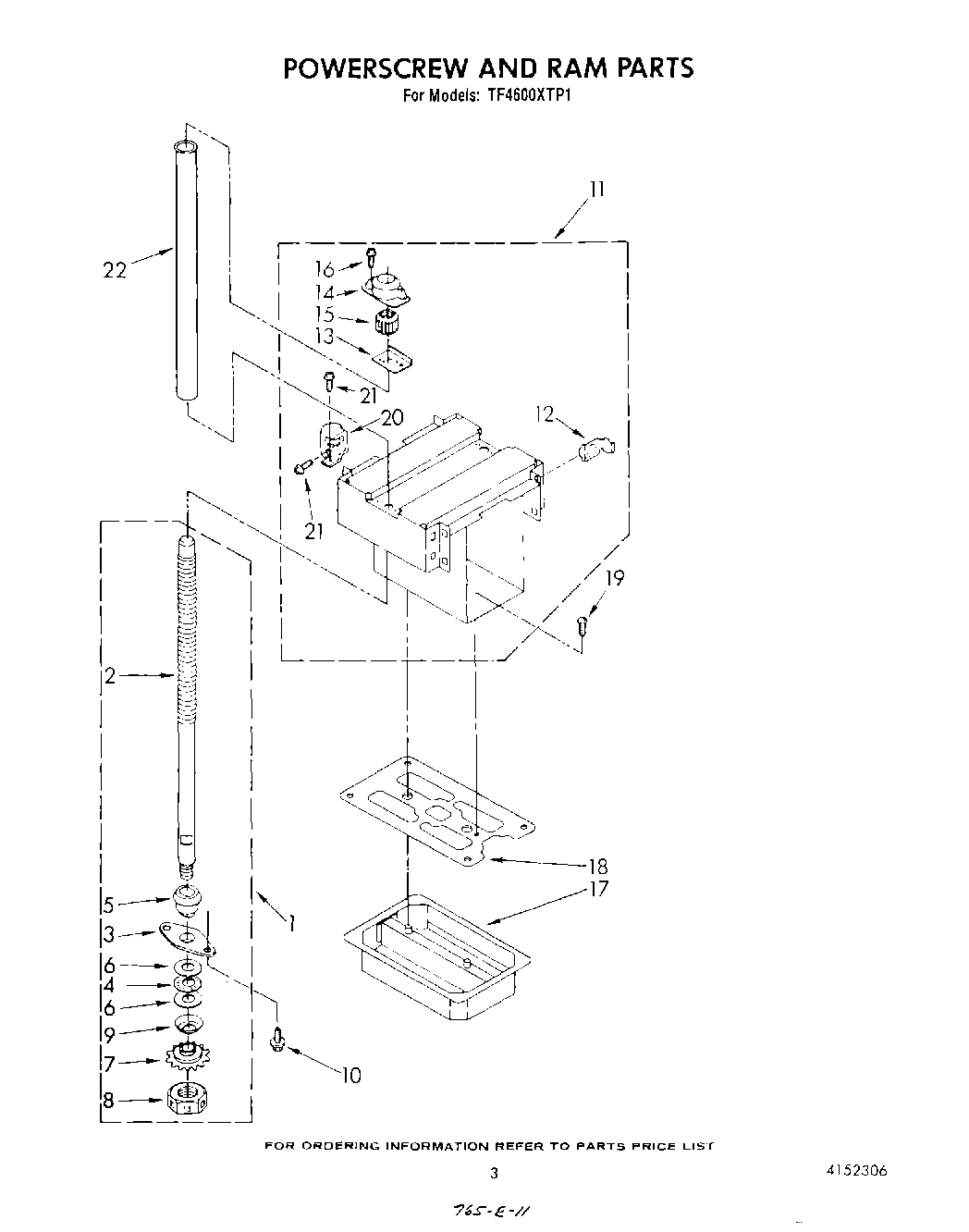

03 - POWERSCREW AND RAM

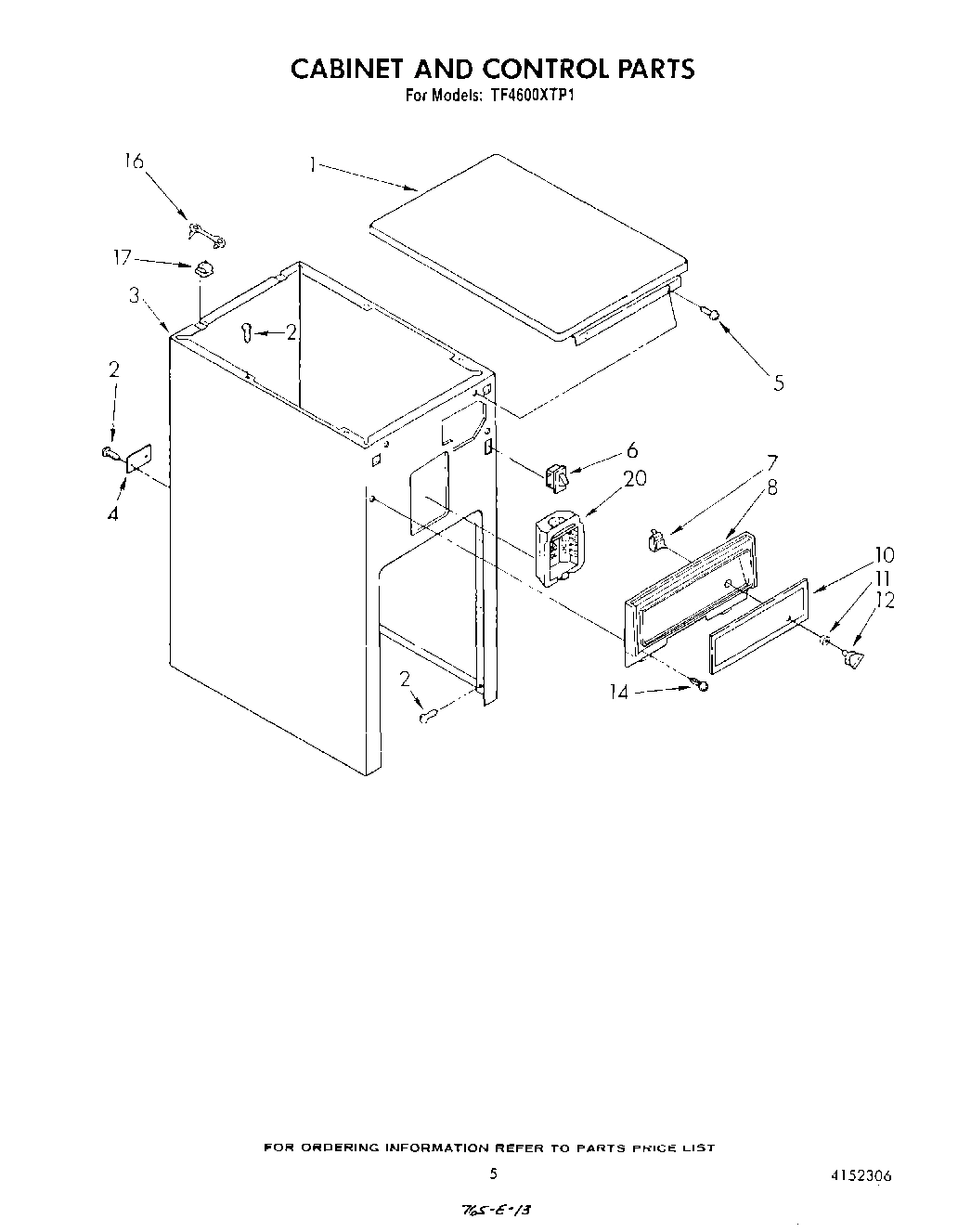

05 - CABINET AND CONTROL

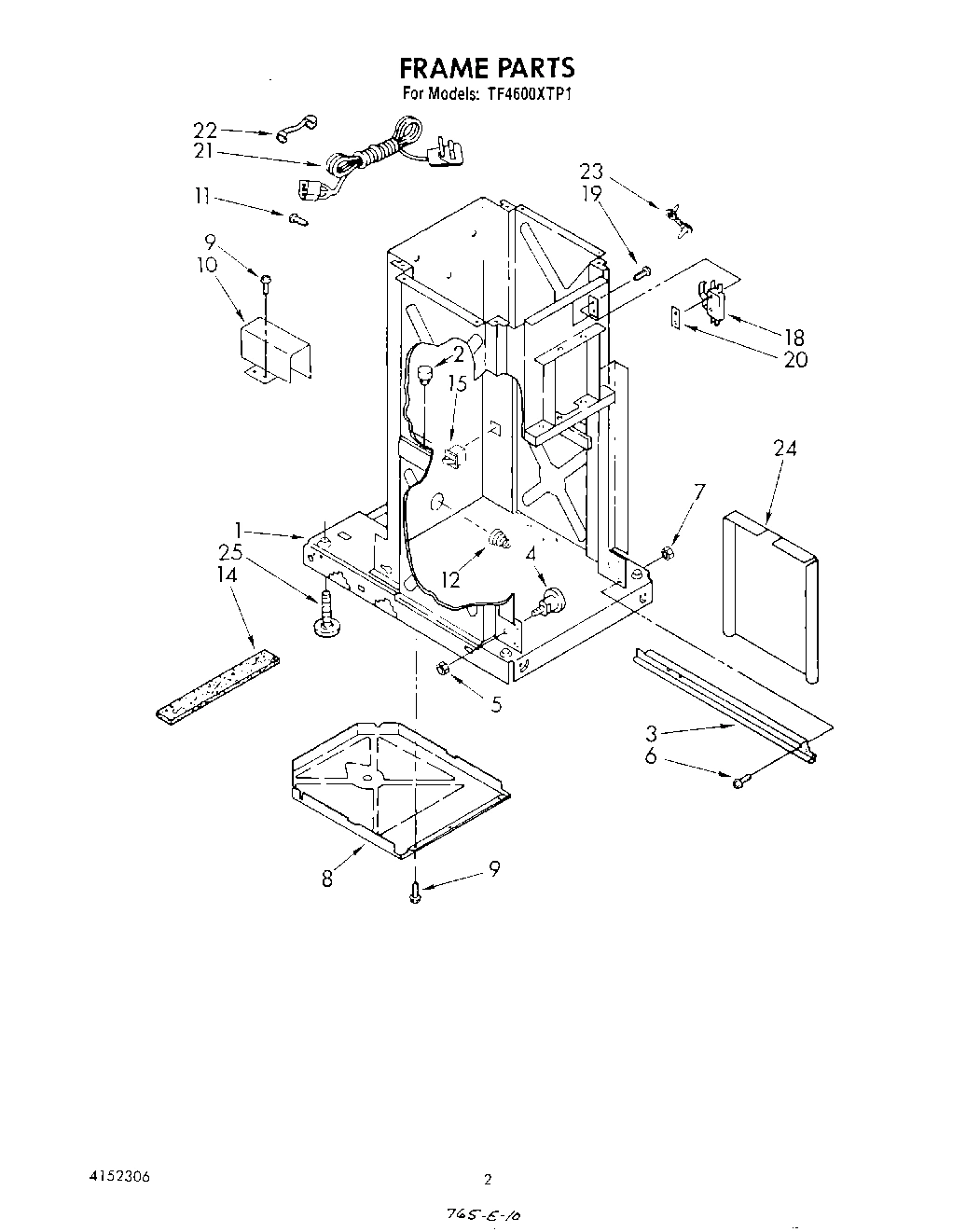

02 - FRAME

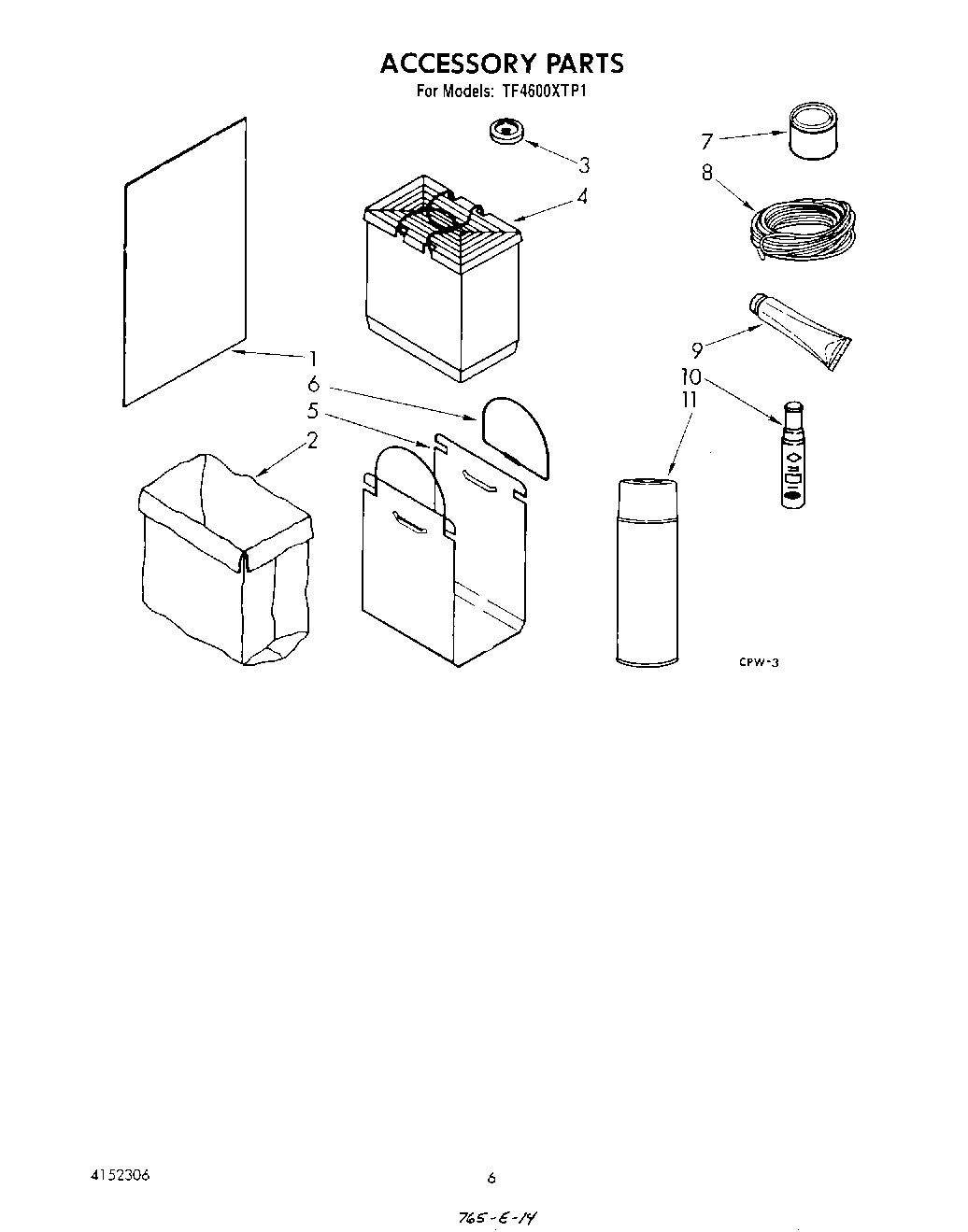

06 - ACCESSORY
Common parts from model Whirlpool TF4600XTP1 TRASH COMPACTOR
1
Top, Cabinet WPL 608630 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI131279A Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Bumper, Ram (4) WPL 775643 Contact Us For Availability
2
bag, trash (96 pack) WPL 675350 Contact Us For Availability
3
Cabinet WPL 4152064 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Escutcheon, Control WPL 780050 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Insert, Escutcheon WPL 780407 Contact Us For Availability
10
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
12
Knob, Rotary Switch WPL 780191 Contact Us For Availability
14
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
Clip, Top Mount (2) WPL 776017 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Holder, Deodorant Storage WPL 608533 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
21
Cord, Service WPL 937360 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
24
Insulation, Inner Panel (2) WPL 780412 Contact Us For Availability
× ![]()
