Model Whirlpool TF4500XRP1 TRASH COMPACTOR – Common Parts & Diagrams

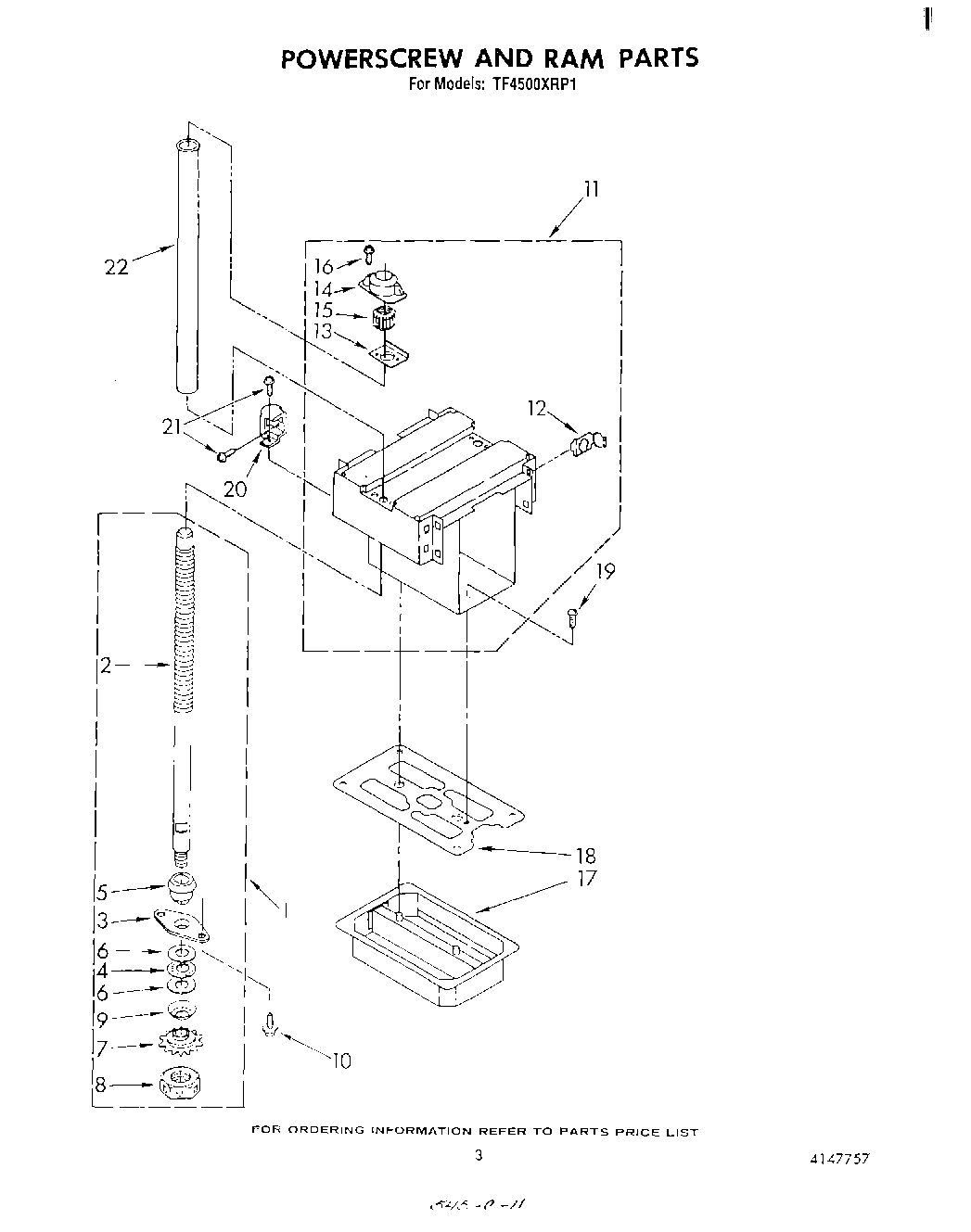

03 - POWERSCREW AND RAM

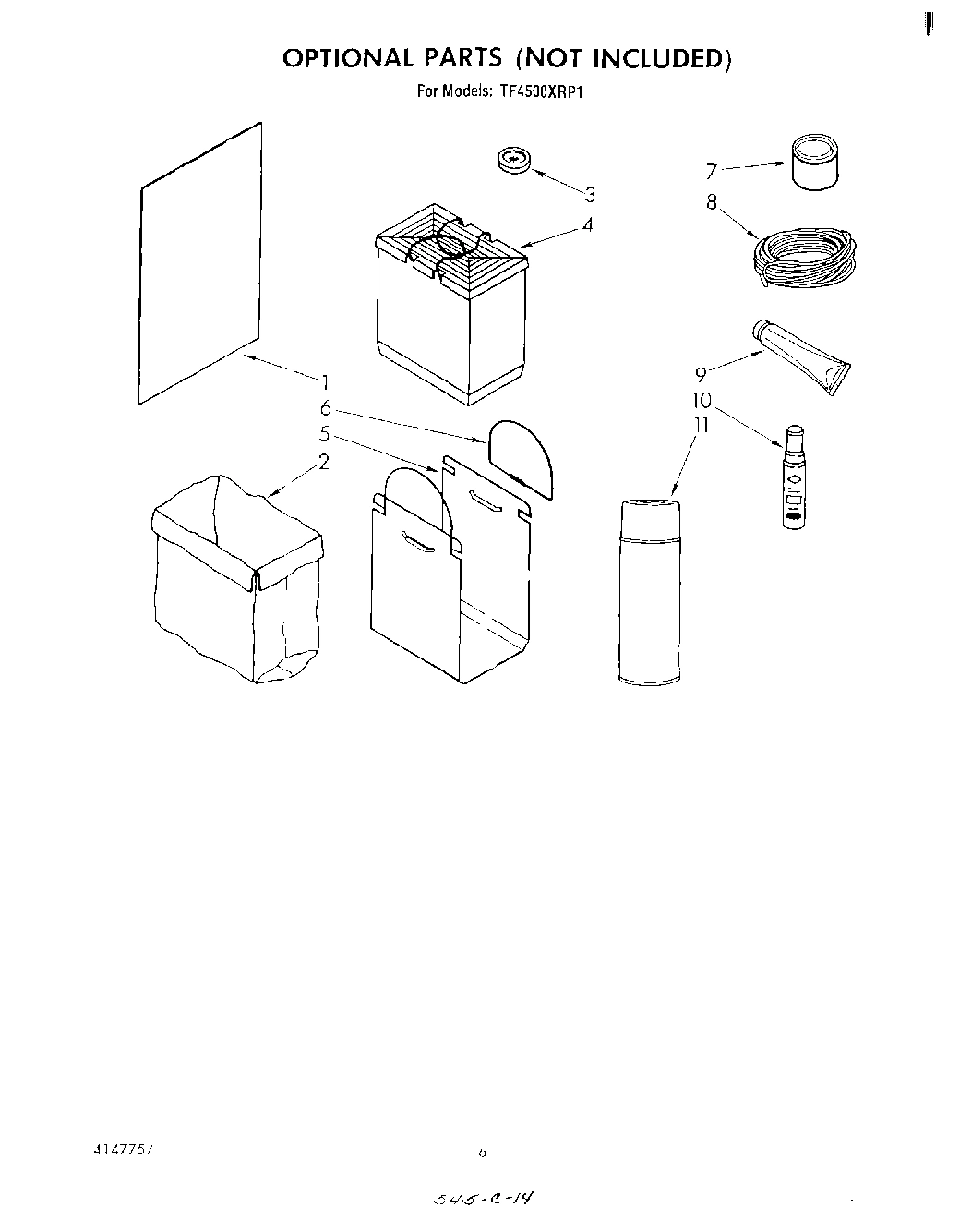

06 - LIT/OPTIONAL

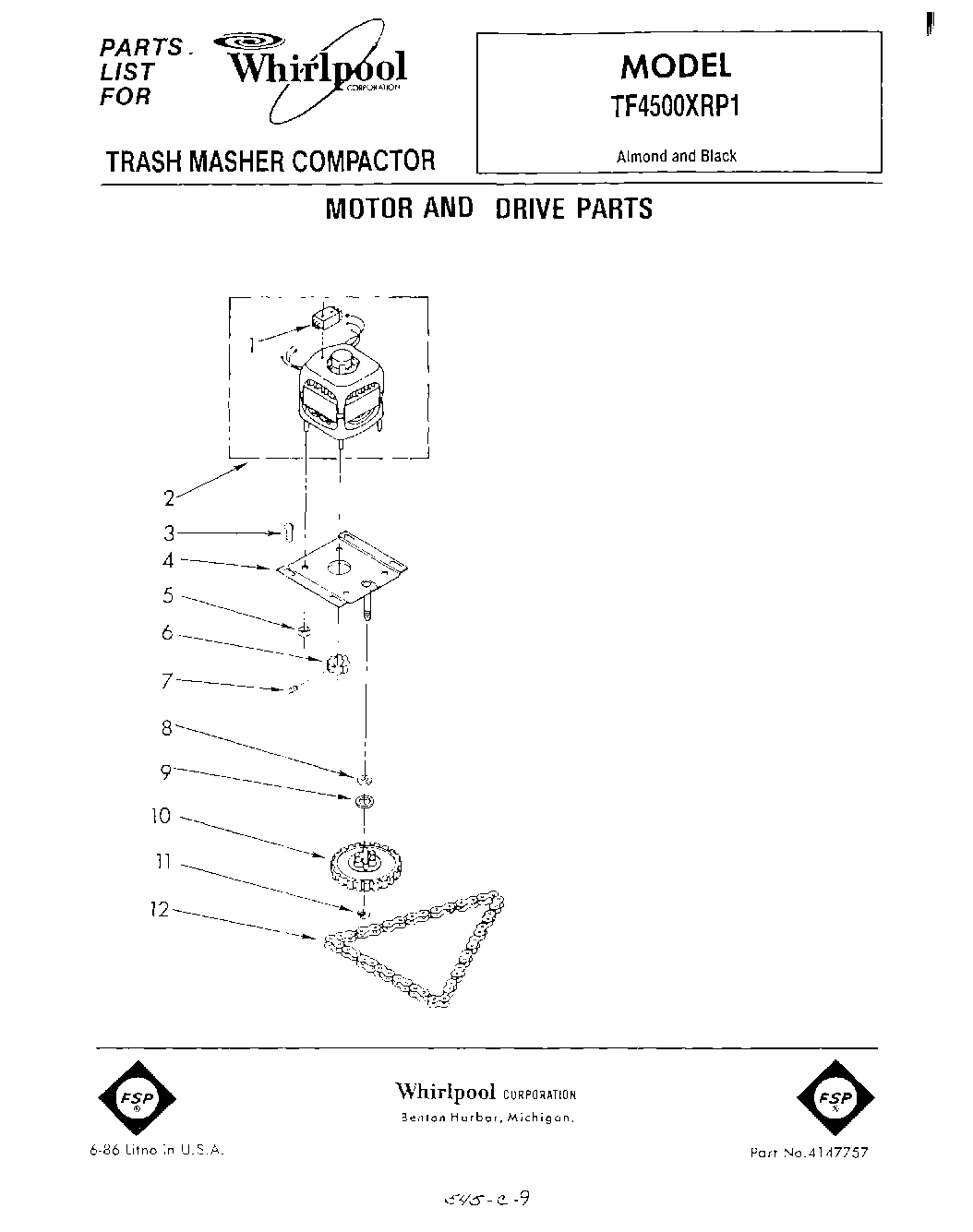

01 - MOTOR AND DRIVE , LITERATURE

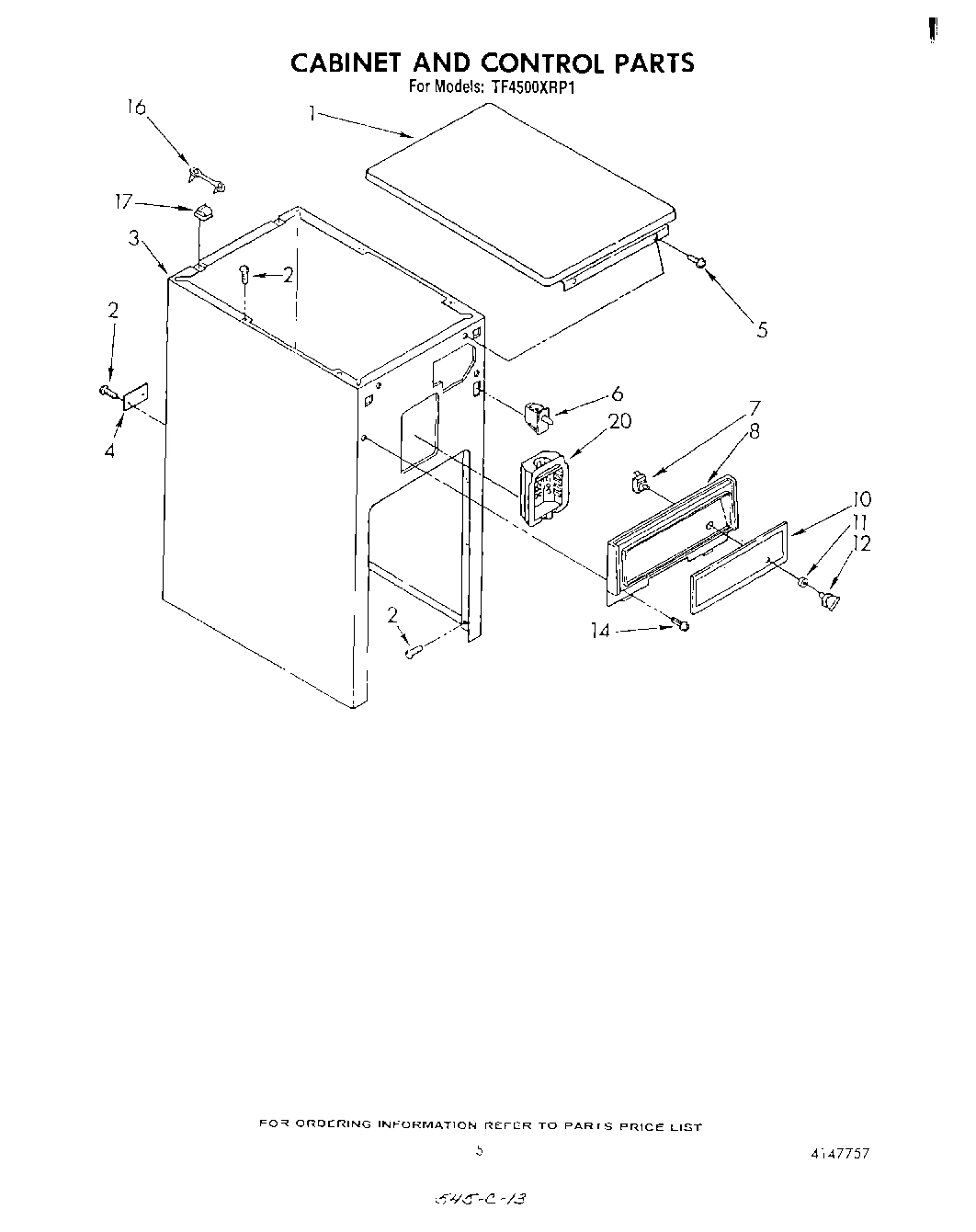

05 - CABINET AND CONTROL

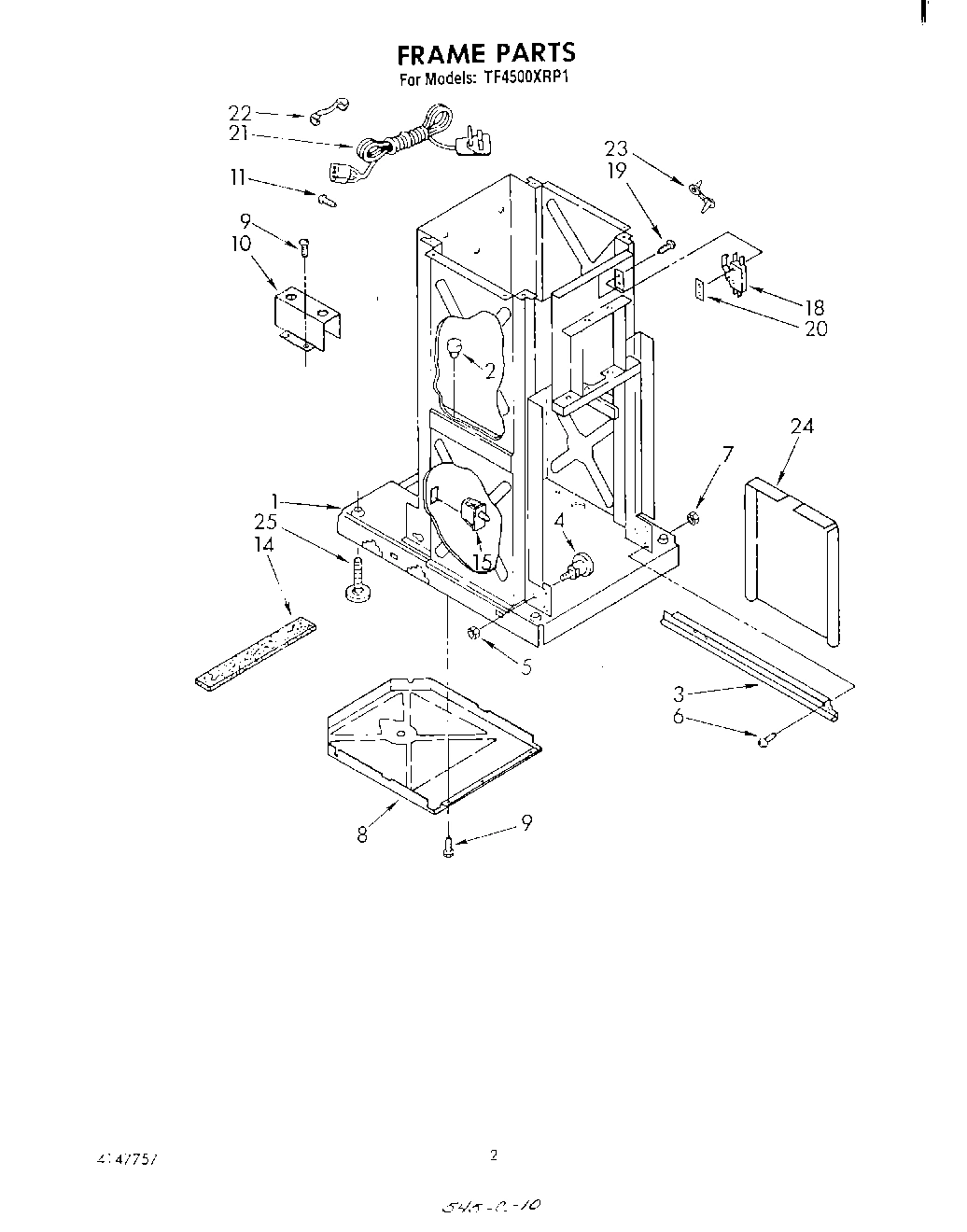

02 - FRAME

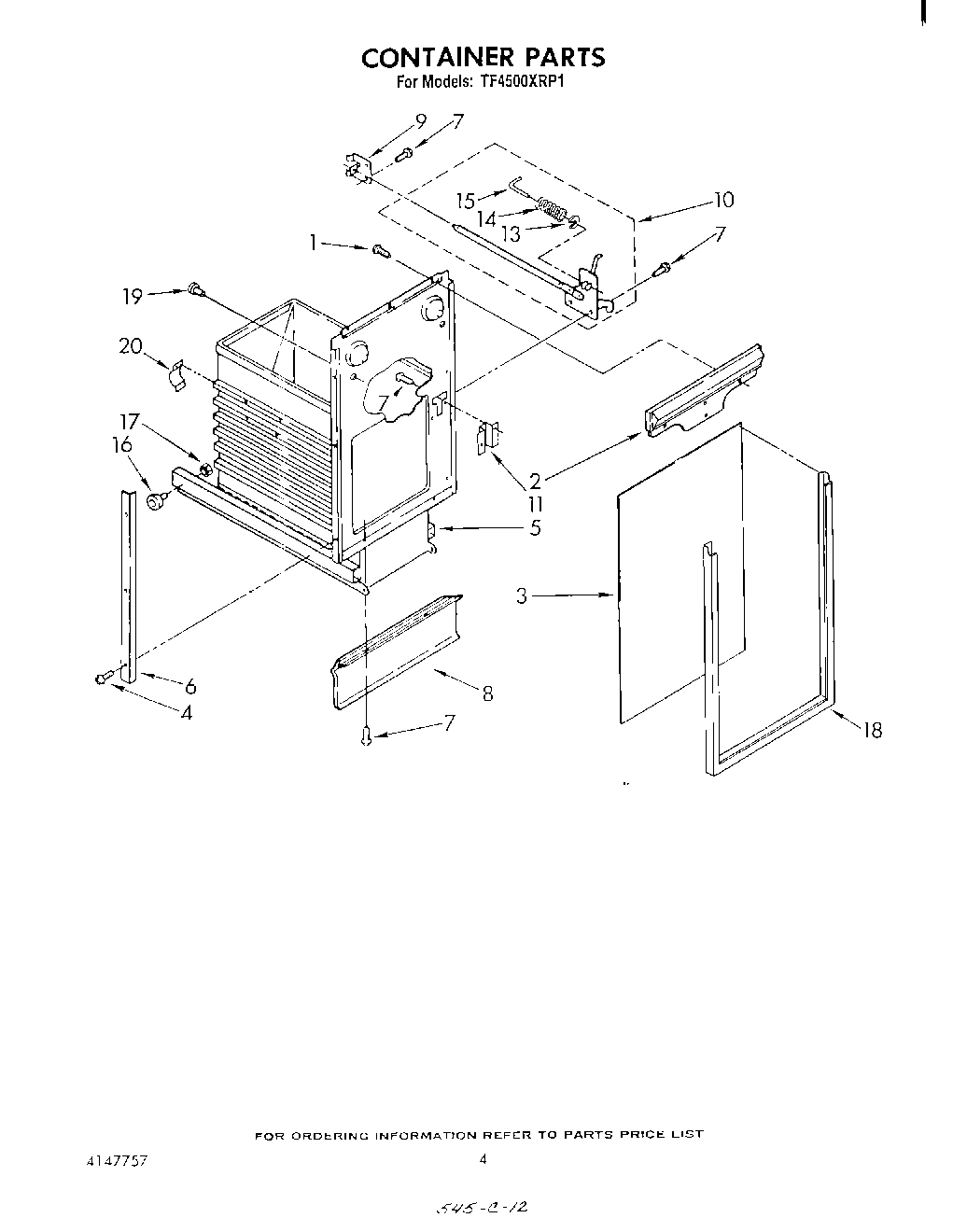

04 - CONTAINER
Common parts from model Whirlpool TF4500XRP1 TRASH COMPACTOR
List, Repair Parts WPL LIT4147757 Contact Us For Availability
Instructions, Installation WPL LIT780142 Contact Us For Availability
Guide, Use and Care WPL LIT780401 Contact Us For Availability
Sheet, Tech (Service Information) WPL LIT780487 Contact Us For Availability
1
Top, Cabinet WPL 608630 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI131271A Contact Us For Availability
2
Bumper, Ram (4) WPL 775643 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Cabinet WPL 780439 Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
4
Plate, Power Cord WPL 775676 Contact Us For Availability
4
Screw, 6-20 x 3/8 AB (4) WPL 776191 Contact Us For Availability
5
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
6
Plate, Trim (2) WPL 608051 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Escutcheon, Control WPL 608768 Contact Us For Availability
8
Plate, Toe WPL 777329 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
Insert, Escutcheon WPL 780407 Contact Us For Availability
10
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
12
Knob, Rotary Switch WPL 780191 Contact Us For Availability
14
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Switch, Drawer Safety WPL 780420 Contact Us For Availability
15
Pin WPL 776654 Contact Us For Availability
17
Clip, Top Mount (2) WPL 776017 Contact Us For Availability
18
Trim, Container (Front) WPL 777345 Contact Us For Availability
19
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Holder, Deodorant Storage WPL 608533 Contact Us For Availability
20
harness, wiring WPL 778604 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Spring, Safety Switch WPL 4147747 Contact Us For Availability
21
Cord, Service WPL 937360 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Insulation, Inner Panel (2) WPL 780412 Contact Us For Availability
× ![]()
