Model Whirlpool TF4500XRP0 TRASH COMPACTOR – Common Parts & Diagrams
03 - POWER SCREW AND RAM
05 - CABINET AND CONTROL

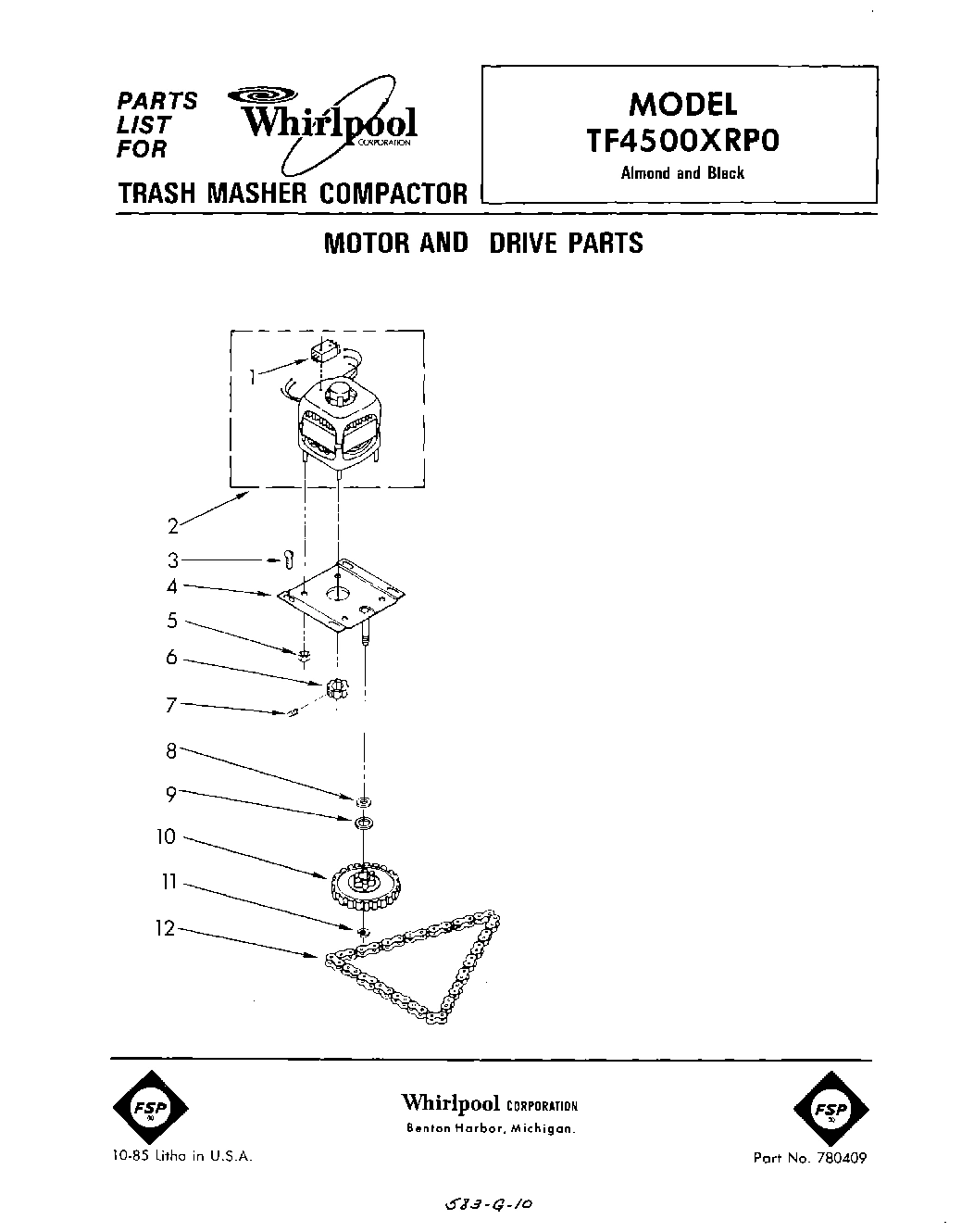

01 - MOTOR AND DRIVE

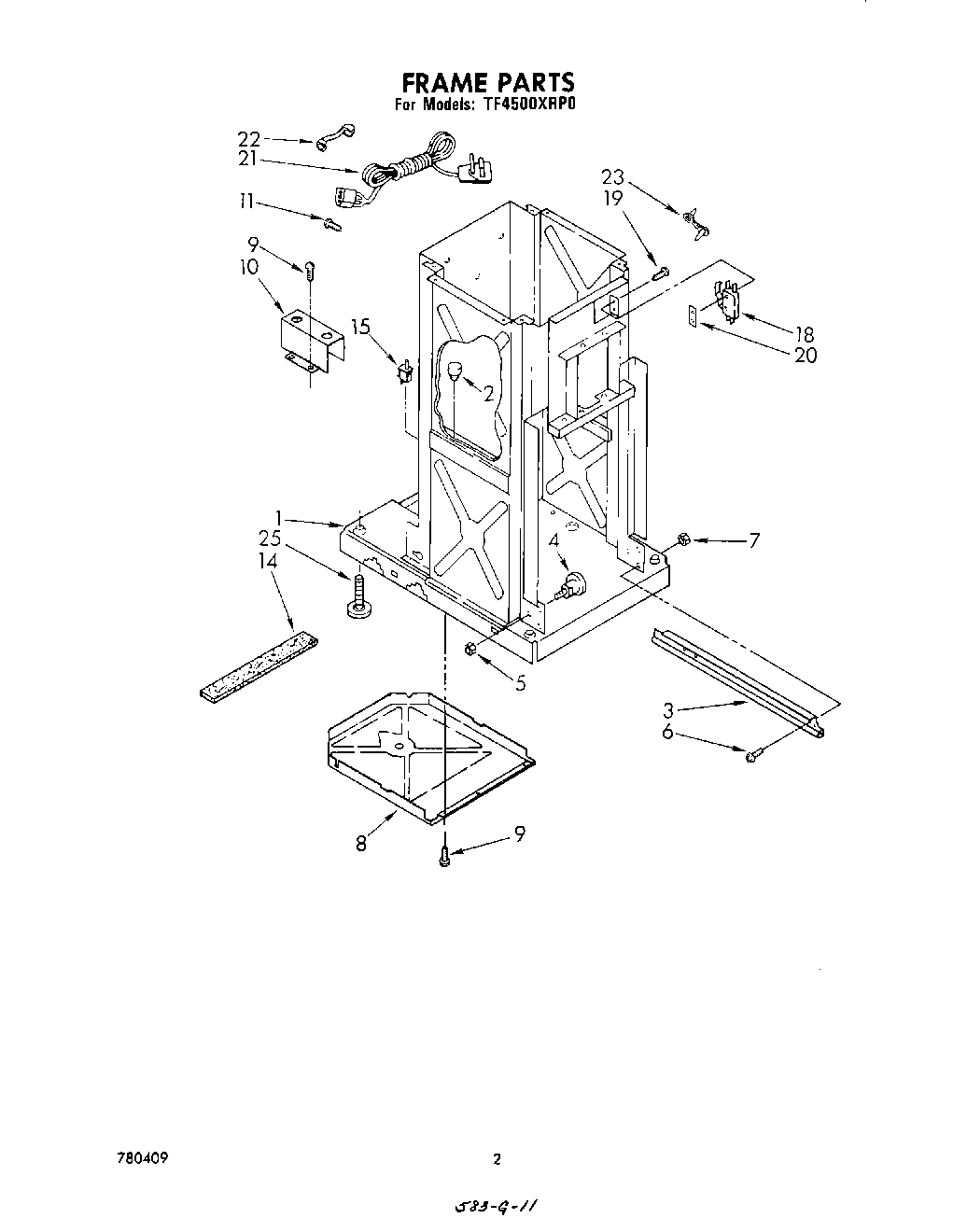

02 - FRAME

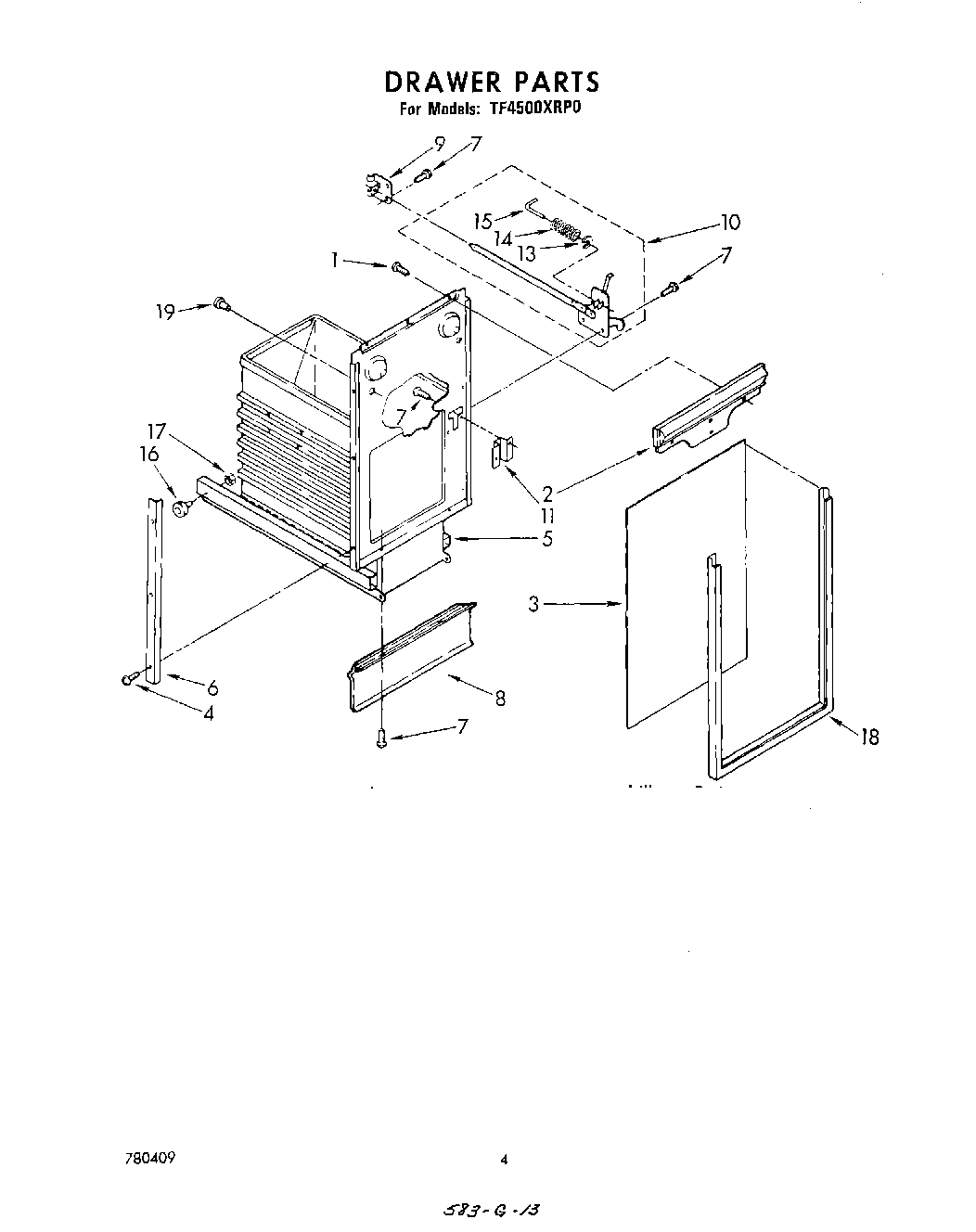

04 - DRAWER
Common parts from model Whirlpool TF4500XRP0 TRASH COMPACTOR
Sheet, Tech (Service Information) WPL LIT777830 Contact Us For Availability
Instructions, Installation WPL LIT780142 Contact Us For Availability
List, Repair Parts WPL LIT780409 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI131269A Contact Us For Availability
2
Bumper, Ram (4) WPL 775643 Contact Us For Availability
3
Cabinet WPL 780439 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
4
Plate, Power Cord WPL 775676 Contact Us For Availability
4
Screw, 6-20 x 3/8 AB (4) WPL 776191 Contact Us For Availability
5
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
6
Plate, Trim (2) WPL 608051 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Escutcheon, Control WPL 608768 Contact Us For Availability
8
Plate, Toe WPL 777329 Contact Us For Availability
10
Insert, Escutcheon WPL 780407 Contact Us For Availability
10
Shield, Slide Track (2) WPL 608375 Contact Us For Availability
12
Knob, Rotary Switch WPL 780191 Contact Us For Availability
14
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Switch, Drawer Safety WPL 780420 Contact Us For Availability
15
Pin WPL 776654 Contact Us For Availability
17
Clip, Top Mount (2) WPL 776017 Contact Us For Availability
18
Trim, Container (Front) WPL 777345 Contact Us For Availability
19
White & Caribou Brown WPL 608438 Contact Us For Availability
19
bag, trash (96 pack) WPL 675350 Contact Us For Availability
19
Trash, Container Reusable WPL 675371 Contact Us For Availability
19
Bumper, Container (2) WPL 775785 Contact Us For Availability
19
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
19
Coffee & Avocado WPL 777912 Contact Us For Availability
19
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
20
Coffee WPL 261886 Contact Us For Availability
20
Avocado WPL 261888 Contact Us For Availability
20
Golden Wheat WPL 261890 Contact Us For Availability
20
Toast WPL 283365 Contact Us For Availability
20
Platinum WPL 283366 Contact Us For Availability
20
Holder, Deodorant Storage WPL 608533 Contact Us For Availability
20
Primer (Tan) WPL 675167 Contact Us For Availability
20
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
20
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
20
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
20
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
20
Standford Brown WPL 978726 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
21
Cord, Service WPL 937360 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
× ![]()
