Model Whirlpool TF4500XLP1 TRASH COMPACTOR – Common Parts & Diagrams

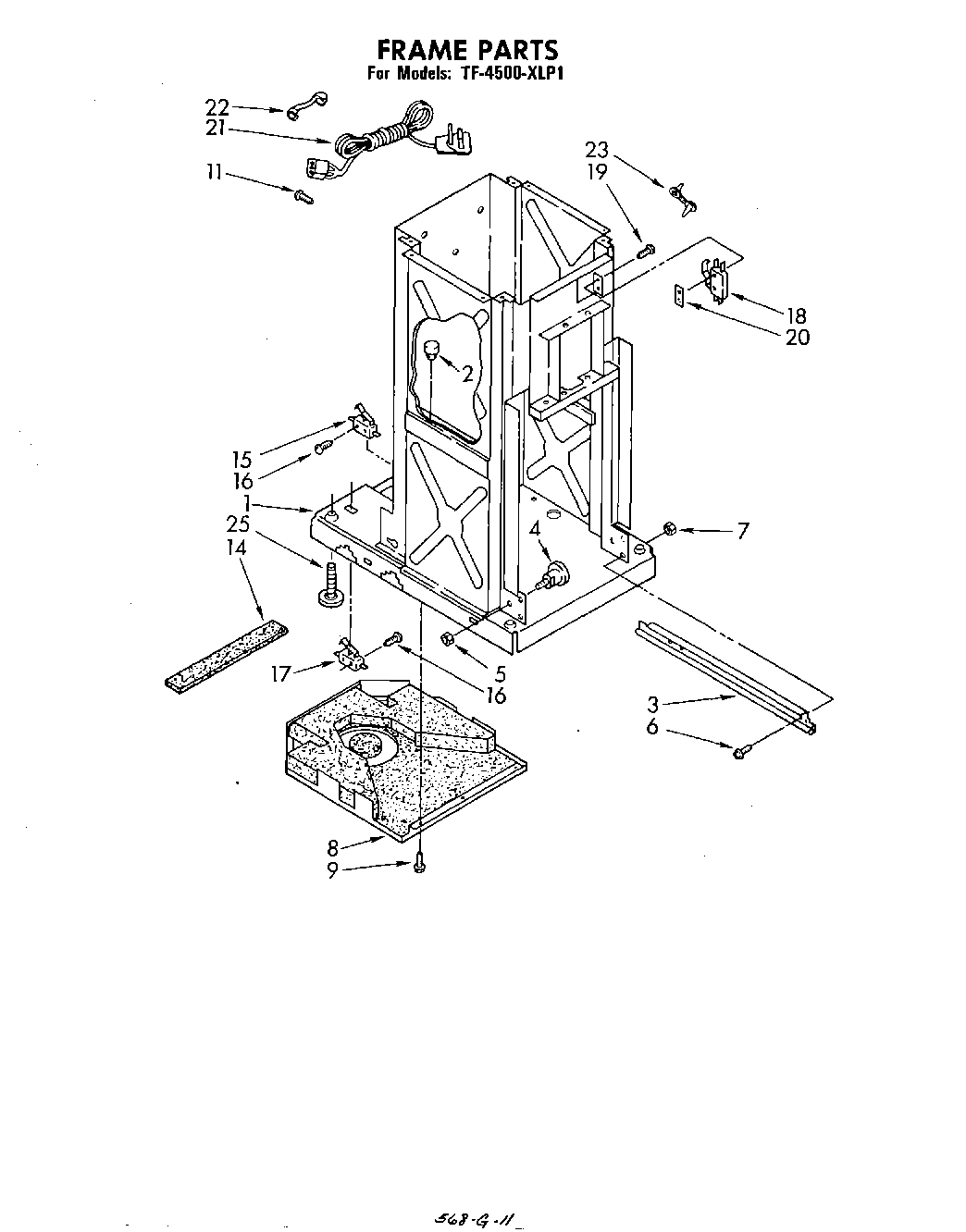

02 - FRAME

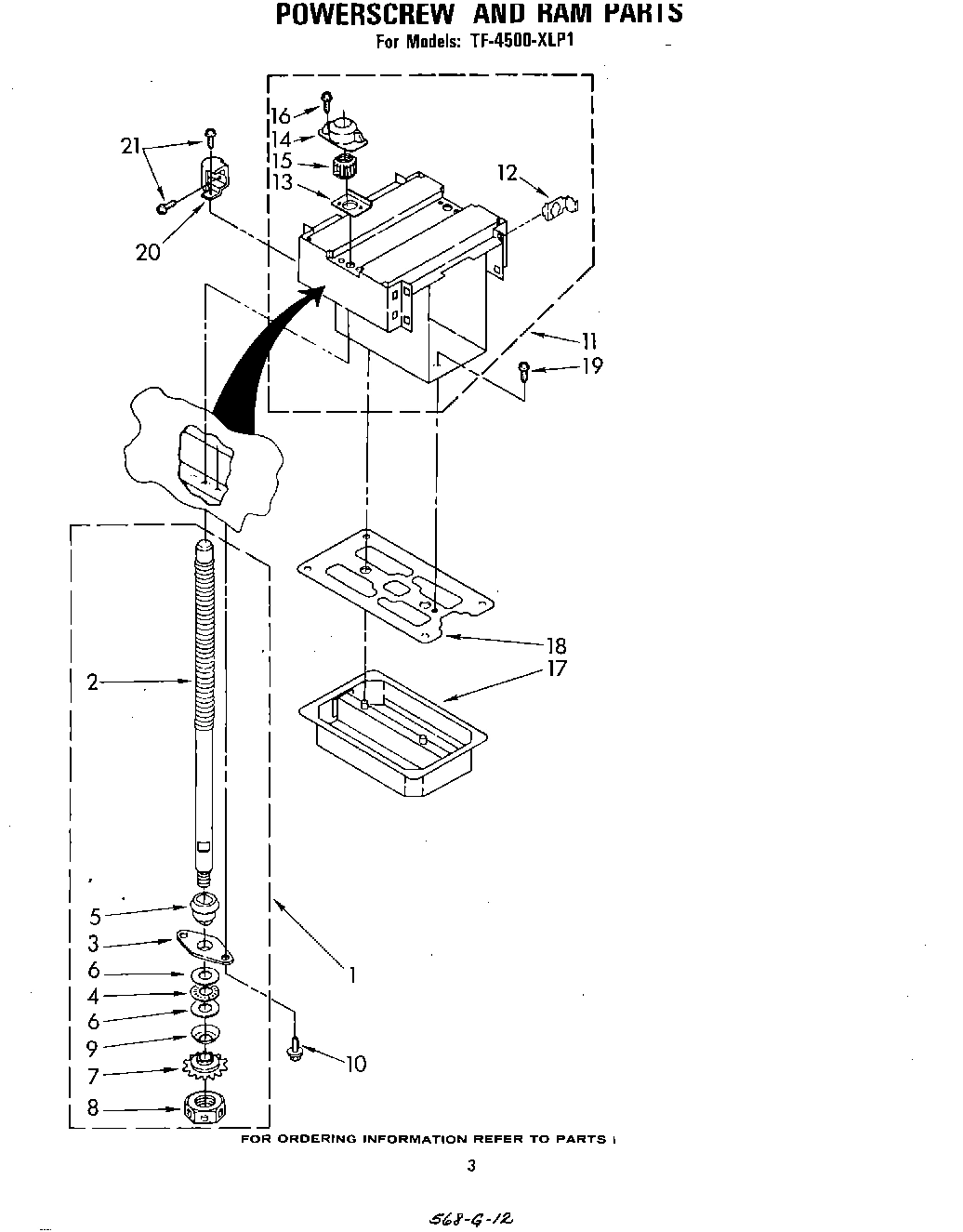

03 - POWERSCREW AND RAM
05 - CABINET AND CONTROL
01 - MOTOR AND DRIVE , LIT/OPTIONAL
04 - DRAWER
Common parts from model Whirlpool TF4500XLP1 TRASH COMPACTOR
Sheet, Tech (Service Information) WPL LIT777830 Contact Us For Availability
Instructions, Installation WPL LIT780142 Contact Us For Availability
Guide, Use & Care WPL LIT780212 Contact Us For Availability
List, Repair Parts WPL LIT780384 Contact Us For Availability
1
Top, Cabinet WPL 608630 Contact Us For Availability
3
Cabinet WPL 608826 Contact Us For Availability
3
Screw, 1/4-20 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
4
Plate, Power Cord WPL 775676 Contact Us For Availability
4
Screw, 6-20 x 3/8 AB (4) WPL 776191 Contact Us For Availability
5
Screw, 8-18 x 1/2 WPL 776493 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Lens, Indicator WPL 777322 Contact Us For Availability
6
Plate, Trim (2) WPL 608051 Contact Us For Availability
8
Escutcheon, Control WPL 608768 Contact Us For Availability
8
Plate, Toe WPL 777329 Contact Us For Availability
9
Light, Indicator WPL 777323 Contact Us For Availability
10
Insert, Escutcheon WPL 780187 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Knob, Rotary Switch WPL 780191 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
15
Pin WPL 776654 Contact Us For Availability
16
Clamp, Wire WPL 777035 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
Clip, Top Mount (2) WPL 776017 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
18
Trim, Container (Front) WPL 777345 Contact Us For Availability
19
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Holder, Deodorant Storage WPL 608533 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Golden Wheat WPL 261890 Contact Us For Availability
21
Toast WPL 283365 Contact Us For Availability
21
Platinum WPL 283366 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Bro WPL 978726 Contact Us For Availability
× ![]()
