Model Whirlpool TES400PXHB0 ELECTRIC CERAN TOP RANGE – Common Parts & Diagrams

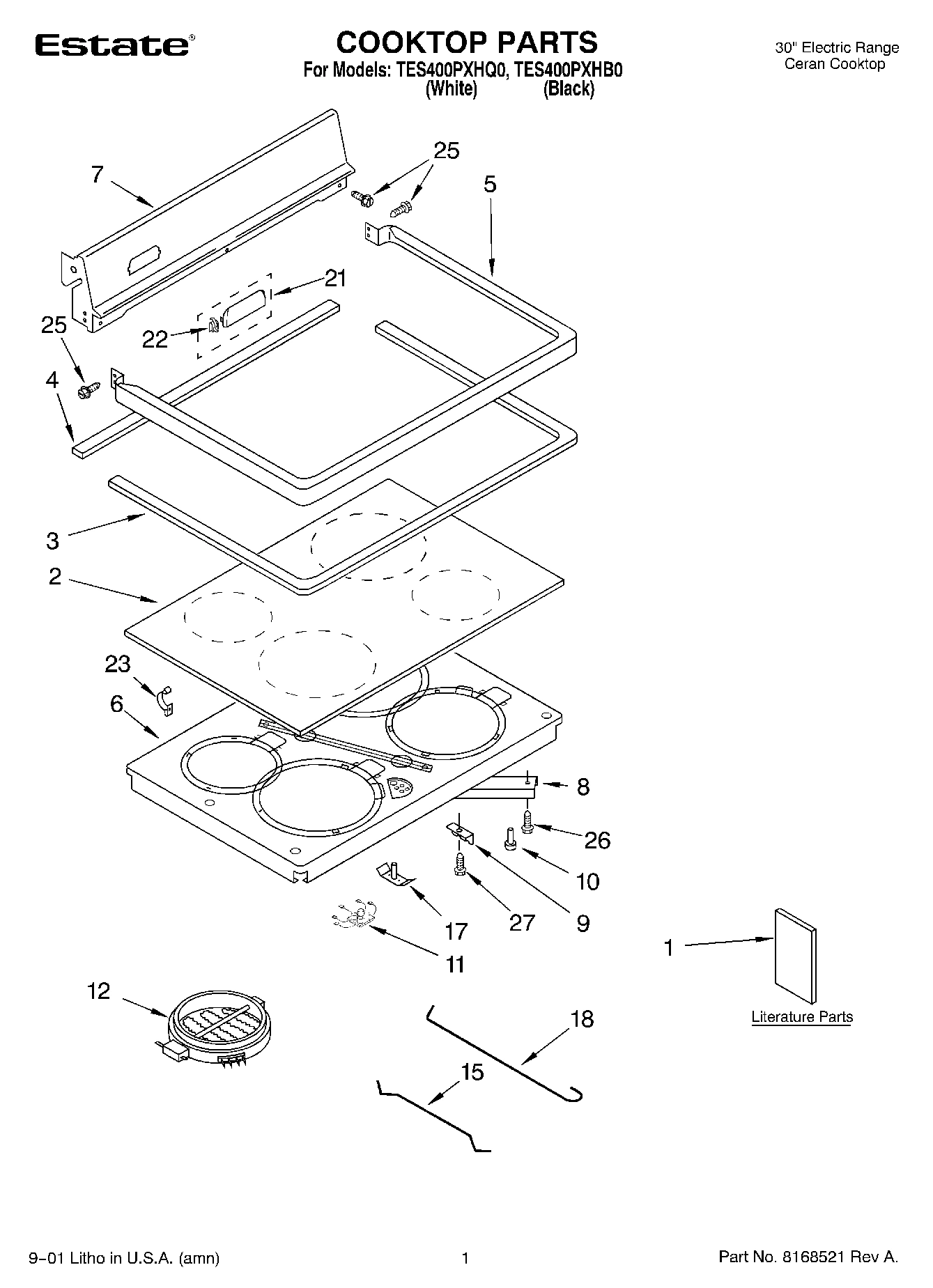

01 - COOKTOP, LITERATURE

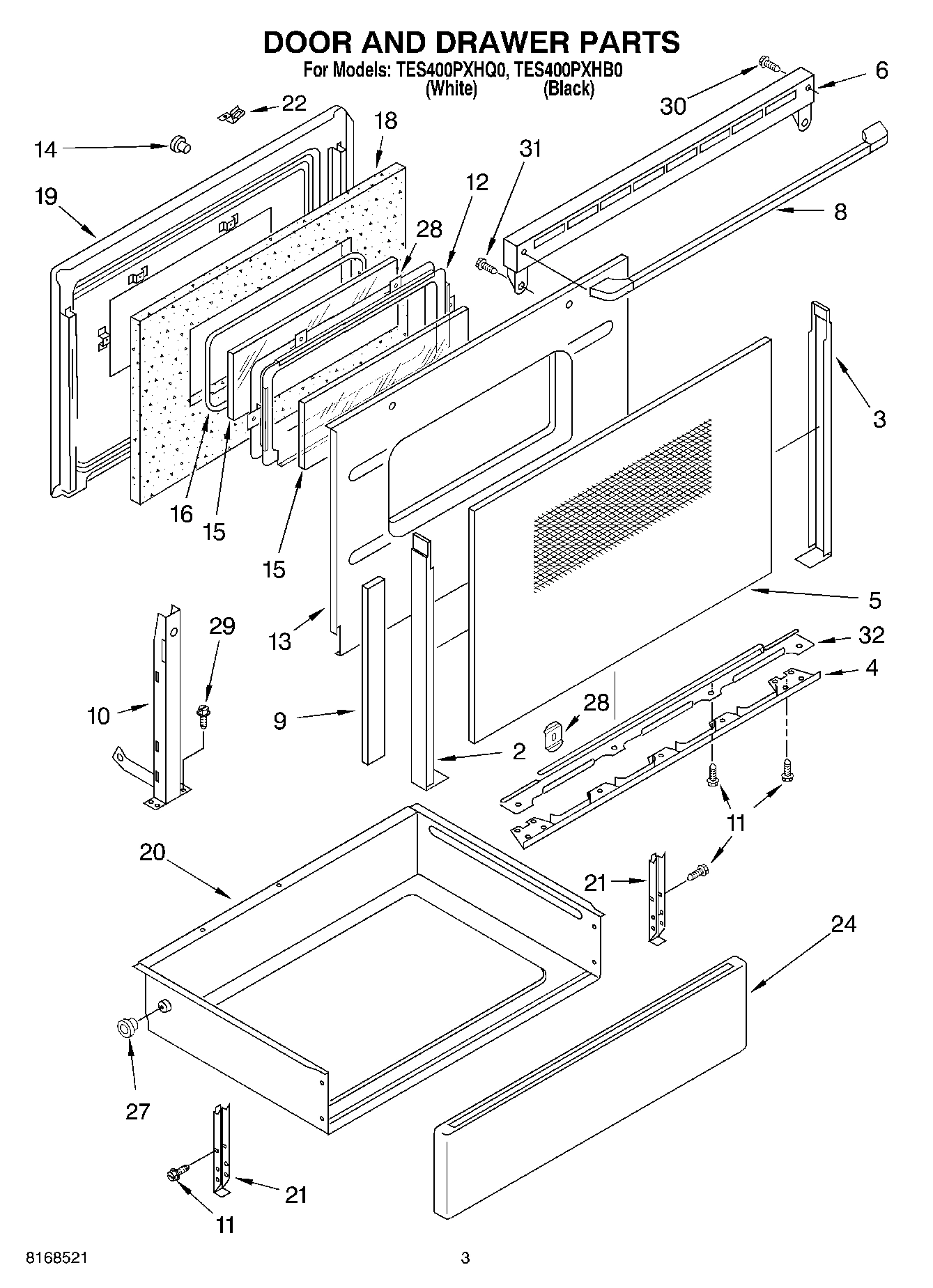

03 - DOOR AND DRAWER

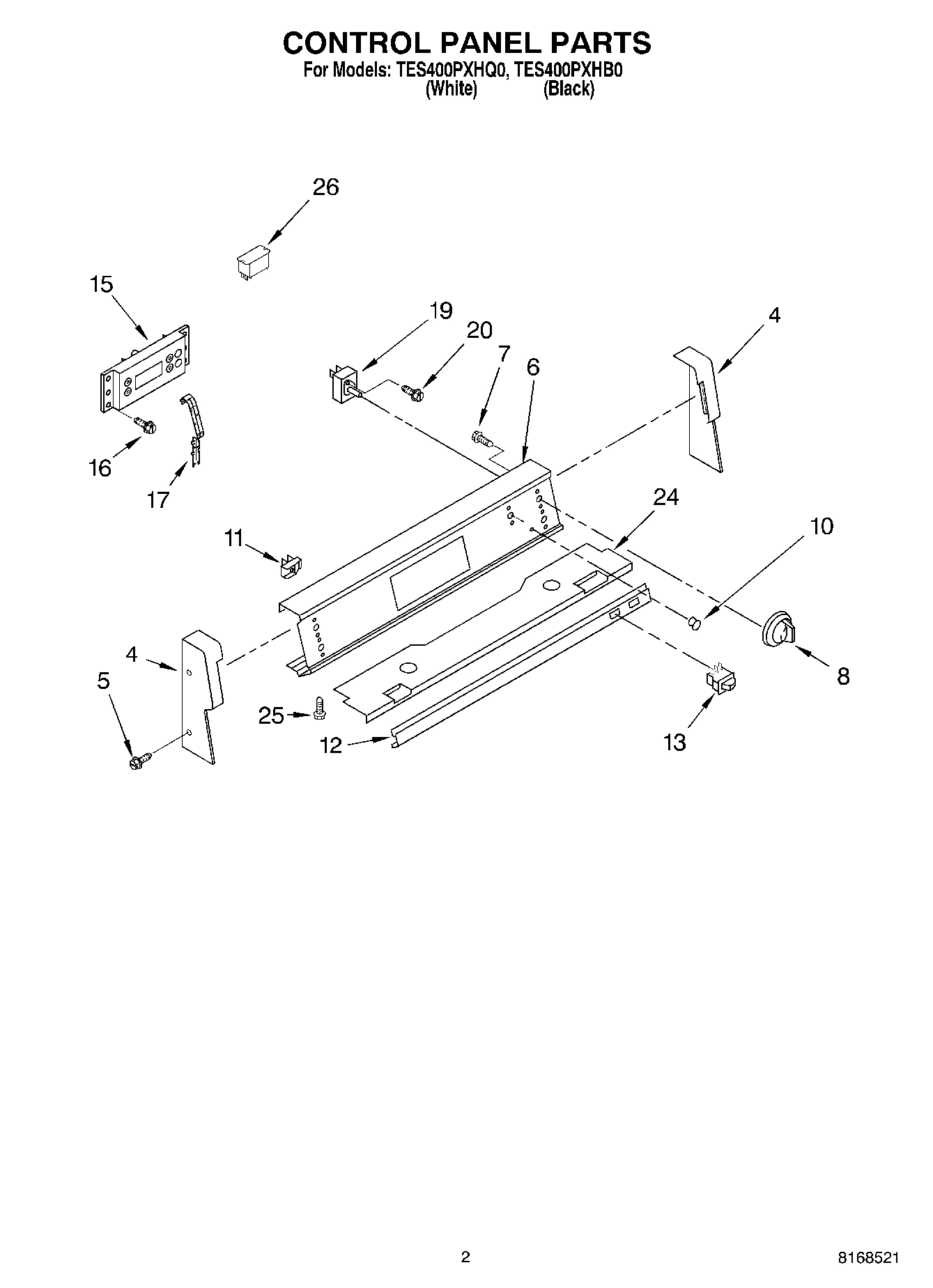

02 - CONTROL PANEL

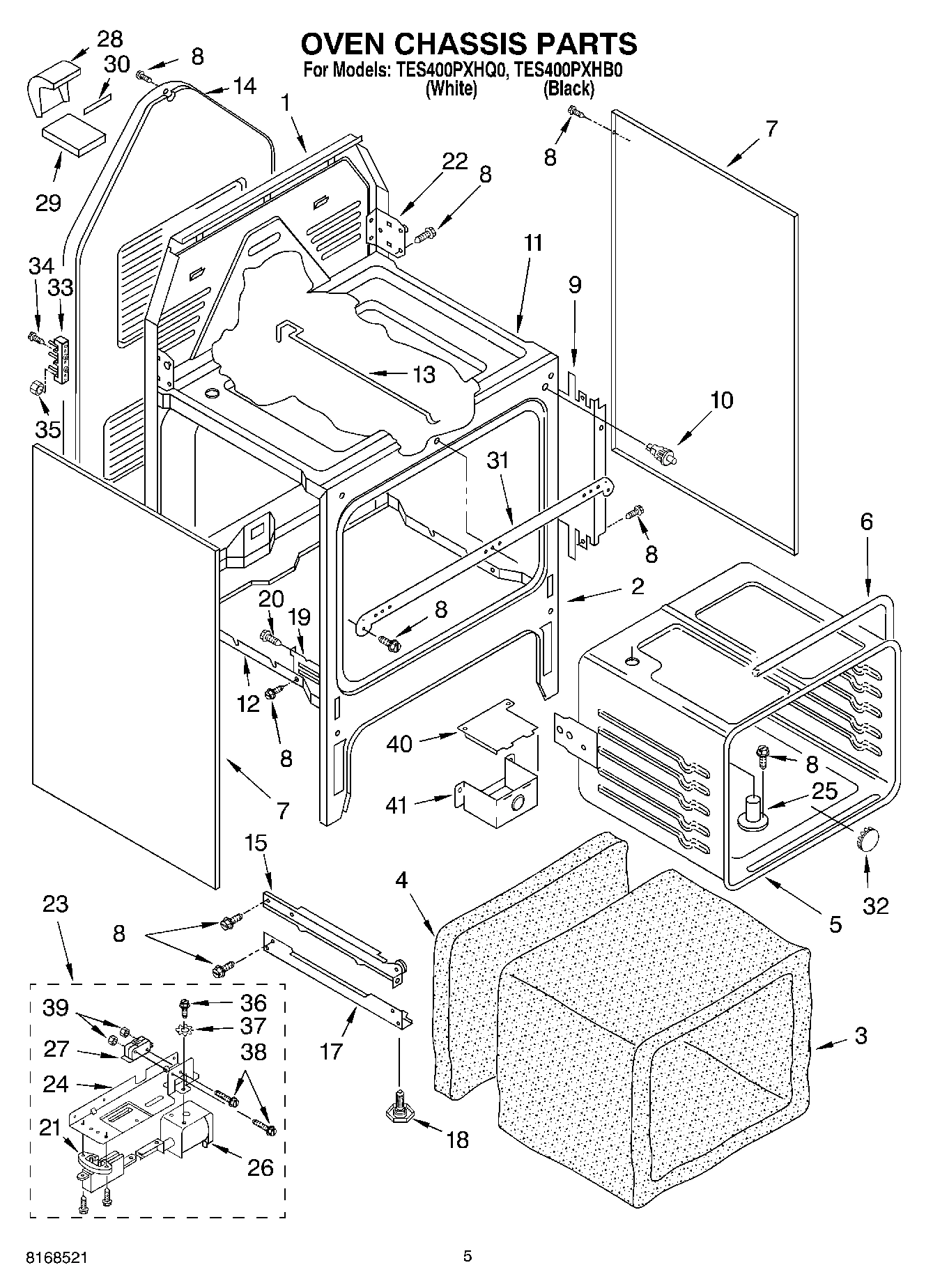

04 - OVEN CHASSIS

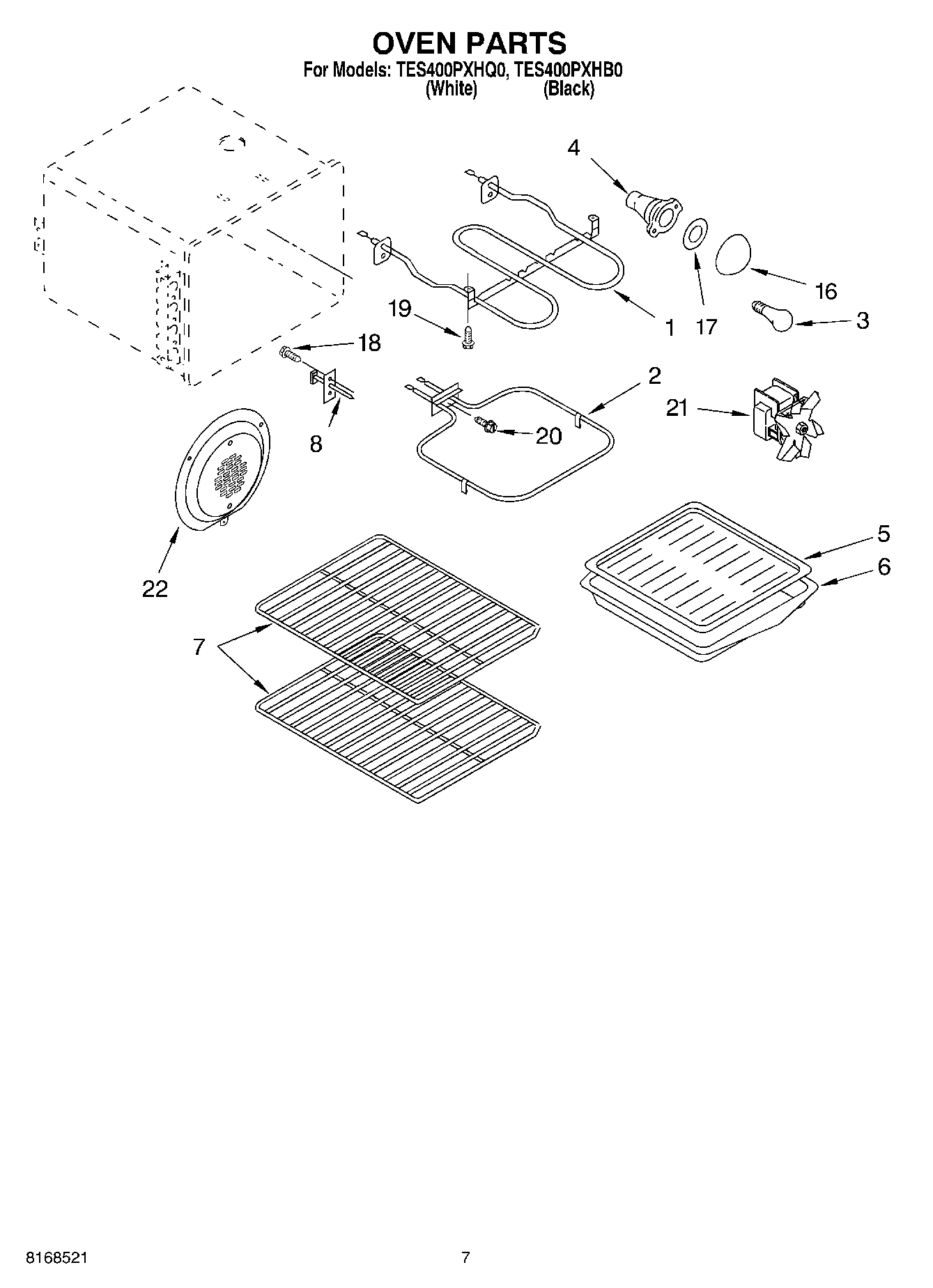

05 - OVEN
Common parts from model Whirlpool TES400PXHB0 ELECTRIC CERAN TOP RANGE
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
4
End Cap (Black, Left) WPL 9752422FB Contact Us For Availability
4
End Cap (White (Left) WPL 9752422FW Contact Us For Availability
4
End Cap (Black, Right) WPL 9752423FB Contact Us For Availability
4
End Cap (White (Right)) WPL 9752423FW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
5
Glass, Door (White) WPL 9781718PW Contact Us For Availability
5
Oven Liner WPL 9754249GM Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Gasket) WPL 9781659 Contact Us For Availability
6
Panel, Control (Black) WPL 9754081PB Contact Us For Availability
6
Panel, Control (White) WPL 9754081PW Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side Panel (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side Panel (White) WPL 9781907PW Contact Us For Availability
7
Rack, Convection WPL 9750823 Contact Us For Availability
8
Switch, Safety WPL 8053344 Contact Us For Availability
8
Knob, Control (Black) WPL 9752405FB Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
10
Door Switch (oven Light) WPL 9752798 Contact Us For Availability
11
Light Indicator WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
12
Frame, Glass WPL 9781601 Contact Us For Availability
12
Trim Strip (Black) WPL 9752440PB Contact Us For Availability
12
Trim Strip (White) WPL 9752440PW Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Shield Door WPL 9781588 Contact Us For Availability
13
Switch, Rocker Illuminated (White) WPL 9753261FW Contact Us For Availability
13
Switch, Rocker Illuminated (Black On/Off) WPL 9753692FB Contact Us For Availability
13
Switch, Rocker Illuminated (White) WPL 9753692FW Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Timer (Black) WPL 9754130CB Contact Us For Availability
15
Timer (White) WPL 9754130CW Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Seal, Window WPL 9755178 Contact Us For Availability
17
Bracket, Timer WPL 9781754 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9754007 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9782005 Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
21
Fan Assembly WPL 9781543 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
22
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Clip, Mounting WPL 3149190 Contact Us For Availability
22
Retainer, Door (2) WPL 9750676 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
22
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
22
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
22
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
22
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
22
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
22
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
22
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
22
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
22
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
22
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
22
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
22
Grease WPL 261582 Contact Us For Availability
22
Clip, Wire WPL 313660 Contact Us For Availability
22
Strap, Ground WPL 3169573 Contact Us For Availability
22
KIT, PORCEL WPL 799832 Contact Us For Availability
22
WPL 9751904G WPL 9751904G Contact Us For Availability
22
WPL 9752612 WPL 9752612 Contact Us For Availability
22
WPL 9752771 WPL 9752771 Contact Us For Availability
22
WPL 9752848 WPL 9752848 Contact Us For Availability
22
WPL 9754079 WPL 9754079 Contact Us For Availability
22
WPL 9781096 WPL 9781096 Contact Us For Availability
22
WPL 9781933 WPL 9781933 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Oven Lock Assembly WPL 9752404 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Base, Console WPL 9752439 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
25
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
26
Relay, DPST WPL 9752149 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
28
Back, Vent WPL 9750394 Contact Us For Availability
29
Cover, Vent WPL 9750393 Contact Us For Availability
30
Screw,10-24 x 1.25 WPL 9781196 Contact Us For Availability
30
Gasket, Vent WPL 9750767 Contact Us For Availability
31
Screw, 10-24 x 5/8 WPL 9780266 Contact Us For Availability
31
Guard, Wire WPL 9780585 Contact Us For Availability
32
Deflector, Steam WPL 9781771 Contact Us For Availability
32
Plug, Button WPL 9780578 Contact Us For Availability
34
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
36
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
37
Washer, 10-32 WPL 424238 Contact Us For Availability
38
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
39
Nut WPL 9750888 Contact Us For Availability
40
Box, Terminal WPL 9752344 Contact Us For Availability
41
Cover, Terminal Box WPL 9752345 Contact Us For Availability
× ![]()
