Model Whirlpool TES355MT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

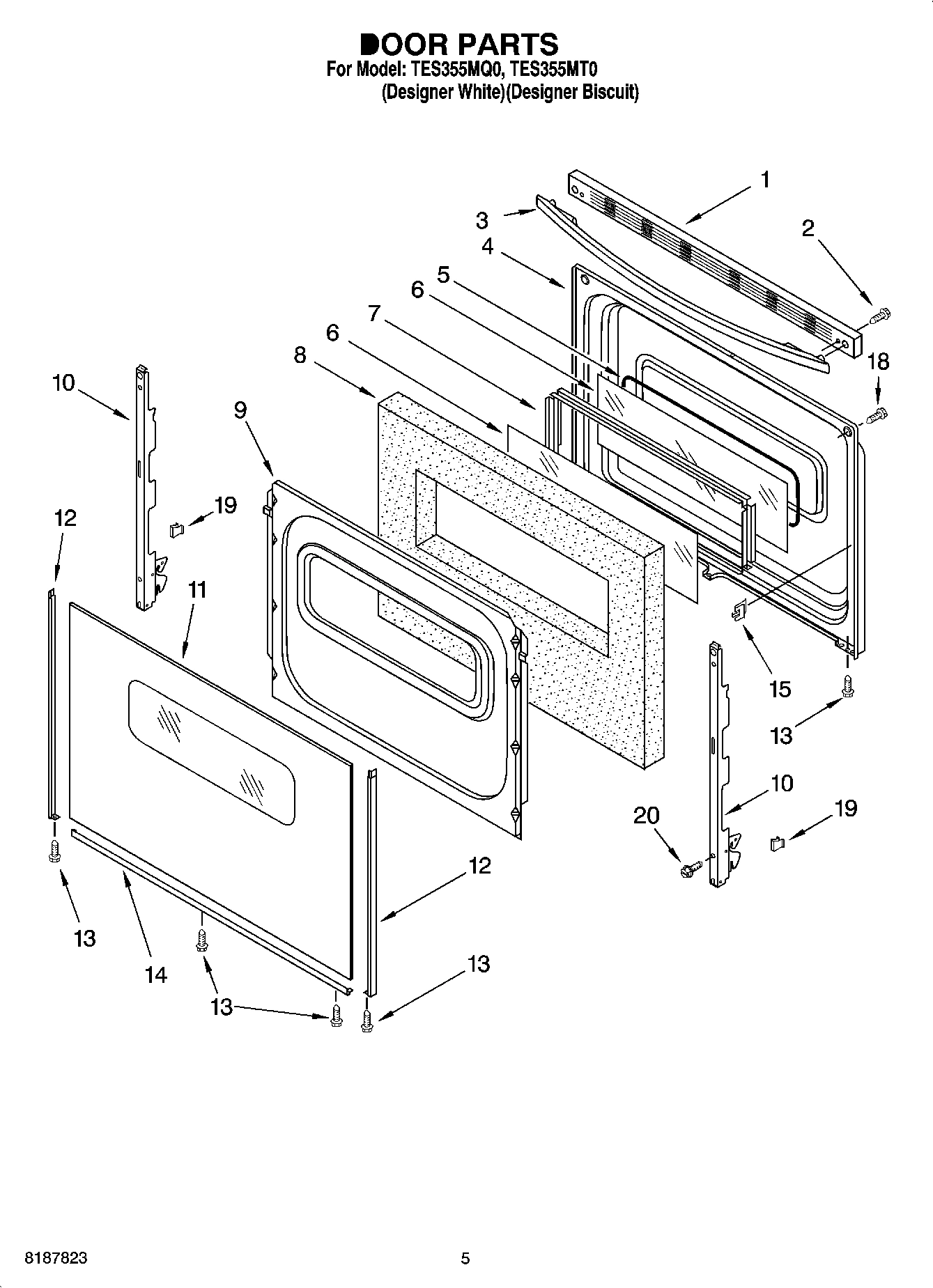

04 - DOOR PARTS

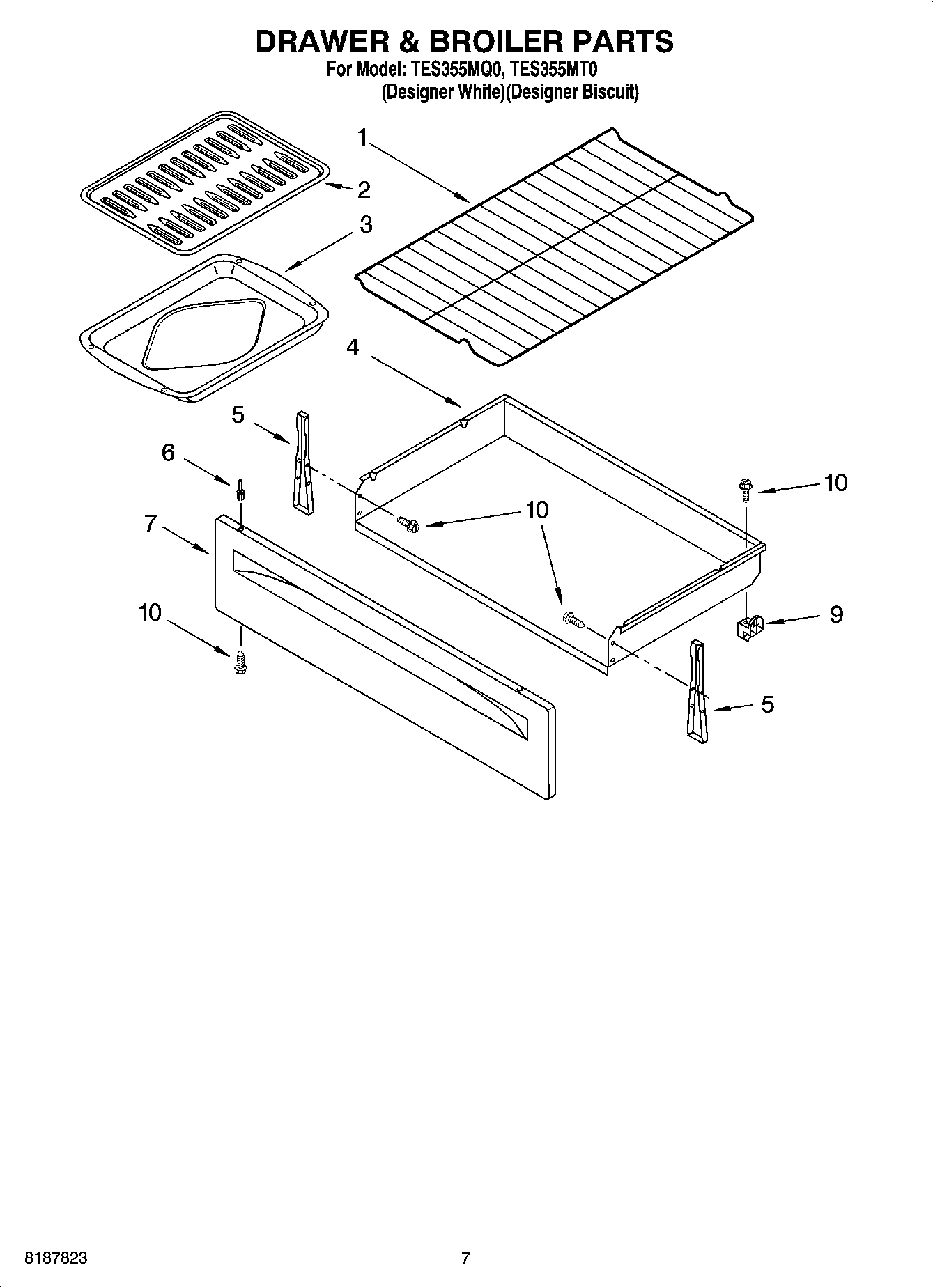

05 - DRAWER & BROILER PARTS, MISCELLANEOUS PARTS
03 - CHASSIS PARTS
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
Common parts from model Whirlpool TES355MT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL 72017 WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Almond) WPL 350956 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
Clip, Wire Harness WPL 3196696 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
WPL 4454241 WPL 4454241 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 8273305 WPL 8273305 Contact Us For Availability
WPL 8316781 WPL 8316781 Contact Us For Availability
WPL 8523718 WPL 8523718 Contact Us For Availability
WPL 8524088 WPL 8524088 Contact Us For Availability
WPL 8524089 WPL 8524089 Contact Us For Availability
WPL 8524114 WPL 8524114 Contact Us For Availability
WPL 8524132 WPL 8524132 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI164349A WPL ARI164349A Contact Us For Availability
WPL ARI164350A WPL ARI164350A Contact Us For Availability
WPL ARI164351A WPL ARI164351A Contact Us For Availability
WPL ARI164352A WPL ARI164352A Contact Us For Availability
WPL ARI164353A WPL ARI164353A Contact Us For Availability
WPL ARI164354A WPL ARI164354A Contact Us For Availability
WPL ARI164355A WPL ARI164355A Contact Us For Availability
WPL ARI164356A WPL ARI164356A Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions ( WPL LIT8523048 Contact Us For Availability
1
Guide, Use & Care WPL LIT9756125 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9757347 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT9757983 Contact Us For Availability
1
Endcap (White Left Hand) WPL 3186190 Contact Us For Availability
1
Endcap (White Right Hand) WPL 3186191 Contact Us For Availability
1
Endcap (Biscuit Left Hand) WPL 8272507 Contact Us For Availability
1
Endcap (Biscuit Right Hand) WPL 8272508 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 8523408 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 8523409 Contact Us For Availability
3
Panel, Backguard (White) WPL 8522696 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 8522697 Contact Us For Availability
4
Drawer, Storage WPL 8272605 Contact Us For Availability
4
Cooktop (White) WPL 9755823 Contact Us For Availability
4
Cooktop (Biscuit) WPL 9755833 Contact Us For Availability
5
Seal, Window WPL 8522415 Contact Us For Availability
5
Rod, Latch WPL 3196961 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523740 Contact Us For Availability
6
Rivet, Push (2) (Almond) WPL 3196815 Contact Us For Availability
6
Bracket, Ind Light WPL 8524063 Contact Us For Availability
7
Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
8
Shield, Heat WPL 8523280 Contact Us For Availability
9
Screw WPL 4449746 Contact Us For Availability
9
Bracket, Element WPL 3196454 Contact Us For Availability
11
Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability
12
Switch, Door WPL 3195993 Contact Us For Availability
12
Control, Range (Biscuit) WPL 6610407 Contact Us For Availability
15
Frame, Front (Not Serviced) WPL ARI164347A Contact Us For Availability
15
Insulator, Card WPL 9757309 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
19
Clip, Door Stop WPL 3196925 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 8523803 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
27
Screw WPL 3196172 Contact Us For Availability
31
Back, Main WPL 8274034 Contact Us For Availability
32
Plug-Button WPL 3196439 Contact Us For Availability
37
Ground Strap WPL 3169573 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
48
Insulation WPL ARI164348A Contact Us For Availability
× ![]()
