Model Electrolux TEO356BFD2 RANGE – Common Parts & Diagrams
01 - COVER
02 - LOWER BODY

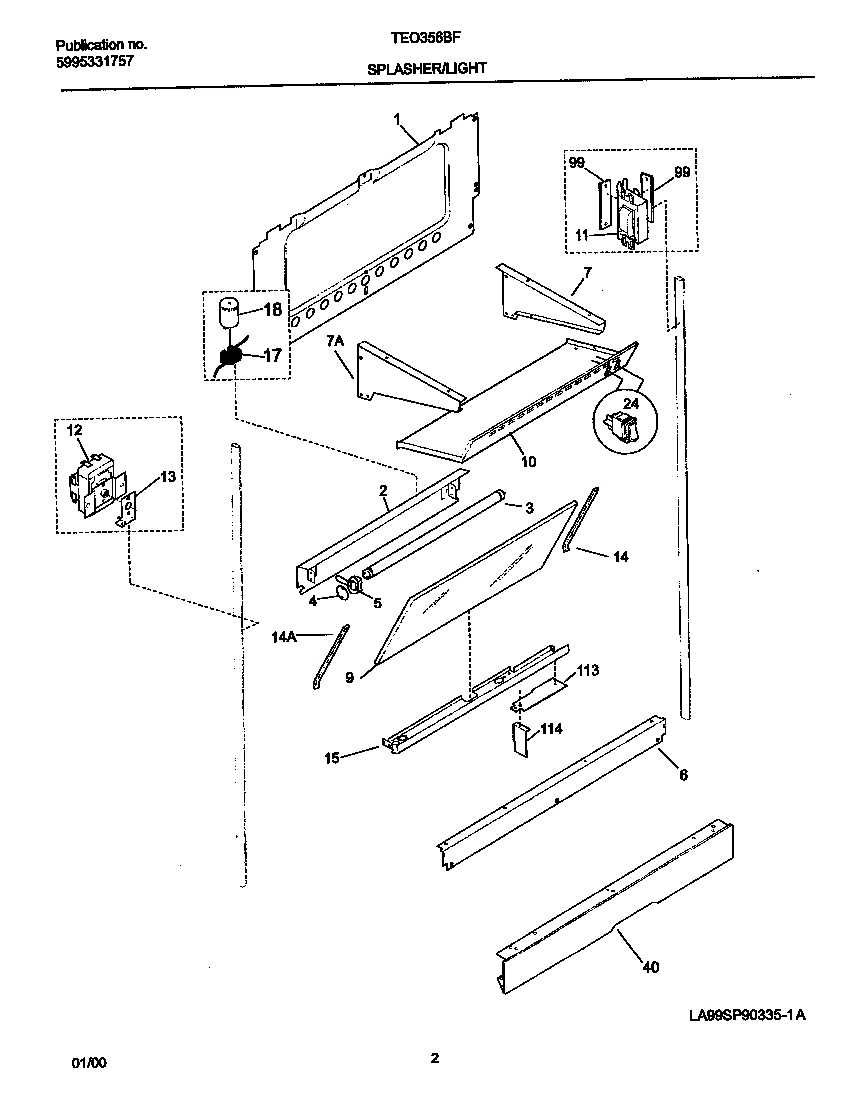

03 - SPLASHER

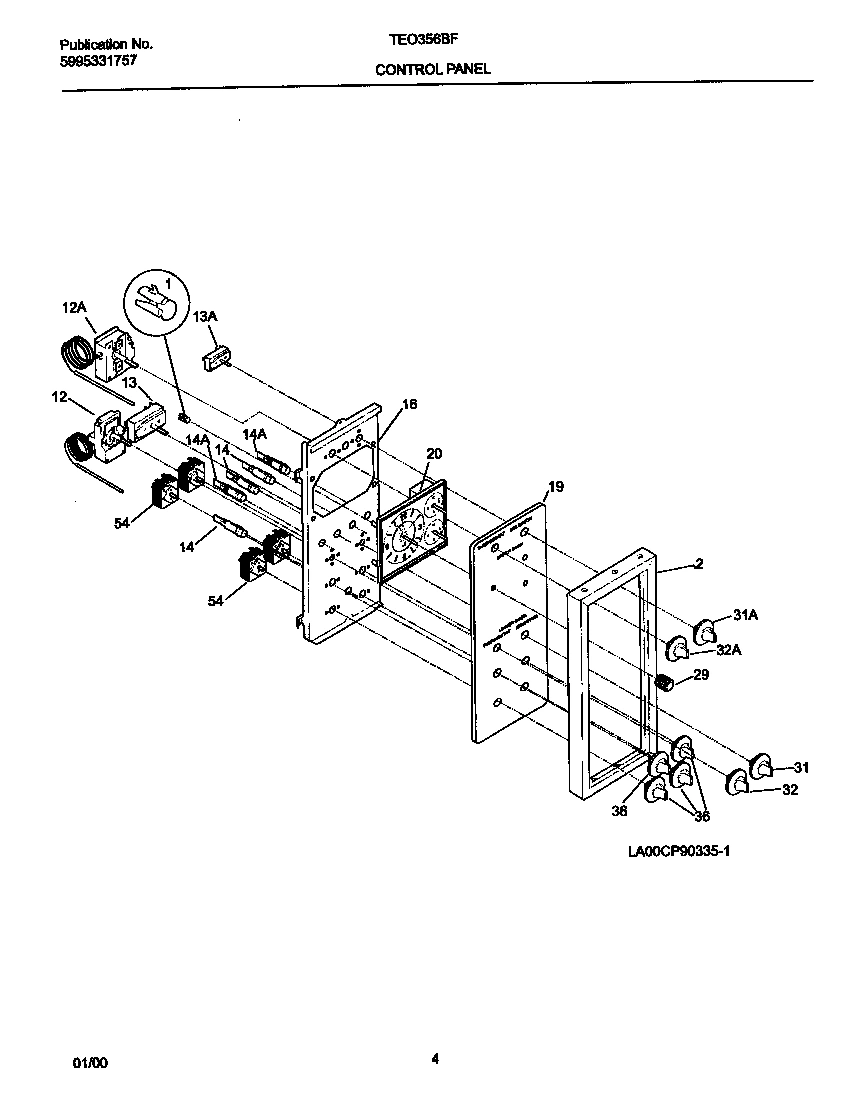

04 - CONTROL PANEL

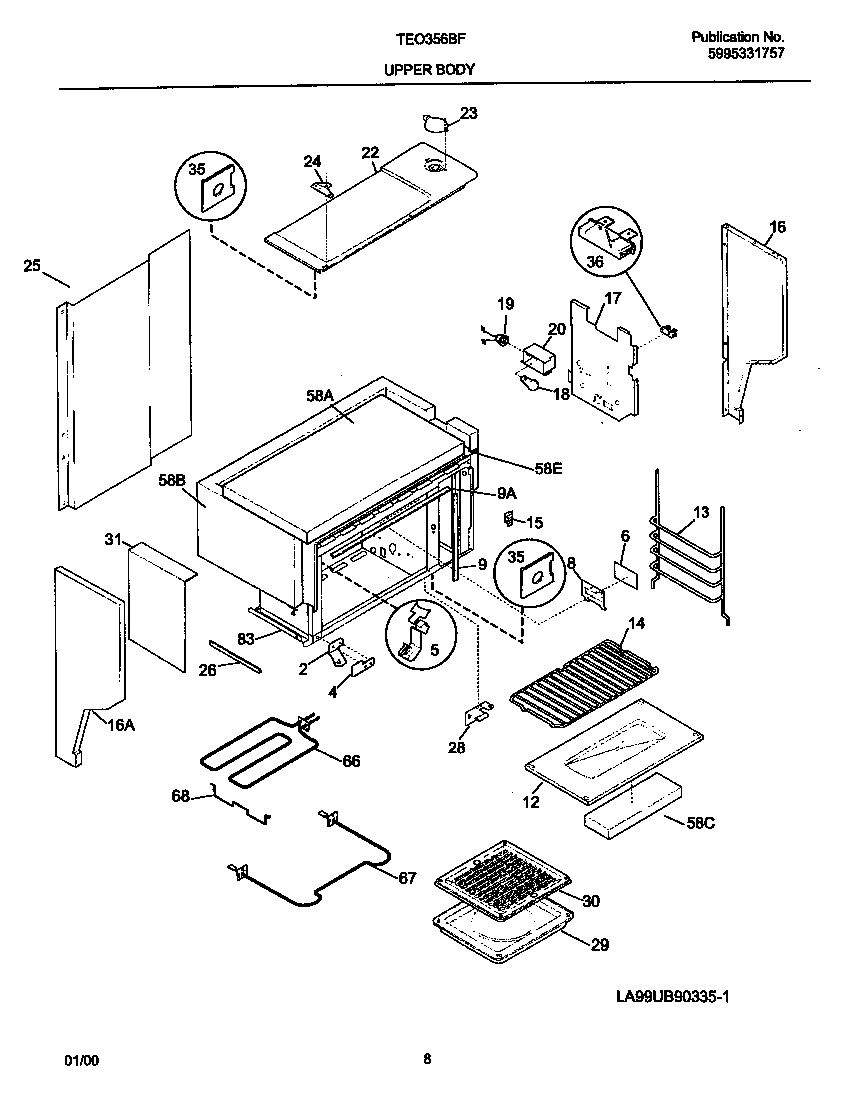

05 - UPPER BODY

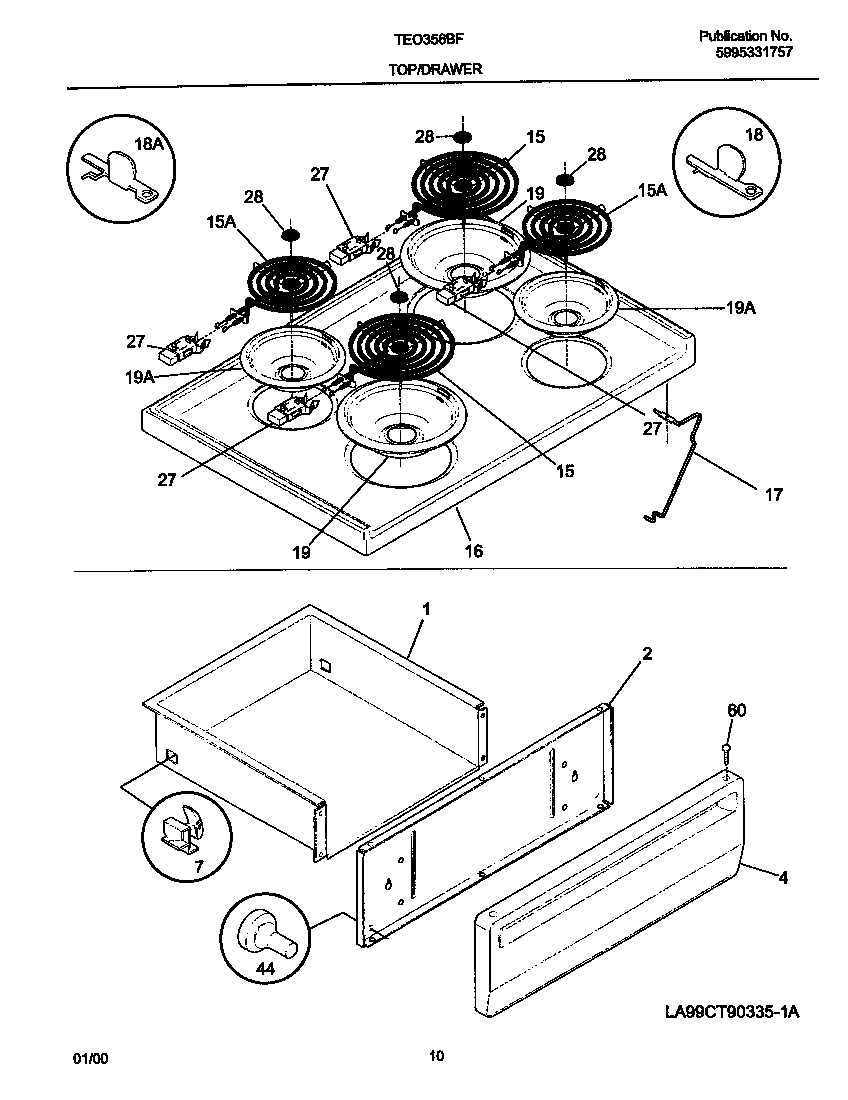

06 - TOP/DRAWER

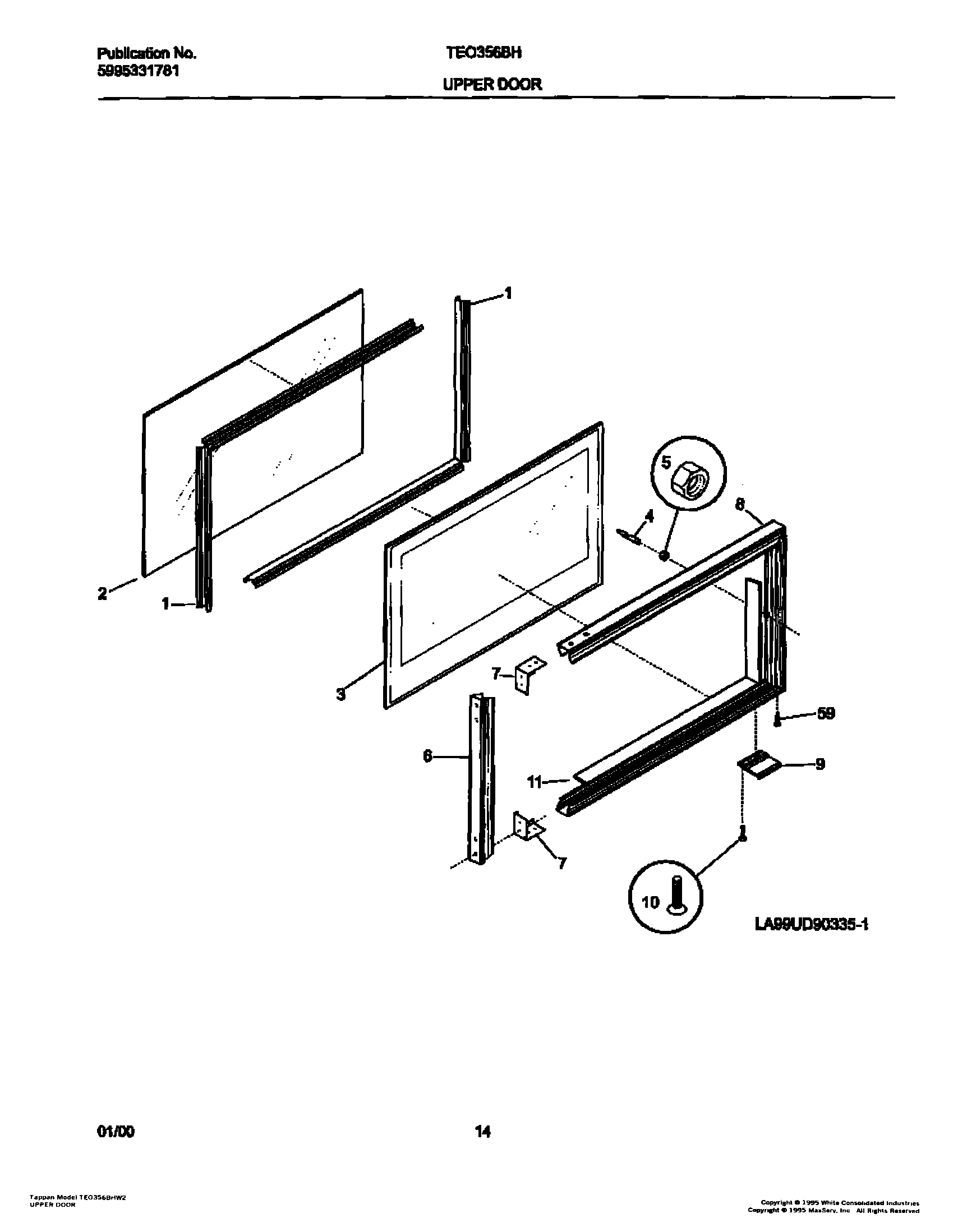

07 - UPPER DOOR

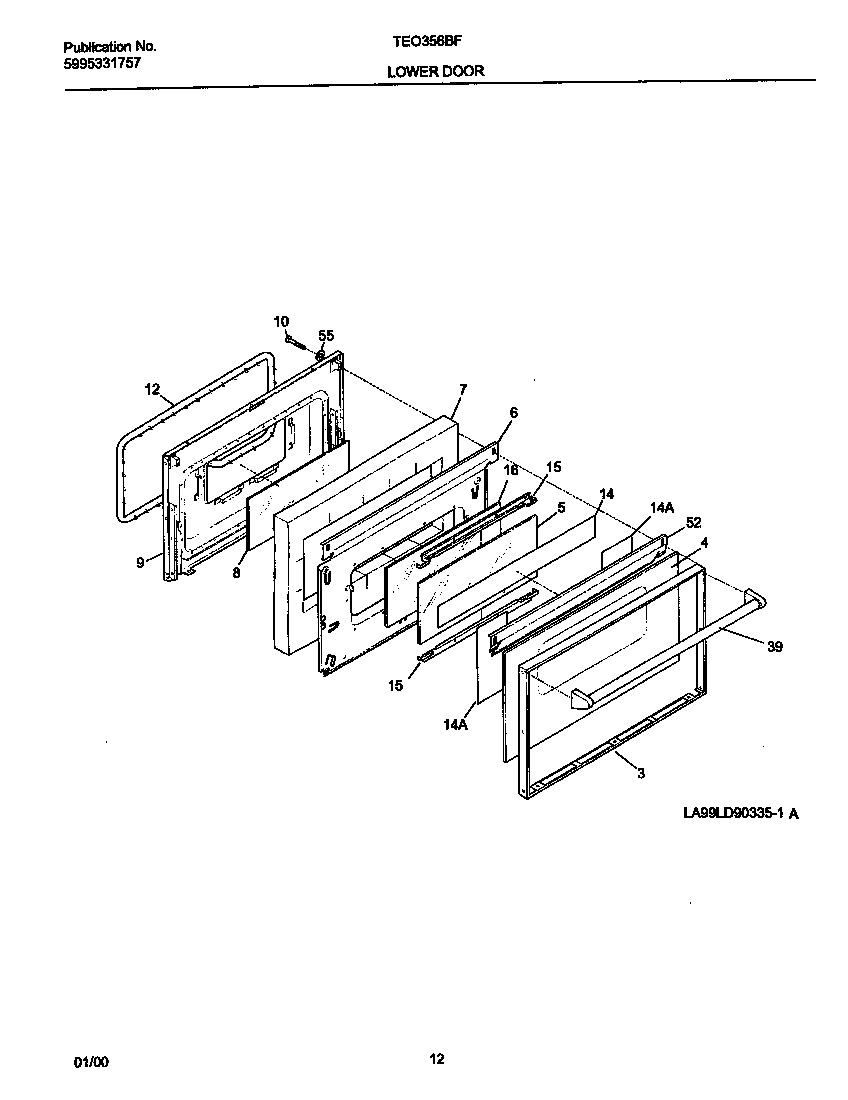

08 - LOWER DOOR

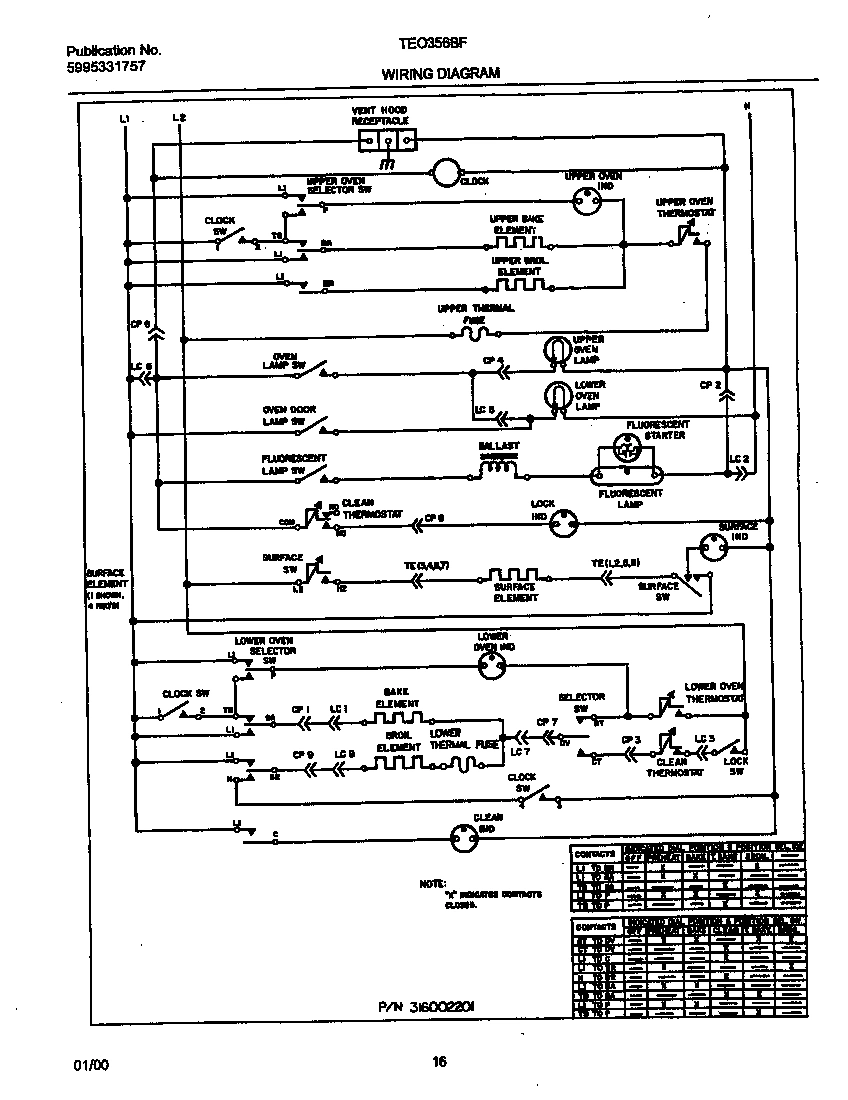

09 - WIRING DIAGRAM
Common parts from model Electrolux TEO356BFD2 RANGE
*85361
SCREW,CUP PT ,8-18 X 0.375 ,HINGE ,IND LGHT B WCI 316021108 Contact Us For Availability
1
FASTENER-CLOCK WCI 08011713 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
TRIM-FRAME WCI 316013200 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 318090230 WCI 318090230 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
4A
WCI 316084405 WCI 316084405 Contact Us For Availability
4B
WCI 316084406 WCI 316084406 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5A
WCI 5303290187 WCI 5303290187 Contact Us For Availability
5B
RECEPTACLE-LAMP WCI 5303935003 Contact Us For Availability
6
WCI 3051465 WCI 3051465 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 5303290112 WCI 5303290112 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316066900 WCI 316066900 Contact Us For Availability
7
SUPPORT-UPPER OVEN, RH WCI 3200526 Contact Us For Availability
7
SUPPORT-UPPER OVEN,LH WCI 3200527 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
GLASS-SPLASHER WCI 3200496 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024200 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024201 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
PANEL-SPLASHER-UPPER WCI 316012900 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
WCI 5303202782 WCI 5303202782 Contact Us For Availability
12
WCI 5303051320 WCI 5303051320 Contact Us For Availability
12
THERMOSTAT-OVEN, SC WCI 08067742 Contact Us For Availability
12
WCI 318109901 WCI 318109901 Contact Us For Availability
13
ANGLE-S/C BRACKET WCI 3051348 Contact Us For Availability
13
SWITCH-SELECTOR, 5 POS, UPPER WCI 3051316 Contact Us For Availability
13
SWITCH-SELECTOR, LOWER WCI 5303051315 Contact Us For Availability
13
WCI 5303290121 WCI 5303290121 Contact Us For Availability
14
TRIM-SPLASHER, RH WCI 08010549 Contact Us For Availability
14
TRIM-SPLASHER,LH WCI 5303269815 Contact Us For Availability
14
LIGHT/LAMP,INDICATOR ,CLEAR ,250 V ,(2) WCI 5303091462 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 318002800 WCI 318002800 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 318005801 WCI 318005801 Contact Us For Availability
16
WCI 318025902 WCI 318025902 Contact Us For Availability
16
PANEL-BODYSIDE,ALMOND ,LH WCI 318025912 Contact Us For Availability
16A
WCI 3013512 WCI 3013512 Contact Us For Availability
16B
WCI 5303013511 WCI 5303013511 Contact Us For Availability
17
RECEPTACLE-STARTER WCI 5303282715 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
STARTER-LAMP WCI 3206218 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
WCI 316007505 WCI 316007505 Contact Us For Availability
20
WCI 316007601 WCI 316007601 Contact Us For Availability
20
WCI 5303290105 WCI 5303290105 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 5303290177 WCI 5303290177 Contact Us For Availability
23
WCI 318036701 WCI 318036701 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
26
WCI 5303290094 WCI 5303290094 Contact Us For Availability
28
STRIKE-DOOR WCI 316012800 Contact Us For Availability
28
MEDALLION, SURFACE ELEMENT WCI 5308067828 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
29
WCI 318138601 WCI 318138601 Contact Us For Availability
30
WCI 318038201 WCI 318038201 Contact Us For Availability
31
WCI 316019168 WCI 316019168 Contact Us For Availability
31
WCI 316019169 WCI 316019169 Contact Us For Availability
31
SHIELD-HEAT WCI 3131620 Contact Us For Availability
32
WCI 316019163 WCI 316019163 Contact Us For Availability
32
WCI 316019166 WCI 316019166 Contact Us For Availability
35
WCI 5303290119 WCI 5303290119 Contact Us For Availability
36
WCI 318017010 WCI 318017010 Contact Us For Availability
36
WCI 316088000 WCI 316088000 Contact Us For Availability
40
WCI 316062346 WCI 316062346 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
SHIELD-OVEN DOOR, TOP WCI 316081303 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
58
WCI 318132603 WCI 318132603 Contact Us For Availability
58
WCI 318132604 WCI 318132604 Contact Us For Availability
58
WCI 318132605 WCI 318132605 Contact Us For Availability
58
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
66
WCI 318050900 WCI 318050900 Contact Us For Availability
68
SUPPORT-ELEMENT, UPPER WCI 3015584 Contact Us For Availability
83
WCI 318109610 WCI 318109610 Contact Us For Availability
99
SPACER WCI 5303304544 Contact Us For Availability
113
WCI 318124800 WCI 318124800 Contact Us For Availability
114
WCI 318124700 WCI 318124700 Contact Us For Availability
217
WCI 316065306 WCI 316065306 Contact Us For Availability
× ![]()
