Model Maytag TD23W-AG REFRIGERATOR – Common Parts & Diagrams
01 - ADD ON ICE MAKER 23 CU. FT.
02 - COMPRESSOR & CONDENSER 23 CU. FT.

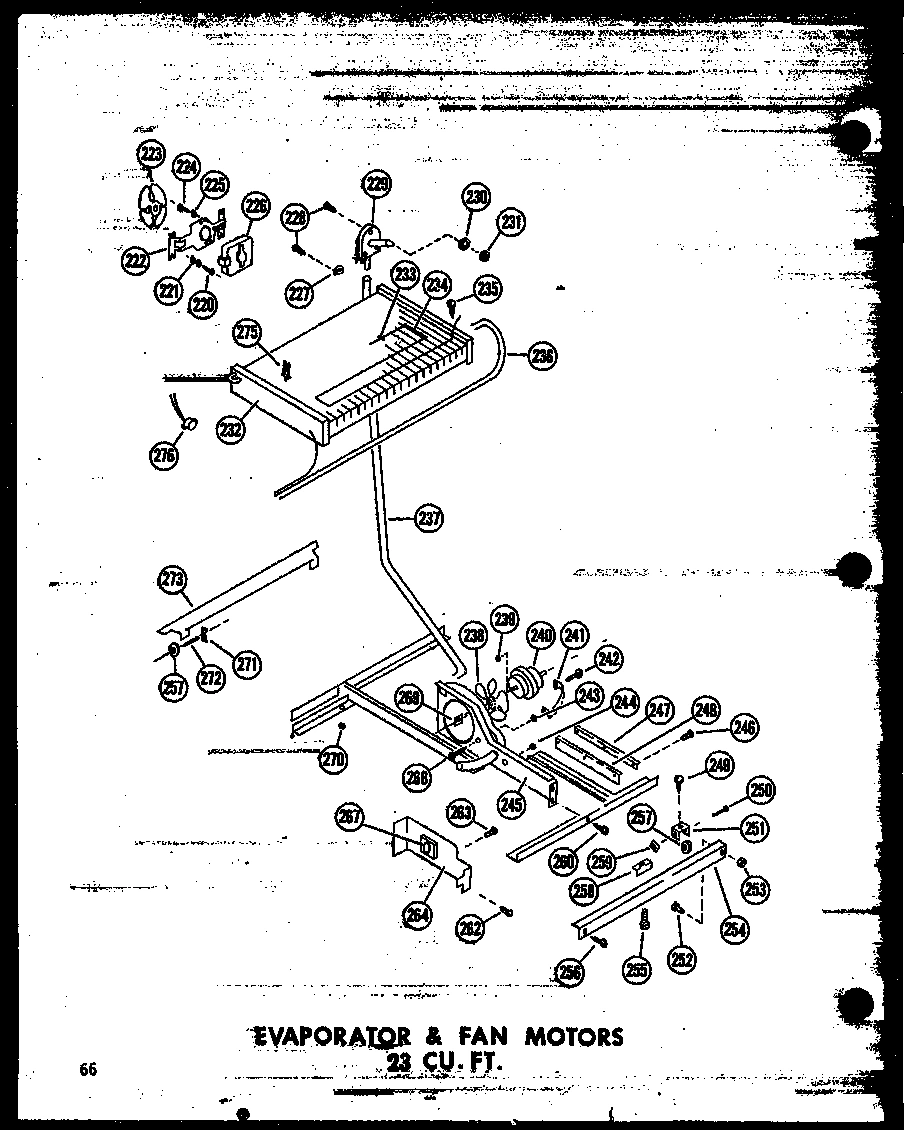

03 - EVAP & FAN MOTORS 23 CU. FT.

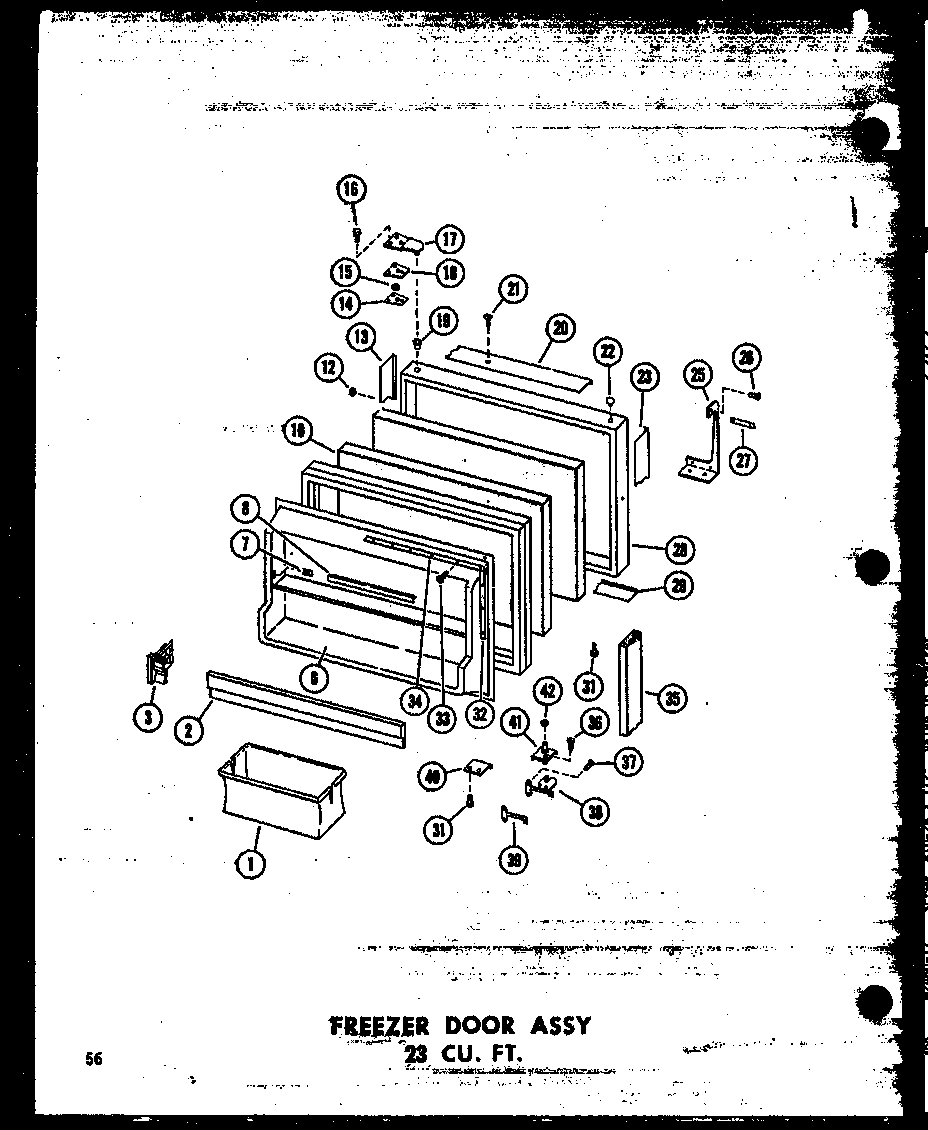

04 - FZ DOOR ASSY 23 CU. FT.

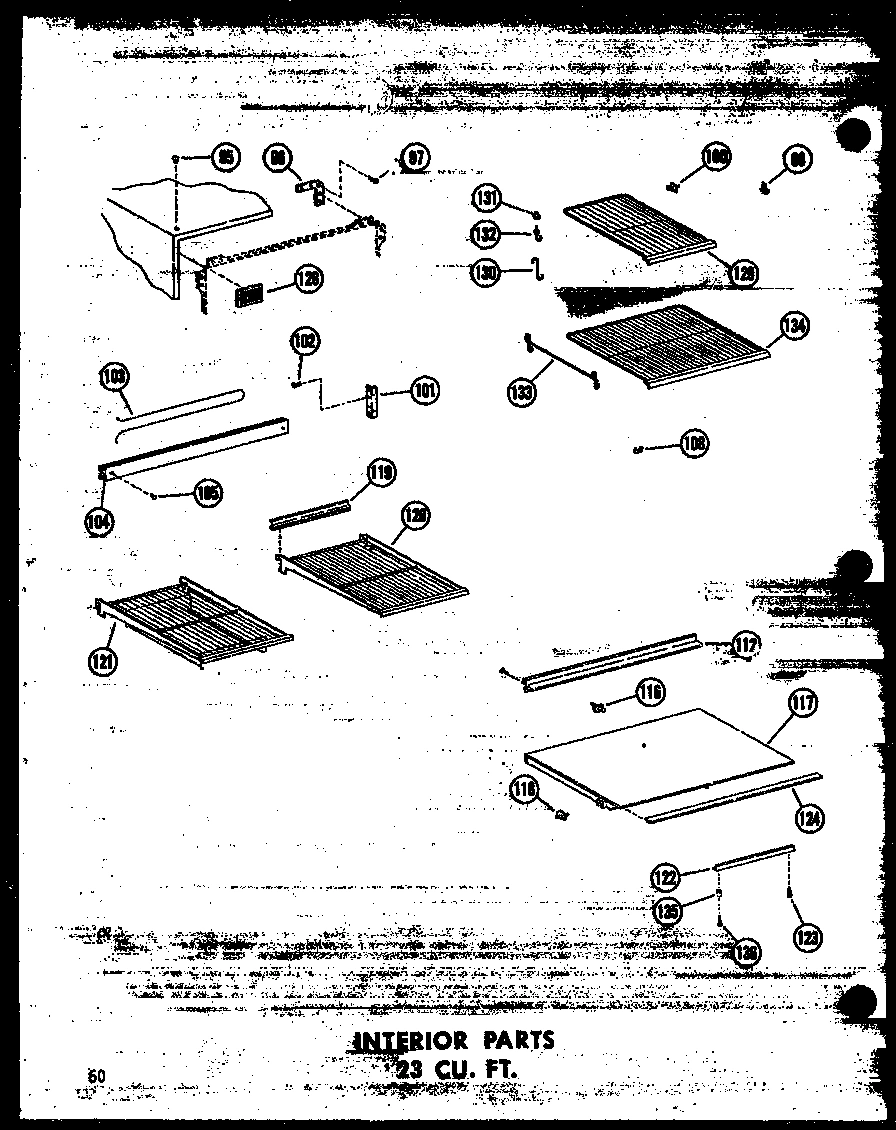

05 - INTERIOR PARTS 23 CU. FT.

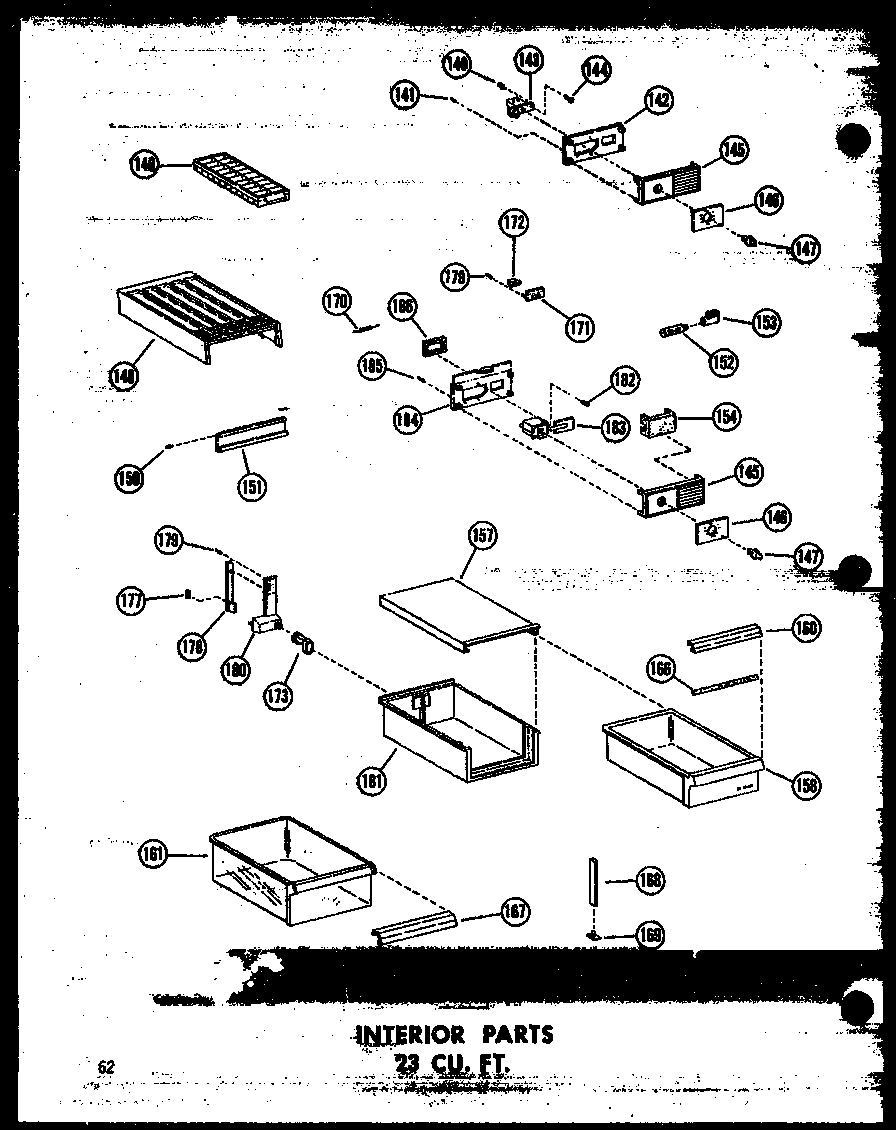

06 - INTERIOR PARTS 23 CU. FT.

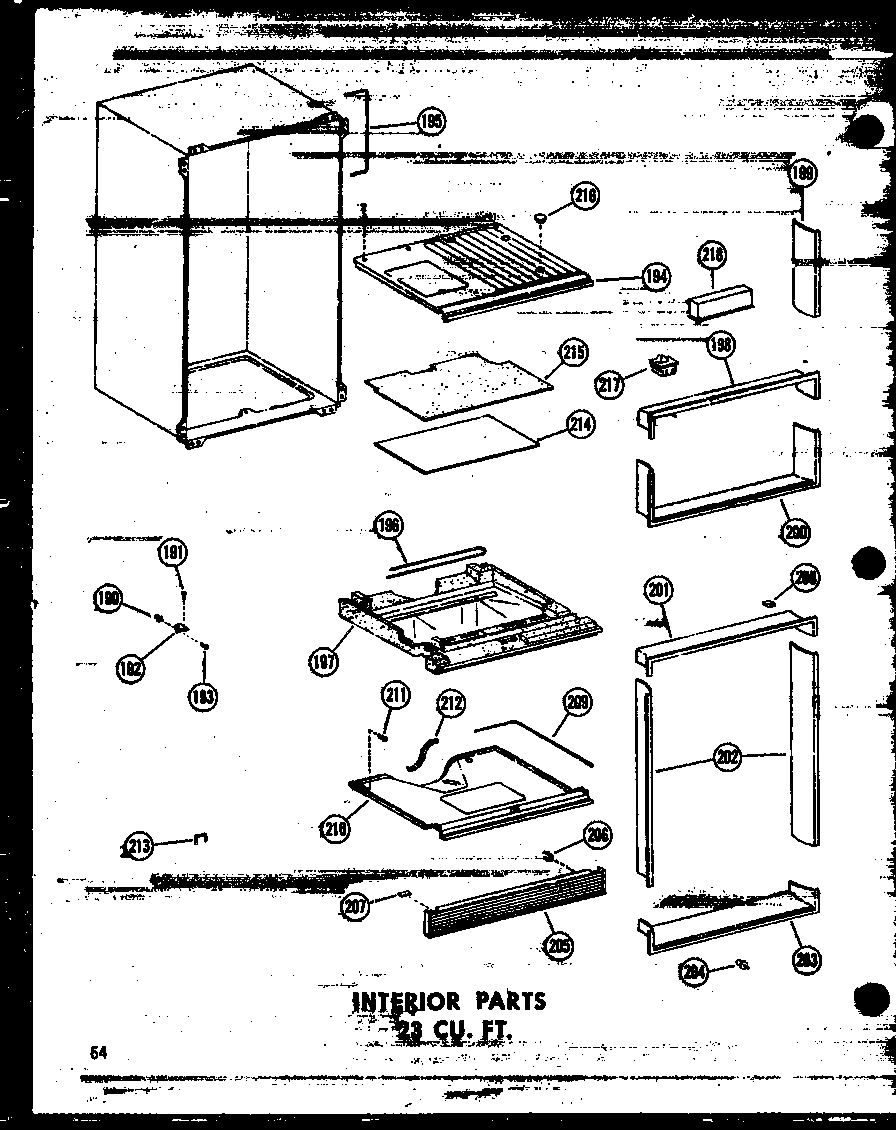

07 - INTERIOR PARTS 23 CU. FT.

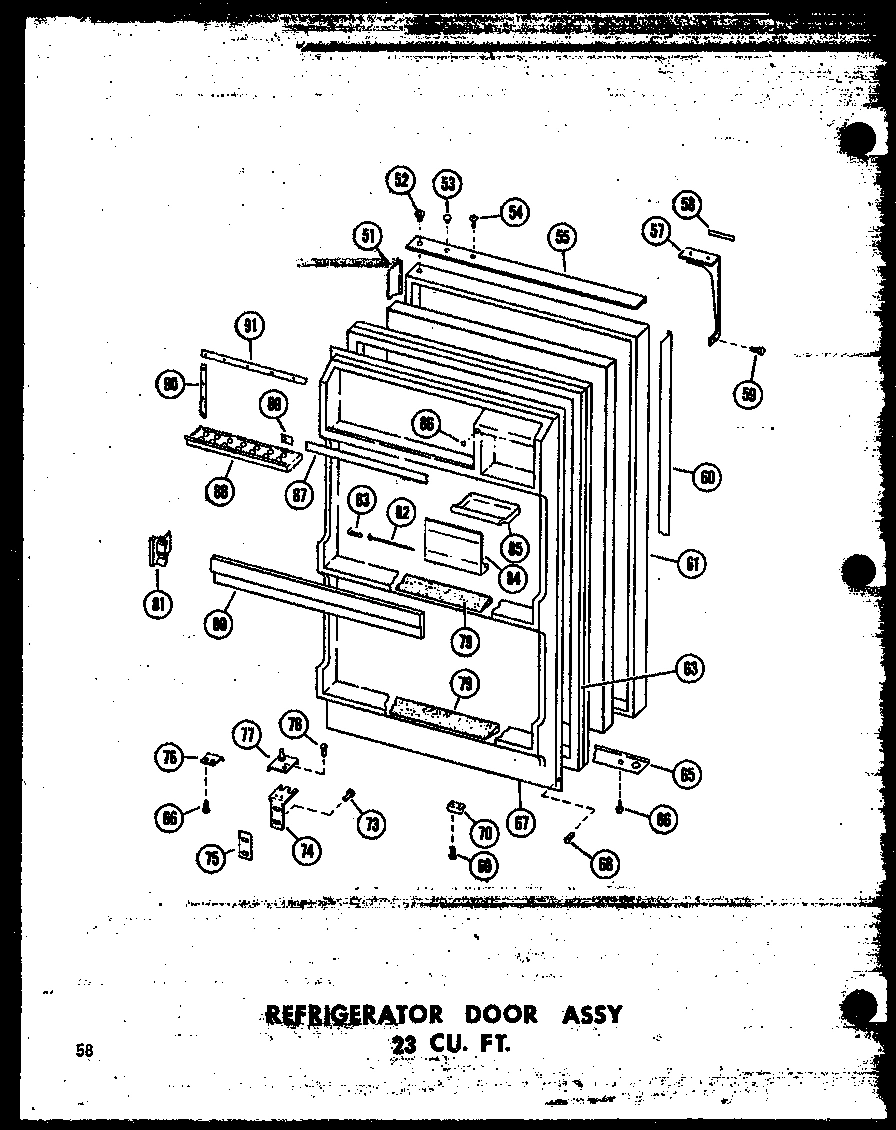

08 - REF DOOR ASSY 23 CU. FT.
Common parts from model Maytag TD23W-AG REFRIGERATOR
1
MAY D3959403 MAY D3959403 Contact Us For Availability
2
MAY D3976719 MAY D3976719 Contact Us For Availability
3
MAY C3680901 MAY C3680901 Contact Us For Availability
3
MAY C3680902 MAY C3680902 Contact Us For Availability
6
MAY D7213501 MAY D7213501 Contact Us For Availability
8
MAY B5632003 MAY B5632003 Contact Us For Availability
10
MAY A3073024 MAY A3073024 Contact Us For Availability
13
MAY B5640304 MAY B5640304 Contact Us For Availability
14
MAY A3139701 MAY A3139701 Contact Us For Availability
15
MAY M0270522 MAY M0270522 Contact Us For Availability
17
MAY B5640704 MAY B5640704 Contact Us For Availability
18
MAY A3143701 MAY A3143701 Contact Us For Availability
18
MAY A3143702 MAY A3143702 Contact Us For Availability
18
MAY A3143703 MAY A3143703 Contact Us For Availability
22
MAY M0310601 MAY M0310601 Contact Us For Availability
22
MAY M0310602 MAY M0310602 Contact Us For Availability
22
MAY M0310603 MAY M0310603 Contact Us For Availability
22
MAY M0310604 MAY M0310604 Contact Us For Availability
23
MAY B5640303 MAY B5640303 Contact Us For Availability
25
MAY D7145801 MAY D7145801 Contact Us For Availability
27
MAY C3675307 MAY C3675307 Contact Us For Availability
28
MAY D7057703 MAY D7057703 Contact Us For Availability
28
MAY D7057709 MAY D7057709 Contact Us For Availability
28
MAY D7057715 MAY D7057715 Contact Us For Availability
28
MAY D7057803 MAY D7057803 Contact Us For Availability
29
MAY D7056502 MAY D7056502 Contact Us For Availability
32
MAY D3928108 MAY D3928108 Contact Us For Availability
32
MAY D3928113 MAY D3928113 Contact Us For Availability
35
MAY A3195002 MAY A3195002 Contact Us For Availability
37
MAY M0257244 MAY M0257244 Contact Us For Availability
37
MAY M0205731 MAY M0205731 Contact Us For Availability
38
MAY B5640502 MAY B5640502 Contact Us For Availability
39
MAY A3143501 MAY A3143501 Contact Us For Availability
39
MAY A3143502 MAY A3143502 Contact Us For Availability
39
MAY A3143503 MAY A3143503 Contact Us For Availability
41
MAY B5640402 MAY B5640402 Contact Us For Availability
42
MAY A3145101 MAY A3145101 Contact Us For Availability
51
MAY B5640302 MAY B5640302 Contact Us For Availability
52
MAY C3652901 MAY C3652901 Contact Us For Availability
53
MAY M0310713 MAY M0310713 Contact Us For Availability
54
MAY M0214116 MAY M0214116 Contact Us For Availability
55
MAY D7056501 MAY D7056501 Contact Us For Availability
57
MAY D7145802 MAY D7145802 Contact Us For Availability
58
MAY C3675306 MAY C3675306 Contact Us For Availability
59
MAY M0207431 MAY M0207431 Contact Us For Availability
60
MAY B5640301 MAY B5640301 Contact Us For Availability
61
MAY D7222605 MAY D7222605 Contact Us For Availability
61
MAY D7222606 MAY D7222606 Contact Us For Availability
61
MAY D7222607 MAY D7222607 Contact Us For Availability
61
MAY D7222608 MAY D7222608 Contact Us For Availability
63
MAY D3928205 MAY D3928205 Contact Us For Availability
65
MAY D7056504 MAY D7056504 Contact Us For Availability
66
MAY M0205631 MAY M0205631 Contact Us For Availability
67
MAY D7213601 MAY D7213601 Contact Us For Availability
68
MAY M0211018 MAY M0211018 Contact Us For Availability
69
MAY M0241205 MAY M0241205 Contact Us For Availability
70
MAY B5666401 MAY B5666401 Contact Us For Availability
73
MAY M0246159 MAY M0246159 Contact Us For Availability
74
MAY B5640201 MAY B5640201 Contact Us For Availability
75
MAY A3143601 MAY A3143601 Contact Us For Availability
75
MAY A3143602 MAY A3143602 Contact Us For Availability
75
MAY A3143603 MAY A3143603 Contact Us For Availability
76
MAY A3139801 MAY A3139801 Contact Us For Availability
77
MAY B5640901 MAY B5640901 Contact Us For Availability
78
MAY M0205441 MAY M0205441 Contact Us For Availability
79
MAY D7145102 MAY D7145102 Contact Us For Availability
80
MAY D3976722 MAY D3976722 Contact Us For Availability
81
MAY B5631701 MAY B5631701 Contact Us For Availability
81
MAY B5631702 MAY B5631702 Contact Us For Availability
82
MAY A3056207 MAY A3056207 Contact Us For Availability
83
MAY A3065201 MAY A3065201 Contact Us For Availability
84
MAY C3622103 MAY C3622103 Contact Us For Availability
85
MAY D3799801 MAY D3799801 Contact Us For Availability
86
MAY A3059002 MAY A3059002 Contact Us For Availability
87
MAY B5632005 MAY B5632005 Contact Us For Availability
88
MAY D7025701 MAY D7025701 Contact Us For Availability
89
MAY B0530004 MAY B0530004 Contact Us For Availability
90
MAY D3928106 MAY D3928106 Contact Us For Availability
90
MAY D3928107 MAY D3928107 Contact Us For Availability
91
MAY D3928102 MAY D3928102 Contact Us For Availability
95
MAY M0310709 MAY M0310709 Contact Us For Availability
95
MAY M0310710 MAY M0310710 Contact Us For Availability
95
MAY M0310711 MAY M0310711 Contact Us For Availability
95
MAY M0310712 MAY M0310712 Contact Us For Availability
96
MAY B0598101 MAY B0598101 Contact Us For Availability
97
MAY M0211530 MAY M0211530 Contact Us For Availability
98
MAY B0593901 MAY B0593901 Contact Us For Availability
100
MAY C3638101 MAY C3638101 Contact Us For Availability
101
MAY A3140701 MAY A3140701 Contact Us For Availability
101
MAY A3140702 MAY A3140702 Contact Us For Availability
102
MAY M0250531 MAY M0250531 Contact Us For Availability
103
MAY B5636001 MAY B5636001 Contact Us For Availability
104
MAY C3633305 MAY C3633305 Contact Us For Availability
104
MAY C3633306 MAY C3633306 Contact Us For Availability
104
MAY C3633307 MAY C3633307 Contact Us For Availability
104
MAY C3633308 MAY C3633308 Contact Us For Availability
105
MAY M0310701 MAY M0310701 Contact Us For Availability
105
MAY M0310702 MAY M0310702 Contact Us For Availability
105
MAY M0310703 MAY M0310703 Contact Us For Availability
105
MAY M0310704 MAY M0310704 Contact Us For Availability
108
CLIP A MAY A3083401 Contact Us For Availability
116
MAY B5680001 MAY B5680001 Contact Us For Availability
117
MAY D3984503 MAY D3984503 Contact Us For Availability
118
MAY B0570501 MAY B0570501 Contact Us For Availability
119
MAY C3639401 MAY C3639401 Contact Us For Availability
120
MAY D7198802 MAY D7198802 Contact Us For Availability
121
MAY D7198902 MAY D7198902 Contact Us For Availability
122
MAY C3697202 MAY C3697202 Contact Us For Availability
123
MAY M0230814 MAY M0230814 Contact Us For Availability
124
MAY B0570904 MAY B0570904 Contact Us For Availability
128
MAY C3601801 MAY C3601801 Contact Us For Availability
129
MAY C3638406 MAY C3638406 Contact Us For Availability
130
MAY A3147704 MAY A3147704 Contact Us For Availability
131
MAY C3638501 MAY C3638501 Contact Us For Availability
132
MAY B5647201 MAY B5647201 Contact Us For Availability
133
MAY B5647102 MAY B5647102 Contact Us For Availability
134
MAY D7072504 MAY D7072504 Contact Us For Availability
135
MAY A3213401 MAY A3213401 Contact Us For Availability
136
MAY M0213516 MAY M0213516 Contact Us For Availability
140
MAY M0580002 MAY M0580002 Contact Us For Availability
142
MAY D7160901 MAY D7160901 Contact Us For Availability
143
MAY B0592304 MAY B0592304 Contact Us For Availability
144
MAY M0211016 MAY M0211016 Contact Us For Availability
145
MAY D3953303 MAY D3953303 Contact Us For Availability
146
MAY B5634501 MAY B5634501 Contact Us For Availability
147
MAY D7009801 MAY D7009801 Contact Us For Availability
148
MAY D7193001 MAY D7193001 Contact Us For Availability
149
MAY C8717801 MAY C8717801 Contact Us For Availability
150
MAY A3214701 MAY A3214701 Contact Us For Availability
151
MAY C8706101 MAY C8706101 Contact Us For Availability
152
MAY A0318001 MAY A0318001 Contact Us For Availability
153
MAY B5637101 MAY B5637101 Contact Us For Availability
154
MAY C3617201 MAY C3617201 Contact Us For Availability
157
MAY D7001104 MAY D7001104 Contact Us For Availability
158
MAY D3975703 MAY D3975703 Contact Us For Availability
160
MAY C3623002 MAY C3623002 Contact Us For Availability
161
MAY D7184201 MAY D7184201 Contact Us For Availability
167
MAY C3696501 MAY C3696501 Contact Us For Availability
168
MAY B0571002 MAY B0571002 Contact Us For Availability
169
MAY B0571201 MAY B0571201 Contact Us For Availability
170
MAY M0305301 MAY M0305301 Contact Us For Availability
171
MAY C8705702 MAY C8705702 Contact Us For Availability
172
MAY M0341201 MAY M0341201 Contact Us For Availability
173
MAY C8703301 MAY C8703301 Contact Us For Availability
177
MAY A3030302 MAY A3030302 Contact Us For Availability
178
MAY B5622802 MAY B5622802 Contact Us For Availability
180
MAY B5656703 MAY B5656703 Contact Us For Availability
181
MAY D7001302 MAY D7001302 Contact Us For Availability
182
MAY M0218116 MAY M0218116 Contact Us For Availability
183
MAY B5616203 MAY B5616203 Contact Us For Availability
184
MAY D7058201 MAY D7058201 Contact Us For Availability
185
MAY M0113004 MAY M0113004 Contact Us For Availability
186
MAY A3104502 MAY A3104502 Contact Us For Availability
190
MAY A0288701 MAY A0288701 Contact Us For Availability
191
MAY M0230917 MAY M0230917 Contact Us For Availability
192
MAY M0116901 MAY M0116901 Contact Us For Availability
193
MAY M0230028 MAY M0230028 Contact Us For Availability
194
MAY D7143601 MAY D7143601 Contact Us For Availability
195
MAY D7132301 MAY D7132301 Contact Us For Availability
196
MAY C8708201 MAY C8708201 Contact Us For Availability
197
MAY D7198701 MAY D7198701 Contact Us For Availability
198
MAY D7157201 MAY D7157201 Contact Us For Availability
199
MAY D3951713 MAY D3951713 Contact Us For Availability
200
MAY D3981201 MAY D3981201 Contact Us For Availability
201
MAY D3981002 MAY D3981002 Contact Us For Availability
202
MAY D3951712 MAY D3951712 Contact Us For Availability
203
MAY D3980601 MAY D3980601 Contact Us For Availability
204
MAY C3658601 MAY C3658601 Contact Us For Availability
205
MAY D7070202 MAY D7070202 Contact Us For Availability
206
MAY M0117301 MAY M0117301 Contact Us For Availability
207
MAY B5641301 MAY B5641301 Contact Us For Availability
208
MAY M0113401 MAY M0113401 Contact Us For Availability
209
MAY D7223001 MAY D7223001 Contact Us For Availability
210
MAY D7142802 MAY D7142802 Contact Us For Availability
212
GASKET (PER FOOT) MAY A3030313 Contact Us For Availability
213
MAY A3195601 MAY A3195601 Contact Us For Availability
214
MAY A3126001 MAY A3126001 Contact Us For Availability
215
MAY B5682901 MAY B5682901 Contact Us For Availability
216
MAY A3069101 MAY A3069101 Contact Us For Availability
217
MAY C3680303 MAY C3680303 Contact Us For Availability
218
MAY B5721601 MAY B5721601 Contact Us For Availability
221
MAY A0381401 MAY A0381401 Contact Us For Availability
221
MAY YA0381501 MAY YA0381501 Contact Us For Availability
222
MAY C3536203 MAY C3536203 Contact Us For Availability
223
MAY B5622101 MAY B5622101 Contact Us For Availability
224
MAY M0202642 MAY M0202642 Contact Us For Availability
225
MAY M0272605 MAY M0272605 Contact Us For Availability
226
MAY D7115703 MAY D7115703 Contact Us For Availability
227
MAY M0102303 MAY M0102303 Contact Us For Availability
228
MAY M0214618 MAY M0214618 Contact Us For Availability
229
MAY C3630901 MAY C3630901 Contact Us For Availability
230
MAY A3132301 MAY A3132301 Contact Us For Availability
231
MAY A3128101 MAY A3128101 Contact Us For Availability
232
MAY D7143120 MAY D7143120 Contact Us For Availability
233
MAY M0110301 MAY M0110301 Contact Us For Availability
234
MAY C3660003 MAY C3660003 Contact Us For Availability
235
MAY M0214931 MAY M0214931 Contact Us For Availability
236
MAY D7030302 MAY D7030302 Contact Us For Availability
237
MAY C8721202 MAY C8721202 Contact Us For Availability
238
MAY B0598501 MAY B0598501 Contact Us For Availability
239
MAY M0274015 MAY M0274015 Contact Us For Availability
240
MAY C3661701 MAY C3661701 Contact Us For Availability
241
MAY B0598701 MAY B0598701 Contact Us For Availability
242
MAY M0220101 MAY M0220101 Contact Us For Availability
243
MAY M0500107 MAY M0500107 Contact Us For Availability
244
MAY M0500102 MAY M0500102 Contact Us For Availability
245
MAY C3617602 MAY C3617602 Contact Us For Availability
247
MAY B0599701 MAY B0599701 Contact Us For Availability
248
MAY B0599603 MAY B0599603 Contact Us For Availability
249
MAY M0267101 MAY M0267101 Contact Us For Availability
250
MAY M1210002 MAY M1210002 Contact Us For Availability
251
MAY A3125201 MAY A3125201 Contact Us For Availability
252
MAY M0222240 MAY M0222240 Contact Us For Availability
253
MAY M0283510 MAY M0283510 Contact Us For Availability
254
MAY B5627601 MAY B5627601 Contact Us For Availability
255
MAY B1601601 MAY B1601601 Contact Us For Availability
256
MAY M0233844 MAY M0233844 Contact Us For Availability
257
MAY M0520102 MAY M0520102 Contact Us For Availability
258
MAY A3122601 MAY A3122601 Contact Us For Availability
259
MAY M0289401 MAY M0289401 Contact Us For Availability
263
MAY M0230017 MAY M0230017 Contact Us For Availability
264
MAY C3647902 MAY C3647902 Contact Us For Availability
267
MAY D7004106 MAY D7004106 Contact Us For Availability
268
MAY M0221332 MAY M0221332 Contact Us For Availability
270
MAY M0274038 MAY M0274038 Contact Us For Availability
271
COTTER PIN K MAY M1200001 Contact Us For Availability
272
PIVOT PIN K MAY M1210001 Contact Us For Availability
273
MAY C3611301 MAY C3611301 Contact Us For Availability
275
MAY B5667401 MAY B5667401 Contact Us For Availability
276
MAY C3686602 MAY C3686602 Contact Us For Availability
281
MAY B5639801 MAY B5639801 Contact Us For Availability
283
MAY B5636301 MAY B5636301 Contact Us For Availability
284
MAY B5631801 MAY B5631801 Contact Us For Availability
285
MAY A3138301 MAY A3138301 Contact Us For Availability
286
MAY B5630507 MAY B5630507 Contact Us For Availability
287
MAY A3243201 MAY A3243201 Contact Us For Availability
288
MAY B0523510 MAY B0523510 Contact Us For Availability
288
MAY D7121301 MAY D7121301 Contact Us For Availability
289
MAY B5715001 MAY B5715001 Contact Us For Availability
290
MAY M0104002 MAY M0104002 Contact Us For Availability
291
MAY M0110503 MAY M0110503 Contact Us For Availability
292
MAY M0257037 MAY M0257037 Contact Us For Availability
293
MAY A3013906 MAY A3013906 Contact Us For Availability
294
MAY M0257039 MAY M0257039 Contact Us For Availability
295
MAY A3013907 MAY A3013907 Contact Us For Availability
296
MAY A3085401 MAY A3085401 Contact Us For Availability
298
MAY M0286003 MAY M0286003 Contact Us For Availability
299
MAY D7010701 MAY D7010701 Contact Us For Availability
300
MAY M0211030 MAY M0211030 Contact Us For Availability
301
MAY A3054501 MAY A3054501 Contact Us For Availability
302
MAY B0544101 MAY B0544101 Contact Us For Availability
303
MAY B5691701 MAY B5691701 Contact Us For Availability
303
MAY D7001001 MAY D7001001 Contact Us For Availability
304
MAY A3140801 MAY A3140801 Contact Us For Availability
305
MAY M0590101 MAY M0590101 Contact Us For Availability
306
MAY A3072001 MAY A3072001 Contact Us For Availability
307
MAY A3026101 MAY A3026101 Contact Us For Availability
308
MAY A3164301 MAY A3164301 Contact Us For Availability
309
MAY D3871704 MAY D3871704 Contact Us For Availability
310
MAY C3678001 MAY C3678001 Contact Us For Availability
311
MAY A3043601 MAY A3043601 Contact Us For Availability
312
MAY B0551801 MAY B0551801 Contact Us For Availability
313
MAY A3041801 MAY A3041801 Contact Us For Availability
314
MAY C3553401 MAY C3553401 Contact Us For Availability
315
MAY A0319702 MAY A0319702 Contact Us For Availability
315
MAY A0319703 MAY A0319703 Contact Us For Availability
316
MAY D7217801 MAY D7217801 Contact Us For Availability
317
MAY M0301002 MAY M0301002 Contact Us For Availability
318
MAY M0301001 MAY M0301001 Contact Us For Availability
319
MAY M0370801 MAY M0370801 Contact Us For Availability
320
MAY M0241118 MAY M0241118 Contact Us For Availability
321
MAY C3655001 MAY C3655001 Contact Us For Availability
322
MAY A3080001 MAY A3080001 Contact Us For Availability
323
MAY M0585203 MAY M0585203 Contact Us For Availability
350
SEE NOTE MODEL IC-2, MFG. NO. P60120-5W ADD O MAY Y00000000 Contact Us For Availability
352
MAY D7036801 MAY D7036801 Contact Us For Availability
353
MAY B5662401 MAY B5662401 Contact Us For Availability
354
MAY D7053901 MAY D7053901 Contact Us For Availability
355
MAY C3637901 MAY C3637901 Contact Us For Availability
356
MAY A3101504 MAY A3101504 Contact Us For Availability
357
MAY M0580001 MAY M0580001 Contact Us For Availability
359
MAY M0102804 MAY M0102804 Contact Us For Availability
360
MAY A3084501 MAY A3084501 Contact Us For Availability
361
MAY D7036803 MAY D7036803 Contact Us For Availability
362
NUT, SLEEVE MAY M0753001 Contact Us For Availability
363
MAY B5630701 MAY B5630701 Contact Us For Availability
364
MAY M0233103 MAY M0233103 Contact Us For Availability
364
MAY M0246017 MAY M0246017 Contact Us For Availability
365
MAY A3034801 MAY A3034801 Contact Us For Availability
× ![]()
