Model GE TCX22ZAXARWH Refrigerator – Common Parts & Diagrams

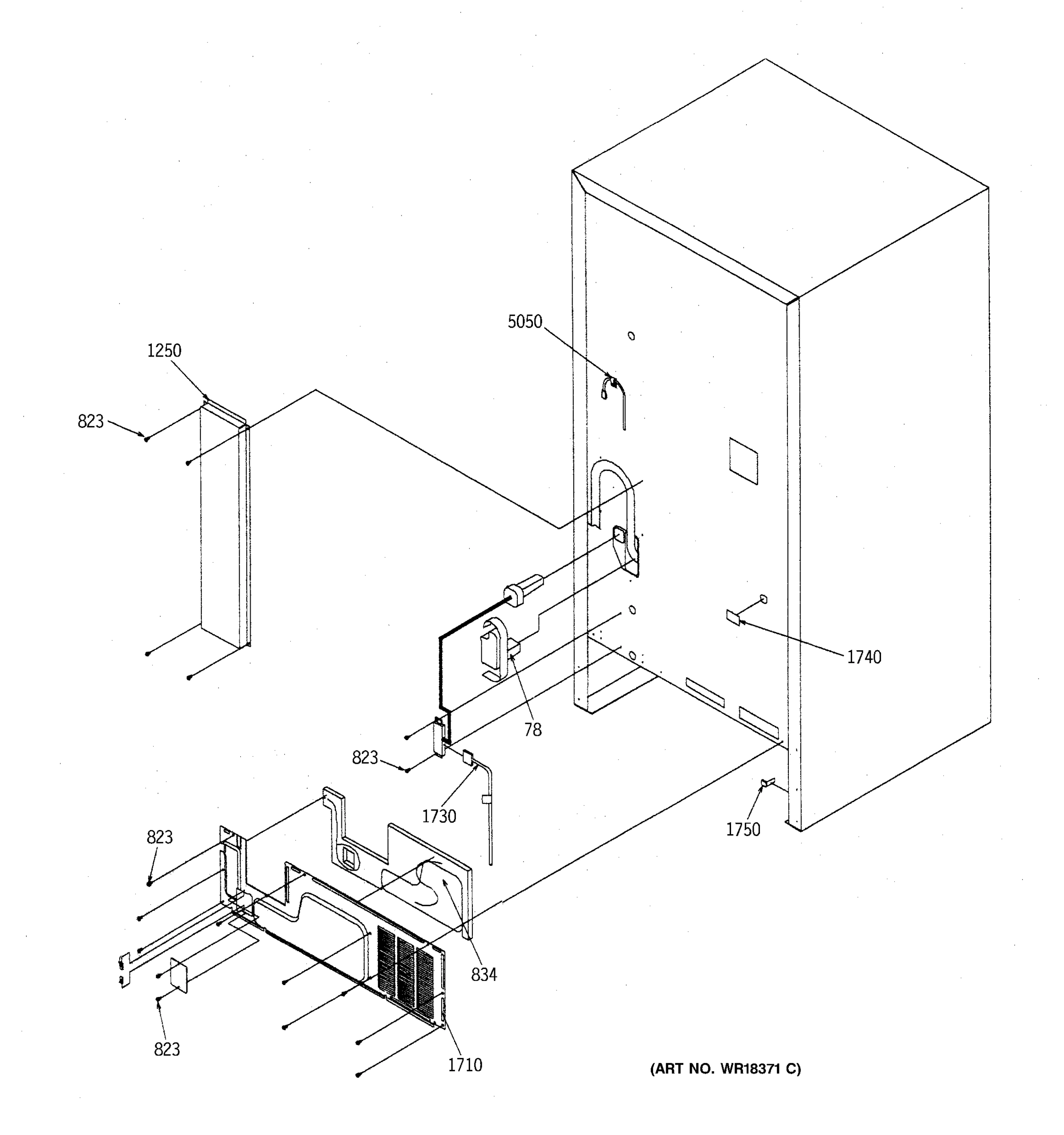

CABINET BACK

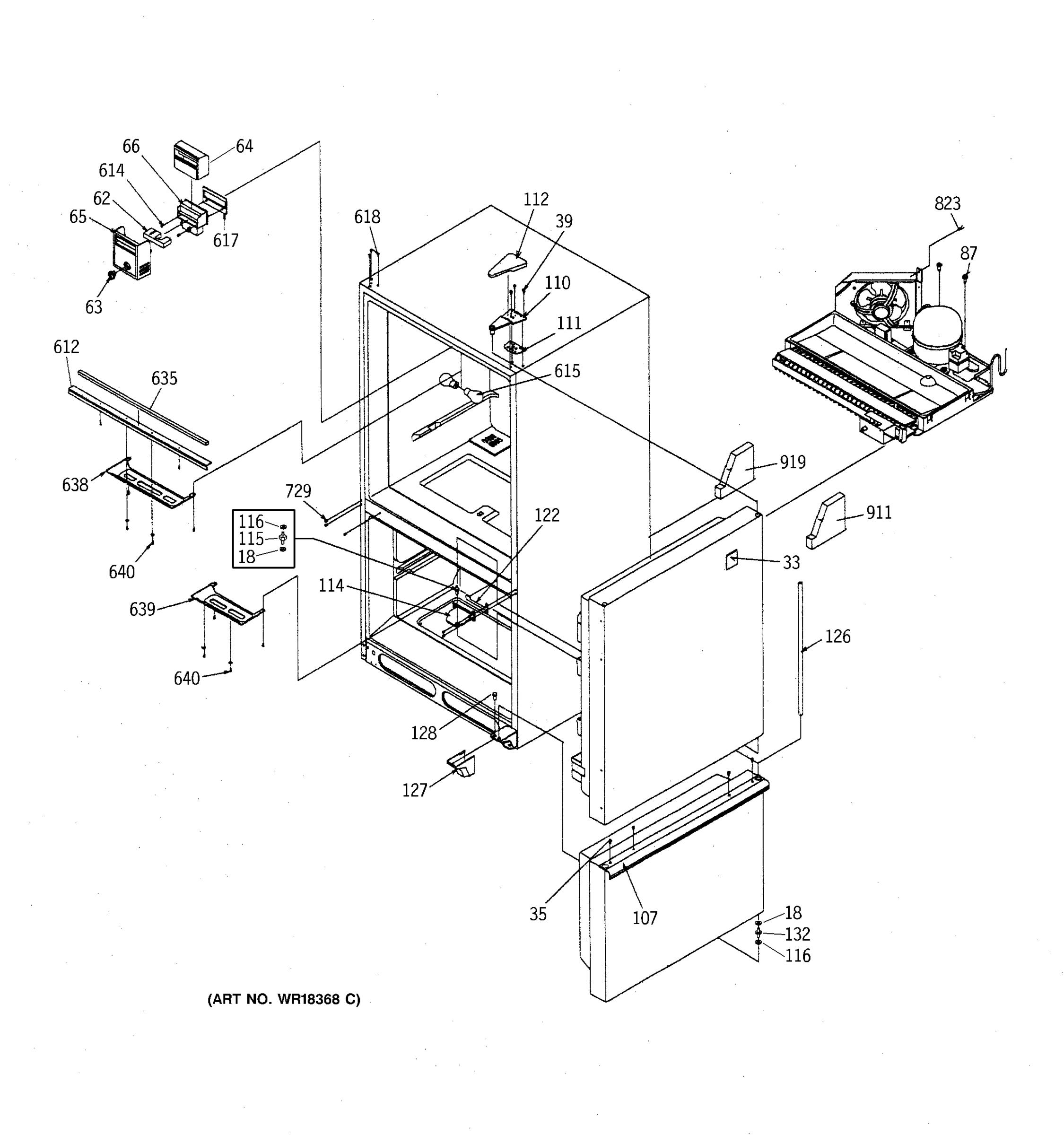

CONTROLS & LIGHT COVERS

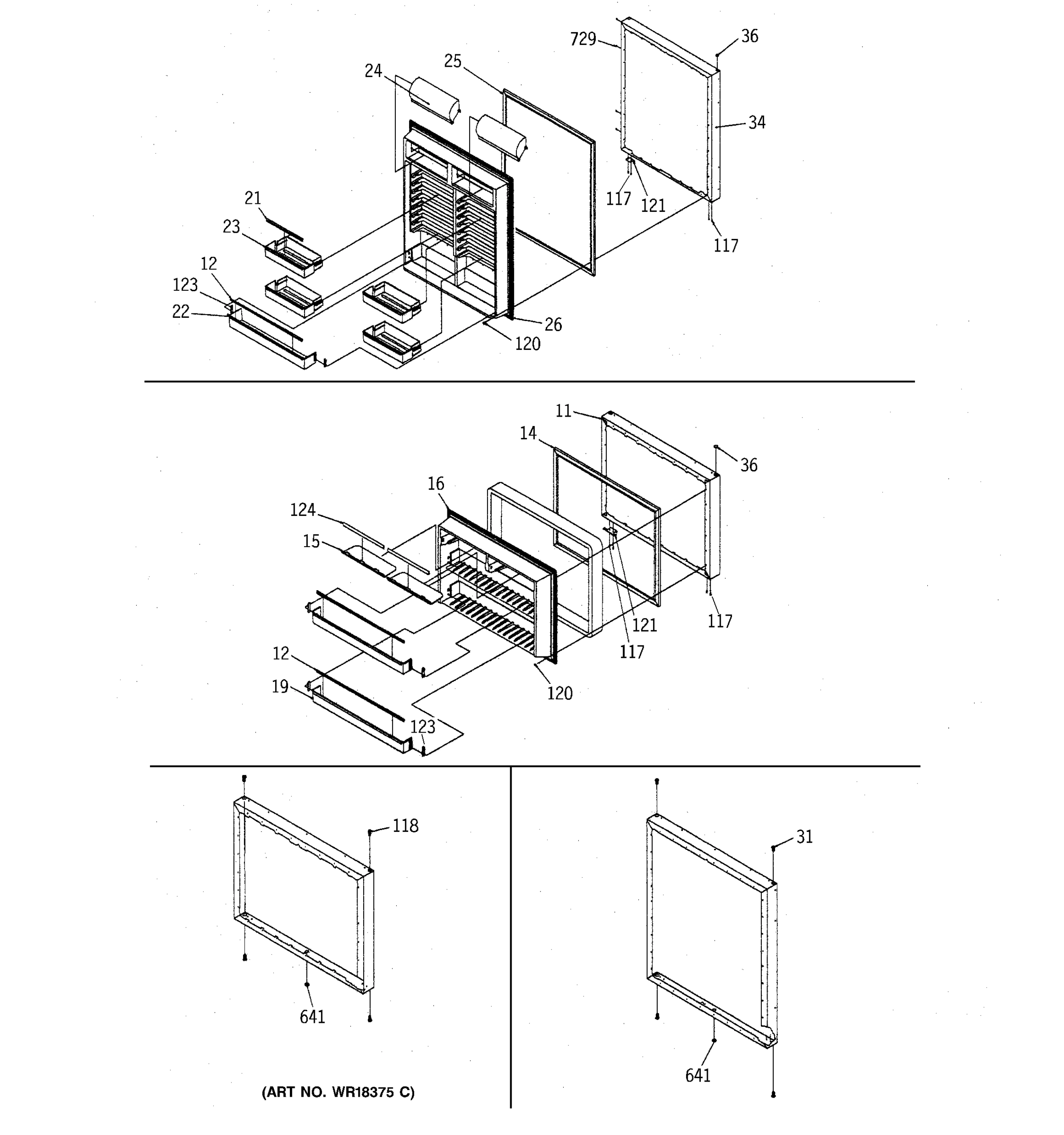

DOOR ASSEMBLIES

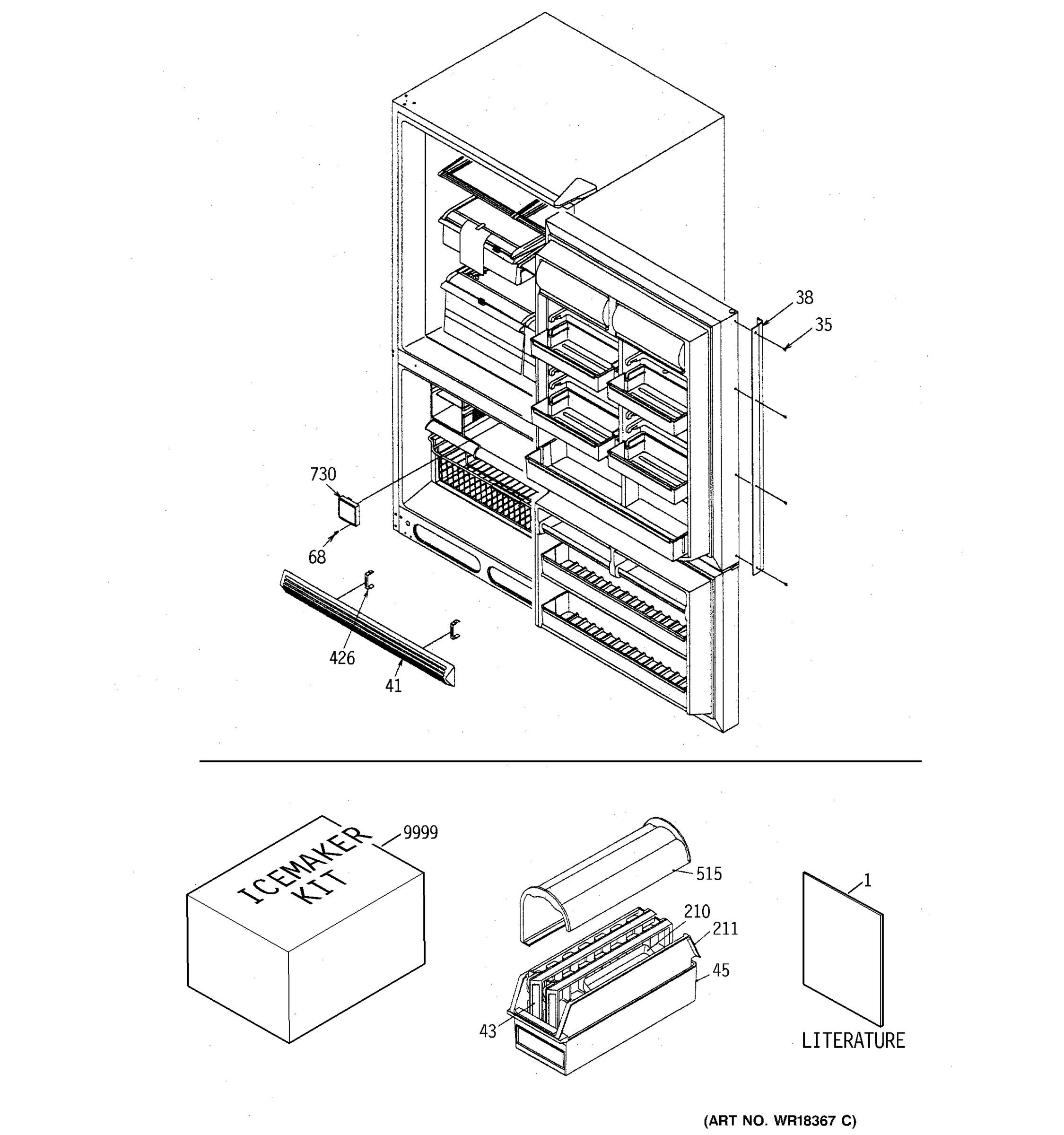

DOOR HANDLES & ACCESSORIES

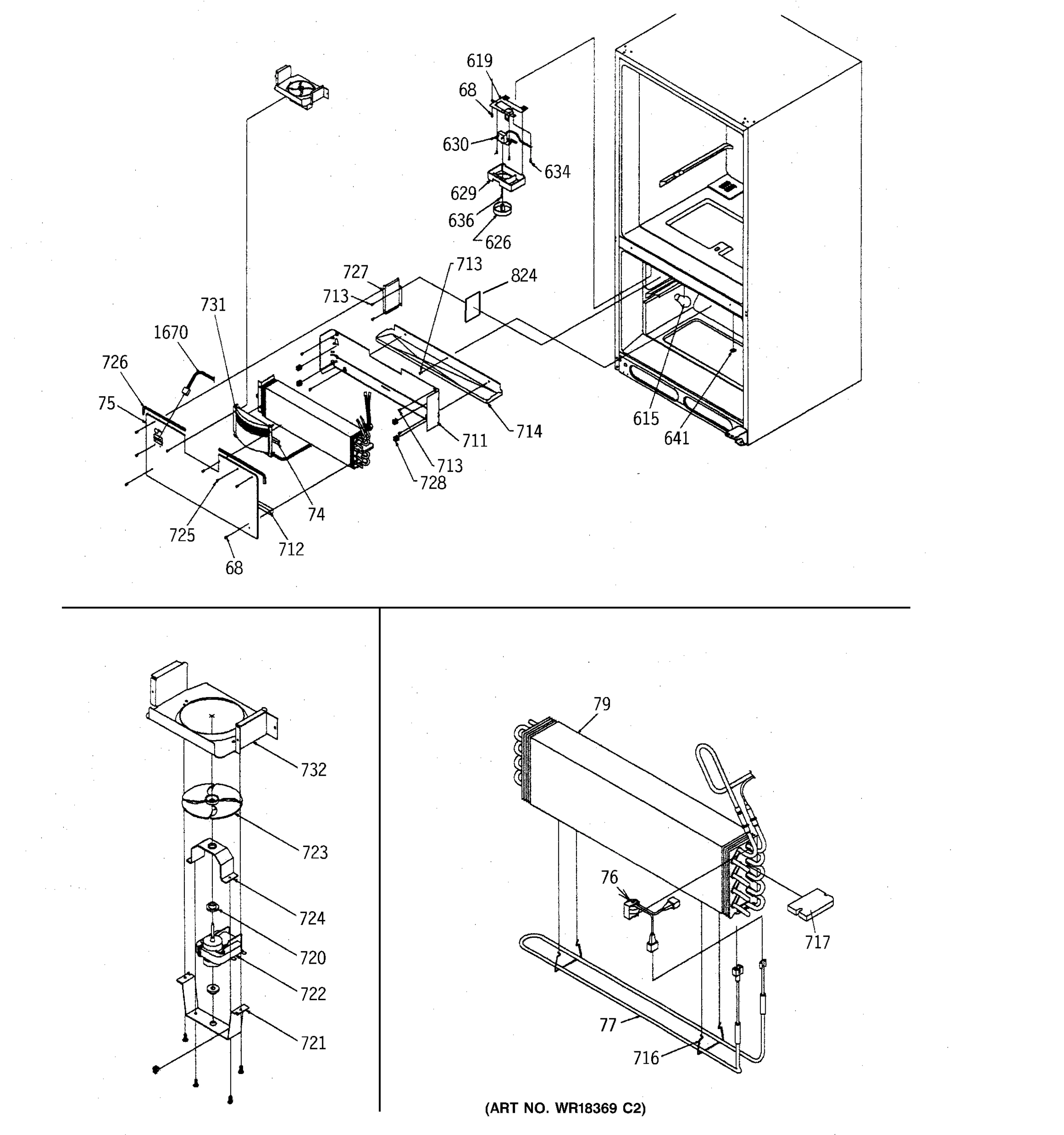

EVAPORATOR & FREEZER CONTROL ASSEMBLIES

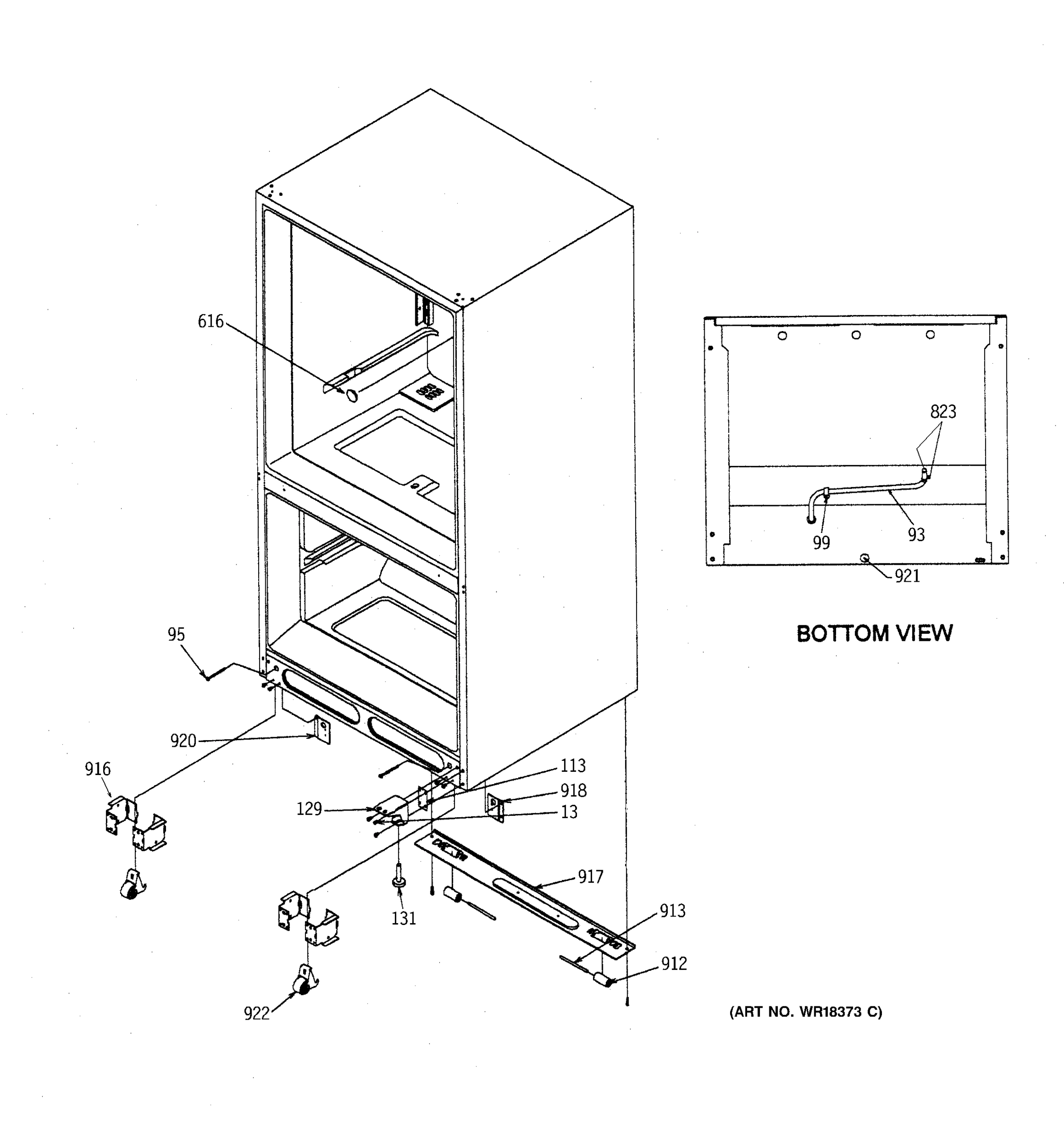

INSULATION & ROLLER ASSEMBLY

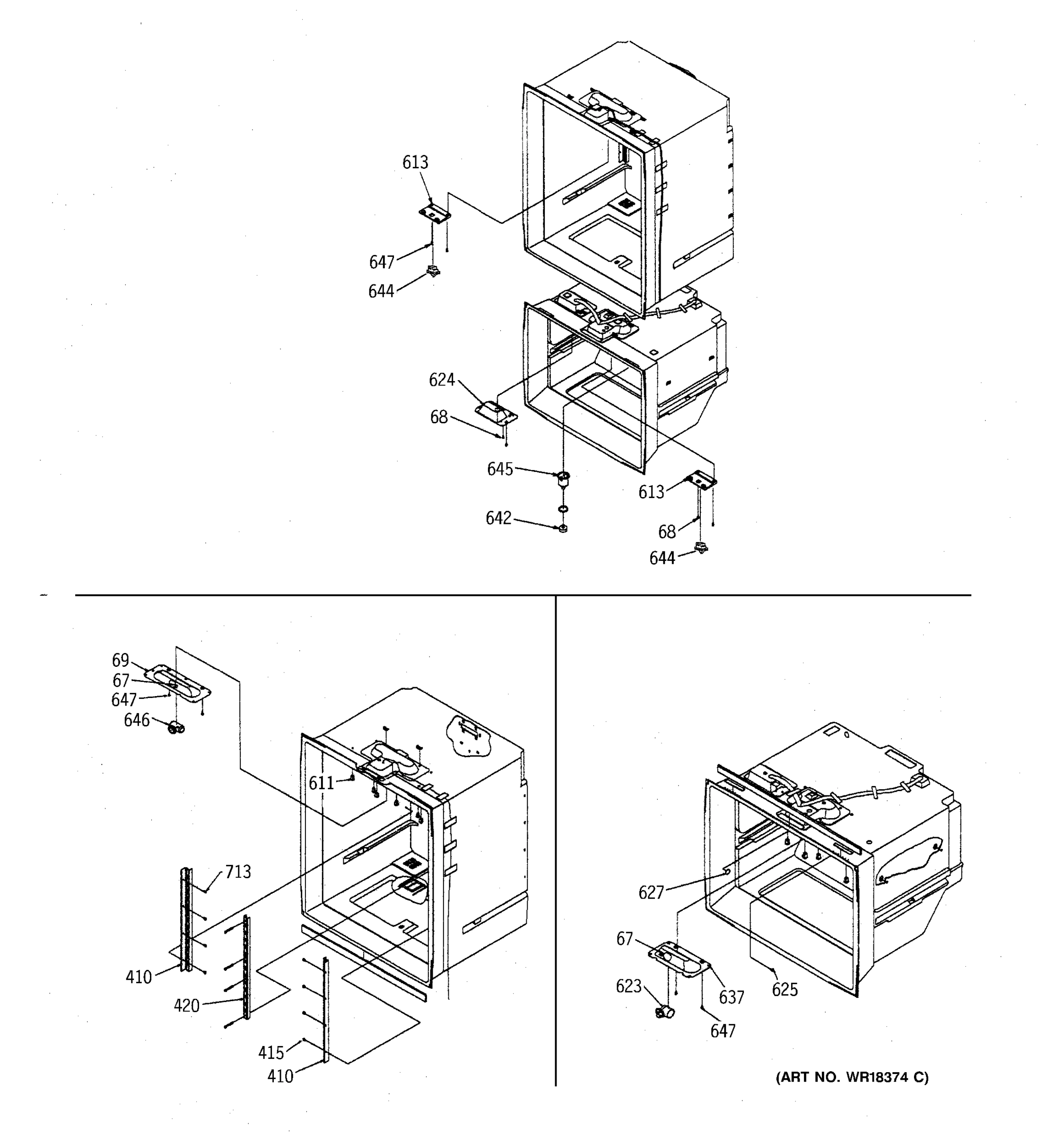

LIGHT SWITCHES & DRAIN FUNNELS

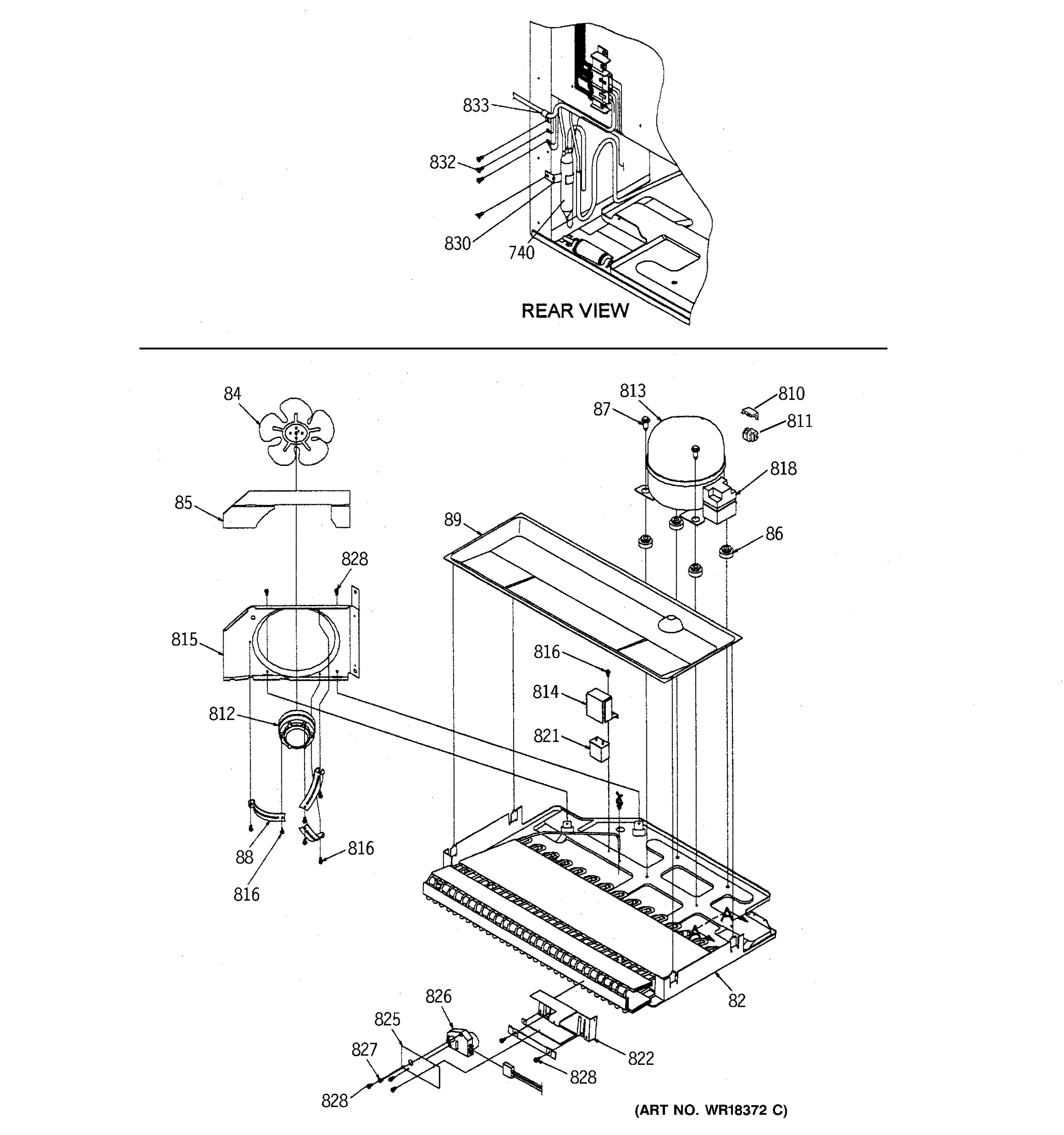

MACHINE COMPARTMENT ASSEMBLY

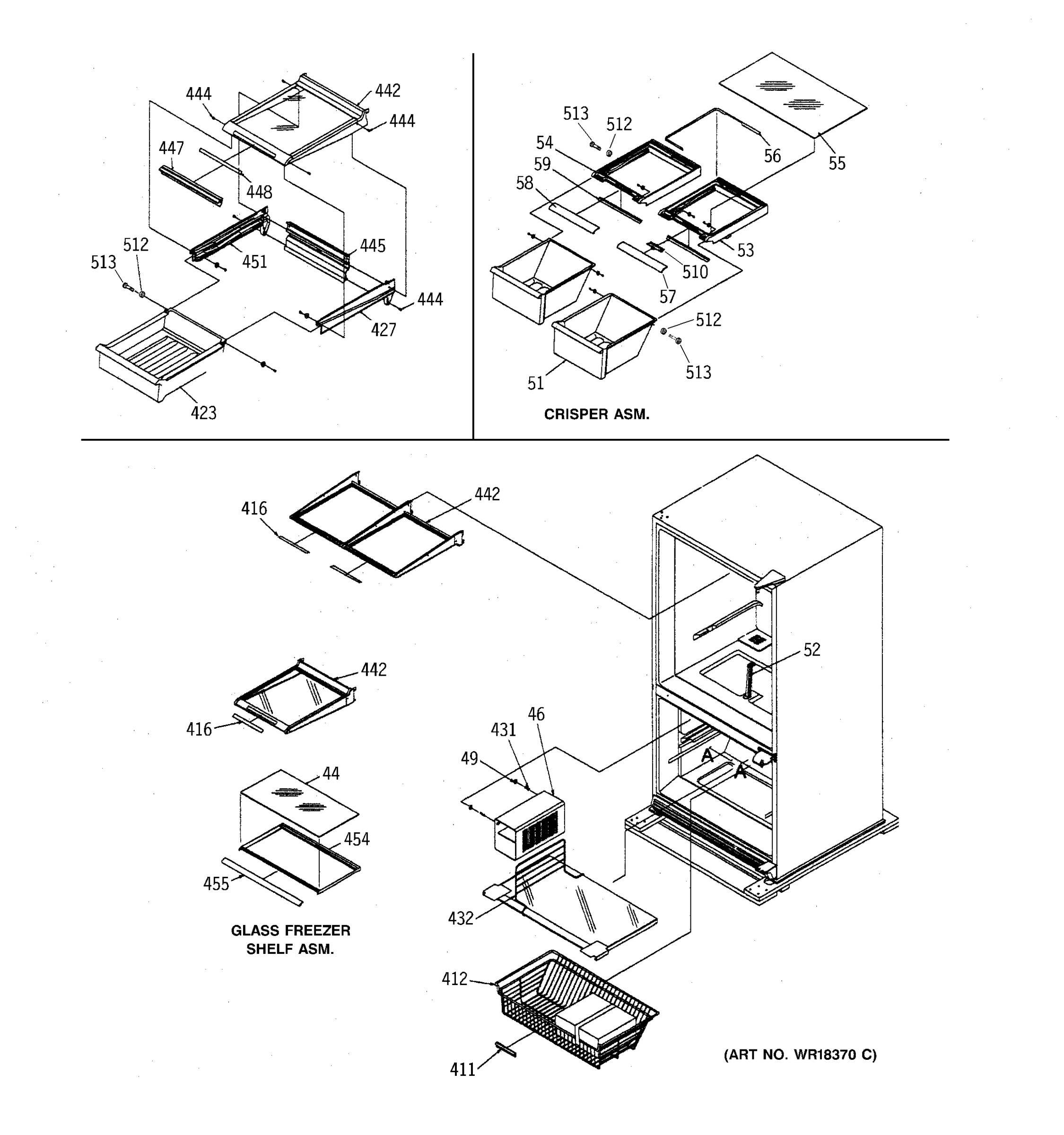

SHELVING ASSEMBLIES
Common parts from model GE TCX22ZAXARWH Refrigerator
1
GEN 31-51033 GEN 31-51033 Contact Us For Availability
1
GEN 49-6806 GEN 49-6806 Contact Us For Availability
11
DOOR OUTER PANEL FRZ WH GEN WR78X8850 Contact Us For Availability
12
GEN WR23X0482 GEN WR23X0482 Contact Us For Availability
13
SCREW TF,BOTTOM HINGE GEN WR01X5573 Contact Us For Availability
14
GASKET DOOR FRZ GEN WR24X0541 Contact Us For Availability
15
GEN WR71X2367 GEN WR71X2367 Contact Us For Availability
16
GEN WR77X0618 GEN WR77X0618 Contact Us For Availability
18
SHIM-NON METAL GEN WR02X8631 Contact Us For Availability
19
GEN WR71X2368 GEN WR71X2368 Contact Us For Availability
21
TRIM DOOR SHELF FF GEN WR38X1754 Contact Us For Availability
22
GEN WR71X2730 GEN WR71X2730 Contact Us For Availability
23
GEN WR71X2217 GEN WR71X2217 Contact Us For Availability
24
GEN WR22X0479 GEN WR22X0479 Contact Us For Availability
25
GEN WR24X0542 GEN WR24X0542 Contact Us For Availability
26
GEN WR77X0688 GEN WR77X0688 Contact Us For Availability
31
GEN WR02X8557 GEN WR02X8557 Contact Us For Availability
33
GEN WR04X0209 GEN WR04X0209 Contact Us For Availability
34
GEN WR78X8849 GEN WR78X8849 Contact Us For Availability
35
SCREW HANDLE DOOR GEN WR01X1861 Contact Us For Availability
36
PLUG BUTTON DOORS WH GEN WR02X9519 Contact Us For Availability
38
GEN WR12X1086 GEN WR12X1086 Contact Us For Availability
39
GEN WR01X1863 GEN WR01X1863 Contact Us For Availability
41
GEN WR74X0226 GEN WR74X0226 Contact Us For Availability
43
GEN WR30X0297 GEN WR30X0297 Contact Us For Availability
44
GEN WR71X2727 GEN WR71X2727 Contact Us For Availability
45
GEN WR30X0293 GEN WR30X0293 Contact Us For Availability
46
GEN WR17X3257 GEN WR17X3257 Contact Us For Availability
49
GEN WR01X1866 GEN WR01X1866 Contact Us For Availability
51
GEN WR32X1378 GEN WR32X1378 Contact Us For Availability
52
GEN WR02X8753 GEN WR02X8753 Contact Us For Availability
53
GEN WR71X2371 GEN WR71X2371 Contact Us For Availability
54
GEN WR71X2372 GEN WR71X2372 Contact Us For Availability
55
GEN WR32X1379 GEN WR32X1379 Contact Us For Availability
56
GEN WR02X8754 GEN WR02X8754 Contact Us For Availability
57
GEN WR38X2265 GEN WR38X2265 Contact Us For Availability
58
GEN WR38X1965 GEN WR38X1965 Contact Us For Availability
59
GEN WR14X0422 GEN WR14X0422 Contact Us For Availability
62
GEN WR02X8756 GEN WR02X8756 Contact Us For Availability
63
KNOB,CONTROL GEN WR02X8560 Contact Us For Availability
64
GEN WR02X8757 GEN WR02X8757 Contact Us For Availability
65
COVER REF. CONTROL GEN WR02X8561 Contact Us For Availability
66
GEN WR09X0593 GEN WR09X0593 Contact Us For Availability
67
GEN WR01X1875 GEN WR01X1875 Contact Us For Availability
68
GEN WR01X1876 GEN WR01X1876 Contact Us For Availability
69
GEN WR02X9517 GEN WR02X9517 Contact Us For Availability
74
GEN WR14X0424 GEN WR14X0424 Contact Us For Availability
75
GEN WR17X3278 GEN WR17X3278 Contact Us For Availability
76
GEN WR50X0126 GEN WR50X0126 Contact Us For Availability
77
GEN WR51X0470 GEN WR51X0470 Contact Us For Availability
78
GEN WR02X8793 GEN WR02X8793 Contact Us For Availability
79
GEN WR85X0323 GEN WR85X0323 Contact Us For Availability
82
GEN WR84X0215 GEN WR84X0215 Contact Us For Availability
84
GEN WR60X0271 GEN WR60X0271 Contact Us For Availability
85
GEN WR14X0491 GEN WR14X0491 Contact Us For Availability
86
GEN WR02X9516 GEN WR02X9516 Contact Us For Availability
87
GEN WR01X2185 GEN WR01X2185 Contact Us For Availability
88
GEN WR02X8795 GEN WR02X8795 Contact Us For Availability
89
GEN WR17X3274 GEN WR17X3274 Contact Us For Availability
93
GEN WR17X3276 GEN WR17X3276 Contact Us For Availability
95
GEN WR01X1889 GEN WR01X1889 Contact Us For Availability
99
GEN WR01X1892 GEN WR01X1892 Contact Us For Availability
107
HANDLE FRZ DOOR WH GEN WR12X0926 Contact Us For Availability
110
GEN WR13X0656 GEN WR13X0656 Contact Us For Availability
111
SHIM TOP HINGE GEN WR02X8744 Contact Us For Availability
111
SHIM TOP HINGE GEN WR02X8745 Contact Us For Availability
111
SHIM TOP HINGE GEN WR02X8746 Contact Us For Availability
112
GEN WR02X8748 GEN WR02X8748 Contact Us For Availability
113
GEN WR02X9521 GEN WR02X9521 Contact Us For Availability
114
GEN WR02X9505 GEN WR02X9505 Contact Us For Availability
115
GEN WR13X0631 GEN WR13X0631 Contact Us For Availability
116
GEN WR02X8635 GEN WR02X8635 Contact Us For Availability
117
GEN WR01X1593 GEN WR01X1593 Contact Us For Availability
118
GEN WR02X8632 GEN WR02X8632 Contact Us For Availability
120
GEN WR01X1807 GEN WR01X1807 Contact Us For Availability
121
GEN WR02X8743 GEN WR02X8743 Contact Us For Availability
122
GEN WR02X8736 GEN WR02X8736 Contact Us For Availability
122
GEN WR02X8737 GEN WR02X8737 Contact Us For Availability
122
GEN WR02X8738 GEN WR02X8738 Contact Us For Availability
123
GEN WR02X8636 GEN WR02X8636 Contact Us For Availability
124
EXTRUSION SHELF FRZ DOOR GEN WR71X2369 Contact Us For Availability
126
PIN SUPPORT GEN WR13X0655 Contact Us For Availability
127
GEN WR02X8739 GEN WR02X8739 Contact Us For Availability
128
PLUG BUTTON WHITE GEN WR02X8741 Contact Us For Availability
129
HINGE BOTTOM WH GEN WR13X0773 Contact Us For Availability
131
GEN WR01X1852 GEN WR01X1852 Contact Us For Availability
132
GEN WR13X0629 GEN WR13X0629 Contact Us For Availability
210
GEN WR19X0036 GEN WR19X0036 Contact Us For Availability
211
GEN WR32X1373 GEN WR32X1373 Contact Us For Availability
410
LADDER SIDE GEN WR72X0153 Contact Us For Availability
411
GEN WR02X8749 GEN WR02X8749 Contact Us For Availability
412
GEN WR21X0191 GEN WR21X0191 Contact Us For Availability
415
GEN WR01X1868 GEN WR01X1868 Contact Us For Availability
416
GEN WR38X2267 GEN WR38X2267 Contact Us For Availability
420
LADDER CENTER GEN WR72X0154 Contact Us For Availability
423
GEN WR32X1375 GEN WR32X1375 Contact Us For Availability
426
GEN WR02X9527 GEN WR02X9527 Contact Us For Availability
427
GEN WR17X4299 GEN WR17X4299 Contact Us For Availability
431
GEN WR01X1871 GEN WR01X1871 Contact Us For Availability
432
GEN WR21X0210 GEN WR21X0210 Contact Us For Availability
442
GEN WR71X2731 GEN WR71X2731 Contact Us For Availability
444
GEN WR01X2190 GEN WR01X2190 Contact Us For Availability
445
GEN WR17X4294 GEN WR17X4294 Contact Us For Availability
447
GEN WR17X4295 GEN WR17X4295 Contact Us For Availability
448
GEN WR12X1093 GEN WR12X1093 Contact Us For Availability
451
GEN WR72X0291 GEN WR72X0291 Contact Us For Availability
454
GEN WR32X1595 GEN WR32X1595 Contact Us For Availability
455
EXTRUSION SHELF FRZ GEN WR38X1963 Contact Us For Availability
510
GEN WR02X9518 GEN WR02X9518 Contact Us For Availability
512
GEN WR02X8751 GEN WR02X8751 Contact Us For Availability
513
GEN WR01X2186 GEN WR01X2186 Contact Us For Availability
515
GEN WR17X4291 GEN WR17X4291 Contact Us For Availability
611
GEN WR01X1877 GEN WR01X1877 Contact Us For Availability
612
GEN WR17X3263 GEN WR17X3263 Contact Us For Availability
613
COVER LIGHT SWITCH GEN WR17X2833 Contact Us For Availability
614
GEN WR01X1878 GEN WR01X1878 Contact Us For Availability
615
GEN PUR. LOCAL GEN PUR. LOCAL Contact Us For Availability
616
PLUG BUTTON GEN WR02X8760 Contact Us For Availability
617
GEN WR14X0427 GEN WR14X0427 Contact Us For Availability
618
GEN WR02X8761 GEN WR02X8761 Contact Us For Availability
619
GEN WR23X0376 GEN WR23X0376 Contact Us For Availability
623
GEN WR23X0378 GEN WR23X0378 Contact Us For Availability
624
GEN WR02X8763 GEN WR02X8763 Contact Us For Availability
625
GEN WR02X8558 GEN WR02X8558 Contact Us For Availability
626
GEN WR02X8562 GEN WR02X8562 Contact Us For Availability
627
GEN WR02X8764 GEN WR02X8764 Contact Us For Availability
629
GEN WR02X9529 GEN WR02X9529 Contact Us For Availability
630
GEN WR09X0525 GEN WR09X0525 Contact Us For Availability
634
GEN WR01X1880 GEN WR01X1880 Contact Us For Availability
635
GEN WR14X0423 GEN WR14X0423 Contact Us For Availability
636
GEN WR01X1881 GEN WR01X1881 Contact Us For Availability
637
GEN WR17X3264 GEN WR17X3264 Contact Us For Availability
638
GEN WR17X4289 GEN WR17X4289 Contact Us For Availability
639
GEN WR17X4290 GEN WR17X4290 Contact Us For Availability
640
GEN WR01X2188 GEN WR01X2188 Contact Us For Availability
641
GEN WR02X8766 GEN WR02X8766 Contact Us For Availability
642
GASKET DRAIN TUBE GEN WR14X5161 Contact Us For Availability
645
FUNNEL DRAIN TUBE GEN WR02X9531 Contact Us For Availability
646
GEN WR23X0481 GEN WR23X0481 Contact Us For Availability
647
SCREW HSG. LIGHTS GEN WR01X2191 Contact Us For Availability
711
GEN WR17X3269 GEN WR17X3269 Contact Us For Availability
712
GEN WR17X3267 GEN WR17X3267 Contact Us For Availability
713
GEN WR01X1873 GEN WR01X1873 Contact Us For Availability
714
GEN WR17X3268 GEN WR17X3268 Contact Us For Availability
716
GEN WR02X8767 GEN WR02X8767 Contact Us For Availability
717
GEN WR02X8768 GEN WR02X8768 Contact Us For Availability
720
GEN WR02X8769 GEN WR02X8769 Contact Us For Availability
721
GEN WR02X8770 GEN WR02X8770 Contact Us For Availability
722
GEN WR60X0210 GEN WR60X0210 Contact Us For Availability
723
GEN WR60X0273 GEN WR60X0273 Contact Us For Availability
724
BRKT. UPPER EVAP. FAN GEN WR02X8771 Contact Us For Availability
725
GEN WR02X8772 GEN WR02X8772 Contact Us For Availability
726
GEN WR14X0492 GEN WR14X0492 Contact Us For Availability
727
GEN WR17X3272 GEN WR17X3272 Contact Us For Availability
728
GEN WR02X8773 GEN WR02X8773 Contact Us For Availability
729
GEN WR02X9540 GEN WR02X9540 Contact Us For Availability
730
GEN WR02X9530 GEN WR02X9530 Contact Us For Availability
731
GEN WR74X0228 GEN WR74X0228 Contact Us For Availability
732
GEN WR17X4288 GEN WR17X4288 Contact Us For Availability
810
GEN WR08X0177 GEN WR08X0177 Contact Us For Availability
811
GEN WR07X0245 GEN WR07X0245 Contact Us For Availability
812
GEN WR60X0272 GEN WR60X0272 Contact Us For Availability
813
GEN WR87X0482 GEN WR87X0482 Contact Us For Availability
814
GEN WR02X9522 GEN WR02X9522 Contact Us For Availability
815
GEN WR17X3275 GEN WR17X3275 Contact Us For Availability
818
GEN WR02X9542 GEN WR02X9542 Contact Us For Availability
821
GEN WR62X0092 GEN WR62X0092 Contact Us For Availability
822
GEN WR02X8779 GEN WR02X8779 Contact Us For Availability
823
GEN WR01X1893 GEN WR01X1893 Contact Us For Availability
824
GEN WR51X10067 GEN WR51X10067 Contact Us For Availability
825
GEN WR02X8780 GEN WR02X8780 Contact Us For Availability
827
GEN WR01X1887 GEN WR01X1887 Contact Us For Availability
828
GEN WR01X2187 GEN WR01X2187 Contact Us For Availability
830
GEN WR02X8796 GEN WR02X8796 Contact Us For Availability
832
GEN WR01X1895 GEN WR01X1895 Contact Us For Availability
833
GEN WR01X2184 GEN WR01X2184 Contact Us For Availability
834
GEN WR82X0334 GEN WR82X0334 Contact Us For Availability
911
GEN WR82X0396 GEN WR82X0396 Contact Us For Availability
912
GEN WR02X8787 GEN WR02X8787 Contact Us For Availability
913
GEN WR02X8788 GEN WR02X8788 Contact Us For Availability
916
GEN WR02X9524 GEN WR02X9524 Contact Us For Availability
917
GEN WR02X9543 GEN WR02X9543 Contact Us For Availability
918
GEN WR02X9525 GEN WR02X9525 Contact Us For Availability
919
GEN WR82X0397 GEN WR82X0397 Contact Us For Availability
920
GEN WR02X9536 GEN WR02X9536 Contact Us For Availability
921
GEN WR02X7847 GEN WR02X7847 Contact Us For Availability
922
GEN WR02X9537 GEN WR02X9537 Contact Us For Availability
1250
GEN WR17X4302 GEN WR17X4302 Contact Us For Availability
1670
GEN WR23X0480 GEN WR23X0480 Contact Us For Availability
1710
GEN WR82X0395 GEN WR82X0395 Contact Us For Availability
1740
GEN WR02X8794 GEN WR02X8794 Contact Us For Availability
1750
GEN WR01X2192 GEN WR01X2192 Contact Us For Availability
5050
GEN WR02X8792 GEN WR02X8792 Contact Us For Availability
9999
GEN UKKIT3S GEN UKKIT3S Contact Us For Availability
× ![]()
