Model GE TCX18PADBRBB Refrigerator – Common Parts & Diagrams
CABINET PARTS
FREEZER DOOR

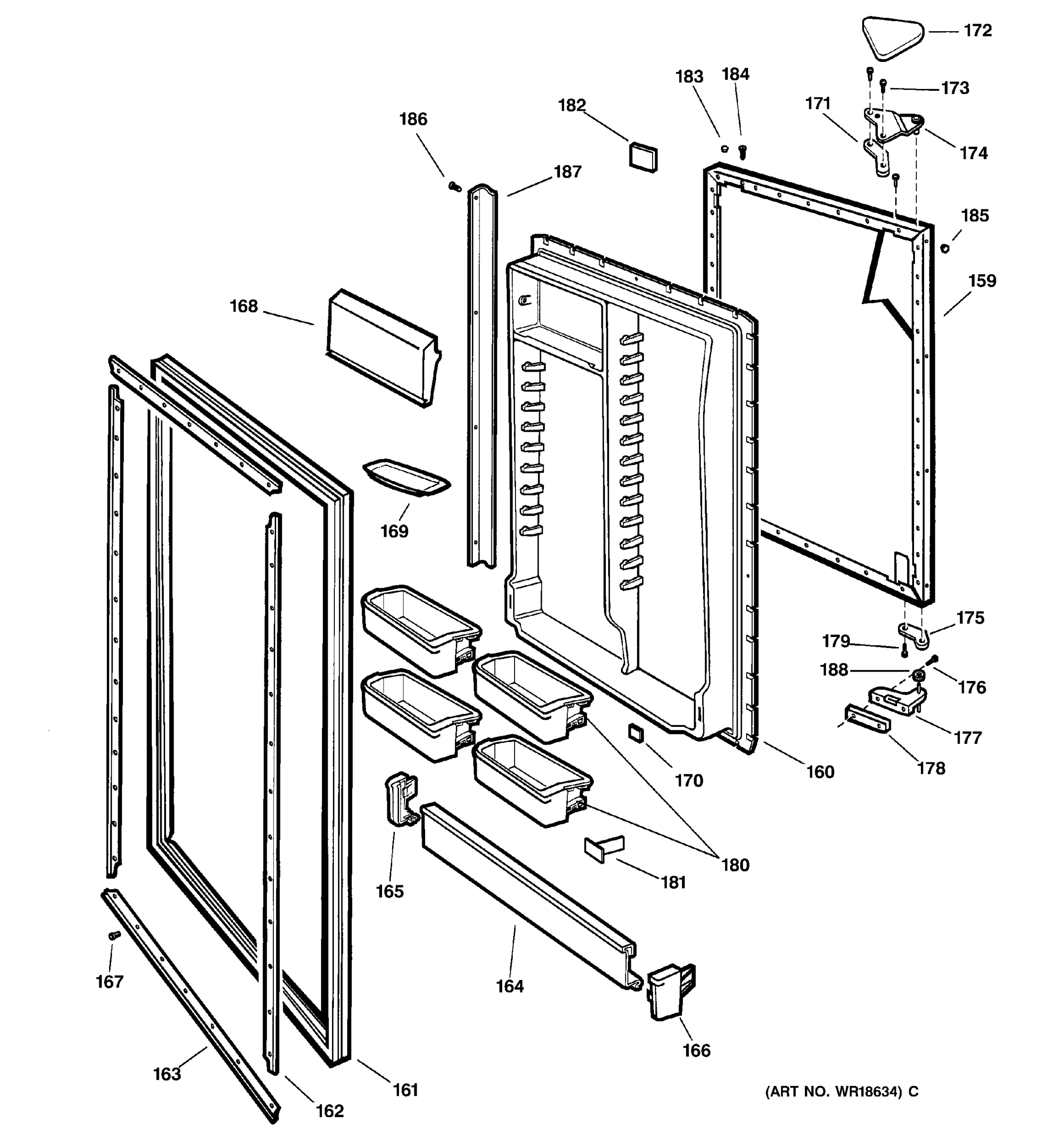

FRESH FOOD DOOR

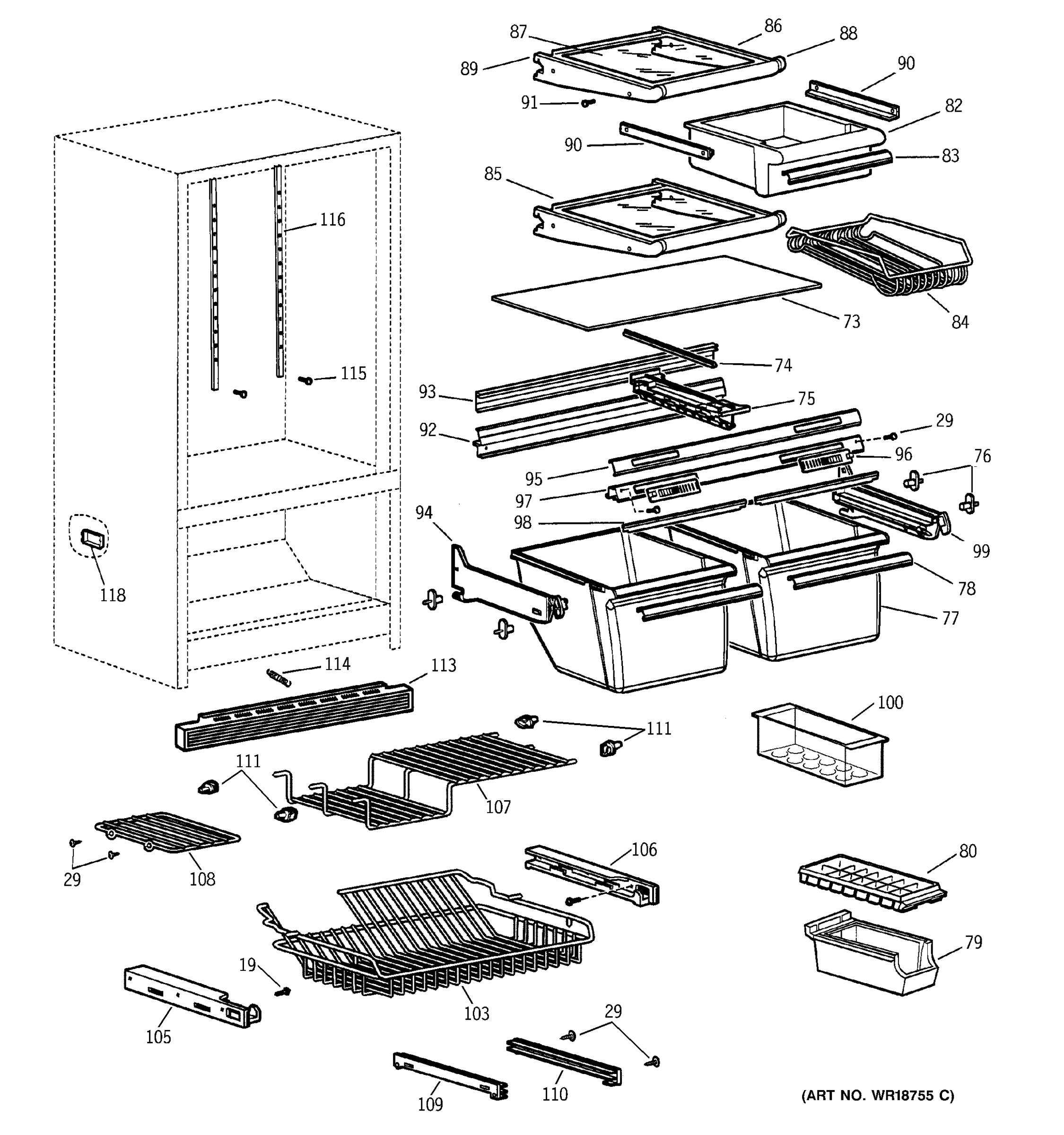

SHELF PARTS

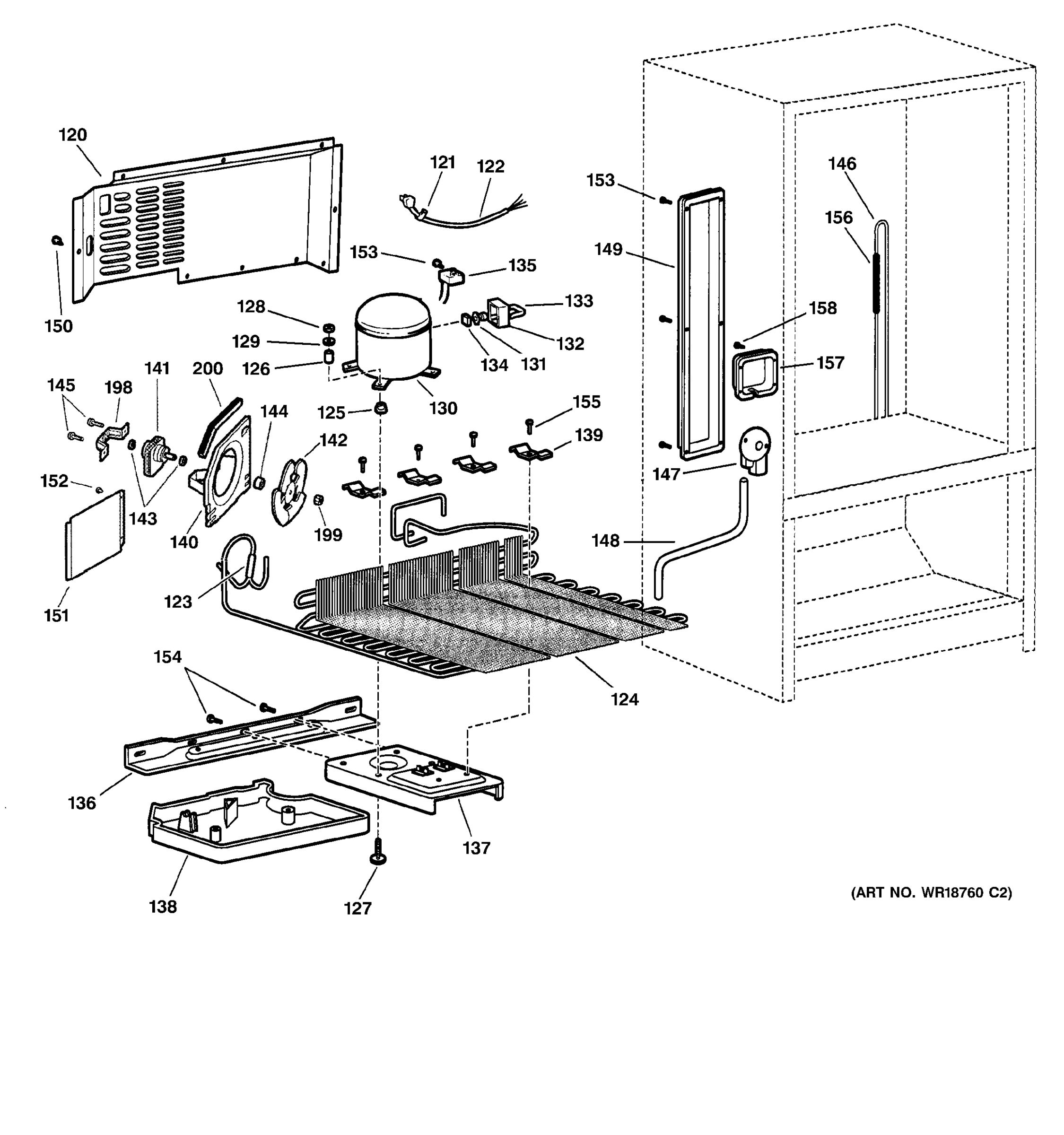

UNIT PARTS
Common parts from model GE TCX18PADBRBB Refrigerator
9
GEN WR85X10010 GEN WR85X10010 Contact Us For Availability
13
GEN WR02X10185 GEN WR02X10185 Contact Us For Availability
14
GEN WR02X10186 GEN WR02X10186 Contact Us For Availability
15
GEN WR02X10187 GEN WR02X10187 Contact Us For Availability
17
GEN WR02X10188 GEN WR02X10188 Contact Us For Availability
18
SWITCH, LAMP REED (FF) GEN WR23X0334 Contact Us For Availability
19
GEN WR01X10068 GEN WR01X10068 Contact Us For Availability
19
GEN WR17X10405 GEN WR17X10405 Contact Us For Availability
20
GEN WR02X10189 GEN WR02X10189 Contact Us For Availability
20
GEN WR02X10190 GEN WR02X10190 Contact Us For Availability
21
GEN WR02X10191 GEN WR02X10191 Contact Us For Availability
22
GEN WR02X10192 GEN WR02X10192 Contact Us For Availability
23
GEN WR02X10193 GEN WR02X10193 Contact Us For Availability
25
BULB, LIGHT GEN PURCH. LOCAL Contact Us For Availability
26
GEN WR23X10093 GEN WR23X10093 Contact Us For Availability
27
GEN WR02X10194 GEN WR02X10194 Contact Us For Availability
28
GEN WR17X10597 GEN WR17X10597 Contact Us For Availability
29
SCREW GEN WZ04X0244 Contact Us For Availability
30
GEN WR02X10195 GEN WR02X10195 Contact Us For Availability
31
GEN WR02X10196 GEN WR02X10196 Contact Us For Availability
32
GEN WR60M131 GEN WR60M131 Contact Us For Availability
33
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
35
RING, COMPRESSION GEN WR02X9272 Contact Us For Availability
36
GEN WR02X10245 GEN WR02X10245 Contact Us For Availability
37
GEN WR01X10094 GEN WR01X10094 Contact Us For Availability
38
GEN WR01X10095 GEN WR01X10095 Contact Us For Availability
38
WASHER, NYLON GEN WR01X2056 Contact Us For Availability
39
GEN WR02X10198 GEN WR02X10198 Contact Us For Availability
40
GEN WR40X10024 GEN WR40X10024 Contact Us For Availability
41
GEN WR40X10025 GEN WR40X10025 Contact Us For Availability
42
GEN WR40X10026 GEN WR40X10026 Contact Us For Availability
43
GEN WR02X10199 GEN WR02X10199 Contact Us For Availability
44
GEN WR02X10200 GEN WR02X10200 Contact Us For Availability
45
GEN WR02X10201 GEN WR02X10201 Contact Us For Availability
46
GEN WR09X10030 GEN WR09X10030 Contact Us For Availability
48
GEN WR02X10202 GEN WR02X10202 Contact Us For Availability
49
GEN WR02X10203 GEN WR02X10203 Contact Us For Availability
50
GEN WR23X10086 GEN WR23X10086 Contact Us For Availability
51
GEN WR02X10204 GEN WR02X10204 Contact Us For Availability
52
GEN WR02X10205 GEN WR02X10205 Contact Us For Availability
53
GEN WR02X10206 GEN WR02X10206 Contact Us For Availability
54
GEN WR02X10207 GEN WR02X10207 Contact Us For Availability
55
GEN WR02X10208 GEN WR02X10208 Contact Us For Availability
56
GEN WR14X10019 GEN WR14X10019 Contact Us For Availability
57
GEN WR01X10070 GEN WR01X10070 Contact Us For Availability
58
GEN WR01X10071 GEN WR01X10071 Contact Us For Availability
59
GEN WR02X10246 GEN WR02X10246 Contact Us For Availability
60
GEN WR02X10210 GEN WR02X10210 Contact Us For Availability
61
GEN WR01X10072 GEN WR01X10072 Contact Us For Availability
62
GEN WR02X10211 GEN WR02X10211 Contact Us For Availability
62
GEN WR02X10212 GEN WR02X10212 Contact Us For Availability
63
GEN WR01X10073 GEN WR01X10073 Contact Us For Availability
64
ANGLE GEN WR79X10016 Contact Us For Availability
65
WHEEL, REAR GEN WR02X8244 Contact Us For Availability
66
AXLE, REAR GEN WR02X8213 Contact Us For Availability
67
GEN WR02X10247 GEN WR02X10247 Contact Us For Availability
69
GEN WR01X10074 GEN WR01X10074 Contact Us For Availability
70
GEN WR01X10075 GEN WR01X10075 Contact Us For Availability
71
SCREW (6-20 1/2) GEN WR01X2068 Contact Us For Availability
72
GEN WR01X10076 GEN WR01X10076 Contact Us For Availability
73
GEN WR32X10082 GEN WR32X10082 Contact Us For Availability
74
GASKET, CENTER GEN WR14X10020 Contact Us For Availability
75
SLIDE, CENTER GEN WR72X10017 Contact Us For Availability
76
GEN WR02X10214 GEN WR02X10214 Contact Us For Availability
77
GEN WR32X10083 GEN WR32X10083 Contact Us For Availability
78
GEN WR38X10148 GEN WR38X10148 Contact Us For Availability
82
GEN WR32X10084 GEN WR32X10084 Contact Us For Availability
83
GEN WR38X10149 GEN WR38X10149 Contact Us For Availability
84
GEN WR14X10021 GEN WR14X10021 Contact Us For Availability
84
GEN WR30X10005 GEN WR30X10005 Contact Us For Availability
85
GEN WR71X10155 GEN WR71X10155 Contact Us For Availability
85
GEN WR71X10156 GEN WR71X10156 Contact Us For Availability
90
GEN WR72X10018 GEN WR72X10018 Contact Us For Availability
91
GEN WR01X10077 GEN WR01X10077 Contact Us For Availability
92
GEN WR02X10215 GEN WR02X10215 Contact Us For Availability
93
GEN WR14X10022 GEN WR14X10022 Contact Us For Availability
94
GEN WR72X10019 GEN WR72X10019 Contact Us For Availability
95
GEN WR38X10150 GEN WR38X10150 Contact Us For Availability
96
GEN WR04X10057 GEN WR04X10057 Contact Us For Availability
97
GEN WR02X10216 GEN WR02X10216 Contact Us For Availability
98
GASKET, FRONT GEN WR14X10023 Contact Us For Availability
99
GEN WR72X10020 GEN WR72X10020 Contact Us For Availability
103
GEN WR71M962 GEN WR71M962 Contact Us For Availability
105
GEN WR72X10021 GEN WR72X10021 Contact Us For Availability
106
GEN WR72X10022 GEN WR72X10022 Contact Us For Availability
108
GEN WR71X10160 GEN WR71X10160 Contact Us For Availability
109
GEN WR72X10023 GEN WR72X10023 Contact Us For Availability
110
GEN WR72X10024 GEN WR72X10024 Contact Us For Availability
111
GEN WR02X10238 GEN WR02X10238 Contact Us For Availability
112
GEN WB02X7701 GEN WB02X7701 Contact Us For Availability
113
GEN WR79X10004 GEN WR79X10004 Contact Us For Availability
114
GEN WR02X10217 GEN WR02X10217 Contact Us For Availability
115
GEN WR01X10078 GEN WR01X10078 Contact Us For Availability
116
GEN WR72X10025 GEN WR72X10025 Contact Us For Availability
118
COVER, ICEMAKER GEN WR02X9159 Contact Us For Availability
120
GEN WR02X10219 GEN WR02X10219 Contact Us For Availability
121
CLIP, CORD SET GEN WR02X10076 Contact Us For Availability
122
GEN WR23M154 GEN WR23M154 Contact Us For Availability
123
GEN WR86X10006 GEN WR86X10006 Contact Us For Availability
124
GEN WR84X10015 GEN WR84X10015 Contact Us For Availability
125
GEN WR02X10220 GEN WR02X10220 Contact Us For Availability
126
GEN WR02X10221 GEN WR02X10221 Contact Us For Availability
127
BOLT, COMPRESSOR MTG. GEN WR01X2156 Contact Us For Availability
128
NUT (1/4-20) GEN WR01X2155 Contact Us For Availability
129
WASHER, FLAT (9/32) GEN WR01X2154 Contact Us For Availability
132
COVER, RELAY GEN WR02X7834 Contact Us For Availability
133
CLIP, COVER RELAY GEN WR02X7226 Contact Us For Availability
134
PROTECTOR, OVERLOAD GEN WR08X0169 Contact Us For Availability
135
GEN WR62X10012 GEN WR62X10012 Contact Us For Availability
136
GEN WR17X10407 GEN WR17X10407 Contact Us For Availability
137
GEN WR17X10408 GEN WR17X10408 Contact Us For Availability
138
PAN, WATER - DISPOSAL GEN WR32X10037 Contact Us For Availability
140
GEN WR17X10462 GEN WR17X10462 Contact Us For Availability
141
GEN WR60X10058 GEN WR60X10058 Contact Us For Availability
142
GEN WR60X10034 GEN WR60X10034 Contact Us For Availability
146
GEN WR02X10222 GEN WR02X10222 Contact Us For Availability
147
GEN WR02X10223 GEN WR02X10223 Contact Us For Availability
148
GEN WR01X10079 GEN WR01X10079 Contact Us For Availability
148
GEN WR02X10224 GEN WR02X10224 Contact Us For Availability
149
GEN WR02X10225 GEN WR02X10225 Contact Us For Availability
151
GEN WR02X10496 GEN WR02X10496 Contact Us For Availability
152
GEN WR01X10081 GEN WR01X10081 Contact Us For Availability
153
GEN WR01X10082 GEN WR01X10082 Contact Us For Availability
154
GEN WR01X10083 GEN WR01X10083 Contact Us For Availability
155
GEN WR01X10084 GEN WR01X10084 Contact Us For Availability
156
GEN WR82X10056 GEN WR82X10056 Contact Us For Availability
157
GEN WR02X10227 GEN WR02X10227 Contact Us For Availability
157
GEN WR02X10228 GEN WR02X10228 Contact Us For Availability
158
GEN WR01X10085 GEN WR01X10085 Contact Us For Availability
159
GEN WR78X10246 GEN WR78X10246 Contact Us For Availability
160
GEN WR78X10241 GEN WR78X10241 Contact Us For Availability
161
GEN WR24X10023 GEN WR24X10023 Contact Us For Availability
162
GEN WR02X10229 GEN WR02X10229 Contact Us For Availability
163
GEN WR02X10230 GEN WR02X10230 Contact Us For Availability
164
GEN WR17X10410 GEN WR17X10410 Contact Us For Availability
165
GEN WR02X9295 GEN WR02X9295 Contact Us For Availability
166
END CAP - R.H. (WIDE) GEN WR02X9296 Contact Us For Availability
167
SCREW GEN WR01X10086 Contact Us For Availability
168
GEN WR22X10008 GEN WR22X10008 Contact Us For Availability
168
GEN WR38X10151 GEN WR38X10151 Contact Us For Availability
169
GEN WR19X10001 GEN WR19X10001 Contact Us For Availability
171
GEN WR02X10249 GEN WR02X10249 Contact Us For Availability
172
GEN WR13X10042 GEN WR13X10042 Contact Us For Availability
173
SCREW GEN WR01X2057 Contact Us For Availability
174
GEN WR13X10037 GEN WR13X10037 Contact Us For Availability
175
GEN WR13X10038 GEN WR13X10038 Contact Us For Availability
176
SCREW GEN WR01X10088 Contact Us For Availability
177
GEN WR02X9281 GEN WR02X9281 Contact Us For Availability
177
GEN WR13X10043 GEN WR13X10043 Contact Us For Availability
178
GEN WR02X10248 GEN WR02X10248 Contact Us For Availability
179
GEN WR01X2059 GEN WR01X2059 Contact Us For Availability
180
GEN WR71X10161 GEN WR71X10161 Contact Us For Availability
181
GEN WR02X10233 GEN WR02X10233 Contact Us For Availability
182
GEN WR04X10058 GEN WR04X10058 Contact Us For Availability
183
GEN WR02X10250 GEN WR02X10250 Contact Us For Availability
184
SCREW GEN WR01X5475 Contact Us For Availability
186
GEN WR01X10096 GEN WR01X10096 Contact Us For Availability
187
GEN WR12X10293 GEN WR12X10293 Contact Us For Availability
188
GEN WR02X10235 GEN WR02X10235 Contact Us For Availability
189
GEN WR78M5705 GEN WR78M5705 Contact Us For Availability
190
GEN WR78X10243 GEN WR78X10243 Contact Us For Availability
191
GEN WR24X10024 GEN WR24X10024 Contact Us For Availability
192
GEN WR02X10236 GEN WR02X10236 Contact Us For Availability
194
GEN WR17X10411 GEN WR17X10411 Contact Us For Availability
197
GEN WR17X10412 GEN WR17X10412 Contact Us For Availability
198
BRACKET COND. FAN GEN WR02X10100 Contact Us For Availability
199
RING COMPRESSION GEN WR02X10323 Contact Us For Availability
200
GEN WR2M3546 GEN WR2M3546 Contact Us For Availability
203
SCREW RETAINER STRIPS GEN WR01X10090 Contact Us For Availability
203
GEN WR01X10091 GEN WR01X10091 Contact Us For Availability
204
GEN WR13X10040 GEN WR13X10040 Contact Us For Availability
205
GEN WR02X10237 GEN WR02X10237 Contact Us For Availability
208
GEN WR12X10294 GEN WR12X10294 Contact Us For Availability
259
GEN WR02X9274 GEN WR02X9274 Contact Us For Availability
999
GEN 31-46002 GEN 31-46002 Contact Us For Availability
999
GEN 31-51221 GEN 31-51221 Contact Us For Availability
999
GEN 49-60059 GEN 49-60059 Contact Us For Availability
999
GEN WR29X10015 GEN WR29X10015 Contact Us For Availability
× ![]()
