Model GE TCX18IACBRWW – Common Parts & Diagrams
CABINET
FREEZER DOOR

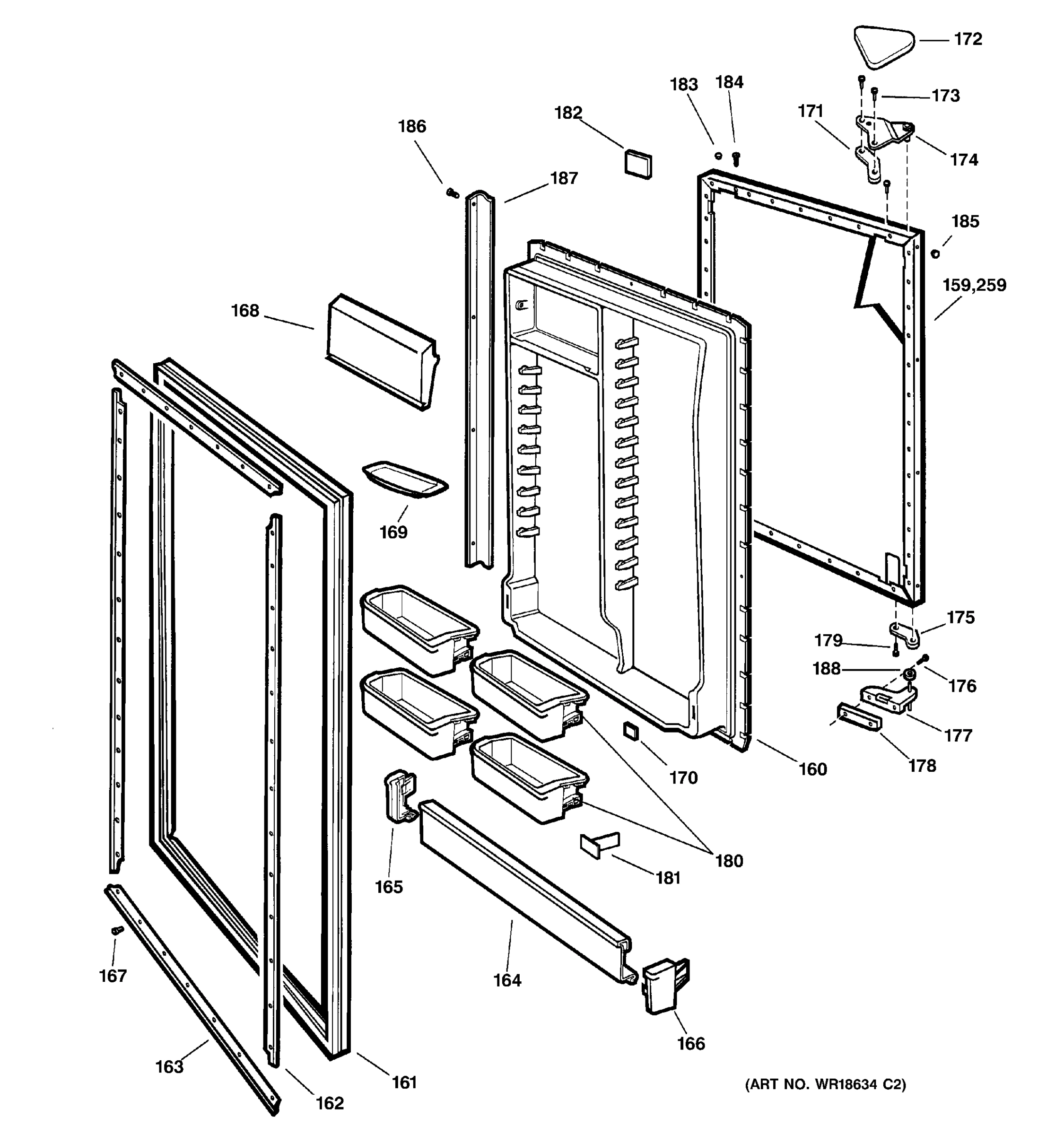

FRESH FOOD DOOR

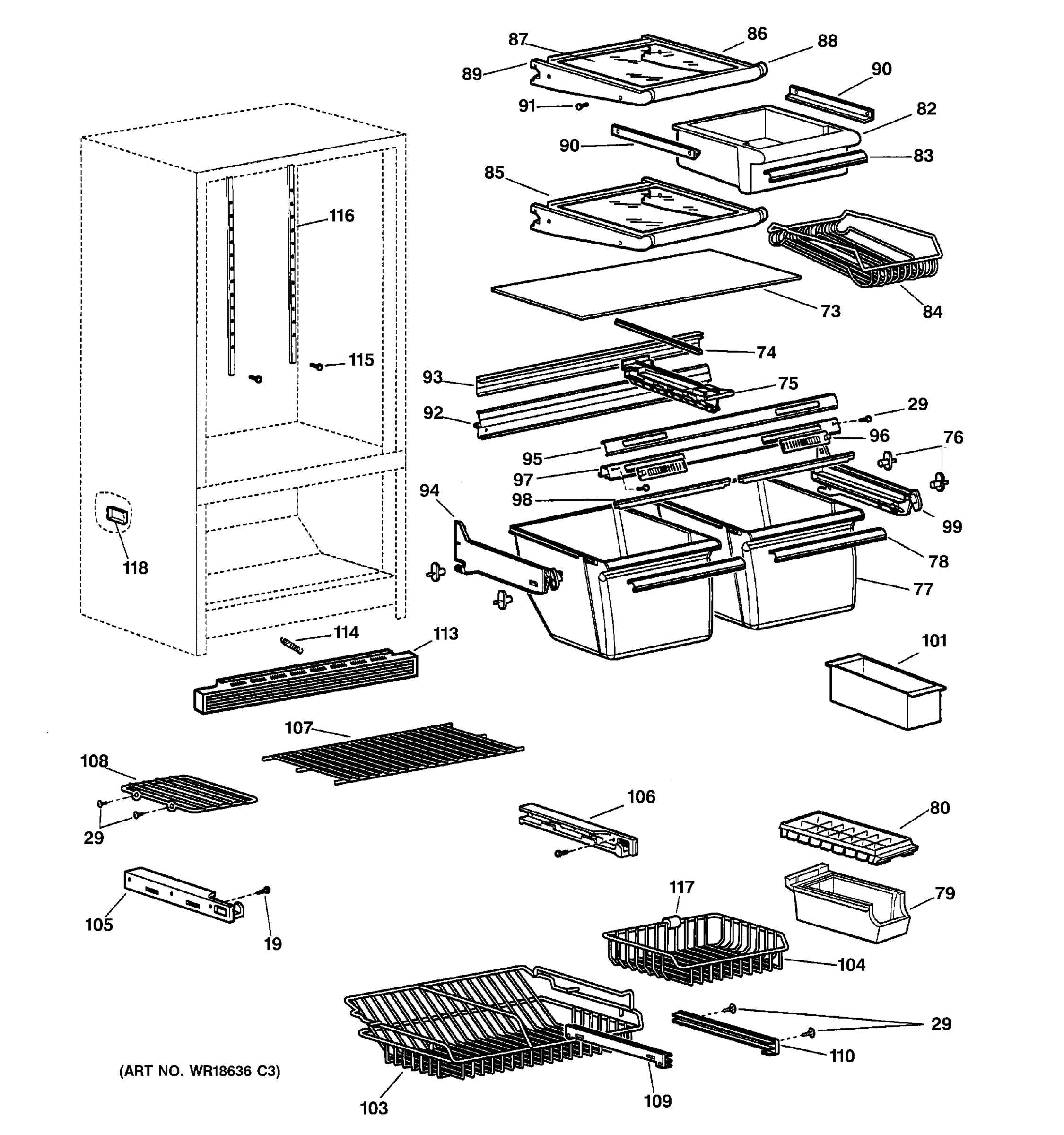

SHELVES

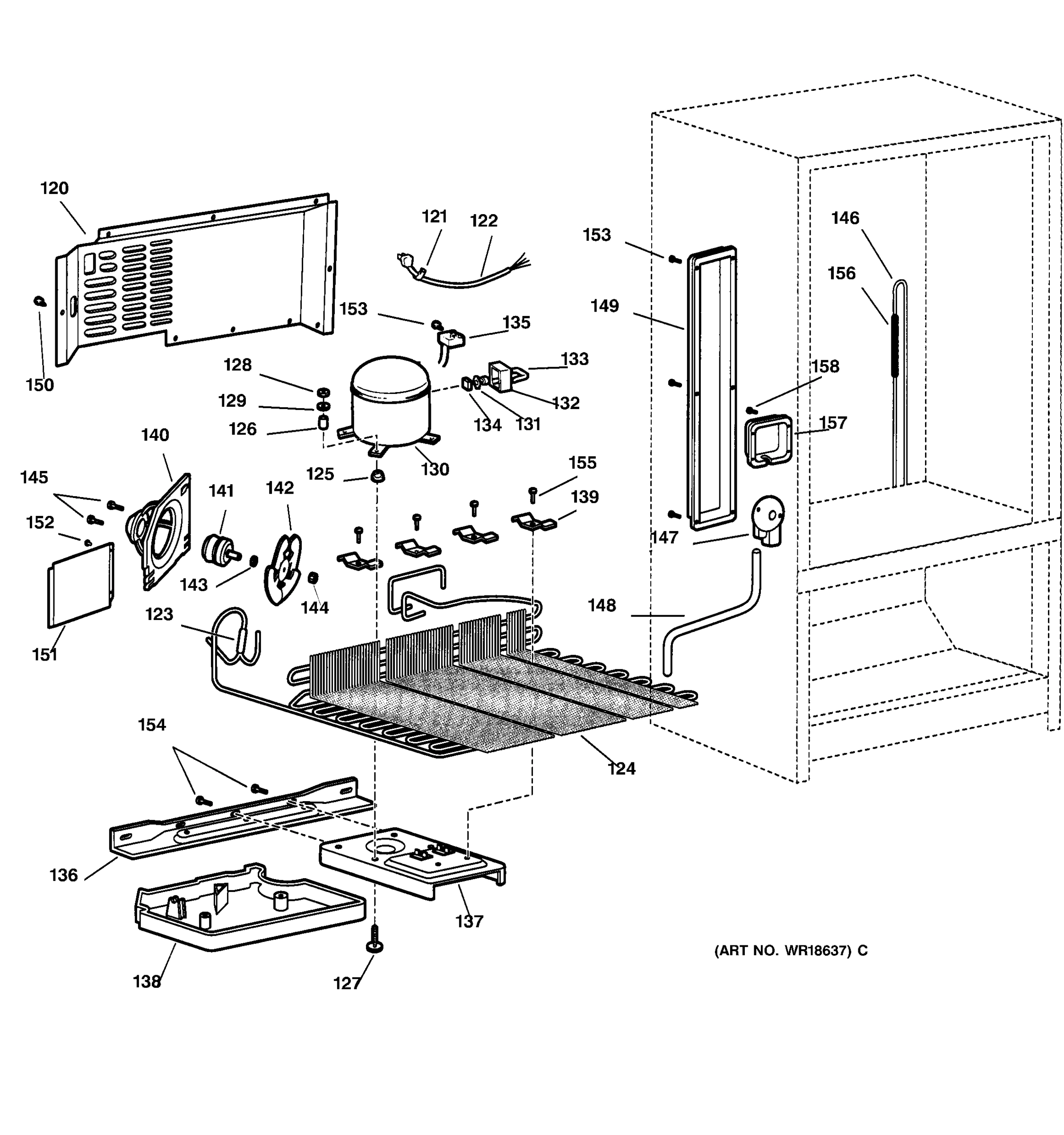

UNIT PARTS
Common parts from model GE TCX18IACBRWW
9
GEN WR85X10010 GEN WR85X10010 Contact Us For Availability
11
GEN WR51X10027 GEN WR51X10027 Contact Us For Availability
12
GEN WR02X10184 GEN WR02X10184 Contact Us For Availability
13
GEN WR02X10185 GEN WR02X10185 Contact Us For Availability
14
GEN WR02X10186 GEN WR02X10186 Contact Us For Availability
15
GEN WR02X10187 GEN WR02X10187 Contact Us For Availability
16
GEN WR23X10085 GEN WR23X10085 Contact Us For Availability
17
GEN WR02X10188 GEN WR02X10188 Contact Us For Availability
18
SWITCH, LAMP REED (FF) GEN WR23X0334 Contact Us For Availability
19
GEN WR01X10068 GEN WR01X10068 Contact Us For Availability
19
GEN WR17X10405 GEN WR17X10405 Contact Us For Availability
20
GEN WR02X10189 GEN WR02X10189 Contact Us For Availability
20
GEN WR02X10190 GEN WR02X10190 Contact Us For Availability
21
GEN WR02X10191 GEN WR02X10191 Contact Us For Availability
22
GEN WR02X10192 GEN WR02X10192 Contact Us For Availability
23
GEN WR02X10193 GEN WR02X10193 Contact Us For Availability
25
BULB, LIGHT GEN PURCH. LOCAL Contact Us For Availability
26
SWITCH, LIGHT (FZ) GEN WR23X0430 Contact Us For Availability
27
GEN WR02X10194 GEN WR02X10194 Contact Us For Availability
28
GEN WR17X10406 GEN WR17X10406 Contact Us For Availability
29
SCREW GEN WZ04X0244 Contact Us For Availability
30
GEN WR02X10195 GEN WR02X10195 Contact Us For Availability
31
GEN WR02X10196 GEN WR02X10196 Contact Us For Availability
32
MOTOR, EVAPORATOR FAN GEN WR60X203 Contact Us For Availability
33
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
35
RING, COMPRESSION GEN WR02X9272 Contact Us For Availability
36
GEN WR02X10197 GEN WR02X10197 Contact Us For Availability
37
GEN WR01X10069 GEN WR01X10069 Contact Us For Availability
38
WASHER, NYLON GEN WR01X2056 Contact Us For Availability
39
GEN WR02X10198 GEN WR02X10198 Contact Us For Availability
40
GEN WR40X10024 GEN WR40X10024 Contact Us For Availability
41
GEN WR40X10025 GEN WR40X10025 Contact Us For Availability
42
GEN WR40X10026 GEN WR40X10026 Contact Us For Availability
43
GEN WR02X10199 GEN WR02X10199 Contact Us For Availability
44
GEN WR02X10200 GEN WR02X10200 Contact Us For Availability
45
GEN WR02X10201 GEN WR02X10201 Contact Us For Availability
46
GEN WR09X10030 GEN WR09X10030 Contact Us For Availability
48
GEN WR02X10202 GEN WR02X10202 Contact Us For Availability
49
GEN WR02X10203 GEN WR02X10203 Contact Us For Availability
50
GEN WR23X10086 GEN WR23X10086 Contact Us For Availability
51
GEN WR02X10204 GEN WR02X10204 Contact Us For Availability
52
GEN WR02X10205 GEN WR02X10205 Contact Us For Availability
53
GEN WR02X10206 GEN WR02X10206 Contact Us For Availability
54
GEN WR02X10207 GEN WR02X10207 Contact Us For Availability
55
GEN WR02X10208 GEN WR02X10208 Contact Us For Availability
56
GEN WR14X10019 GEN WR14X10019 Contact Us For Availability
57
GEN WR01X10070 GEN WR01X10070 Contact Us For Availability
58
GEN WR01X10071 GEN WR01X10071 Contact Us For Availability
59
CAP, CORNER (WHITE) GEN WR02X10209 Contact Us For Availability
60
WHEEL GEN WR02X10210 Contact Us For Availability
61
GEN WR01X10072 GEN WR01X10072 Contact Us For Availability
62
GEN WR02X10211 GEN WR02X10211 Contact Us For Availability
62
GEN WR02X10212 GEN WR02X10212 Contact Us For Availability
63
GEN WR01X10073 GEN WR01X10073 Contact Us For Availability
64
GEN WR79X10001 GEN WR79X10001 Contact Us For Availability
65
WHEEL GEN WR02X8244 Contact Us For Availability
66
AXLE, REAR GEN WR02X8213 Contact Us For Availability
67
GEN WR02X10213 GEN WR02X10213 Contact Us For Availability
69
GEN WR01X10074 GEN WR01X10074 Contact Us For Availability
70
GEN WR01X10075 GEN WR01X10075 Contact Us For Availability
71
SCREW (6-20 1/2) GEN WR01X2068 Contact Us For Availability
72
GEN WR01X10076 GEN WR01X10076 Contact Us For Availability
73
GEN WR32X10082 GEN WR32X10082 Contact Us For Availability
74
GASKET, CENTER GEN WR14X10020 Contact Us For Availability
75
SLIDE, CENTER GEN WR72X10017 Contact Us For Availability
76
GEN WR02X10214 GEN WR02X10214 Contact Us For Availability
77
GEN WR32X10083 GEN WR32X10083 Contact Us For Availability
78
GEN WR38X10148 GEN WR38X10148 Contact Us For Availability
79
GEN WR30X10003 GEN WR30X10003 Contact Us For Availability
82
GEN WR32X10084 GEN WR32X10084 Contact Us For Availability
83
GEN WR38X10149 GEN WR38X10149 Contact Us For Availability
86
GEN WR72X10026 GEN WR72X10026 Contact Us For Availability
87
GEN WR71X10162 GEN WR71X10162 Contact Us For Availability
88
GEN WR38X10152 GEN WR38X10152 Contact Us For Availability
89
GEN WR38X10153 GEN WR38X10153 Contact Us For Availability
90
GEN WR72X10018 GEN WR72X10018 Contact Us For Availability
91
GEN WR01X10077 GEN WR01X10077 Contact Us For Availability
92
GEN WR02X10215 GEN WR02X10215 Contact Us For Availability
93
GEN WR14X10022 GEN WR14X10022 Contact Us For Availability
94
GEN WR72X10019 GEN WR72X10019 Contact Us For Availability
95
GEN WR38X10150 GEN WR38X10150 Contact Us For Availability
96
GEN WR04X10057 GEN WR04X10057 Contact Us For Availability
97
GEN WR02X10216 GEN WR02X10216 Contact Us For Availability
98
GASKET, FRONT GEN WR14X10023 Contact Us For Availability
99
GEN WR72X10020 GEN WR72X10020 Contact Us For Availability
103
GEN WR71X10157 GEN WR71X10157 Contact Us For Availability
104
GEN WR71X10158 GEN WR71X10158 Contact Us For Availability
105
GEN WR72X10021 GEN WR72X10021 Contact Us For Availability
106
GEN WR72X10022 GEN WR72X10022 Contact Us For Availability
108
GEN WR71X10160 GEN WR71X10160 Contact Us For Availability
109
GEN WR72X10023 GEN WR72X10023 Contact Us For Availability
110
GEN WR72X10024 GEN WR72X10024 Contact Us For Availability
113
GEN WR79X10002 GEN WR79X10002 Contact Us For Availability
114
GEN WR02X10217 GEN WR02X10217 Contact Us For Availability
115
GEN WR01X10078 GEN WR01X10078 Contact Us For Availability
116
GEN WR72X10025 GEN WR72X10025 Contact Us For Availability
117
GEN WR02X10218 GEN WR02X10218 Contact Us For Availability
118
COVER, ICEMAKER GEN WR02X9159 Contact Us For Availability
120
GEN WR02X10219 GEN WR02X10219 Contact Us For Availability
121
CLIP, CORD SET GEN WR02X10076 Contact Us For Availability
122
GEN WR23X10087 GEN WR23X10087 Contact Us For Availability
123
GEN WR86X10006 GEN WR86X10006 Contact Us For Availability
124
GEN WR84X10015 GEN WR84X10015 Contact Us For Availability
125
GEN WR02X10220 GEN WR02X10220 Contact Us For Availability
126
GEN WR02X10221 GEN WR02X10221 Contact Us For Availability
127
BOLT, COMPRESSOR MTG. GEN WR01X2156 Contact Us For Availability
128
NUT (1/4-20) GEN WR01X2155 Contact Us For Availability
129
WASHER, FLAT (9/32) GEN WR01X2154 Contact Us For Availability
132
COVER, RELAY GEN WR02X7834 Contact Us For Availability
133
CLIP, COVER RELAY GEN WR02X7226 Contact Us For Availability
134
PROTECTOR, OVERLOAD GEN WR08X0169 Contact Us For Availability
135
GEN WR62X10012 GEN WR62X10012 Contact Us For Availability
136
GEN WR17X10407 GEN WR17X10407 Contact Us For Availability
137
GEN WR17X10408 GEN WR17X10408 Contact Us For Availability
138
PAN, WATER - DISPOSAL GEN WR32X10037 Contact Us For Availability
140
GEN WR17X10409 GEN WR17X10409 Contact Us For Availability
142
BLADE, CONDENSER FAN GEN WR60X0275 Contact Us For Availability
143
WASHER, CUSHION GEN WR01X1714 Contact Us For Availability
144
NUT (1/4-20) GEN WR01X1715 Contact Us For Availability
145
SCREW, FAN MOTOR GEN WR01X1716 Contact Us For Availability
146
GEN WR02X10222 GEN WR02X10222 Contact Us For Availability
147
GEN WR02X10223 GEN WR02X10223 Contact Us For Availability
148
GEN WR01X10079 GEN WR01X10079 Contact Us For Availability
148
GEN WR02X10224 GEN WR02X10224 Contact Us For Availability
149
GEN WR02X10225 GEN WR02X10225 Contact Us For Availability
151
GEN WR02X10226 GEN WR02X10226 Contact Us For Availability
152
GEN WR01X10081 GEN WR01X10081 Contact Us For Availability
153
GEN WR01X10082 GEN WR01X10082 Contact Us For Availability
154
GEN WR01X10083 GEN WR01X10083 Contact Us For Availability
155
GEN WR01X10084 GEN WR01X10084 Contact Us For Availability
156
GEN WR82X10056 GEN WR82X10056 Contact Us For Availability
157
GEN WR02X10227 GEN WR02X10227 Contact Us For Availability
157
GEN WR02X10228 GEN WR02X10228 Contact Us For Availability
158
GEN WR01X10085 GEN WR01X10085 Contact Us For Availability
159
GEN WR78X10240 GEN WR78X10240 Contact Us For Availability
160
GEN WR78X10241 GEN WR78X10241 Contact Us For Availability
161
GEN WR24X10021 GEN WR24X10021 Contact Us For Availability
162
GEN WR02X10229 GEN WR02X10229 Contact Us For Availability
163
GEN WR02X10230 GEN WR02X10230 Contact Us For Availability
164
GEN WR17X10410 GEN WR17X10410 Contact Us For Availability
165
GEN WR02X9295 GEN WR02X9295 Contact Us For Availability
166
END CAP - R.H. (WIDE) GEN WR02X9296 Contact Us For Availability
167
SCREW GEN WR01X10086 Contact Us For Availability
168
GEN WR22X10008 GEN WR22X10008 Contact Us For Availability
168
GEN WR38X10151 GEN WR38X10151 Contact Us For Availability
169
GEN WR19X10001 GEN WR19X10001 Contact Us For Availability
171
GEN WR02X10231 GEN WR02X10231 Contact Us For Availability
172
GEN WR13X10036 GEN WR13X10036 Contact Us For Availability
173
SCREW GEN WR01X2057 Contact Us For Availability
174
GEN WR13X10037 GEN WR13X10037 Contact Us For Availability
175
GEN WR13X10038 GEN WR13X10038 Contact Us For Availability
176
SCREW GEN WR01X10088 Contact Us For Availability
177
GEN WR02X9281 GEN WR02X9281 Contact Us For Availability
177
GEN WR13X10039 GEN WR13X10039 Contact Us For Availability
178
GEN WR02X10232 GEN WR02X10232 Contact Us For Availability
179
GEN WR01X2059 GEN WR01X2059 Contact Us For Availability
180
GEN WR71X10161 GEN WR71X10161 Contact Us For Availability
181
GEN WR02X10233 GEN WR02X10233 Contact Us For Availability
182
GEN WR04X10059 GEN WR04X10059 Contact Us For Availability
183
GEN WR02X10234 GEN WR02X10234 Contact Us For Availability
184
SCREW GEN WR01X5475 Contact Us For Availability
186
GEN WR01X10089 GEN WR01X10089 Contact Us For Availability
187
GEN WR12X10289 GEN WR12X10289 Contact Us For Availability
188
GEN WR02X10235 GEN WR02X10235 Contact Us For Availability
189
GEN WR78X10242 GEN WR78X10242 Contact Us For Availability
190
GEN WR78X10243 GEN WR78X10243 Contact Us For Availability
191
GEN WR24X10022 GEN WR24X10022 Contact Us For Availability
192
GEN WR02X10236 GEN WR02X10236 Contact Us For Availability
194
GEN WR17X10411 GEN WR17X10411 Contact Us For Availability
197
GEN WR17X10412 GEN WR17X10412 Contact Us For Availability
203
GEN WR01X10090 GEN WR01X10090 Contact Us For Availability
203
SCREW GEN WR01X10091 Contact Us For Availability
204
GEN WR13X10040 GEN WR13X10040 Contact Us For Availability
205
GEN WR02X10237 GEN WR02X10237 Contact Us For Availability
208
GEN WR12X10290 GEN WR12X10290 Contact Us For Availability
259
GEN WR02X9274 GEN WR02X9274 Contact Us For Availability
999
GEN 31-46002 GEN 31-46002 Contact Us For Availability
999
GEN 31-51221 GEN 31-51221 Contact Us For Availability
999
GEN 49-6955 GEN 49-6955 Contact Us For Availability
999
GEN WR29X10015 GEN WR29X10015 Contact Us For Availability
× ![]()
