Model GE TCX-20ZKC Refrigerator – Common Parts & Diagrams

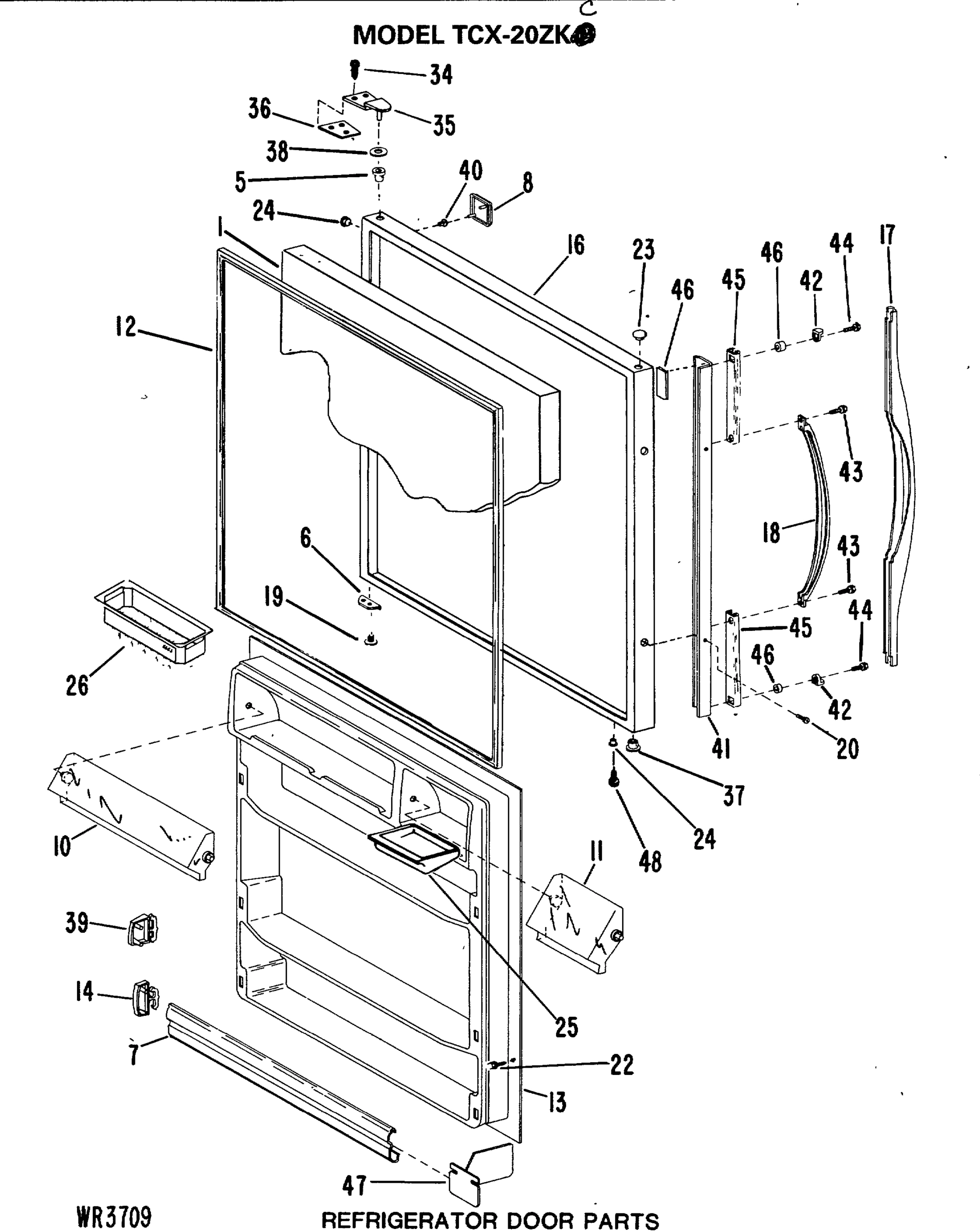

0

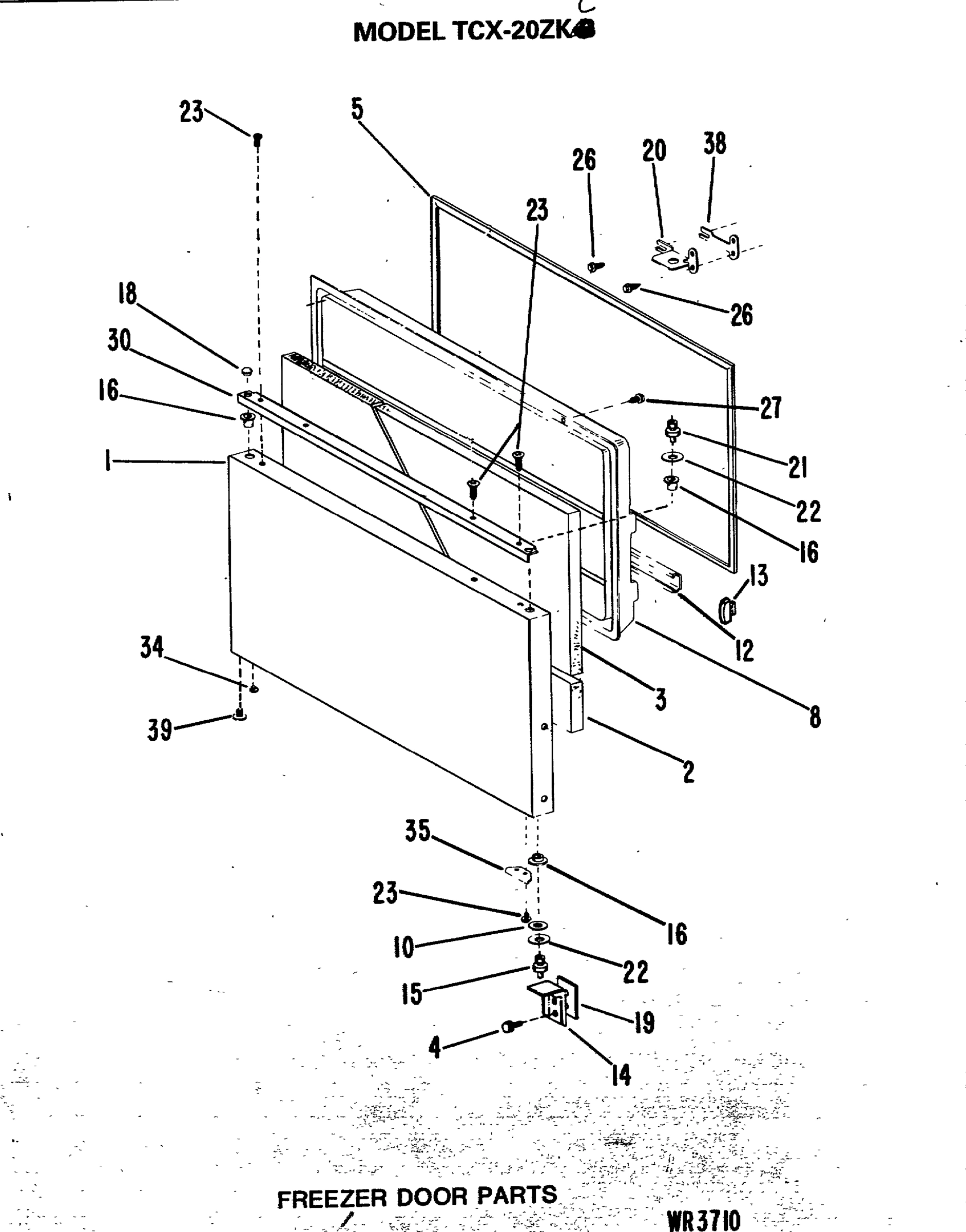

1

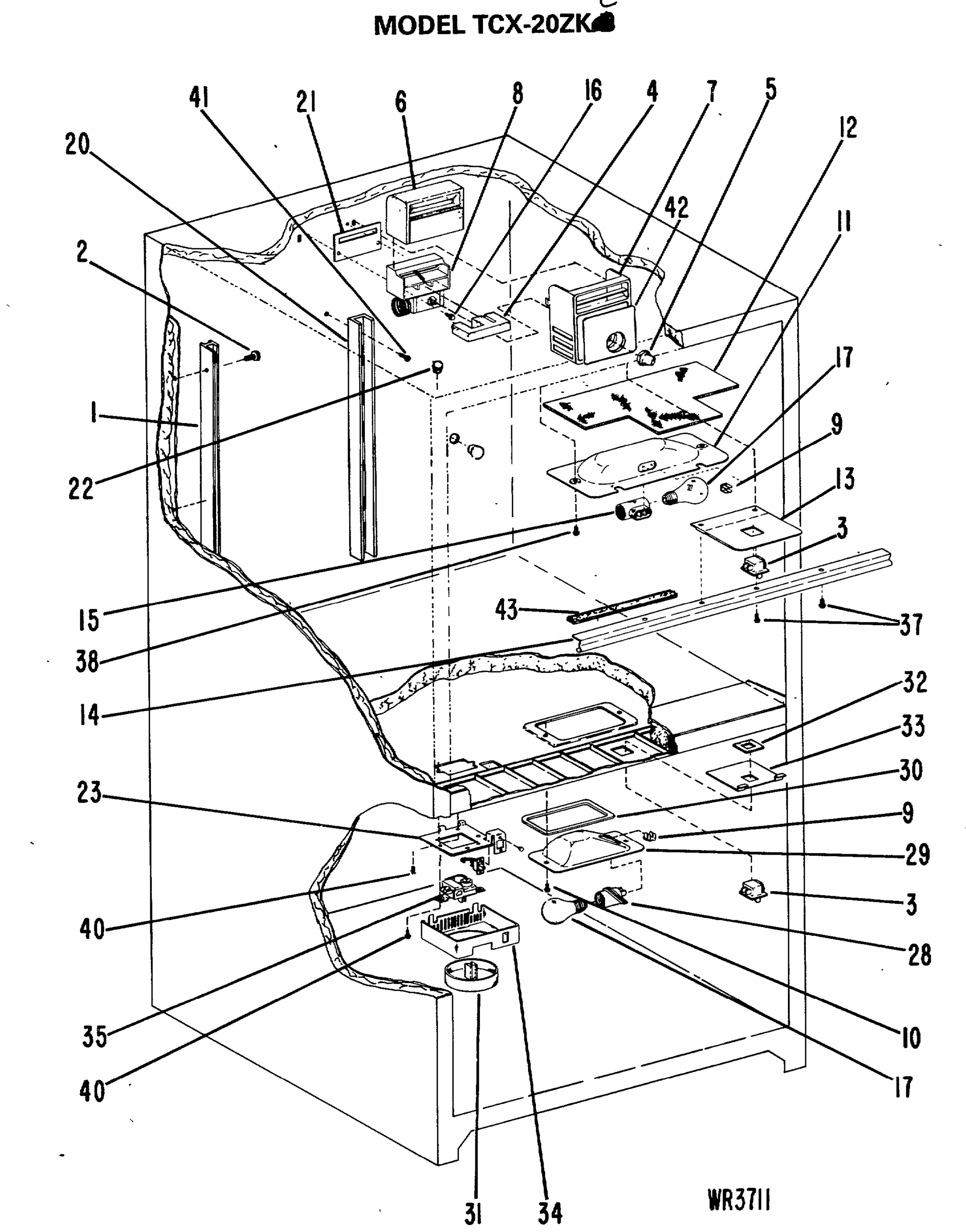

2

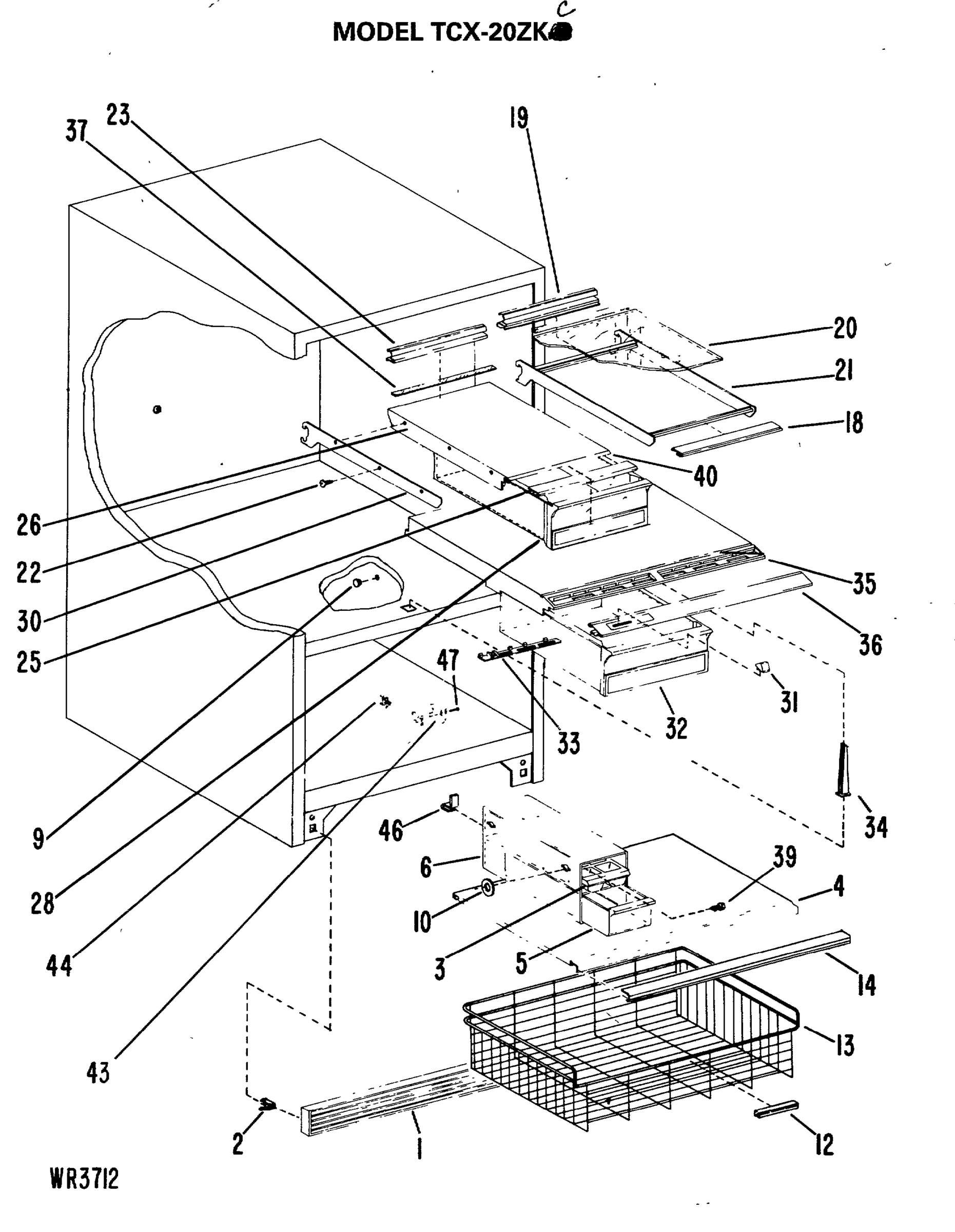

3

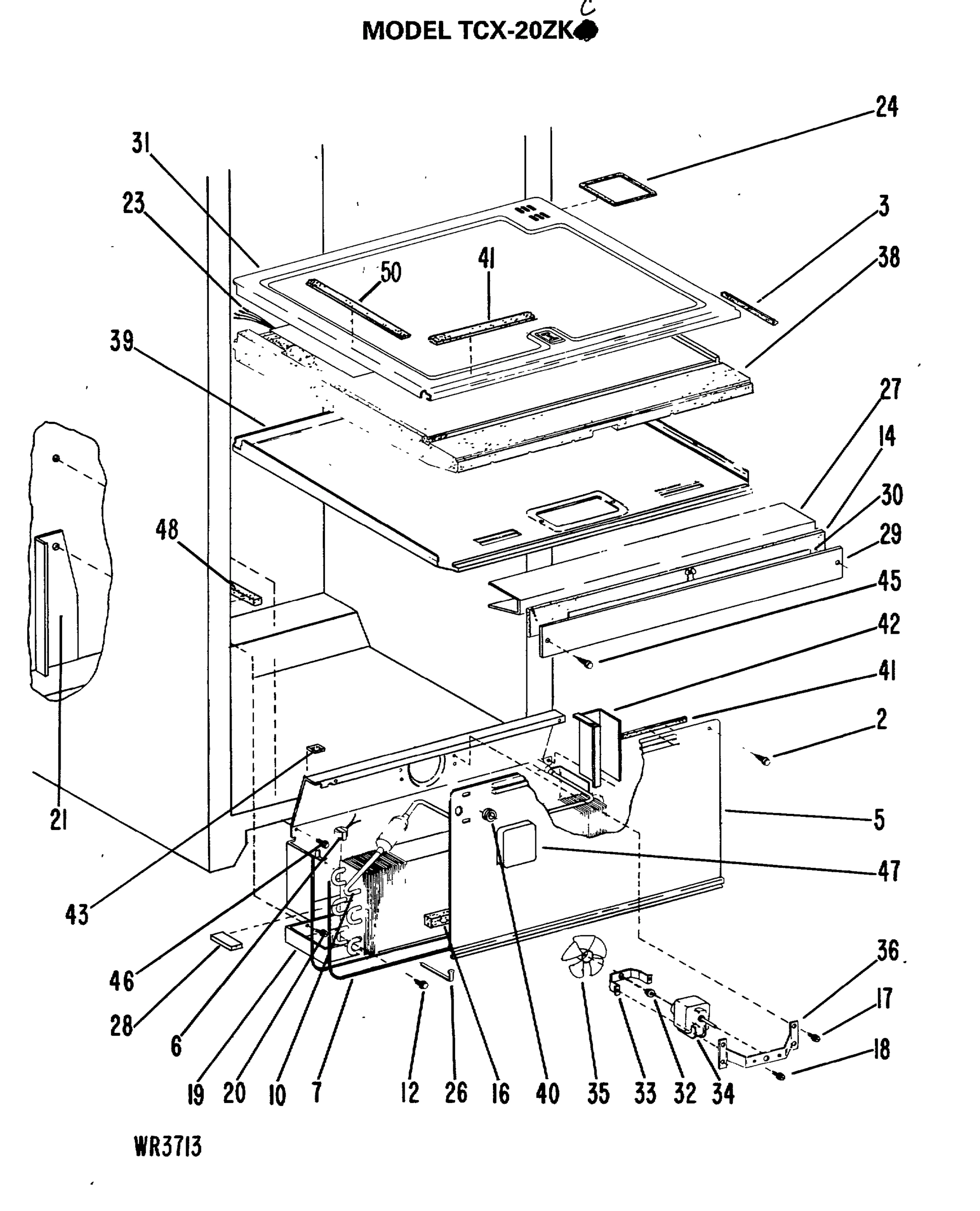

4

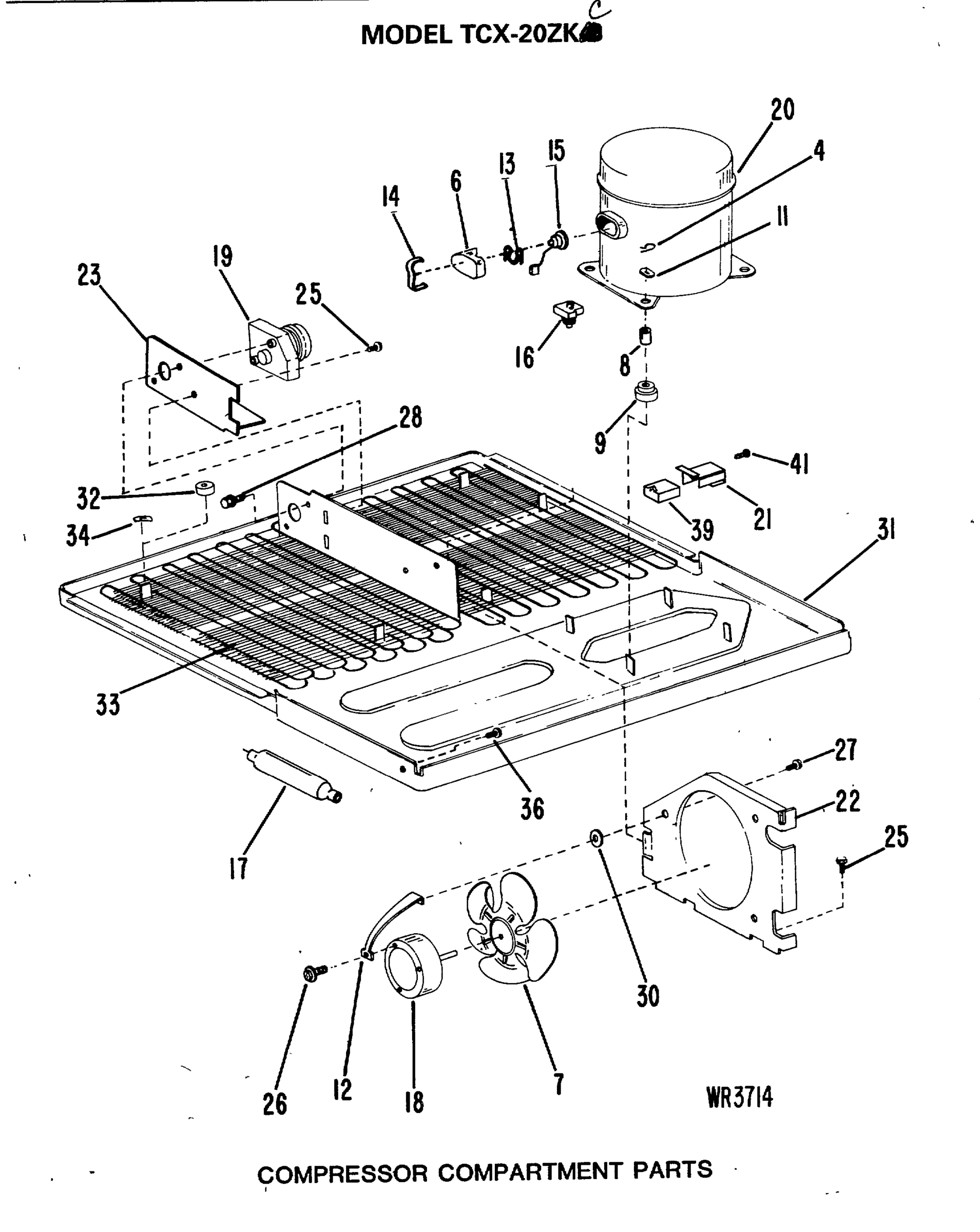

5

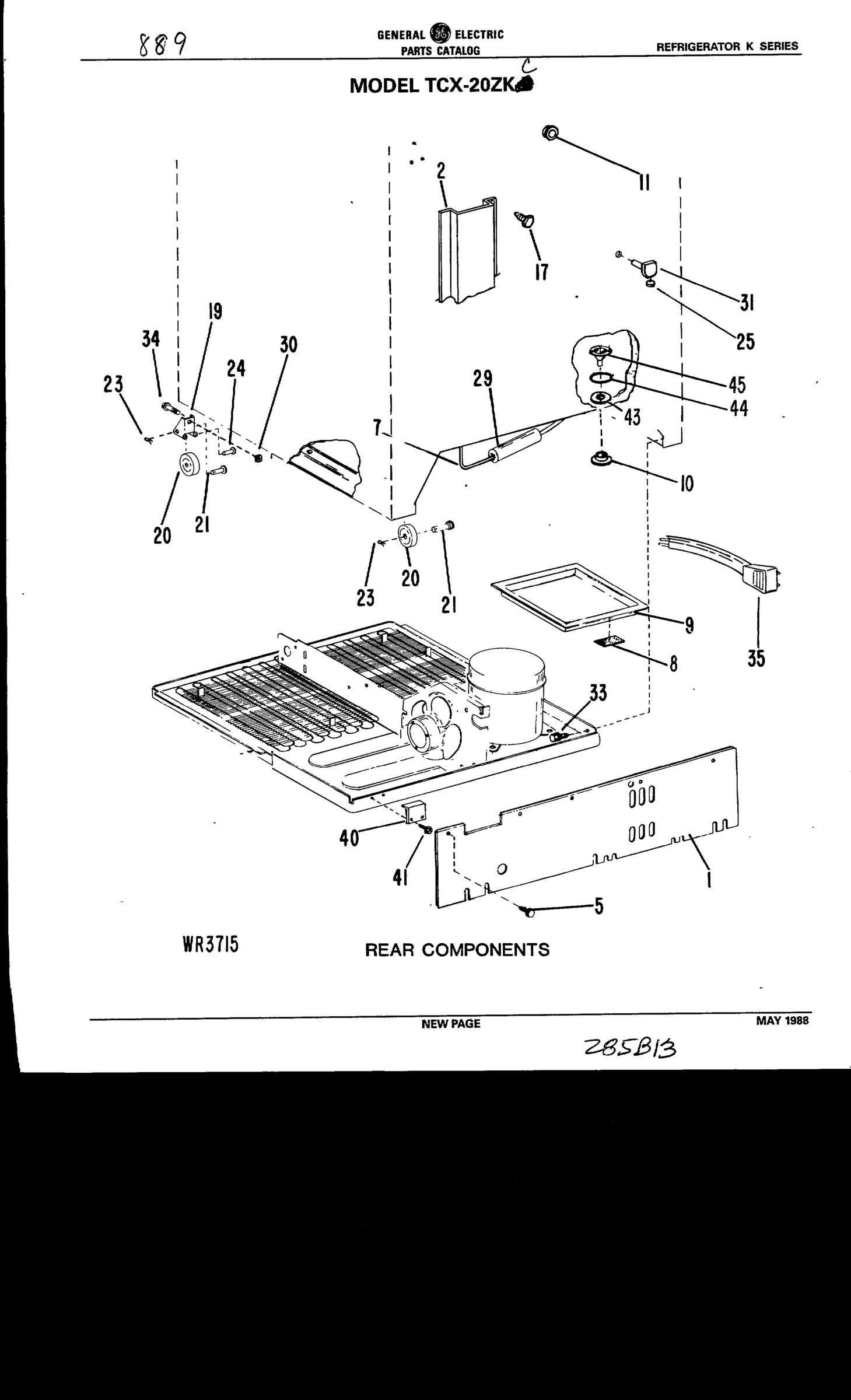

6
Common parts from model GE TCX-20ZKC Refrigerator
1
GEN WR72X5053 GEN WR72X5053 Contact Us For Availability
1
GEN WR78X7792 GEN WR78X7792 Contact Us For Availability
1
GEN WR78X7793 GEN WR78X7793 Contact Us For Availability
1
GEN WR78X7794 GEN WR78X7794 Contact Us For Availability
1
GEN WR79X5161 GEN WR79X5161 Contact Us For Availability
1
GEN WR82X5047 GEN WR82X5047 Contact Us For Availability
2
INSULATION (1"X30-1/2X100') GEN WR82X0177 Contact Us For Availability
2
SCREW,LADDER GEN WR01X5580 Contact Us For Availability
2
GEN WR02X7419 GEN WR02X7419 Contact Us For Availability
2
GEN WR17X6176 GEN WR17X6176 Contact Us For Availability
3
GEN WR14X5151 GEN WR14X5151 Contact Us For Availability
3
GEN WR82X5044 GEN WR82X5044 Contact Us For Availability
4
GEN WR01X5573 GEN WR01X5573 Contact Us For Availability
4
GEN WR02X7424 GEN WR02X7424 Contact Us For Availability
4
GEN WR02X7426 GEN WR02X7426 Contact Us For Availability
4
GEN WR71X6055 GEN WR71X6055 Contact Us For Availability
5
GEN WR01X5609 GEN WR01X5609 Contact Us For Availability
5
GEN WR02X7425 GEN WR02X7425 Contact Us For Availability
5
GEN WR17X6163 GEN WR17X6163 Contact Us For Availability
5
GASKET, DOOR GEN WR24X5215 Contact Us For Availability
5
GEN WR30X5114 GEN WR30X5114 Contact Us For Availability
5
GEN WR01X5577 GEN WR01X5577 Contact Us For Availability
6
STOP,DOOR GEN WR02X7412 Contact Us For Availability
6
COVER-TEMPERATURE ASM. GEN WR02X7510 Contact Us For Availability
6
RACK, ICE SERVICE GEN WR17X6175 Contact Us For Availability
6
GEN WR50X5035 GEN WR50X5035 Contact Us For Availability
7
GEN WR02X7427 GEN WR02X7427 Contact Us For Availability
7
GEN WR17X6309 GEN WR17X6309 Contact Us For Availability
7
GEN WR51X5208 GEN WR51X5208 Contact Us For Availability
7
BLADE-FAN GEN WR60X5070 Contact Us For Availability
7
GEN WR17X6150 GEN WR17X6150 Contact Us For Availability
8
GEN WR02X7441 GEN WR02X7441 Contact Us For Availability
8
SUPPORT-PLAN GEN WR02X7848 Contact Us For Availability
8
NAMEPLATE GEN WR03X0408 Contact Us For Availability
8
DAMPER CONTROL ASM. GEN WR09X5209 Contact Us For Availability
8
I.D. PANEL GEN WR77X5637 Contact Us For Availability
9
GEN WR01X5585 GEN WR01X5585 Contact Us For Availability
9
GEN WR01X5595 GEN WR01X5595 Contact Us For Availability
9
GEN WR02X7442 GEN WR02X7442 Contact Us For Availability
9
GEN WR17X6310 GEN WR17X6310 Contact Us For Availability
10
GEN WR01X5586 GEN WR01X5586 Contact Us For Availability
10
GEN WR01X5592 GEN WR01X5592 Contact Us For Availability
10
GEN WR02X7403 GEN WR02X7403 Contact Us For Availability
10
GEN WR02X7847 GEN WR02X7847 Contact Us For Availability
10
DAIRY DOOR GEN WR22X0303 Contact Us For Availability
10
GEN WR85X0220 GEN WR85X0220 Contact Us For Availability
11
CLIP-COMPRESSOR GEN WR01X5617 Contact Us For Availability
11
GEN WR02X7447 GEN WR02X7447 Contact Us For Availability
11
GEN WR17X6158 GEN WR17X6158 Contact Us For Availability
11
UTILITY DOOR GEN WR22X0305 Contact Us For Availability
12
GEN WR01X5596 GEN WR01X5596 Contact Us For Availability
12
HANDLE, BASKET GEN WR02X7420 Contact Us For Availability
12
BRACKET-MOUNTING GEN WR02X7443 Contact Us For Availability
12
GASKET, DOOR GEN WR24X5214 Contact Us For Availability
12
GEN WR82X5045 GEN WR82X5045 Contact Us For Availability
13
CLIP-GUARDETTE GEN WR01X5618 Contact Us For Availability
13
GEN WR17X6159 GEN WR17X6159 Contact Us For Availability
13
GEN WR21X5111 GEN WR21X5111 Contact Us For Availability
13
INNER DOOR GEN WR77X5639 Contact Us For Availability
14
CAP, PACKAGE RETAINER END GEN WR02X7233 Contact Us For Availability
14
CLAMP-TERMINAL COVER GEN WR01X5619 Contact Us For Availability
14
GEN WR13X5186 GEN WR13X5186 Contact Us For Availability
14
GEN WR17X6151 GEN WR17X6151 Contact Us For Availability
14
GEN WR17X6160 GEN WR17X6160 Contact Us For Availability
15
GUARDETTE GEN WR08X5193 Contact Us For Availability
15
GEN WR13X5187 GEN WR13X5187 Contact Us For Availability
15
GEN WR23X5144 GEN WR23X5144 Contact Us For Availability
16
GEN WR07X5138 GEN WR07X5138 Contact Us For Availability
16
GEN WR14X5147 GEN WR14X5147 Contact Us For Availability
16
REFRIGERATOR DOOR PAN (WH) GEN WR78X7789 Contact Us For Availability
16
REFRIGERATOR DOOR PAN (HVST) GEN WR78X7790 Contact Us For Availability
16
REFRIGERATOR DOOR PAN (AD) GEN WR78X7791 Contact Us For Availability
17
GEN WR01X5597 GEN WR01X5597 Contact Us For Availability
17
INSERT, HANDLE GEN WR12X5187 Contact Us For Availability
18
PLUB BUTTON (WH) GEN WR02X7408 Contact Us For Availability
18
HANDLE, CAST DOOR GEN WR12X0317 Contact Us For Availability
18
GEN WR60X5069 GEN WR60X5069 Contact Us For Availability
19
GEN WR02X7409 GEN WR02X7409 Contact Us For Availability
19
GEN WR02X7448 GEN WR02X7448 Contact Us For Availability
19
GEN WR17X6153 GEN WR17X6153 Contact Us For Availability
19
GEN WR17X6308 GEN WR17X6308 Contact Us For Availability
20
SCREW, TRIM GEN WR01X5579 Contact Us For Availability
20
GEN WR01X5598 GEN WR01X5598 Contact Us For Availability
20
GEN WR02X7449 GEN WR02X7449 Contact Us For Availability
20
GEN WR13X5188 GEN WR13X5188 Contact Us For Availability
20
GLASS, SHELF GEN WR32X5297 Contact Us For Availability
20
GEN WR72X5052 GEN WR72X5052 Contact Us For Availability
20
GEN WR87X0209 GEN WR87X0209 Contact Us For Availability
20
REFRIGERATOR 7 1/2 OZ. GEN WR97X5017 Contact Us For Availability
21
GEN WR01X5610 GEN WR01X5610 Contact Us For Availability
21
GEN WR02X7511 GEN WR02X7511 Contact Us For Availability
21
GEN WR13X5189 GEN WR13X5189 Contact Us For Availability
21
GEN WR14X5144 GEN WR14X5144 Contact Us For Availability
21
GEN WR17X6165 GEN WR17X6165 Contact Us For Availability
21
GEN WR71X6056 GEN WR71X6056 Contact Us For Availability
22
SCREW GEN WR01X5576 Contact Us For Availability
22
GEN WR01X5587 GEN WR01X5587 Contact Us For Availability
22
GEN WR02X7410 GEN WR02X7410 Contact Us For Availability
22
GEN WR02X7428 GEN WR02X7428 Contact Us For Availability
22
GEN WR02X7429 GEN WR02X7429 Contact Us For Availability
22
GEN WR02X7430 GEN WR02X7430 Contact Us For Availability
22
GEN WR17X6173 GEN WR17X6173 Contact Us For Availability
23
SCREW GEN WR01X5578 Contact Us For Availability
23
GEN WR01X5611 GEN WR01X5611 Contact Us For Availability
23
GEN WR02X7415 GEN WR02X7415 Contact Us For Availability
23
GEN WR02X7416 GEN WR02X7416 Contact Us For Availability
23
GEN WR02X7417 GEN WR02X7417 Contact Us For Availability
23
GEN WR02X7444 GEN WR02X7444 Contact Us For Availability
23
GEN WR17X6154 GEN WR17X6154 Contact Us For Availability
23
GEN WR23X5145 GEN WR23X5145 Contact Us For Availability
23
GEN WR51X5209 GEN WR51X5209 Contact Us For Availability
24
GEN WR01X5612 GEN WR01X5612 Contact Us For Availability
24
GEN WR02X7405 GEN WR02X7405 Contact Us For Availability
24
GEN WR02X7406 GEN WR02X7406 Contact Us For Availability
24
GEN WR02X7407 GEN WR02X7407 Contact Us For Availability
24
GEN WR14X5148 GEN WR14X5148 Contact Us For Availability
25
TRIM, MEAT PAN GEN WR17X6152 Contact Us For Availability
25
SCREW GEN WR01X5591 Contact Us For Availability
25
GEN WR02X7450 GEN WR02X7450 Contact Us For Availability
25
BUTTER TRAY GEN WR19 Contact Us For Availability
25
BUTTER TRAY GEN WR19X5017 Contact Us For Availability
26
GEN WR01X5575 GEN WR01X5575 Contact Us For Availability
26
GEN WR01X5599 GEN WR01X5599 Contact Us For Availability
26
GEN WR01X5602 GEN WR01X5602 Contact Us For Availability
26
EGG BUCKET GEN WR32X0896 Contact Us For Availability
26
GEN WR32X5295 GEN WR32X5295 Contact Us For Availability
27
GEN WR01X5603 GEN WR01X5603 Contact Us For Availability
27
BREAKER, MULLLION GEN WR40X5538 Contact Us For Availability
28
GEN WR01X5604 GEN WR01X5604 Contact Us For Availability
28
GEN WR02X7434 GEN WR02X7434 Contact Us For Availability
28
GEN WR23 GEN WR23 Contact Us For Availability
29
GEN WR17X6161 GEN WR17X6161 Contact Us For Availability
29
GEN WR17X6166 GEN WR17X6166 Contact Us For Availability
29
GEN WR17X6167 GEN WR17X6167 Contact Us For Availability
29
GEN WR17X6168 GEN WR17X6168 Contact Us For Availability
30
GEN WR01X5613 GEN WR01X5613 Contact Us For Availability
30
GROMMET GEN WR02X7445 Contact Us For Availability
30
GEN WR12X5174 GEN WR12X5174 Contact Us For Availability
30
GEN WR14X5145 GEN WR14X5145 Contact Us For Availability
30
GEN WR17X6155 GEN WR17X6155 Contact Us For Availability
30
GEN WR51X5210 GEN WR51X5210 Contact Us For Availability
31
GEN WR02X7421 GEN WR02X7421 Contact Us For Availability
31
GEN WR02X7431 GEN WR02X7431 Contact Us For Availability
31
GEN WR02X7451 GEN WR02X7451 Contact Us For Availability
31
GEN WR17X6169 GEN WR17X6169 Contact Us For Availability
31
GEN WR32X5329 GEN WR32X5329 Contact Us For Availability
33
GEN WR02 GEN WR02 Contact Us For Availability
33
SCREW, T.C. GEN WR01X5606 Contact Us For Availability
33
GEN WR02X7432 GEN WR02X7432 Contact Us For Availability
× ![]()
