Model Whirlpool TCF1510EW01 CHEST FREEZER – Common Parts & Diagrams

Use & Care Guide
Use & Care Guide WPL LIT2165304 Contact Us For Availability
View on Model
Energy Label
Energy Label WPL LIT4356616 Contact Us For Availability
View on Model
1

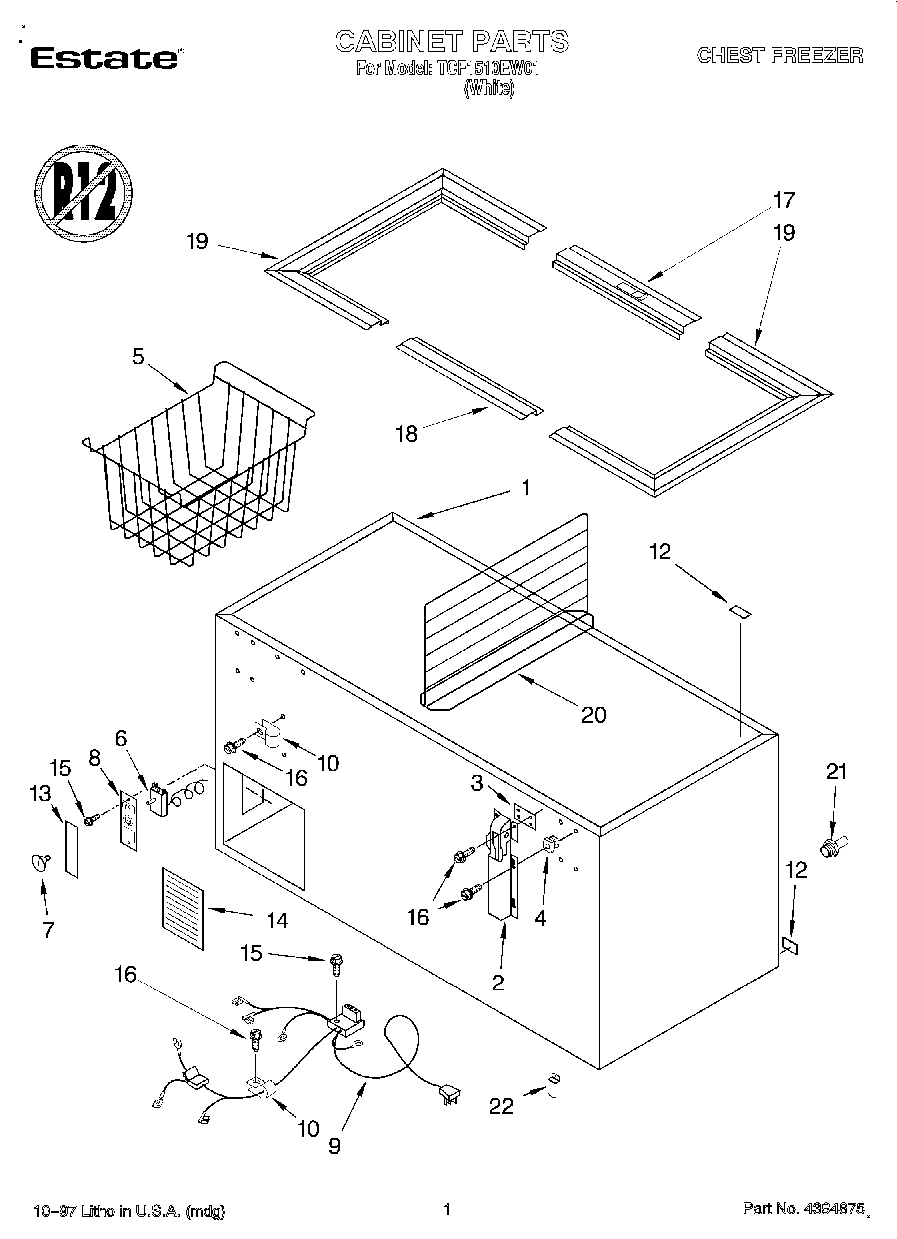

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI130927A Contact Us For Availability
View on Model
1

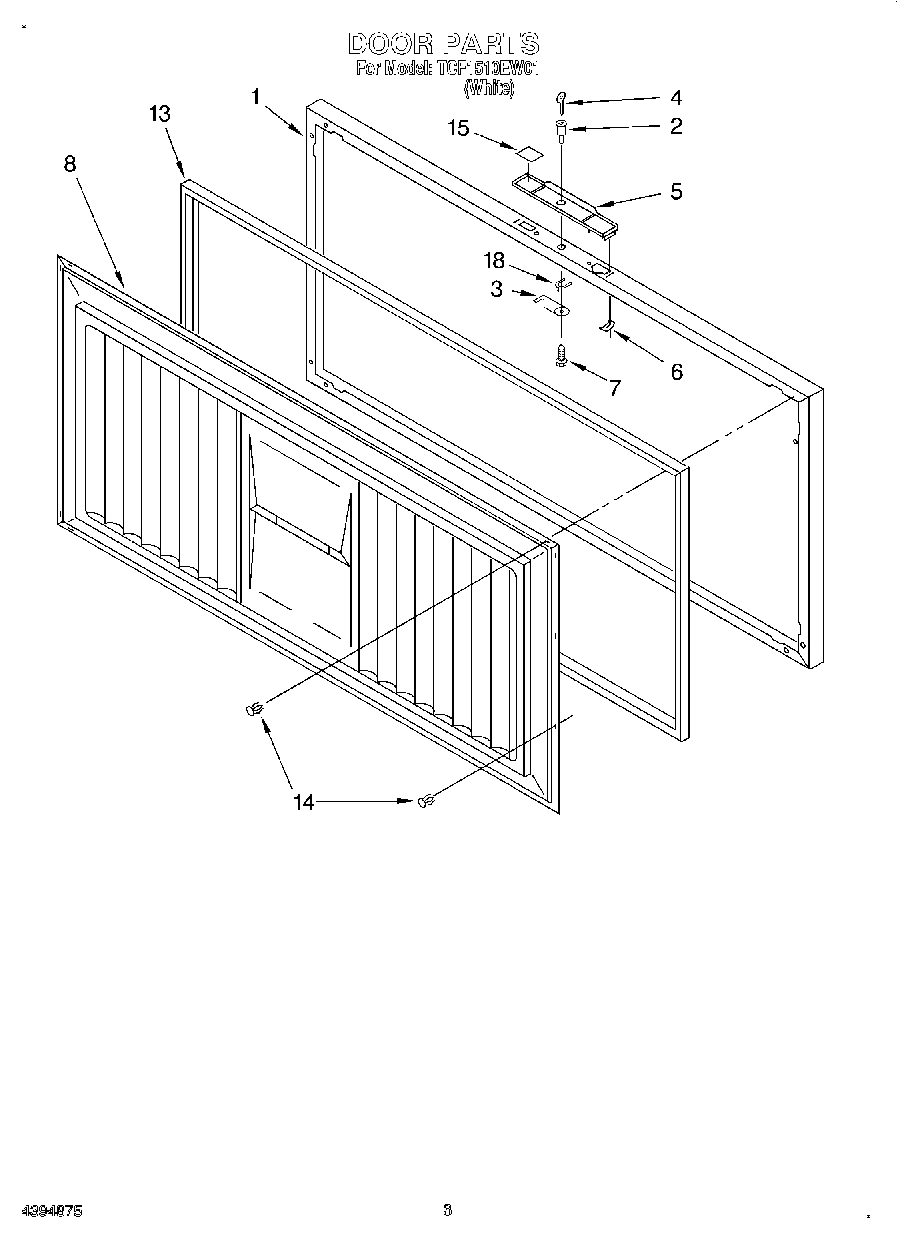

Exterior Door Panel (Includes Insulation)
Exterior Door Panel (Includes Insulation) WPL 4356547 Contact Us For Availability
View on Model
4
Key
Key WPL 4356304 Contact Us For Availability
View on Model
5

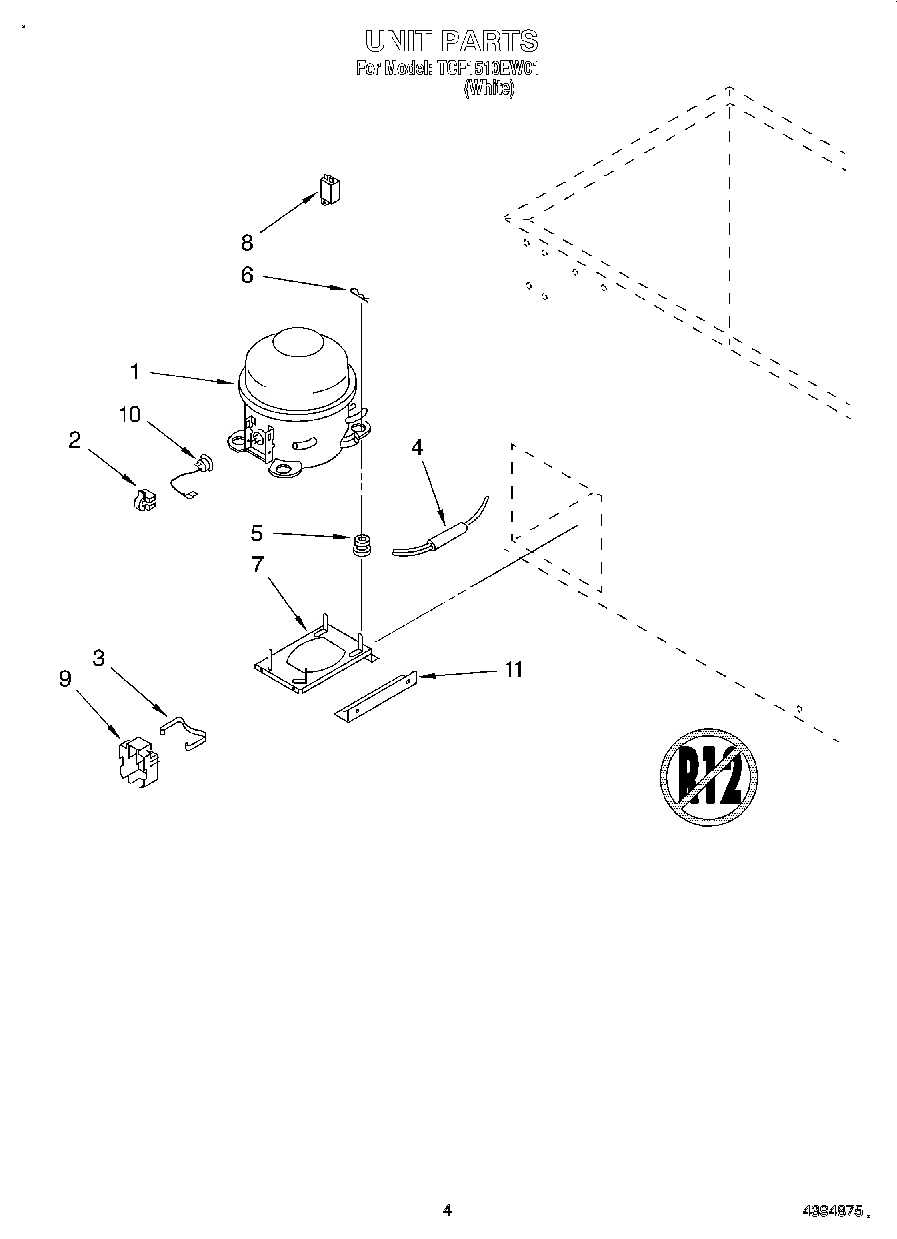

Compressor, Mounting Grommet
Compressor, Mounting Grommet WPL 4356335 Contact Us For Availability
View on Model
5
Wire Basket
Wire Basket WPL 4356322 Contact Us For Availability
View on Model
5
Handle
Handle WPL 4356390 Contact Us For Availability
View on Model
6
Compressor, Hitch Pin
Compressor, Hitch Pin WPL 4356336 Contact Us For Availability
View on Model
7
Base, Compressor
Base, Compressor WPL 4356590 Contact Us For Availability
View on Model
7
Knob, Thermostat
Knob, Thermostat WPL 4356585 Contact Us For Availability
View on Model
8
Capacitor
Capacitor WPL 4356665 Contact Us For Availability
View on Model
8
Interior, Door Panel
Interior, Door Panel WPL 4356536 Contact Us For Availability
View on Model
9
Cover
Cover WPL 4356666 Contact Us For Availability
View on Model
9
External, Wiring Harness
External, Wiring Harness WPL 4356692 Contact Us For Availability
View on Model
10
Overload
Overload WPL 4356664 Contact Us For Availability
View on Model
12
Drain Plug
Drain Plug WPL 4356456 Contact Us For Availability
View on Model
13
Insert, Control
Insert, Control WPL 4356584 Contact Us For Availability
View on Model
13
Gasket
Gasket WPL 4356488 Contact Us For Availability
View on Model
14
Access Panel
Access Panel WPL 4356622 Contact Us For Availability
View on Model
14
Gasket, Clip
Gasket, Clip WPL 4356317 Contact Us For Availability
View on Model
15
Nameplate
Nameplate WPL 4356630 Contact Us For Availability
View on Model
18
Clip, Spring
Clip, Spring WPL 4356493 Contact Us For Availability
View on Model
20
Divider (Optional)
Divider (Optional) WPL 4356477 Contact Us For Availability
View on Model
22
Clip, Gasket (Kit Of 60)
Clip, Gasket (Kit Of 60) WPL 4356489 Contact Us For Availability
View on Model
22
Clip
Clip WPL 4356677 Contact Us For Availability
View on Model
