Model Whirlpool TC8750XYP3 TRASH MASHER COMPACTOR – Common Parts &amp; Diagrams

1

WPW10451272 Whirlpool Trash Compactor Power S Backorder WPL WPW10451272 $137.04

1

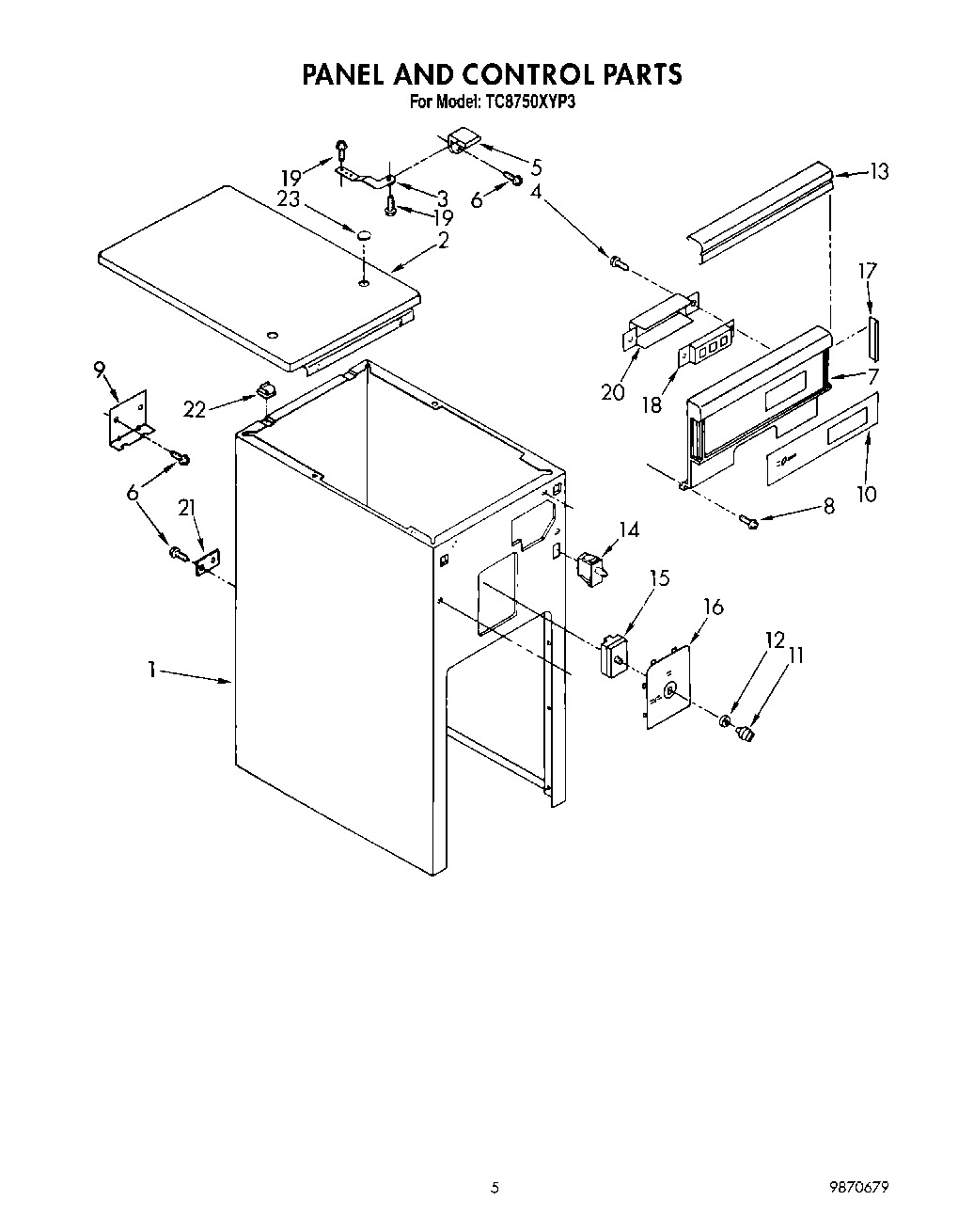

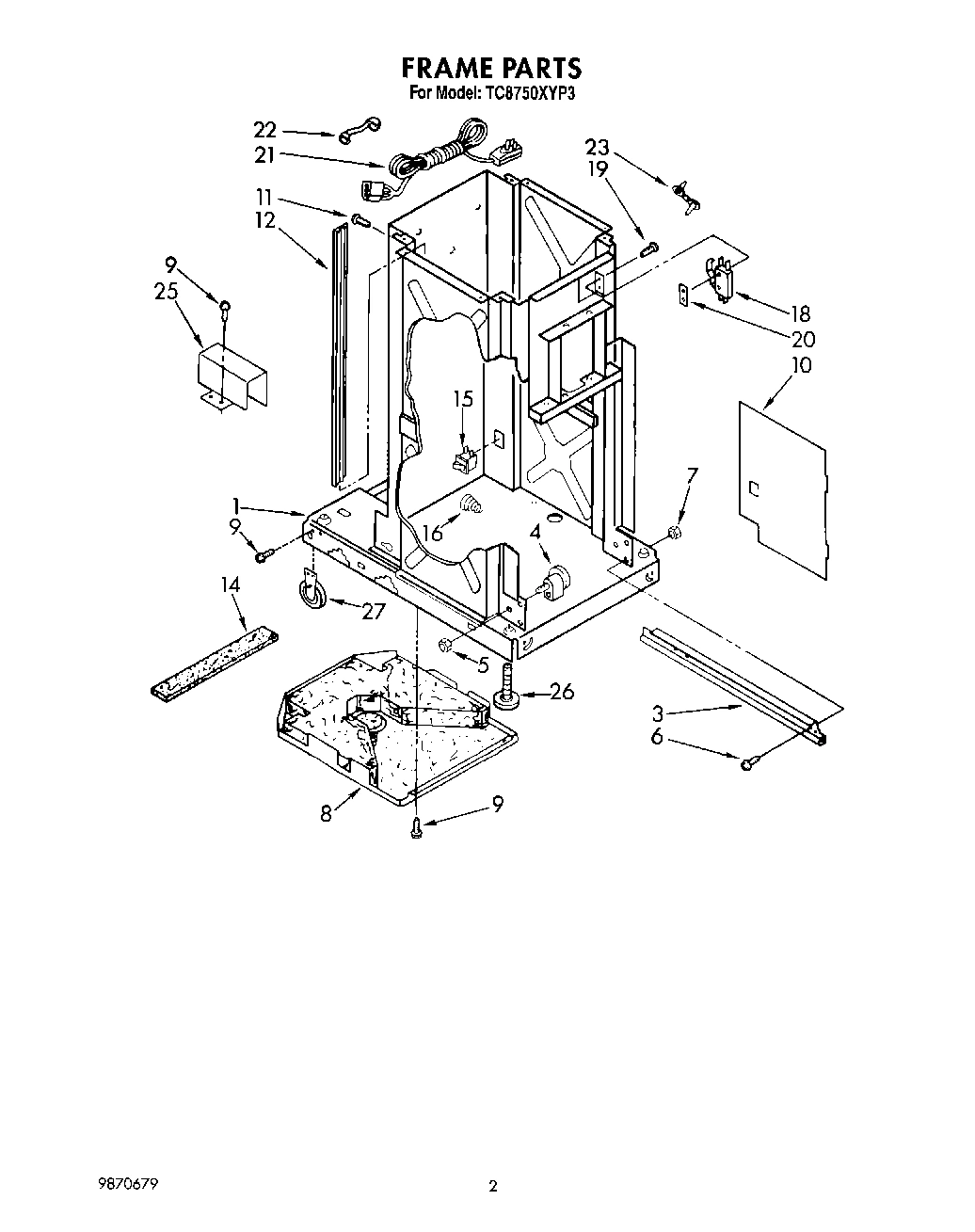

Cabinet WPL 9870355 Contact Us For Availability

1

Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability

1

Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability

1

Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability

1

Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability

1

Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability

1

panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability

1

Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability

1

Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability

1

Panel, Container Front (Black & White) WPL 888941 Contact Us For Availability

2

W10165295RP Whirlpool Trash Compactor Bags 15 In Stock WPL W10165295RP $10.21

2

Screw, Power (Available Only As Complete Asse WPL ARI130895A Contact Us For Availability

2

Top, Cabinet WPL 4151204 Contact Us For Availability

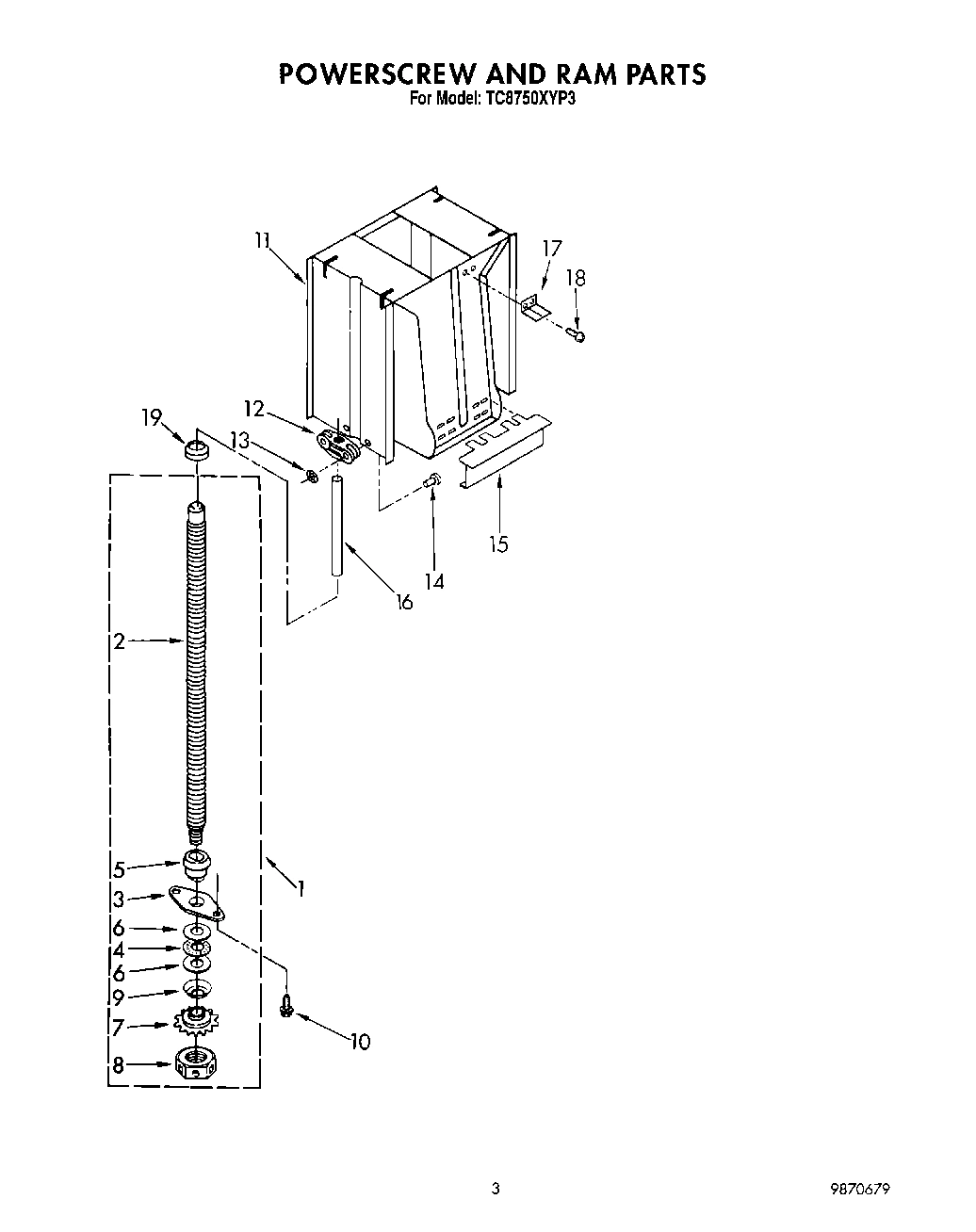

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

W11729437 Whirlpool Retaining Bracket Backorder WPL W11729437 $8.78

3

Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability

3

Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability

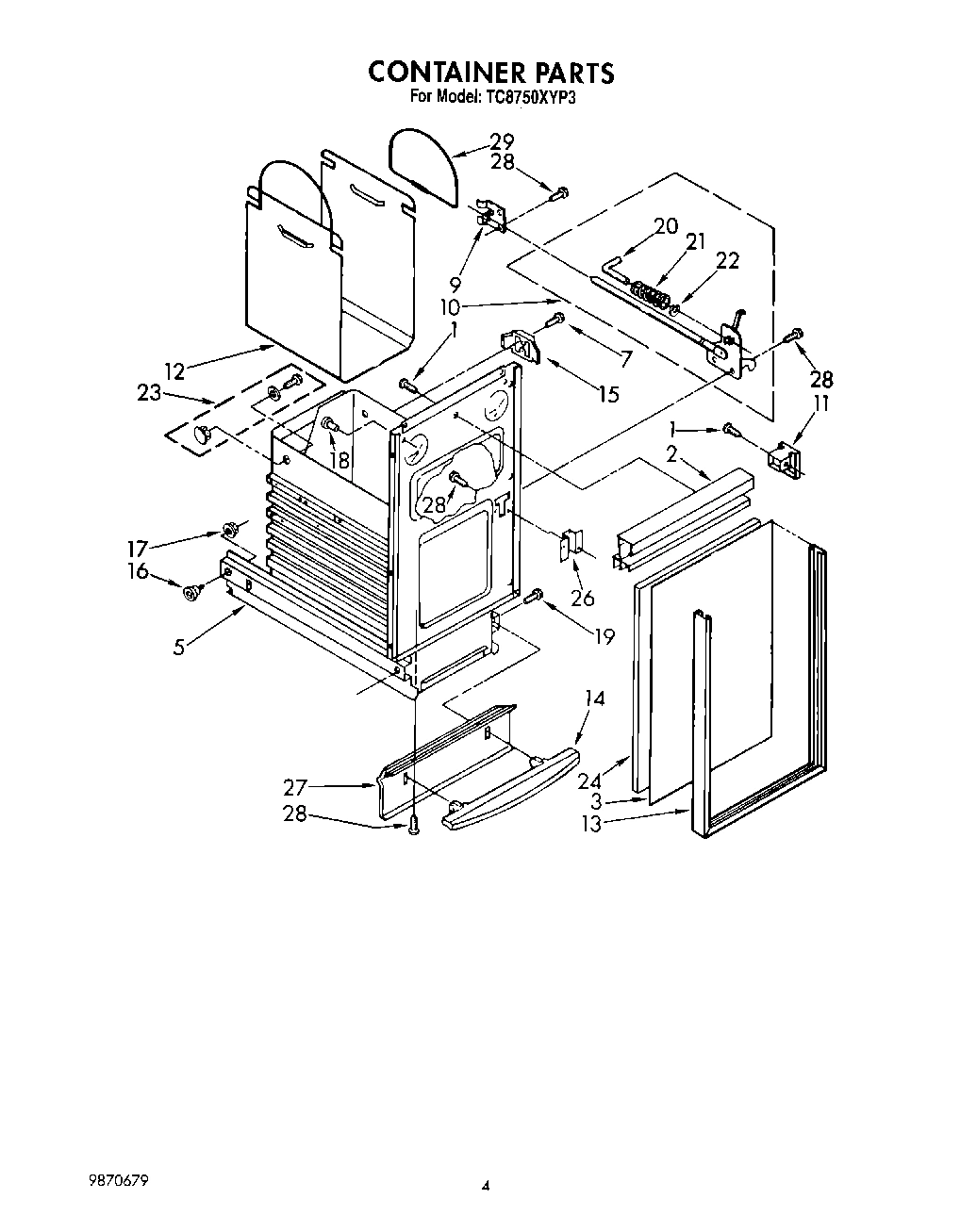

4

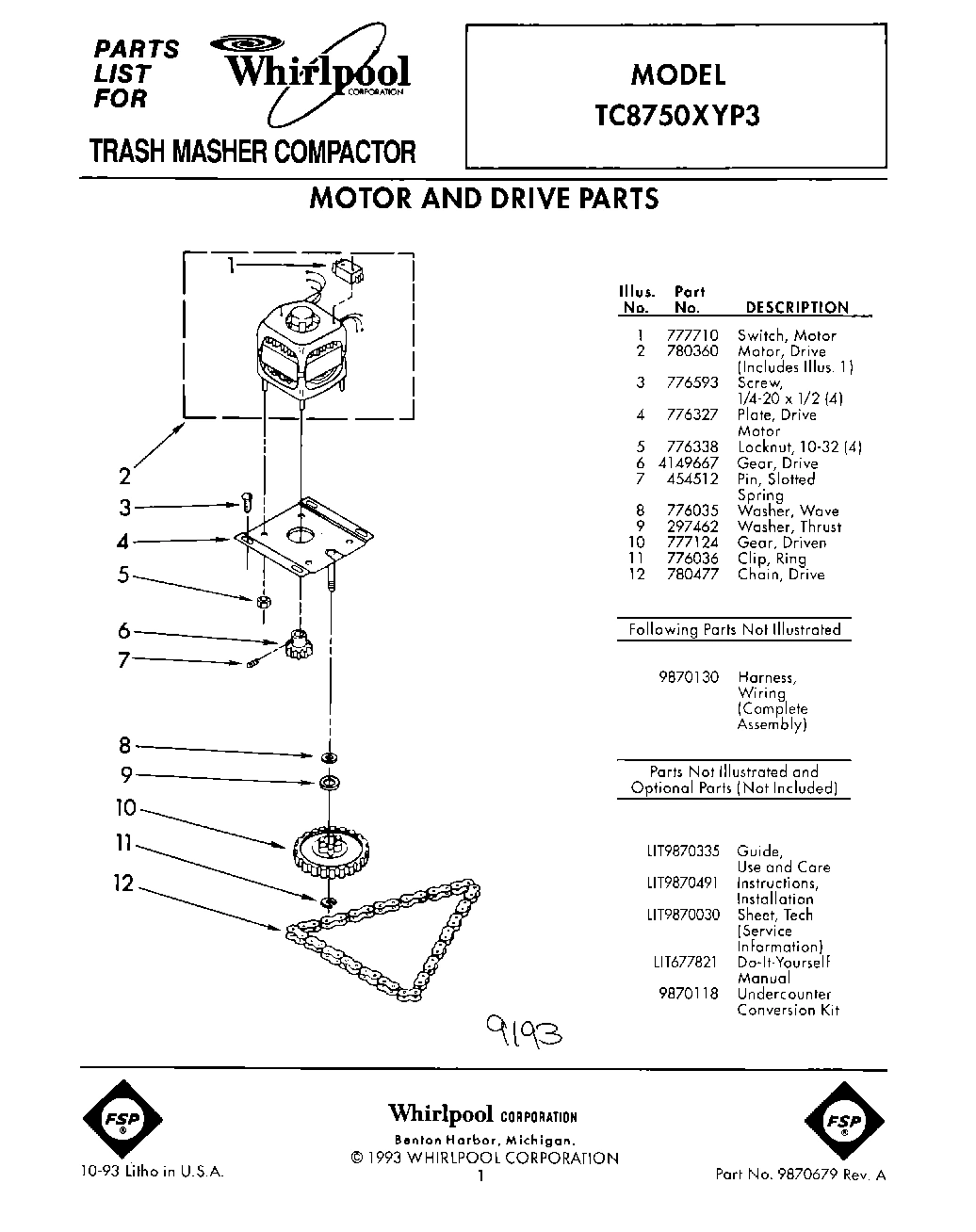

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $40.88

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

4

Screw, 8-18 x 1/2 WPL 777459 Contact Us For Availability

4

Trash, Container (Reusable) WPL 882653 Contact Us For Availability

5

13030RP Whirlpool Compactor Bag Caddy In Stock WPL 13030RP $21.05

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

5

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

5

WP780239 Whirlpool Compactor Bracket Retainer Backorder WPL WP780239 $12.32

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $29.74

6

882699 Whirlpool Trash Compactor Gear Drive K In Stock WPL 882699 $54.57

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

7

675351 Whirlpool Compactor Grease In Stock WPL 675351 $34.20

7

W11679164 Whirlpool Sprocket Backorder WPL W11679164 $10.07

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

7

Escutcheon, Control WPL 4155144 Contact Us For Availability

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $29.10

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

8

Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability

8

Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability

8

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

8

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

8

Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability

8

Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability

8

Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability

8

Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

9

Bracket, Protector WPL 9870125 Contact Us For Availability

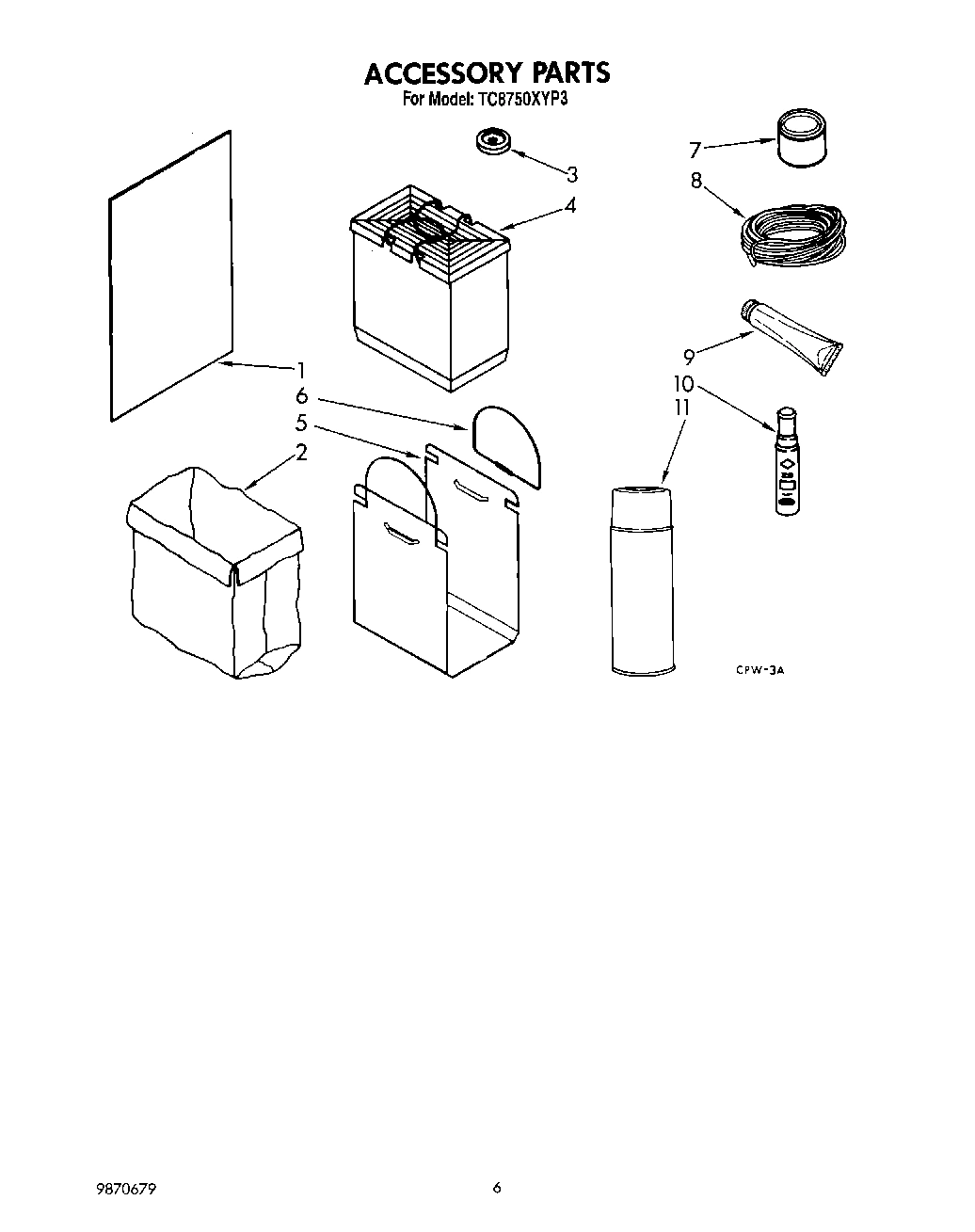

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $35.76

Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability

Insert, Decorative WPL 4155143 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WP4155141 Whirlpool Compactor Switch Knob Backorder WPL WP4155141 $28.20

WP776036 Whirlpool Compactor Clip Backorder WPL WP776036 $3.70

Ram Assembly (Not Serviceable) WPL ARI130896A Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 675167 WPL 675167 Contact Us For Availability

WPL 978726 WPL 978726 Contact Us For Availability

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $80.02

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $45.64

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $29.77

Harness, Wiring (Complete Assembly) WPL 9870130 Contact Us For Availability

13

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

13

Trim, Top WPL 4154862 Contact Us For Availability

14

882694 Whirlpool Compactor Stud Backorder WPL 882694 $2.51

14

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

15

777380 Whirlpool Compactor Switch Backorder WPL 777380 $52.96

15

Wiper WPL 9870164 Contact Us For Availability

16

9870356 Whirlpool Compactor Switch Plate Backorder WPL 9870356 $26.21

16

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $28.80

16

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

17

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

17

Trim, Side WPL 4154910 Contact Us For Availability

18

W10856868 Whirlpool Compactor OFF Switch Backorder WPL W10856868 $182.99

18

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

18

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $38.74

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

WP9870775 Whirlpool Compactor Power Screw Cap In Stock WPL WP9870775 $2.51

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

20

Shield, Switch WPL 9870244 Contact Us For Availability

21

775736 Whirlpool Compactor Spring Backorder WPL 775736 $28.80

21

Plate, Power Cord WPL 775676 Contact Us For Availability

22

Clip, Top Mount WPL 776017 Contact Us For Availability

23

4151479 Whirlpool Compactor Button Plug Backorder WPL 4151479 $28.80

26

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $35.28

27

WP777328 Whirlpool Compactor Guard Backorder WPL WP777328 $49.32

29

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16
