Model Whirlpool TC8750XYP2 TRASH MASHER COMPACTOR – Common Parts & Diagrams

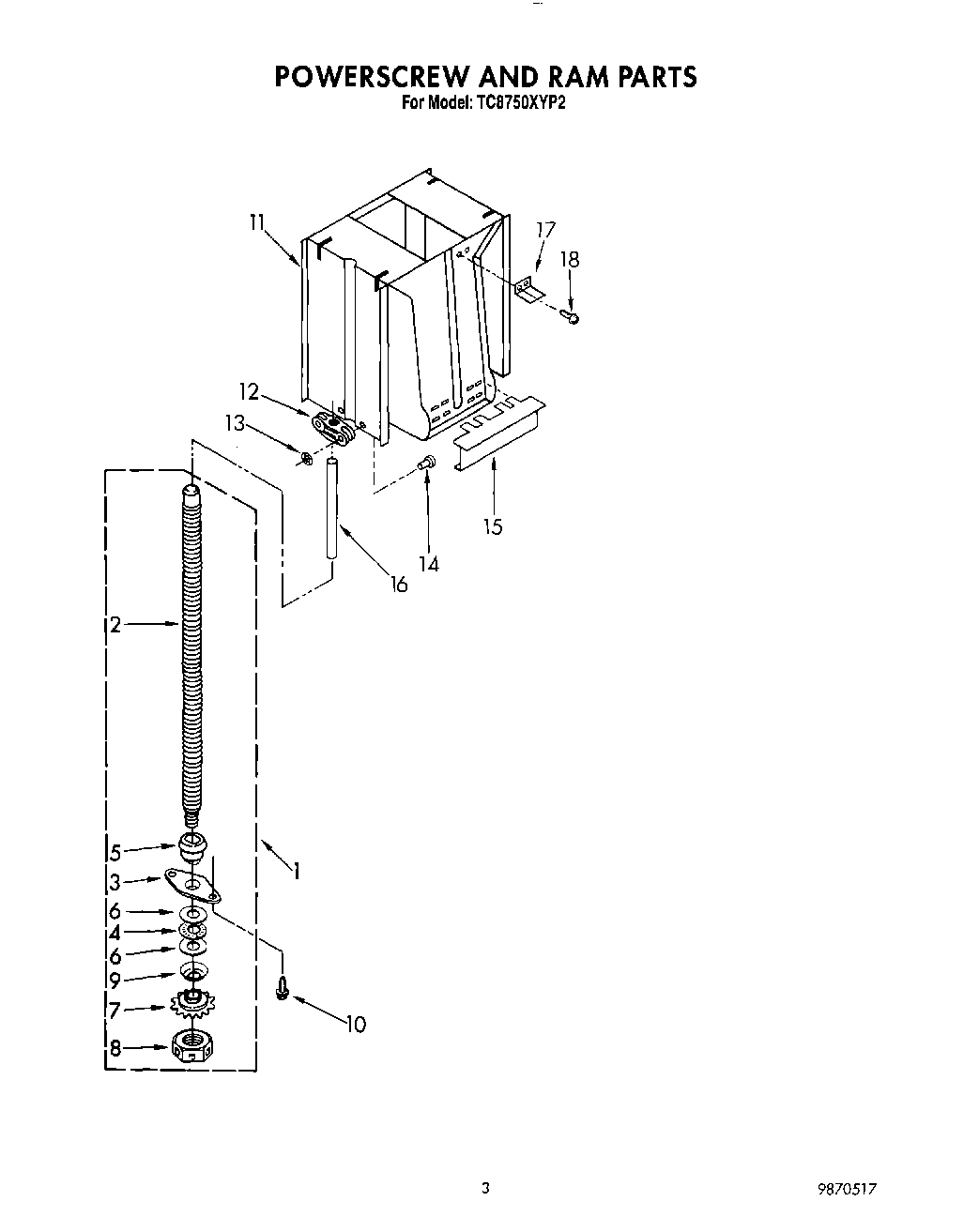

03 - POWERSCREW AND RAM

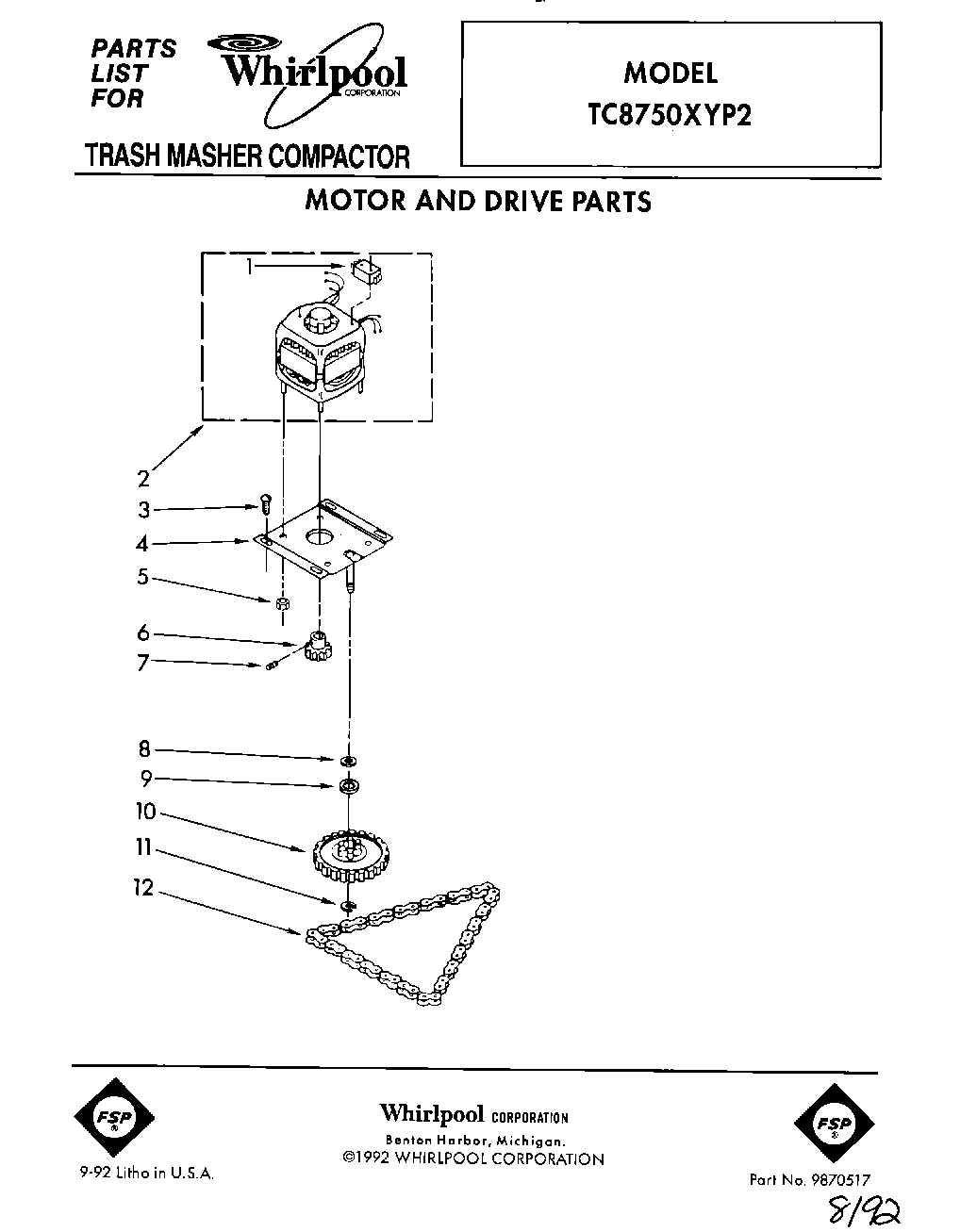

01 - MOTOR AND DRIVE, LIT/OPTIONAL
02 - FRAME
05 - PANEL AND CONTROL
04 - CONTAINER
06 - ACCESSORY
Common parts from model Whirlpool TC8750XYP2 TRASH MASHER COMPACTOR
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Handle, Container WPL 4149710 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Screw, 8-18 x 1/2 WPL 777459 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
5
Container Assembly WPL 882671 Contact Us For Availability
7
Escutcheon, Control WPL 4155144 Contact Us For Availability
7
Screw (2) WPL 4149395 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Bracket, Protector WPL 9870125 Contact Us For Availability
10
Insert, Decorative WPL 4155143 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
Cap, Handle R.H. WPL 780188 Contact Us For Availability
11
Cap, Handle L.H. WPL 780189 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
13
Trim, Top WPL 4154862 Contact Us For Availability
13
Trim, Container WPL 777345 Contact Us For Availability
17
Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability
17
Trim, Side WPL 4154910 Contact Us For Availability
18
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Shield, Switch WPL 9870123 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Plate, Power Cord WPL 775676 Contact Us For Availability
22
Clip, Top Mount WPL 776017 Contact Us For Availability
23
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
24
Spacer, Center Panel WPL 777784 Contact Us For Availability
× ![]()
