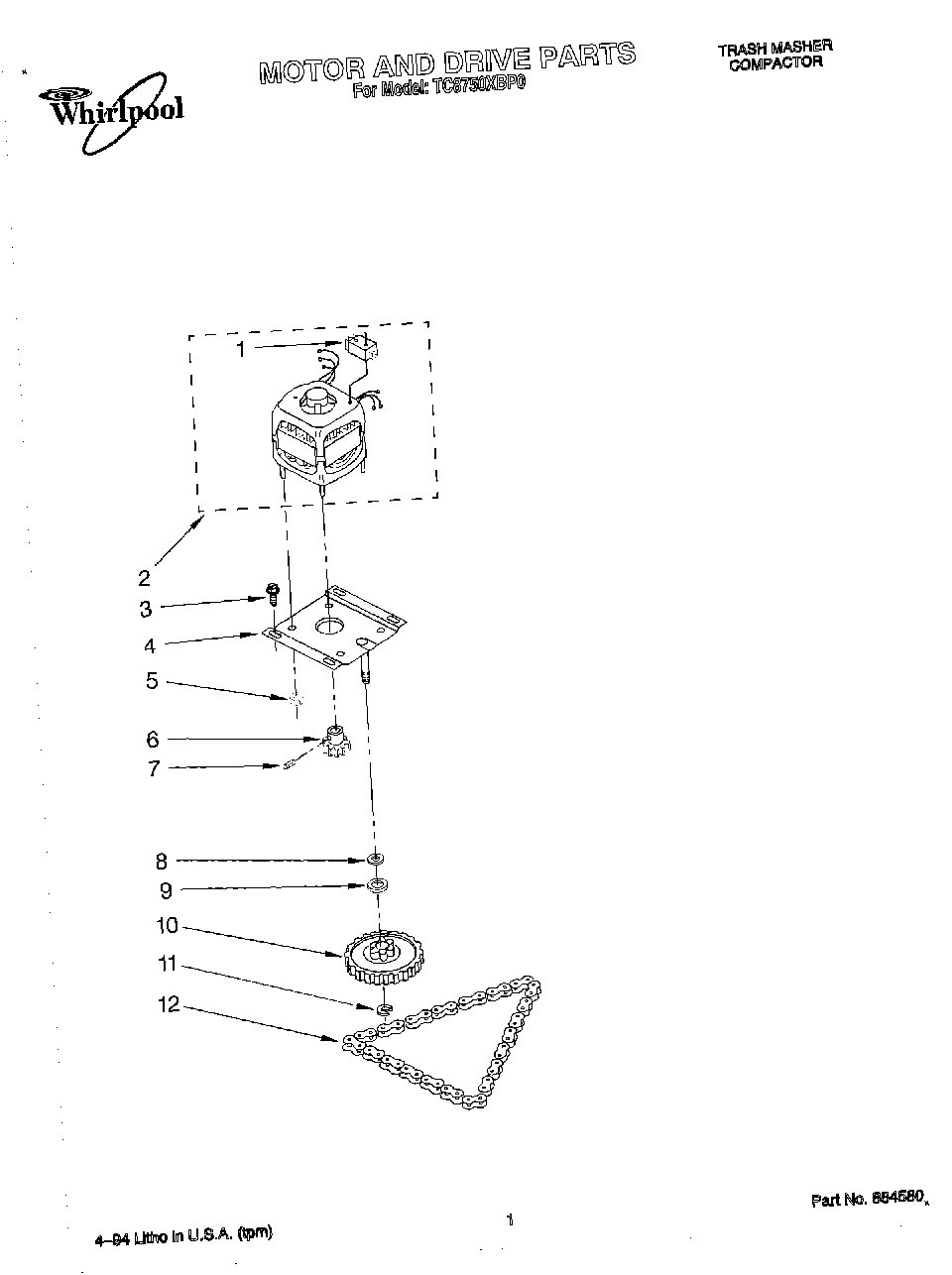

Model Whirlpool TC8750XBP0 TRASH MASHER COMPACTOR – Common Parts &amp; Diagrams

Do-It-Yourself Manual WPL LIT677821 Contact Us For Availability

Sheet, Tech (Service Information) WPL LIT9870030 Contact Us For Availability

Label, Wiring Diagram WPL LIT9870151 Contact Us For Availability

Guide, Use and Care WPL LIT9870335 Contact Us For Availability

Instructions, Installation WPL LIT9870491 Contact Us For Availability

1

W10439651 Whirlpool Air Conditioner Motor Dri In Stock WPL W10439651 $189.41

1

WPW10451272 Whirlpool Trash Compactor Power S Backorder WPL WPW10451272 $144.70

1

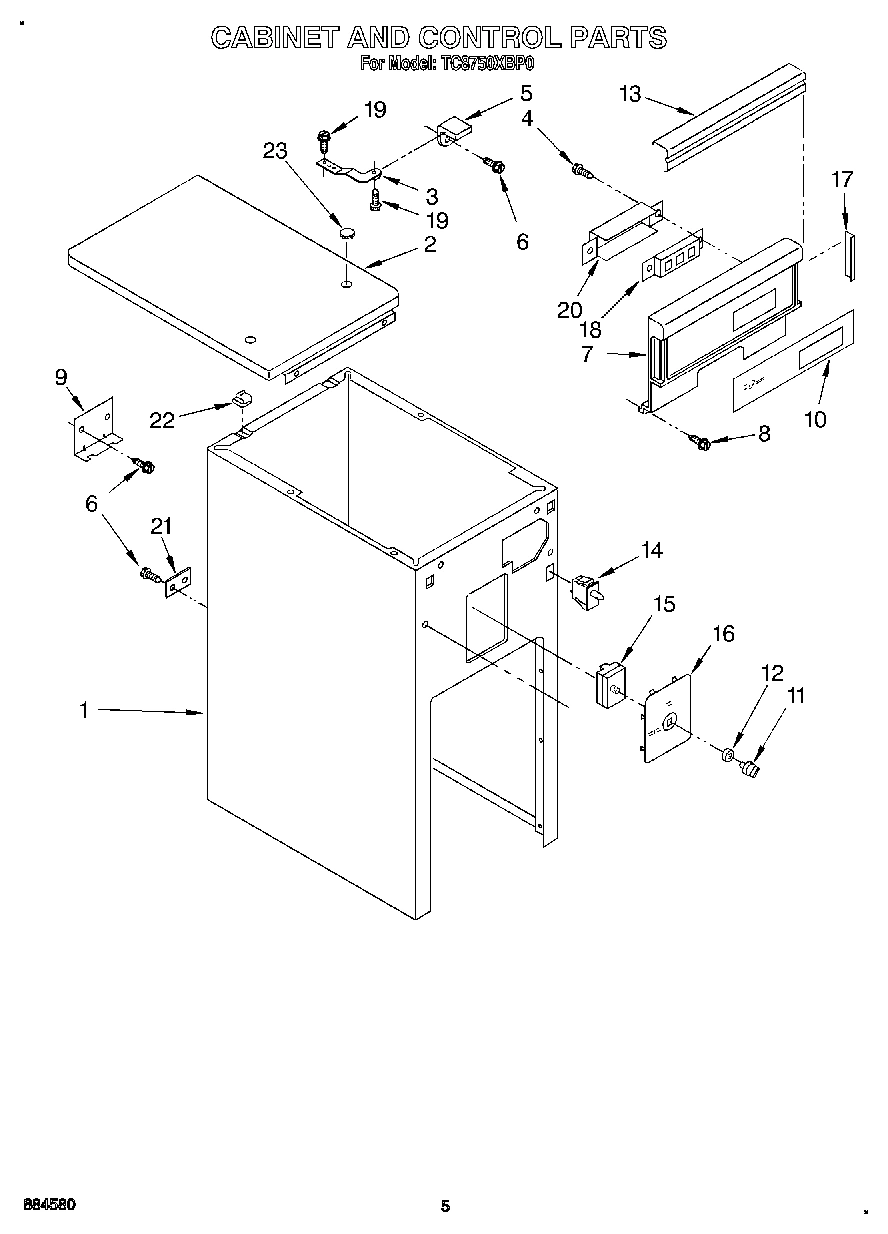

Cabinet WPL 9870355 Contact Us For Availability

2

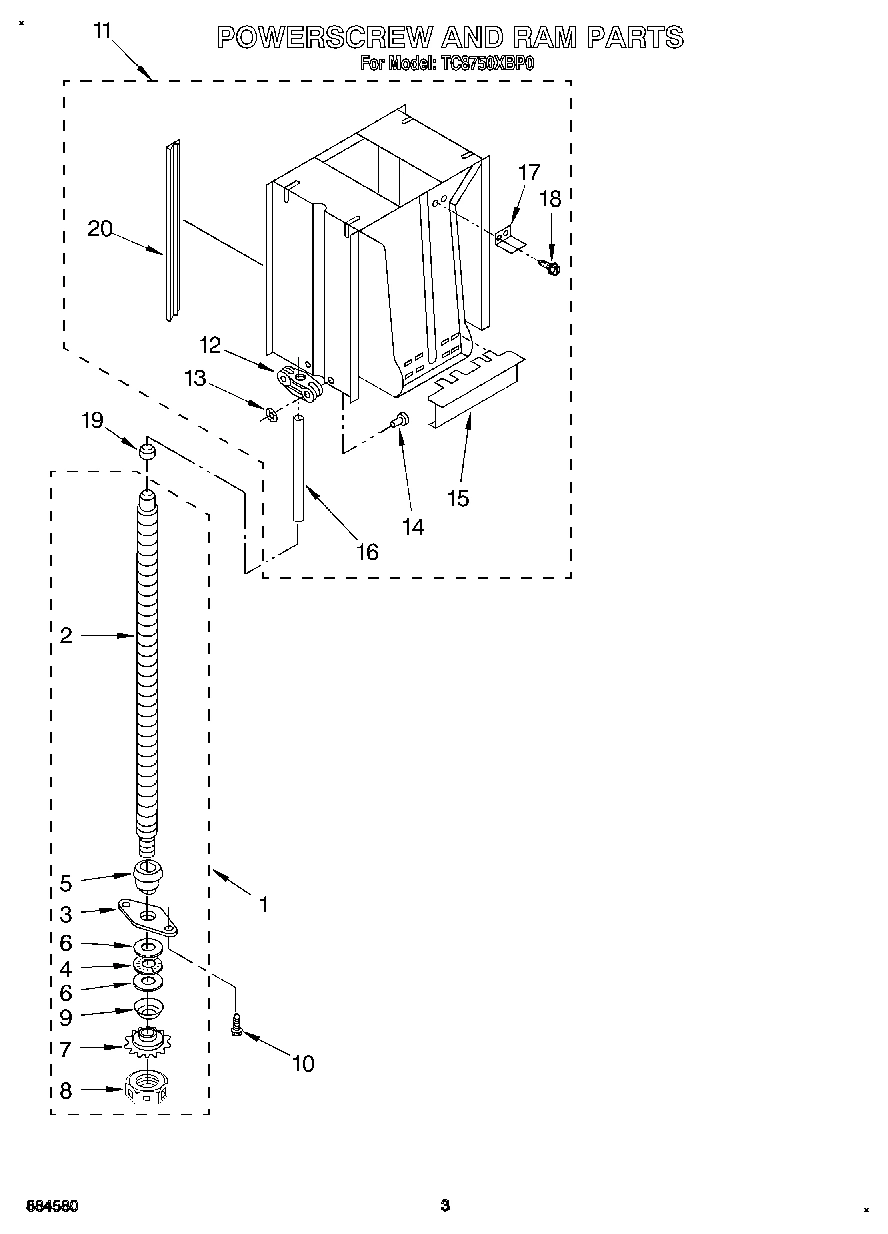

Screw, Power (Available Only As Complete Asse WPL ARI130883A Contact Us For Availability

2

Top, Cabinet WPL 4151204 Contact Us For Availability

2

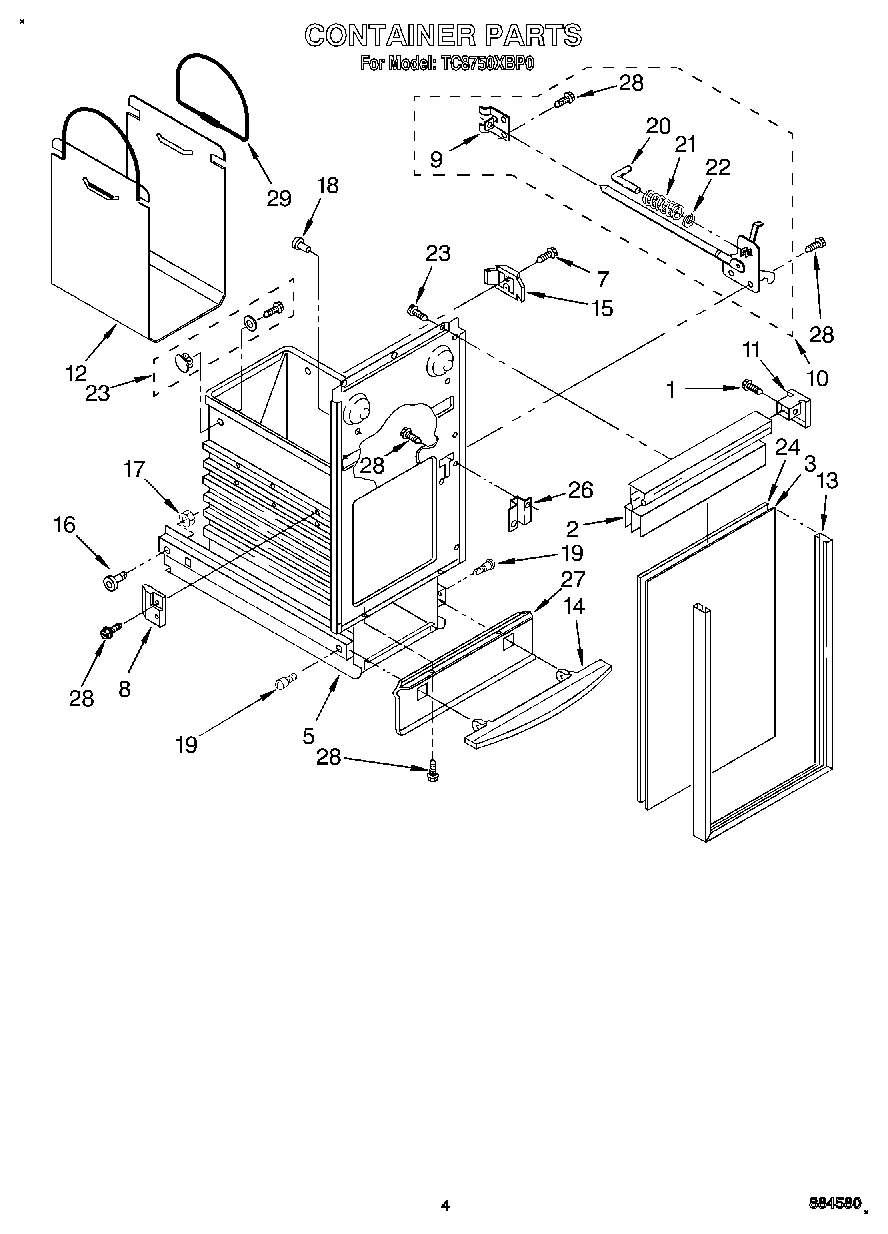

Handle, Container WPL 4149710 Contact Us For Availability

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

W11722978 Whirlpool Slide Backorder WPL W11722978 $53.56

3

W11729437 Whirlpool Retaining Bracket Backorder WPL W11729437 $8.78

3

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $34.59

3

Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability

3

Panel, Front (Black & White) WPL 777941 Contact Us For Availability

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $42.93

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

4

Screw, 8-18 x 1/2 WPL 777459 Contact Us For Availability

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

5

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

5

WP780239 Whirlpool Compactor Bracket Retainer Backorder WPL WP780239 $12.32

5

Container Assembly WPL 884573 Contact Us For Availability

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $31.22

6

882699 Whirlpool Trash Compactor Gear Drive K In Stock WPL 882699 $65.50

7

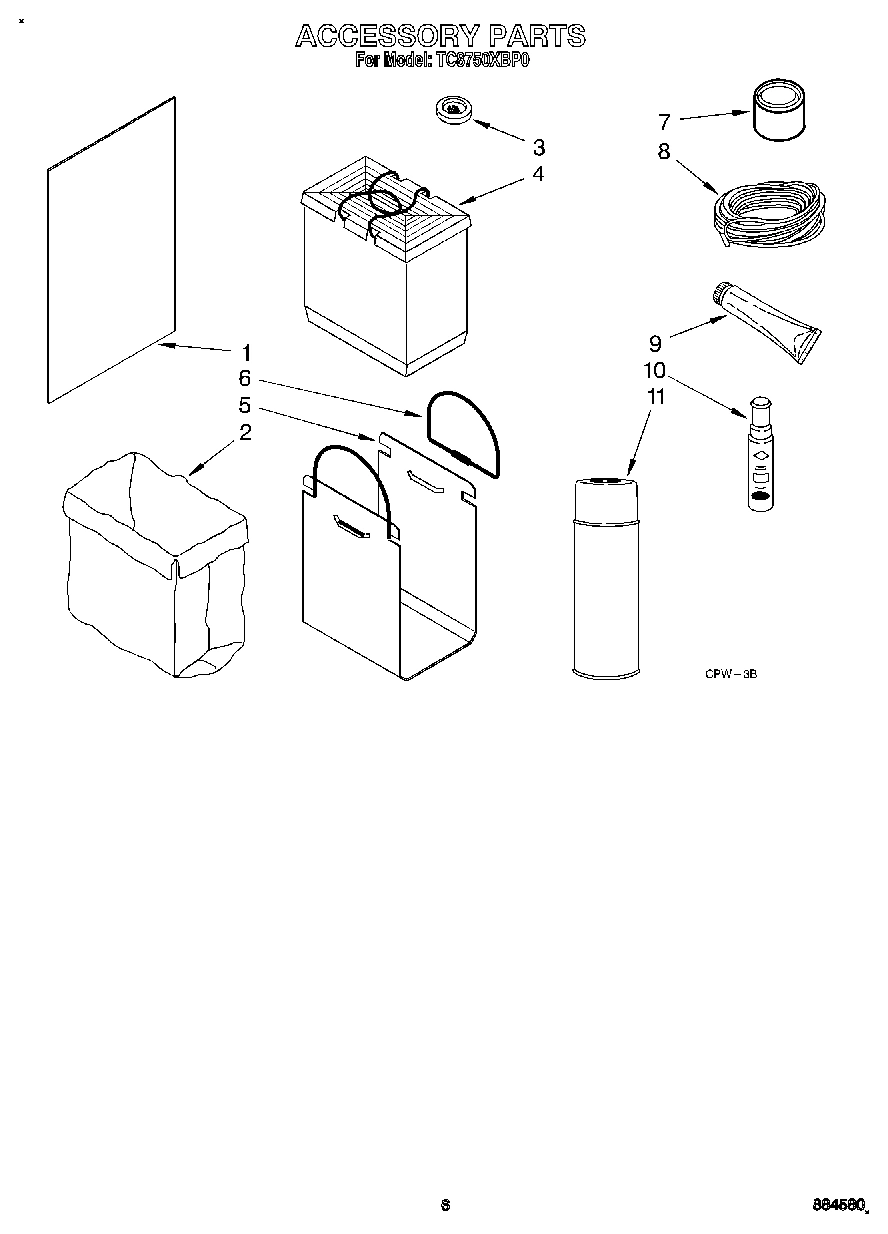

675351 Whirlpool Compactor Grease Backorder WPL 675351 $35.90

7

W11679164 Whirlpool Sprocket In Stock WPL W11679164 $10.07

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

7

Escutcheon, Control WPL 4155144 Contact Us For Availability

7

Screw, (4) WPL 4153701 Contact Us For Availability

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $30.56

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

8

Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability

8

Guide, Container (2) WPL 9870774 Contact Us For Availability

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP776395 Whirlpool Compactor Guide Backorder WPL WP776395 $30.89

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

9

Bracket, Protector WPL 9870125 Contact Us For Availability

675379 Whirlpool Compactor Drawer Latch Backorder WPL 675379 $60.36

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $37.55

Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability

Insert, Decorative WPL 4155143 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

W11696573 Whirlpool Ram Backorder WPL W11696573 $186.35

WP4155141 Whirlpool Compactor Switch Knob Backorder WPL WP4155141 $29.61

WP776036 Whirlpool Compactor Clip Backorder WPL WP776036 $3.70

WPL 978726 WPL 978726 Contact Us For Availability

Cap, Handle R.H. WPL 780188 Contact Us For Availability

Cap, Handle L.H. WPL 780189 Contact Us For Availability

13030RP Whirlpool Compactor Bag Caddy In Stock WPL 13030RP $22.93

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $84.02

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $5.71

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $45.92

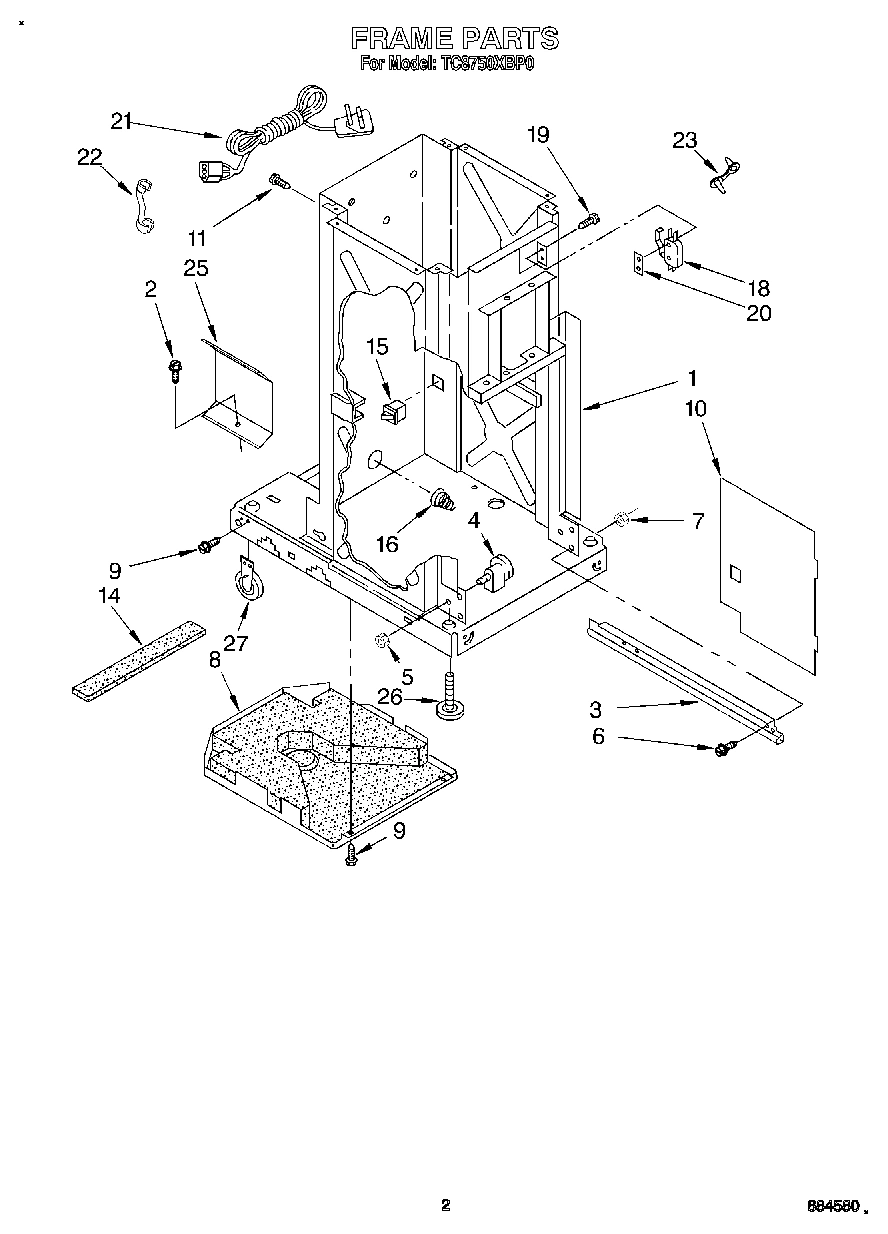

Harness, Wiring (Complete Assembly) WPL 9870130 Contact Us For Availability

13

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

13

Trim, Top WPL 4154862 Contact Us For Availability

13

Trim, Container WPL 777345 Contact Us For Availability

14

882694 Whirlpool Compactor Stud Backorder WPL 882694 $2.51

14

W11679165 Whirlpool Foot Pedal Backorder WPL W11679165 $23.06

14

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $14.26

15

777380 Whirlpool Compactor Switch Backorder WPL 777380 $55.01

15

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

15

Wiper WPL 9870164 Contact Us For Availability

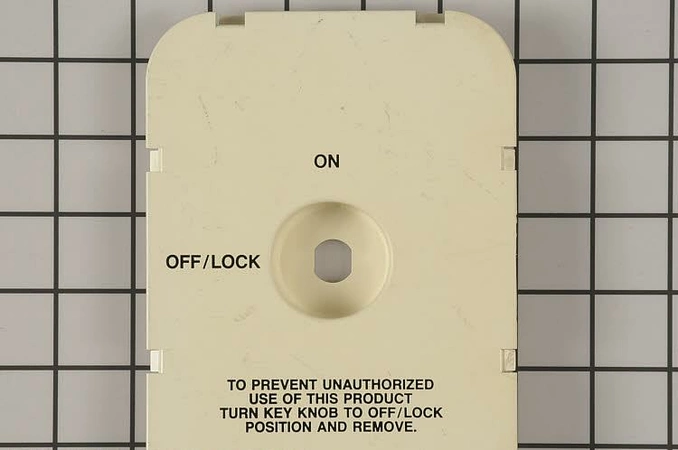

9870356 Whirlpool Compactor Switch Plate Backorder WPL 9870356 $27.52

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $31.07

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

WP9871602 Whirlpool Compactor Bearing In Stock WPL WP9871602 $7.83

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $3.33

17

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

17

Trim, Side WPL 4154910 Contact Us For Availability

W10856868 Whirlpool Compactor OFF Switch Backorder WPL W10856868 $182.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $51.04

Bumper, Container (2) WPL 775785 Contact Us For Availability

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

CAP-PWRSCR Backorder WPL W11724671 $7.72

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $3.33

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $3.33

20

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $47.93

20

Shield, Switch WPL 9870244 Contact Us For Availability

20

Pin WPL 776654 Contact Us For Availability

21

PLATE-CORD Backorder WPL 775676 $10.25

21

775736 Whirlpool Compactor Spring Backorder WPL 775736 $30.25

22

W11679168 Whirlpool Clip Backorder WPL W11679168 $8.11

22

Clip, Top Mount WPL 776017 Contact Us For Availability

23

4151479 Whirlpool Compactor Button Plug In Stock WPL 4151479 $30.25

23

Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability

24

Spacer, Center Panel WPL 777784 Contact Us For Availability

25

9870867 Whirlpool Shield Backorder WPL 9870867 $8.05

26

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $37.04

27

WPW10242557 Whirlpool Compactor Guard Backorder WPL WPW10242557 $54.86

28

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

29

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16
