Whirlpool TC800SPDB1 TRASH MASHER COMPACTOR

Do-It-Yourself Manual WPL LIT677821 Contact Us For Availability

View on Model

Wiring Diagram WPL LIT9870141 Contact Us For Availability

View on Model

Instructions, Installation WPL LIT9870491 Contact Us For Availability

View on Model

Label, 1-800 Number WPL LIT9871133 Contact Us For Availability

View on Model

Guide, Use and Care WPL LIT9871224 Contact Us For Availability

View on Model

1

W10439651 Whirlpool Air Conditioner Motor Dri In Stock WPL W10439651 $183.00

View on Model

1

Top, Cabinet WPL 9871008 Contact Us For Availability

View on Model

1

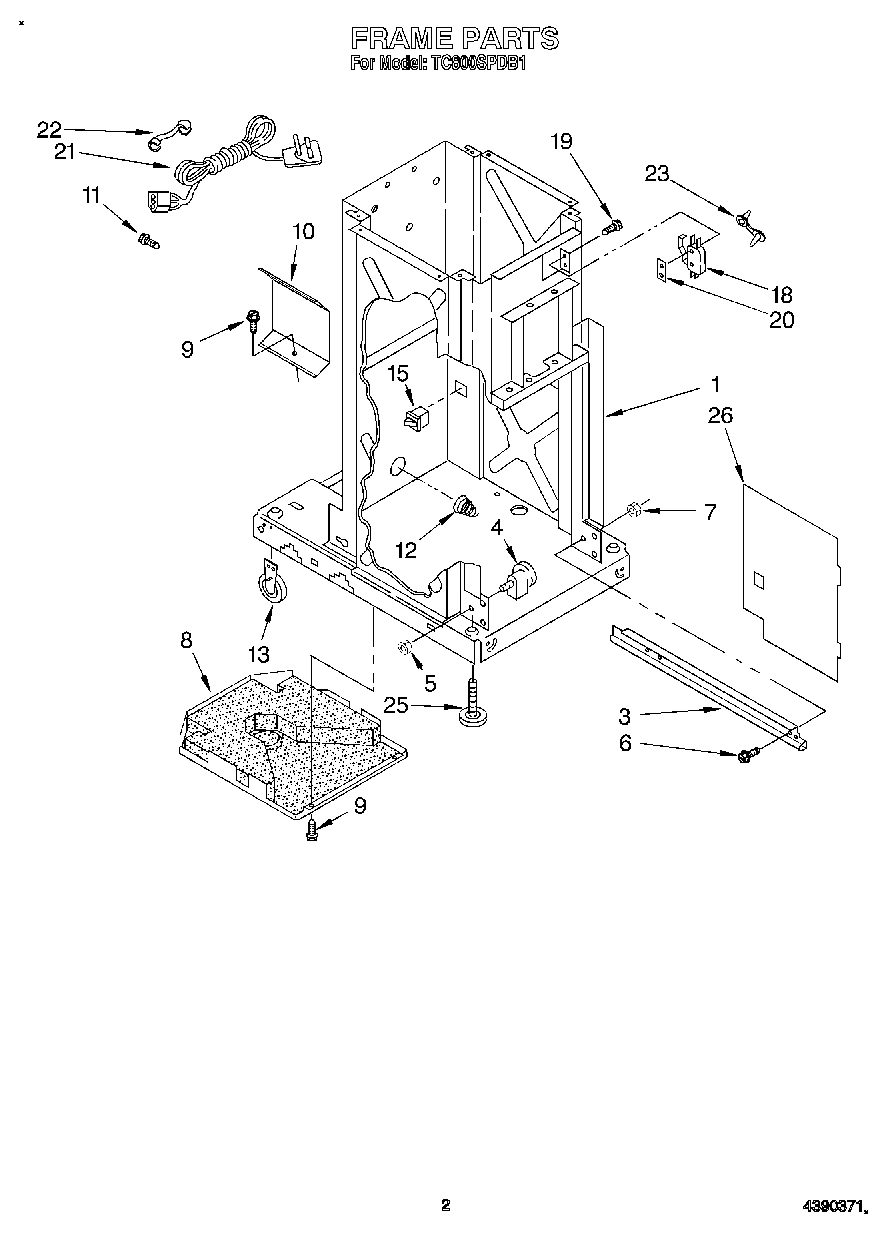

Frame (Not a Serviceable Part) WPL ARI130853A Contact Us For Availability

View on Model

2

W10165294RB Whirlpool Trash Compactor Bags (1 In Stock WPL W10165294RB $42.55

View on Model

2

W10165295RP Whirlpool Trash Compactor Bags 15 In Stock WPL W10165295RP $10.21

View on Model

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

View on Model

3

W11722978 Whirlpool Slide Backorder WPL W11722978 $51.02

View on Model

3

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

View on Model

3

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $32.94

View on Model

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $40.88

View on Model

4

882688 Whirlpool Compactor Bearing In Stock WPL 882688 $12.37

View on Model

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

View on Model

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

View on Model

5

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

View on Model

5

Container Assembly WPL 884573 Contact Us For Availability

View on Model

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $29.74

View on Model

6

882699 Whirlpool Trash Compactor Gear Drive K In Stock WPL 882699 $54.57

View on Model

6

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

View on Model

7

675351 Whirlpool Compactor Grease In Stock WPL 675351 $34.20

View on Model

7

675382 Whirlpool Trash Compactor On/Off Start In Stock WPL 675382 $76.87

View on Model

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

View on Model

7

Nut, (4) WPL 4159104 Contact Us For Availability

View on Model

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $29.10

View on Model

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

View on Model

8

WP777328 Whirlpool Compactor Guard Backorder WPL WP777328 $49.32

View on Model

8

WP780437 Whirlpool Compactor Bottom Pan Backorder WPL WP780437 $114.85

View on Model

8

Escutcheon, Control WPL 4151493 Contact Us For Availability

View on Model

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

View on Model

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

View on Model

9

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

View on Model

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

View on Model

9

Plug, Hole WPL 9870905 Contact Us For Availability

View on Model

10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

View on Model

10

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

View on Model

10

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

View on Model

10

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

10

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

View on Model

10

9870867 Whirlpool Shield Backorder WPL 9870867 $8.05

View on Model

10

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

View on Model

10

Insert, Escutcheon WPL 9871208 Contact Us For Availability

View on Model

11

285006 Whirlpool Spray In Stock WPL 285006 $27.45

View on Model

11

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

View on Model

11

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

View on Model

11

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $35.28

View on Model

11

W11696573 Whirlpool Ram Backorder WPL W11696573 $129.98

View on Model

11

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

View on Model

11

WP776036 Whirlpool Compactor Clip Backorder WPL WP776036 $3.70

View on Model

11

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

View on Model

12

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $80.02

View on Model

12

9870118A Whirlpool Compactor Bracket Kit Backorder WPL 9870118A $22.88

View on Model

12

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $28.80

View on Model

12

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $29.77

View on Model

12

Knob, Rotary Switch WPL 9871257 Contact Us For Availability

View on Model

12

Harness, Wiring WPL 4152077 Contact Us For Availability

View on Model

13

W11023674 Whirlpool Compactor Leveling Wheel Backorder WPL W11023674 $35.14

View on Model

13

WP780239 Whirlpool Compactor Bracket Retainer Backorder WPL WP780239 $12.32

View on Model

13

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

14

775736 Whirlpool Compactor Spring Backorder WPL 775736 $28.80

View on Model

14

Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability

View on Model

15

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

View on Model

15

Panel, Back WPL 9870863 Contact Us For Availability

View on Model

16

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

View on Model

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

View on Model

17

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

View on Model

18

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $38.74

View on Model

19

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

View on Model

20

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

View on Model

20

9871160 Whirlpool Switch Plate Backorder WPL 9871160 $26.21

View on Model

20

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $45.64

View on Model

20

Plate, Nut WPL 777850 Contact Us For Availability

View on Model

21

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

View on Model

21

Cord, Service WPL 937360 Contact Us For Availability

View on Model

22

Bushing, Cord WPL 776119 Contact Us For Availability

View on Model

23

Clamp, Wire WPL 777035 Contact Us For Availability

View on Model

24

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16

View on Model

25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

View on Model

26

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $35.76

View on Model

All Categories

Brands

Model Whirlpool TC800SPDB1 TRASH MASHER COMPACTOR – Common Parts & Diagrams

Common parts from model Whirlpool TC800SPDB1 TRASH MASHER COMPACTOR
