Model Maytag TC522M REFRIGERATOR – Common Parts & Diagrams

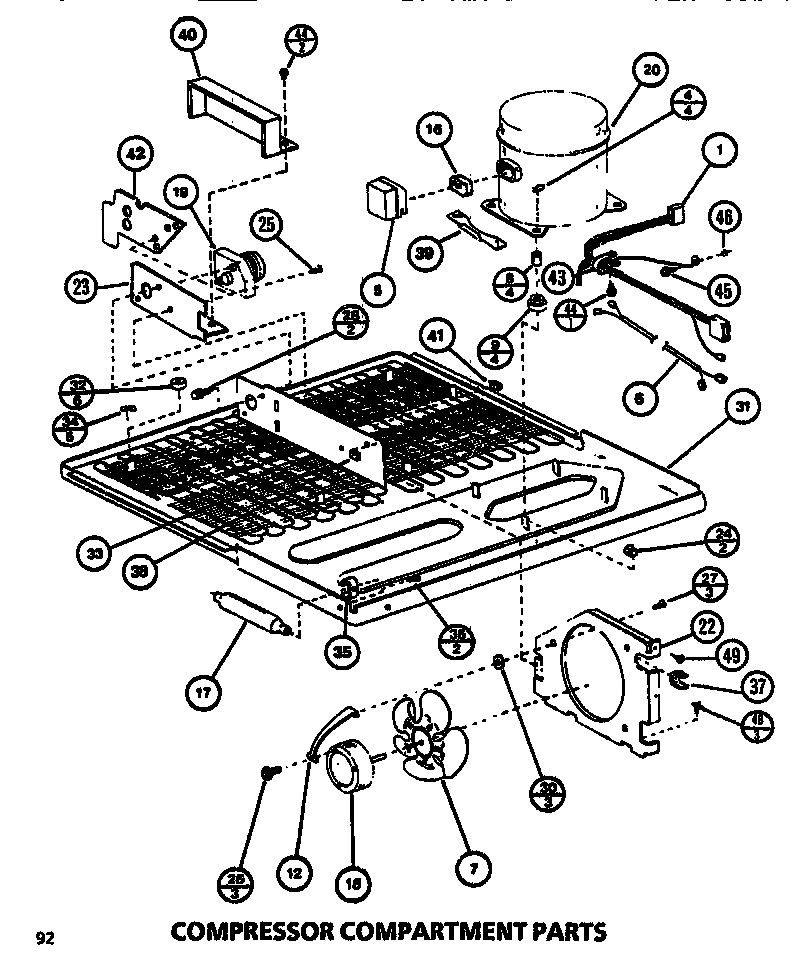

01 - COMPRESSOR COMPARTMENT

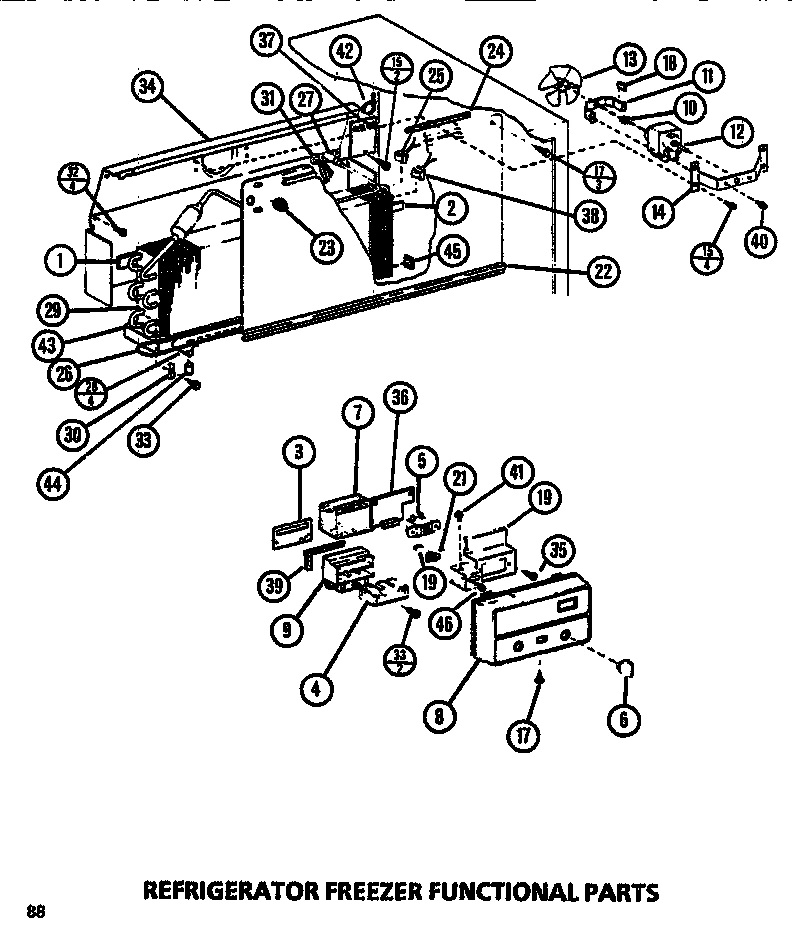

02 - FUNCTIONAL (REF/FRZ)

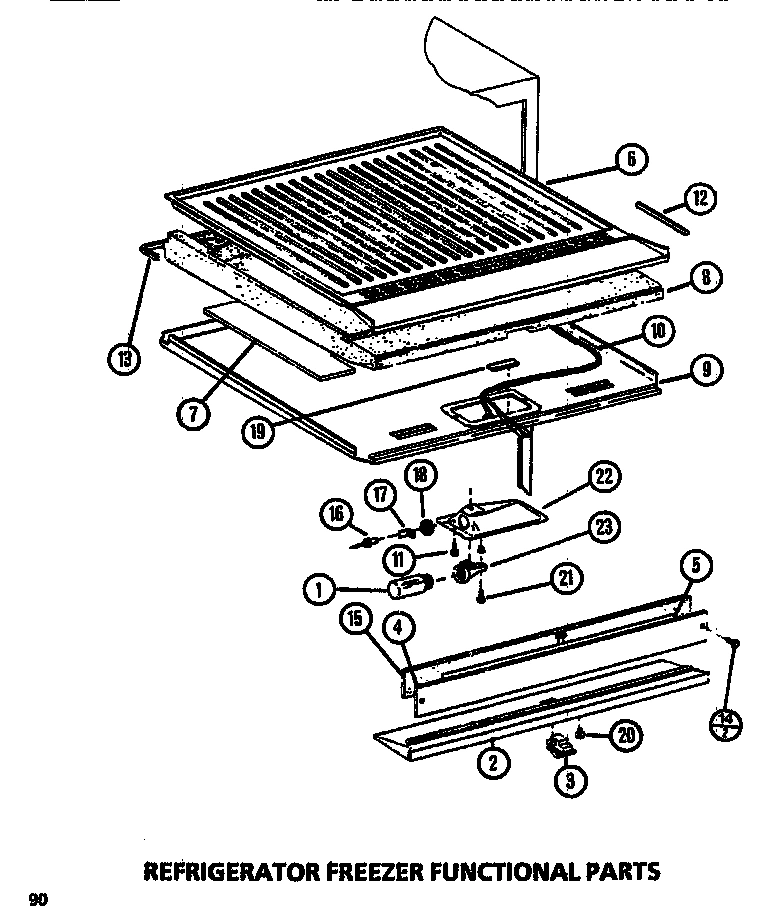

03 - FUNCTIONAL (REF/FRZ)

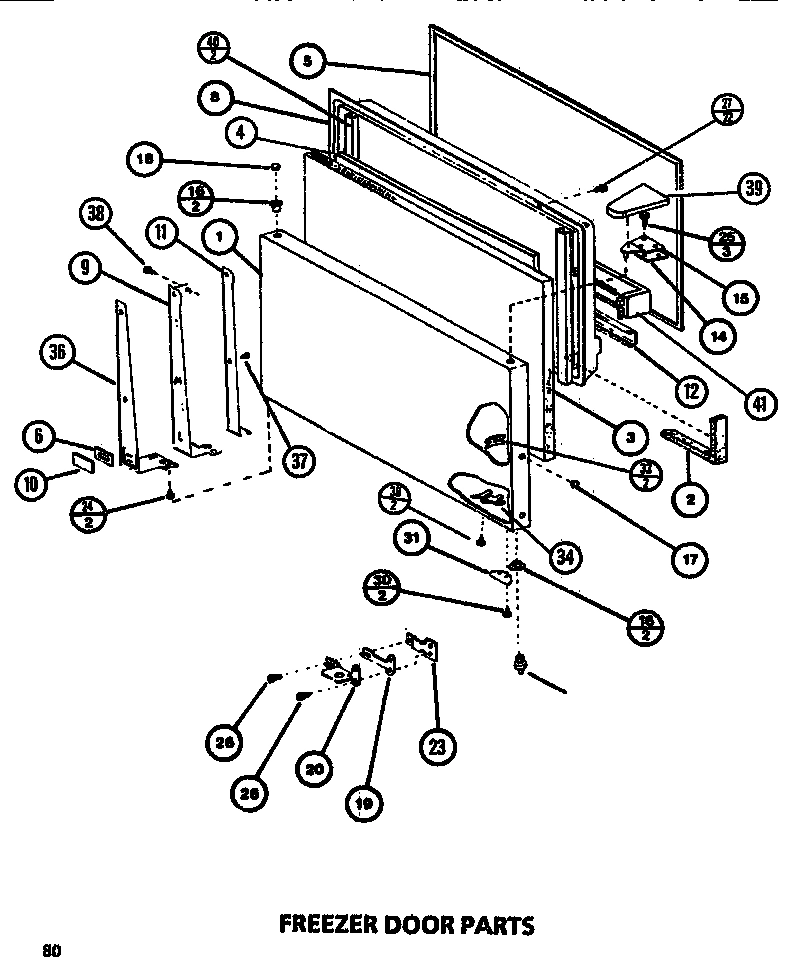

04 - FZ DOOR

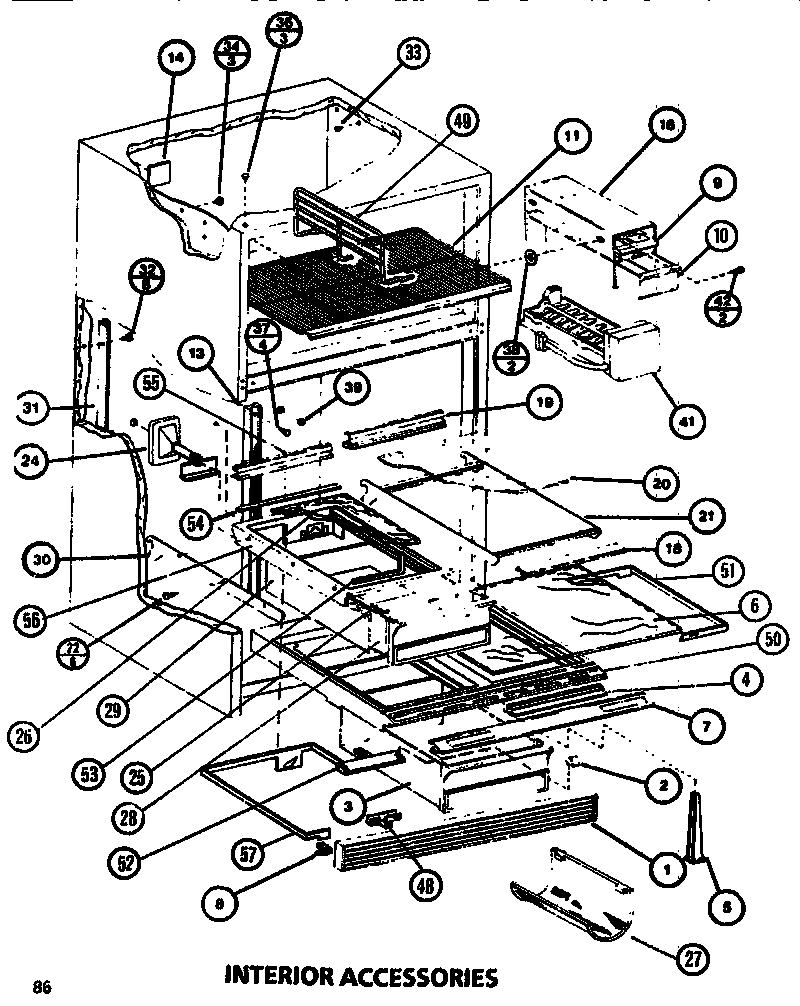

05 - INTERIOR ACCESSORIES

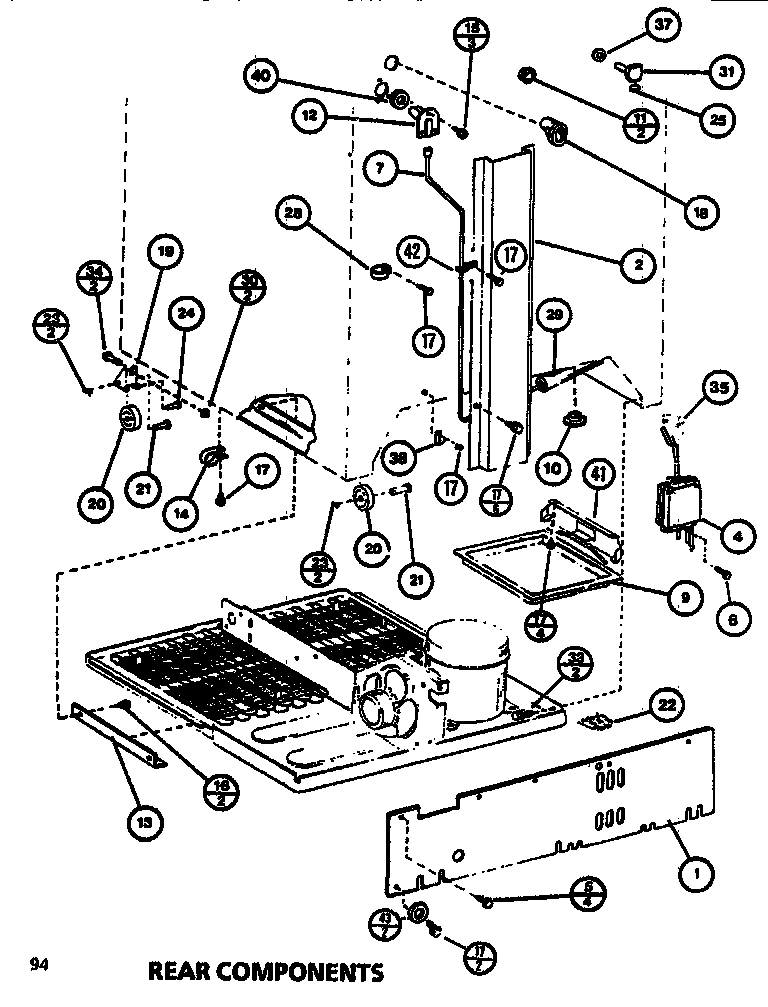

06 - REAR COMPONENTS

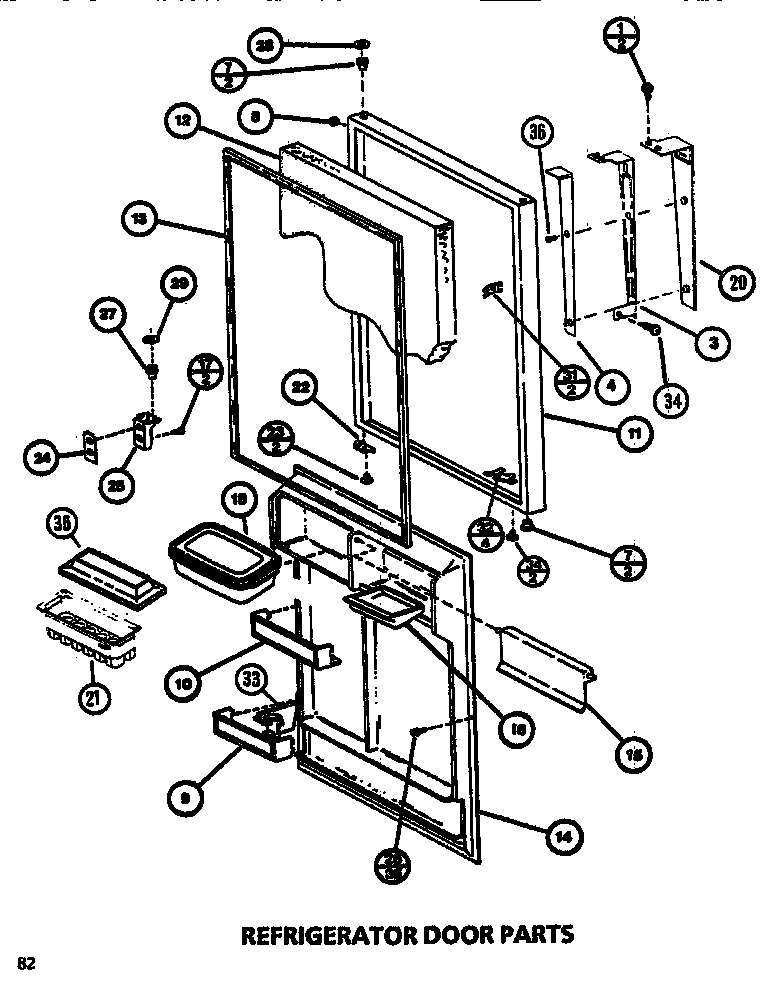

07 - REF DOOR
Common parts from model Maytag TC522M REFRIGERATOR
1
MAY B8322902 MAY B8322902 Contact Us For Availability
1
MAY B8363301 MAY B8363301 Contact Us For Availability
1
MAY D7745210 MAY D7745210 Contact Us For Availability
1
MAY D7745211 MAY D7745211 Contact Us For Availability
1
MAY D7745212 MAY D7745212 Contact Us For Availability
1
MAY M0222416 MAY M0222416 Contact Us For Availability
1
MAY D7520503 MAY D7520503 Contact Us For Availability
1
MAY D7695503 MAY D7695503 Contact Us For Availability
2
MAY B8361702 MAY B8361702 Contact Us For Availability
2
MAY D7653004 MAY D7653004 Contact Us For Availability
2
MAY B0523563 MAY B0523563 Contact Us For Availability
2
MAY C8991201 MAY C8991201 Contact Us For Availability
2
MAY D7539409 MAY D7539409 Contact Us For Availability
3
MAY B8345401 MAY B8345401 Contact Us For Availability
3
MAY C8929703 MAY C8929703 Contact Us For Availability
3
MAY B5683513 MAY B5683513 Contact Us For Availability
3
MAY D7581027 MAY D7581027 Contact Us For Availability
3
MAY D7744812 MAY D7744812 Contact Us For Availability
4
MAY C8902601 MAY C8902601 Contact Us For Availability
4
MAY C8842506 MAY C8842506 Contact Us For Availability
4
MAY C8842509 MAY C8842509 Contact Us For Availability
4
MAY C8842510 MAY C8842510 Contact Us For Availability
4
MAY 10042101 MAY 10042101 Contact Us For Availability
4
MAY C8946901 MAY C8946901 Contact Us For Availability
4
MAY D7745004 MAY D7745004 Contact Us For Availability
5
MAY C8867701 MAY C8867701 Contact Us For Availability
5
MAY D7656101 MAY D7656101 Contact Us For Availability
5
MAY D7654502 MAY D7654502 Contact Us For Availability
5
MAY D7605108 MAY D7605108 Contact Us For Availability
5
MAY D7602202 MAY D7602202 Contact Us For Availability
5
MAY M0241118 MAY M0241118 Contact Us For Availability
6
MAY C8933001 MAY C8933001 Contact Us For Availability
6
MAY D7661901 MAY D7661901 Contact Us For Availability
6
MAY M0211018 MAY M0211018 Contact Us For Availability
6
MAY D7714708 MAY D7714708 Contact Us For Availability
6
MAY C8962701 MAY C8962701 Contact Us For Availability
6
MAY D7421259 MAY D7421259 Contact Us For Availability
7
MAY B5742601 MAY B5742601 Contact Us For Availability
7
MAY D7543201 MAY D7543201 Contact Us For Availability
7
MAY C8887904 MAY C8887904 Contact Us For Availability
7
MAY C3652901 MAY C3652901 Contact Us For Availability
7
MAY D7616635 MAY D7616635 Contact Us For Availability
7
MAY D7819803 MAY D7819803 Contact Us For Availability
7
BEARING, HINGE MAY C8852202 Contact Us For Availability
8
MAY A3072001 MAY A3072001 Contact Us For Availability
8
MAY D7545015 MAY D7545015 Contact Us For Availability
8
MAY D7816904 MAY D7816904 Contact Us For Availability
8
MAY D7869603 MAY D7869603 Contact Us For Availability
8
MAY M0311301 MAY M0311301 Contact Us For Availability
8
MAY M0311302 MAY M0311302 Contact Us For Availability
8
MAY M0311303 MAY M0311303 Contact Us For Availability
8
MAY M0117301 MAY M0117301 Contact Us For Availability
9
MAY B8333401 MAY B8333401 Contact Us For Availability
9
MAY D7656201 MAY D7656201 Contact Us For Availability
9
MAY D7539312 MAY D7539312 Contact Us For Availability
9
MAY D7744811 MAY D7744811 Contact Us For Availability
9
MAY D7725401 MAY D7725401 Contact Us For Availability
9
MAY D7790601 MAY D7790601 Contact Us For Availability
9
MAY D7574509 MAY D7574509 Contact Us For Availability
10
MAY A1017201 MAY A1017201 Contact Us For Availability
10
MAY D7882201 MAY D7882201 Contact Us For Availability
10
MAY C8962616 MAY C8962616 Contact Us For Availability
10
MAY D7620012 MAY D7620012 Contact Us For Availability
10
MAY D7565409 MAY D7565409 Contact Us For Availability
11
MAY C8881301 MAY C8881301 Contact Us For Availability
11
MAY M0230917 MAY M0230917 Contact Us For Availability
11
MAY D7745003 MAY D7745003 Contact Us For Availability
11
MAY D7580704 MAY D7580704 Contact Us For Availability
11
MAY A3080001 MAY A3080001 Contact Us For Availability
11
MAY D7731740 MAY D7731740 Contact Us For Availability
11
MAY D7731741 MAY D7731741 Contact Us For Availability
11
MAY D7731742 MAY D7731742 Contact Us For Availability
12
MAY C8982101 MAY C8982101 Contact Us For Availability
12
MAY C8891602 MAY C8891602 Contact Us For Availability
12
MAY B5757703 MAY B5757703 Contact Us For Availability
12
MAY D7869803 MAY D7869803 Contact Us For Availability
12
MAY C3630904 MAY C3630904 Contact Us For Availability
12
MAY D5683508 MAY D5683508 Contact Us For Availability
13
MAY C8927801 MAY C8927801 Contact Us For Availability
13
MAY B5757808 MAY B5757808 Contact Us For Availability
13
MAY D7599001 MAY D7599001 Contact Us For Availability
13
MAY D7835501 MAY D7835501 Contact Us For Availability
13
MAY D7605109 MAY D7605109 Contact Us For Availability
14
MAY D7524501 MAY D7524501 Contact Us For Availability
14
MAY B8389001 MAY B8389001 Contact Us For Availability
14
MAY B8389002 MAY B8389002 Contact Us For Availability
14
MAY B8389003 MAY B8389003 Contact Us For Availability
14
MAY D7874402 MAY D7874402 Contact Us For Availability
14
MAY M0102305 MAY M0102305 Contact Us For Availability
14
MAY D7806301 MAY D7806301 Contact Us For Availability
15
MAY B0523561 MAY B0523561 Contact Us For Availability
15
MAY B5744301 MAY B5744301 Contact Us For Availability
15
MAY M0214931 MAY M0214931 Contact Us For Availability
15
MAY D7805704 MAY D7805704 Contact Us For Availability
16
MAY B8364301 MAY B8364301 Contact Us For Availability
16
MAY A4539605 MAY A4539605 Contact Us For Availability
16
MAY D7620108 MAY D7620108 Contact Us For Availability
16
MAY M0211530 MAY M0211530 Contact Us For Availability
16
MAY D3799802 MAY D3799802 Contact Us For Availability
17
MAY B5715001 MAY B5715001 Contact Us For Availability
17
MAY M0233704 MAY M0233704 Contact Us For Availability
17
MAY M0320905 MAY M0320905 Contact Us For Availability
17
MAY M0246258 MAY M0246258 Contact Us For Availability
18
MAY D7656601 MAY D7656601 Contact Us For Availability
18
MAY M0272803 MAY M0272803 Contact Us For Availability
18
MAY A1047901 MAY A1047901 Contact Us For Availability
18
MAY M0310601 MAY M0310601 Contact Us For Availability
18
MAY M0310606 MAY M0310606 Contact Us For Availability
18
MAY M0310608 MAY M0310608 Contact Us For Availability
18
MAY C8913507 MAY C8913507 Contact Us For Availability
18
MAY B5749501 MAY B5749501 Contact Us For Availability
18
MAY D7806403 MAY D7806403 Contact Us For Availability
19
MAY D7004113 MAY D7004113 Contact Us For Availability
19
MAY D7713802 MAY D7713802 Contact Us For Availability
19
MAY A0092404 MAY A0092404 Contact Us For Availability
19
MAY B8351401 MAY B8351401 Contact Us For Availability
19
MAY B8351402 MAY B8351402 Contact Us For Availability
19
MAY B8351403 MAY B8351403 Contact Us For Availability
19
MAY C8913603 MAY C8913603 Contact Us For Availability
19
MAY C8742401 MAY C8742401 Contact Us For Availability
20
MAY D7653602 MAY D7653602 Contact Us For Availability
20
MAY M0210217 MAY M0210217 Contact Us For Availability
20
MAY C8948601 MAY C8948601 Contact Us For Availability
20
MAY D7421282 MAY D7421282 Contact Us For Availability
20
MAY M0520102 MAY M0520102 Contact Us For Availability
20
MAY D7744906 MAY D7744906 Contact Us For Availability
20
MAY D7744910 MAY D7744910 Contact Us For Availability
20
MAY D7744914 MAY D7744914 Contact Us For Availability
21
MAY M0381902 MAY M0381902 Contact Us For Availability
21
MAY M0217225 MAY M0217225 Contact Us For Availability
21
MAY B8373101 MAY B8373101 Contact Us For Availability
21
MAY D7871003 MAY D7871003 Contact Us For Availability
21
MAY M1200202 MAY M1200202 Contact Us For Availability
21
MAY D7695607 MAY D7695607 Contact Us For Availability
22
MAY D7691002 MAY D7691002 Contact Us For Availability
22
MAY D7874502 MAY D7874502 Contact Us For Availability
22
MAY D7874601 MAY D7874601 Contact Us For Availability
22
MAY D7861801 MAY D7861801 Contact Us For Availability
22
MAY C8894803 MAY C8894803 Contact Us For Availability
22
MAY M0230028 MAY M0230028 Contact Us For Availability
22
MAY B8355201 MAY B8355201 Contact Us For Availability
23
MAY D7752701 MAY D7752701 Contact Us For Availability
23
MAY M0310314 MAY M0310314 Contact Us For Availability
23
MAY D7845101 MAY D7845101 Contact Us For Availability
23
MAY C8925501 MAY C8925501 Contact Us For Availability
23
MAY M0203458 MAY M0203458 Contact Us For Availability
23
MAY M1200004 MAY M1200004 Contact Us For Availability
24
MAY M0110508 MAY M0110508 Contact Us For Availability
24
GASKET, FOAM MAY A3189320 Contact Us For Availability
24
MAY D7859303 MAY D7859303 Contact Us For Availability
24
MAY M1205302 MAY M1205302 Contact Us For Availability
24
MAY B5744801 MAY B5744801 Contact Us For Availability
24
MAY B5744802 MAY B5744802 Contact Us For Availability
24
MAY B5744803 MAY B5744803 Contact Us For Availability
24
MAY B5744804 MAY B5744804 Contact Us For Availability
25
MAY C8898604 MAY C8898604 Contact Us For Availability
25
MAY C8913527 MAY C8913527 Contact Us For Availability
25
MAY M0310319 MAY M0310319 Contact Us For Availability
25
MAY C8814803 MAY C8814803 Contact Us For Availability
26
MAY M0223803 MAY M0223803 Contact Us For Availability
26
MAY D7549704 MAY D7549704 Contact Us For Availability
26
MAY M0226831 MAY M0226831 Contact Us For Availability
26
MAY M0219717 MAY M0219717 Contact Us For Availability
26
MAY D7421254 MAY D7421254 Contact Us For Availability
27
MAY M0221332 MAY M0221332 Contact Us For Availability
27
MAY D7759001 MAY D7759001 Contact Us For Availability
27
MAY D7547603 MAY D7547603 Contact Us For Availability
27
MAY C8814901 MAY C8814901 Contact Us For Availability
28
MAY M0218118 MAY M0218118 Contact Us For Availability
28
MAY C8952001 MAY C8952001 Contact Us For Availability
28
MAY D7698317 MAY D7698317 Contact Us For Availability
28
MAY M0102303 MAY M0102303 Contact Us For Availability
28
MAY M0274049 MAY M0274049 Contact Us For Availability
29
MAY R0170025 MAY R0170025 Contact Us For Availability
29
MAY D7698107 MAY D7698107 Contact Us For Availability
29
MAY A0329822 MAY A0329822 Contact Us For Availability
29
MAY M0274050 MAY M0274050 Contact Us For Availability
30
MAY M0500107 MAY M0500107 Contact Us For Availability
30
MAY A3253803 MAY A3253803 Contact Us For Availability
30
MAY D7862905 MAY D7862905 Contact Us For Availability
30
MAY D7862906 MAY D7862906 Contact Us For Availability
30
MAY M0286708 MAY M0286708 Contact Us For Availability
31
MAY D7595410 MAY D7595410 Contact Us For Availability
31
MAY D7699401 MAY D7699401 Contact Us For Availability
31
MAY B8361401 MAY B8361401 Contact Us For Availability
31
MAY D7599103 MAY D7599103 Contact Us For Availability
31
MAY B8318808 MAY B8318808 Contact Us For Availability
32
MAY B8346301 MAY B8346301 Contact Us For Availability
32
MAY M0211017 MAY M0211017 Contact Us For Availability
32
MAY B8363501 MAY B8363501 Contact Us For Availability
33
MAY D7654301 MAY D7654301 Contact Us For Availability
33
MAY M0233844 MAY M0233844 Contact Us For Availability
33
MAY D7806101 MAY D7806101 Contact Us For Availability
34
MAY M0293703 MAY M0293703 Contact Us For Availability
34
MAY D7691106 MAY D7691106 Contact Us For Availability
34
MAY M0203931 MAY M0203931 Contact Us For Availability
34
MAY M0310701 MAY M0310701 Contact Us For Availability
34
MAY M0204339 MAY M0204339 Contact Us For Availability
35
MAY M0104002 MAY M0104002 Contact Us For Availability
35
MAY M0216531 MAY M0216531 Contact Us For Availability
35
MAY B5669005 MAY B5669005 Contact Us For Availability
35
MAY D7805901 MAY D7805901 Contact Us For Availability
36
MAY C8948102 MAY C8948102 Contact Us For Availability
36
MAY D7744905 MAY D7744905 Contact Us For Availability
36
MAY D7744909 MAY D7744909 Contact Us For Availability
36
MAY D7744913 MAY D7744913 Contact Us For Availability
36
MAY M0215115 MAY M0215115 Contact Us For Availability
36
MAY M0310709 MAY M0310709 Contact Us For Availability
36
MAY M0310716 MAY M0310716 Contact Us For Availability
36
MAY M0310720 MAY M0310720 Contact Us For Availability
37
MAY B5759604 MAY B5759604 Contact Us For Availability
37
MAY C8947901 MAY C8947901 Contact Us For Availability
37
MAY M0230923 MAY M0230923 Contact Us For Availability
38
MAY A9008301 MAY A9008301 Contact Us For Availability
38
MAY C8898605 MAY C8898605 Contact Us For Availability
38
MAY M0270508 MAY M0270508 Contact Us For Availability
38
MAY M0102325 MAY M0102325 Contact Us For Availability
39
MAY C8962201 MAY C8962201 Contact Us For Availability
39
MAY A3263906 MAY A3263906 Contact Us For Availability
39
MAY D7872103 MAY D7872103 Contact Us For Availability
39
MAY D7872104 MAY D7872104 Contact Us For Availability
39
MAY D7872105 MAY D7872105 Contact Us For Availability
39
MAY B8362502 MAY B8362502 Contact Us For Availability
40
MAY C8964701 MAY C8964701 Contact Us For Availability
40
MAY M0211030 MAY M0211030 Contact Us For Availability
40
MAY C8987106 MAY C8987106 Contact Us For Availability
40
MAY A3132301 MAY A3132301 Contact Us For Availability
41
MAY M0104102 MAY M0104102 Contact Us For Availability
41
MAY M0251017 MAY M0251017 Contact Us For Availability
41
MAY D7869903 MAY D7869903 Contact Us For Availability
41
SEE NOTE MODEL IC-3, MFG. NO. P7621304W, ADD- MAY Y00000000 Contact Us For Availability
41
MAY D7790501 MAY D7790501 Contact Us For Availability
42
MAY C8948902 MAY C8948902 Contact Us For Availability
42
MAY M0321202 MAY M0321202 Contact Us For Availability
42
MAY M0219559 MAY M0219559 Contact Us For Availability
42
MAY B8372901 MAY B8372901 Contact Us For Availability
43
MAY M0105509 MAY M0105509 Contact Us For Availability
43
MAY D7501301 MAY D7501301 Contact Us For Availability
43
MAY M0270501 MAY M0270501 Contact Us For Availability
44
MAY B8335701 MAY B8335701 Contact Us For Availability
45
MAY B8358502 MAY B8358502 Contact Us For Availability
46
MAY M0234003 MAY M0234003 Contact Us For Availability
48
MAY M0211016 MAY M0211016 Contact Us For Availability
48
MAY D7859401 MAY D7859401 Contact Us For Availability
49
MAY D7806001 MAY D7806001 Contact Us For Availability
50
MAY D7856504 MAY D7856504 Contact Us For Availability
51
MAY D7859601 MAY D7859601 Contact Us For Availability
52
MAY D7860602 MAY D7860602 Contact Us For Availability
53
MAY A3263905 MAY A3263905 Contact Us For Availability
54
MAY 10043101 MAY 10043101 Contact Us For Availability
55
MAY C8990403 MAY C8990403 Contact Us For Availability
56
MAY D7853302 MAY D7853302 Contact Us For Availability
57
MAY D7859501 MAY D7859501 Contact Us For Availability
NI
MAY M0305301 MAY M0305301 Contact Us For Availability
NI
MAY M0257244 MAY M0257244 Contact Us For Availability
NI
MAY D7871110 MAY D7871110 Contact Us For Availability
NI
MAY D7871112 MAY D7871112 Contact Us For Availability
NI
MAY R0179140 MAY R0179140 Contact Us For Availability
NI
MAY R0179141 MAY R0179141 Contact Us For Availability
× ![]()
