Model Whirlpool TC4700XYP0 TRASH MASHER COMPACTOR – Common Parts & Diagrams
02 - FRAME
05 - CABINET AND CONTROL

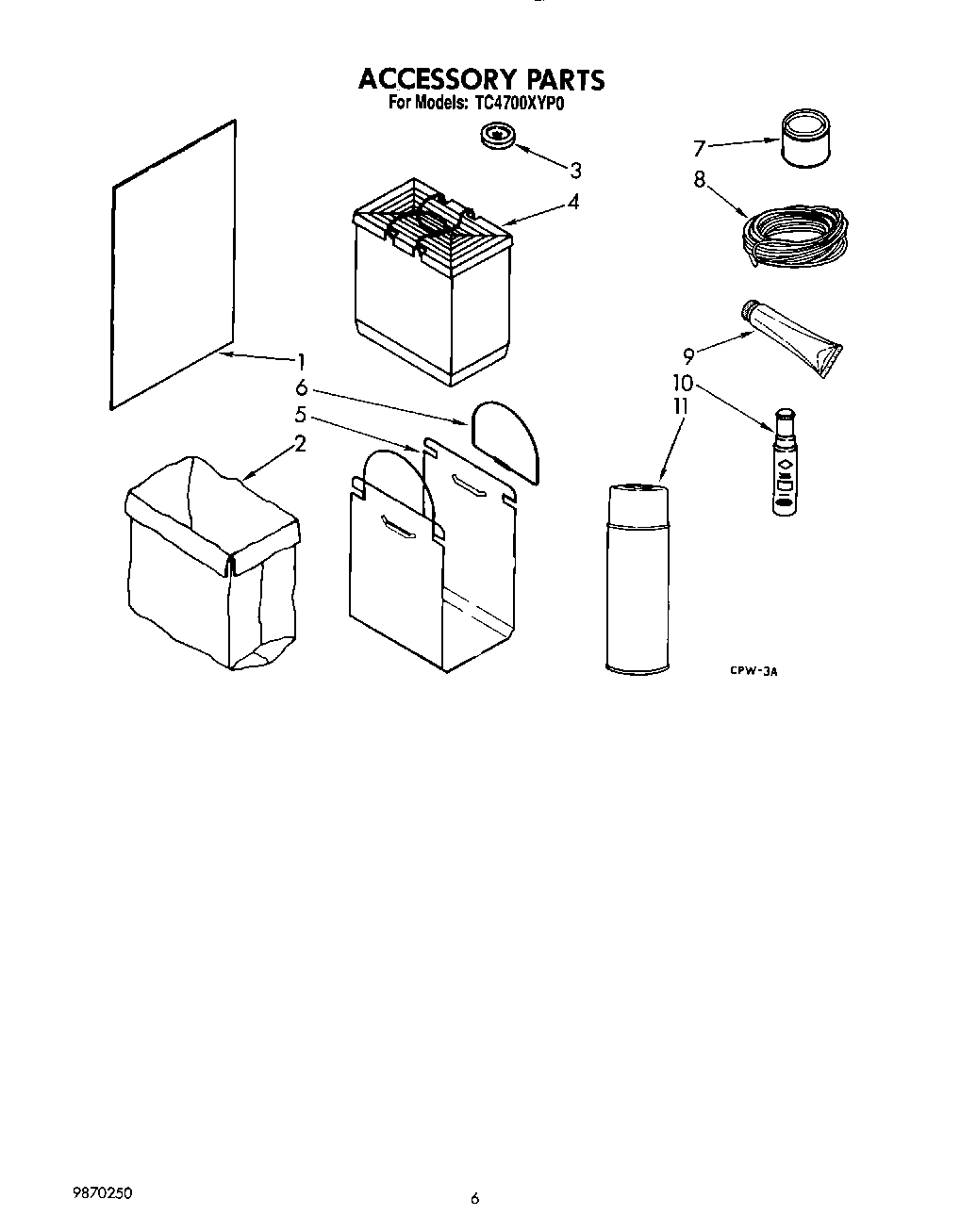

06 - ACCESSORY

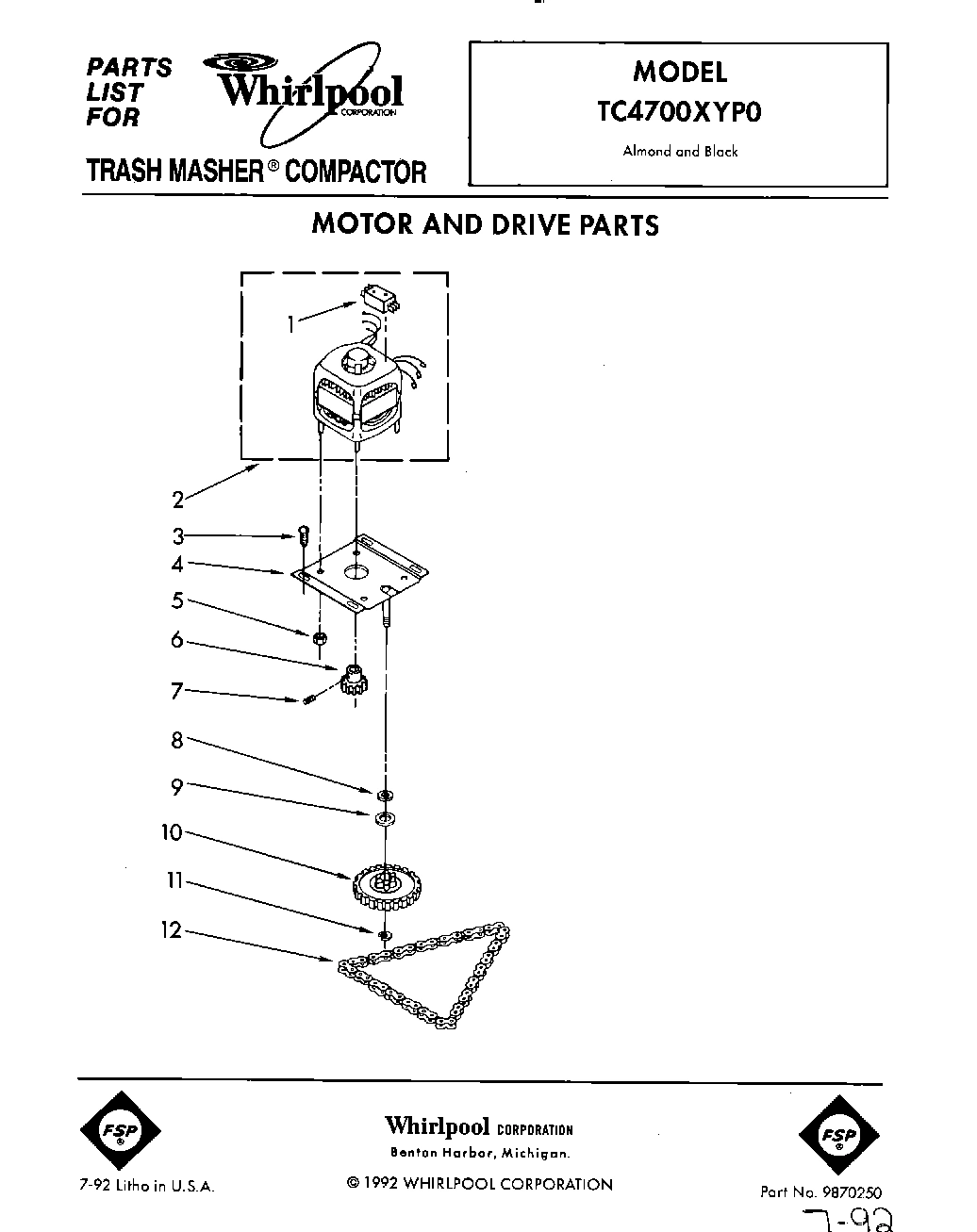

01 - MOTOR AND DRIVE, LIT/OPTIONAL

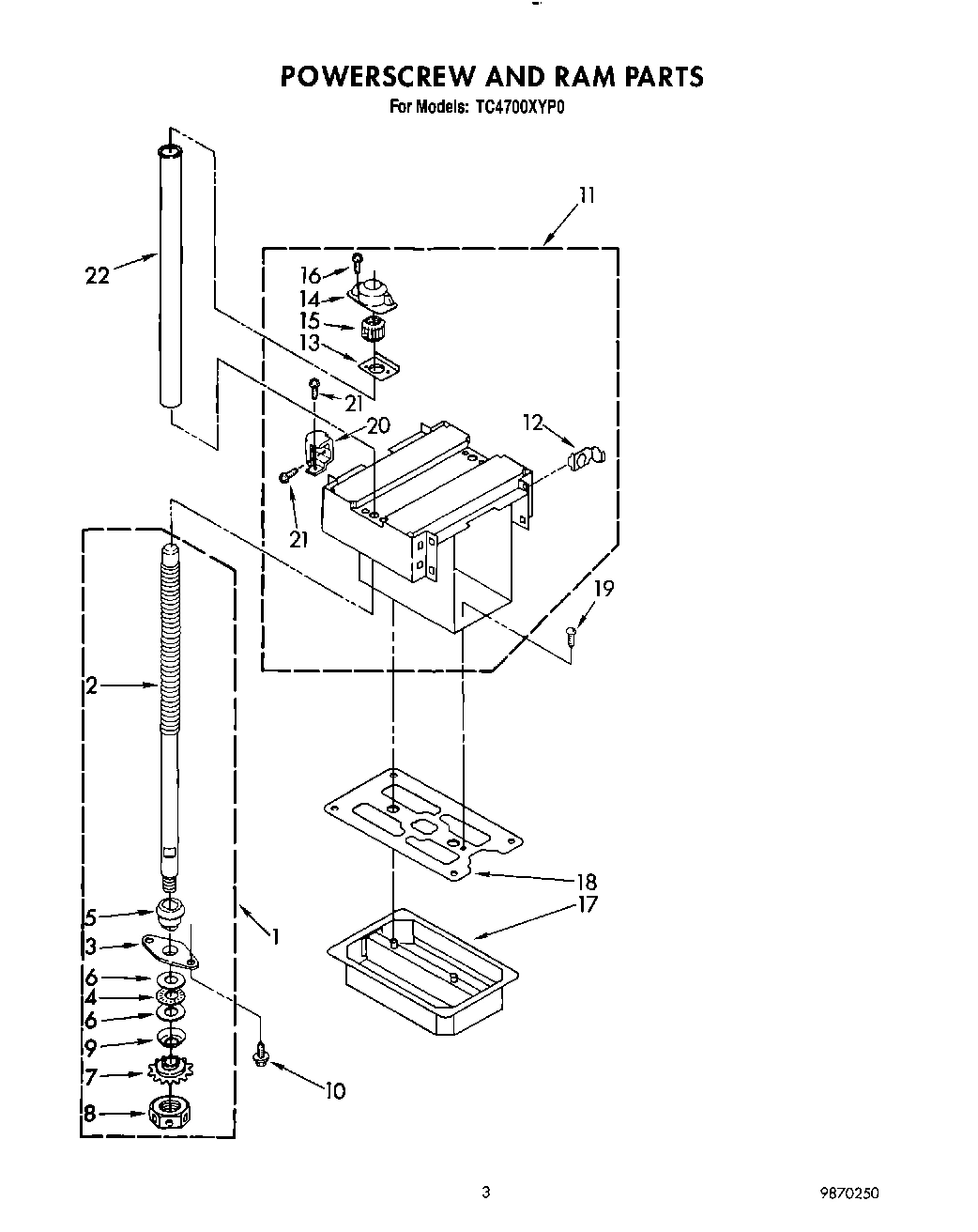

03 - POWERSCREW AND RAM

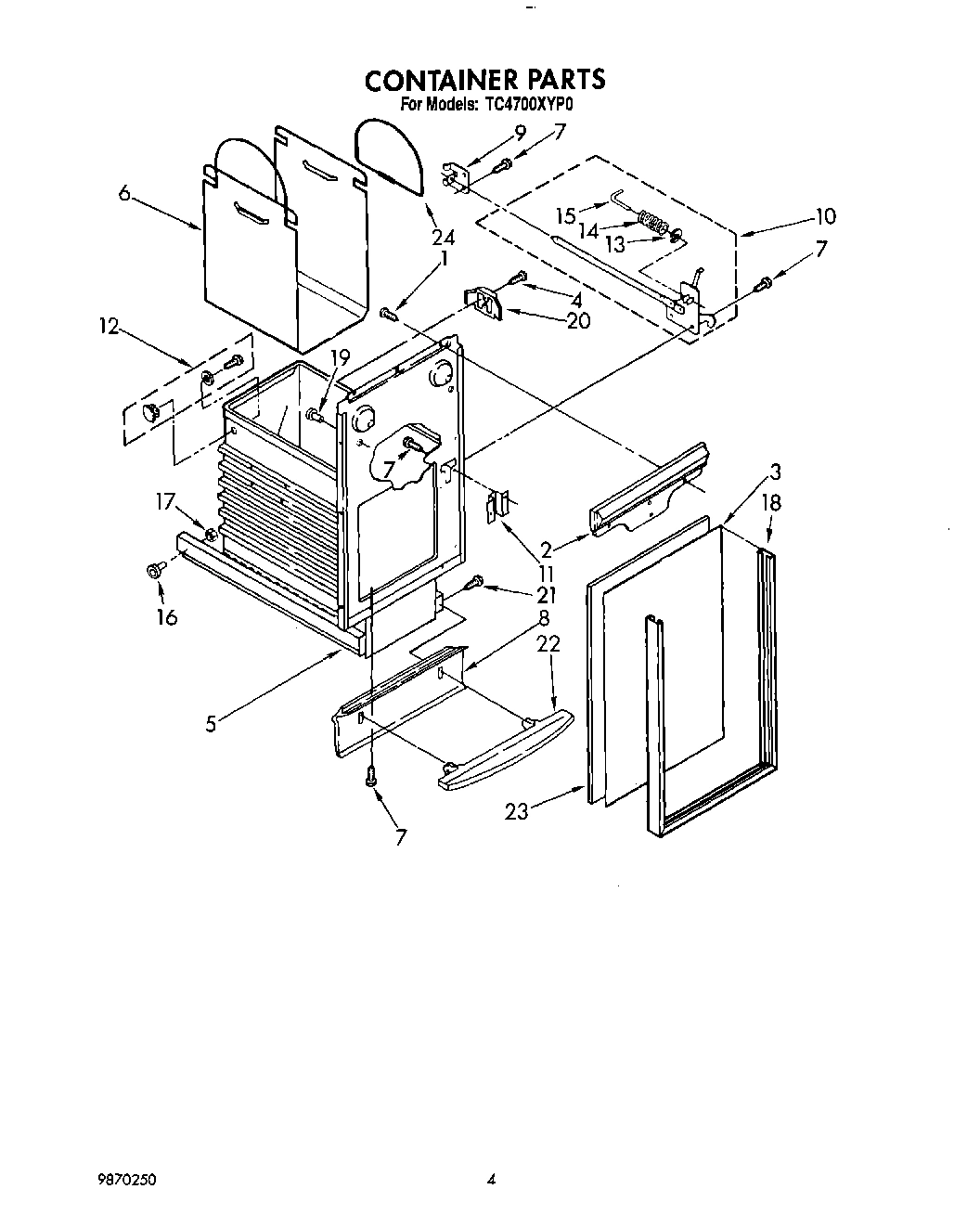

04 - CONTAINER
Common parts from model Whirlpool TC4700XYP0 TRASH MASHER COMPACTOR
List, Repair Parts WPL LIT9870250 Contact Us For Availability
Instructions, Installation WPL LIT9870295 Contact Us For Availability
Guide, Use and Care WPL LIT9870335 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI130844A Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
4
Screw (2) WPL 4149395 Contact Us For Availability
5
Container Assembly WPL 882671 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
10
Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
Ram Assembly WPL 608729 Contact Us For Availability
12
Harness, Wiring WPL 4152077 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
13
Plate, Doubler (2) WPL 9870138 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
15
Pin WPL 776654 Contact Us For Availability
17
Clip, Top Mount (2) WPL 776017 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
18
Trim, Container (Front) WPL 777345 Contact Us For Availability
19
Bumper, Container (2) WPL 775785 Contact Us For Availability
20
Plate, Cover WPL 9870122 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
22
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
23
Spacer, Center Panel WPL 777784 Contact Us For Availability
× ![]()
