Model GE TBX23ZHCR Refrigerator – Common Parts & Diagrams
0
1
2

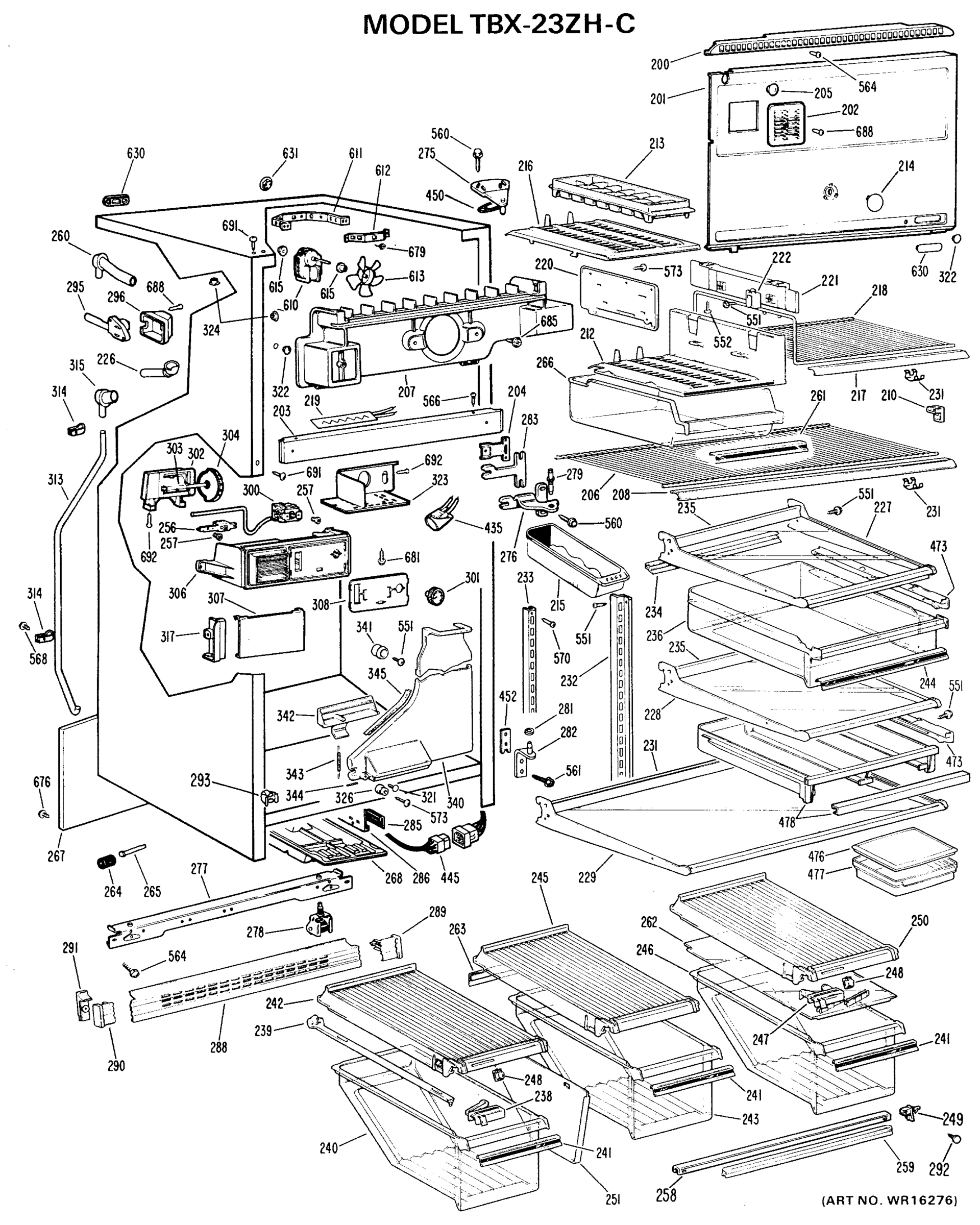

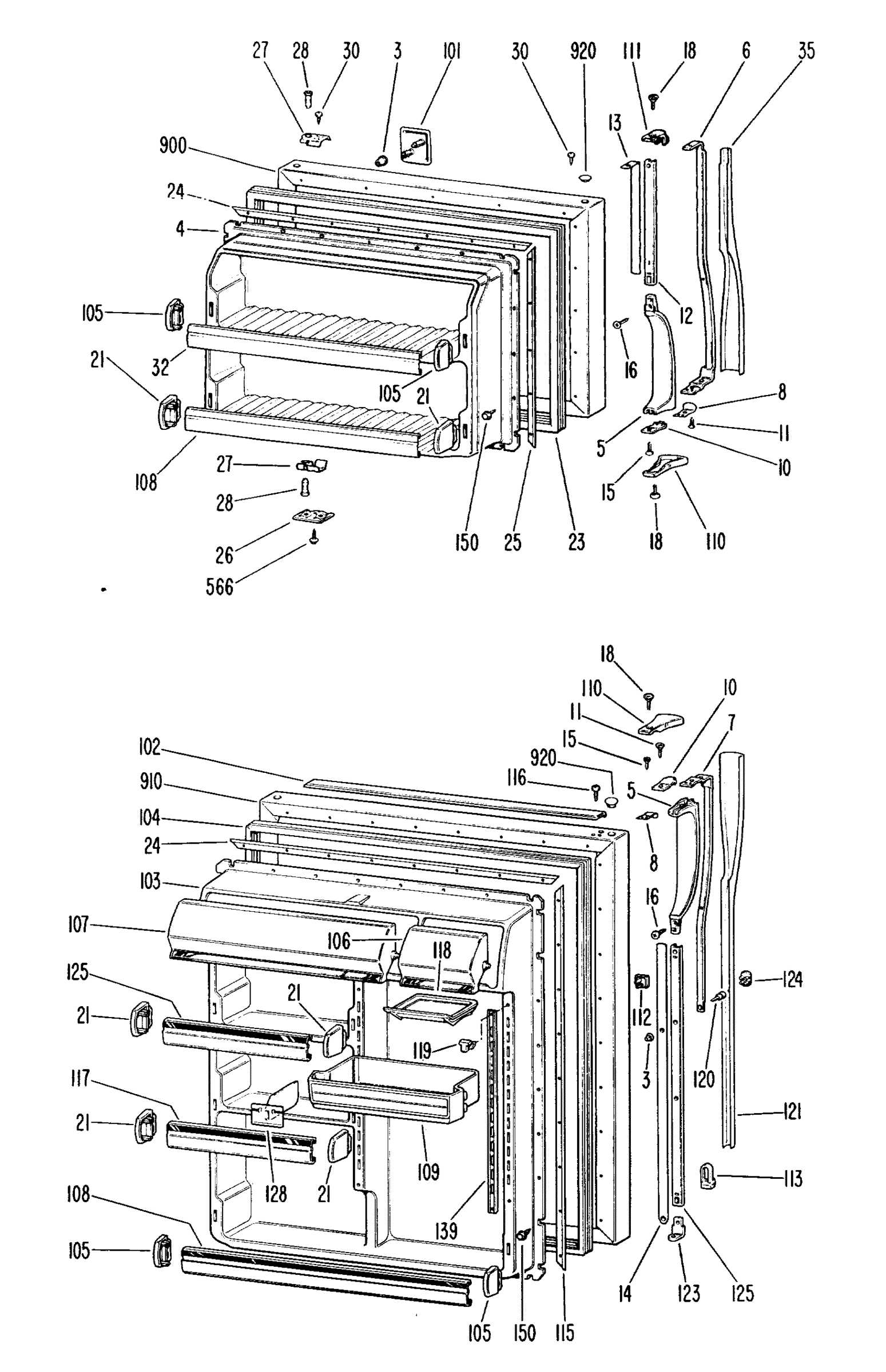

Common parts from model GE TBX23ZHCR Refrigerator
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR77X0448 GEN WR77X0448 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0507 GEN WR12X0507 Contact Us For Availability
7
GEN WR12X0469 GEN WR12X0469 Contact Us For Availability
8
GEN WR02X4924 GEN WR02X4924 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
11
SCREW 8-18 B 7/16 GEN WZ04X0352 Contact Us For Availability
12
GEN WR12X0510 GEN WR12X0510 Contact Us For Availability
13
GEN WR02X7141 GEN WR02X7141 Contact Us For Availability
14
GEN WR02X4946 GEN WR02X4946 Contact Us For Availability
15
GEN WR01X1564 GEN WR01X1564 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
18
GEN WR01X1566 GEN WR01X1566 Contact Us For Availability
21
GEN WR02X7232 GEN WR02X7232 Contact Us For Availability
23
GEN WR24X0389 GEN WR24X0389 Contact Us For Availability
24
GEN WR17X1909 GEN WR17X1909 Contact Us For Availability
25
GEN WR17X1910 GEN WR17X1910 Contact Us For Availability
26
GEN WR02X7402 GEN WR02X7402 Contact Us For Availability
27
GEN WR02X7281 GEN WR02X7281 Contact Us For Availability
28
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
32
GEN WR71X1692 GEN WR71X1692 Contact Us For Availability
35
GEN WR12X0508 GEN WR12X0508 Contact Us For Availability
101
GEN WR03X0409 GEN WR03X0409 Contact Us For Availability
102
GEN WR38X1035 GEN WR38X1035 Contact Us For Availability
103
GEN WR77X0447 GEN WR77X0447 Contact Us For Availability
104
GEN WR24X0390 GEN WR24X0390 Contact Us For Availability
105
GEN WR02X7233 GEN WR02X7233 Contact Us For Availability
106
GEN WR22X0303 GEN WR22X0303 Contact Us For Availability
107
GEN WR22X0309 GEN WR22X0309 Contact Us For Availability
108
GEN WR71X1689 GEN WR71X1689 Contact Us For Availability
109
GEN WR71X1688 GEN WR71X1688 Contact Us For Availability
110
GEN WR02X7231 GEN WR02X7231 Contact Us For Availability
111
GEN WR02X4929 GEN WR02X4929 Contact Us For Availability
112
GEN WR04X0173 GEN WR04X0173 Contact Us For Availability
113
GEN WR12X0320 GEN WR12X0320 Contact Us For Availability
115
GEN WR17X1530 GEN WR17X1530 Contact Us For Availability
116
GEN WR01X1570 GEN WR01X1570 Contact Us For Availability
116
GEN WR71X1690 GEN WR71X1690 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
119
GEN WR02X7287 GEN WR02X7287 Contact Us For Availability
120
GEN WR01X1593 GEN WR01X1593 Contact Us For Availability
121
GEN WR12X0511 GEN WR12X0511 Contact Us For Availability
123
GEN WR02X4950 GEN WR02X4950 Contact Us For Availability
124
GASKET DOOR FZ BLACK GEN WR12X0512 Contact Us For Availability
125
GEN WR12X0519 GEN WR12X0519 Contact Us For Availability
126
GEN WR71X1691 GEN WR71X1691 Contact Us For Availability
128
GEN WR02X7234 GEN WR02X7234 Contact Us For Availability
139
GEN WR72X0080 GEN WR72X0080 Contact Us For Availability
150
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
176
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
200
GEN WR17X1921 GEN WR17X1921 Contact Us For Availability
201
GEN WR17X2094 GEN WR17X2094 Contact Us For Availability
202
GEN WR02X7019 GEN WR02X7019 Contact Us For Availability
203
GEN WR14X0316 GEN WR14X0316 Contact Us For Availability
203
GEN WR17X1919 GEN WR17X1919 Contact Us For Availability
204
GEN WR01X1655 GEN WR01X1655 Contact Us For Availability
204
SUPT-MULLION & NUTSTRIP GEN WR02X7014 Contact Us For Availability
206
GEN WR71X1609 GEN WR71X1609 Contact Us For Availability
207
GEN WR14X0315 GEN WR14X0315 Contact Us For Availability
207
GEN WR17X1916 GEN WR17X1916 Contact Us For Availability
208
GEN WR38X1002 GEN WR38X1002 Contact Us For Availability
210
GEN WR02X7016 GEN WR02X7016 Contact Us For Availability
212
GEN WR71X1616 GEN WR71X1616 Contact Us For Availability
215
GEN WR32X0873 GEN WR32X0873 Contact Us For Availability
216
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
216
GEN WR71X1617 GEN WR71X1617 Contact Us For Availability
217
GEN WR38X1006 GEN WR38X1006 Contact Us For Availability
218
GEN WR71X1613 GEN WR71X1613 Contact Us For Availability
219
GEN WR51X0300 GEN WR51X0300 Contact Us For Availability
220
GEN WR02X7162 GEN WR02X7162 Contact Us For Availability
221
GEN WR02X7160 GEN WR02X7160 Contact Us For Availability
222
SUPPORT SHELF ADJ GEN WR02X7161 Contact Us For Availability
226
GEN WR02X7142 GEN WR02X7142 Contact Us For Availability
227
GEN WR71X1618 GEN WR71X1618 Contact Us For Availability
228
GEN WR71X1614 GEN WR71X1614 Contact Us For Availability
229
GEN WR71X1615 GEN WR71X1615 Contact Us For Availability
231
GEN WR02X4944 GEN WR02X4944 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
231
GEN WR38X1008 GEN WR38X1008 Contact Us For Availability
232
GEN WR72X0079 GEN WR72X0079 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0077 GEN WR72X0077 Contact Us For Availability
234
GASKET SNACK GLASS REAR GEN WR14X0321 Contact Us For Availability
235
GEN WR38X1007 GEN WR38X1007 Contact Us For Availability
236
GEN WR32X0867 GEN WR32X0867 Contact Us For Availability
238
GEN WR17X1579 GEN WR17X1579 Contact Us For Availability
239
GEN WR17X1580 GEN WR17X1580 Contact Us For Availability
240
GEN WR32X0831 GEN WR32X0831 Contact Us For Availability
241
HANDLE PAN GEN WR17X1936 Contact Us For Availability
242
GEN WR02X7052 GEN WR02X7052 Contact Us For Availability
242
GEN WR32X0894 GEN WR32X0894 Contact Us For Availability
243
GEN WR32X0829 GEN WR32X0829 Contact Us For Availability
244
HANDLE-SNACK PAN GEN WR17X1924 Contact Us For Availability
245
GEN WR32X0827 GEN WR32X0827 Contact Us For Availability
246
GEN WR32X0832 GEN WR32X0832 Contact Us For Availability
247
GEN WR32X0724 GEN WR32X0724 Contact Us For Availability
248
KNOB GEN WR32X0725 Contact Us For Availability
249
GEN WR02X7249 GEN WR02X7249 Contact Us For Availability
250
COVER ASM GEN WR32X0833 Contact Us For Availability
251
GEN WR14X0290 GEN WR14X0290 Contact Us For Availability
251
GEN WR17X1581 GEN WR17X1581 Contact Us For Availability
252
GEN WR01X1647 GEN WR01X1647 Contact Us For Availability
253
GEN WR02X7498 GEN WR02X7498 Contact Us For Availability
256
GEN WR23X0203 GEN WR23X0203 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X2027 GEN WR17X2027 Contact Us For Availability
259
GEN WR14X0294 GEN WR14X0294 Contact Us For Availability
260
GEN WR17X1913 GEN WR17X1913 Contact Us For Availability
261
HANDLE PAN GEN WR17X1931 Contact Us For Availability
262
GEN WR17X1935 GEN WR17X1935 Contact Us For Availability
263
GEN WR14X0319 GEN WR14X0319 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
266
GEN WR30X0240 GEN WR30X0240 Contact Us For Availability
267
GEN WR82X0248 GEN WR82X0248 Contact Us For Availability
268
PAN WATER DISPOSAL ASM GEN WR32X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM GEN WR13X5198 Contact Us For Availability
276
GEN WR13X5197 GEN WR13X5197 Contact Us For Availability
277
GEN WR17X1911 GEN WR17X1911 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR13X0562 GEN WR13X0562 Contact Us For Availability
281
GEN WR01X1114 GEN WR01X1114 Contact Us For Availability
281
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
282
GEN WR13X0553 GEN WR13X0553 Contact Us For Availability
283
SHIM HINGE-.031 THK. GEN WR02X7030 Contact Us For Availability
283
NUTSTRIP HINGE GEN WR02X7143 Contact Us For Availability
283
GEN WR02X7401 GEN WR02X7401 Contact Us For Availability
285
GEN WR02X7297 GEN WR02X7297 Contact Us For Availability
285
GEN WR02X7298 GEN WR02X7298 Contact Us For Availability
286
GEN WR17X2046 GEN WR17X2046 Contact Us For Availability
288
GRILLE BASE GEN WR74X0176 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
291
GEN WR74X0181 GEN WR74X0181 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
292
PLUG BUTTON GEN WR02X7082 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
295
GEN WR23X0162 GEN WR23X0162 Contact Us For Availability
296
COVER IM RECEPTACLE GEN WR02X4512 Contact Us For Availability
300
SLEEVE VINYL GEN WR02X7010 Contact Us For Availability
300
GEN WR02X7061 GEN WR02X7061 Contact Us For Availability
300
CONTROL TEMP GEN WR09X0352 Contact Us For Availability
301
GEN WR02X7146 GEN WR02X7146 Contact Us For Availability
302
GEN WR14X0312 GEN WR14X0312 Contact Us For Availability
302
HOUSING NOZZLE GEN WR17X1533 Contact Us For Availability
303
GEN WR02X7008 GEN WR02X7008 Contact Us For Availability
304
GEN WR02X7023 GEN WR02X7023 Contact Us For Availability
306
GEN WR02 GEN WR02 Contact Us For Availability
475
GROMMET SCR GEN WR01X1646 Contact Us For Availability
553
SCR 6-20 B TR 1/4 SS GEN WZ04X0343 Contact Us For Availability
562
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
564
SCR 6-20 AB TR 3/8 SS GEN WZ04X0284 Contact Us For Availability
566
GEN WR01X1487 GEN WR01X1487 Contact Us For Availability
601
GEN WR17X1552 GEN WR17X1552 Contact Us For Availability
602
GEN WR82X0247 GEN WR82X0247 Contact Us For Availability
603
GEN WR17X1918 GEN WR17X1918 Contact Us For Availability
604
GEN WR17X1917 GEN WR17X1917 Contact Us For Availability
608
FOAM STRIP SE ADH GEN WR14X0313 Contact Us For Availability
608
GEN WR17X1906 GEN WR17X1906 Contact Us For Availability
619
SHIELD HEAT GEN WR17X1937 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
621
GEN WR02X7153 GEN WR02X7153 Contact Us For Availability
622
GEN WR14X0314 GEN WR14X0314 Contact Us For Availability
622
GEN WR17X1912 GEN WR17X1912 Contact Us For Availability
623
GEN WR14X0289 GEN WR14X0289 Contact Us For Availability
623
COVER DUCT FF GEN WR17X1549 Contact Us For Availability
624
GEN WR17X1914 GEN WR17X1914 Contact Us For Availability
628
GEN WR02X7026 GEN WR02X7026 Contact Us For Availability
640
BRACKET COMP MTG-R.SIDE GEN WR02X7004 Contact Us For Availability
641
BRACKET COMP MTG-L.SIDE GEN WR02X7005 Contact Us For Availability
642
BUSHING COMP MTG GEN WR02X7028 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
648
GEN WR02X7027 GEN WR02X7027 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
652
GEN WR01X1683 GEN WR01X1683 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
BRACKET COND FAN GEN WR02X4801 Contact Us For Availability
682
GEN WX06X0134 GEN WX06X0134 Contact Us For Availability
683
SCR 8-32 SPECIAL GEN WZ05X0164 Contact Us For Availability
684
SCREW GEN WZ04X0417 Contact Us For Availability
685
SCR 1/4-14 AB HX 1/2S NS GEN WR01X1596 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
725
MACHINE HIGH SIDE GEN WR87X0068 Contact Us For Availability
736
COVER COMP MTG BRKT GEN WR02X7029 Contact Us For Availability
900
GEN WR78X7447 GEN WR78X7447 Contact Us For Availability
901
GEN WR78X7448 GEN WR78X7448 Contact Us For Availability
902
GEN WR78X7449 GEN WR78X7449 Contact Us For Availability
903
GEN WR78X7508 GEN WR78X7508 Contact Us For Availability
904
GEN WR78X7509 GEN WR78X7509 Contact Us For Availability
910
GEN WR78X7450 GEN WR78X7450 Contact Us For Availability
911
GEN WR78X7451 GEN WR78X7451 Contact Us For Availability
912
GEN WR78X7452 GEN WR78X7452 Contact Us For Availability
913
GEN WR78X7510 GEN WR78X7510 Contact Us For Availability
914
GEN WR78X7511 GEN WR78X7511 Contact Us For Availability
920
GEN WR02X4930 GEN WR02X4930 Contact Us For Availability
921
GEN WR02X4931 GEN WR02X4931 Contact Us For Availability
922
GEN WR02X4932 GEN WR02X4932 Contact Us For Availability
923
GEN WR02X4933 GEN WR02X4933 Contact Us For Availability
924
GEN WR02X4934 GEN WR02X4934 Contact Us For Availability
925
GEN WR02X7241 GEN WR02X7241 Contact Us For Availability
926
GEN WR02X7242 GEN WR02X7242 Contact Us For Availability
9999
GEN 31-5011 GEN 31-5011 Contact Us For Availability
9999
GEN 49-6514 GEN 49-6514 Contact Us For Availability
× ![]()
