Model GE TBX22PCSMRBB Refrigerator – Common Parts & Diagrams

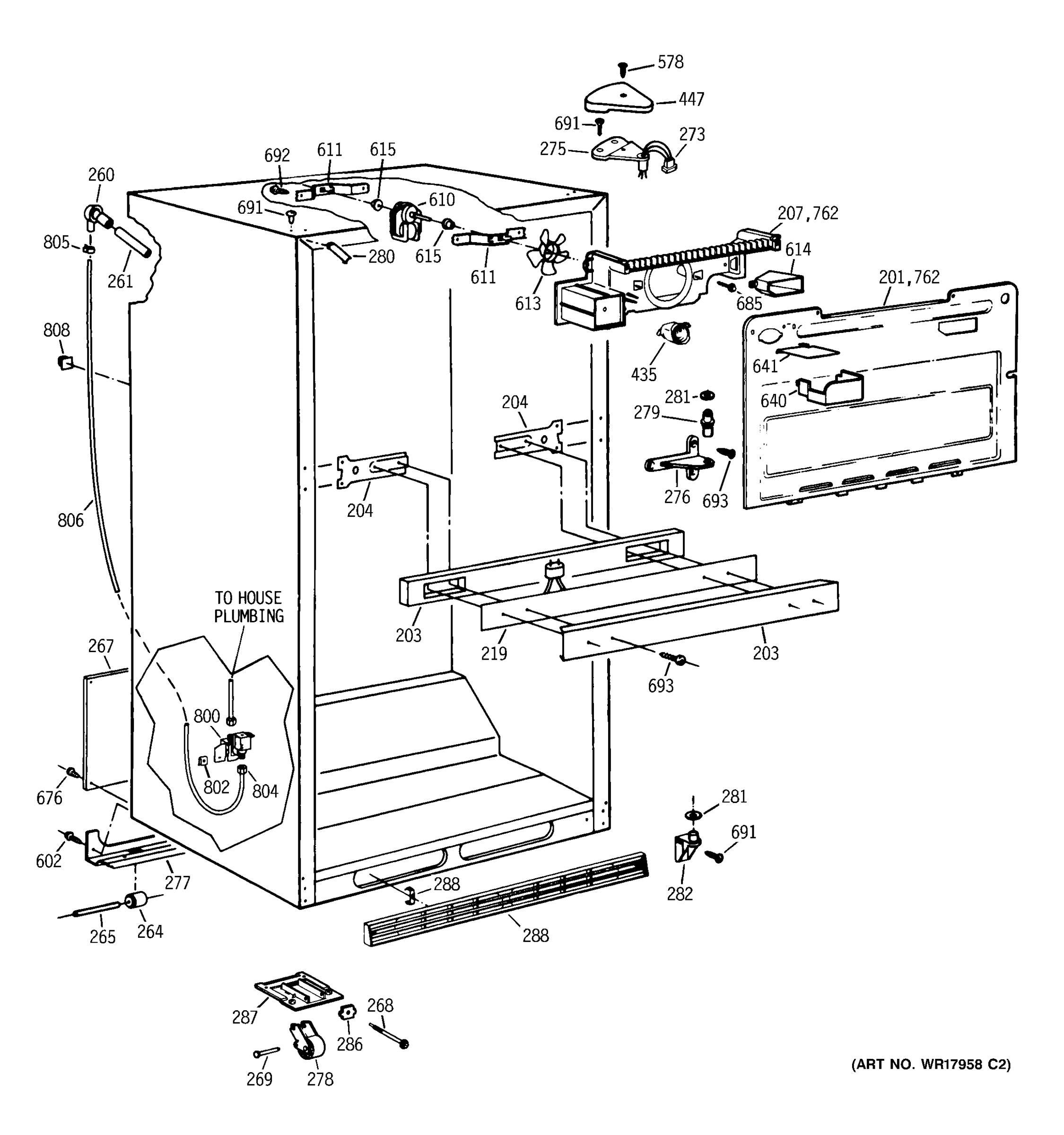

CABINET PARTS

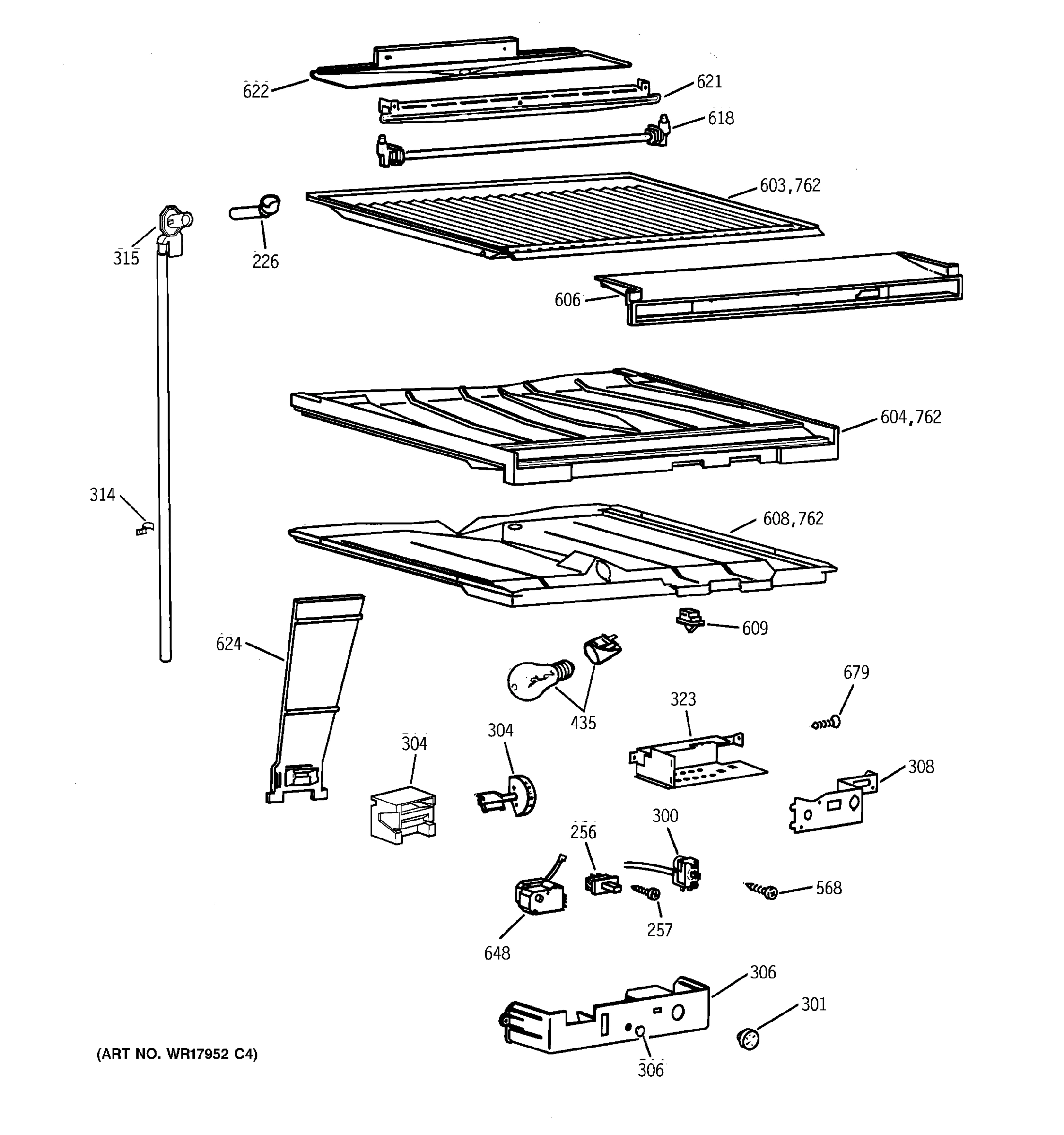

COMPARTMENT SEPARATOR PARTS

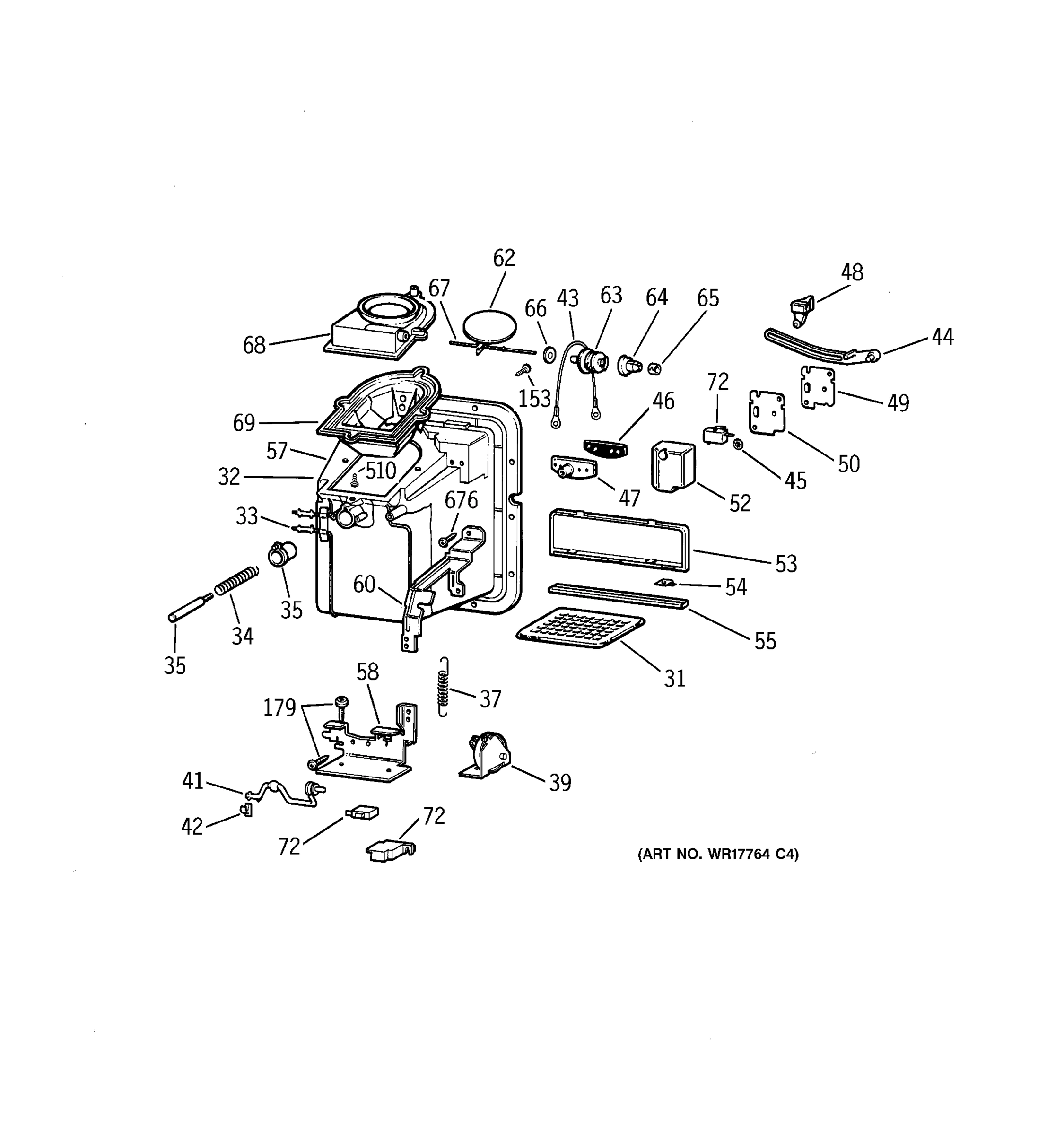

DISPENSER

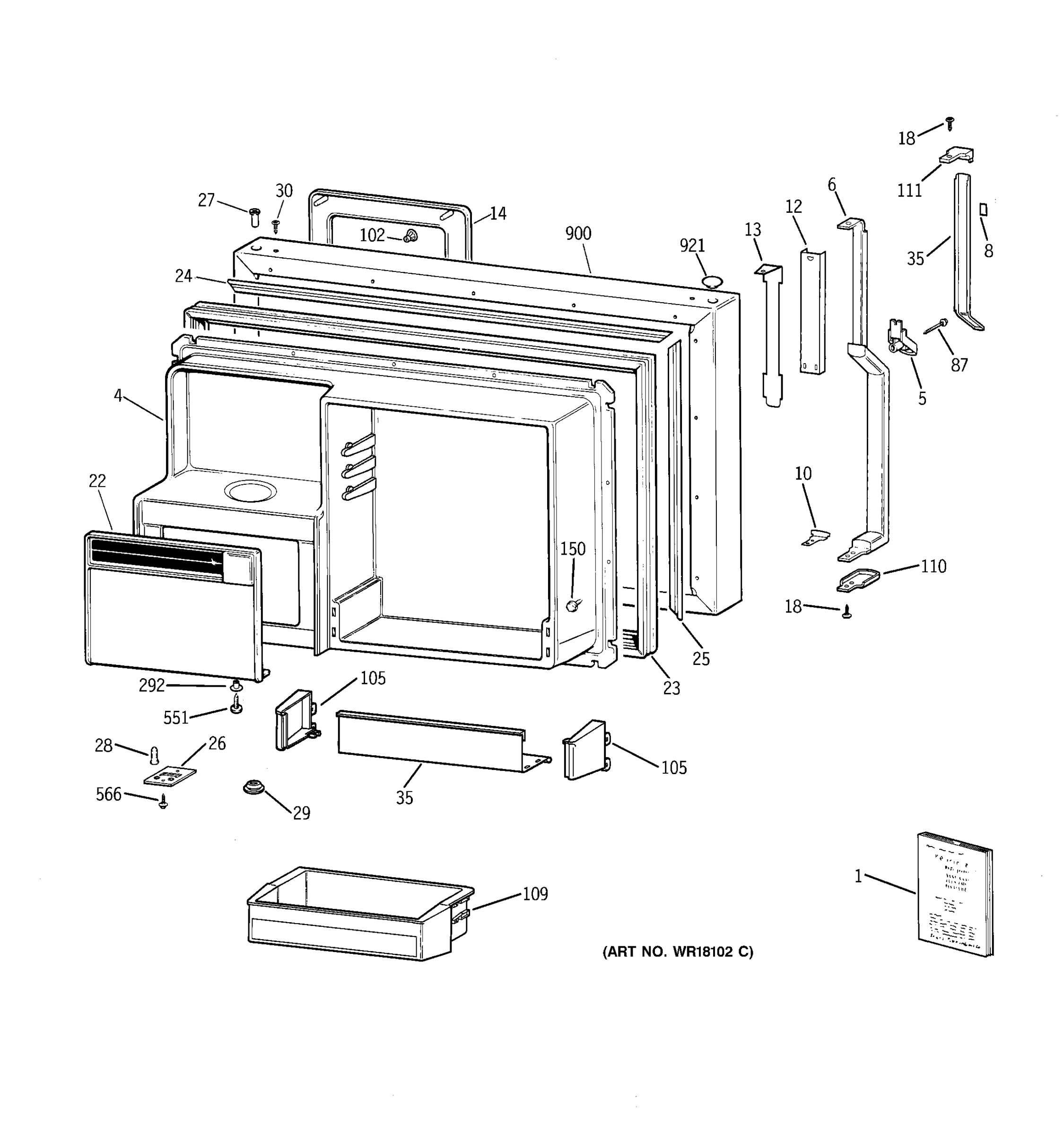

FREEZER DOOR

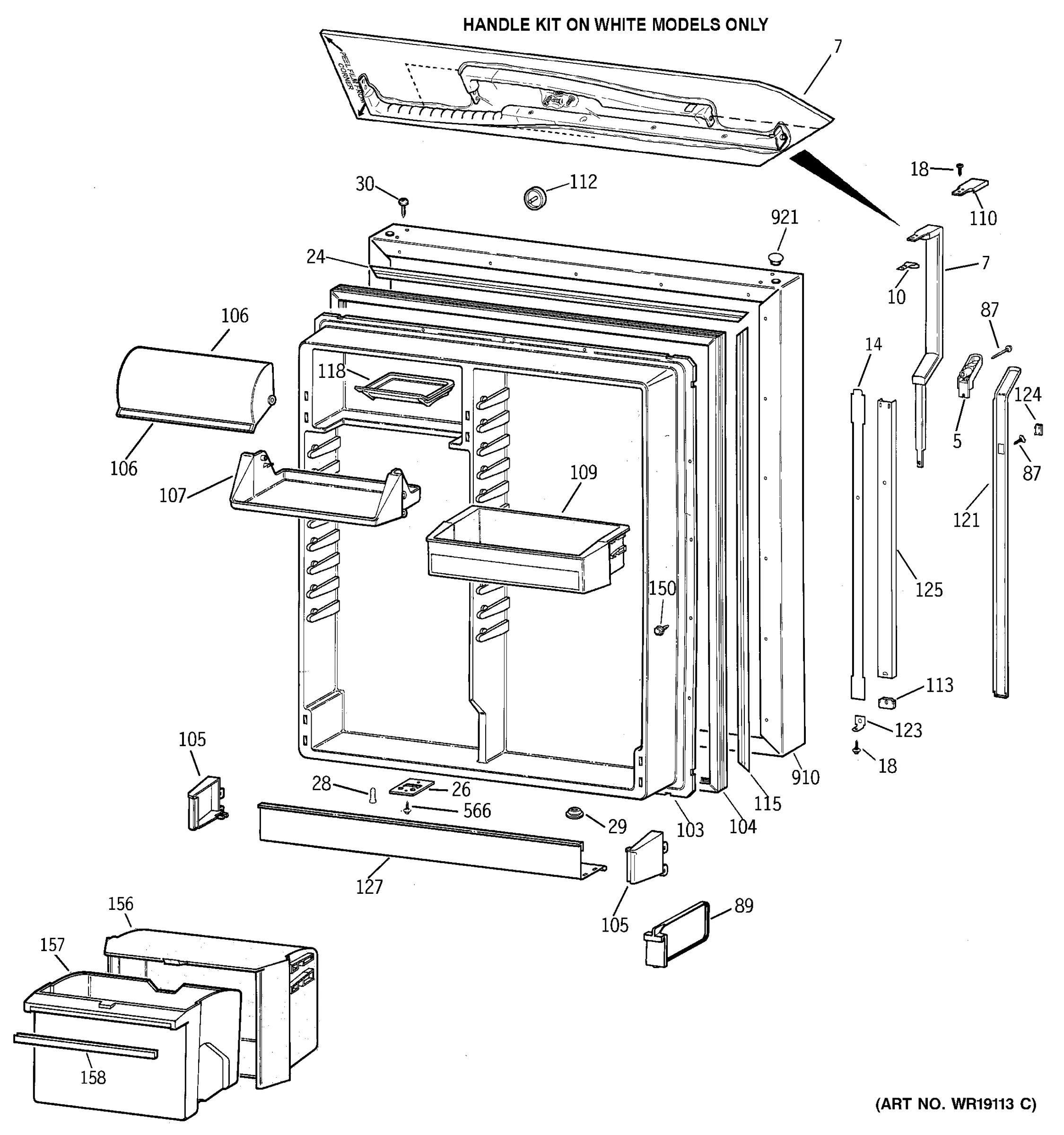

FRESH FOOD DOOR

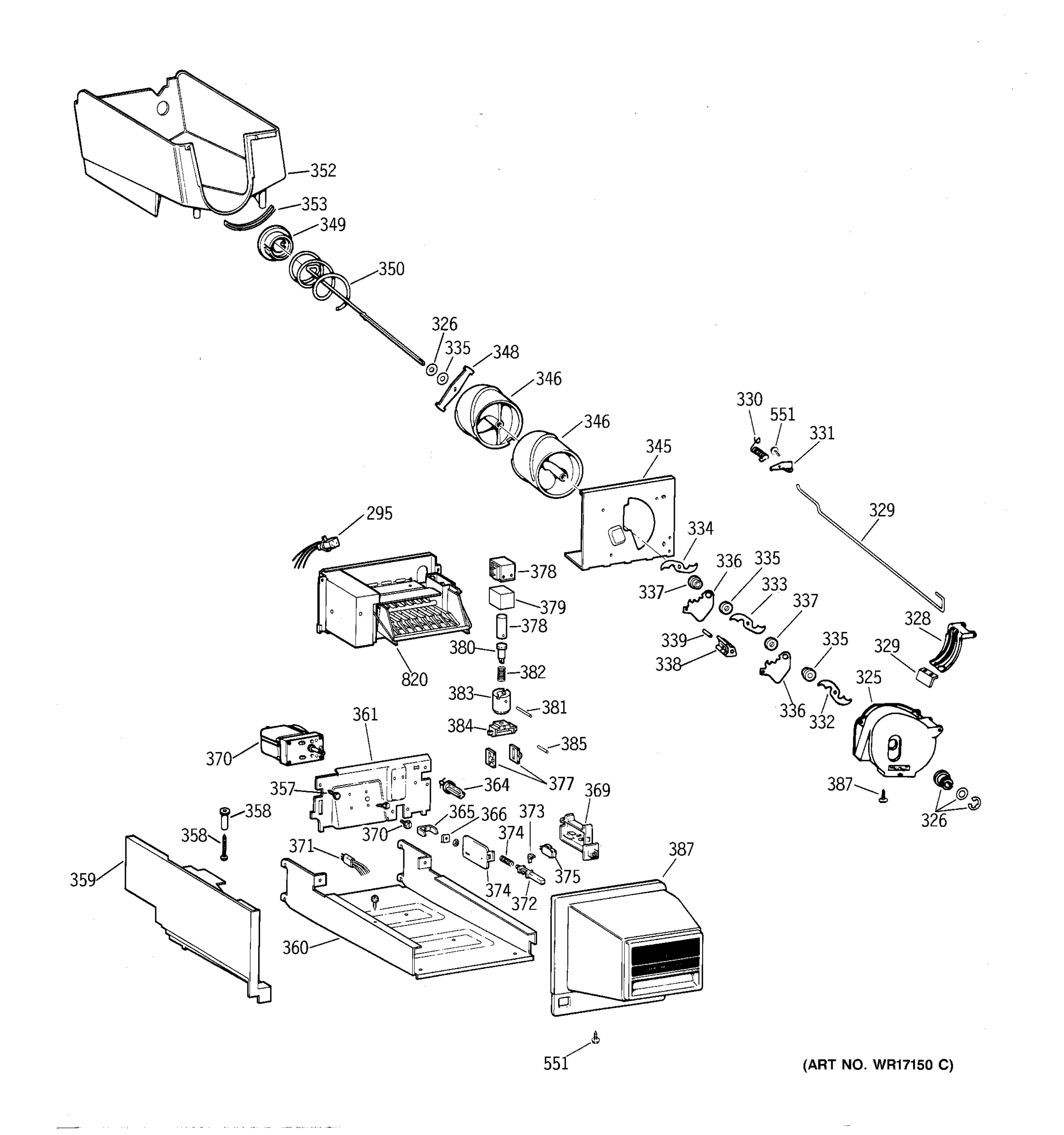

ICE BUCKET

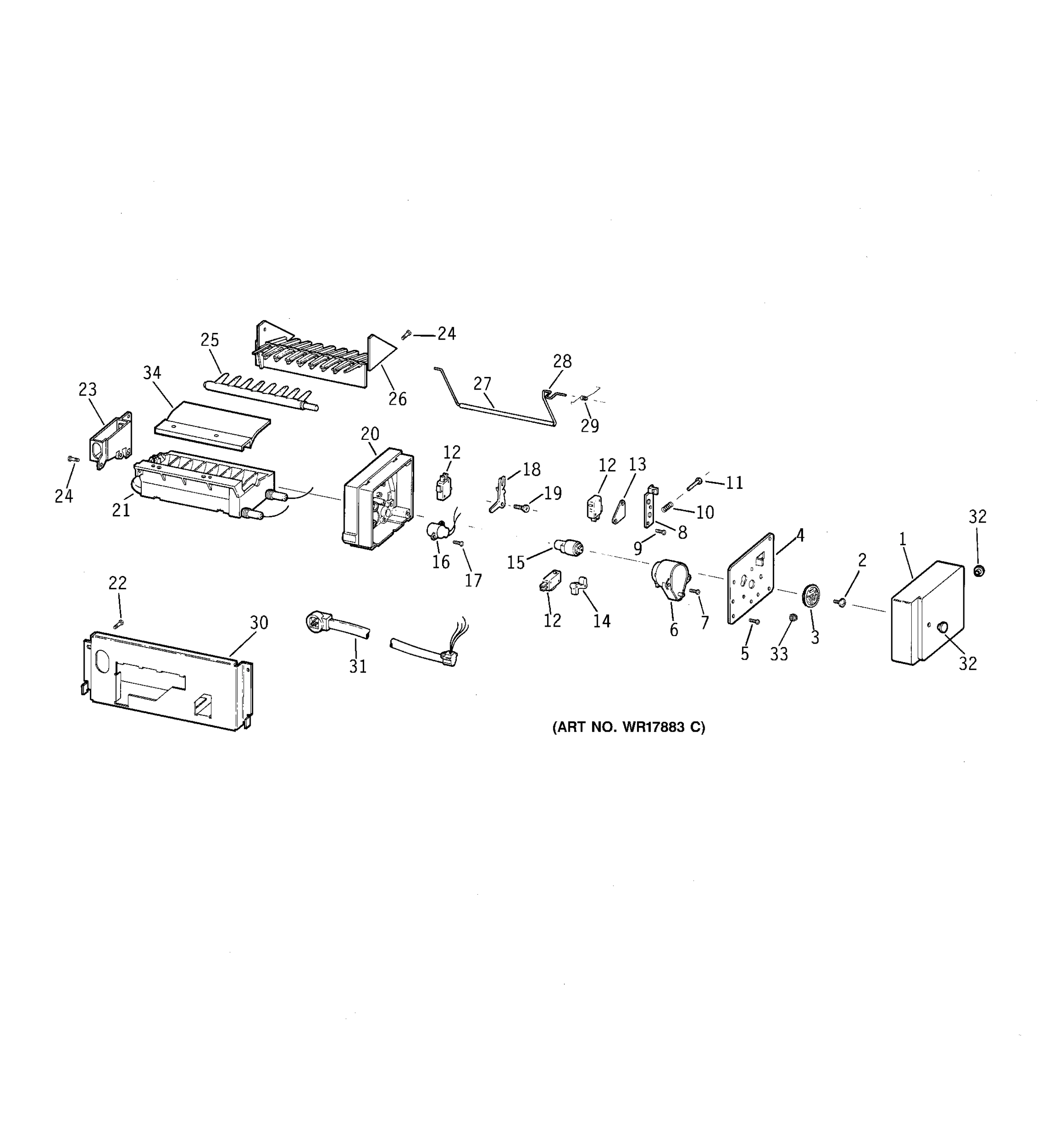

ICE MAKER

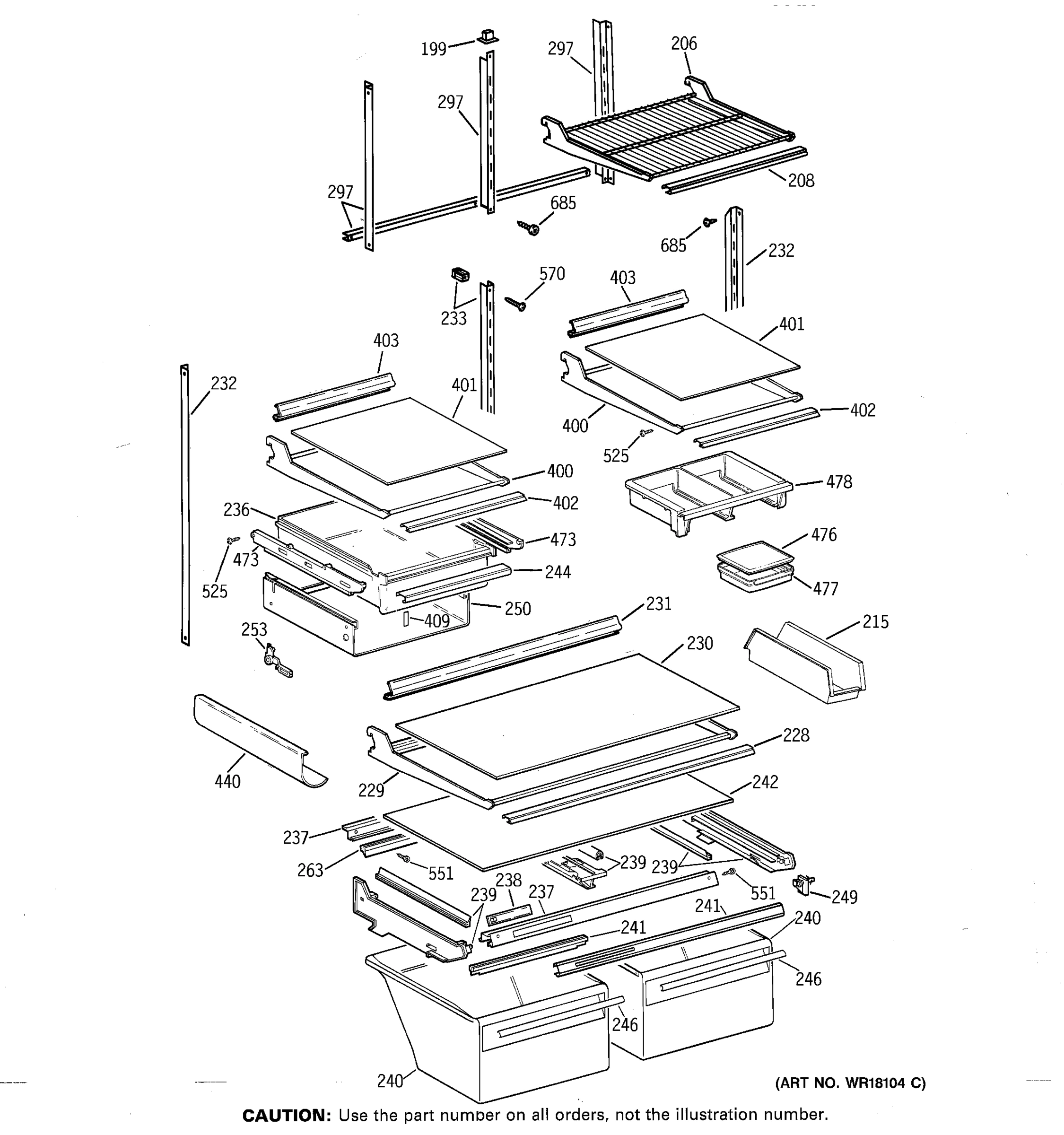

SHELF PARTS

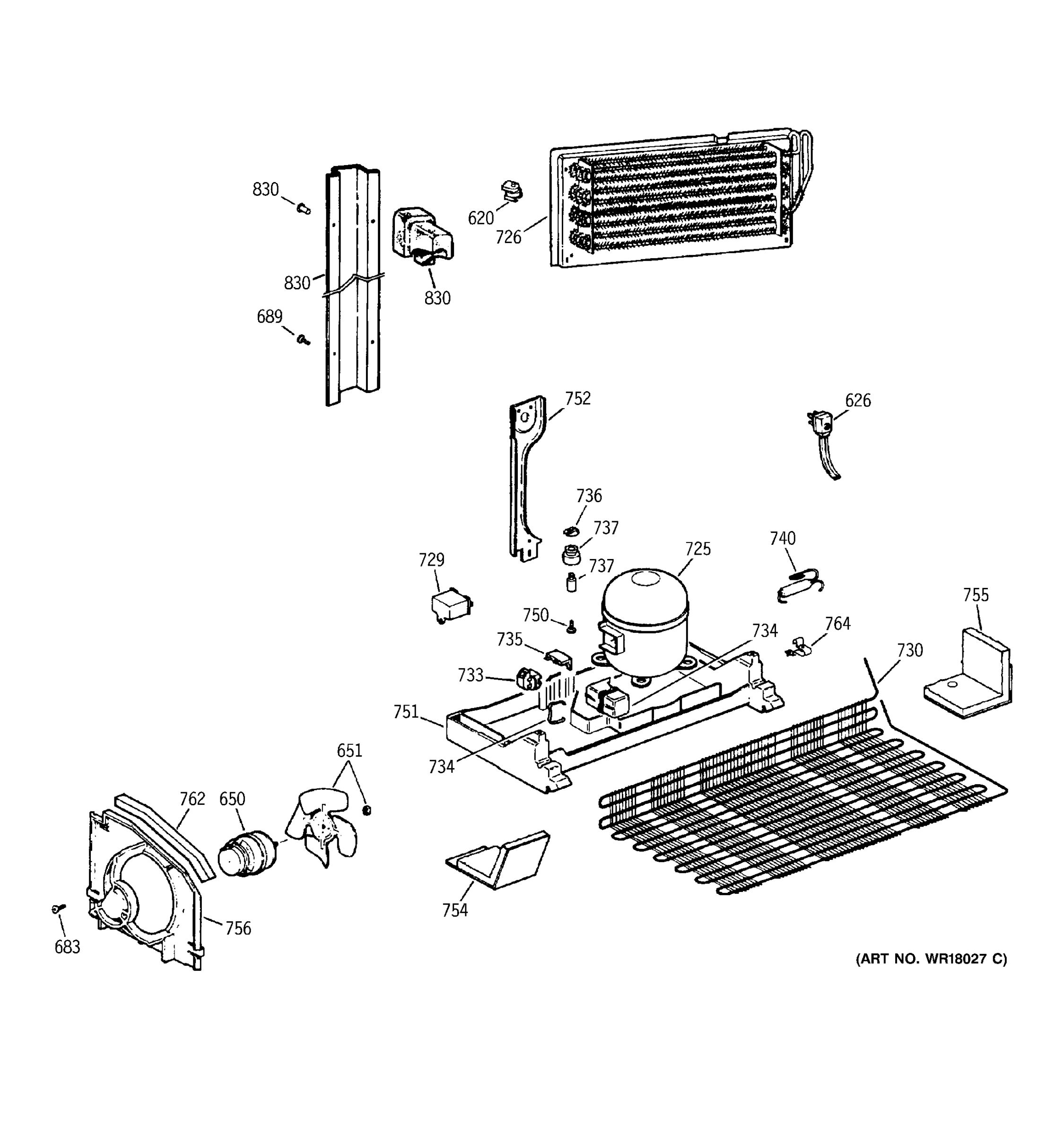

UNIT PARTS
Common parts from model GE TBX22PCSMRBB Refrigerator
1
GEN 31-5025 GEN 31-5025 Contact Us For Availability
1
GEN 31-5825 GEN 31-5825 Contact Us For Availability
1
GEN 49-6749 GEN 49-6749 Contact Us For Availability
4
GEN WR77X0616 GEN WR77X0616 Contact Us For Availability
5
GEN WR02X8714 GEN WR02X8714 Contact Us For Availability
6
HANDLE FZ BLACK GEN WR12X0891 Contact Us For Availability
7
HANDLE FF BLACK GEN WR12X0893 Contact Us For Availability
8
LENS NAMEPLATE BLACK GEN WR04X0214 Contact Us For Availability
10
GEN WR02X8002 GEN WR02X8002 Contact Us For Availability
12
GEN WR12X0917 GEN WR12X0917 Contact Us For Availability
14
GEN WR01X1551 GEN WR01X1551 Contact Us For Availability
14
TRIM RECESS ASM DISP BK GEN WR38X1254 Contact Us For Availability
22
GEN WR17X3198 GEN WR17X3198 Contact Us For Availability
23
GASKET DOOR FZ BLACK GEN WR24X0533 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
26
GEN WR02X7681 GEN WR02X7681 Contact Us For Availability
27
GEN WR02X8544 GEN WR02X8544 Contact Us For Availability
28
THIMBLE DOOR BLACK GEN WR02X8543 Contact Us For Availability
29
PLUG BUTTON INSERT BLK GEN WR02X8542 Contact Us For Availability
30
SCREW BLACK GEN WR01X1823 Contact Us For Availability
31
GEN WR02X5997 GEN WR02X5997 Contact Us For Availability
32
RECESS DISP BLACK GEN WR17X2220 Contact Us For Availability
32
GEN WR71X2344 GEN WR71X2344 Contact Us For Availability
33
GEN WR51X0362 GEN WR51X0362 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
GEN WR02X4822 GEN WR02X4822 Contact Us For Availability
35
INSERT HANDLE FZ BLACK GEN WR12X0910 Contact Us For Availability
37
GEN WR02X8403 GEN WR02X8403 Contact Us For Availability
39
GEN WR09X0506 GEN WR09X0506 Contact Us For Availability
41
GEN WR17X2820 GEN WR17X2820 Contact Us For Availability
42
GEN WR02X4234 GEN WR02X4234 Contact Us For Availability
43
GEN WR02X8447 GEN WR02X8447 Contact Us For Availability
44
GEN WR02X4685 GEN WR02X4685 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
PAD CRADLE BLACK GEN WR02X8471 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
48
GEN WR02X7951 GEN WR02X7951 Contact Us For Availability
49
GEN WR02X4592 GEN WR02X4592 Contact Us For Availability
50
GEN WR02X4591 GEN WR02X4591 Contact Us For Availability
52
GEN WR02X4593 GEN WR02X4593 Contact Us For Availability
53
GEN WR02X8718 GEN WR02X8718 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0851 GEN WR38X0851 Contact Us For Availability
57
GEN WR14X0411 GEN WR14X0411 Contact Us For Availability
58
GEN WR17X2794 GEN WR17X2794 Contact Us For Availability
60
GEN WR02X8026 GEN WR02X8026 Contact Us For Availability
62
GEN WR17X1255 GEN WR17X1255 Contact Us For Availability
63
GEN WR17X1457 GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
PAD-R & L SIDES GEN WR02X4751 Contact Us For Availability
68
GEN WR14X0260 GEN WR14X0260 Contact Us For Availability
68
GEN WR17X1355 GEN WR17X1355 Contact Us For Availability
69
SHIELD & FUNNEL ASM BK GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
89
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR77X0611 GEN WR77X0611 Contact Us For Availability
104
GASKET DOOR FF BLACK GEN WR24X0534 Contact Us For Availability
105
GEN WR02X8699 GEN WR02X8699 Contact Us For Availability
105
GEN WR02X8700 GEN WR02X8700 Contact Us For Availability
106
DOOR DAIRY GEN WR22X0429 Contact Us For Availability
106
GEN WR38X1988 GEN WR38X1988 Contact Us For Availability
107
GEN WR22X0472 GEN WR22X0472 Contact Us For Availability
109
GEN WR71X2345 GEN WR71X2345 Contact Us For Availability
110
GEN WR02X8210 GEN WR02X8210 Contact Us For Availability
111
GEN WR02X7979 GEN WR02X7979 Contact Us For Availability
113
GEN WR02X7980 GEN WR02X7980 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
INSERT HANDLE FF BLACK GEN WR12X0907 Contact Us For Availability
123
GEN WR02X8009 GEN WR02X8009 Contact Us For Availability
124
PLUG BUTTON INSERT BLK GEN WR12X0564 Contact Us For Availability
125
GEN WR12X0916 GEN WR12X0916 Contact Us For Availability
127
GEN WR71X2340 GEN WR71X2340 Contact Us For Availability
153
SCREW GEN WZ04X0324 Contact Us For Availability
156
GEN WR32X1327 GEN WR32X1327 Contact Us For Availability
157
GEN WR32X1140 GEN WR32X1140 Contact Us For Availability
158
GEN WR38X1949 GEN WR38X1949 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
199
GEN WR02X7670 GEN WR02X7670 Contact Us For Availability
206
GEN WR71X1952 GEN WR71X1952 Contact Us For Availability
208
GEN WR38X1834 GEN WR38X1834 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
228
GEN WR38X1750 GEN WR38X1750 Contact Us For Availability
229
GEN WR71X2190 GEN WR71X2190 Contact Us For Availability
230
GEN WR32X1207 GEN WR32X1207 Contact Us For Availability
231
GEN WR38X1919 GEN WR38X1919 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
236
GEN WR32X1022 GEN WR32X1022 Contact Us For Availability
237
GEN WR17X3161 GEN WR17X3161 Contact Us For Availability
237
GEN WR17X3288 GEN WR17X3288 Contact Us For Availability
238
GEN WR17X2400 GEN WR17X2400 Contact Us For Availability
239
GEN WR17X2769 GEN WR17X2769 Contact Us For Availability
239
GEN WR17X2770 GEN WR17X2770 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
239
GEN WR14X0366 GEN WR14X0366 Contact Us For Availability
239
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
240
GEN WR32X1141 GEN WR32X1141 Contact Us For Availability
241
GEN WR14X0358 GEN WR14X0358 Contact Us For Availability
241
GEN WR17X3193 GEN WR17X3193 Contact Us For Availability
242
GEN WR32X1187 GEN WR32X1187 Contact Us For Availability
244
GEN WR38X1747 GEN WR38X1747 Contact Us For Availability
246
GEN WR17X2903 GEN WR17X2903 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
250
GEN WR17X2843 GEN WR17X2843 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
263
GEN WR14X0398 GEN WR14X0398 Contact Us For Availability
276
GEN WR13X0585 GEN WR13X0585 Contact Us For Availability
277
GEN WR17X2236 GEN WR17X2236 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. BLACK GEN WR02X8539 Contact Us For Availability
282
HINGE BTM ASM BLACK GEN WR13X0651 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X8505 GEN WR02X8505 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0202 GEN WR74X0202 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
297
GEN WR72X0100 GEN WR72X0100 Contact Us For Availability
297
TRACK CANT SIDE FRZ GEN WR72X0105 Contact Us For Availability
297
GEN WR72X0108 GEN WR72X0108 Contact Us For Availability
297
GEN WR72X0131 GEN WR72X0131 Contact Us For Availability
300
GEN WR09X0517 GEN WR09X0517 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X8694 GEN WR02X8694 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GEN WR02X8504 GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
328
GEN WR17X2215 GEN WR17X2215 Contact Us For Availability
329
GEN WR02X7784 GEN WR02X7784 Contact Us For Availability
329
GEN WR17X2246 GEN WR17X2246 Contact Us For Availability
330
GEN WR02X4759 GEN WR02X4759 Contact Us For Availability
331
GEN WR02X4758 GEN WR02X4758 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X2216 GEN WR17X2216 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2214 GEN WR17X2214 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7783 GEN WR02X7783 Contact Us For Availability
350
GEN WR02X7782 GEN WR02X7782 Contact Us For Availability
352
GEN WR17X2662 GEN WR17X2662 Contact Us For Availability
352
GEN WR30X0264 GEN WR30X0264 Contact Us For Availability
357
GEN WR01X1750 GEN WR01X1750 Contact Us For Availability
358
GEN WR01X1749 GEN WR01X1749 Contact Us For Availability
358
GEN WR02X7778 GEN WR02X7778 Contact Us For Availability
359
GEN WR17X2221 GEN WR17X2221 Contact Us For Availability
360
GEN WR71X1788 GEN WR71X1788 Contact Us For Availability
361
GEN WR17X3191 GEN WR17X3191 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
369
GEN WR02X7169 GEN WR02X7169 Contact Us For Availability
370
SCREW GEN WR01X1858 Contact Us For Availability
371
GEN WR23X0317 GEN WR23X0317 Contact Us For Availability
372
GEN WR02X7776 GEN WR02X7776 Contact Us For Availability
373
GEN WR23X0290 GEN WR23X0290 Contact Us For Availability
374
GEN WR02X7171 GEN WR02X7171 Contact Us For Availability
374
GEN WR02X7172 GEN WR02X7172 Contact Us For Availability
375
GEN WR23X0288 GEN WR23X0288 Contact Us For Availability
377
GEN WR02X7774 GEN WR02X7774 Contact Us For Availability
380
GEN WR17X2224 GEN WR17X2224 Contact Us For Availability
384
GEN WR17X2225 GEN WR17X2225 Contact Us For Availability
387
GEN WR17X3195 GEN WR17X3195 Contact Us For Availability
400
GEN WR71X2173 GEN WR71X2173 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
401
GEN WR32X1067 GEN WR32X1067 Contact Us For Availability
402
GEN WR38X1625 GEN WR38X1625 Contact Us For Availability
402
GEN WR38X1626 GEN WR38X1626 Contact Us For Availability
403
GEN WR38X1724 GEN WR38X1724 Contact Us For Availability
409
GEN WR02X8454 GEN WR02X8454 Contact Us For Availability
440
GEN WR17X3364 GEN WR17X3364 Contact Us For Availability
447
COVER HINGE BLACK GEN WR02X8851 Contact Us For Availability
473
SLIDE MEAT PAN RH GEN WR72X0124 Contact Us For Availability
473
SLIDE MP LH WH GEN WR72X0179 Contact Us For Availability
476
GEN WR02X8017 GEN WR02X8017 Contact Us For Availability
477
GEN WR17X2949 GEN WR17X2949 Contact Us For Availability
478
GEN WR17X2957 GEN WR17X2957 Contact Us For Availability
525
SCREW GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
568
SCREW GEN WZ05X0137 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
GEN WR17X3495 GEN WR17X3495 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
608
GEN WR17X2796 GEN WR17X2796 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
614
GEN WR02X7780 GEN WR02X7780 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
622
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X2229 GEN WR17X2229 Contact Us For Availability
640
GEN WR02X7771 GEN WR02X7771 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
SCREW BLACK GEN WR01X1821 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCREW BLACK GEN WR01X1822 Contact Us For Availability
726
GEN WR85X0285 GEN WR85X0285 Contact Us For Availability
730
GEN WR84X0181 GEN WR84X0181 Contact Us For Availability
733
GEN WR07X0223 GEN WR07X0223 Contact Us For Availability
734
GEN WR02X8690 GEN WR02X8690 Contact Us For Availability
734
GEN WR02X8691 GEN WR02X8691 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X2418 GEN WR17X2418 Contact Us For Availability
752
GEN WR17X2417 GEN WR17X2417 Contact Us For Availability
754
GEN WR17X2437 GEN WR17X2437 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
GEN WR17X3005 GEN WR17X3005 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
802
GEN WR01X1360 GEN WR01X1360 Contact Us For Availability
820
GEN WR30X0284 GEN WR30X0284 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0318 GEN WR82X0318 Contact Us For Availability
900
O.DOOR FZ RH BLACK GEN WR78X8551 Contact Us For Availability
910
O.DOOR FF BLACK GEN WR78X8521 Contact Us For Availability
921
PLUG BUTTON BLACK GEN WR02X8541 Contact Us For Availability
× ![]()
