Model GE TBX18BHBR – Common Parts & Diagrams
0

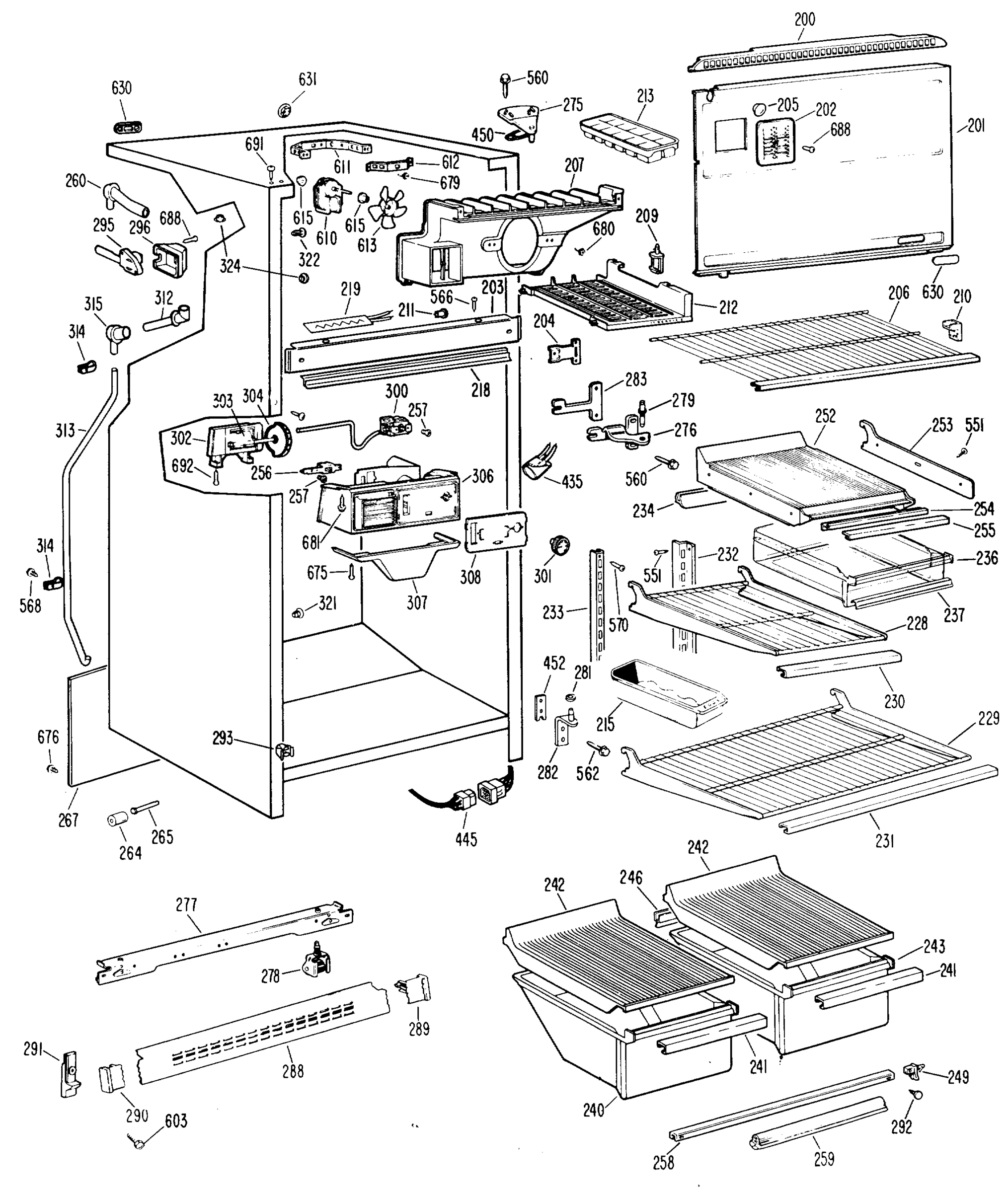

1

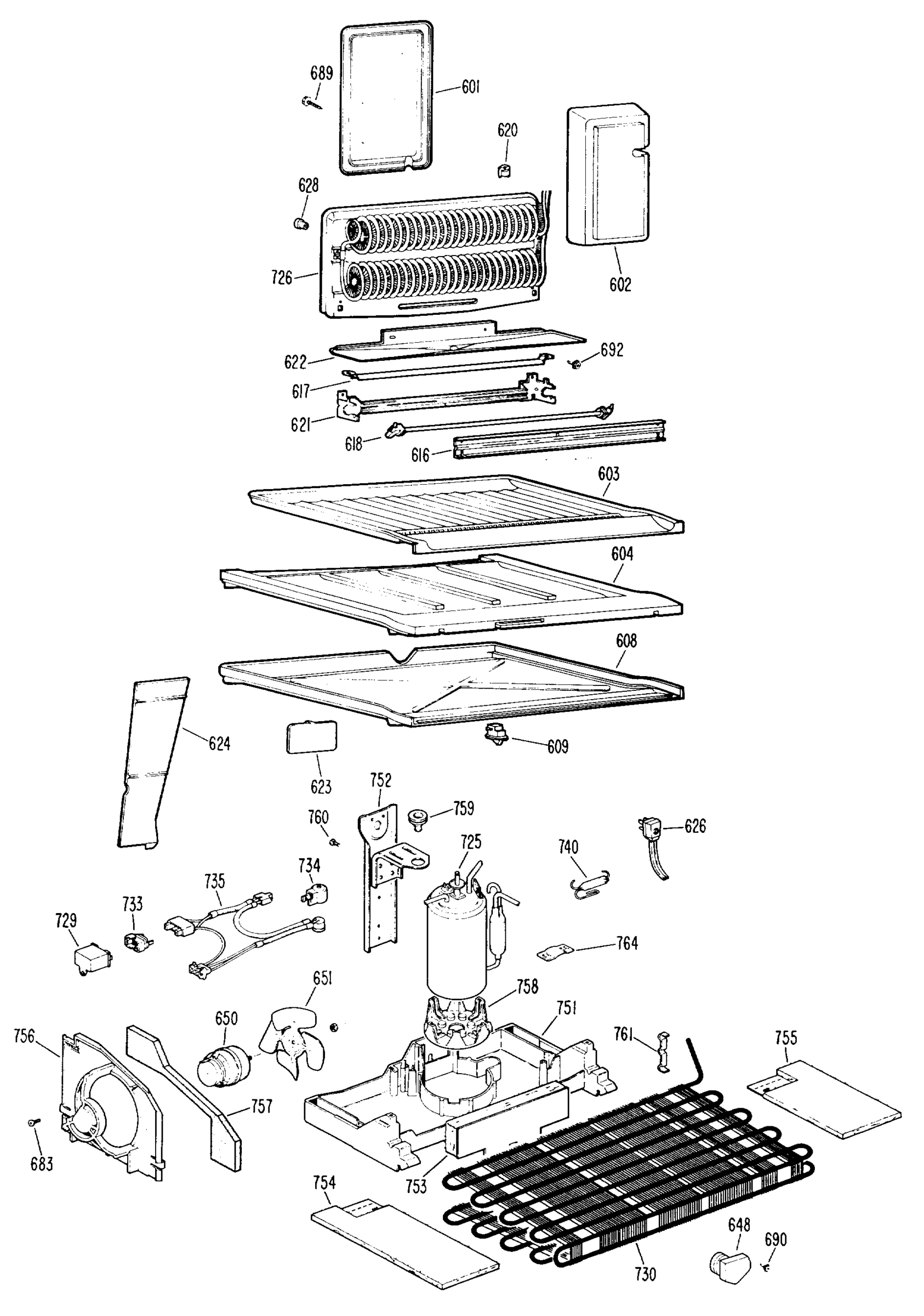

2
Common parts from model GE TBX18BHBR
4
GEN WR77X0442 GEN WR77X0442 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0468 GEN WR12X0468 Contact Us For Availability
7
GEN WR12X0469 GEN WR12X0469 Contact Us For Availability
8
GEN WR02X4924 GEN WR02X4924 Contact Us For Availability
9
GEN WR12X0509 GEN WR12X0509 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
11
SCREW 8-18 B 7/16 GEN WZ04X0352 Contact Us For Availability
13
GEN WR02X4945 GEN WR02X4945 Contact Us For Availability
14
GEN WR02X4946 GEN WR02X4946 Contact Us For Availability
15
GEN WR01X1564 GEN WR01X1564 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
18
GEN WR01X1566 GEN WR01X1566 Contact Us For Availability
19
GEN WR71X1714 GEN WR71X1714 Contact Us For Availability
21
GEN WR02X7232 GEN WR02X7232 Contact Us For Availability
23
GEN WR24X0300 GEN WR24X0300 Contact Us For Availability
24
GEN WR17X0857 GEN WR17X0857 Contact Us For Availability
25
GEN WR17X1209 GEN WR17X1209 Contact Us For Availability
26
GEN WR02X7402 GEN WR02X7402 Contact Us For Availability
27
GEN WR02X7281 GEN WR02X7281 Contact Us For Availability
28
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
101
GEN WR03X0408 GEN WR03X0408 Contact Us For Availability
103
GEN WR77X0443 GEN WR77X0443 Contact Us For Availability
104
GEN WR24X0301 GEN WR24X0301 Contact Us For Availability
105
GEN WR02X7233 GEN WR02X7233 Contact Us For Availability
106
GEN WR22X0303 GEN WR22X0303 Contact Us For Availability
107
GEN WR22X0305 GEN WR22X0305 Contact Us For Availability
108
GEN WR71X1715 GEN WR71X1715 Contact Us For Availability
110
GEN WR02X7231 GEN WR02X7231 Contact Us For Availability
111
GEN WR02X4929 GEN WR02X4929 Contact Us For Availability
112
GEN WR04X0173 GEN WR04X0173 Contact Us For Availability
115
GEN WR17X1530 GEN WR17X1530 Contact Us For Availability
116
GEN WR01X1570 GEN WR01X1570 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
119
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
120
GEN WR01X1592 GEN WR01X1592 Contact Us For Availability
122
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
150
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
200
GRILLE EVAP COVER GEN WR17X1539 Contact Us For Availability
201
COVER EVAP ASM GEN WR17X1535 Contact Us For Availability
202
GEN WR02X7019 GEN WR02X7019 Contact Us For Availability
203
GEN WR14X0316 GEN WR14X0316 Contact Us For Availability
203
GEN WR17X2014 GEN WR17X2014 Contact Us For Availability
204
GEN WR01X1655 GEN WR01X1655 Contact Us For Availability
204
SUPT-MULLION & NUTSTRIP GEN WR02X7014 Contact Us For Availability
205
GEN WR02X7060 GEN WR02X7060 Contact Us For Availability
206
GEN WR71X1505 GEN WR71X1505 Contact Us For Availability
207
PLENUM GEN WR17X1540 Contact Us For Availability
209
GEN WR02X7015 GEN WR02X7015 Contact Us For Availability
210
GEN WR02X7016 GEN WR02X7016 Contact Us For Availability
211
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
212
GEN WR71X1508 GEN WR71X1508 Contact Us For Availability
215
GEN WR32X0701 GEN WR32X0701 Contact Us For Availability
216
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
218
GEN WR14X0328 GEN WR14X0328 Contact Us For Availability
219
GEN WR51X0302 GEN WR51X0302 Contact Us For Availability
228
GEN WR71X1506 GEN WR71X1506 Contact Us For Availability
229
SHELF CANT WIRE ASM GEN WR71X1516 Contact Us For Availability
230
GEN WR38X0961 GEN WR38X0961 Contact Us For Availability
231
GEN WR02X3440 GEN WR02X3440 Contact Us For Availability
231
GEN WR38X0965 GEN WR38X0965 Contact Us For Availability
232
GEN WR72X0076 GEN WR72X0076 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0075 GEN WR72X0075 Contact Us For Availability
234
GEN WR14X0285 GEN WR14X0285 Contact Us For Availability
236
GEN WR32X0870 GEN WR32X0870 Contact Us For Availability
237
GEN WR17X1616 GEN WR17X1616 Contact Us For Availability
240
GEN WR32X0869 GEN WR32X0869 Contact Us For Availability
241
GEN WR17X1564 GEN WR17X1564 Contact Us For Availability
243
GEN WR32X0868 GEN WR32X0868 Contact Us For Availability
246
GASKET PAN COVER REAR GEN WR14X5121 Contact Us For Availability
249
GEN WR02X7249 GEN WR02X7249 Contact Us For Availability
252
GEN WR32X0721 GEN WR32X0721 Contact Us For Availability
253
GEN WR17X1554 GEN WR17X1554 Contact Us For Availability
254
GASKET COVER FRT GEN WR14X0286 Contact Us For Availability
255
GEN WR38X0962 GEN WR38X0962 Contact Us For Availability
256
GEN WR23X0203 GEN WR23X0203 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
258
GEN WR17X2028 GEN WR17X2028 Contact Us For Availability
259
GEN WR14X0294 GEN WR14X0294 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
267
GEN WR82X0264 GEN WR82X0264 Contact Us For Availability
275
HINGE ASSEMBLY TOP GEN WR13X0521 Contact Us For Availability
276
GEN WR13X0561 GEN WR13X0561 Contact Us For Availability
277
RAIL MACH MTG FRT GEN WR17X1491 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR13X0562 GEN WR13X0562 Contact Us For Availability
281
GEN WR01X1114 GEN WR01X1114 Contact Us For Availability
281
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
282
GEN WR13X0553 GEN WR13X0553 Contact Us For Availability
283
SHIM HINGE-.031 THK. GEN WR02X7030 Contact Us For Availability
283
NUTSTRIP HINGE GEN WR02X7143 Contact Us For Availability
283
GEN WR02X7401 GEN WR02X7401 Contact Us For Availability
288
GRILLE O.CASE(BRN) GEN WR74X0178 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
291
GEN WR74X0181 GEN WR74X0181 Contact Us For Availability
292
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
292
PLUG BUTTON GEN WR02X7082 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
295
GEN WR23X0162 GEN WR23X0162 Contact Us For Availability
296
COVER IM RECEPTACLE GEN WR02X4512 Contact Us For Availability
300
SLEEVE VINYL GEN WR02X7010 Contact Us For Availability
300
GEN WR02X7061 GEN WR02X7061 Contact Us For Availability
300
GEN WR09X0401 GEN WR09X0401 Contact Us For Availability
301
GEN WR02X7146 GEN WR02X7146 Contact Us For Availability
302
GEN WR14X0312 GEN WR14X0312 Contact Us For Availability
302
HOUSING NOZZLE GEN WR17X1533 Contact Us For Availability
303
GEN WR02X7008 GEN WR02X7008 Contact Us For Availability
304
GEN WR02X7392 GEN WR02X7392 Contact Us For Availability
306
GEN WR02X7009 GEN WR02X7009 Contact Us For Availability
306
GEN WR17X1534 GEN WR17X1534 Contact Us For Availability
306
INSUL CONTROL HSG GEN WR82X0212 Contact Us For Availability
307
GEN WR17X1538 GEN WR17X1538 Contact Us For Availability
308
GEN WR02X7147 GEN WR02X7147 Contact Us For Availability
312
FUNNEL DRAIN GEN WR02X7006 Contact Us For Availability
313
GEN WR17X2089 GEN WR17X2089 Contact Us For Availability
314
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
315
GROMMET DRAIN GEN WR02X7007 Contact Us For Availability
321
GEN WR02X4532 GEN WR02X4532 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
450
GEN WR02X7151 GEN WR02X7151 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
553
SCR 6-20 B TR 1/4 SS GEN WZ04X0343 Contact Us For Availability
557
SCREW 8-40X1/2 SPEC DRIL GEN WR01X1553 Contact Us For Availability
560
SCR 12-24 AHXW 7/8 SPP GEN WR01X1249 Contact Us For Availability
562
SCR 12-24 TT HXW 1 3/64S GEN WR01X1587 Contact Us For Availability
564
SCR 6-20 AB TR 3/8 SS GEN WZ04X0284 Contact Us For Availability
566
SCR 10-16 BAT HXW 1/2SNS GEN WR01X1487 Contact Us For Availability
568
GEN WZ05X0137 GEN WZ05X0137 Contact Us For Availability
570
GEN WZ04X0331 GEN WZ04X0331 Contact Us For Availability
573
GEN WZ04X0254 GEN WZ04X0254 Contact Us For Availability
601
GEN WR17X1552 GEN WR17X1552 Contact Us For Availability
602
PLUG EVAP ACCESS GEN WR82X0214 Contact Us For Availability
603
LINER BTM FZ GEN WR17X1543 Contact Us For Availability
604
GEN WR02X7072 GEN WR02X7072 Contact Us For Availability
604
GEN WR17X2012 GEN WR17X2012 Contact Us For Availability
608
GEN WR17X2013 GEN WR17X2013 Contact Us For Availability
610
MOTOR EVAP FAN GEN WR60 Contact Us For Availability
616
SHIELD DEF HTR GEN WR17X1536 Contact Us For Availability
617
COVER DEF HTR GEN WR02X7013 Contact Us For Availability
618
HEATER DEF ASM GEN WR51X0249 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
621
BRACKET DEF HTR GEN WR02X7012 Contact Us For Availability
622
TROUGH DRAIN ASM GEN WR17X1547 Contact Us For Availability
623
GEN WR14X0289 GEN WR14X0289 Contact Us For Availability
623
COVER DUCT FF GEN WR17X1549 Contact Us For Availability
624
GEN WR17X1546 GEN WR17X1546 Contact Us For Availability
628
GEN WR02X7026 GEN WR02X7026 Contact Us For Availability
648
GEN WR02X7027 GEN WR02X7027 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
683
SCREW GEN WR01X1716 Contact Us For Availability
683
SCR 8-36 T HXW 3/8 NS GEN WZ05X0164 Contact Us For Availability
684
SCREW GEN WZ04X0417 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
692
SCR 8-18 AB HXW 3/4 S GEN WZ04X0416 Contact Us For Availability
692
SCR 8-18 AS HX 1/2 S PL GEN WZ06X0129 Contact Us For Availability
725
GEN WR87X0206 GEN WR87X0206 Contact Us For Availability
725
REFRIGERANT GEN WR97X0155 Contact Us For Availability
726
GASKET-EVAP PLATE GEN WR14X0313 Contact Us For Availability
726
GEN WR85X0198 GEN WR85X0198 Contact Us For Availability
730
GEN WR84X0103 GEN WR84X0103 Contact Us For Availability
733
GEN WR07X0180 GEN WR07X0180 Contact Us For Availability
734
GEN WR02X7396 GEN WR02X7396 Contact Us For Availability
735
GEN WR08X0087 GEN WR08X0087 Contact Us For Availability
751
GEN WR17X2088 GEN WR17X2088 Contact Us For Availability
752
GEN WR17X2087 GEN WR17X2087 Contact Us For Availability
753
BAFFLE-CENTER GEN WR17X2084 Contact Us For Availability
754
GEN WR17X2085 GEN WR17X2085 Contact Us For Availability
755
GEN WR17X2086 GEN WR17X2086 Contact Us For Availability
756
COND. FAN HSG. GEN WR17X2090 Contact Us For Availability
757
GEN WR02X7393 GEN WR02X7393 Contact Us For Availability
758
GEN WR17X2091 GEN WR17X2091 Contact Us For Availability
759
GEN WR02X7394 GEN WR02X7394 Contact Us For Availability
760
GEN WR01X1717 GEN WR01X1717 Contact Us For Availability
761
GEN WR02X7395 GEN WR02X7395 Contact Us For Availability
764
GEN WR02X7500 GEN WR02X7500 Contact Us For Availability

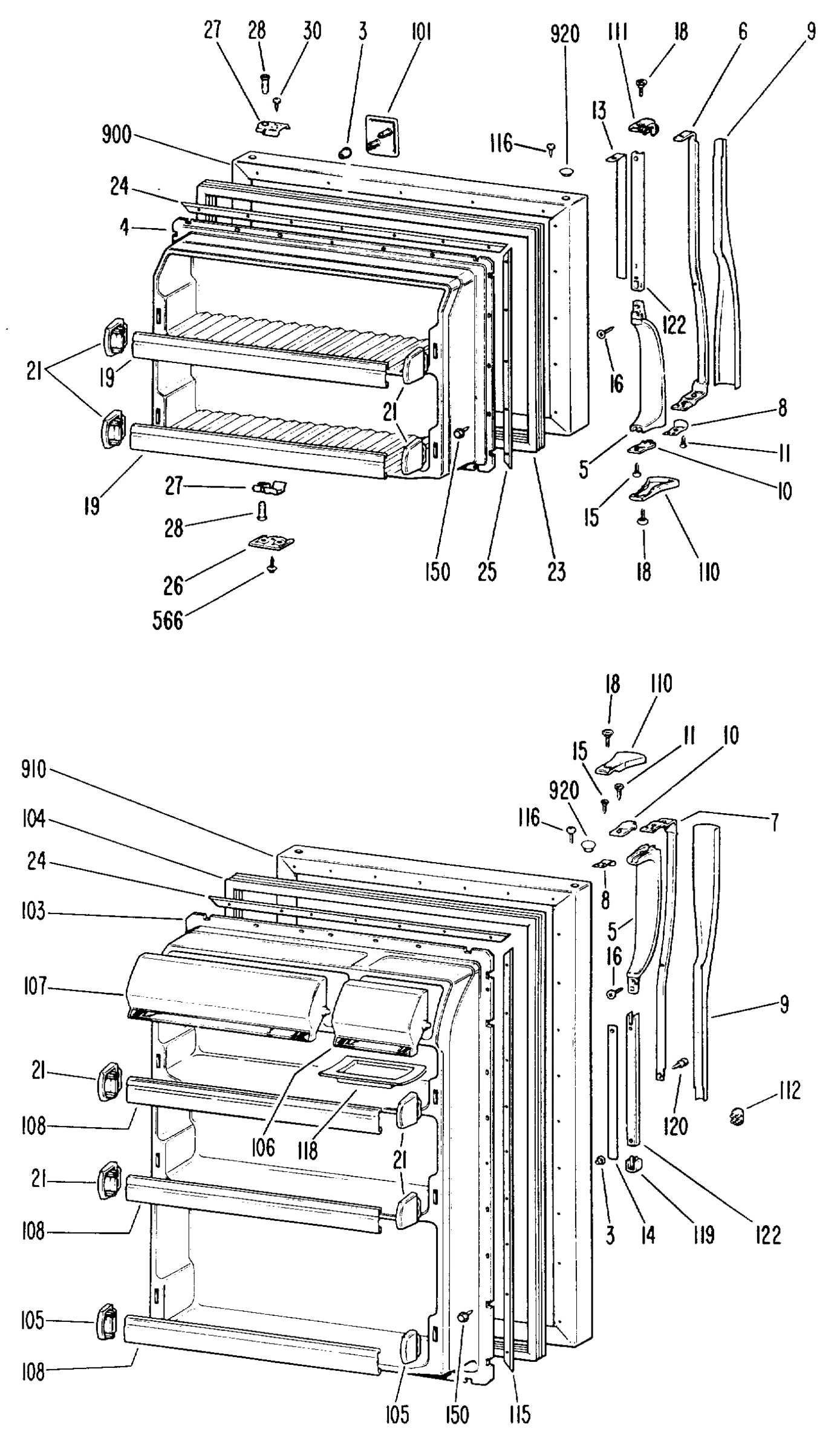

900
GEN WR78X7427 GEN WR78X7427 Contact Us For Availability
901
GEN WR78X7428 GEN WR78X7428 Contact Us For Availability
902
GEN WR78X7429 GEN WR78X7429 Contact Us For Availability
903
GEN WR78X7500 GEN WR78X7500 Contact Us For Availability
904
GEN WR78X7501 GEN WR78X7501 Contact Us For Availability
910
GEN WR78X7430 GEN WR78X7430 Contact Us For Availability
911
GEN WR78X7431 GEN WR78X7431 Contact Us For Availability
912
GEN WR78X7432 GEN WR78X7432 Contact Us For Availability
913
GEN WR78X7502 GEN WR78X7502 Contact Us For Availability
914
GEN WR78X7503 GEN WR78X7503 Contact Us For Availability
920
GEN WR02X4930 GEN WR02X4930 Contact Us For Availability
921
GEN WR02X4931 GEN WR02X4931 Contact Us For Availability
922
GEN WR02X4932 GEN WR02X4932 Contact Us For Availability
923
GEN WR02X4933 GEN WR02X4933 Contact Us For Availability
924
GEN WR02X4934 GEN WR02X4934 Contact Us For Availability
925
GEN WR02X7241 GEN WR02X7241 Contact Us For Availability
926
GEN WR02X7242 GEN WR02X7242 Contact Us For Availability
9999
GEN 31-5011 GEN 31-5011 Contact Us For Availability
9999
GEN 49-6512 GEN 49-6512 Contact Us For Availability
× ![]()
