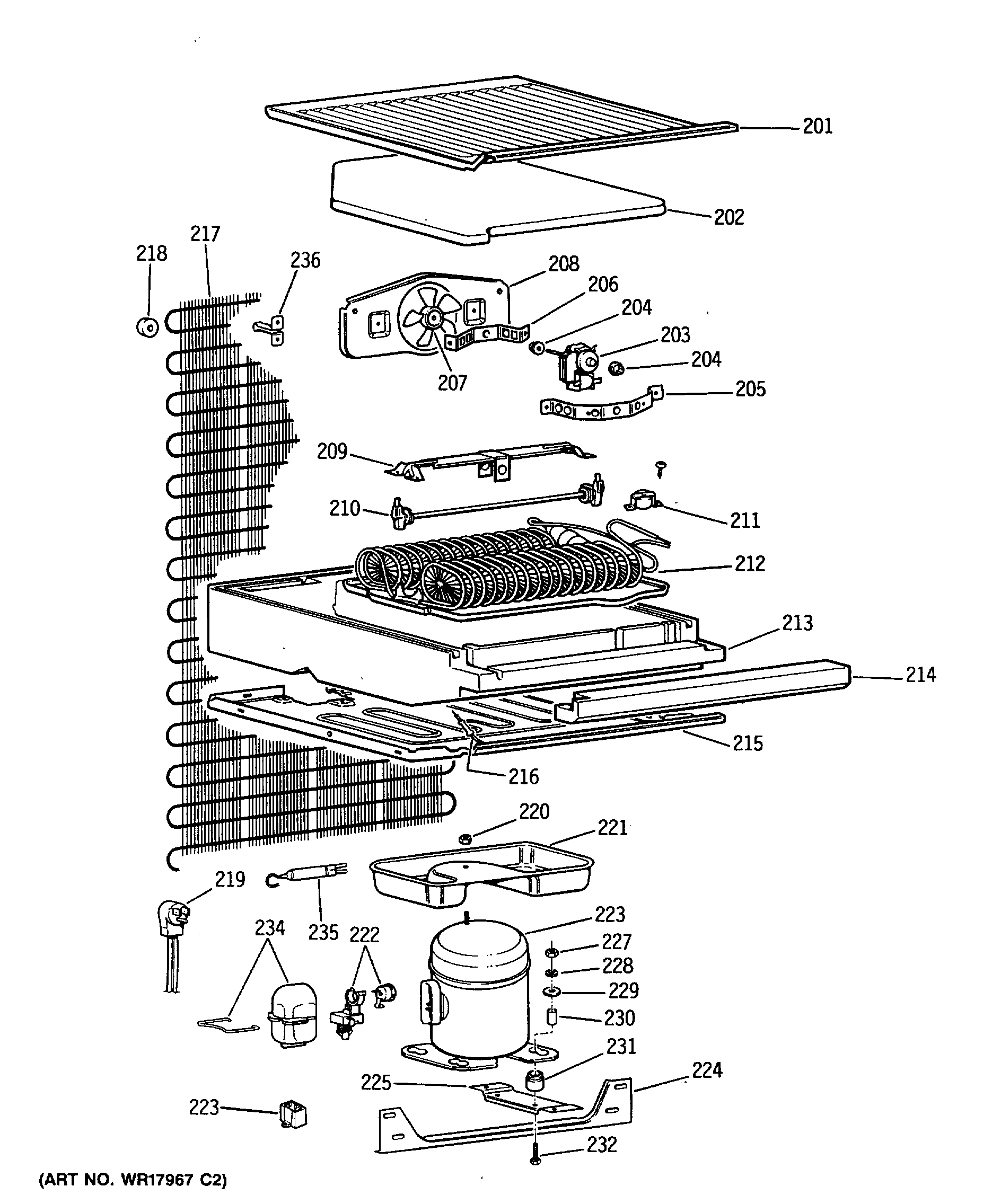

Common parts from model GE TBX12SNSARAD Refrigerator
1
GEN 31-5865 GEN 31-5865 Contact Us For Availability
1
GEN 49-6732 GEN 49-6732 Contact Us For Availability
4
GEN WR01X5542 GEN WR01X5542 Contact Us For Availability
5
GEN WR01X5545 GEN WR01X5545 Contact Us For Availability
5
GEN WR12X0627 GEN WR12X0627 Contact Us For Availability
6
GEN WR01X5541 GEN WR01X5541 Contact Us For Availability
9
GEN WR12X0629 GEN WR12X0629 Contact Us For Availability
13
GEN WR01X5543 GEN WR01X5543 Contact Us For Availability
14
GROMMET HINGE GEN WR02X7386 Contact Us For Availability
15
HINGE RH FZ/LH FF GEN WR02X7387 Contact Us For Availability
15
HINGE LH FZ/RH FF GEN WR02X7388 Contact Us For Availability
16
GEN WR78X8336 GEN WR78X8336 Contact Us For Availability
17
GEN WR24X0553 GEN WR24X0553 Contact Us For Availability
18
SCREW GEN WR01X1768 Contact Us For Availability
18
RETAINER STRIP FZ/FF GEN WR17X6108 Contact Us For Availability
19
GEN WR17X2744 GEN WR17X2744 Contact Us For Availability
20
GEN WR77X0639 GEN WR77X0639 Contact Us For Availability
21
GEN WR02X8939 GEN WR02X8939 Contact Us For Availability
22
GEN WR17X3472 GEN WR17X3472 Contact Us For Availability
23
GEN WR02X8940 GEN WR02X8940 Contact Us For Availability
24
GEN WR17X3474 GEN WR17X3474 Contact Us For Availability
25
HINGE PLATE-LH FZ/RH FF GEN WR13X5179 Contact Us For Availability
25
HINGE PLATE-RH FZ/LH FF GEN WR13X5180 Contact Us For Availability
26
GEN WR01X5544 GEN WR01X5544 Contact Us For Availability
27
GEN WR78X8332 GEN WR78X8332 Contact Us For Availability
29
GEN WR24X0554 GEN WR24X0554 Contact Us For Availability
30
GEN WR17X2745 GEN WR17X2745 Contact Us For Availability
31
GEN WR77X0640 GEN WR77X0640 Contact Us For Availability
32
GEN WR17X3470 GEN WR17X3470 Contact Us For Availability
33
GEN WR17X3471 GEN WR17X3471 Contact Us For Availability
34
GEN WR02X8941 GEN WR02X8941 Contact Us For Availability
35
GEN WR12X0700 GEN WR12X0700 Contact Us For Availability
37
GEN WR22X0490 GEN WR22X0490 Contact Us For Availability
38
GEN WR02X7397 GEN WR02X7397 Contact Us For Availability
49
GEN WR02X8942 GEN WR02X8942 Contact Us For Availability
50
GEN WR13X0667 GEN WR13X0667 Contact Us For Availability
51
SCREW GEN WR01X5546 Contact Us For Availability
52
SHIM GEN WR01X5547 Contact Us For Availability
53
GEN WR38X2023 GEN WR38X2023 Contact Us For Availability
54
GEN WR40X1649 GEN WR40X1649 Contact Us For Availability
55
GEN WR40X1650 GEN WR40X1650 Contact Us For Availability
57
GEN WR71X2434 GEN WR71X2434 Contact Us For Availability
58
GEN WR02X6958 GEN WR02X6958 Contact Us For Availability
63
GEN WR13X0668 GEN WR13X0668 Contact Us For Availability
64
SHIM-HINGE GEN WR01X5572 Contact Us For Availability
65
SCREW GEN WR01X5549 Contact Us For Availability
66
GEN WR71X2435 GEN WR71X2435 Contact Us For Availability
68
GEN WR38X1496 GEN WR38X1496 Contact Us For Availability
69
GEN WR32X1428 GEN WR32X1428 Contact Us For Availability
70
GEN WR02X6959 GEN WR02X6959 Contact Us For Availability
70
GEN WR72X0150 GEN WR72X0150 Contact Us For Availability
70
GEN WR72X0151 GEN WR72X0151 Contact Us For Availability
72
GEN WR01X5550 GEN WR01X5550 Contact Us For Availability
72
GEN WR13X0609 GEN WR13X0609 Contact Us For Availability
73
GEN WR02X8367 GEN WR02X8367 Contact Us For Availability
74
GEN WR01X5552 GEN WR01X5552 Contact Us For Availability
75
GEN WR02X8368 GEN WR02X8368 Contact Us For Availability
82
GEN WR02X6963 GEN WR02X6963 Contact Us For Availability
82
GEN WR17X3473 GEN WR17X3473 Contact Us For Availability
83
SCREW GEN WR01X5553 Contact Us For Availability
83
GEN WR02X4493 GEN WR02X4493 Contact Us For Availability
83
SLEEVE-CONTROL BULB GEN WR02X4509 Contact Us For Availability
83
CONTROL TEMP GEN WR09X0333 Contact Us For Availability
84
GEN WR02X6964 GEN WR02X6964 Contact Us For Availability
85
GEN WR02X6965 GEN WR02X6965 Contact Us For Availability
86
GEN WR02X6966 GEN WR02X6966 Contact Us For Availability
87
GEN WR02X6967 GEN WR02X6967 Contact Us For Availability
88
GEN WR02X6968 GEN WR02X6968 Contact Us For Availability
89
GEN WR17X6118 GEN WR17X6118 Contact Us For Availability
90
LIGHT SOCKET GEN WR02X7399 Contact Us For Availability
91
GEN WR02X6969 GEN WR02X6969 Contact Us For Availability
91
MULLION PLATE GEN WR17X6147 Contact Us For Availability
91
SUPPORT-MULLION GEN WR17X6148 Contact Us For Availability
91
GEN WR82X5040 GEN WR82X5040 Contact Us For Availability
92
GEN WR02X6970 GEN WR02X6970 Contact Us For Availability
93
GEN WR51X5205 GEN WR51X5205 Contact Us For Availability
94
GEN WR17X2746 GEN WR17X2746 Contact Us For Availability
95
GEN WR17X6121 GEN WR17X6121 Contact Us For Availability
96
GEN WR02X6971 GEN WR02X6971 Contact Us For Availability
96
GEN WR40X1645 GEN WR40X1645 Contact Us For Availability
97
GEN WR02X6972 GEN WR02X6972 Contact Us For Availability
97
GEN WR40X1646 GEN WR40X1646 Contact Us For Availability
98
BREAKER STRIP FF TOP GEN WR40X5533 Contact Us For Availability
99
GEN WR40X1647 GEN WR40X1647 Contact Us For Availability
100
SWITCH LIGHT GEN WR23X0196 Contact Us For Availability
101
GEN WR40X1648 GEN WR40X1648 Contact Us For Availability
102
BREAKER STRIP FF BTM GEN WR40X5536 Contact Us For Availability
103
DRAINCUP GEN WR02X6973 Contact Us For Availability
104
GEN WR02X6974 GEN WR02X6974 Contact Us For Availability
105
GEN WR17X6122 GEN WR17X6122 Contact Us For Availability
106
CLAMP HOSE GEN WR02X6975 Contact Us For Availability
107
GEN WR17X6123 GEN WR17X6123 Contact Us For Availability
108
GEN WR03X5132 GEN WR03X5132 Contact Us For Availability
109
GEN WR23X5120 GEN WR23X5120 Contact Us For Availability
109
SCREW TIMER TO BRACKET GEN WZ05X0160 Contact Us For Availability
110
GEN WR01X5030 GEN WR01X5030 Contact Us For Availability
112
GEN WR02X8369 GEN WR02X8369 Contact Us For Availability
113
GEN WR02X7903 GEN WR02X7903 Contact Us For Availability
114
GEN WR02X6987 GEN WR02X6987 Contact Us For Availability
180
SCREW GEN WR01X1767 Contact Us For Availability
201
GEN WR17X2749 GEN WR17X2749 Contact Us For Availability
202
GEN WR17X2750 GEN WR17X2750 Contact Us For Availability
203
GEN WR60X0207 GEN WR60X0207 Contact Us For Availability
204
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
205
GEN WR02X6976 GEN WR02X6976 Contact Us For Availability
206
SCREW GEN WR01X5555 Contact Us For Availability
206
GEN WR02X6977 GEN WR02X6977 Contact Us For Availability
208
GEN WR02X3899 GEN WR02X3899 Contact Us For Availability
208
GEN WR17X6126 GEN WR17X6126 Contact Us For Availability
209
GEN WR02X6978 GEN WR02X6978 Contact Us For Availability
209
GEN WR17X6127 GEN WR17X6127 Contact Us For Availability
210
GEN WR51X5203 GEN WR51X5203 Contact Us For Availability
212
GEN WR85X0190 GEN WR85X0190 Contact Us For Availability
213
GEN WR17X2747 GEN WR17X2747 Contact Us For Availability
214
GEN WR17X2748 GEN WR17X2748 Contact Us For Availability
215
GEN WR17X6130 GEN WR17X6130 Contact Us For Availability
216
GEN WR51X5206 GEN WR51X5206 Contact Us For Availability
217
GEN WR84X0174 GEN WR84X0174 Contact Us For Availability
218
GEN WR02X6979 GEN WR02X6979 Contact Us For Availability
220
GEN WR01X1691 GEN WR01X1691 Contact Us For Availability
221
GEN WR17X2751 GEN WR17X2751 Contact Us For Availability
222
GEN WR02X7533 GEN WR02X7533 Contact Us For Availability
222
GEN WR08X0113 GEN WR08X0113 Contact Us For Availability
224
GEN WR17X6131 GEN WR17X6131 Contact Us For Availability
225
GEN WR02X8366 GEN WR02X8366 Contact Us For Availability
227
GEN WR01X5556 GEN WR01X5556 Contact Us For Availability
228
GEN WR01X5557 GEN WR01X5557 Contact Us For Availability
229
GEN WR01X5558 GEN WR01X5558 Contact Us For Availability
230
GEN WR01X5640 GEN WR01X5640 Contact Us For Availability
231
GEN WR02X7535 GEN WR02X7535 Contact Us For Availability
234
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
234
COVER RELAY GEN WR02X7834 Contact Us For Availability
× ![]()
