Model GE TBK22PAXERAA Refrigerator – Common Parts & Diagrams

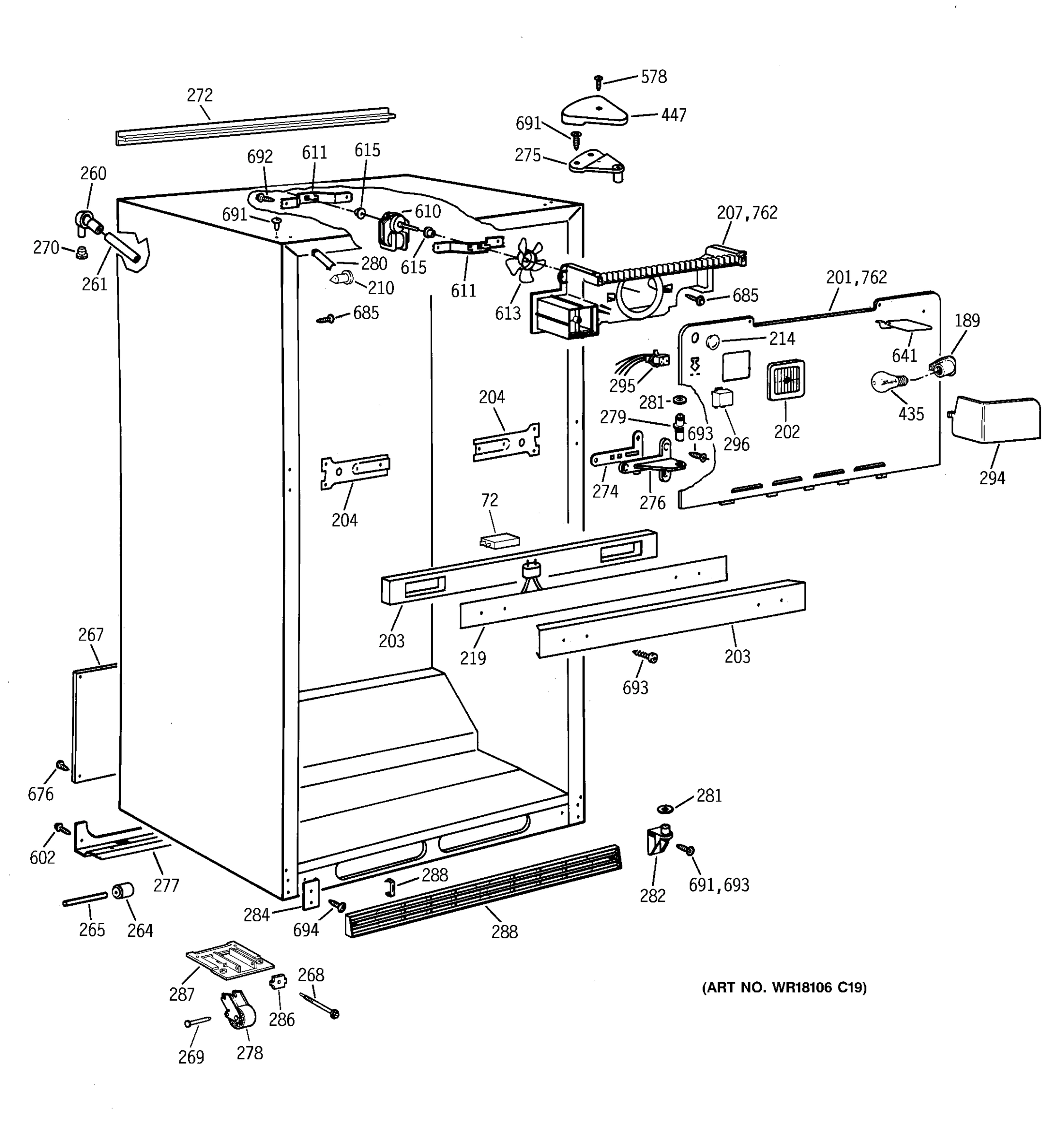

CABINET PARTS

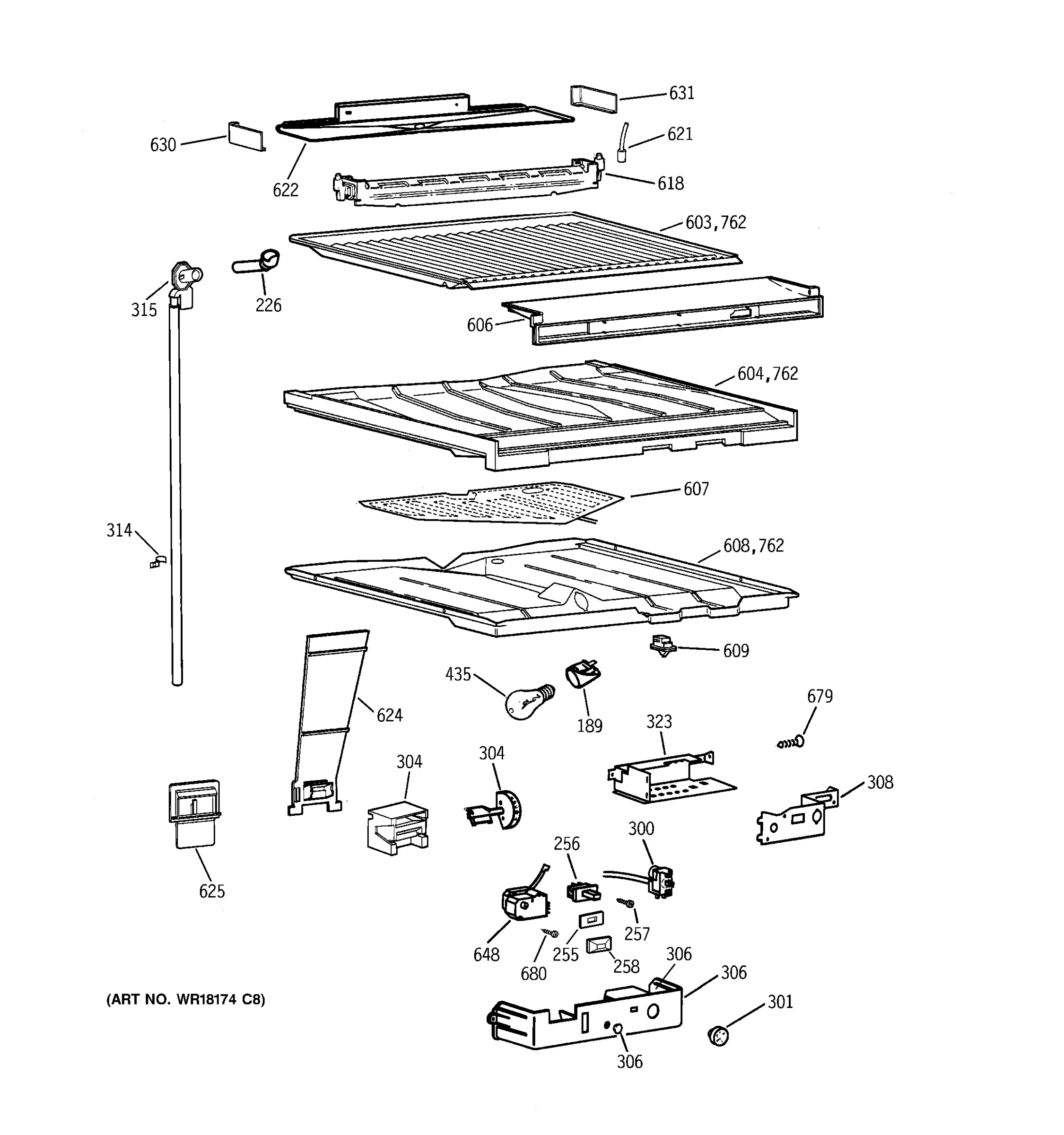

COMPARTMENT SEPARATOR PARTS

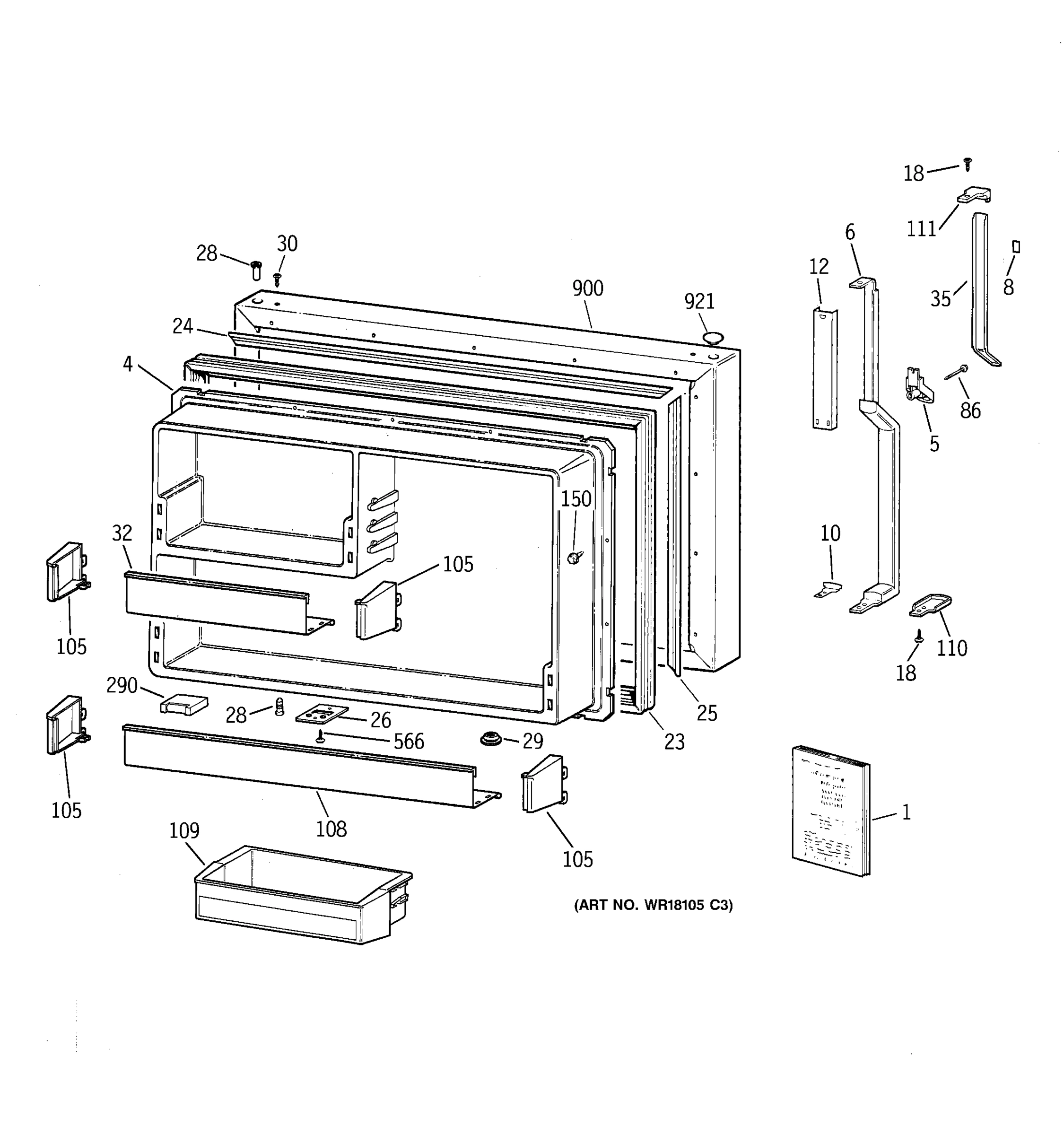

FREEZER DOOR

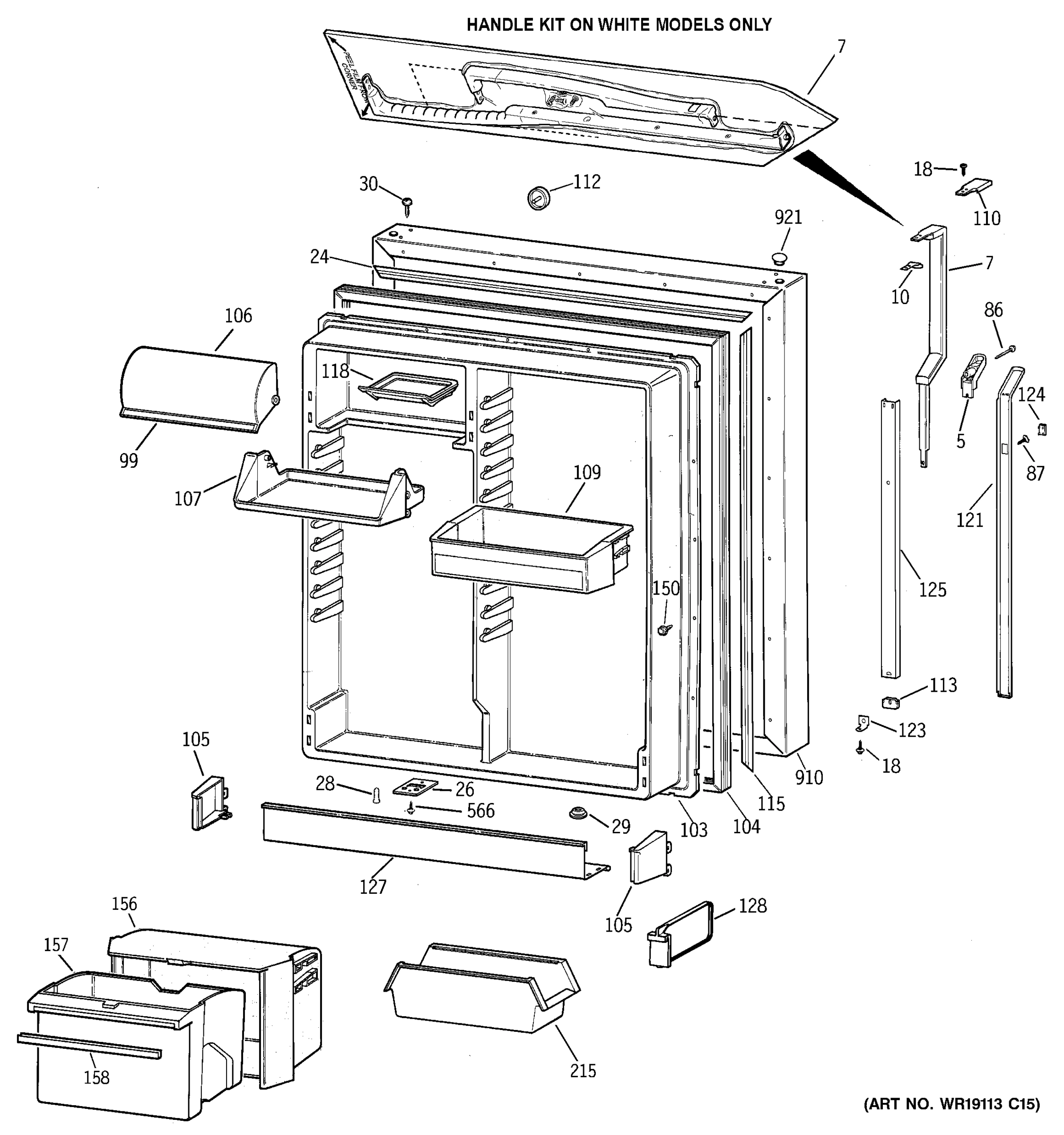

FRESH FOOD DOOR

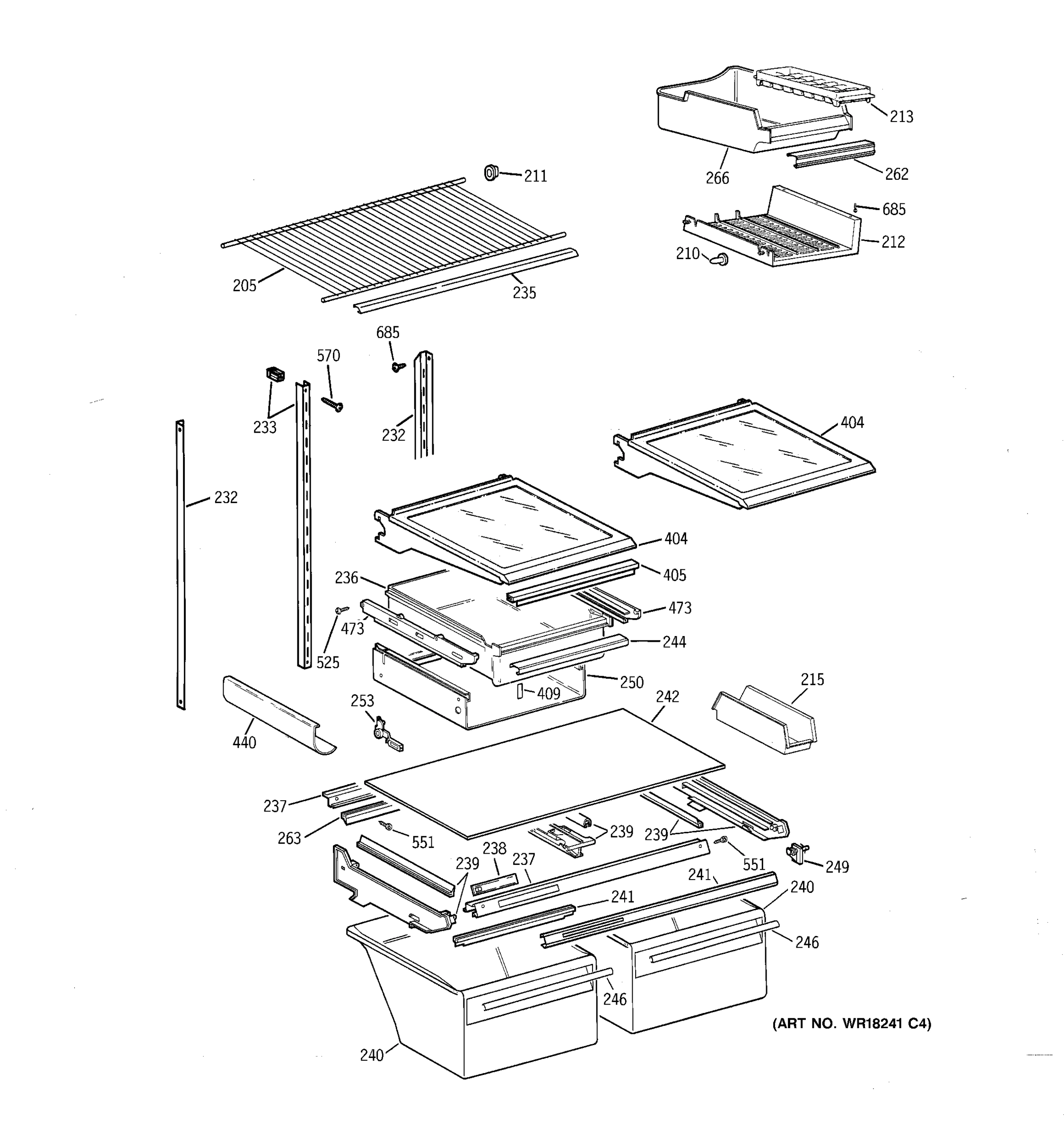

SHELF PARTS

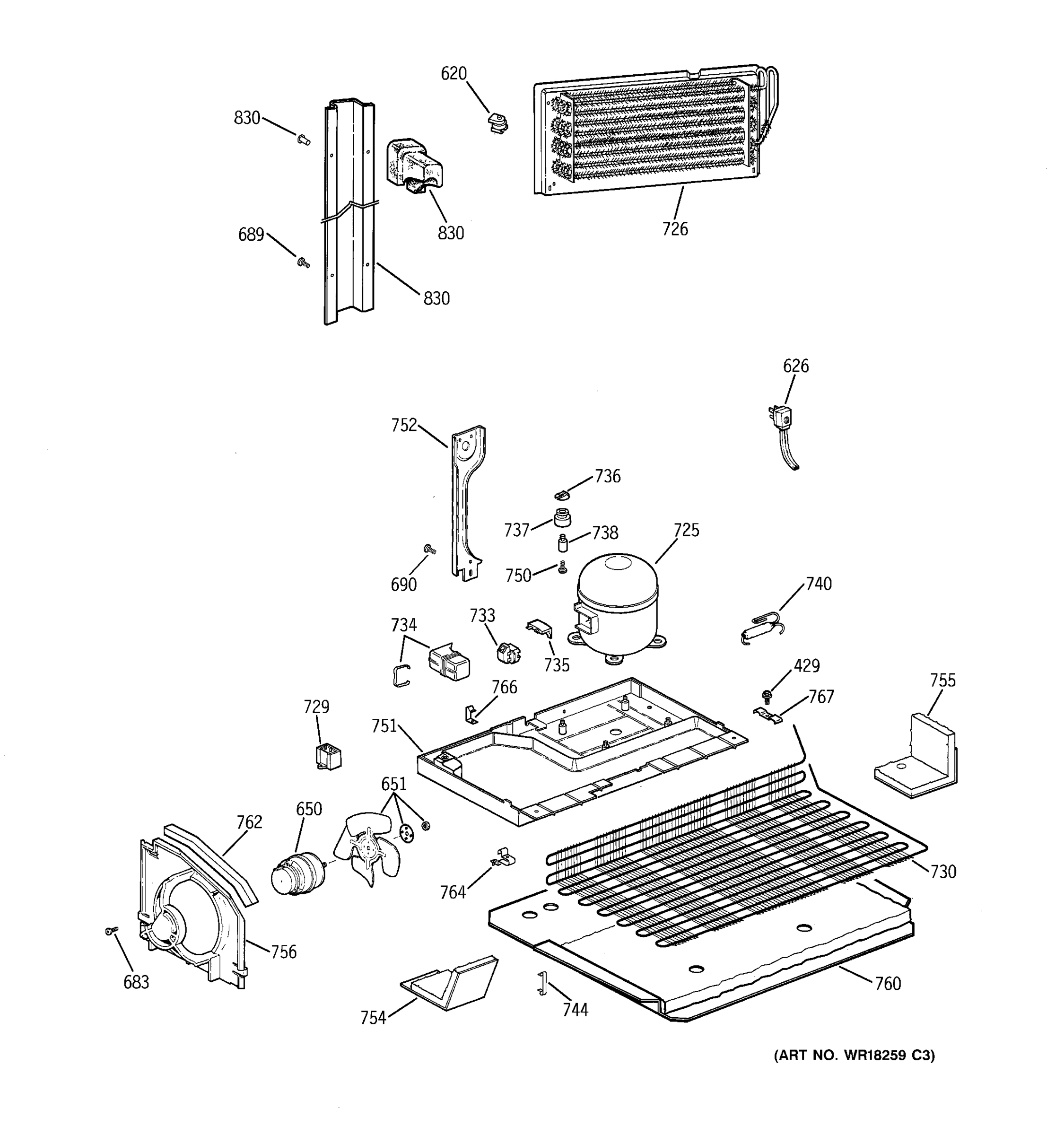

UNIT PARTS
Common parts from model GE TBK22PAXERAA Refrigerator
1
GEN 31-45347 GEN 31-45347 Contact Us For Availability
1
GEN 49-6842 GEN 49-6842 Contact Us For Availability
4
GEN WR77X0612 GEN WR77X0612 Contact Us For Availability
5
GEN WR02X8714 GEN WR02X8714 Contact Us For Availability
6
GEN WR12X0887 GEN WR12X0887 Contact Us For Availability
7
GEN WR12X0889 GEN WR12X0889 Contact Us For Availability
8
GEN WR04X0213 GEN WR04X0213 Contact Us For Availability
10
GEN WR02X8002 GEN WR02X8002 Contact Us For Availability
12
GEN WR12X0917 GEN WR12X0917 Contact Us For Availability
24
GEN WR17X2237 GEN WR17X2237 Contact Us For Availability
25
GEN WR17X2239 GEN WR17X2239 Contact Us For Availability
26
GEN WR02X9016 GEN WR02X9016 Contact Us For Availability
28
GEN WR02X7627 GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8088 GEN WR02X8088 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
32
GEN WR71X2580 GEN WR71X2580 Contact Us For Availability
35
GEN WR12X0904 GEN WR12X0904 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
99
TRIM BRIGHT GEN WR38X2253 Contact Us For Availability
103
GEN WR77X0611 GEN WR77X0611 Contact Us For Availability
105
CAP SHELF FRONT GEN WR02X8699 Contact Us For Availability
105
CAP SHELF FRONT GEN WR02X8700 Contact Us For Availability
106
DOOR DAIRY GEN WR22X0512 Contact Us For Availability
107
GEN WR22X0472 GEN WR22X0472 Contact Us For Availability
108
GEN WR71X2581 GEN WR71X2581 Contact Us For Availability
109
GEN WR71X2583 GEN WR71X2583 Contact Us For Availability
110
GEN WR02X8210 GEN WR02X8210 Contact Us For Availability
111
GEN WR02X7979 GEN WR02X7979 Contact Us For Availability
112
GEN WR02X8697 GEN WR02X8697 Contact Us For Availability
113
GEN WR02X7980 GEN WR02X7980 Contact Us For Availability
115
GEN WR17X2238 GEN WR17X2238 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0901 GEN WR12X0901 Contact Us For Availability
123
GEN WR02X8009 GEN WR02X8009 Contact Us For Availability
124
GEN WR12X0722 GEN WR12X0722 Contact Us For Availability
125
GEN WR12X0916 GEN WR12X0916 Contact Us For Availability
127
GEN WR71X2582 GEN WR71X2582 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
156
GEN WR32X1327 GEN WR32X1327 Contact Us For Availability
157
GEN WR32X1140 GEN WR32X1140 Contact Us For Availability
158
TRIM BRIGHT GEN WR38X2254 Contact Us For Availability
205
GEN WR71X7645 GEN WR71X7645 Contact Us For Availability
207
GEN WR17X4052 GEN WR17X4052 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
215
BUCKET UTILITY GEN WR32X1560 Contact Us For Availability
219
GEN WR51X0456 GEN WR51X0456 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
232
TRACK CANT SHELF FF GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR38X2100 GEN WR38X2100 Contact Us For Availability
236
GEN WR32X1022 GEN WR32X1022 Contact Us For Availability
237
GEN WR17X3161 GEN WR17X3161 Contact Us For Availability
237
GEN WR17X3288 GEN WR17X3288 Contact Us For Availability
238
GEN WR17X3905 GEN WR17X3905 Contact Us For Availability
239
GEN WR17X2769 GEN WR17X2769 Contact Us For Availability
239
GEN WR17X2770 GEN WR17X2770 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
239
GEN WR14X0366 GEN WR14X0366 Contact Us For Availability
239
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
240
GEN WR32X1141 GEN WR32X1141 Contact Us For Availability
241
GEN WR14X0358 GEN WR14X0358 Contact Us For Availability
241
GEN WR17X4182 GEN WR17X4182 Contact Us For Availability
242
SHELF CANT GLASS GEN WR32X1480 Contact Us For Availability
244
GEN WR17X4181 GEN WR17X4181 Contact Us For Availability
246
GEN WR38X2106 GEN WR38X2106 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
250
GEN WR17X2843 GEN WR17X2843 Contact Us For Availability
253
GEN WR02X8446 GEN WR02X8446 Contact Us For Availability
255
GEN WR02X9152 GEN WR02X9152 Contact Us For Availability
256
GEN WR23X0408 GEN WR23X0408 Contact Us For Availability
258
GEN WR02X9369 GEN WR02X9369 Contact Us For Availability
260
GEN WR02X9001 GEN WR02X9001 Contact Us For Availability
261
GEN WR02X9015 GEN WR02X9015 Contact Us For Availability
262
GEN WR17X4176 GEN WR17X4176 Contact Us For Availability
263
GEN WR14X0398 GEN WR14X0398 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0367 GEN WR82X0367 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
272
GUARD ASM WH GEN WR17X3702 Contact Us For Availability
274
GEN WR13X0717 GEN WR13X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM GEN WR13X0626 Contact Us For Availability
276
HINGE CENTER ASM GEN WR13X0712 Contact Us For Availability
277
GEN WR17X3744 GEN WR17X3744 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0716 GEN WR13X0716 Contact Us For Availability
280
CAP CORNER O.C. AD GEN WR02X7657 Contact Us For Availability
282
GEN WR13X0649 GEN WR13X0649 Contact Us For Availability
284
GEN WR02X9366 GEN WR02X9366 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0222 GEN WR74X0222 Contact Us For Availability
290
GEN WR02X8376 GEN WR02X8376 Contact Us For Availability
294
GEN WR02X9010 GEN WR02X9010 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X9011 GEN WR02X9011 Contact Us For Availability
300
GEN WR09X0562 GEN WR09X0562 Contact Us For Availability
301
GEN WR02X9151 GEN WR02X9151 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X9441 GEN WR02X9441 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR17X4178 GEN WR17X4178 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
404
GEN WR32X1483 GEN WR32X1483 Contact Us For Availability
405
GEN WR14X0471 GEN WR14X0471 Contact Us For Availability
409
GEN WR02X9440 GEN WR02X9440 Contact Us For Availability
429
SCR 1/4-14 B HXW3/8 S NS GEN WH02X0795 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
447
COVER HINGE GEN WR02X8479 Contact Us For Availability
473
GEN WR72X0124 GEN WR72X0124 Contact Us For Availability
473
SLIDE M PAN LH WH GEN WR72X0165 Contact Us For Availability
525
SCREW GEN WR01X1763 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2234 GEN WR17X2234 Contact Us For Availability
604
INSUL. DIVIDER GEN WR17X3860 Contact Us For Availability
606
GEN WR17X2401 GEN WR17X2401 Contact Us For Availability
607
GEN WR51X0455 GEN WR51X0455 Contact Us For Availability
608
GEN WR17X2796 GEN WR17X2796 Contact Us For Availability
610
GEN WR60X0260 GEN WR60X0260 Contact Us For Availability
611
GEN WR02X9225 GEN WR02X9225 Contact Us For Availability
613
GEN WR60X0258 GEN WR60X0258 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
618
GEN WR51X0440 GEN WR51X0440 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
622
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR17X3910 GEN WR17X3910 Contact Us For Availability
625
GEN WR17X4056 GEN WR17X4056 Contact Us For Availability
625
GEN WR17X4057 GEN WR17X4057 Contact Us For Availability
626
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
626
GEN WR23X0413 GEN WR23X0413 Contact Us For Availability
630
GEN WR17X3694 GEN WR17X3694 Contact Us For Availability
631
GEN WR17X3695 GEN WR17X3695 Contact Us For Availability
641
GEN WR02X8816 GEN WR02X8816 Contact Us For Availability
648
GEN WR09X0572 GEN WR09X0572 Contact Us For Availability
651
WASHER CUSHION GEN WR01X1714 Contact Us For Availability
651
NUT 1/4-20 M HX SZ GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
679
SCR 8-18 B HXW 7/16 S GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
GEN WR01X2139 GEN WR01X2139 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCR 12-24TT OHT .900 SCA GEN WR01X2137 Contact Us For Availability
694
GEN WR01X2119 GEN WR01X2119 Contact Us For Availability
725
COMPRESSOR REPL KIT GEN WR87X0469 Contact Us For Availability
726
GEN WR85X0310 GEN WR85X0310 Contact Us For Availability
729
GEN WR62X0085 GEN WR62X0085 Contact Us For Availability
730
GEN WR84X0202 GEN WR84X0202 Contact Us For Availability
733
GEN WR07X0241 GEN WR07X0241 Contact Us For Availability
734
GEN WR02X9291 GEN WR02X9291 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X3858 GEN WR17X3858 Contact Us For Availability
754
GEN WR17X4055 GEN WR17X4055 Contact Us For Availability
755
GEN WR17X2227 GEN WR17X2227 Contact Us For Availability
756
GEN WR17X3760 GEN WR17X3760 Contact Us For Availability
760
GEN WR82X0368 GEN WR82X0368 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
900
GEN WR78X8739 GEN WR78X8739 Contact Us For Availability
910
GEN WR78X8738 GEN WR78X8738 Contact Us For Availability
921
PLUG BUTTON AD GEN WR02X7625 Contact Us For Availability
× ![]()
