Model GE TBG24JADARWW Refrigerator – Common Parts & Diagrams
CABINET
FREEZER DOOR

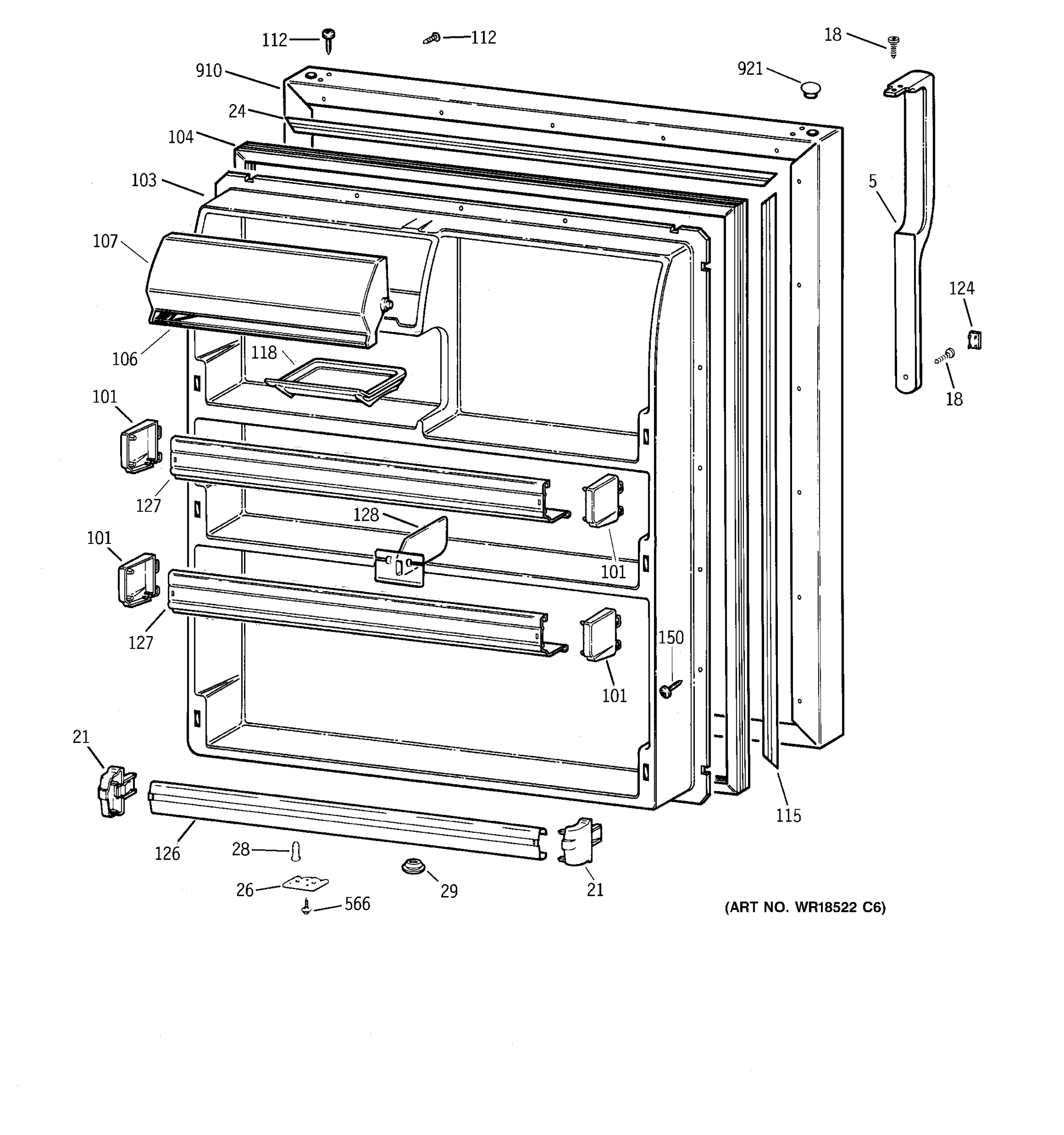

FRESH FOOD DOOR

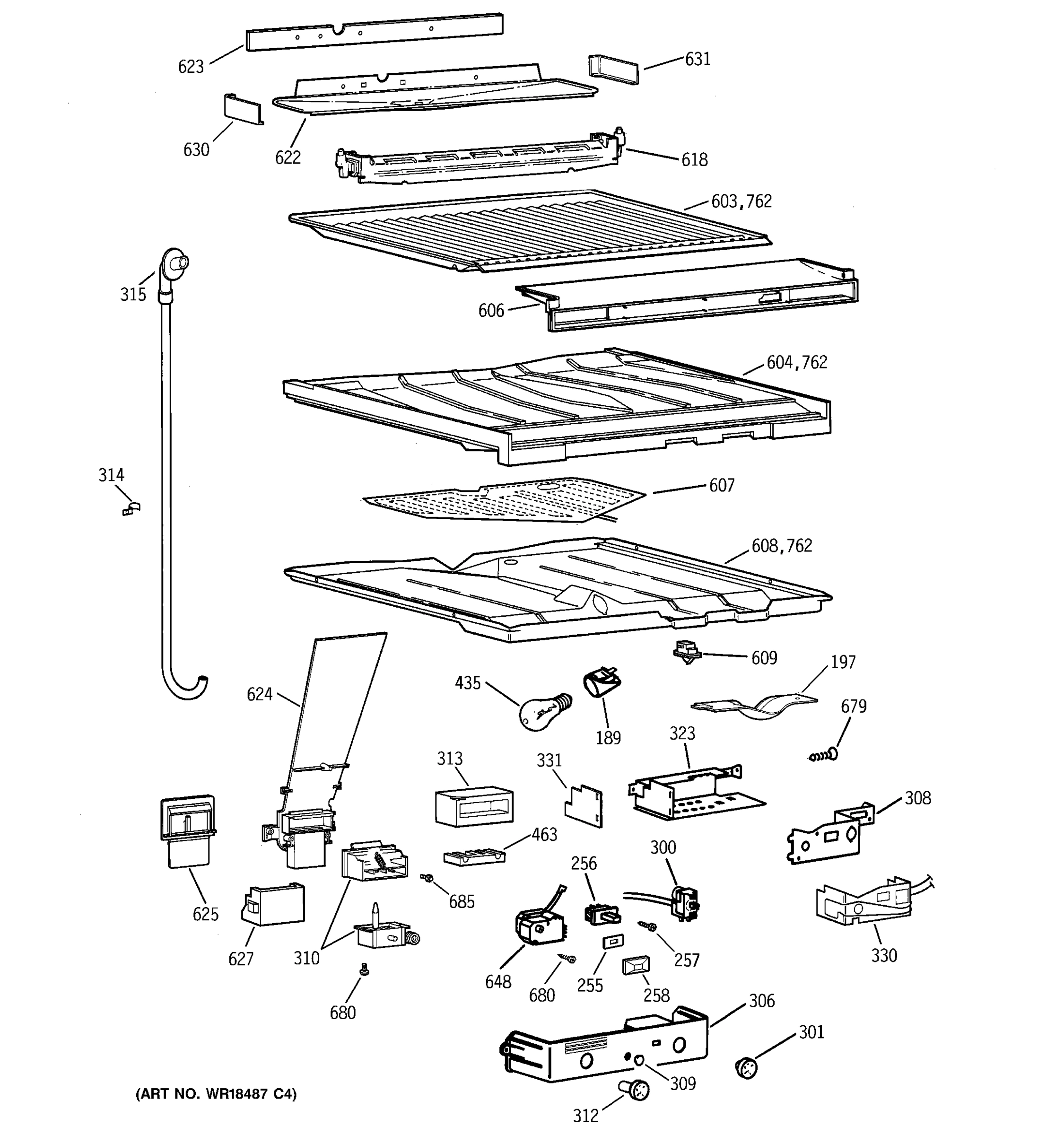

SEPARATOR COMPARTMENT PARTS

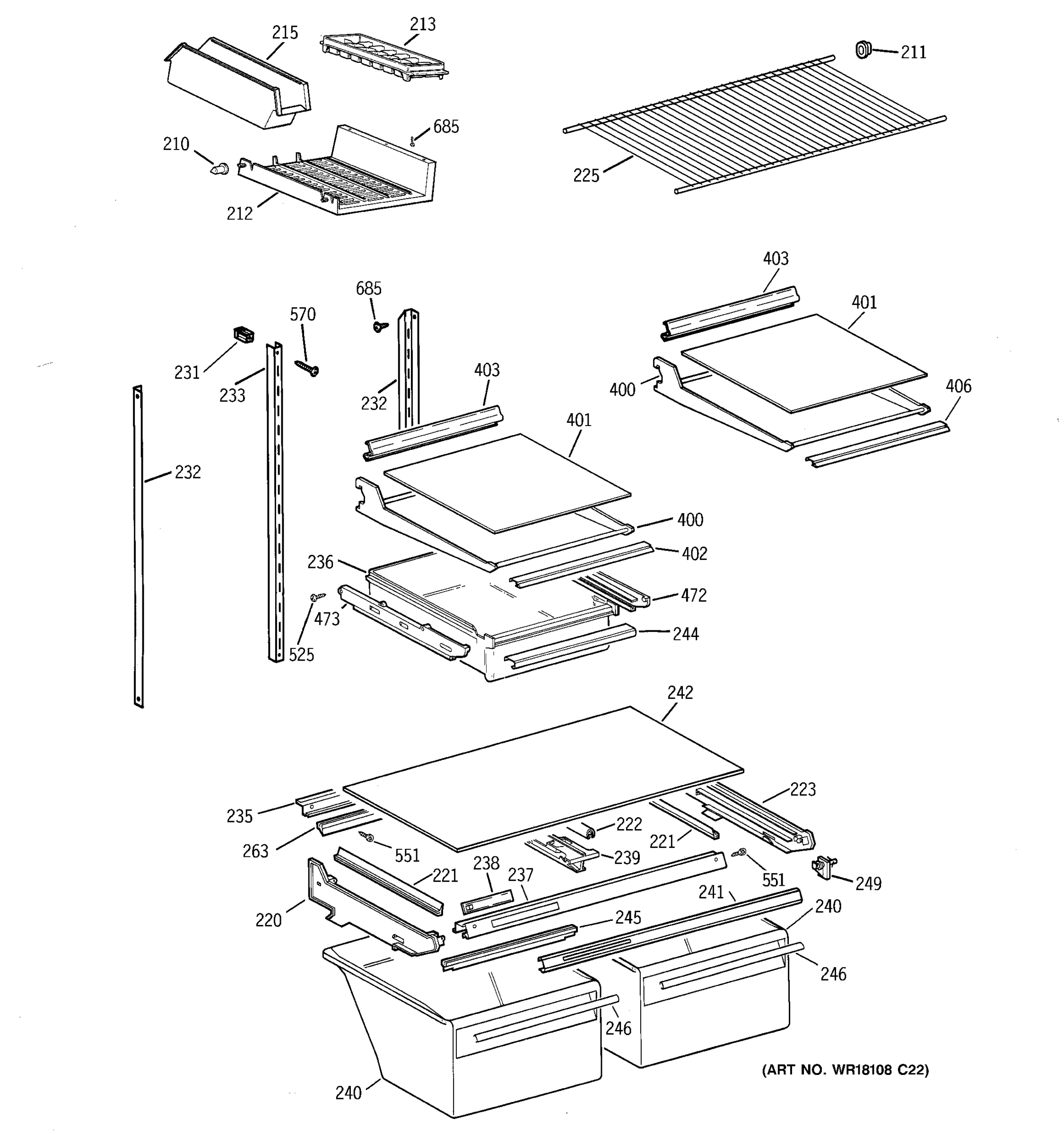

SHELF PARTS

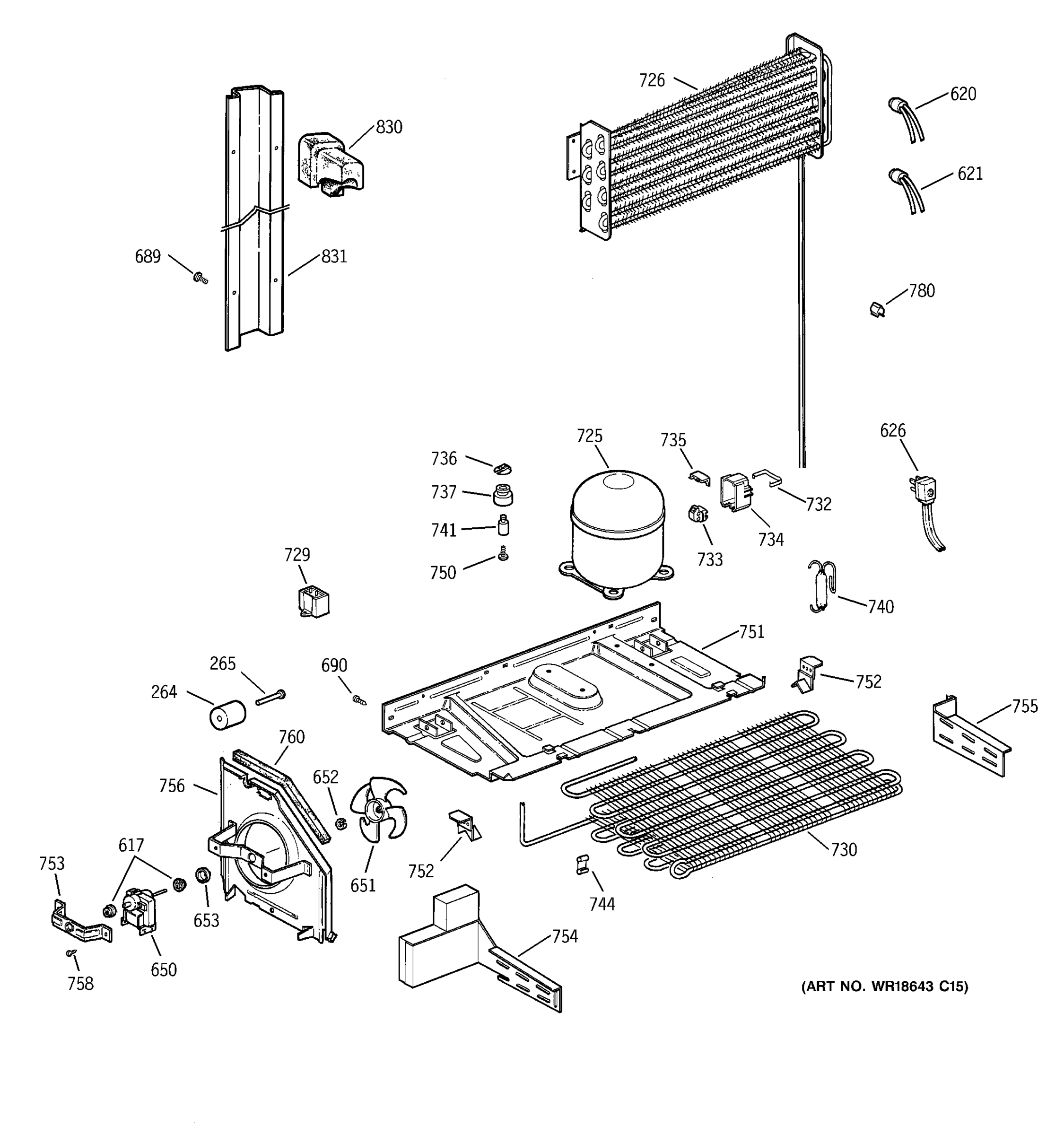

UNIT PARTS
Common parts from model GE TBG24JADARWW Refrigerator
1
GEN 31-45921 GEN 31-45921 Contact Us For Availability
1
GEN 49-60034 GEN 49-60034 Contact Us For Availability
2
GEN WR12X10147 GEN WR12X10147 Contact Us For Availability
4
GEN WR77X0608 GEN WR77X0608 Contact Us For Availability
5
GEN WR12X10128 GEN WR12X10128 Contact Us For Availability
6
GEN WR12X10148 GEN WR12X10148 Contact Us For Availability
23
GASKET DOOR FZ WH GEN WR24X0438 Contact Us For Availability
24
GEN WR17X2136 GEN WR17X2136 Contact Us For Availability
25
GEN WR17X2135 GEN WR17X2135 Contact Us For Availability
26
GEN WR02X9009 GEN WR02X9009 Contact Us For Availability
28
GEN WR02X10111 GEN WR02X10111 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
32
GEN WR71X10105 GEN WR71X10105 Contact Us For Availability
35
LENS NAMEPLATE GEN WR04X10028 Contact Us For Availability
101
GEN WR02X9295 GEN WR02X9295 Contact Us For Availability
101
GEN WR02X9296 GEN WR02X9296 Contact Us For Availability
103
GEN WR77X0607 GEN WR77X0607 Contact Us For Availability
106
GEN WR38X10120 GEN WR38X10120 Contact Us For Availability
107
GEN WR22X0521 GEN WR22X0521 Contact Us For Availability
115
GEN WR17X2137 GEN WR17X2137 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
120
GEN WR04X10006 GEN WR04X10006 Contact Us For Availability
124
GEN WR12X10129 GEN WR12X10129 Contact Us For Availability
127
GEN WR71X10107 GEN WR71X10107 Contact Us For Availability
128
GEN WR02X9297 GEN WR02X9297 Contact Us For Availability
197
GEN WR02X9013 GEN WR02X9013 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
215
GEN WR32X1560 GEN WR32X1560 Contact Us For Availability
220
SLIDE VEG PAN LH GEN WR17X2770 Contact Us For Availability
221
GEN WR14X0384 GEN WR14X0384 Contact Us For Availability
222
GASKET SLIDE CTR VP GEN WR14X0366 Contact Us For Availability
223
SLIDE VEG PAN RH GEN WR17X2769 Contact Us For Availability
225
GEN WR71X7646 GEN WR71X7646 Contact Us For Availability
231
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
232
TRACK SHELF FF R/L GEN WR72X0096 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR17X3168 GEN WR17X3168 Contact Us For Availability
236
GEN WR32X1019 GEN WR32X1019 Contact Us For Availability
237
GEN WR17X2766 GEN WR17X2766 Contact Us For Availability
238
GEN WR17X10234 GEN WR17X10234 Contact Us For Availability
239
GEN WR17X2768 GEN WR17X2768 Contact Us For Availability
240
GEN WR32X1128 GEN WR32X1128 Contact Us For Availability
241
GEN WR17X10211 GEN WR17X10211 Contact Us For Availability
242
GEN WR32X10039 GEN WR32X10039 Contact Us For Availability
244
GEN WR38X10119 GEN WR38X10119 Contact Us For Availability
245
GEN WR14X0354 GEN WR14X0354 Contact Us For Availability
246
GEN WR38X10100 GEN WR38X10100 Contact Us For Availability
249
GEN WR02X8695 GEN WR02X8695 Contact Us For Availability
255
GEN WR02X9152 GEN WR02X9152 Contact Us For Availability
256
GEN WR23X0408 GEN WR23X0408 Contact Us For Availability
258
GEN WR02X9369 GEN WR02X9369 Contact Us For Availability
263
GEN WR14X0397 GEN WR14X0397 Contact Us For Availability
265
GEN WR01X10039 GEN WR01X10039 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
272
GEN WR17X3705 GEN WR17X3705 Contact Us For Availability
274
GEN WR13X0717 GEN WR13X0717 Contact Us For Availability
275
HINGE TOP PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0716 GEN WR13X0716 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
284
GEN WR02X9367 GEN WR02X9367 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR74X0272 GEN WR74X0272 Contact Us For Availability
289
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X9011 GEN WR02X9011 Contact Us For Availability
300
GEN WR09X10004 GEN WR09X10004 Contact Us For Availability
300
GEN WR02X10031 GEN WR02X10031 Contact Us For Availability
301
GEN WR02X10030 GEN WR02X10030 Contact Us For Availability
306
GEN WR17X10632 GEN WR17X10632 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
309
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
310
GEN WR09X10023 GEN WR09X10023 Contact Us For Availability
312
GEN WR02X10029 GEN WR02X10029 Contact Us For Availability
313
GEN WR82X10014 GEN WR82X10014 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GEN WR02X10134 GEN WR02X10134 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
330
GEN WR51X10037 GEN WR51X10037 Contact Us For Availability
331
GEN WR02X10463 GEN WR02X10463 Contact Us For Availability
400
GEN WR71X2172 GEN WR71X2172 Contact Us For Availability
401
GEN WR32X10038 GEN WR32X10038 Contact Us For Availability
402
GEN WR38X10105 GEN WR38X10105 Contact Us For Availability
403
GEN WR38X10104 GEN WR38X10104 Contact Us For Availability
406
GEN WR38X10103 GEN WR38X10103 Contact Us For Availability
463
GEN WR82X0338 GEN WR82X0338 Contact Us For Availability
472
GEN WR72X0286 GEN WR72X0286 Contact Us For Availability
473
GEN WR72X0288 GEN WR72X0288 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
603
GEN WR17X2138 GEN WR17X2138 Contact Us For Availability
604
INSUL DIVIDER GEN WR17X2764 Contact Us For Availability
606
GEN WR17X2380 GEN WR17X2380 Contact Us For Availability
607
GEN WR51X10008 GEN WR51X10008 Contact Us For Availability
608
GEN WR17X10030 GEN WR17X10030 Contact Us For Availability
610
GEN WR60X0206 GEN WR60X0206 Contact Us For Availability
611
GEN WR02X9225 GEN WR02X9225 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
618
GEN WR51X0477 GEN WR51X0477 Contact Us For Availability
621
GEN WR50X10011 GEN WR50X10011 Contact Us For Availability
622
GEN WR17X2160 GEN WR17X2160 Contact Us For Availability
623
GEN WR14X0348 GEN WR14X0348 Contact Us For Availability
624
GEN WR14X10002 GEN WR14X10002 Contact Us For Availability
624
GEN WR17X10633 GEN WR17X10633 Contact Us For Availability
625
GEN WR17X4059 GEN WR17X4059 Contact Us For Availability
626
GEN WR23X10076 GEN WR23X10076 Contact Us For Availability
627
GEN WR82X10070 GEN WR82X10070 Contact Us For Availability
630
GEN WR17X3694 GEN WR17X3694 Contact Us For Availability
631
GEN WR17X3695 GEN WR17X3695 Contact Us For Availability
648
GEN WR09X10003 GEN WR09X10003 Contact Us For Availability
650
GEN WR60X10019 GEN WR60X10019 Contact Us For Availability
651
GEN WR60X10034 GEN WR60X10034 Contact Us For Availability
652
RING COMPRESSION GEN WR02X10323 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
680
GEN WR01X10123 GEN WR01X10123 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCR 12-24 WH GEN WR01X2136 Contact Us For Availability
694
GEN WR01X2120 GEN WR01X2120 Contact Us For Availability
695
GEN WR01X10060 GEN WR01X10060 Contact Us For Availability
696
GEN WR02X10170 GEN WR02X10170 Contact Us For Availability
697
GEN WR01X10061 GEN WR01X10061 Contact Us For Availability
725
COMPRESSOR & TUBES ASM GEN WR87X0506 Contact Us For Availability
726
GEN WR85X10006 GEN WR85X10006 Contact Us For Availability
730
GEN WR84X10011 GEN WR84X10011 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0263 GEN WR07X0263 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0198 GEN WR08X0198 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
744
GEN WR02X9209 GEN WR02X9209 Contact Us For Availability
751
GEN WR17X10634 GEN WR17X10634 Contact Us For Availability
752
GEN WR17X10317 GEN WR17X10317 Contact Us For Availability
753
BRACKET EVAP FAN GEN WR02X10321 Contact Us For Availability
754
GEN WR17X10316 GEN WR17X10316 Contact Us For Availability
755
GEN WR17X10319 GEN WR17X10319 Contact Us For Availability
756
GEN WR17X10425 GEN WR17X10425 Contact Us For Availability
760
GEN WR14X10008 GEN WR14X10008 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
780
GEN WR02X9501 GEN WR02X9501 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
831
GEN WR17X10543 GEN WR17X10543 Contact Us For Availability
900
GEN WR78X8753 GEN WR78X8753 Contact Us For Availability
910
GEN WR78X8752 GEN WR78X8752 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
