Model GE TBF21BAB Refrigerator – Common Parts & Diagrams
Common parts from model GE TBF21BAB Refrigerator

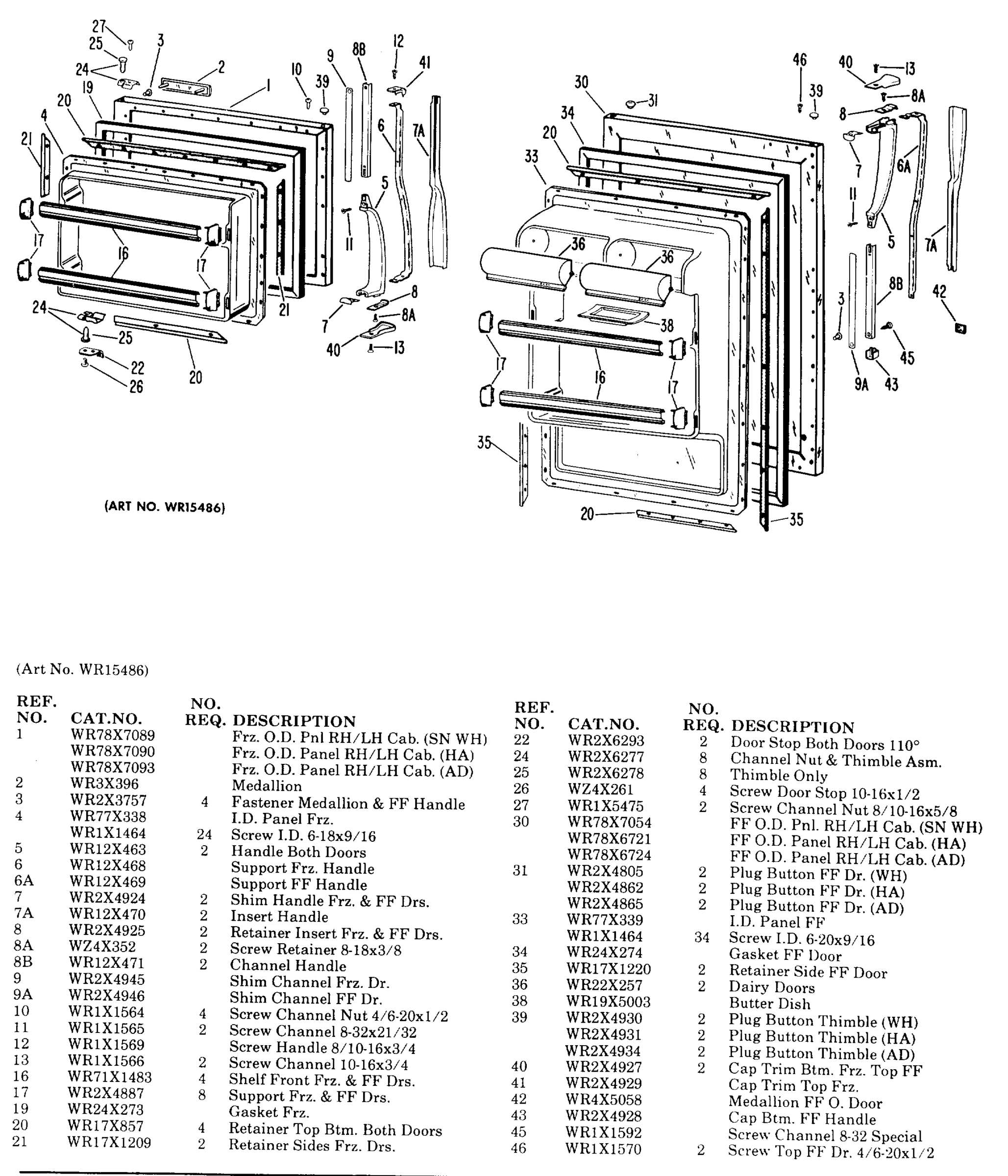

1
GEN WR78X7089 GEN WR78X7089 Contact Us For Availability
1
GEN WR78X7090 GEN WR78X7090 Contact Us For Availability
1
GEN WR78X7093 GEN WR78X7093 Contact Us For Availability
2
GEN WR03X0396 GEN WR03X0396 Contact Us For Availability
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR77X0338 GEN WR77X0338 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0468 GEN WR12X0468 Contact Us For Availability
6
GEN WR12X0469 GEN WR12X0469 Contact Us For Availability
7
GEN WR02X4924 GEN WR02X4924 Contact Us For Availability
7
GEN WR12X0470 GEN WR12X0470 Contact Us For Availability
8
GEN WR02X4925 GEN WR02X4925 Contact Us For Availability
8
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
8
SCREW 8-18 B 7/16 GEN WZ04X0352 Contact Us For Availability
9
GEN WR02X4945 GEN WR02X4945 Contact Us For Availability
9
GEN WR02X4946 GEN WR02X4946 Contact Us For Availability
10
GEN WR01X1564 GEN WR01X1564 Contact Us For Availability
11
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
12
GEN WR01X1569 GEN WR01X1569 Contact Us For Availability
13
GEN WR01X1566 GEN WR01X1566 Contact Us For Availability
16
GEN WR71X1483 GEN WR71X1483 Contact Us For Availability
17
GEN WR02X4887 GEN WR02X4887 Contact Us For Availability
19
GEN WR24X0273 GEN WR24X0273 Contact Us For Availability
20
GEN WR17X0857 GEN WR17X0857 Contact Us For Availability
21
GEN WR17X1209 GEN WR17X1209 Contact Us For Availability
22
GEN WR02X6923 GEN WR02X6923 Contact Us For Availability
24
GEN WR02X6277 GEN WR02X6277 Contact Us For Availability
25
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
27
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
30
GEN WR78X6721 GEN WR78X6721 Contact Us For Availability
30
GEN WR78X6724 GEN WR78X6724 Contact Us For Availability
30
GEN WR78X7054 GEN WR78X7054 Contact Us For Availability
31
GEN WR02X4805 GEN WR02X4805 Contact Us For Availability
31
GEN WR02X4862 GEN WR02X4862 Contact Us For Availability
31
GEN WR02X4865 GEN WR02X4865 Contact Us For Availability
33
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
33
GEN WR77X0339 GEN WR77X0339 Contact Us For Availability
34
GEN WR24X0274 GEN WR24X0274 Contact Us For Availability
35
GEN WR17X1220 GEN WR17X1220 Contact Us For Availability
36
GEN WR22X0257 GEN WR22X0257 Contact Us For Availability
38
BUTTER DISH GEN WR19X5003 Contact Us For Availability
39
GEN WR02X4930 GEN WR02X4930 Contact Us For Availability
39
GEN WR02X4931 GEN WR02X4931 Contact Us For Availability
39
GEN WR02X4934 GEN WR02X4934 Contact Us For Availability
40
GEN WR02X4927 GEN WR02X4927 Contact Us For Availability
41
GEN WR02X4929 GEN WR02X4929 Contact Us For Availability
42
GEN WR04X5058 GEN WR04X5058 Contact Us For Availability
43
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
45
GEN WR01X1592 GEN WR01X1592 Contact Us For Availability
46
GEN WR01X1570 GEN WR01X1570 Contact Us For Availability

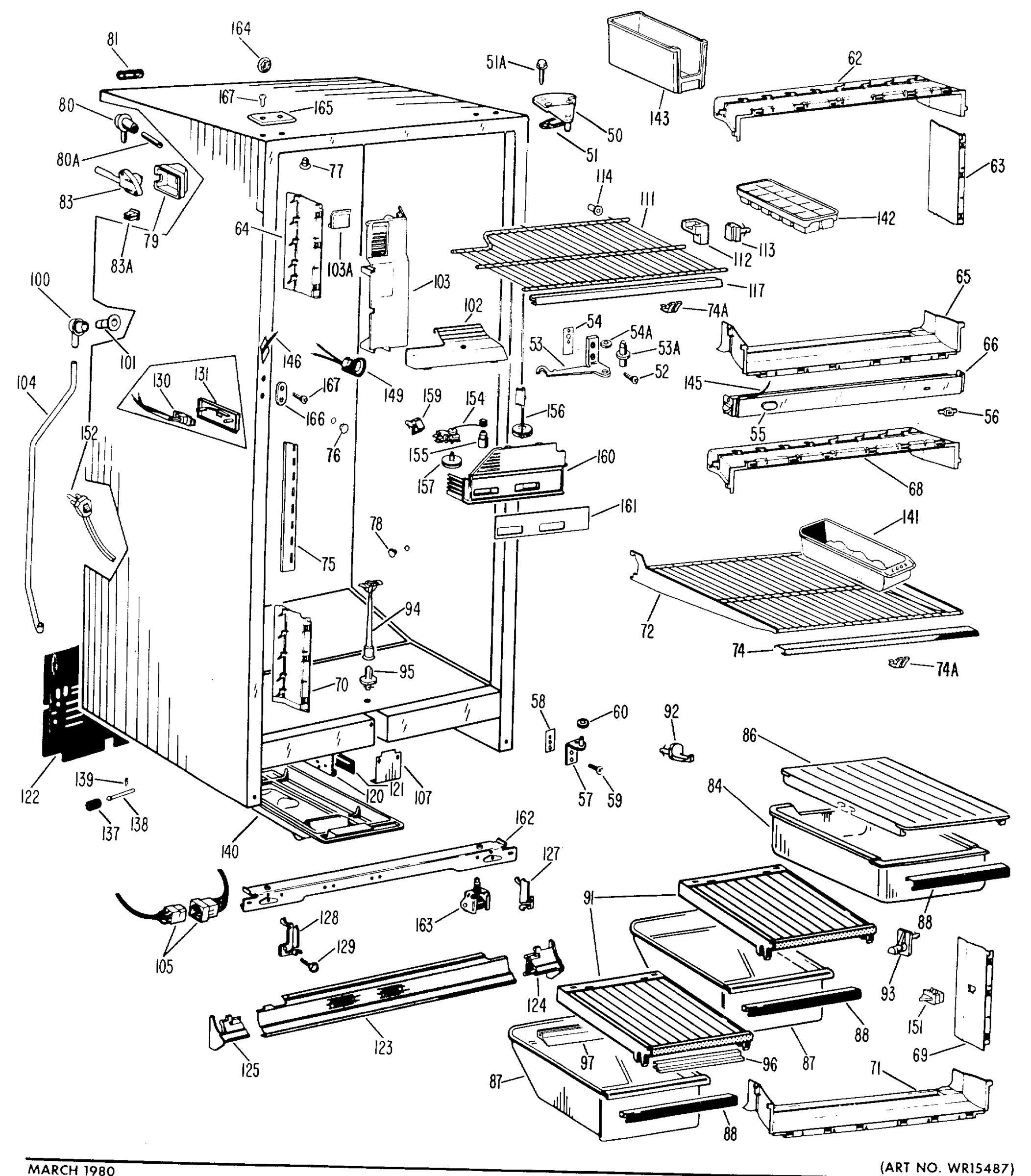

50
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
50
GEN WR02X4222 GEN WR02X4222 Contact Us For Availability
50
HINGE BRKT. TOP RH OR LH GEN WR13X0521 Contact Us For Availability
51
SCREW 12-24X7/8 GEN WR01X1249 Contact Us For Availability
51
SHIM GEN WR02X4194 Contact Us For Availability
52
SCREW 12-24X7/8 GEN WR01X1188 Contact Us For Availability
53
NUTSTRIP CENTER & BTM. H GEN WR02X4400 Contact Us For Availability
53
GEN WR02X6280 GEN WR02X6280 Contact Us For Availability
53
HINGE BRKT. RH & LH CAB. GEN WR13X5133 Contact Us For Availability
54
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
54
SHIM .031 THICK GEN WR02X6281 Contact Us For Availability
55
GEN WR02X4922 GEN WR02X4922 Contact Us For Availability
56
GROMMET MULLION GEN WR13X0357 Contact Us For Availability
57
RIVET NUTSTRIP GEN WR01X1361 Contact Us For Availability
57
HINGE BRKT. BTM. RH OR L GEN WR13X0519 Contact Us For Availability
58
SHIM GEN WR02X7011 Contact Us For Availability
59
SCREW HINGE 12-24X1-3/64 GEN WR01X1587 Contact Us For Availability
60
WASHER GEN WR01X1489 Contact Us For Availability
62
BREAKER STRIP TOP FRZ GEN WR40X1521 Contact Us For Availability
63
BRKR STRIP R SIDE FRZ RH GEN WR40X5413 Contact Us For Availability
64
BRKR STRIP L SIDE FRZ RH GEN WR40X1523 Contact Us For Availability
64
GEN WZ05X0205 GEN WZ05X0205 Contact Us For Availability
65
GEN WR40X1527 GEN WR40X1527 Contact Us For Availability
66
POP RIVET GEN WR01X1354 Contact Us For Availability
66
CLIP (EXPANSION) BRKR. S GEN WR02X4437 Contact Us For Availability
66
BRACKET MULLION GEN WR02X4507 Contact Us For Availability
66
GEN WR14X0240 GEN WR14X0240 Contact Us For Availability
66
MULLION X-PCS. GEN WR17X5848 Contact Us For Availability
66
SCREW MULLION GEN WZ04X0283 Contact Us For Availability
66
SCREW MULLION 10-16X3/8 GEN WZ06X0045 Contact Us For Availability
68
GEN WR40X1528 GEN WR40X1528 Contact Us For Availability
69
BREAKER STRIP R SIDE FF GEN WR40X5435 Contact Us For Availability
70
BREAKER STRIP L. SIDE FF GEN WR40X1525 Contact Us For Availability
71
GASKET CORNER GEN WR14X0233 Contact Us For Availability
71
BREAKER STRIP BTM. FF GEN WR40X1526 Contact Us For Availability
72
SHELF CANTILEVER WIRE GEN WR71X1301 Contact Us For Availability
74
TRIM SHELF GEN WR38X5212 Contact Us For Availability
75
GEN WR01X5433 GEN WR01X5433 Contact Us For Availability
75
TRACK SHELF R & L SIDES GEN WR72X0063 Contact Us For Availability
76
GEN WR02X4532 GEN WR02X4532 Contact Us For Availability
77
PLUG BUTTON LINER TOP .2 GEN WR02X3139 Contact Us For Availability
78
PLUG BUTN. LINER SIDES . GEN WR02X6030 Contact Us For Availability
79
COVER I.M. RECEPTACLE GEN WR02X4512 Contact Us For Availability
79
SCREW GEN WZ04X0250 Contact Us For Availability
80
PLUG BUTTON GROMMET (1 4 GEN WR02X3248 Contact Us For Availability
80
TUBE WATER FILL (2.5") GEN WR02X4511 Contact Us For Availability
80
GEN WR02X4628 GEN WR02X4628 Contact Us For Availability
80
GROMMET O.C. WATER FILL GEN WR17X1149 Contact Us For Availability
83
PLUG ICEMAKER (FEMALE) GEN WR23X0162 Contact Us For Availability
84
GEN WR32X0743 GEN WR32X0743 Contact Us For Availability
86
GEN WR32X0681 GEN WR32X0681 Contact Us For Availability
87
GEN WR32X0742 GEN WR32X0742 Contact Us For Availability
88
HANDLE VEG & MT. PANS GEN WR12X5115 Contact Us For Availability
91
GEN WR32X0604 GEN WR32X0604 Contact Us For Availability
92
SUPPORT REAR VEG. PAN GEN WR02X4531 Contact Us For Availability
93
SUPPORT COVER GEN WR02X4897 Contact Us For Availability
94
GEN WR02X4899 GEN WR02X4899 Contact Us For Availability
95
SUPPORT POST GEN WR02X4853 Contact Us For Availability
96
GASKET FRONT V. PAN GEN WR14X0278 Contact Us For Availability
97
GASKET REAR V. PAN GEN WR14X0279 Contact Us For Availability
100
DRAIN GROMMET GEN WR02X4626 Contact Us For Availability
101
DRAIN SPOUT GEN WR02X4615 Contact Us For Availability
102
GEN WR74X0124 GEN WR74X0124 Contact Us For Availability
103
GEN WR04X5044 GEN WR04X5044 Contact Us For Availability
103
GEN WR17X5661 GEN WR17X5661 Contact Us For Availability
104
GEN WZ05X0137 GEN WZ05X0137 Contact Us For Availability
104
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
104
GEN WR17X1400 GEN WR17X1400 Contact Us For Availability
105
GEN WR49X0233 GEN WR49X0233 Contact Us For Availability
107
GEN WR02X3861 GEN WR02X3861 Contact Us For Availability
107
GEN WZ06X0094 GEN WZ06X0094 Contact Us For Availability
111
GEN WR71X5890 GEN WR71X5890 Contact Us For Availability
112
GEN WR02X4855 GEN WR02X4855 Contact Us For Availability
113
GEN WR02X6263 GEN WR02X6263 Contact Us For Availability
114
GEN WR02X6110 GEN WR02X6110 Contact Us For Availability
117
GEN WR02X3440 GEN WR02X3440 Contact Us For Availability
117
GEN WR38X5213 GEN WR38X5213 Contact Us For Availability
120
GEN WR17X5636 GEN WR17X5636 Contact Us For Availability
121
GEN WR02X3862 GEN WR02X3862 Contact Us For Availability
121
GEN WR02X3863 GEN WR02X3863 Contact Us For Availability
122
GEN WR82X0199 GEN WR82X0199 Contact Us For Availability
123
GEN WR49X0301 GEN WR49X0301 Contact Us For Availability
124
GEN WR02X4668 GEN WR02X4668 Contact Us For Availability
125
GEN WR02X4669 GEN WR02X4669 Contact Us For Availability
127
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
128
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
130
GEN WR23 GEN WR23 Contact Us For Availability

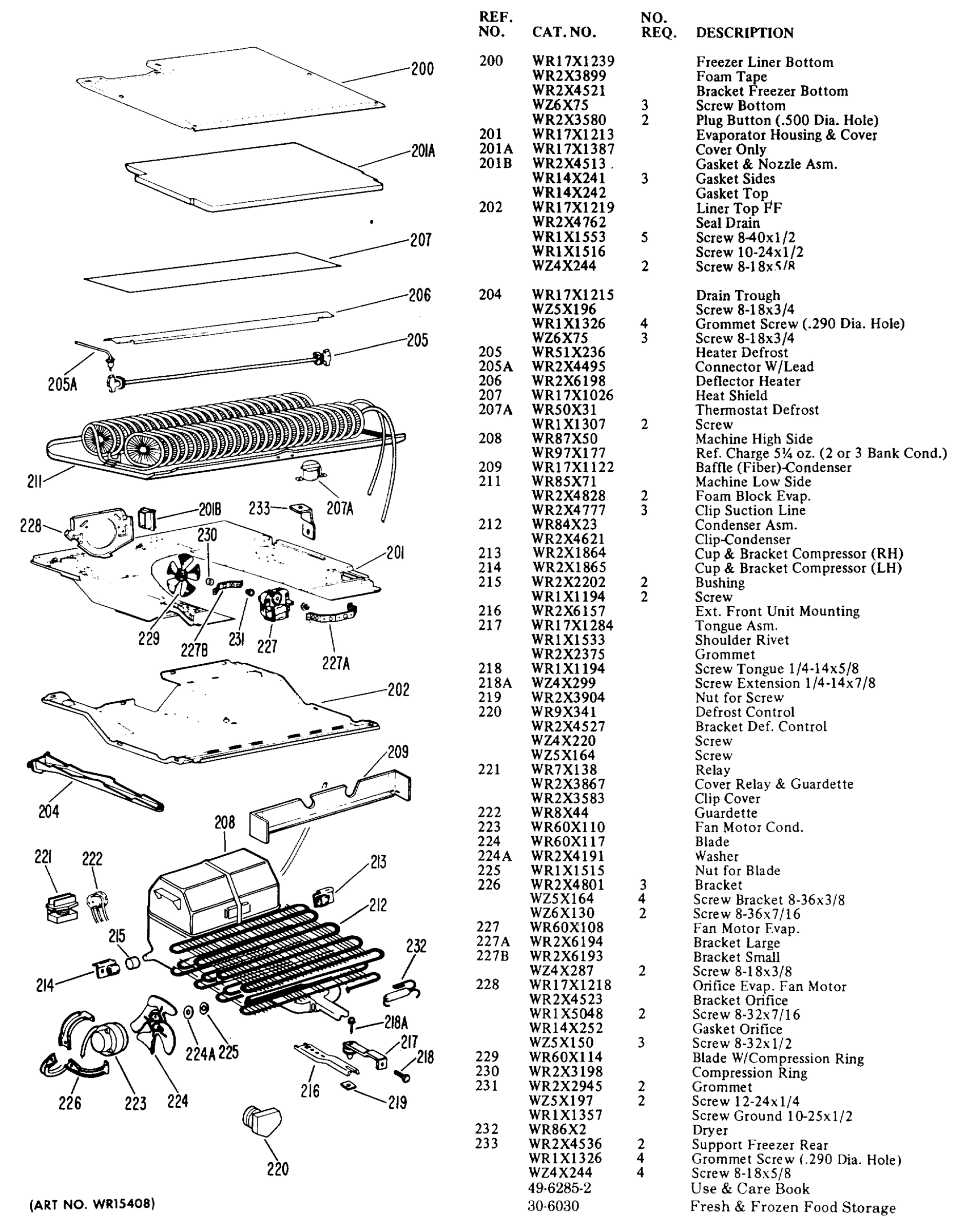

200
PLUG BUTTON (.500 DIA. H GEN WR02X3580 Contact Us For Availability
200
FOAM TAPE GEN WR02X3899 Contact Us For Availability
200
BRACKET FREEZER BOTTOM GEN WR02X4521 Contact Us For Availability
200
FREEZER LINER BOTTOM GEN WR17X1239 Contact Us For Availability
201
GASKET & NOZZLE ASM. GEN WR02X4513 Contact Us For Availability
201
GASKET SIDES GEN WR14X0241 Contact Us For Availability
201
GASKET TOP GEN WR14X0242 Contact Us For Availability
201
EVAPORATOR HOUSING & COV GEN WR17X1213 Contact Us For Availability
201
COVER ONLY GEN WR17X1387 Contact Us For Availability
202
SCREW 10-24X1/2 GEN WR01X1516 Contact Us For Availability
202
SCREW 8-40X1/2 GEN WR01X1553 Contact Us For Availability
202
SEAL DRAIN GEN WR02X4762 Contact Us For Availability
202
GEN WR17X1219 GEN WR17X1219 Contact Us For Availability
204
SCREW 8-18X3/4 GEN WZ05X0196 Contact Us For Availability
204
SCREW 8-18X3/4 GEN WZ06X0075 Contact Us For Availability
204
GEN WR17X1215 GEN WR17X1215 Contact Us For Availability
205
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
205
GEN WR51X0236 GEN WR51X0236 Contact Us For Availability
206
DEFLECTOR HEATER GEN WR02X6198 Contact Us For Availability
207
SCREW GEN WR01X1307 Contact Us For Availability
207
GEN WR17X1026 GEN WR17X1026 Contact Us For Availability
208
REF. CHARGE 51/4 OZ. (2 GEN WR97X0177 Contact Us For Availability
209
BAFFLE (FIBER)-CONDENSER GEN WR17X1122 Contact Us For Availability
211
GEN WR02X4777 GEN WR02X4777 Contact Us For Availability
211
FOAM BLOCK EVAP. GEN WR02X4828 Contact Us For Availability
211
GEN WR83X0071 GEN WR83X0071 Contact Us For Availability
212
CLIP-CONDENSER GEN WR02X4621 Contact Us For Availability
212
GEN WR84X0023 GEN WR84X0023 Contact Us For Availability
213
CUP & BRACKET COMPRESSOR GEN WR02X1864 Contact Us For Availability
214
CUP & BRACKET COMPRESSOR GEN WR02X1865 Contact Us For Availability
215
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
216
EXT. FRONT UNIT MOUNTING GEN WR02X6157 Contact Us For Availability
217
SHOULDER RIVER GEN WR01X1533 Contact Us For Availability
217
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
217
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
218
SCREW TONGUE 1/4-14X5/8 GEN WR01X1194 Contact Us For Availability
218
SCREW EXTENSION 1/4-14X7 GEN WZ04X0299 Contact Us For Availability
219
NUT FOR SCREW GEN WR02X3904 Contact Us For Availability
220
BRACKET DEF. CONTROL GEN WR02X4527 Contact Us For Availability
220
SCREW GEN WZ04X0220 Contact Us For Availability
221
CLIP COVER GEN WR02X3583 Contact Us For Availability
221
GEN WR02X3867 GEN WR02X3867 Contact Us For Availability
221
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
222
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
224
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
224
BLADE GEN WR60X0117 Contact Us For Availability
225
NUT FOR BLADE GEN WR01X1515 Contact Us For Availability
226
SCREW BRACKET 8-36X3/8 GEN WZ05X0164 Contact Us For Availability
226
BRACKET GEN WR02X4801 Contact Us For Availability
226
GEN WZ06X0130 GEN WZ06X0130 Contact Us For Availability
227
BRACKET LARGE GEN WR02X6194 Contact Us For Availability
227
BRACKET SMALL GEN WR02X6939 Contact Us For Availability
227
GEN WR60X0108 GEN WR60X0108 Contact Us For Availability
227
SCREW 8-18X3/8 GEN WZ04X0287 Contact Us For Availability
228
GEN WR02X4523 GEN WR02X4523 Contact Us For Availability
228
GEN WR14X0252 GEN WR14X0252 Contact Us For Availability
228
ORIFICE EVAP. FAN MOTOR GEN WR17X1218 Contact Us For Availability
228
SCREW 8-32X1/2 GEN WZ05X0150 Contact Us For Availability
231
SCREW GROUND 10-25X1/2 GEN WR01X1357 Contact Us For Availability
231
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
231
GEN WZ05X0197 GEN WZ05X0197 Contact Us For Availability
233
GROMMET SCREW (.290 DIA. GEN WR01X1326 Contact Us For Availability
233
SCREW 8-18X5/8 GEN WZ04X0244 Contact Us For Availability
233
FRESH & FROZEN FOOD STOR GEN 30-6030 Contact Us For Availability
233
GEN 49-6285-2 GEN 49-6285-2 Contact Us For Availability
233
SUPPORT FREEZER REAR GEN WR02X4536 Contact Us For Availability
× ![]()
