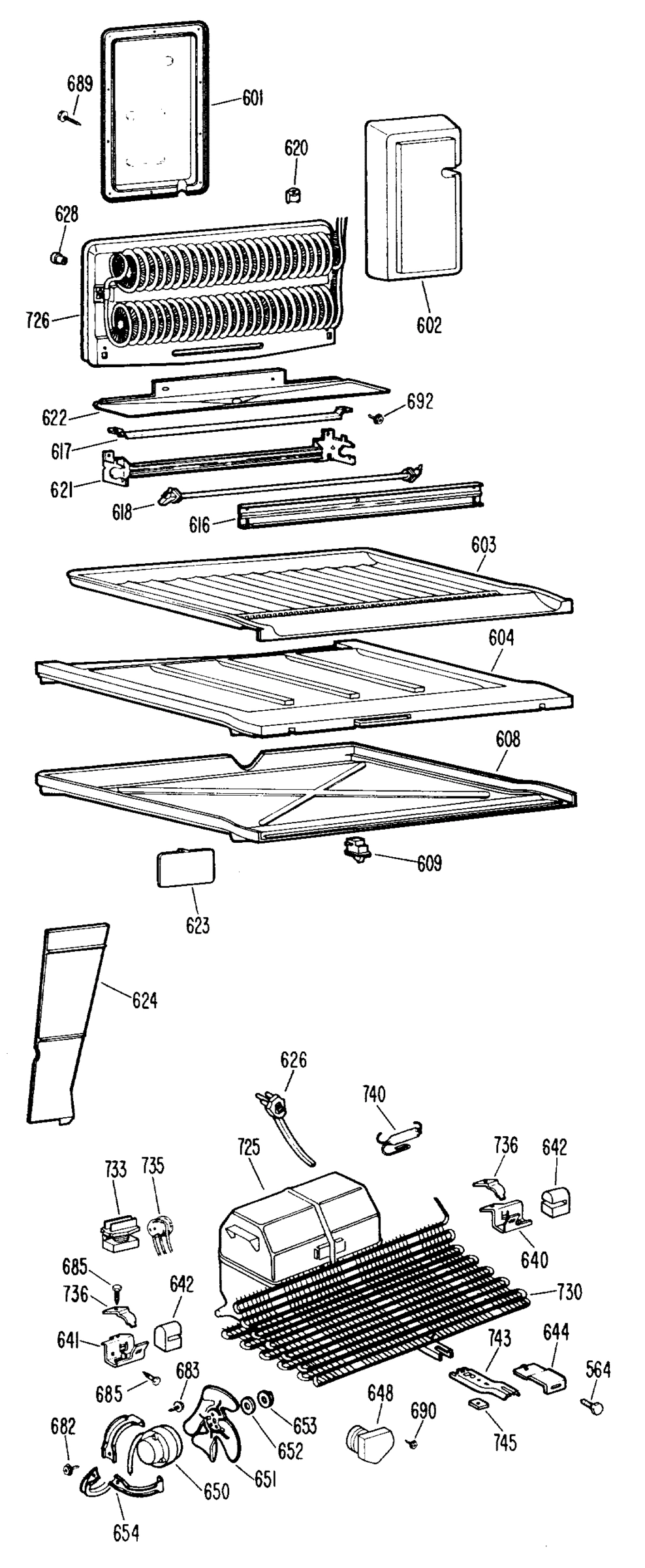

Model GE TBF17LCCR – Common Parts & Diagrams
Common parts from model GE TBF17LCCR
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR77X0402 GEN WR77X0402 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0468 GEN WR12X0468 Contact Us For Availability
7
GEN WR12X0469 GEN WR12X0469 Contact Us For Availability
8
GEN WR02X4924 GEN WR02X4924 Contact Us For Availability
9
GEN WR12X0509 GEN WR12X0509 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
11
SCREW 8-18 B 7/16 GEN WZ04X0352 Contact Us For Availability
12
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
13
GEN WR02X4945 GEN WR02X4945 Contact Us For Availability
14
GEN WR02X4946 GEN WR02X4946 Contact Us For Availability
15
GEN WR01X1564 GEN WR01X1564 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
18
GEN WR01X1566 GEN WR01X1566 Contact Us For Availability
19
GEN WR71X1645 GEN WR71X1645 Contact Us For Availability
23
GEN WR24X0300 GEN WR24X0300 Contact Us For Availability
24
GEN WR17X0857 GEN WR17X0857 Contact Us For Availability
25
GEN WR17X1209 GEN WR17X1209 Contact Us For Availability
26
GEN WR02X6293 GEN WR02X6293 Contact Us For Availability
27
GEN WR02X7229 GEN WR02X7229 Contact Us For Availability
28
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
101
GEN WR03X0408 GEN WR03X0408 Contact Us For Availability
103
GEN WR77X0403 GEN WR77X0403 Contact Us For Availability
104
GEN WR24X0301 GEN WR24X0301 Contact Us For Availability
106
GEN WR22X0262 GEN WR22X0262 Contact Us For Availability
107
GEN WR02X7037 GEN WR02X7037 Contact Us For Availability
108
GEN WR71X1646 GEN WR71X1646 Contact Us For Availability
110
GEN WR02X7231 GEN WR02X7231 Contact Us For Availability
111
GEN WR02X4929 GEN WR02X4929 Contact Us For Availability
112
GEN WR04X1173 GEN WR04X1173 Contact Us For Availability
115
GEN WR17X1530 GEN WR17X1530 Contact Us For Availability
116
GEN WR01X1570 GEN WR01X1570 Contact Us For Availability
119
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
120
GEN WR01X1592 GEN WR01X1592 Contact Us For Availability
150
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
176
GEN WZ05X0166 GEN WZ05X0166 Contact Us For Availability
200
GRILLE EVAP COVER GEN WR17X1539 Contact Us For Availability
201
COVER EVAP ASM GEN WR17X1535 Contact Us For Availability
202
GEN WR02X7019 GEN WR02X7019 Contact Us For Availability
203
GEN WR17X1544 GEN WR17X1544 Contact Us For Availability
204
GEN WR01X1655 GEN WR01X1655 Contact Us For Availability
204
SUPT-MULLION & NUTSTRIP GEN WR02X7014 Contact Us For Availability
204
FOAM STRIP MULLION GEN WR02X7073 Contact Us For Availability
205
PLUG BUTTON GEN WR02X7060 Contact Us For Availability
207
PLENUM GEN WR17X1540 Contact Us For Availability
210
GEN WR02X7039 GEN WR02X7039 Contact Us For Availability
212
GEN WR71X1512 GEN WR71X1512 Contact Us For Availability
219
GEN WR51X0250 GEN WR51X0250 Contact Us For Availability
228
GEN WR71X1513 GEN WR71X1513 Contact Us For Availability
232
SUPPORT SHELF GEN WR02X7040 Contact Us For Availability
240
SHELF BASKET GEN WR21X0127 Contact Us For Availability
249
SUPPORT PAN COVER GEN WR02X7017 Contact Us For Availability
256
GEN WR23X0203 GEN WR23X0203 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
264
GLIDER ADJ.-REAR GEN WR02X5676 Contact Us For Availability
267
COVER ACCESS ASM GEN WR82X0213 Contact Us For Availability
268
PAN WATER DISPOSAL ASM GEN WR32X0717 Contact Us For Availability
275
HINGE TOP & PIN ASM GEN WR13X0521 Contact Us For Availability
276
GEN WR13X0527 GEN WR13X0527 Contact Us For Availability
277
GEN WR17X1563 GEN WR17X1563 Contact Us For Availability
278
GLIDER ADJ GEN WR02X4978 Contact Us For Availability
279
GEN WR02X7063 GEN WR02X7063 Contact Us For Availability
281
GEN WR01X1114 GEN WR01X1114 Contact Us For Availability
281
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
281
GEN WR01X1600 GEN WR01X1600 Contact Us For Availability
282
GEN WR13X0519 GEN WR13X0519 Contact Us For Availability
283
SHIM HINGE-.031 THK. GEN WR02X7030 Contact Us For Availability
283
GEN WR02X7190 GEN WR02X7190 Contact Us For Availability
285
BAFFLE AIR EXTN BTM GEN WR02X7003 Contact Us For Availability
286
BAFFLE AIR COND FAN GEN WR17X1531 Contact Us For Availability
288
GEN WR02X7079 GEN WR02X7079 Contact Us For Availability
288
GRILLE 0. CASE GEN WR74X0178 Contact Us For Availability
289
GEN WR02X7154 GEN WR02X7154 Contact Us For Availability
290
GEN WR02X7155 GEN WR02X7155 Contact Us For Availability
291
GEN WR74X0177 GEN WR74X0177 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WB02X7080 Contact Us For Availability
295
GEN WR23X0162 GEN WR23X0162 Contact Us For Availability
296
COVER IM RECEPTACLE GEN WR02X4512 Contact Us For Availability
300
GEN WR02X7061 GEN WR02X7061 Contact Us For Availability
300
CONTROL TEMP GEN WR09X0352 Contact Us For Availability
301
SLEEVE VINYL GEN WR02X7010 Contact Us For Availability
301
GEN WR02X7146 GEN WR02X7146 Contact Us For Availability
302
GEN WR14X0312 GEN WR14X0312 Contact Us For Availability
302
HOUSING NOZZLE GEN WR17X1533 Contact Us For Availability
303
GEN WR02X7008 GEN WR02X7008 Contact Us For Availability
304
GEN WR02X7139 GEN WR02X7139 Contact Us For Availability
305
GEN WR02X7009 GEN WR02X7009 Contact Us For Availability
306
GEN WR17X1534 GEN WR17X1534 Contact Us For Availability
306
INSUL CONTROL HSG GEN WR82X0212 Contact Us For Availability
307
GEN WR17X1538 GEN WR17X1538 Contact Us For Availability
308
GEN WR02X7147 GEN WR02X7147 Contact Us For Availability
312
FUNNEL DRAIN GEN WR02X7006 Contact Us For Availability
313
TUBE DRAIN GEN WR17X1532 Contact Us For Availability
314
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
315
GROMMET DRAIN GEN WR02X7007 Contact Us For Availability
322
GEN WR02X6345 GEN WR02X6345 Contact Us For Availability
323
GEN WR17X1553 GEN WR17X1553 Contact Us For Availability
324
PLUG BUTTON GEN WR02X7051 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
358
SUPPORT SHELF SIDE GEN WR02X7041 Contact Us For Availability
422
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
553
SCR 6-20 B TR 1/4 SS GEN WZ04X0343 Contact Us For Availability
560
SCR 12-24 AHXW 7/8 SPP GEN WR01X1249 Contact Us For Availability
562
SCR 12-24 TT HXW 1 3/64S GEN WR01X1587 Contact Us For Availability
564
SCR 1/4-14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
566
SCR 10-16 BAT HXW 1/2SNS GEN WR01X1487 Contact Us For Availability
568
GEN WZ05X0137 GEN WZ05X0137 Contact Us For Availability
569
RIVET POP GEN WR01X1545 Contact Us For Availability
570
GEN WZ04X0331 GEN WZ04X0331 Contact Us For Availability
573
GEN WZ04X0254 GEN WZ04X0254 Contact Us For Availability
601
GEN WR17X1552 GEN WR17X1552 Contact Us For Availability
602
PLUG EVAP ACCESS GEN WR82X0214 Contact Us For Availability
603
LINER BTM FZ GEN WR17X1543 Contact Us For Availability
604
GEN WR02X7072 GEN WR02X7072 Contact Us For Availability
604
GEN WR17X1541 GEN WR17X1541 Contact Us For Availability
608
FOAM STRIP SE ADH GEN WR14X0313 Contact Us For Availability
608
LINER TOP FF GEN WR17X1542 Contact Us For Availability
610
GEN WR60X0130 GEN WR60X0130 Contact Us For Availability
611
BRACKET EVAP FAN LARGE GEN WR02X7022 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
SHIELD DEF HTR GEN WR17X1536 Contact Us For Availability
617
COVER DEF HTR GEN WR02X7013 Contact Us For Availability
618
GEN WR51X0249 GEN WR51X0249 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
621
BRACKET DEF HTR GEN WR02X7012 Contact Us For Availability
622
TROUGH DRAIN ASM GEN WR17X1547 Contact Us For Availability
623
GEN WR14X0289 GEN WR14X0289 Contact Us For Availability
623
COVER DUCT FF GEN WR17X1549 Contact Us For Availability
624
GEN WR17X1546 GEN WR17X1546 Contact Us For Availability
628
GEN WR02X7026 GEN WR02X7026 Contact Us For Availability
631
PLUG BTN (.875 DIA.HOLE) GEN WR02X4229 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
640
BRACKET COMP MTG-R.SIDE GEN WR02X7004 Contact Us For Availability
641
BRACKET COMP MTG-L.SIDE GEN WR02X7005 Contact Us For Availability
642
BUSHING COMP MTG GEN WR02X7028 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
649
GEN WR02X7027 GEN WR02X7027 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
652
GEN WR01X1683 GEN WR01X1683 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
BRACKET COND FAN GEN WR02X4801 Contact Us For Availability
655
GEN WR01X1601 GEN WR01X1601 Contact Us For Availability
675
SCR 8-18 AB TR 5/8SS PLW GEN WZ06X0094 Contact Us For Availability
679
SCREW GEN WZ04X0287 Contact Us For Availability
679
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
680
SCR 8-18 AB HX 1/2S W GEN WZ06X0114 Contact Us For Availability
681
SCR 6-18 A TR 1/2 SS GEN WZ04X0224 Contact Us For Availability
682
GEN WX06X0134 GEN WX06X0134 Contact Us For Availability
683
SCR 8-32 SPECIAL GEN WZ05X0164 Contact Us For Availability
685
SCR 1/4-14 AB HX 1/2S NS GEN WR01X1596 Contact Us For Availability
688
SCR 8-15 A PA 3/4 SS GEN WZ04X0250 Contact Us For Availability
691
GEN WR01X1594 GEN WR01X1594 Contact Us For Availability
691
GEN WR01X1644 GEN WR01X1644 Contact Us For Availability
692
SCR 8-18 AB HXW 3/4 S GEN WZ04X0416 Contact Us For Availability
692
SCR 8-18 AB HX 1/2 S PL GEN WZ06X0129 Contact Us For Availability
694
GEN WZ05X0247 GEN WZ05X0247 Contact Us For Availability
725
MACHINE HIGH SIDE GEN WR87X0067 Contact Us For Availability
725
GEN WR97X0177 GEN WR97X0177 Contact Us For Availability
726
MACHINE LOW SIDE GEN WR85X0089 Contact Us For Availability
730
COND ASM GEN WR84X0043 Contact Us For Availability
731
CLIP COND GEN WR02X4621 Contact Us For Availability
733
RELAY COMP GEN WR07X0099 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
735
GEN WR08X0030 GEN WR08X0030 Contact Us For Availability
736
COVER COMP MTG BRKT GEN WR02X7029 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG D/J GEN WR02X3904 Contact Us For Availability
900
GEN WR78X7404 GEN WR78X7404 Contact Us For Availability
901
GEN WR78X7405 GEN WR78X7405 Contact Us For Availability
904
GEN WR78X7408 GEN WR78X7408 Contact Us For Availability
905
GEN WR78X7409 GEN WR78X7409 Contact Us For Availability
906
GEN WR78X7410 GEN WR78X7410 Contact Us For Availability
909
GEN WR78X7413 GEN WR78X7413 Contact Us For Availability
910
GEN WR02X4930 GEN WR02X4930 Contact Us For Availability
911
GEN WR02X4931 GEN WR02X4931 Contact Us For Availability
914
GEN WR02X4934 GEN WR02X4934 Contact Us For Availability
9999
GEN 49-6348 GEN 49-6348 Contact Us For Availability
× ![]()
