Model GE TBE18JATNRWH Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

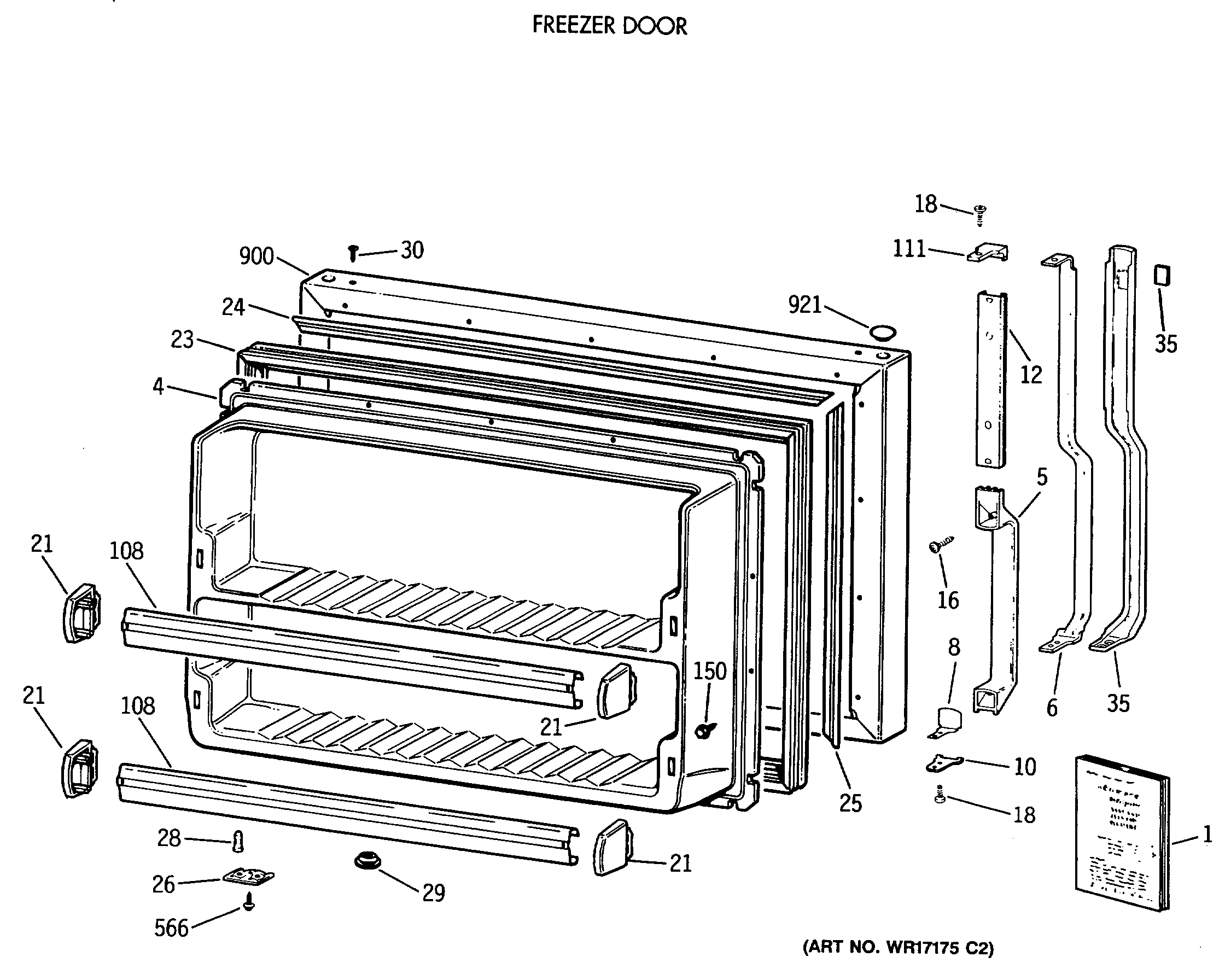

FREEZER DOOR

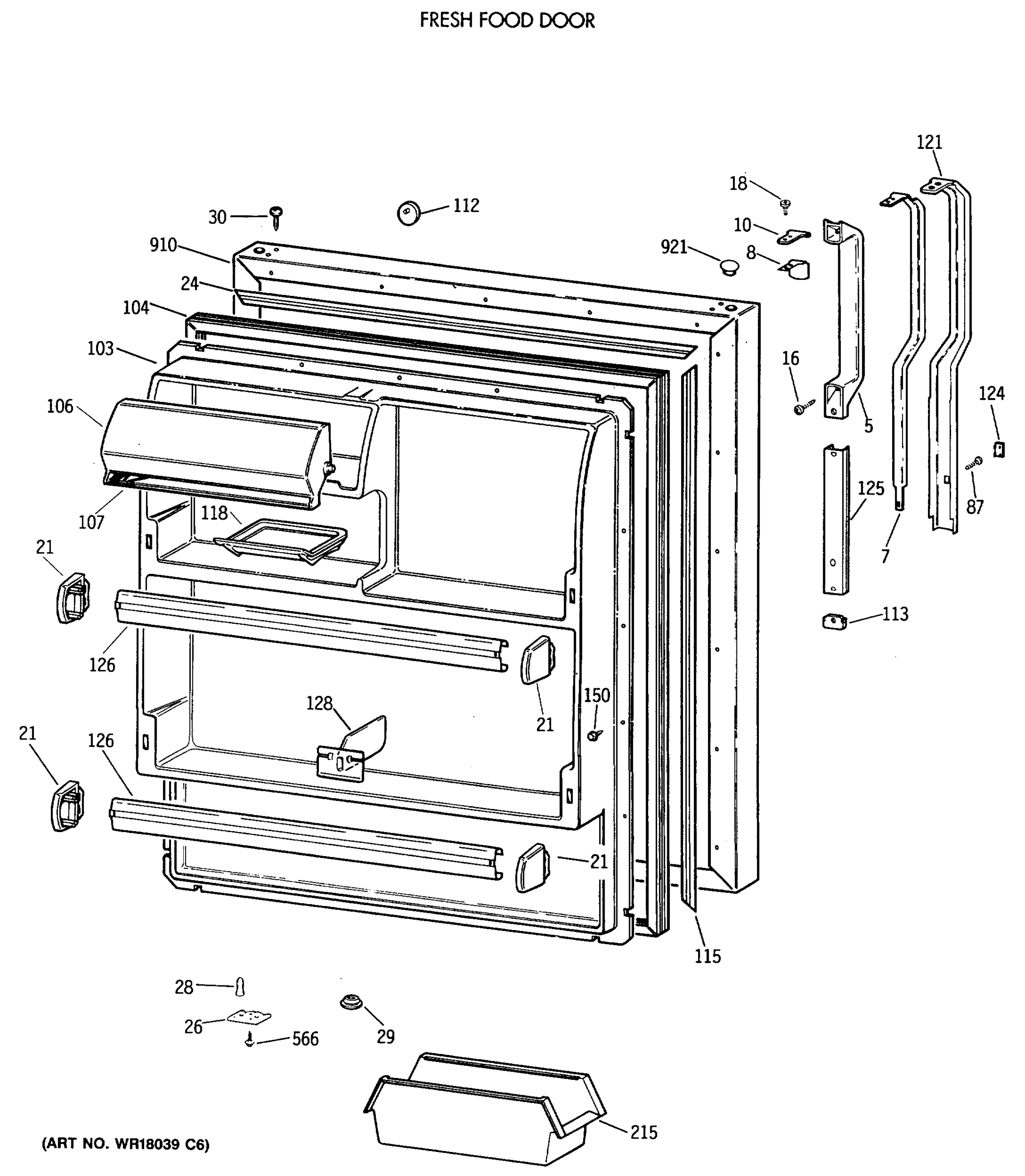

FRESH FOOD DOOR

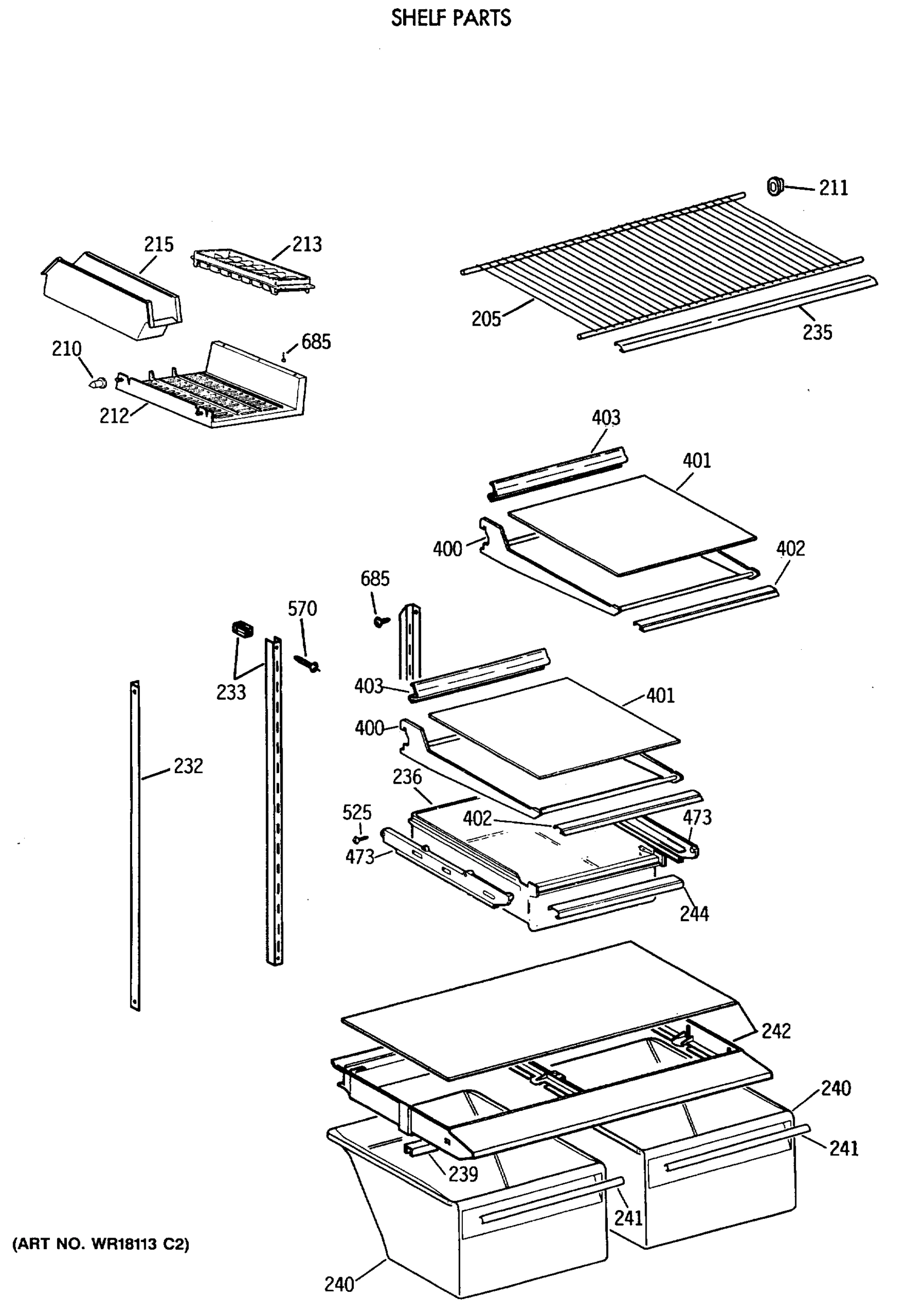

SHELF PARTS

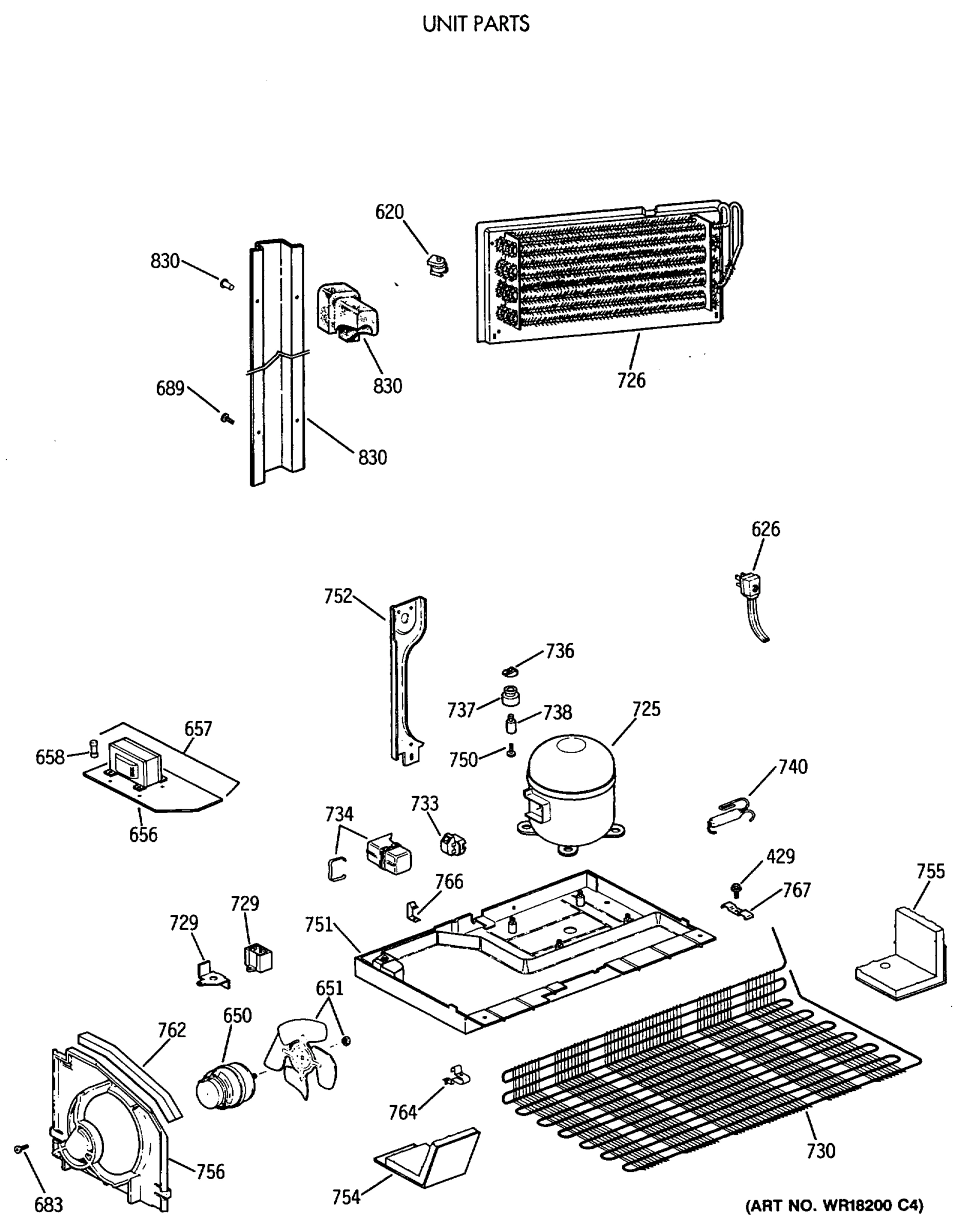

UNIT PARTS
Common parts from model GE TBE18JATNRWH Refrigerator
1
GEN 31-45097 GEN 31-45097 Contact Us For Availability
1
GEN 49-6763 GEN 49-6763 Contact Us For Availability
4
GEN WR77X0610 GEN WR77X0610 Contact Us For Availability
5
GEN WR12X0553 GEN WR12X0553 Contact Us For Availability
6
GEN WR12X2845 GEN WR12X2845 Contact Us For Availability
7
GEN WR12X0598 GEN WR12X0598 Contact Us For Availability
8
GEN WR02X8089 GEN WR02X8089 Contact Us For Availability
10
GEN WR02X7613 GEN WR02X7613 Contact Us For Availability
12
GEN WR12X0587 GEN WR12X0587 Contact Us For Availability
16
GEN WR01X1724 GEN WR01X1724 Contact Us For Availability
24
GEN WR17X2279 GEN WR17X2279 Contact Us For Availability
25
GEN WR17X2281 GEN WR17X2281 Contact Us For Availability
26
GEN WR02X9009 GEN WR02X9009 Contact Us For Availability
28
GEN WR02X7627 GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
35
GEN WR04X0220 GEN WR04X0220 Contact Us For Availability
35
GEN WR12X0735 GEN WR12X0735 Contact Us For Availability
103
GEN WR77X0609 GEN WR77X0609 Contact Us For Availability
106
GEN WR38X1987 GEN WR38X1987 Contact Us For Availability
107
DOOR UTILITY(NO TRIM) GEN WR22X0481 Contact Us For Availability
108
GEN WR71X2359 GEN WR71X2359 Contact Us For Availability
111
GEN WR02X7610 GEN WR02X7610 Contact Us For Availability
113
GEN WR02X7611 GEN WR02X7611 Contact Us For Availability
115
GEN WR17X2280 GEN WR17X2280 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
121
GEN WR12X0959 GEN WR12X0959 Contact Us For Availability
124
GEN WR12X0721 GEN WR12X0721 Contact Us For Availability
125
GEN WR12X0557 GEN WR12X0557 Contact Us For Availability
128
GEN WR02X7976 GEN WR02X7976 Contact Us For Availability
197
GEN WR02X9013 GEN WR02X9013 Contact Us For Availability
204
GEN WR02X7822 GEN WR02X7822 Contact Us For Availability
204
GEN WR02X7823 GEN WR02X7823 Contact Us For Availability
205
GEN WR71X1955 GEN WR71X1955 Contact Us For Availability
207
GEN WR17X2990 GEN WR17X2990 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR30X0300 GEN WR30X0300 Contact Us For Availability
215
GEN WR32X1299 GEN WR32X1299 Contact Us For Availability
219
GEN WR51X0393 GEN WR51X0393 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
233
GEN WR72X0097 GEN WR72X0097 Contact Us For Availability
235
GEN WR38X1809 GEN WR38X1809 Contact Us For Availability
236
GEN WR32X1355 GEN WR32X1355 Contact Us For Availability
239
GEN WR01X1737 GEN WR01X1737 Contact Us For Availability
239
GEN WR17X2282 GEN WR17X2282 Contact Us For Availability
240
GEN WR32X1351 GEN WR32X1351 Contact Us For Availability
241
GEN WR38X1933 GEN WR38X1933 Contact Us For Availability
242
GEN WR32X1352 GEN WR32X1352 Contact Us For Availability
242
GEN WR32X1353 GEN WR32X1353 Contact Us For Availability
244
GEN WR38X1932 GEN WR38X1932 Contact Us For Availability
255
GEN WR02X9152 GEN WR02X9152 Contact Us For Availability
256
GEN WR23X0408 GEN WR23X0408 Contact Us For Availability
260
GEN WR02X9001 GEN WR02X9001 Contact Us For Availability
261
GEN WR02X9015 GEN WR02X9015 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0351 GEN WR82X0351 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
272
GEN WR17X3699 GEN WR17X3699 Contact Us For Availability
275
HINGE TOP ASM GEN WR13X0626 Contact Us For Availability
276
GEN WR13X0585 GEN WR13X0585 Contact Us For Availability
277
GEN WR17X3743 GEN WR17X3743 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0220 GEN WR74X0220 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
296
GEN WR02X9011 GEN WR02X9011 Contact Us For Availability
300
GEN WR09X0540 GEN WR09X0540 Contact Us For Availability
301
GEN WR02X9151 GEN WR02X9151 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X8694 GEN WR02X8694 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR17X3696 GEN WR17X3696 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
400
GEN WR71X2177 GEN WR71X2177 Contact Us For Availability
401
GEN WR32X1356 GEN WR32X1356 Contact Us For Availability
402
GEN WR38X1804 GEN WR38X1804 Contact Us For Availability
403
GEN WR38X1803 GEN WR38X1803 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
473
GEN WR72X0124 GEN WR72X0124 Contact Us For Availability
473
GEN WR72X0179 GEN WR72X0179 Contact Us For Availability
525
SCREW GEN WR01X1763 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
568
SCREW GEN WZ05X0137 Contact Us For Availability
603
LINER BOTTOM FZ GEN WR17X2275 Contact Us For Availability
604
GEN WR17X3494 GEN WR17X3494 Contact Us For Availability
606
GEN WR17X2385 GEN WR17X2385 Contact Us For Availability
607
GEN WR51X0388 GEN WR51X0388 Contact Us For Availability
608
GEN WR17X2774 GEN WR17X2774 Contact Us For Availability
610
GEN WR60X0198 GEN WR60X0198 Contact Us For Availability
611
GEN WR02X9225 GEN WR02X9225 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
618
GEN WR51X0401 GEN WR51X0401 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
622
GEN WR17X2283 GEN WR17X2283 Contact Us For Availability
622
GEN WR14X0357 GEN WR14X0357 Contact Us For Availability
624
GEN WR17X3649 GEN WR17X3649 Contact Us For Availability
625
GEN WR17X3476 GEN WR17X3476 Contact Us For Availability
625
GEN WR17X3477 GEN WR17X3477 Contact Us For Availability
626
GEN WR01X1930 GEN WR01X1930 Contact Us For Availability
626
GEN WR23X0413 GEN WR23X0413 Contact Us For Availability
630
GEN WR17X3694 GEN WR17X3694 Contact Us For Availability
631
GEN WR17X3695 GEN WR17X3695 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
656
GEN WR17X3698 GEN WR17X3698 Contact Us For Availability
657
GEN WR62X0084 GEN WR62X0084 Contact Us For Availability
658
GEN WR23X0403 GEN WR23X0403 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
691
SCREW 12-24 TT .700 GEN WR01X1753 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
724
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
726
GEN WR85X0284 GEN WR85X0284 Contact Us For Availability
729
GEN WR02X9222 GEN WR02X9222 Contact Us For Availability
730
GEN WR84X0205 GEN WR84X0205 Contact Us For Availability
733
GEN WR07X0223 GEN WR07X0223 Contact Us For Availability
734
GEN WR02X8976 GEN WR02X8976 Contact Us For Availability
734
GEN WR02X9169 GEN WR02X9169 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X2417 GEN WR17X2417 Contact Us For Availability
754
GEN WR17X3771 GEN WR17X3771 Contact Us For Availability
755
GEN WR17X2268 GEN WR17X2268 Contact Us For Availability
756
GEN WR17X3760 GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
788
GEN WB17X5064 GEN WB17X5064 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
830
GEN WR01X1841 GEN WR01X1841 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0318 GEN WR82X0318 Contact Us For Availability
900
FRZ O.DOOR WH GEN WR78X7983 Contact Us For Availability
910
GEN WR78X8517 GEN WR78X8517 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
942
GEN WD01X1395 GEN WD01X1395 Contact Us For Availability
× ![]()
