Model Electrolux TAK190GN1W REFRIGERATOR – Common Parts & Diagrams

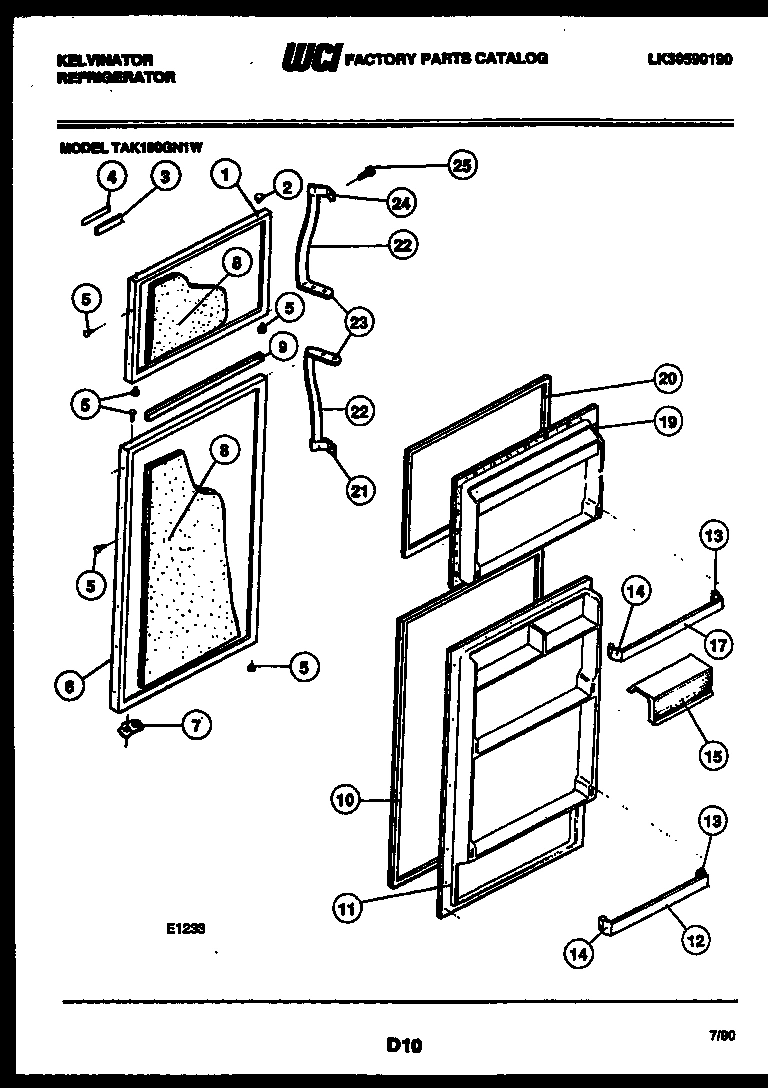

02 - DOOR PARTS

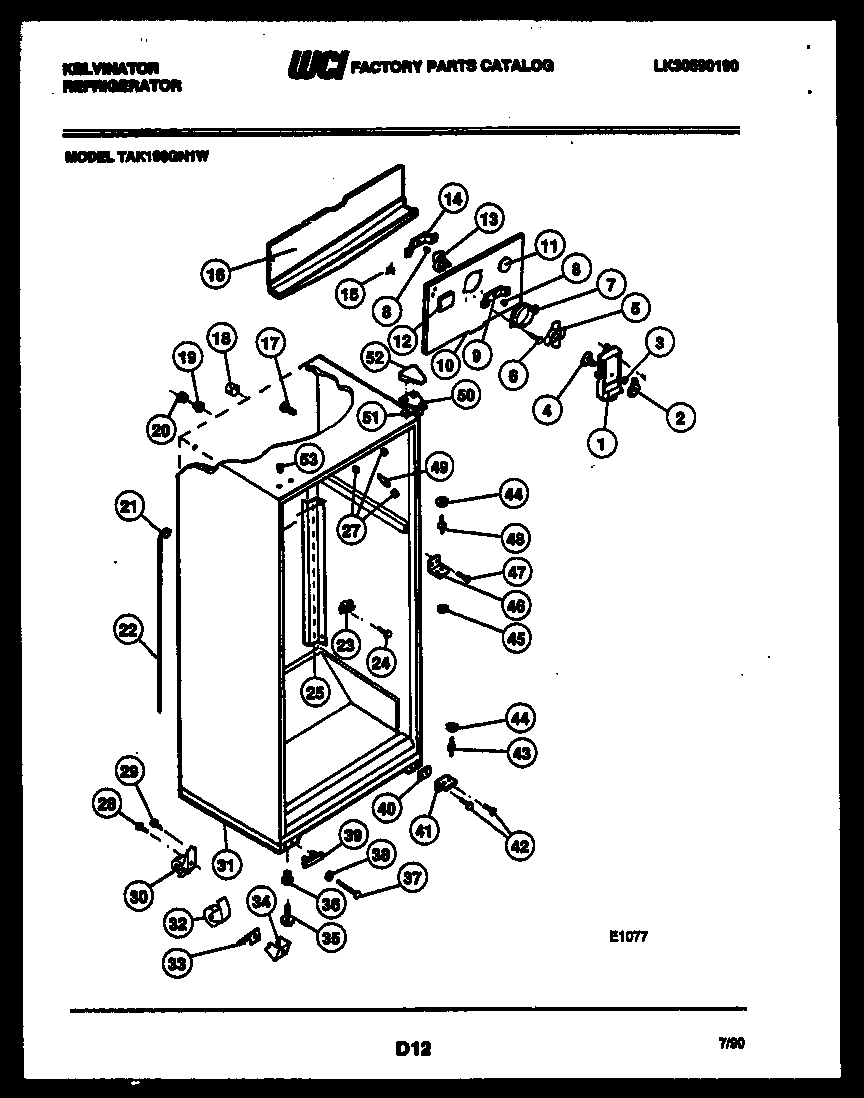

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TAK190GN1W REFRIGERATOR
*14737
PLUG-FREEZER LINER (5) WCI 5308016571 Contact Us For Availability
*14746
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
BOTTOM PANEL-FREEZER WCI 5303001505 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000134 WCI 5308000134 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
3
TOP PANEL-REFRIGERATOR WCI 5303016367 Contact Us For Availability
3A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
4
WCI 5308000071 WCI 5308000071 Contact Us For Availability
5
WCI 5303001546 WCI 5303001546 Contact Us For Availability
5
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
WCI 5308000124 WCI 5308000124 Contact Us For Availability
7
STRAP, MULLION MOUNTING WCI 5308010008 Contact Us For Availability
7
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303210351 WCI 5303210351 Contact Us For Availability
9A
WASHER-NO. 10 LOCK (2) (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
10
WCI 5303200366 WCI 5303200366 Contact Us For Availability
11
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
12
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
12
WCI 5308012258 WCI 5308012258 Contact Us For Availability
13
KNOB-TEMPERATURE CONTROL WCI 5308010011 Contact Us For Availability
13
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
14
SUPPORT LH (3) WCI 5303007297 Contact Us For Availability
14
WCI 5303001227 WCI 5303001227 Contact Us For Availability
14
CONTROL BOX WCI 5317672203 Contact Us For Availability
14A
WCI G189592 WCI G189592 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5303001670 WCI 5303001670 Contact Us For Availability
15
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
16
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
WCI 5303200810 WCI 5303200810 Contact Us For Availability
17
WCI 5316651102 WCI 5316651102 Contact Us For Availability
17
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
17A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
18
WCI 5303001198 WCI 5303001198 Contact Us For Availability
18
WCI 5308013648 WCI 5308013648 Contact Us For Availability
19
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
19
WCI 5303001286 WCI 5303001286 Contact Us For Availability
19
WCI 5303007287 WCI 5303007287 Contact Us For Availability
20
WCI 5303001287 WCI 5303001287 Contact Us For Availability
20
WCI 5308017227 WCI 5308017227 Contact Us For Availability
21
WCI 5303207353 WCI 5303207353 Contact Us For Availability
21
WCI 5303206583 WCI 5303206583 Contact Us For Availability
22
END CAP-SHELF (2) WCI 3201150 No Longer Available
22
DRAIN TUBE & SEAL RING WCI 5303210377 Contact Us For Availability
22
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
23
WCI 5308000056 WCI 5308000056 Contact Us For Availability
23
WCI 3201186 WCI 3201186 Contact Us For Availability
24
PUSH-PIN SPOUT (2) WCI 5303001361 Contact Us For Availability
24
WASHER (4) WCI 5308003633 Contact Us For Availability
25
CHANNEL-RS & LS WCI 5308000302 Contact Us For Availability
25
CLIP (4) WCI 5308003596 Contact Us For Availability
26
DRAIN PAN WCI 5300184715 Contact Us For Availability
27
WCI 5308000263 WCI 5308000263 Contact Us For Availability
27
LOCK NUT-PAN MOUNTING WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
28
WCI 5317762306 WCI 5317762306 Contact Us For Availability
29
WCI G161013-67 WCI G161013-67 Contact Us For Availability
29
COMPRESSOR WITH ELECTRICALS-SERVICE WCI 5303916411 Contact Us For Availability
30
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
30
WCI 5317739006 WCI 5317739006 Contact Us For Availability
31
CABINET BASE WCI 5308010092 Contact Us For Availability
31
WCI 3201128 WCI 3201128 Contact Us For Availability
32
ROLLER, FRONT (2) WCI 5308009760 Contact Us For Availability
32
WCI 3015045 WCI 3015045 Contact Us For Availability
33
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
33
WCI 3015051 WCI 3015051 Contact Us For Availability
34
SUPPORT-ROLLER (2) WCI 5308013678 Contact Us For Availability
34
WCI 3015046 WCI 3015046 Contact Us For Availability
35
WCI 5303205540 WCI 5303205540 Contact Us For Availability
35
WCI 3015047 WCI 3015047 Contact Us For Availability
36
WCI 5308003584 WCI 5308003584 Contact Us For Availability
36
WCI 3015059 WCI 3015059 Contact Us For Availability
37
SUPPORT-PAN COVER WCI 5303205987 Contact Us For Availability
37
SCREW-ROLLER ADJ (2) WCI 5308009761 Contact Us For Availability
38
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
38
WCI G161015-17 WCI G161015-17 Contact Us For Availability
39
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
40
WCI 5303001323 WCI 5303001323 Contact Us For Availability
40A
WCI 5308012296 WCI 5308012296 Contact Us For Availability
41
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
43
WCI 5303001321 WCI 5303001321 Contact Us For Availability
44
WASHER, 1/4 NYLON (2) WCI 5308000007 Contact Us For Availability
45
WASHER-5/16 NYLON WCI 5308000186 No Longer Available
46
WCI 5303001369 WCI 5303001369 Contact Us For Availability
48
WCI 5308000184 WCI 5308000184 Contact Us For Availability
49
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
50
WCI 5308012843 WCI 5308012843 Contact Us For Availability
51
WCI 5303001037 WCI 5303001037 Contact Us For Availability
52
WCI 5308012820 WCI 5308012820 Contact Us For Availability
53
WCI 5303001388 WCI 5303001388 Contact Us For Availability
× ![]()
