Model Maytag SZ25NE REFRIGERATOR – Common Parts & Diagrams
01 - BACK UNIT
02 - COMPACT ICE MAKER

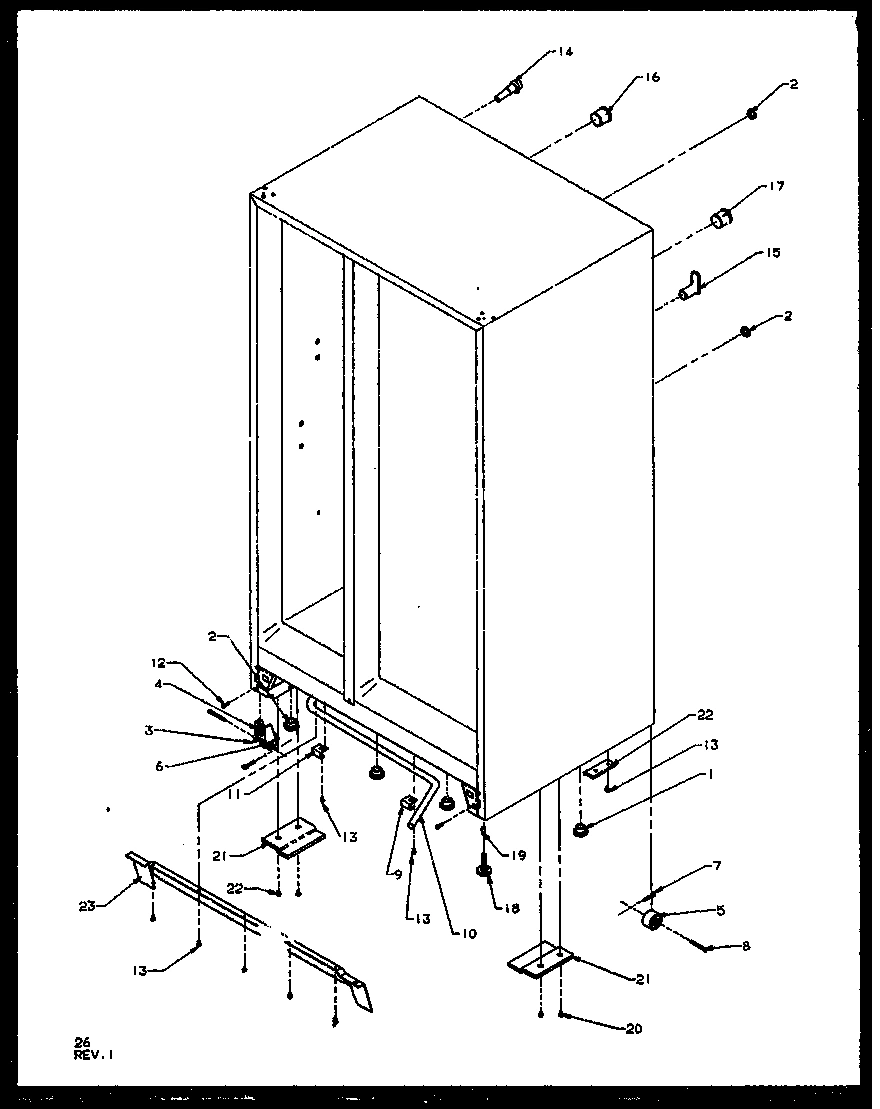

03 - DRAIN

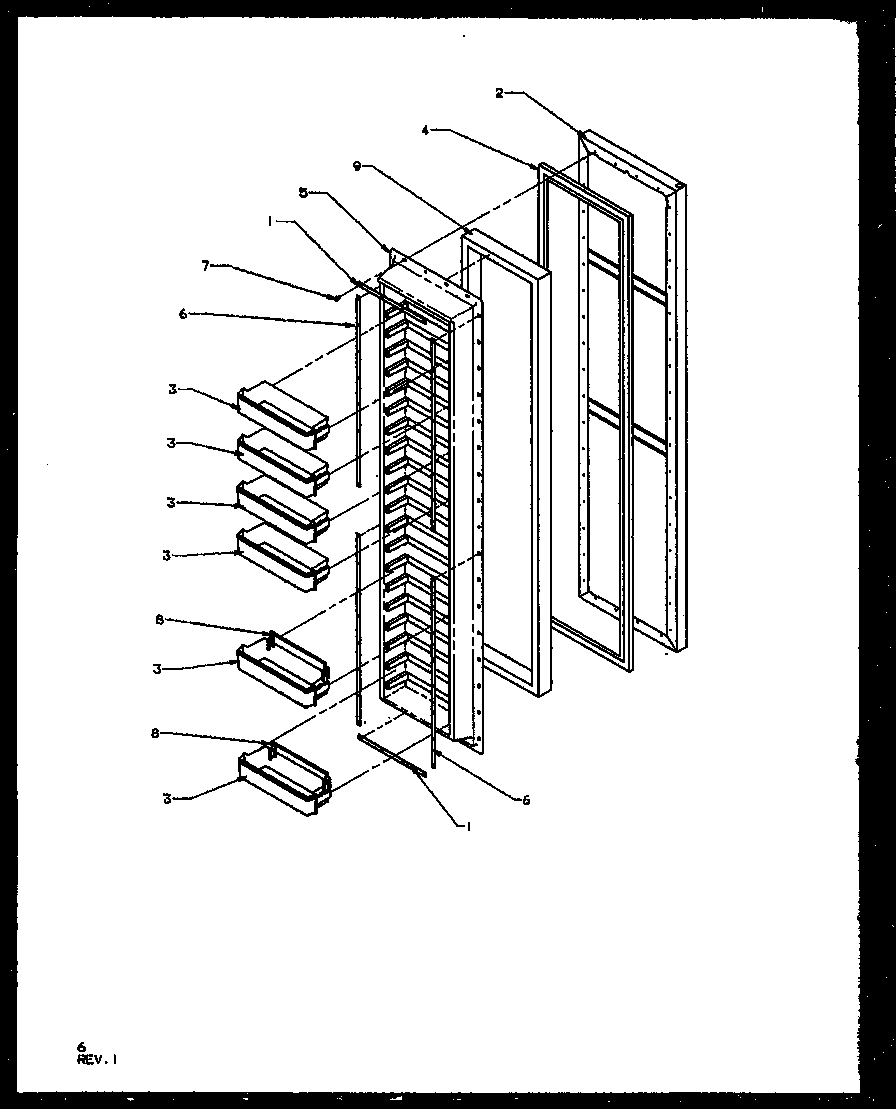

04 - FZ DOOR

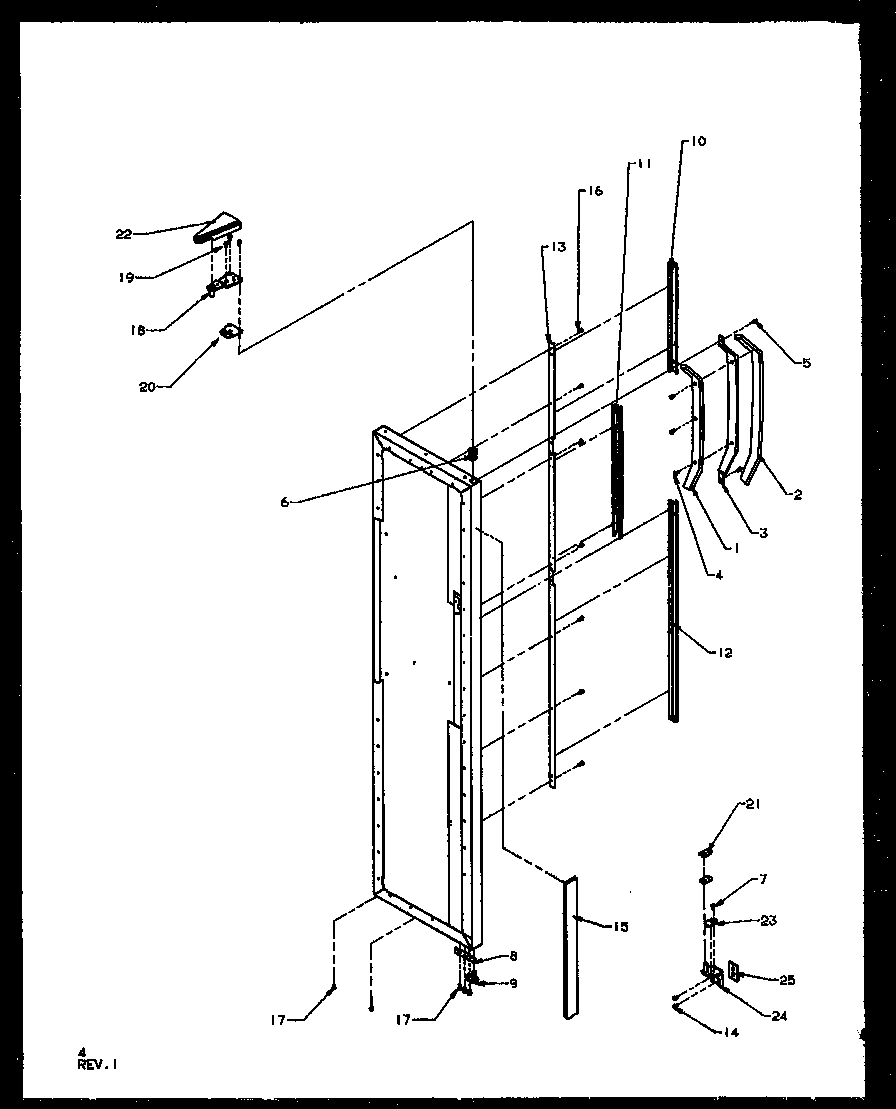

05 - FZ DOOR HINGE AND TRIM PARTS

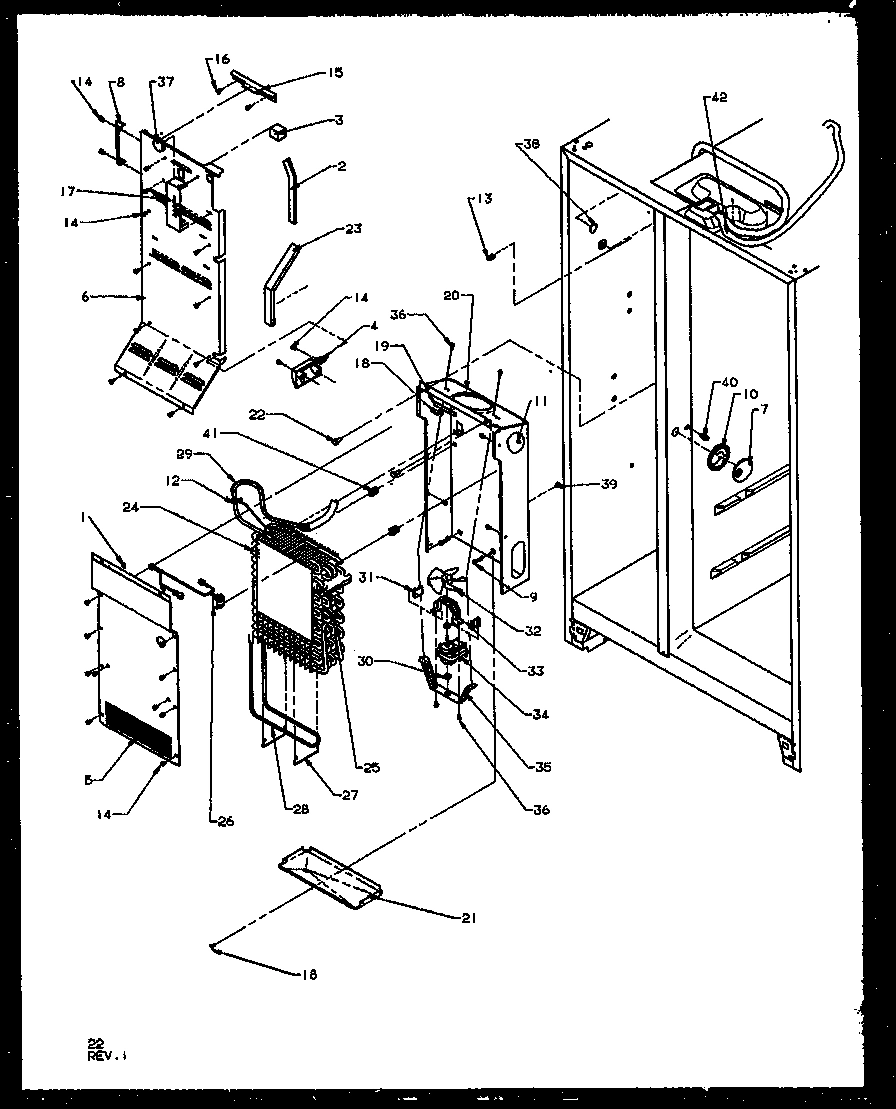

06 - FZ EVAP AND AIR HANDLING

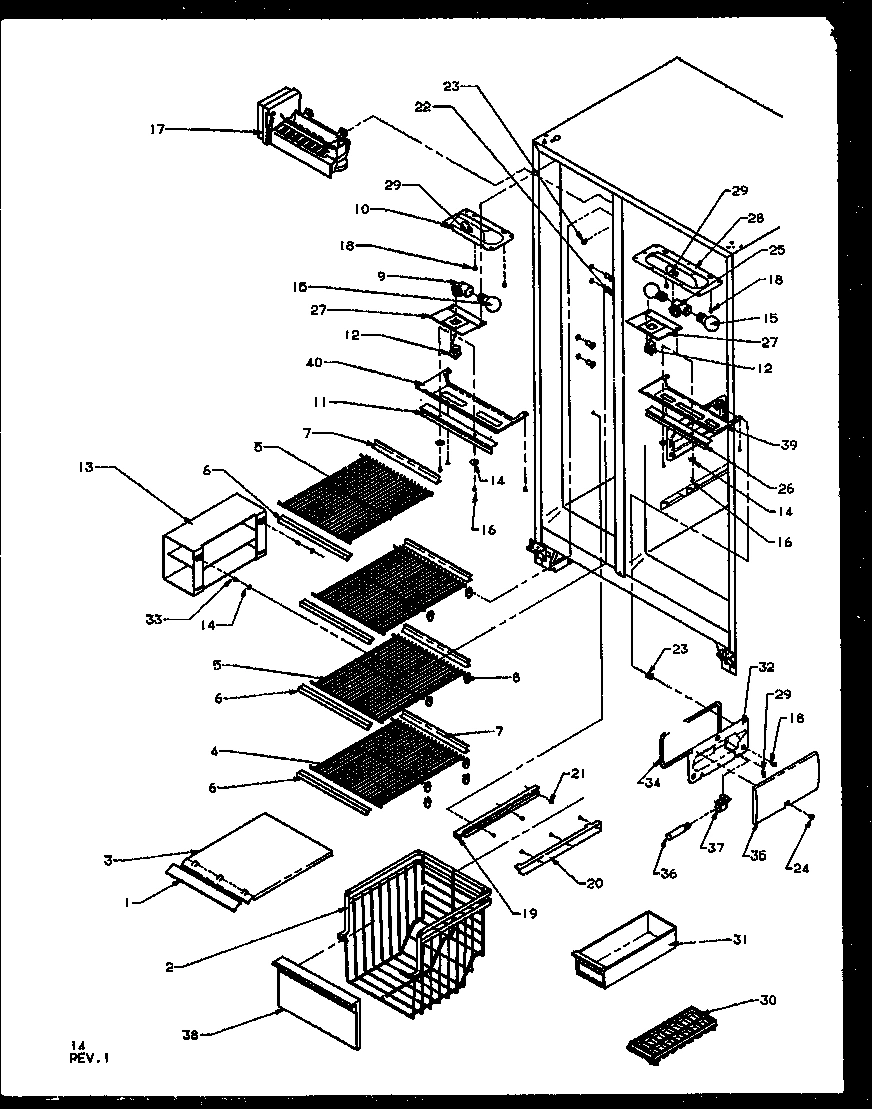

07 - FZ SHELVING AND REF LIGHT

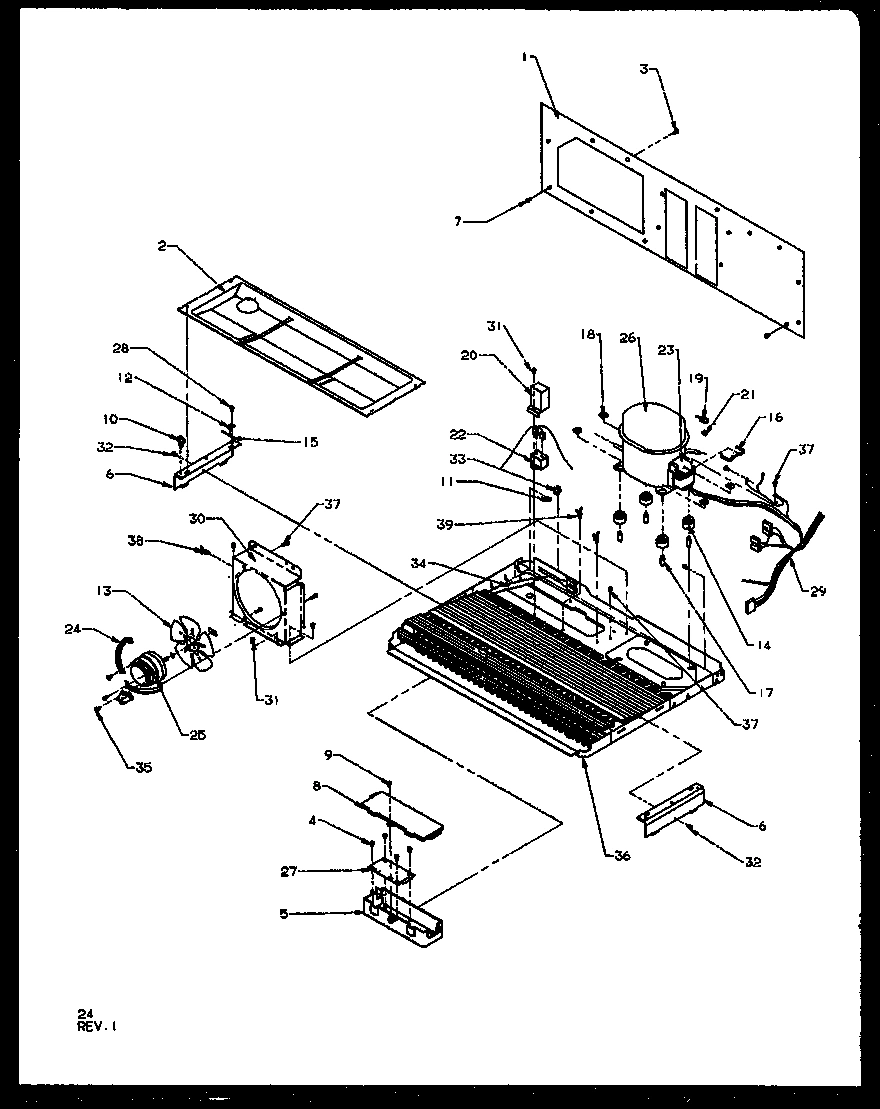

08 - MACHINE COMPARTMENT

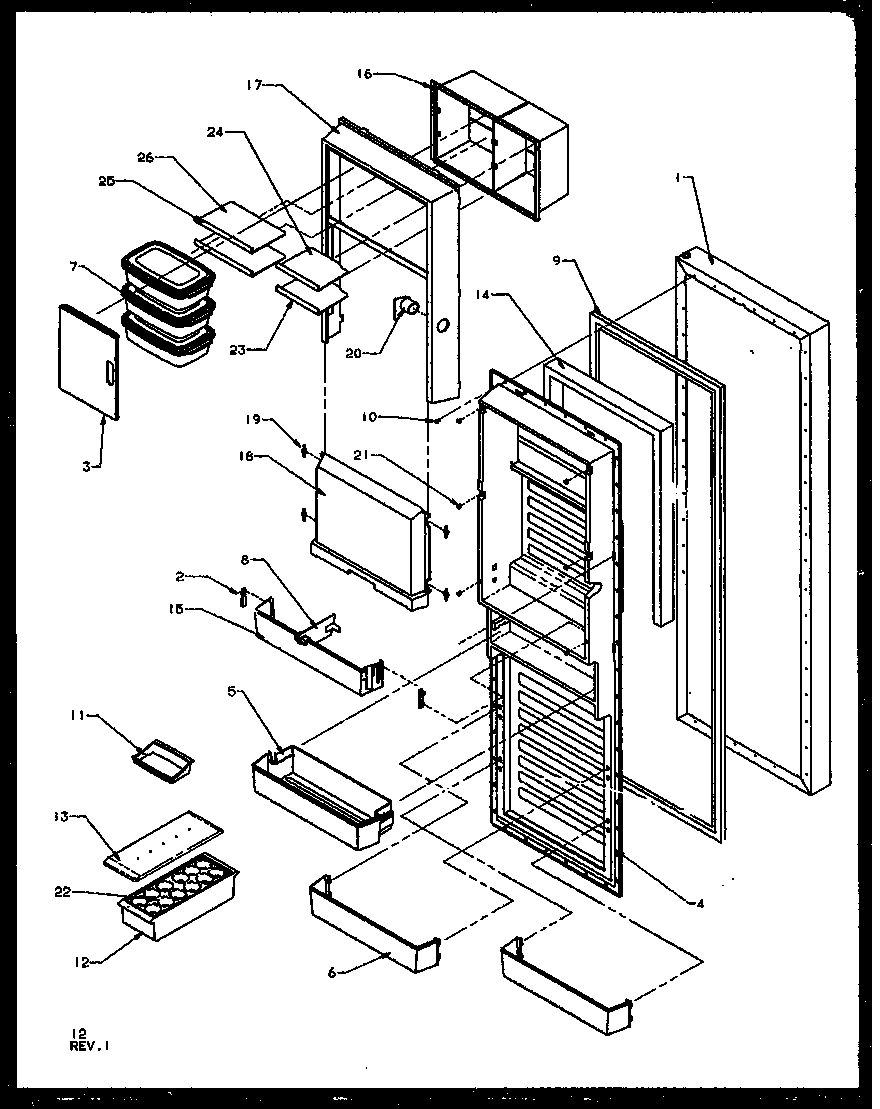

09 - REF DOOR

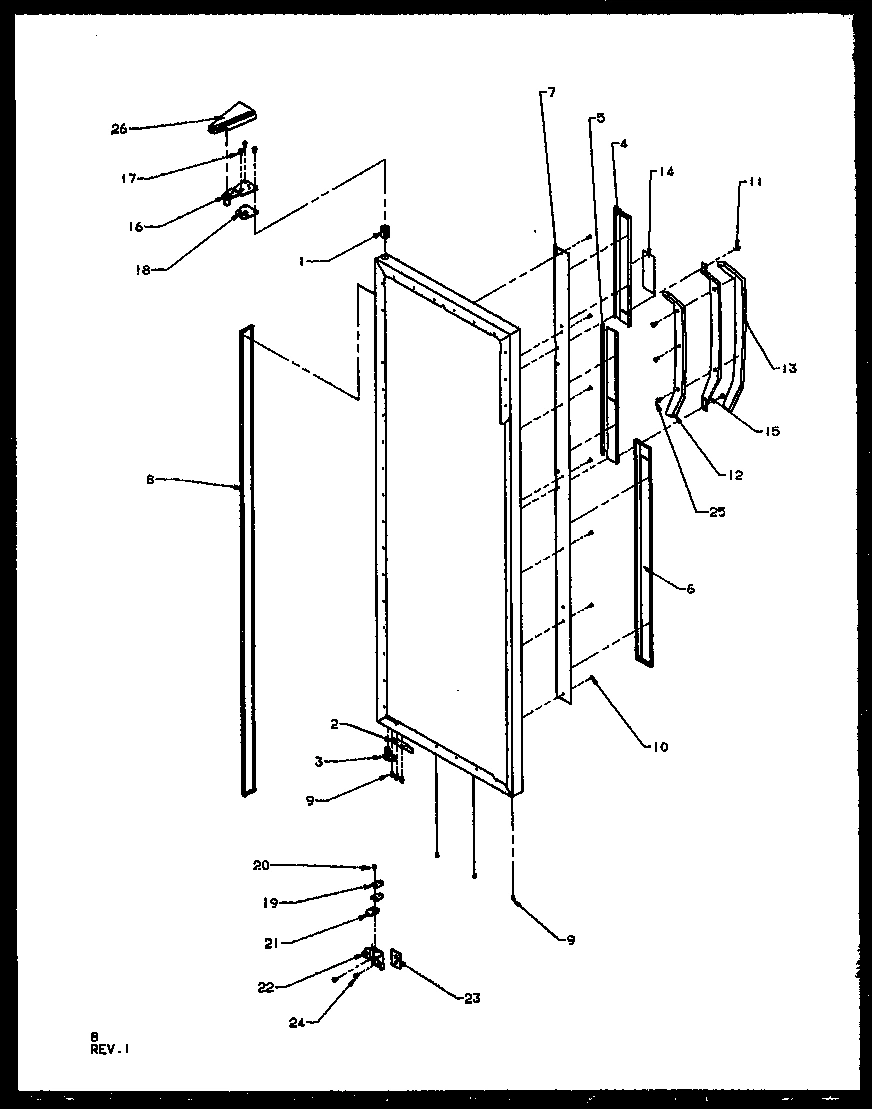

10 - REF DOOR HINGE AND TRIM PARTS
11 - REF FZ CONTROLS AND CABINET PARTS

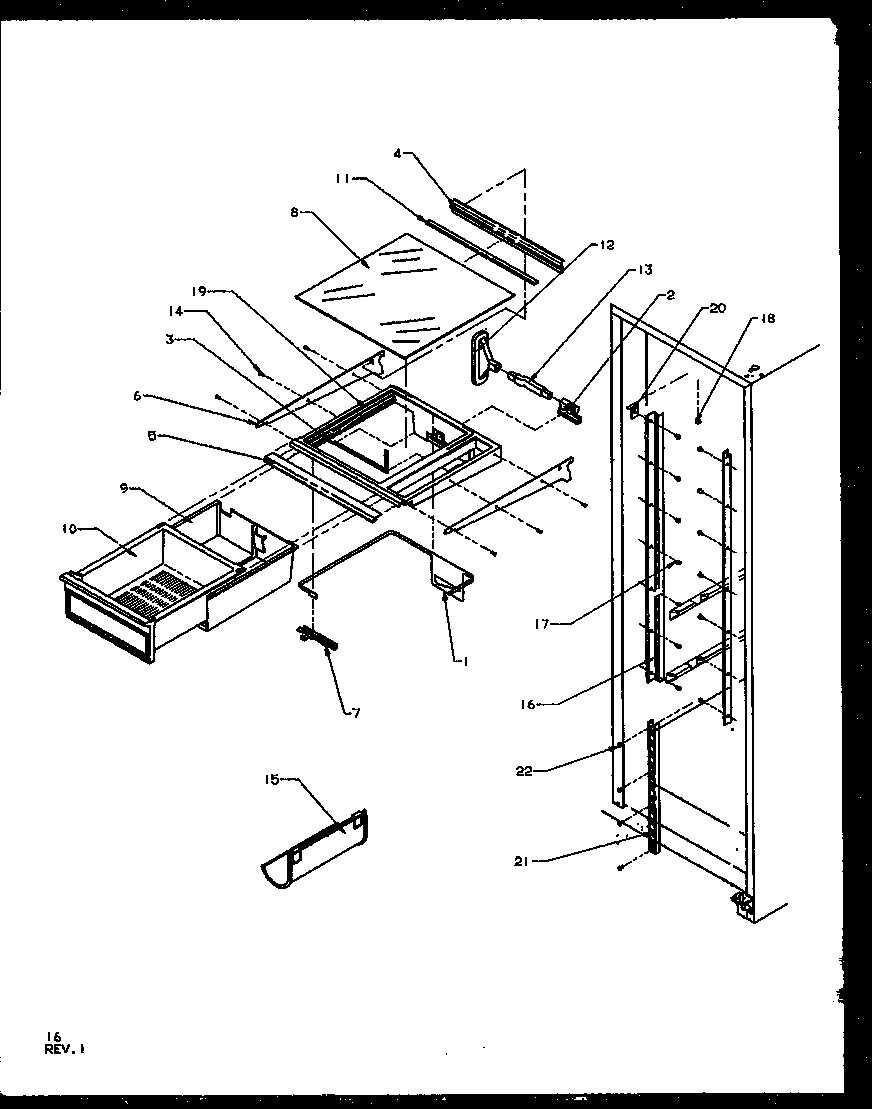

12 - REF SHELVING AND DRAWERS

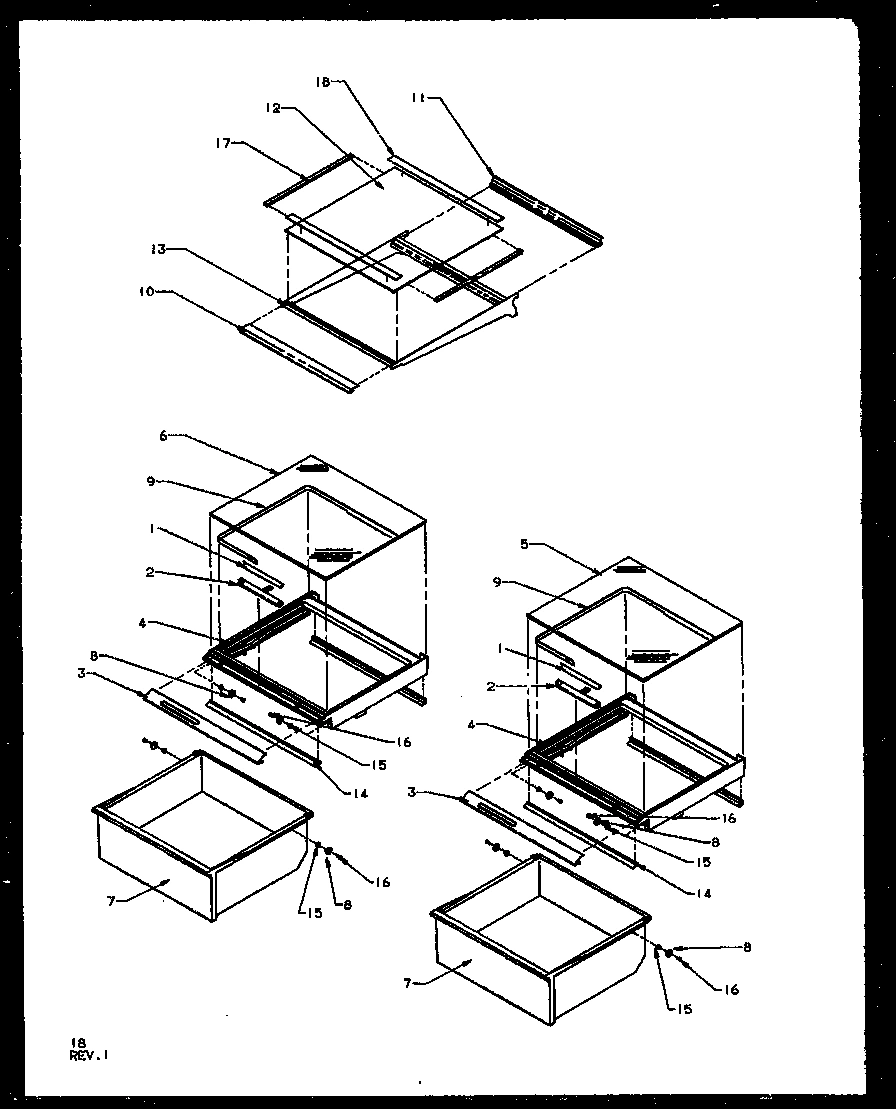

13 - REF SHELVING AND DRAWERS
Common parts from model Maytag SZ25NE REFRIGERATOR
1
MAY R0183119 MAY R0183119 Contact Us For Availability
1
MAY C8982801 MAY C8982801 Contact Us For Availability
1
MAY 10393802 MAY 10393802 Contact Us For Availability
1
MAY 10393803 MAY 10393803 Contact Us For Availability
1
MAY B8324801 MAY B8324801 Contact Us For Availability
1
MAY D7616690 MAY D7616690 Contact Us For Availability
1
MAY 10559902 MAY 10559902 Contact Us For Availability
1
MAY 10547503E MAY 10547503E Contact Us For Availability
1
MAY 10547503L MAY 10547503L Contact Us For Availability
1
MAY 10547503W MAY 10547503W Contact Us For Availability
1
MAY 10470301 MAY 10470301 Contact Us For Availability
1
MAY 10470302 MAY 10470302 Contact Us For Availability
1
MAY 10470304 MAY 10470304 Contact Us For Availability
1
MAY D7859504 MAY D7859504 Contact Us For Availability
1
MAY 10199906 MAY 10199906 Contact Us For Availability
2
MAY R0156839 MAY R0156839 Contact Us For Availability
2
MAY A3080001 MAY A3080001 Contact Us For Availability
2
MAY 10547301E MAY 10547301E Contact Us For Availability
2
MAY 10547301L MAY 10547301L Contact Us For Availability
2
MAY 10547301W MAY 10547301W Contact Us For Availability
2
MAY C8972402 MAY C8972402 Contact Us For Availability
2
MAY C8972403 MAY C8972403 Contact Us For Availability
2
MAY B8386602 MAY B8386602 Contact Us For Availability
2
MAY D7820803 MAY D7820803 Contact Us For Availability
2
MAY 10507901 MAY 10507901 Contact Us For Availability
2
MAY 10202001 MAY 10202001 Contact Us For Availability
2
MAY M0117301 MAY M0117301 Contact Us For Availability
2
MAY D7869101 MAY D7869101 Contact Us For Availability
2
MAY 10289908 MAY 10289908 Contact Us For Availability
3
MAY R0156629 MAY R0156629 Contact Us For Availability
3
MAY C8742401 MAY C8742401 Contact Us For Availability
3
MAY 10523903 MAY 10523903 Contact Us For Availability
3
MAY D7751402 MAY D7751402 Contact Us For Availability
3
MAY D7751404 MAY D7751404 Contact Us For Availability
3
MAY C8976102 MAY C8976102 Contact Us For Availability
3
MAY D7781504 MAY D7781504 Contact Us For Availability
3
MAY 10161607 MAY 10161607 Contact Us For Availability
3
MAY A3187702 MAY A3187702 Contact Us For Availability
3
MAY A3030353 MAY A3030353 Contact Us For Availability
3
MAY 10524301 MAY 10524301 Contact Us For Availability
4
MAY 10178504 MAY 10178504 Contact Us For Availability
4
MAY R0183120 MAY R0183120 Contact Us For Availability
4
MAY M0286708 MAY M0286708 Contact Us For Availability
4
MAY 10359702 MAY 10359702 Contact Us For Availability
4
MAY 10359704 MAY 10359704 Contact Us For Availability
4
MAY D7788314 MAY D7788314 Contact Us For Availability
4
MAY 10505401 MAY 10505401 Contact Us For Availability
4
MAY D7852007 MAY D7852007 Contact Us For Availability
4
MAY D7852008 MAY D7852008 Contact Us For Availability
4
MAY D7852010 MAY D7852010 Contact Us For Availability
4
MAY A3187801 MAY A3187801 Contact Us For Availability
4
MAY C8990405 MAY C8990405 Contact Us For Availability
4
MAY 10469608 MAY 10469608 Contact Us For Availability
4
MAY 10469609 MAY 10469609 Contact Us For Availability
5
MAY 10554401 MAY 10554401 Contact Us For Availability
5
MAY R0161060 MAY R0161060 Contact Us For Availability
5
MAY M0520102 MAY M0520102 Contact Us For Availability
5
MAY 10522001 MAY 10522001 Contact Us For Availability
5
MAY D7865914 MAY D7865914 Contact Us For Availability
5
MAY D7788316 MAY D7788316 Contact Us For Availability
5
MAY 10495901 MAY 10495901 Contact Us For Availability
5
MAY 10520203 MAY 10520203 Contact Us For Availability
5
MAY D7853802 MAY D7853802 Contact Us For Availability
5
MAY D7853803 MAY D7853803 Contact Us For Availability
5
MAY D7853805 MAY D7853805 Contact Us For Availability
5
MAY B5705320 MAY B5705320 Contact Us For Availability
5
MAY 10049941 MAY 10049941 Contact Us For Availability
5
MAY 10370030 MAY 10370030 Contact Us For Availability
6
MAY 10178701 MAY 10178701 Contact Us For Availability
6
MAY R0191094 MAY R0191094 Contact Us For Availability
6
MAY M1205302 MAY M1205302 Contact Us For Availability
6
MAY D7828601 MAY D7828601 Contact Us For Availability
6
MAY D7821142 MAY D7821142 Contact Us For Availability
6
MAY 10049921 MAY 10049921 Contact Us For Availability
6
MAY 10495701 MAY 10495701 Contact Us For Availability
6
MAY 10521803 MAY 10521803 Contact Us For Availability
6
MAY D7792802 MAY D7792802 Contact Us For Availability
6
MAY D7792803 MAY D7792803 Contact Us For Availability
6
MAY D7792805 MAY D7792805 Contact Us For Availability
6
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
6
MAY D7862990 MAY D7862990 Contact Us For Availability
6
MAY D7862991 MAY D7862991 Contact Us For Availability
6
MAY 10370027 MAY 10370027 Contact Us For Availability
7
MAY 10178801 MAY 10178801 Contact Us For Availability
7
MAY R0167201 MAY R0167201 Contact Us For Availability
7
MAY M120004 MAY M120004 Contact Us For Availability
7
MAY 10164806 MAY 10164806 Contact Us For Availability
7
MAY C8913609 MAY C8913609 Contact Us For Availability
7
MAY D7806405 MAY D7806405 Contact Us For Availability
7
MAY D7793202 MAY D7793202 Contact Us For Availability
7
MAY D7753901 MAY D7753901 Contact Us For Availability
7
MAY D7859402 MAY D7859402 Contact Us For Availability
7
MAY 10471810 MAY 10471810 Contact Us For Availability
8
MAY M0104101 MAY M0104101 Contact Us For Availability
8
MAY B8391802 MAY B8391802 Contact Us For Availability
8
MAY M1200202 MAY M1200202 Contact Us For Availability
8
MAY 10237602 MAY 10237602 Contact Us For Availability
8
MAY C8974102 MAY C8974102 Contact Us For Availability
8
MAY D7838302 MAY D7838302 Contact Us For Availability
8
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
8
MAY 10497801 MAY 10497801 Contact Us For Availability
8
MAY 10169005 MAY 10169005 Contact Us For Availability
8
MAY D7785401 MAY D7785401 Contact Us For Availability
8
MAY 10370031 MAY 10370031 Contact Us For Availability
8
ROLLER, PAN MAY 10481001 Contact Us For Availability
9
MAY A3189336 MAY A3189336 Contact Us For Availability
9
MAY M0211116 MAY M0211116 Contact Us For Availability
9
MAY M0585206 MAY M0585206 Contact Us For Availability
9
MAY M0211018 MAY M0211018 Contact Us For Availability
9
MAY 10527401 MAY 10527401 Contact Us For Availability
9
MAY C8973404 MAY C8973404 Contact Us For Availability
9
MAY M0216517 MAY M0216517 Contact Us For Availability
9
MAY 10359701 MAY 10359701 Contact Us For Availability
9
MAY 10359703 MAY 10359703 Contact Us For Availability
9
MAY 10178001 MAY 10178001 Contact Us For Availability
9
MAY D7698112 MAY D7698112 Contact Us For Availability
9
MAY 10519302 MAY 10519302 Contact Us For Availability
10
MAY B5794201 MAY B5794201 Contact Us For Availability
10
MAY D7826301 MAY D7826301 Contact Us For Availability
10
MAY 10505101 MAY 10505101 Contact Us For Availability
10
MAY M0219730 MAY M0219730 Contact Us For Availability
10
MAY D7852102 MAY D7852102 Contact Us For Availability
10
MAY D7852103 MAY D7852103 Contact Us For Availability
10
MAY D7852105 MAY D7852105 Contact Us For Availability
10
MAY 10164702 MAY 10164702 Contact Us For Availability
10
MAY D7760102 MAY D7760102 Contact Us For Availability
10
SEE NOTE VRT MULLION, W -- FIP POST COND MULL MAY Y00000000 Contact Us For Availability
10
MAY M0118703 MAY M0118703 Contact Us For Availability
10
MAY D7698340 MAY D7698340 Contact Us For Availability
10
MAY 10049949 MAY 10049949 Contact Us For Availability
10
MAY 10049950 MAY 10049950 Contact Us For Availability
11
MAY M0232317 MAY M0232317 Contact Us For Availability
11
MAY D7712603 MAY D7712603 Contact Us For Availability
11
MAY M0102303 MAY M0102303 Contact Us For Availability
11
MAY M0211030 MAY M0211030 Contact Us For Availability
11
MAY D7853902 MAY D7853902 Contact Us For Availability
11
MAY D7853903 MAY D7853903 Contact Us For Availability
11
MAY D7853905 MAY D7853905 Contact Us For Availability
11
MAY 10014707 MAY 10014707 Contact Us For Availability
11
MAY M0211357 MAY M0211357 Contact Us For Availability
11
MAY 10310901 MAY 10310901 Contact Us For Availability
11
MAY A3044208 MAY A3044208 Contact Us For Availability
11
MAY 10043102 MAY 10043102 Contact Us For Availability
11
MAY C8913608 MAY C8913608 Contact Us For Availability
11
MAY C8913613 MAY C8913613 Contact Us For Availability
12
MAY M0310319 MAY M0310319 Contact Us For Availability
12
MAY D7820401 MAY D7820401 Contact Us For Availability
12
MAY M0204339 MAY M0204339 Contact Us For Availability
12
MAY D7863001 MAY D7863001 Contact Us For Availability
12
MAY D7863002 MAY D7863002 Contact Us For Availability
12
MAY D7863004 MAY D7863004 Contact Us For Availability
12
MAY D7792702 MAY D7792702 Contact Us For Availability
12
MAY D7792703 MAY D7792703 Contact Us For Availability
12
MAY D7792705 MAY D7792705 Contact Us For Availability
12
MAY C3680304 MAY C3680304 Contact Us For Availability
12
MAY M0585601 MAY M0585601 Contact Us For Availability
12
MAY 10423124 MAY 10423124 Contact Us For Availability
12
MAY 10383201 MAY 10383201 Contact Us For Availability
12
MAY 10549301 MAY 10549301 Contact Us For Availability
12
MAY 10370021 MAY 10370021 Contact Us For Availability
12
MAY 10370022 MAY 10370022 Contact Us For Availability
13
MAY D7875201 MAY D7875201 Contact Us For Availability
13
MAY D7863101 MAY D7863101 Contact Us For Availability
13
MAY D7863102 MAY D7863102 Contact Us For Availability
13
MAY D7863104 MAY D7863104 Contact Us For Availability
13
MAY D7792902 MAY D7792902 Contact Us For Availability
13
MAY M0322202 MAY M0322202 Contact Us For Availability
13
MAY D7620104 MAY D7620104 Contact Us For Availability
13
MAY 10518701 MAY 10518701 Contact Us For Availability
13
MAY 10436404 MAY 10436404 Contact Us For Availability
13
MAY D7869001 MAY D7869001 Contact Us For Availability
13
MAY 10579105 MAY 10579105 Contact Us For Availability
13
MAY 10579106 MAY 10579106 Contact Us For Availability
14
MAY M0220621 MAY M0220621 Contact Us For Availability
14
MAY 10277304 MAY 10277304 Contact Us For Availability
14
MAY M0209616 MAY M0209616 Contact Us For Availability
14
MAY M0270508 MAY M0270508 Contact Us For Availability
14
MAY B8333401 MAY B8333401 Contact Us For Availability
14
MAY B0523590 MAY B0523590 Contact Us For Availability
14
MAY C8984306 MAY C8984306 Contact Us For Availability
14
MAY C8984307 MAY C8984307 Contact Us For Availability
14
SEAL, O RING MAY M0500703 Contact Us For Availability
14
MAY M0230028 MAY M0230028 Contact Us For Availability
14
MAY 10523401 MAY 10523401 Contact Us For Availability
14
MAY D7718406 MAY D7718406 Contact Us For Availability
15
MAY R0183121 MAY R0183121 Contact Us For Availability
15
MAY C8971902 MAY C8971902 Contact Us For Availability
15
MAY D7826603 MAY D7826603 Contact Us For Availability
15
MAY M0321202 MAY M0321202 Contact Us For Availability
15
MAY C8976201 MAY C8976201 Contact Us For Availability
15
MAY A0282803 MAY A0282803 Contact Us For Availability
15
MAY 10520403 MAY 10520403 Contact Us For Availability
15
MAY C8977301 MAY C8977301 Contact Us For Availability
15
MAY 10448901 MAY 10448901 Contact Us For Availability
15
MAY 10481301 MAY 10481301 Contact Us For Availability
16
MAY B2150503 MAY B2150503 Contact Us For Availability
16
MAY R0186041 MAY R0186041 Contact Us For Availability
16
MAY 10187501 MAY 10187501 Contact Us For Availability
16
MAY 10495803 MAY 10495803 Contact Us For Availability
16
MAY M0219546 MAY M0219546 Contact Us For Availability
16
MAY YB8358601 MAY YB8358601 Contact Us For Availability
16
MAY 10516901 MAY 10516901 Contact Us For Availability
16
MAY D7789805 MAY D7789805 Contact Us For Availability
16
MAY D7789806 MAY D7789806 Contact Us For Availability
16
MAY M0237932 MAY M0237932 Contact Us For Availability
17
MAY 10547001 MAY 10547001 Contact Us For Availability
17
MAY R0186040 MAY R0186040 Contact Us For Availability
17
MAY 10187601 MAY 10187601 Contact Us For Availability
17
MAY M0226331 MAY M0226331 Contact Us For Availability
17
MAY D7827402 MAY D7827402 Contact Us For Availability
17
MAY B8384901 MAY B8384901 Contact Us For Availability
17
MAY 10519001 MAY 10519001 Contact Us For Availability
17
MAY B8345401 MAY B8345401 Contact Us For Availability
17
MAY M0211016 MAY M0211016 Contact Us For Availability
17
MAY 10635803 MAY 10635803 Contact Us For Availability
18
MAY C8960601 MAY C8960601 Contact Us For Availability
18
MAY B8389001 MAY B8389001 Contact Us For Availability
18
MAY 10098801 MAY 10098801 Contact Us For Availability
18
MAY M0211017 MAY M0211017 Contact Us For Availability
18
MAY M0580007 MAY M0580007 Contact Us For Availability
18
MAY B8385001 MAY B8385001 Contact Us For Availability
18
MAY 10519204 MAY 10519204 Contact Us For Availability
18
MAY M0216539 MAY M0216539 Contact Us For Availability
18
MAY A3189353 MAY A3189353 Contact Us For Availability
18
MAY A3189354 MAY A3189354 Contact Us For Availability
19
MAY M0571201 MAY M0571201 Contact Us For Availability
19
MAY B8387701 MAY B8387701 Contact Us For Availability
19
MAY B8387702 MAY B8387702 Contact Us For Availability
19
MAY B8387703 MAY B8387703 Contact Us For Availability
19
MAY B8387704 MAY B8387704 Contact Us For Availability
19
MAY B5757707 MAY B5757707 Contact Us For Availability
19
MAY 10619601 MAY 10619601 Contact Us For Availability
19
MAY 10377009 MAY 10377009 Contact Us For Availability
19
MAY 10162101 MAY 10162101 Contact Us For Availability
19
MAY C8902601 MAY C8902601 Contact Us For Availability
19
MAY D7857005 MAY D7857005 Contact Us For Availability
20
MAY M0253942 MAY M0253942 Contact Us For Availability
20
MAY D7865808 MAY D7865808 Contact Us For Availability
20
MAY 10619602 MAY 10619602 Contact Us For Availability
20
MAY 10266401 MAY 10266401 Contact Us For Availability
20
MAY 10549101 MAY 10549101 Contact Us For Availability
20
MAY D7547407 MAY D7547407 Contact Us For Availability
20
MAY C8992301 MAY C8992301 Contact Us For Availability
21
MAY 10508001 MAY 10508001 Contact Us For Availability
21
MAY D7748301 MAY D7748301 Contact Us For Availability
21
MAY D7748302 MAY D7748302 Contact Us For Availability
21
MAY D7850202 MAY D7850202 Contact Us For Availability
21
MAY 10097202 MAY 10097202 Contact Us For Availability
21
MAY C8931505 MAY C8931505 Contact Us For Availability
21
MAY 10165101 MAY 10165101 Contact Us For Availability
21
MAY 10176602 MAY 10176602 Contact Us For Availability
21
MAY D7599003 MAY D7599003 Contact Us For Availability
22
MAY 10505002 MAY 10505002 Contact Us For Availability
22
MAY M0580003 MAY M0580003 Contact Us For Availability
22
MAY C8973701 MAY C8973701 Contact Us For Availability
22
MAY C8931607 MAY C8931607 Contact Us For Availability
22
MAY C8931610 MAY C8931610 Contact Us For Availability
22
MAY 10436504 MAY 10436504 Contact Us For Availability
22
MAY 10496105 MAY 10496105 Contact Us For Availability
22
MAY D7788201 MAY D7788201 Contact Us For Availability
22
MAY M0230923 MAY M0230923 Contact Us For Availability
23
MAY 10508101 MAY 10508101 Contact Us For Availability
23
MAY 10399501 MAY 10399501 Contact Us For Availability
23
MAY 10399502 MAY 10399502 Contact Us For Availability
23
MAY A3189335 MAY A3189335 Contact Us For Availability
23
MAY 10378301 MAY 10378301 Contact Us For Availability
23
MAY C8960801 MAY C8960801 Contact Us For Availability
23
MAY 10162005 MAY 10162005 Contact Us For Availability
23
MAY D7790332 MAY D7790332 Contact Us For Availability
24
MAY M0233847 MAY M0233847 Contact Us For Availability
24
MAY 10496104 MAY 10496104 Contact Us For Availability
24
MAY M0232903 MAY M0232903 Contact Us For Availability
24
MAY 10629601 MAY 10629601 Contact Us For Availability
24
MAY M0219916 MAY M0219916 Contact Us For Availability
24
MAY 10496501 MAY 10496501 Contact Us For Availability
24
MAY 10533501 MAY 10533501 Contact Us For Availability
25
MAY M0215116 MAY M0215116 Contact Us For Availability
25
MAY 10629001 MAY 10629001 Contact Us For Availability
25
MAY D7808602 MAY D7808602 Contact Us For Availability
25
MAY 10448603 MAY 10448603 Contact Us For Availability
25
MAY 10162006 MAY 10162006 Contact Us For Availability
25
MAY D7795816 MAY D7795816 Contact Us For Availability
26
MAY 10504307 MAY 10504307 Contact Us For Availability
26
MAY 10504308 MAY 10504308 Contact Us For Availability
26
MAY 10544001 MAY 10544001 Contact Us For Availability
26
MAY 10014708 MAY 10014708 Contact Us For Availability
26
MAY 10507801 MAY 10507801 Contact Us For Availability
26
MAY 10628102 MAY 10628102 Contact Us For Availability
26
MAY 10533502 MAY 10533502 Contact Us For Availability
26
MAY 10177901 MAY 10177901 Contact Us For Availability
27
MAY D7297603 MAY D7297603 Contact Us For Availability
27
MAY 10461502 MAY 10461502 Contact Us For Availability
27
MAY D7822402 MAY D7822402 Contact Us For Availability
28
MAY 10428405 MAY 10428405 Contact Us For Availability
28
MAY M0213529 MAY M0213529 Contact Us For Availability
28
MAY D7716404 MAY D7716404 Contact Us For Availability
28
MAY C3615024 MAY C3615024 Contact Us For Availability
29
MAY R0170049 MAY R0170049 Contact Us For Availability
29
MAY B5733302 MAY B5733302 Contact Us For Availability
29
MAY 10598101 MAY 10598101 Contact Us For Availability
29
MAY D7868603 MAY D7868603 Contact Us For Availability
30
MAY A1017202 MAY A1017202 Contact Us For Availability
30
MAY D7725401 MAY D7725401 Contact Us For Availability
30
SCREW 1`` MAY M0211021 Contact Us For Availability
30
MAY 10602404 MAY 10602404 Contact Us For Availability
31
MAY A1047901 MAY A1047901 Contact Us For Availability
31
MAY 10423121 MAY 10423121 Contact Us For Availability
31
MAY M0216716 MAY M0216716 Contact Us For Availability
32
FAN-EVAP MAY C8795501 Contact Us For Availability
32
MAY 10270201 MAY 10270201 Contact Us For Availability
32
MAY A4539603 MAY A4539603 Contact Us For Availability
33
MAY C8881301 MAY C8881301 Contact Us For Availability
33
MAY M0219559 MAY M0219559 Contact Us For Availability
33
MAY M0110505 MAY M0110505 Contact Us For Availability
34
MAY C8891605 MAY C8891605 Contact Us For Availability
34
MAY A3189337 MAY A3189337 Contact Us For Availability
34
MAY A0329816 MAY A0329816 Contact Us For Availability
35
MAY Y10270101 MAY Y10270101 Contact Us For Availability
35
MAY D7767703 MAY D7767703 Contact Us For Availability
35
MAY M0223803 MAY M0223803 Contact Us For Availability
36
MAY A3079001 MAY A3079001 Contact Us For Availability
36
MAY 10544104 MAY 10544104 Contact Us For Availability
37
MAY B5636301 MAY B5636301 Contact Us For Availability
37
MAY 10281601 MAY 10281601 Contact Us For Availability
37
MAY M0253916 MAY M0253916 Contact Us For Availability
38
MAY M0310709 MAY M0310709 Contact Us For Availability
38
MAY D7820720 MAY D7820720 Contact Us For Availability
38
MAY M0585403 MAY M0585403 Contact Us For Availability
39
MAY M0580002 MAY M0580002 Contact Us For Availability
39
MAY 10493201 MAY 10493201 Contact Us For Availability
39
MAY M0585401 MAY M0585401 Contact Us For Availability
40
MAY 10426801 MAY 10426801 Contact Us For Availability
40
MAY 10493301 MAY 10493301 Contact Us For Availability
41
MAY 10623001 MAY 10623001 Contact Us For Availability
42
MAY 10554801 MAY 10554801 Contact Us For Availability
NI
MAY 10527501 MAY 10527501 Contact Us For Availability
NI
MAY A4554806 MAY A4554806 Contact Us For Availability
NI
MAY C8956101 MAY C8956101 Contact Us For Availability
NI
MAY 10628501 MAY 10628501 Contact Us For Availability
NI
MAY 10543701 MAY 10543701 Contact Us For Availability
NI
MAY 10543702 MAY 10543702 Contact Us For Availability
NI
MAY 10582405 MAY 10582405 Contact Us For Availability
NI
MAY 10582406 MAY 10582406 Contact Us For Availability
× ![]()
