Model Speed Queen SYX280V Washer – Common Parts & Diagrams

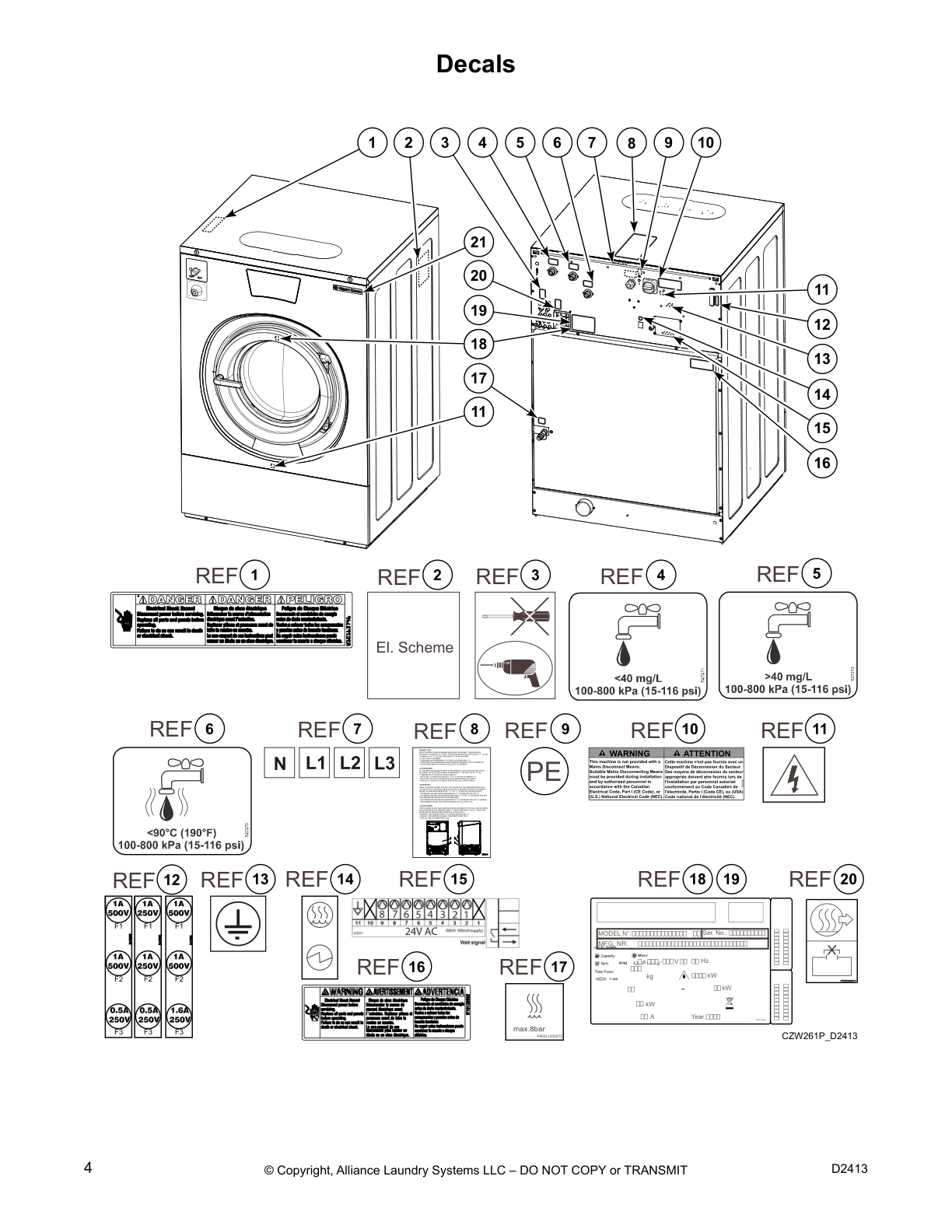

Decals

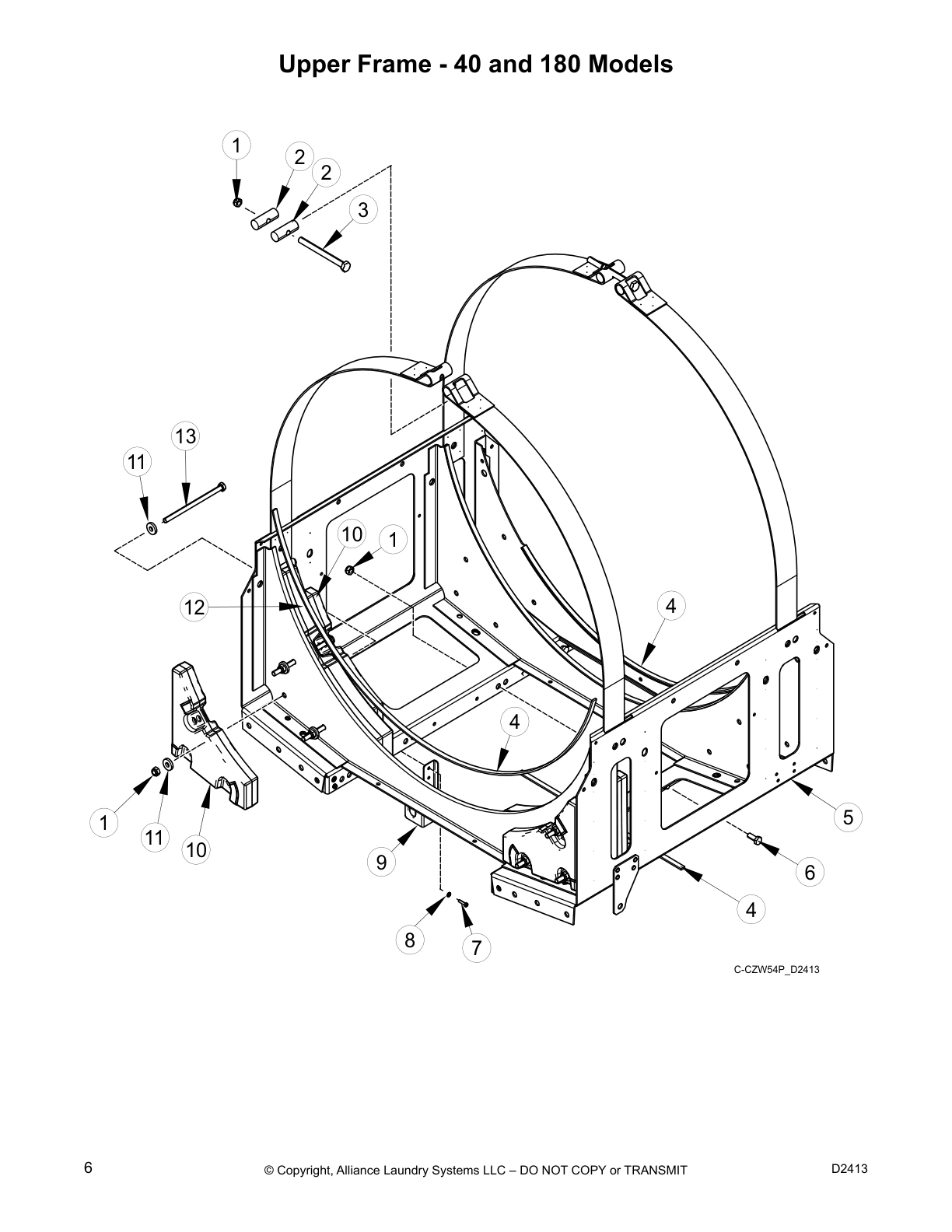

Upper Frame - 40 and 180 Models
Upper Frame - 55, 70, 240 and 280 Models
Lower Frame
Stabilizing Spring
Cabinet (Drawing 1 of 2)
Cabinet (Drawing 2 of 2)
Control Panel
Coin Meter (Drawing 1 of 3)
Coin Meter (Drawing 2 of 3)
Coin Meter (Drawing 3 of 3)
Coin Meter Box
Door- Models Through December 31, 2019
Door- Models Starting January 1, 2020
Door Lock
Two Water Inlet System
Three Water Inlet System
Two Water Inlet System - Optional
Three Water Inlet System - Optional
Drain System
Drain System - Two Drain Valve Option - 280 Models
Rear Panel - CE Models 230-400V with Neutral (Drawing 2 of 2)
Rear Panel - CE Models 400-440V (Drawing 2 of 2)
Rear Panel - CSA Models 230-400V (Drawing 1 of 2)
Rear Panel - CSA Models 230-400V (Drawing 2 of 2)
Rear Panel - CSA Models 400-440V (Drawing 1 of 2)
Rear Panel - CSA Models 400-440V (Drawing 2 of 2)
Steam Heating
Washing Drum and Tub (Drawing 1 of 2)
Washing Drum and Tub (Drawing 2 of 2)
Drive
Bearing Housing - 40 and 180 Models
Bearing Housing - 55, 70, 240 and 280 Models
Liquid Soap Supply System - Pumps
Common parts from model Speed Queen SYX280V Washer
SPQ 569640 SPQ 569640 Contact Us For Availability
SPQ SP560432 SPQ SP560432 Contact Us For Availability
SPQ SP560428 SPQ SP560428 Contact Us For Availability
SPQ SP560426 SPQ SP560426 Contact Us For Availability
SPQ SP560424 SPQ SP560424 Contact Us For Availability
SPQ SP560422 SPQ SP560422 Contact Us For Availability
SPQ SP560420 SPQ SP560420 Contact Us For Availability
SPQ SP560418 SPQ SP560418 Contact Us For Availability
SPQ SP560416 SPQ SP560416 Contact Us For Availability
SPQ SP560414 SPQ SP560414 Contact Us For Availability
SPQ SP560412 SPQ SP560412 Contact Us For Availability
SPQ SP560410 SPQ SP560410 Contact Us For Availability
SPQ SP560408 SPQ SP560408 Contact Us For Availability
SPQ SP560406 SPQ SP560406 Contact Us For Availability
SPQ SP560312 SPQ SP560312 Contact Us For Availability
SPQ SP560310 SPQ SP560310 Contact Us For Availability
SPQ SP560091 SPQ SP560091 Contact Us For Availability
SPQ SP559949 SPQ SP559949 Contact Us For Availability
SPQ SP559934 SPQ SP559934 Contact Us For Availability
SPQ SP558959 SPQ SP558959 Contact Us For Availability
SPQ SP560093 SPQ SP560093 Contact Us For Availability
SPQ SP560087 SPQ SP560087 Contact Us For Availability
SPQ 572321 SPQ 572321 Contact Us For Availability
SPQ 572314 SPQ 572314 Contact Us For Availability
SPQ 572308 SPQ 572308 Contact Us For Availability
SPQ 572302 SPQ 572302 Contact Us For Availability
SPQ SPPRI505000054 SPQ SPPRI505000054 Contact Us For Availability
SPQ SPPRI540020005 SPQ SPPRI540020005 Contact Us For Availability
1
Bolt SPQ SP309084240325 Contact Us For Availability
1
Spring SPQ SP505372 Contact Us For Availability
1
Top Cover Assembly SPQ 571013 Contact Us For Availability
1
Cover SPQ 569656 Contact Us For Availability
1
Coin Meter SPQ SP560751 Contact Us For Availability
1
Coin Meter SPQ SP560100 Contact Us For Availability
1
Coin Meter SPQ 575277 Contact Us For Availability
1
Soap Hopper Assembly SPQ SP540164 Contact Us For Availability
1
Hose Clamp SPQ SPPRI241000017 Contact Us For Availability
1
Steam Valve SPQ SP514164 Contact Us For Availability
1
Bolt SPQ SP309933001250 Contact Us For Availability
1
Washing Drum SPQ 552969P Contact Us For Availability
1
Clamp SPQ SP529013 Contact Us For Availability
1
Bearing Housing SPQ SP537867 Contact Us For Availability
1
Pump SPQ 529746 Contact Us For Availability
2
Distance Case SPQ SP533738 Contact Us For Availability
2
Damper SPQ SP311125000003 Contact Us For Availability
2
Rear Spring Holder SPQ SP555495 Contact Us For Availability
2
Top Cover Assembly SPQ 569953 Contact Us For Availability
2
Control Plate SPQ 569575 Contact Us For Availability
2
Terminal Board SPQ SPPRI350000007 Contact Us For Availability
2
Door Level SPQ 571605 Contact Us For Availability
2
Door Lock Plate SPQ 568971 Contact Us For Availability
2
Tee SPQ SPPRI426003217 Contact Us For Availability
2
Drain Elbow SPQ SPPRI540001019 Contact Us For Availability
2
Washer SPQ SP537898 Contact Us For Availability
2
Heating Element Front Cover SPQ SP552982 Contact Us For Availability
2
Speed Sensor SPQ SP555542 Contact Us For Availability
2
Bearing SPQ SPPRI608000080 Contact Us For Availability
2
Manifold Flush Kit SPQ 529745 Contact Us For Availability
3
Upper Frame SPQ SP527093 Contact Us For Availability
3
SPQ SP309931001050 SPQ SP309931001050 Contact Us For Availability
3
Rear Cover SPQ 570469 Contact Us For Availability
3
SPQ SPPRI610002007 SPQ SPPRI610002007 Contact Us For Availability
3
Control Panel SPQ SP309965240408 Contact Us For Availability
3
Isolation Paper SPQ SPPRI350012007 Contact Us For Availability
3
Fixed Upper Hinge SPQ 568902 Contact Us For Availability
3
Fixed Upper Hinge SPQ 568979 Contact Us For Availability
3
Screw SPQ F430977 Contact Us For Availability
3
Vent Hose SPQ SP526557 Contact Us For Availability
3
Tub to Drain Valve Hose SPQ SPPRI503000028 Contact Us For Availability
3
Steam Hose SPQ SP405054120215 Contact Us For Availability
3
SPQ SPF02119000415 SPQ SPF02119000415 Contact Us For Availability
3
SPQ SP555547 SPQ SP555547 Contact Us For Availability
3
Retaining Ring SPQ SP307732031130 Contact Us For Availability
3
Suction Tube SPQ 529744 Contact Us For Availability
4
Adhesive SPQ SP517232 Contact Us For Availability
4
SPQ SP533873 SPQ SP533873 Contact Us For Availability
4
Lower Rear Cover SPQ SP554326 Contact Us For Availability
4
Leading Pin SPQ 567978 Contact Us For Availability
4
Shim SPQ 568804 Contact Us For Availability
4
Emergency Opener SPQ 571615 Contact Us For Availability
4
Filling Hose Pipe SPQ SP554128 Contact Us For Availability
4
SPQ SP273124080161 SPQ SP273124080161 Contact Us For Availability
4
Heating Element Hole Plug SPQ SP319428324012 Contact Us For Availability
4
Cross Piece SPQ SP309933241035 Contact Us For Availability
4
SPQ SP311125240008 SPQ SP311125240008 Contact Us For Availability
4
SPQ SP557701 SPQ SP557701 Contact Us For Availability
4
Mounting Cone SPQ SPPRI242000014 Contact Us For Availability
4
Hose SPQ 529743 Contact Us For Availability
5
Bolt SPQ SP535479 Contact Us For Availability
5
SPQ SP515274 SPQ SP515274 Contact Us For Availability
5
SPQ SP547759 SPQ SP547759 Contact Us For Availability
5
Lower Front Panel SPQ 571009 Contact Us For Availability
5
SPQ SP528313 SPQ SP528313 Contact Us For Availability
5
Steam Injector SPQ SP555658 Contact Us For Availability
5
Fastener SPQ 569655 Contact Us For Availability
5
Bolt SPQ SP309933000416 Contact Us For Availability
5
Washer SPQ F8193101 Contact Us For Availability
5
SPQ SP540158 SPQ SP540158 Contact Us For Availability
5
SPQ SPPRI240000017 SPQ SPPRI240000017 Contact Us For Availability
5
External Tub SPQ SP309933001235 Contact Us For Availability
5
SPQ SP310934240008 SPQ SP310934240008 Contact Us For Availability
5
SPQ SP550033 SPQ SP550033 Contact Us For Availability
5
Grease Holder SPQ SP556115 Contact Us For Availability
5
Connection SPQ 529742 Contact Us For Availability
6
Hinge Spacer SPQ SP537864 Contact Us For Availability
6
SPQ SP525284 SPQ SP525284 Contact Us For Availability
6
Front Panel SPQ 571011 Contact Us For Availability
6
SPQ 567827 SPQ 567827 Contact Us For Availability
6
Coin Meter Case SPQ 569588 Contact Us For Availability
6
Closing Plate SPQ 568941 Contact Us For Availability
6
SPQ SP540113 SPQ SP540113 Contact Us For Availability
6
Seal SPQ SP547873 Contact Us For Availability
6
SPQ SP311125000013 SPQ SP311125000013 Contact Us For Availability
6
SPQ SP537822 SPQ SP537822 Contact Us For Availability
6
SPQ SP533811 SPQ SP533811 Contact Us For Availability
6
Sealing Ring SPQ SP552973 Contact Us For Availability
6
SPQ 529789 SPQ 529789 Contact Us For Availability
7
SPQ SP533784 SPQ SP533784 Contact Us For Availability
7
SPQ SP550113 SPQ SP550113 Contact Us For Availability
7
Torsion/Door Lock Spring SPQ 571612 Contact Us For Availability
7
SPQ SP526468 SPQ SP526468 Contact Us For Availability
7
Adhesive SPQ SP526528 Contact Us For Availability
7
SPQ SP537824 SPQ SP537824 Contact Us For Availability
7
SPQ SP533742 SPQ SP533742 Contact Us For Availability
7
Bearing Replacement Tool K SPQ SPPRI608000079 Contact Us For Availability
8
SPQ SP533954 SPQ SP533954 Contact Us For Availability
8
Nut SPQ 567973 Contact Us For Availability
8
Fastener SPQ SP550115 Contact Us For Availability
8
SPQ 569975 SPQ 569975 Contact Us For Availability
8
SPQ SP535421 SPQ SP535421 Contact Us For Availability
8
SPQ F430232 SPQ F430232 Contact Us For Availability
8
SPQ SP309798124313 SPQ SP309798124313 Contact Us For Availability
8
Steam Kit SPQ SPPRI342001016 Contact Us For Availability
8
SPQ SP552966 SPQ SP552966 Contact Us For Availability
8
SPQ SP537821 SPQ SP537821 Contact Us For Availability
8
SPQ SP547780 SPQ SP547780 Contact Us For Availability
8
Adhesive SPQ SP506475 Contact Us For Availability
9
SPQ SPPRI551006001 SPQ SPPRI551006001 Contact Us For Availability
9
SPQ SP540112 SPQ SP540112 Contact Us For Availability
9
SPQ SP526525 SPQ SP526525 Contact Us For Availability
9
SPQ SP537896 SPQ SP537896 Contact Us For Availability
9
SPQ SP310985000006 SPQ SP310985000006 Contact Us For Availability
9
Lubrication Grease SPQ SP537879 Contact Us For Availability
10
Nut SPQ SP310934000003 Contact Us For Availability
10
Seal SPQ 564202 Contact Us For Availability
10
Door Frame Sheet SPQ 571636 Contact Us For Availability
10
Main Vessel SPQ SP540115 Contact Us For Availability
10
Air Trap Reduction SPQ SPPRI503000027 Contact Us For Availability
10
Adapter SPQ SP547968 Contact Us For Availability
10
Heating Element Cover SPQ 568937 Contact Us For Availability
11
Label SPQ SP230200007514 Contact Us For Availability
11
Edge Protection SPQ SP529068 Contact Us For Availability
11
Hose SPQ SPPRI240000003 Contact Us For Availability
11
Washer SPQ SP547981 Contact Us For Availability
11
Seal SPQ SP510986 Contact Us For Availability
11
Washer SPQ SP311902100012 Contact Us For Availability
12
Oscillation Limiter SPQ SP533388 Contact Us For Availability
12
Washer SPQ SP311902100004 Contact Us For Availability
12
Console SPQ 569555 Contact Us For Availability
12
Washer SPQ SP555746 Contact Us For Availability
12
Fixed Hinge SPQ 568982 Contact Us For Availability
12
Spacer SPQ F431901 Contact Us For Availability
12
Hose Clamp SPQ SPPRI240000021 Contact Us For Availability
12
Reinforcement Tube SPQ SPPRI503002049 Contact Us For Availability
12
Plug SPQ SPPRI426001268 Contact Us For Availability
12
Nut SPQ SP310985000012 Contact Us For Availability
12
Hinge Spacer SPQ SP537849 Contact Us For Availability
13
Earthing Index Plat SPQ SPPRI551000001 Contact Us For Availability
13
Lower Weight SPQ SP533814 Contact Us For Availability
13
Spring SPQ SP533872 Contact Us For Availability
13
Rivet SPQ SP547779 Contact Us For Availability
13
Profiled Sealing SPQ SP529206 Contact Us For Availability
13
Bolt SPQ SP309933000618 Contact Us For Availability
13
Bolt SPQ SP311125000006 Contact Us For Availability
13
Holder SPQ 569658 Contact Us For Availability
13
Door SPQ SP553527 Contact Us For Availability
13
Microswitch SPQ 568978 Contact Us For Availability
13
Hose SPQ SPPRI240000002 Contact Us For Availability
13
Drain Hose Pipe SPQ SP500125 Contact Us For Availability
13
Bolt SPQ SP310934000008 Contact Us For Availability
14
Label SPQ 509472 Contact Us For Availability
14
Rivet SPQ SP310985000008 Contact Us For Availability
14
Cover Strip Pin SPQ SP533717 Contact Us For Availability
14
Steam Valve Body SPQ SP311127000006 Contact Us For Availability
14
Door SPQ 569419 Contact Us For Availability
14
Trim SPQ 569403 Contact Us For Availability
14
Nut SPQ F430225 Contact Us For Availability
14
Hose Pipe SPQ SPPRI540000014 Contact Us For Availability
14
Drain Valve SPQ SP526492 Contact Us For Availability
14
Microswitch SPQ 571634 Contact Us For Availability
14
Tensioning Angle Piece SPQ SP309933000880 Contact Us For Availability
15
Label SPQ 570371 Contact Us For Availability
15
Seal SPQ SP309933000845 Contact Us For Availability
15
Pin Insertion SPQ SP533870 Contact Us For Availability
15
Card Reader Cover Plate SPQ 569636 Contact Us For Availability
15
Pin SPQ SP554970 Contact Us For Availability
15
3-Way Valve SPQ SP101745 Contact Us For Availability
15
Drain Valve SPQ SPPRI240000007 Contact Us For Availability
15
Connector SPQ SP309933000620 Contact Us For Availability
15
Nut SPQ 571635 Contact Us For Availability
15
Speed Sensor Plate SPQ SP309933000616 Contact Us For Availability
16
Cable Holder SPQ SP526497 Contact Us For Availability
16
Bolt SPQ F8270701 Contact Us For Availability
16
Bolt SPQ SPPRI340055051 Contact Us For Availability
16
Coil SPQ SP514165 Contact Us For Availability
16
Door Lock Holder SPQ 568931 Contact Us For Availability
16
Feather SPQ SP533326 Contact Us For Availability
17
Washer SPQ SP309933000820 Contact Us For Availability
17
Profiled Sealing SPQ SPPRI505000058 Contact Us For Availability
17
Casing SPQ SP529739 Contact Us For Availability
17
Pipe Nipple SPQ SP547959 Contact Us For Availability
17
Steam Filter SPQ SP554156 Contact Us For Availability
17
V-Pulley Drum SPQ SP547705 Contact Us For Availability
18
Adjustable Foot SPQ SP520408 Contact Us For Availability
18
Control Panel SPQ 569635 Contact Us For Availability
18
Extension SPQ SPPRI426002072 Contact Us For Availability
18
Overflow Tube SPQ SP311902100008 Contact Us For Availability
18
Steam Valve Support SPQ SP554110 Contact Us For Availability
18
Belt SPQ SP309933001630 Contact Us For Availability
19
Nameplate SPQ SP516715 Contact Us For Availability
19
Roller SPQ SP533871 Contact Us For Availability
19
Module SPQ 567977 Contact Us For Availability
19
Pin SPQ SP547958 Contact Us For Availability
19
Pin SPQ SPPRI426001217 Contact Us For Availability
19
Screw SPQ SP547897 Contact Us For Availability
19
Shaft Ring SPQ SP284000012003 Contact Us For Availability
19
Speed Sensor Holder SPQ SP511924 Contact Us For Availability
20
Index Plate SPQ SPPRI551000047 Contact Us For Availability
20
Microswitch SPQ SPPRI504000001 Contact Us For Availability
20
Washer SPQ SP547821 Contact Us For Availability
20
Bolt SPQ 568987 Contact Us For Availability
20
Shim SPQ SP308726014050 Contact Us For Availability
21
SPQ F8664901 SPQ F8664901 Contact Us For Availability
21
Connector SPQ SP309084000416 Contact Us For Availability
21
Vibration Switch Holder SPQ SP310934000010 Contact Us For Availability
21
Filter SPQ SP540117 Contact Us For Availability
21
Motor Holder SPQ SP547706 Contact Us For Availability
22
Profiled Sealing SPQ SP533726 Contact Us For Availability
22
Screw SPQ SP526460 Contact Us For Availability
22
Cap SPQ SP554325 Contact Us For Availability
22
Front Panel SPQ SP537856 Contact Us For Availability
22
Cage SPQ SP547781 Contact Us For Availability
23
Washer SPQ SP537854 Contact Us For Availability
23
SPQ SP310934000020 SPQ SP310934000020 Contact Us For Availability
23
1-Way Valve SPQ SPPRI426001107 Contact Us For Availability
23
Water Level Switch Hose SPQ SP526454 Contact Us For Availability
24
SPQ SP311679800004 SPQ SP311679800004 Contact Us For Availability
24
SPQ SP506432 SPQ SP506432 Contact Us For Availability
24
Cable Holder SPQ 553189 Contact Us For Availability
24
Mixer Body SPQ SP510120 Contact Us For Availability
24
Clamp SPQ 569000 Contact Us For Availability
25
SPQ SP311902100010 SPQ SP311902100010 Contact Us For Availability
25
Mixer Lid SPQ SPPRI340004030 Contact Us For Availability
25
Y-Piece SPQ SPR35100016514 Contact Us For Availability
26
SPQ SP533727 SPQ SP533727 Contact Us For Availability
26
Y-Piece SPQ SP526513 Contact Us For Availability
26
Spiral SPQ SPR35100016714 Contact Us For Availability
26
Adhesive SPQ SP310934240006 Contact Us For Availability
27
SPQ SP533716 SPQ SP533716 Contact Us For Availability
27
Top Cover Reinforcement SPQ SP309798500306 Contact Us For Availability
27
Mixer SPQ SP548933 Contact Us For Availability
27
Mixer SPQ SP554211 Contact Us For Availability
27
Spring Clamp SPQ SP554117 Contact Us For Availability
27
SPQ SP311679800006 SPQ SP311679800006 Contact Us For Availability
28
SPQ SP310985000010 SPQ SP310985000010 Contact Us For Availability
28
Fastener SPQ SP311679800003 Contact Us For Availability
28
Water Level Switch SPQ SPPRI540001003 Contact Us For Availability
28
SPQ SP311125240006 SPQ SP311125240006 Contact Us For Availability
29
SPQ SP527420 SPQ SP527420 Contact Us For Availability
29
Filling Elbow Pipe SPQ SP526565 Contact Us For Availability
29
Foam Roller SPQ SP345000626088 Contact Us For Availability
30
SPQ SP528309 SPQ SP528309 Contact Us For Availability
30
Dispenser Pipe SPQ SP526461 Contact Us For Availability
30
SPQ SP283449080200 SPQ SP283449080200 Contact Us For Availability
31
SPQ SP510923 SPQ SP510923 Contact Us For Availability
31
SPQ SP540183 SPQ SP540183 Contact Us For Availability
32
Dispenser Seal SPQ SP526558 Contact Us For Availability
33
Flap SPQ SP526439 Contact Us For Availability
33
SPQ SP100188 SPQ SP100188 Contact Us For Availability
34
Soap Hopper Plug SPQ SP526491 Contact Us For Availability
34
SPQ SP526532 SPQ SP526532 Contact Us For Availability
35
Soap Hopper Upper Cover SPQ SP526506 Contact Us For Availability
37
Water Hose SPQ SP526510 Contact Us For Availability
47
Side Panel SPQ SP533384 Contact Us For Availability
NI
SPQ SP245704003021 SPQ SP245704003021 Contact Us For Availability
NI
SPQ 569663 SPQ 569663 Contact Us For Availability
NI
SPQ 567980 SPQ 567980 Contact Us For Availability
NI
SPQ SP313251000006 SPQ SP313251000006 Contact Us For Availability
NI
SPQ SP560745 SPQ SP560745 Contact Us For Availability
NI
SPQ SP560429 SPQ SP560429 Contact Us For Availability
NI
SPQ SP560427 SPQ SP560427 Contact Us For Availability
NI
SPQ SP560425 SPQ SP560425 Contact Us For Availability
NI
SPQ SP560423 SPQ SP560423 Contact Us For Availability
NI
SPQ SP560421 SPQ SP560421 Contact Us For Availability
NI
SPQ SP560419 SPQ SP560419 Contact Us For Availability
NI
SPQ SP560417 SPQ SP560417 Contact Us For Availability
NI
SPQ SP560415 SPQ SP560415 Contact Us For Availability
NI
SPQ SP560413 SPQ SP560413 Contact Us For Availability
NI
SPQ SP560411 SPQ SP560411 Contact Us For Availability
NI
SPQ SP560409 SPQ SP560409 Contact Us For Availability
NI
SPQ SP560407 SPQ SP560407 Contact Us For Availability
NI
SPQ SP560405 SPQ SP560405 Contact Us For Availability
NI
SPQ SP560311 SPQ SP560311 Contact Us For Availability
NI
SPQ SP560309 SPQ SP560309 Contact Us For Availability
NI
SPQ SP560090 SPQ SP560090 Contact Us For Availability
NI
SPQ SP559938 SPQ SP559938 Contact Us For Availability
NI
SPQ SP559933 SPQ SP559933 Contact Us For Availability
NI
SPQ SP558958 SPQ SP558958 Contact Us For Availability
NI
SPQ SP560094 SPQ SP560094 Contact Us For Availability
NI
SPQ SP560092 SPQ SP560092 Contact Us For Availability
NI
SPQ 572324 SPQ 572324 Contact Us For Availability
NI
SPQ 572318 SPQ 572318 Contact Us For Availability
NI
SPQ 572311 SPQ 572311 Contact Us For Availability
NI
SPQ 572305 SPQ 572305 Contact Us For Availability
NI
SPQ 570000 SPQ 570000 Contact Us For Availability
NI
SPQ 569999 SPQ 569999 Contact Us For Availability
NI
SPQ 575276 SPQ 575276 Contact Us For Availability
NI
SPQ 569405 SPQ 569405 Contact Us For Availability
NI
SPQ SP540116 SPQ SP540116 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ SP547980 SPQ SP547980 Contact Us For Availability
NI
SPQ SP101621 SPQ SP101621 Contact Us For Availability
NI
SPQ SP526564 SPQ SP526564 Contact Us For Availability
NI
SPQ SP245704000603 SPQ SP245704000603 Contact Us For Availability
NI
SPQ 555355 SPQ 555355 Contact Us For Availability
NI
SPQ SP538787 SPQ SP538787 Contact Us For Availability
NI
SPQ 529787 SPQ 529787 Contact Us For Availability
NI
SPQ 529747 SPQ 529747 Contact Us For Availability
NI
SPQ 547808 SPQ 547808 Contact Us For Availability
× ![]()
