Model Speed Queen SXE075P Washer – Common Parts & Diagrams

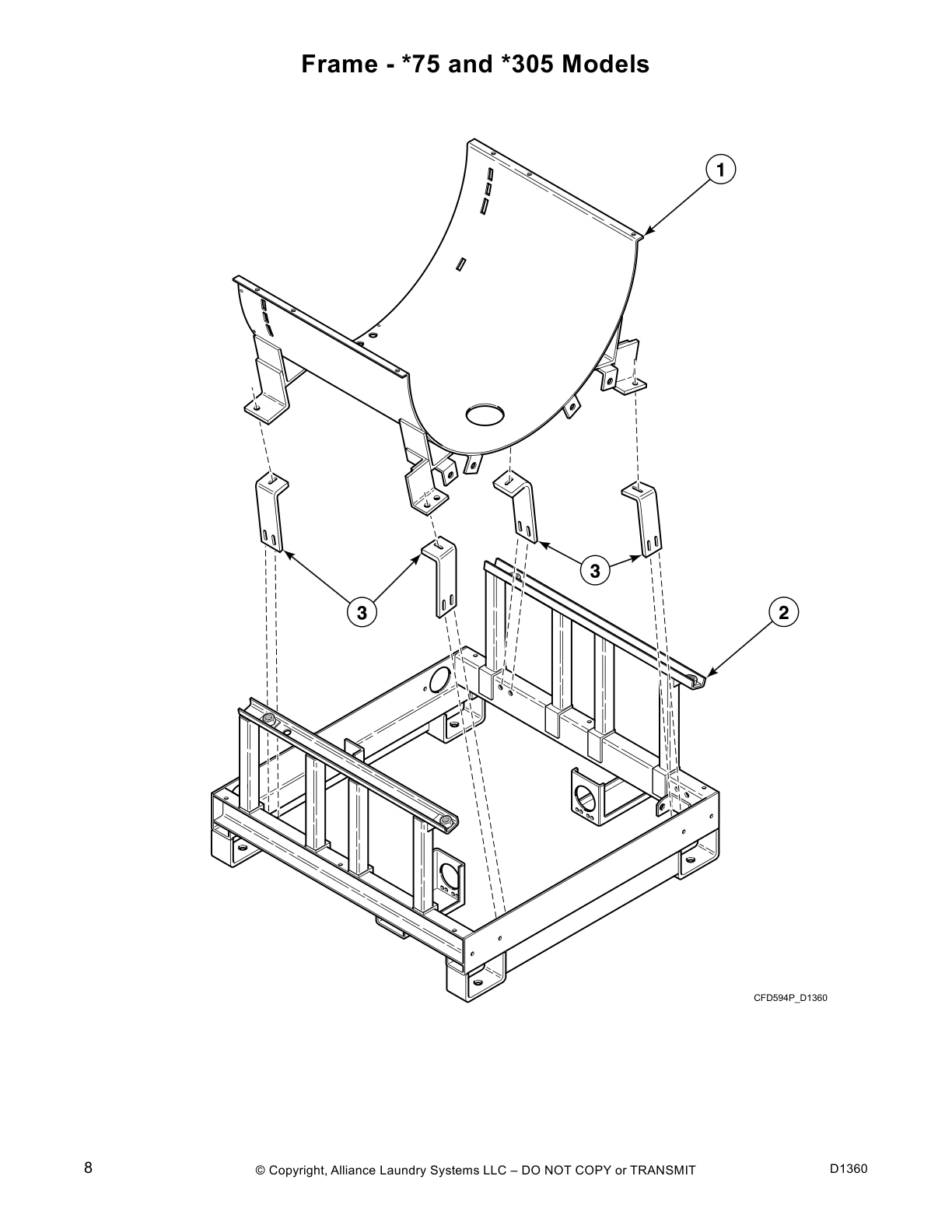

Frame - *75 and *305 Models

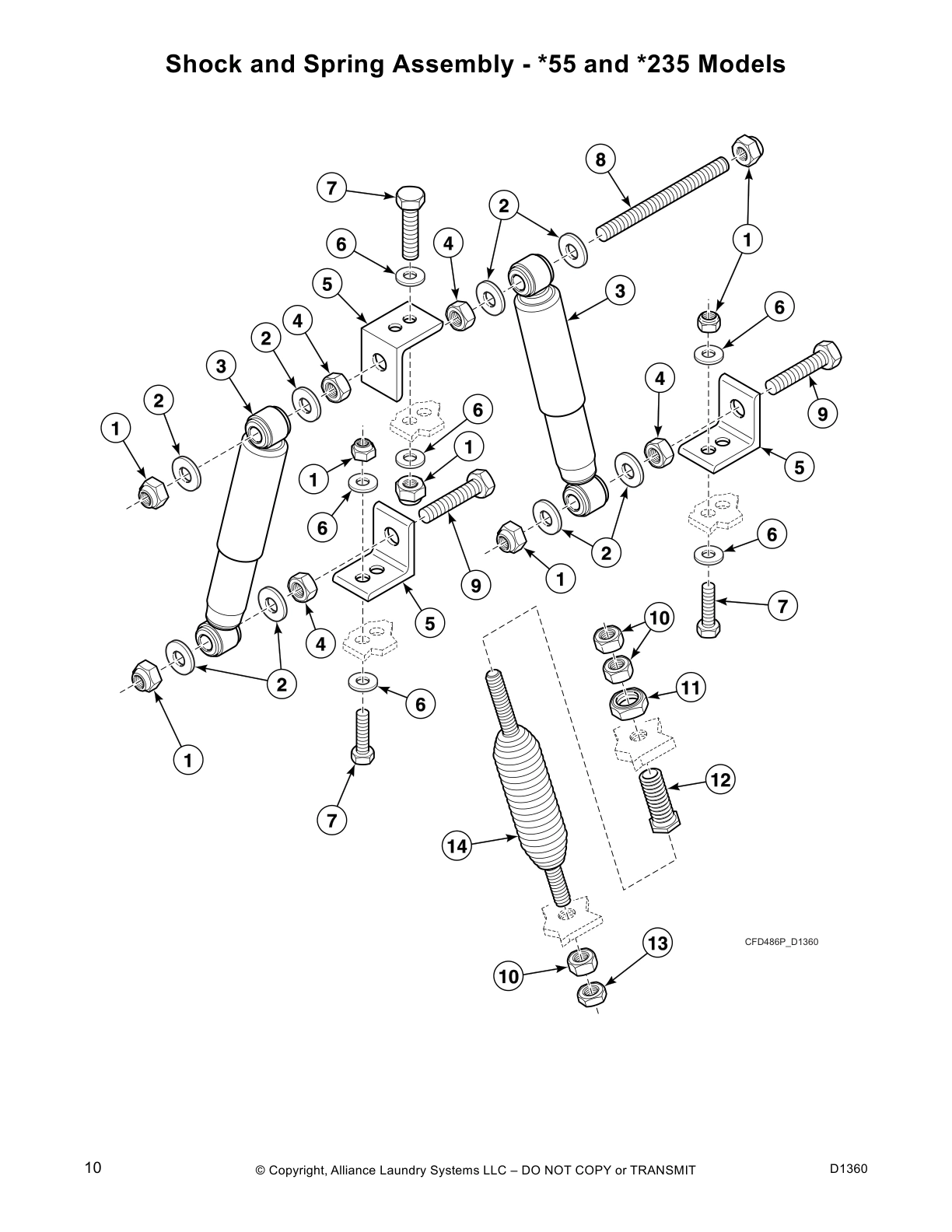

Shock and Spring Assembly - *55 and *235 Models

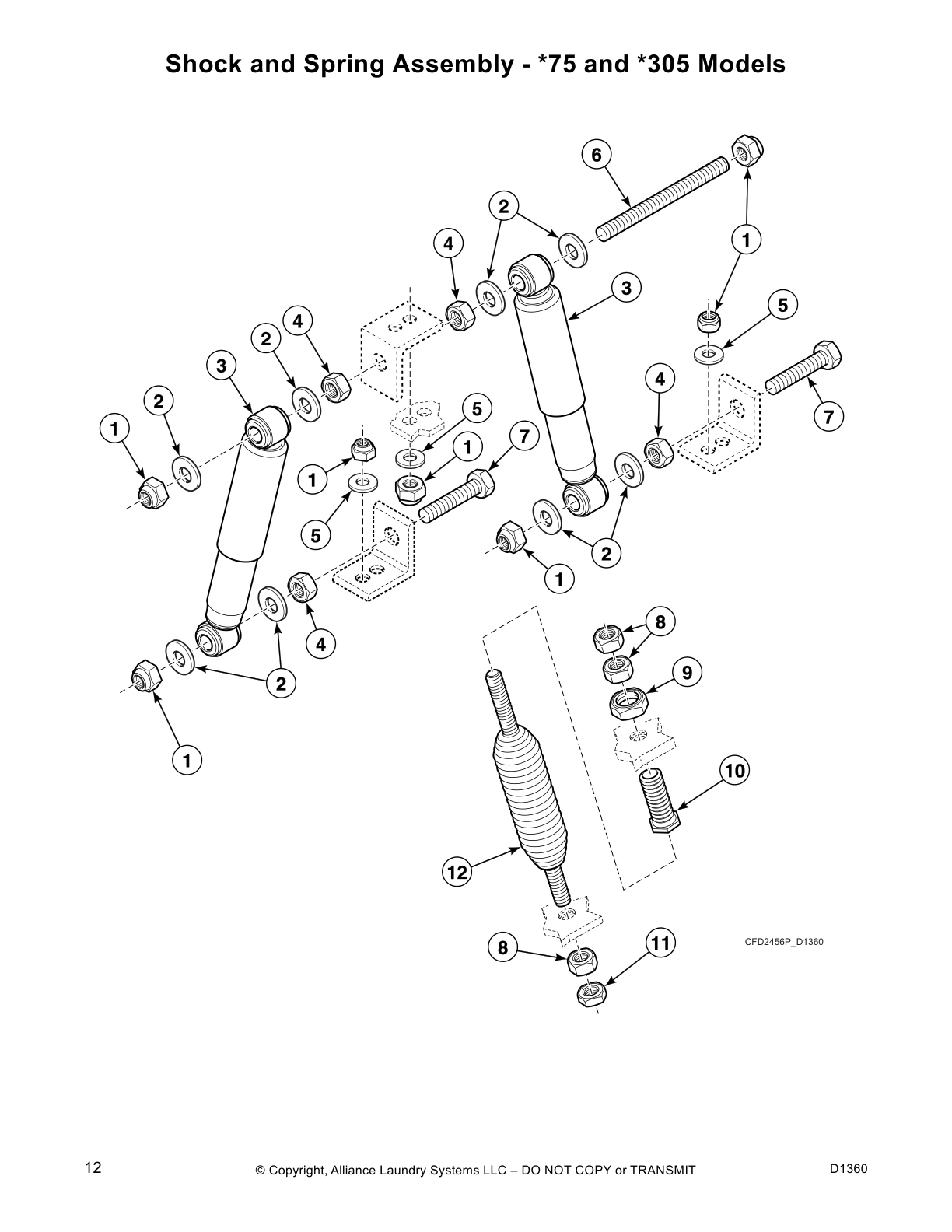

Shock and Spring Assembly - *75 and *305 Models

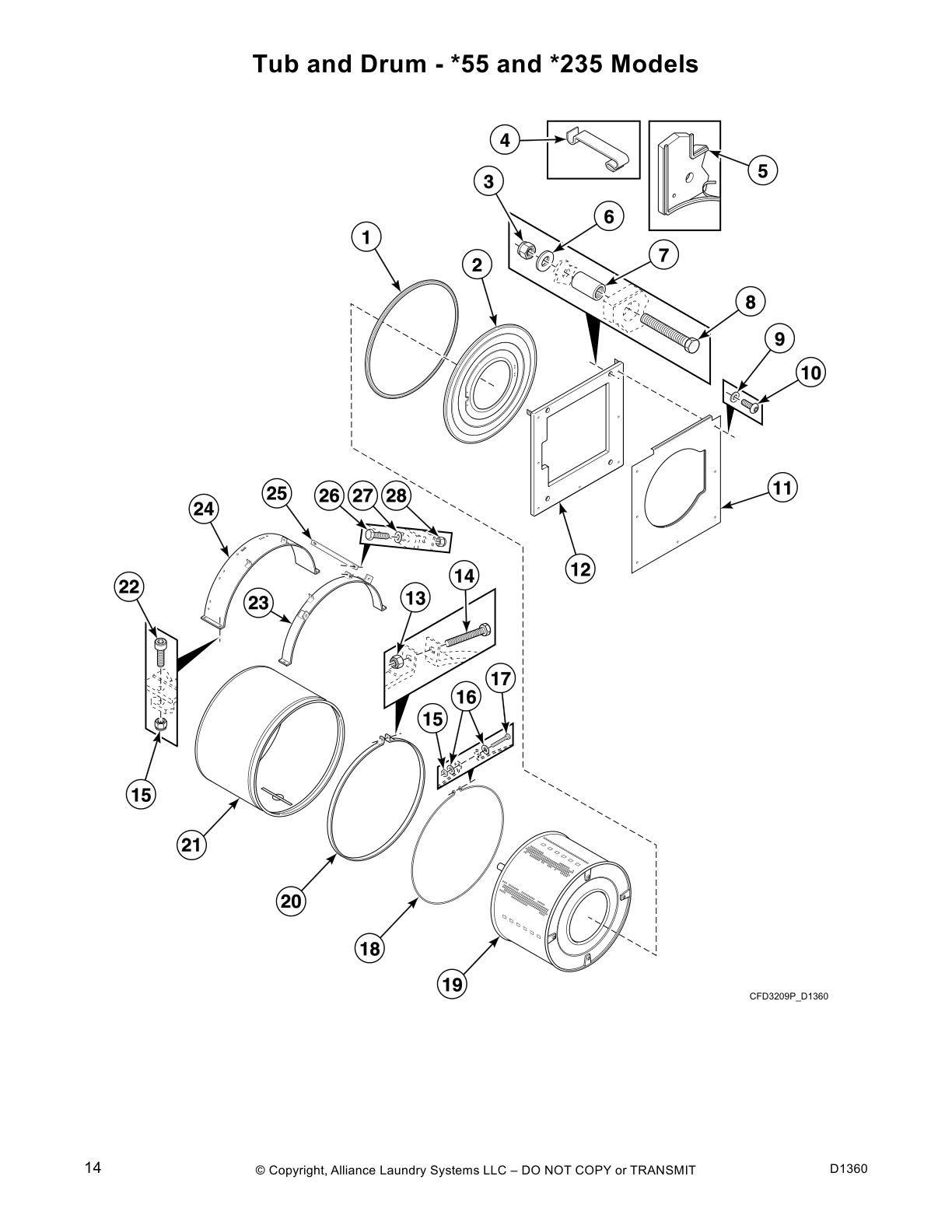

Tub and Drum - *55 and *235 Models

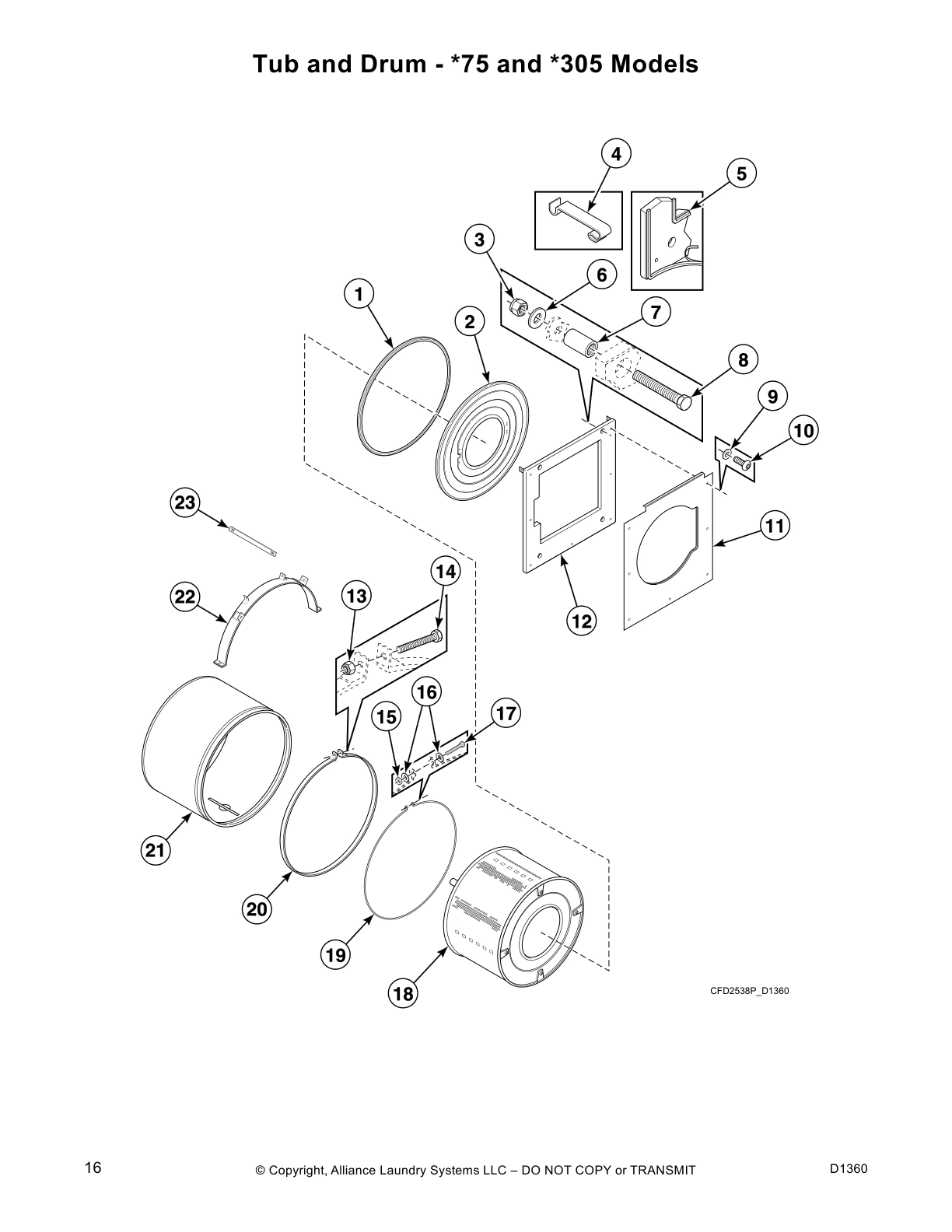

Tub and Drum - *75 and *305 Models

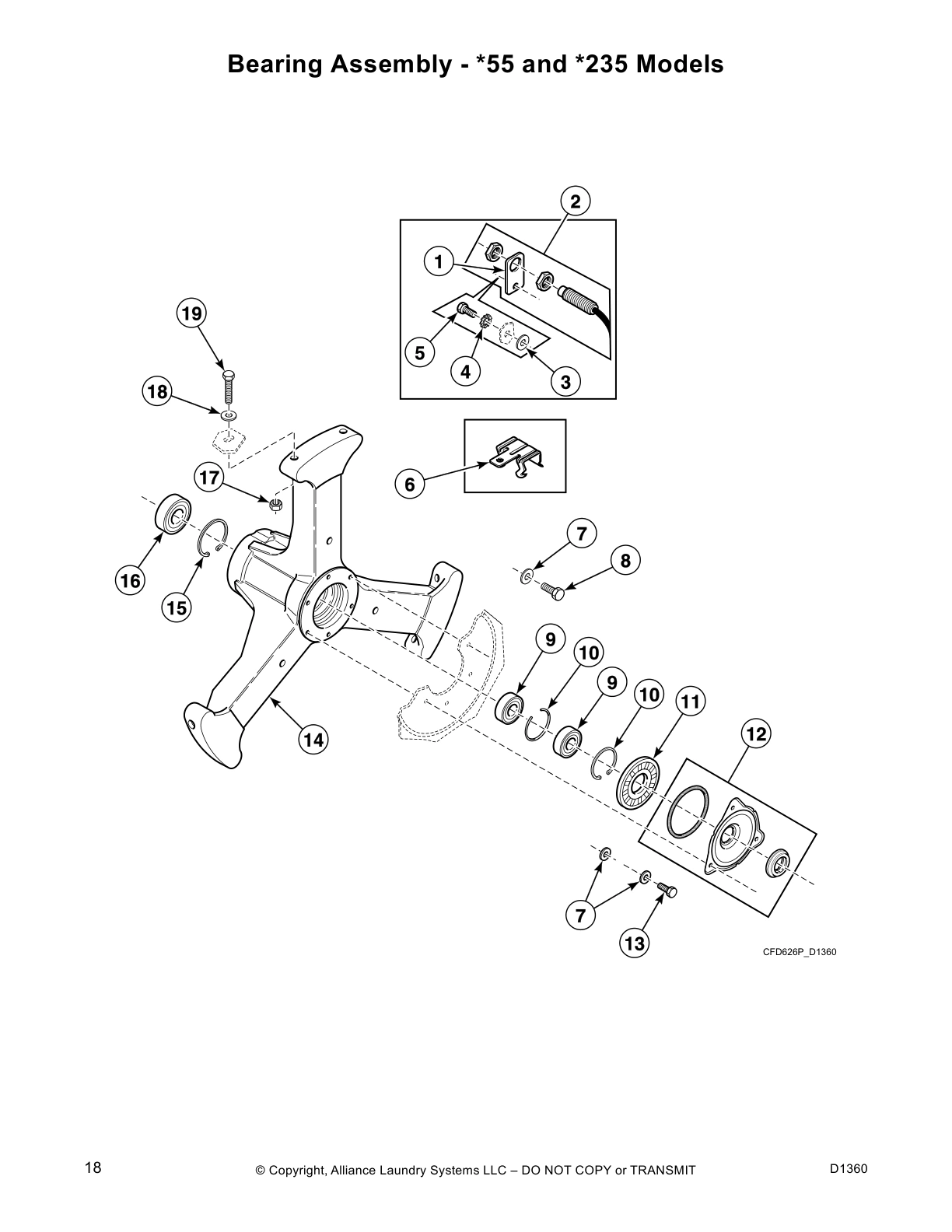

Bearing Assembly - *55 and *235 Models

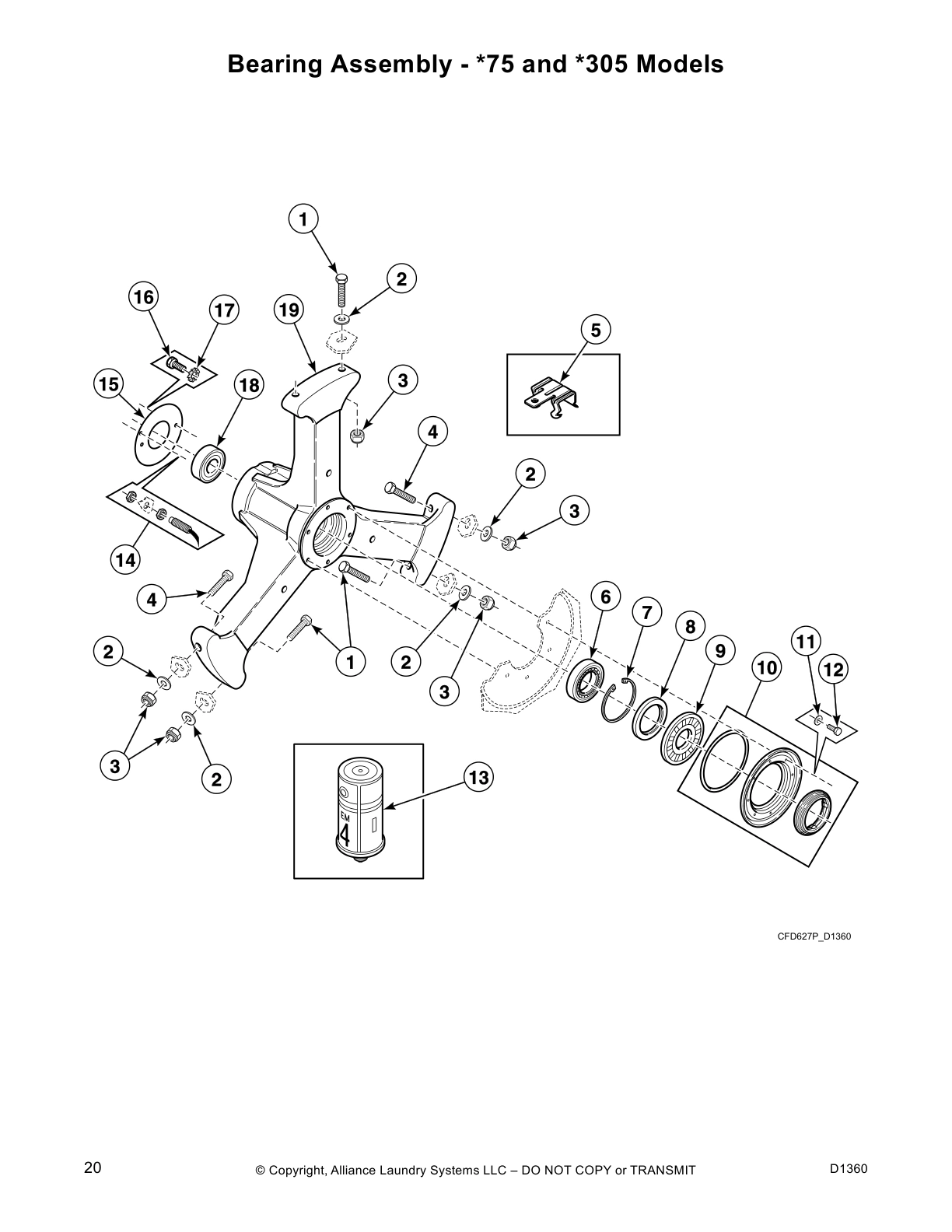

Bearing Assembly - *75 and *305 Models

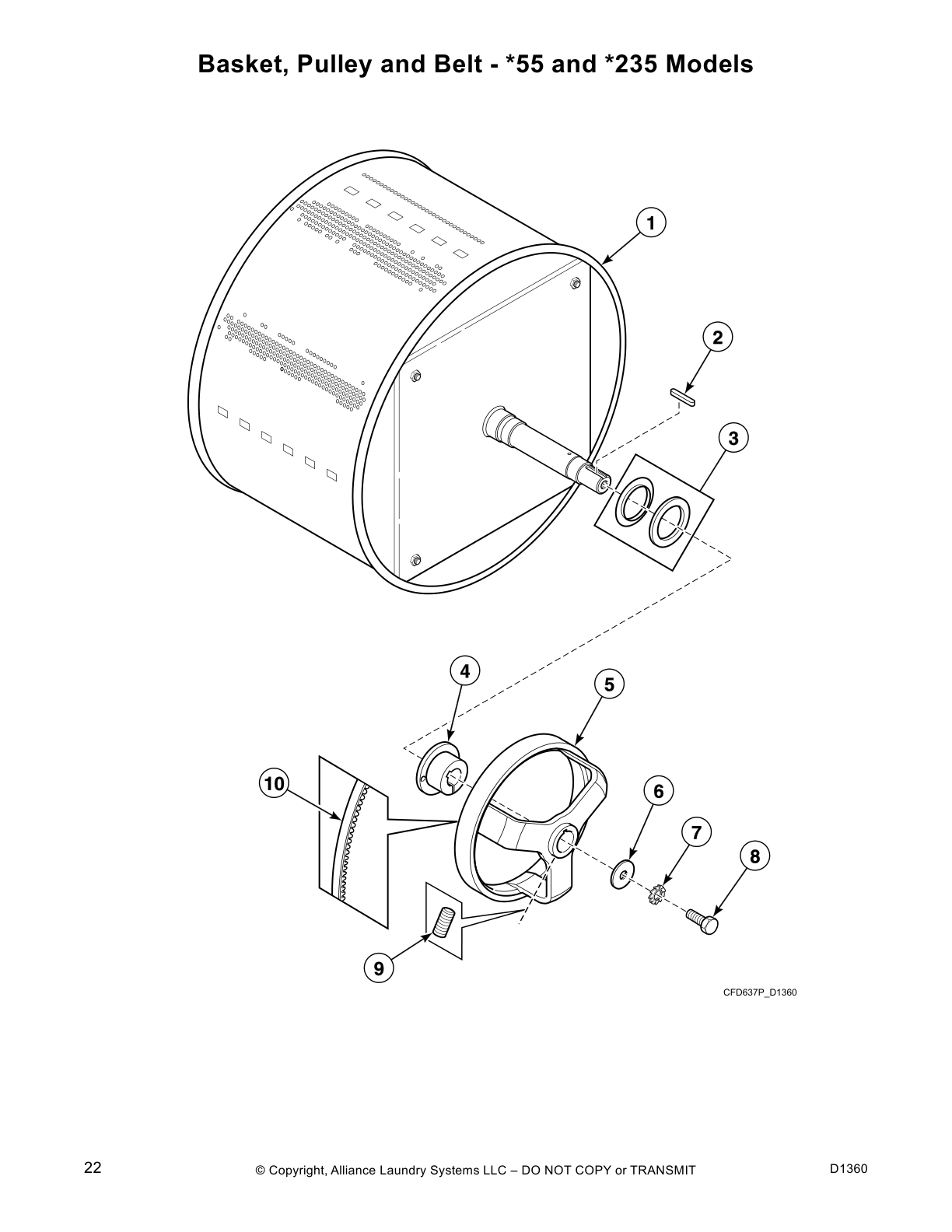

Basket, Pulley and Belt - *55 and *235 Models
Basket, Pulley and Belt - *75 and *305 Models

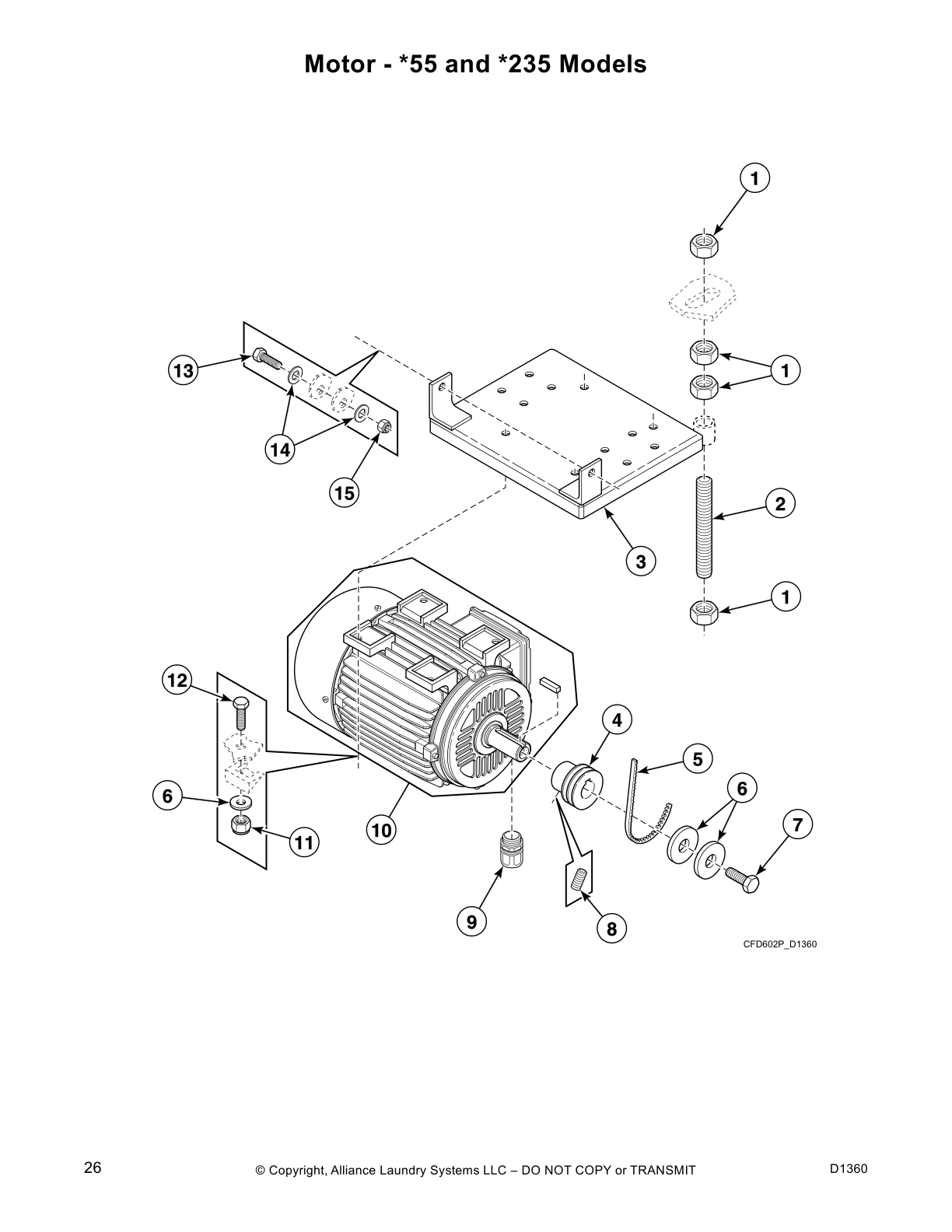

Motor - *55 and *235 Models

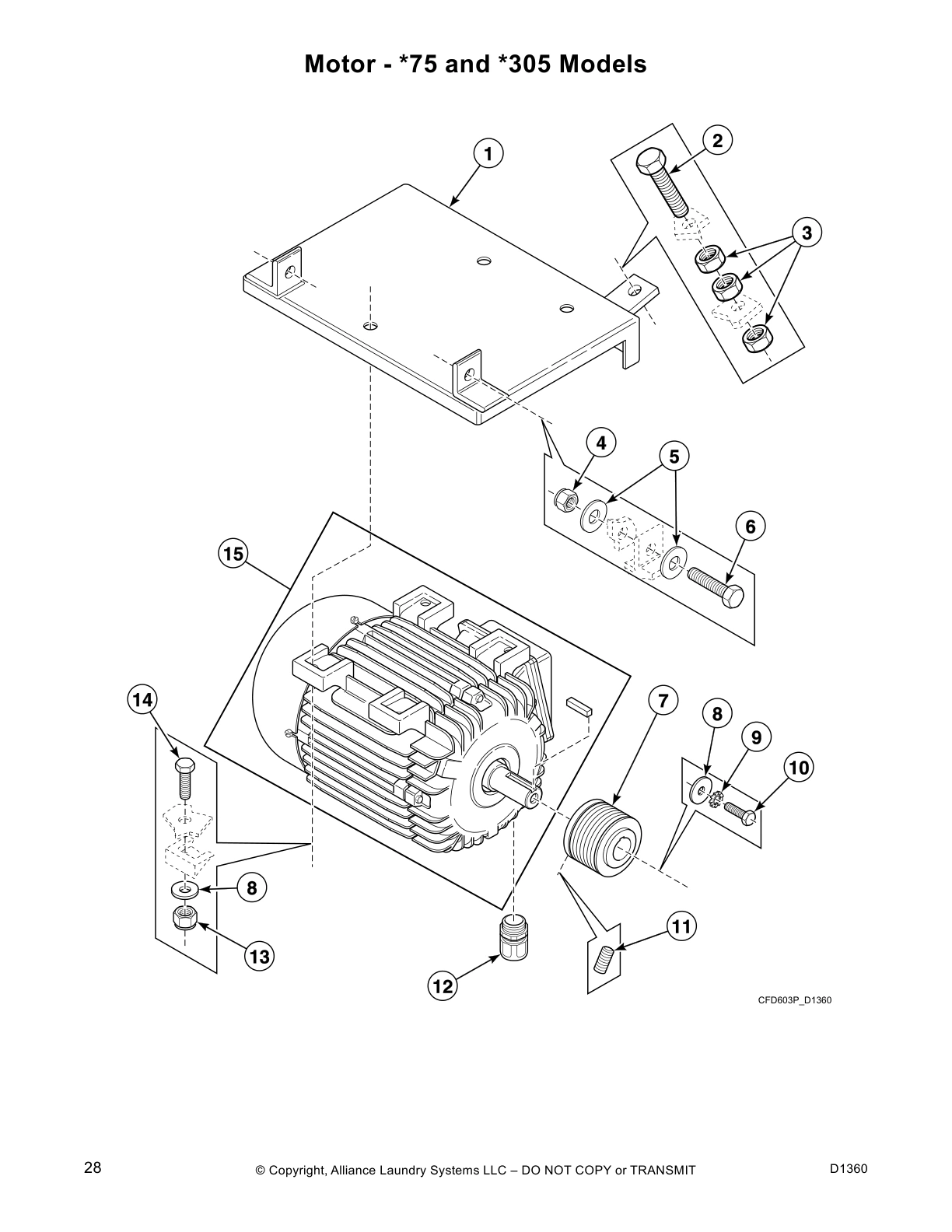

Motor - *75 and *305 Models

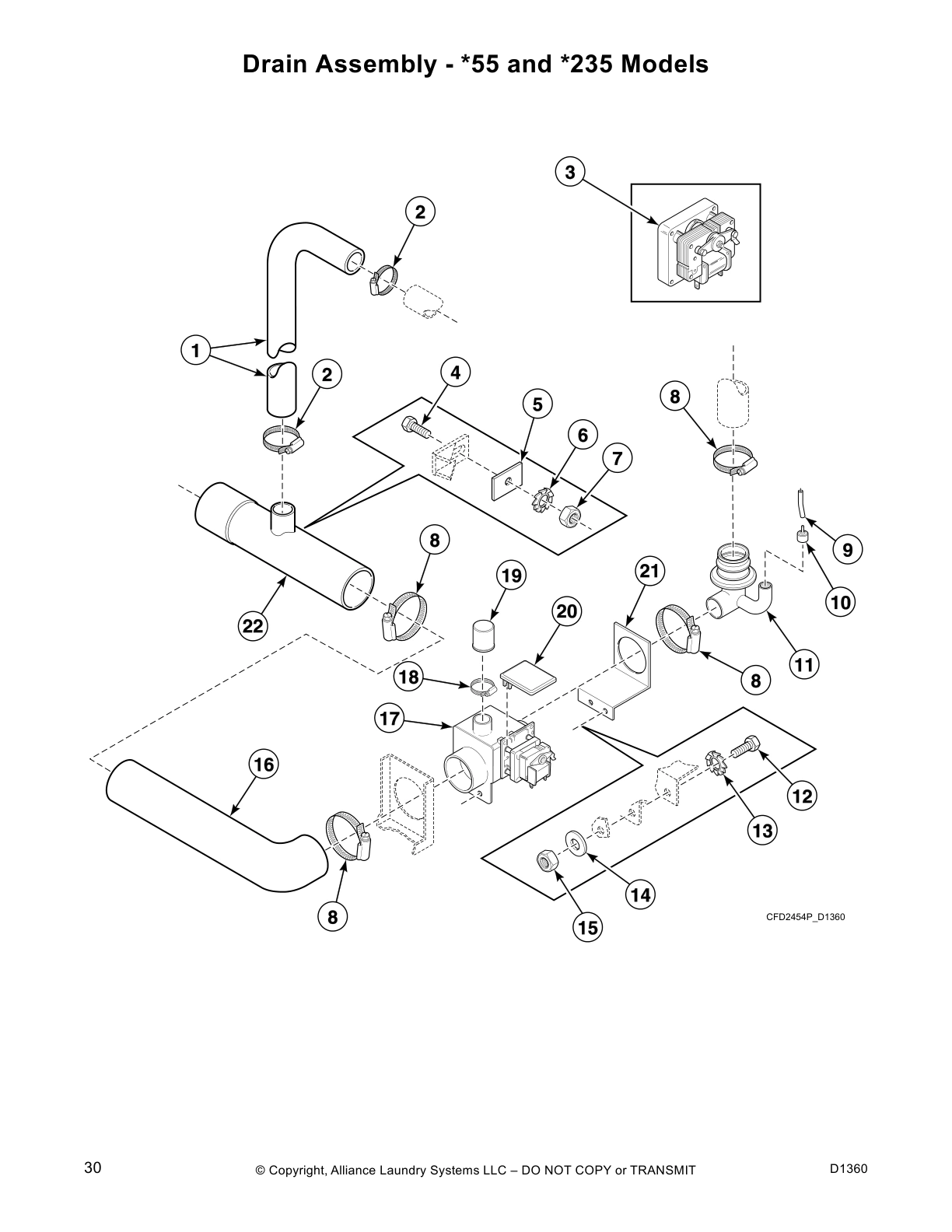

Drain Assembly - *55 and *235 Models

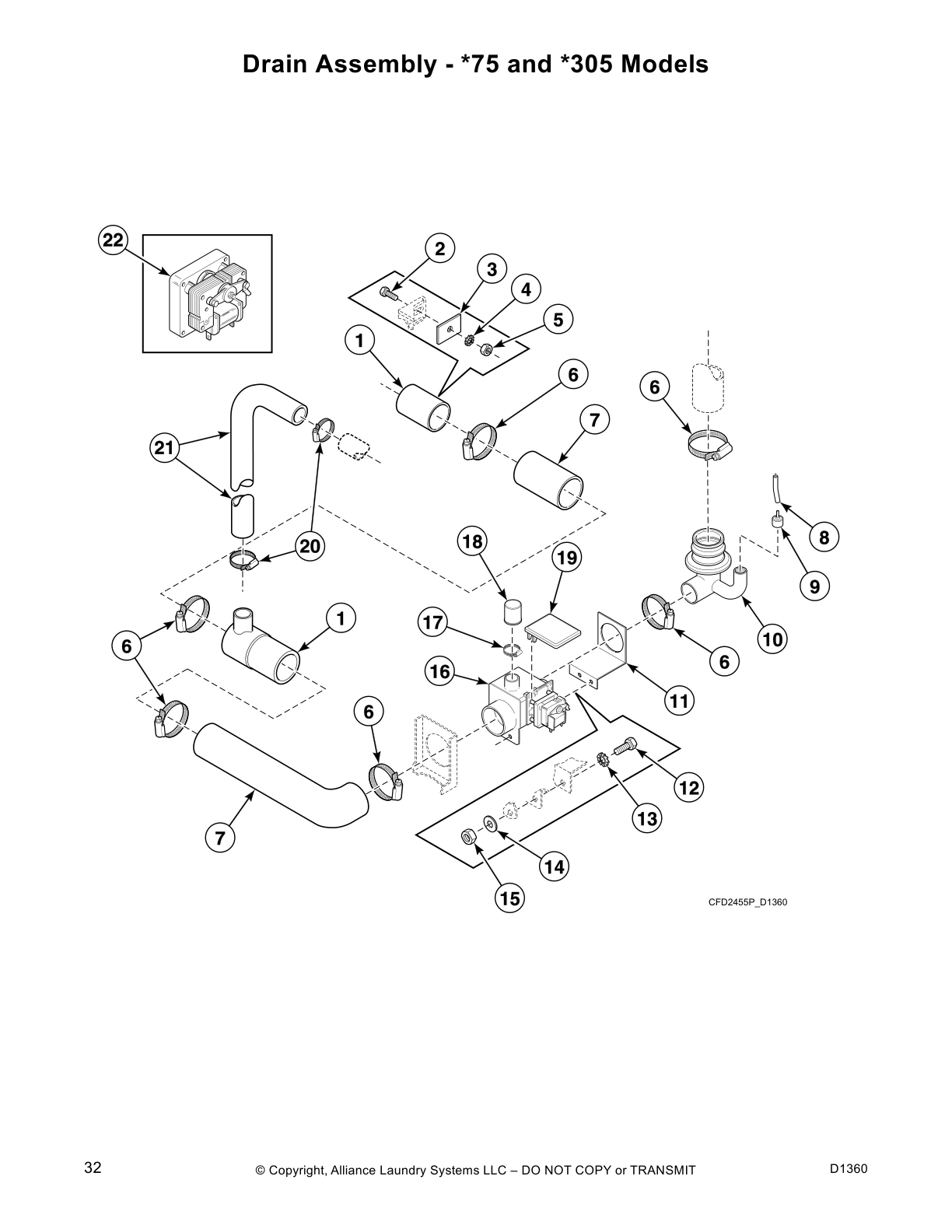

Drain Assembly - *75 and *305 Models

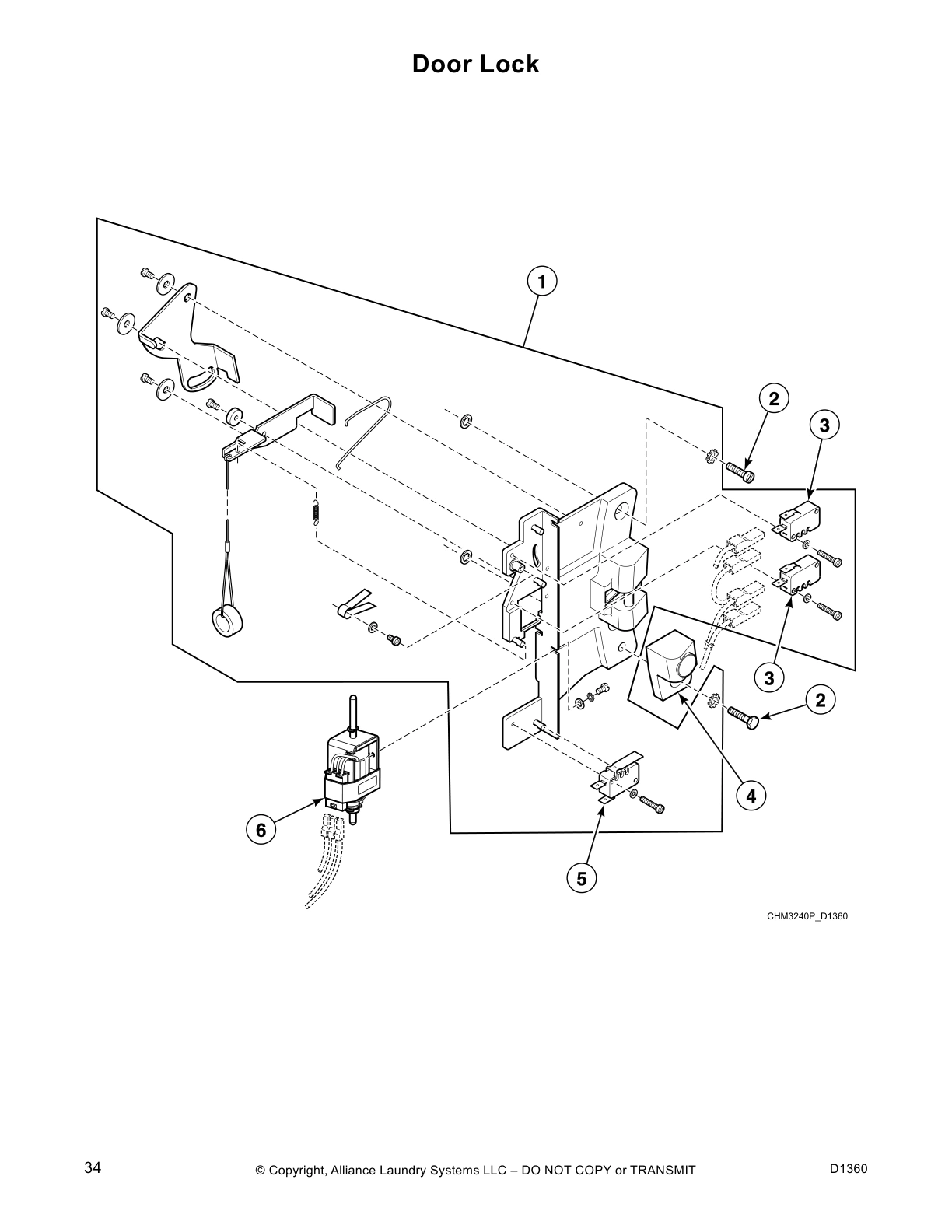

Door Lock

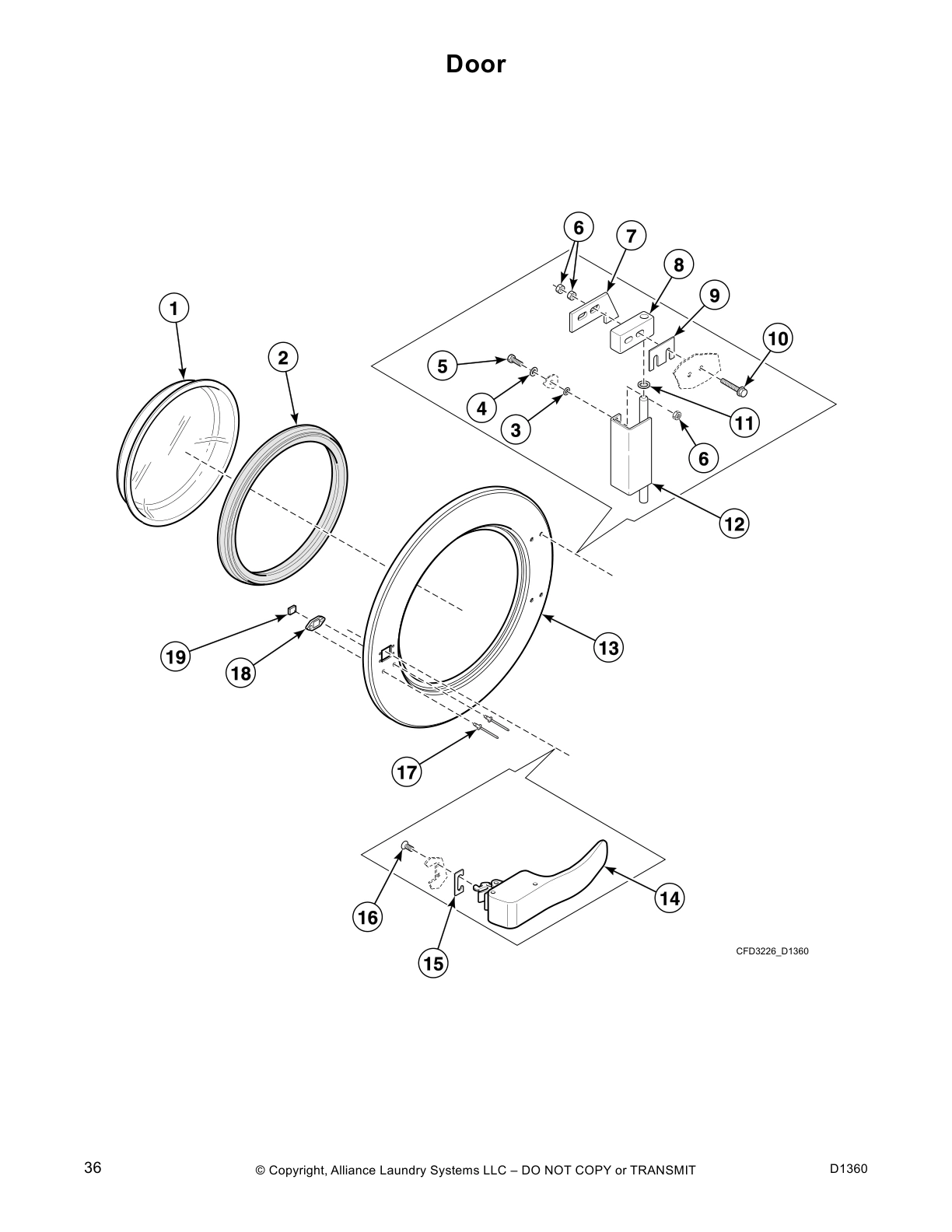

Door

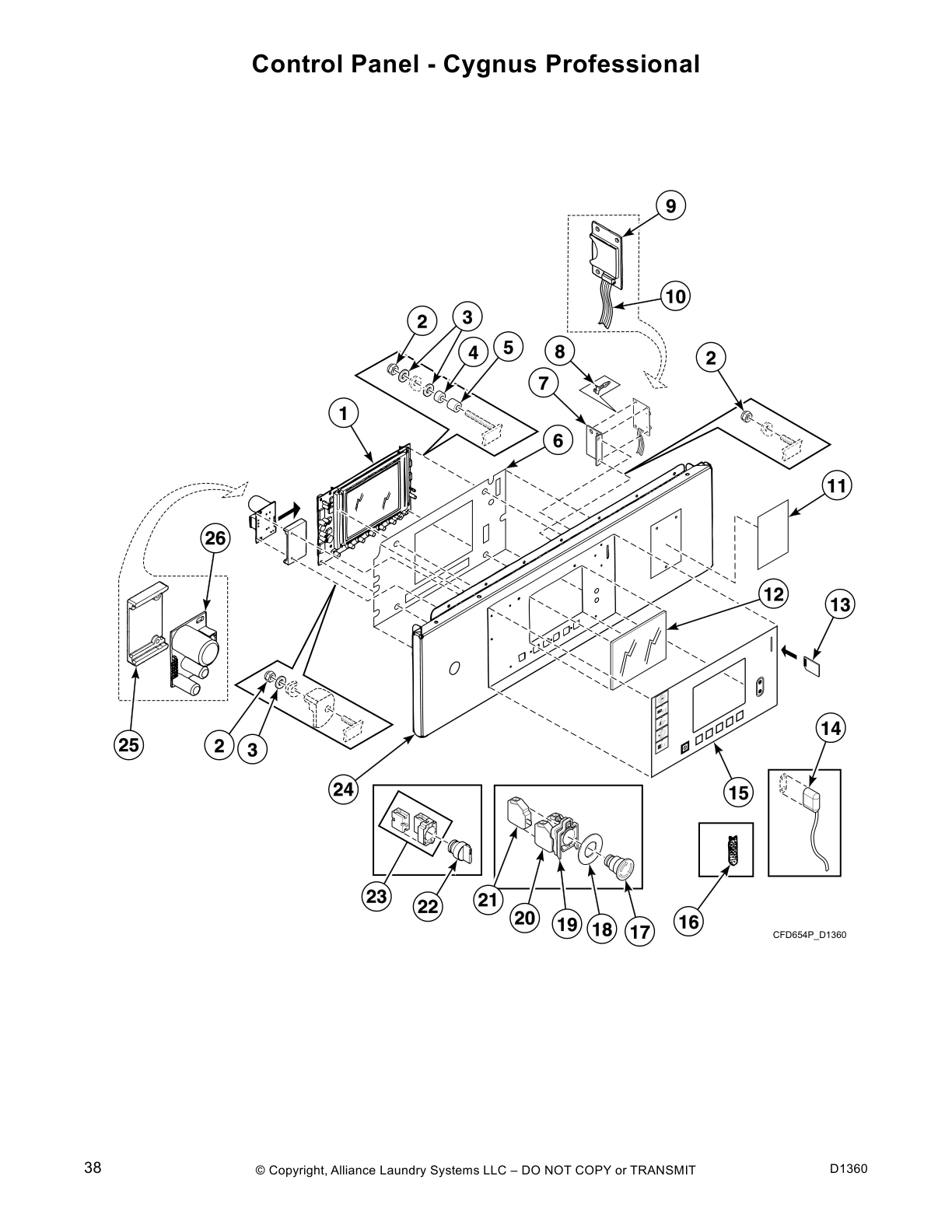

Control Panel - Cygnus Professional

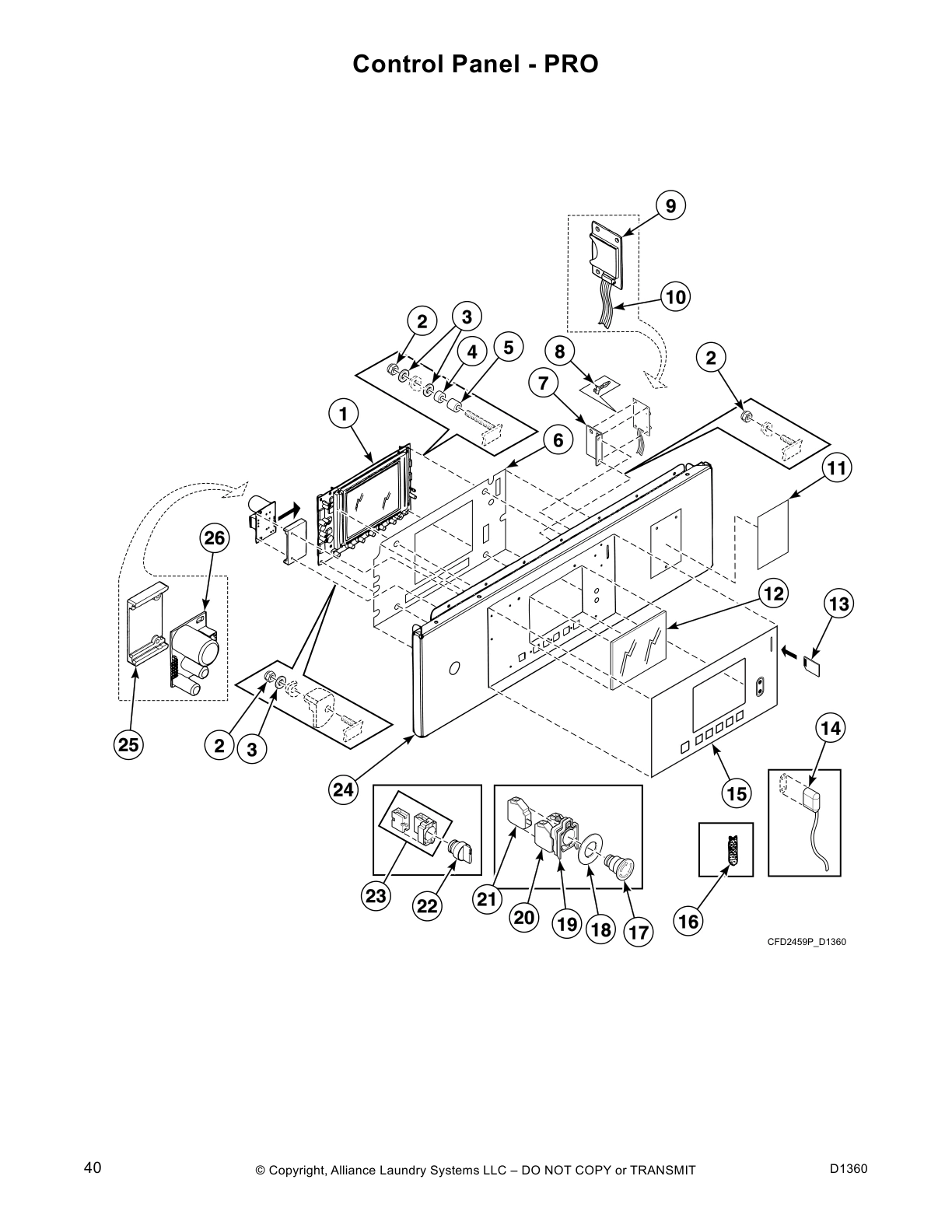

Control Panel - PRO

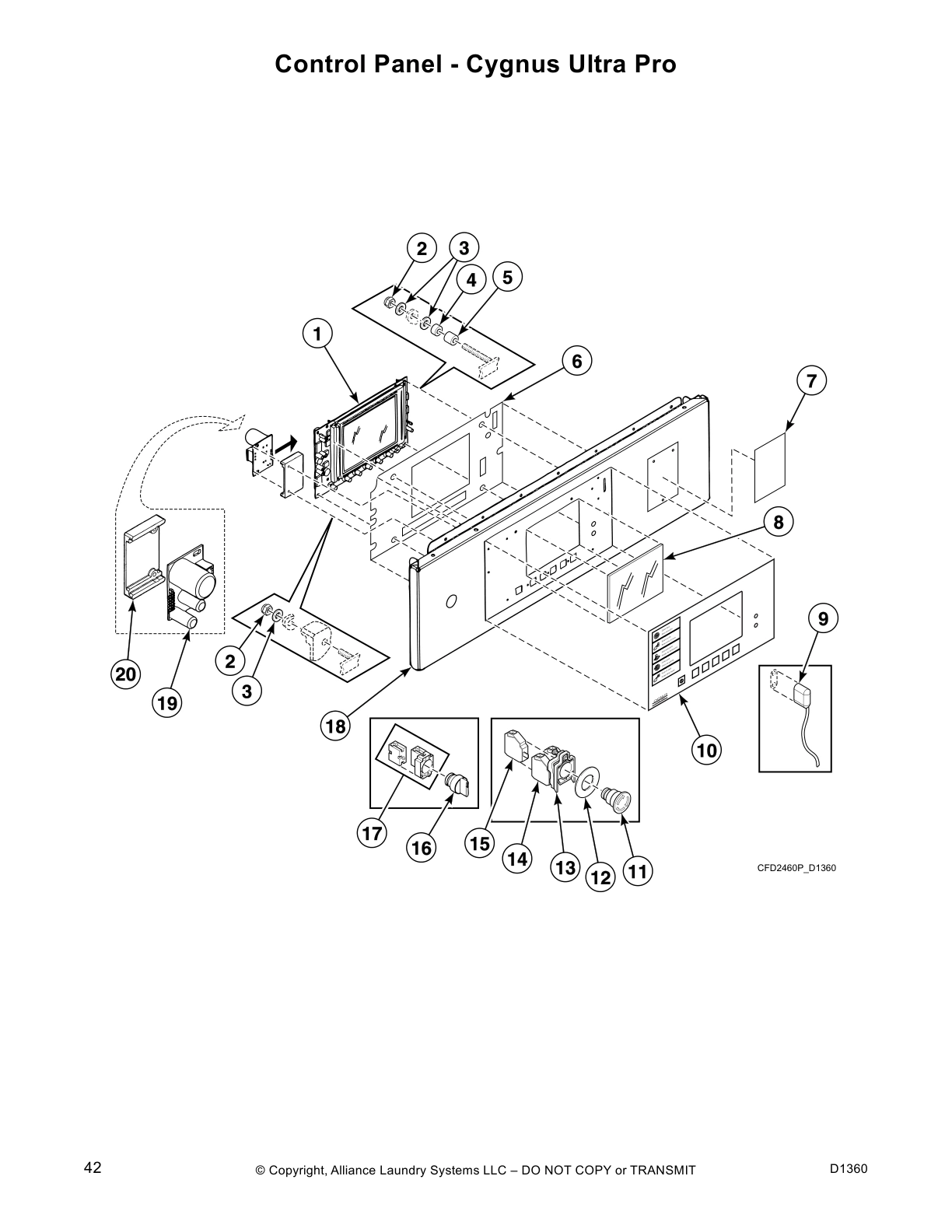

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

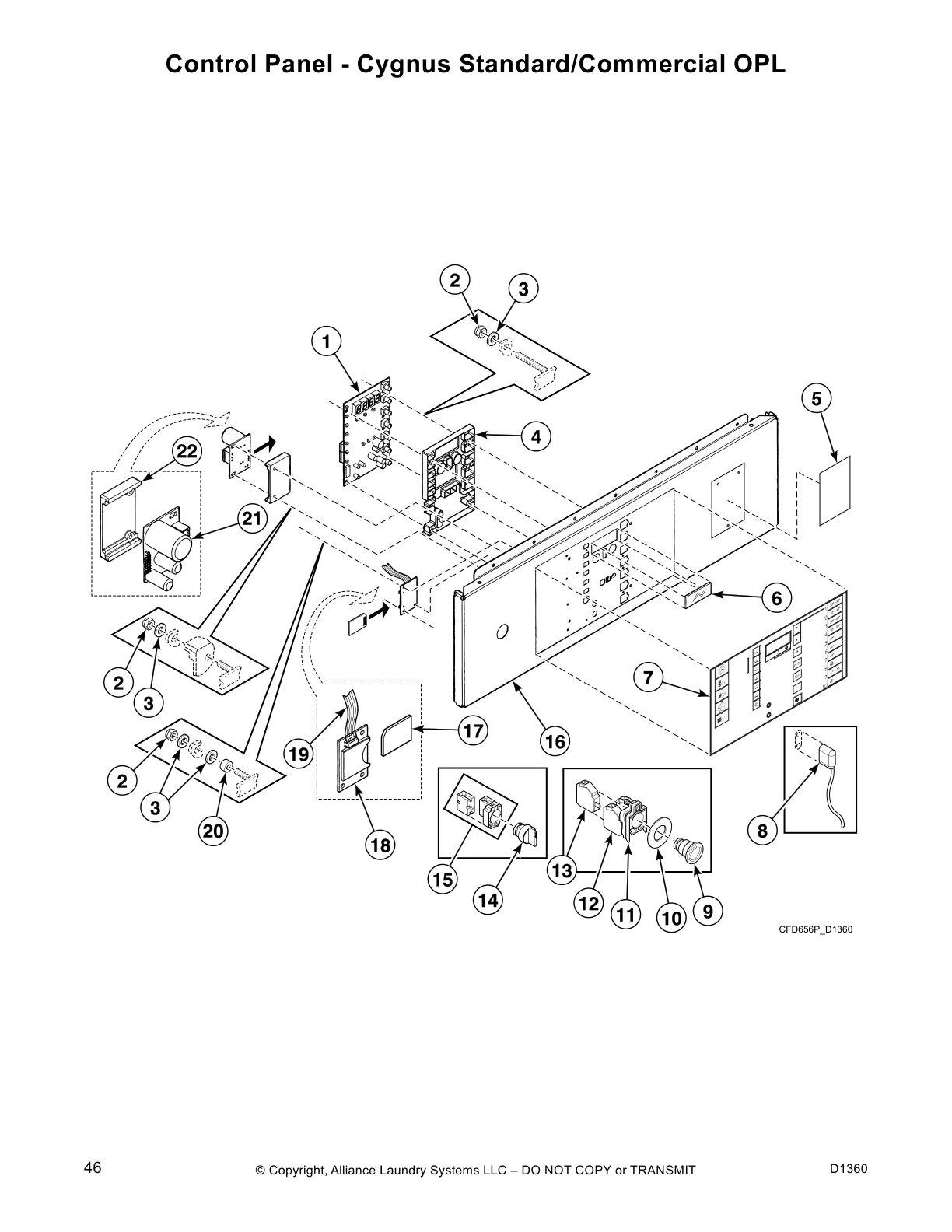

Control Panel - Cygnus Standard/Commercial OPL

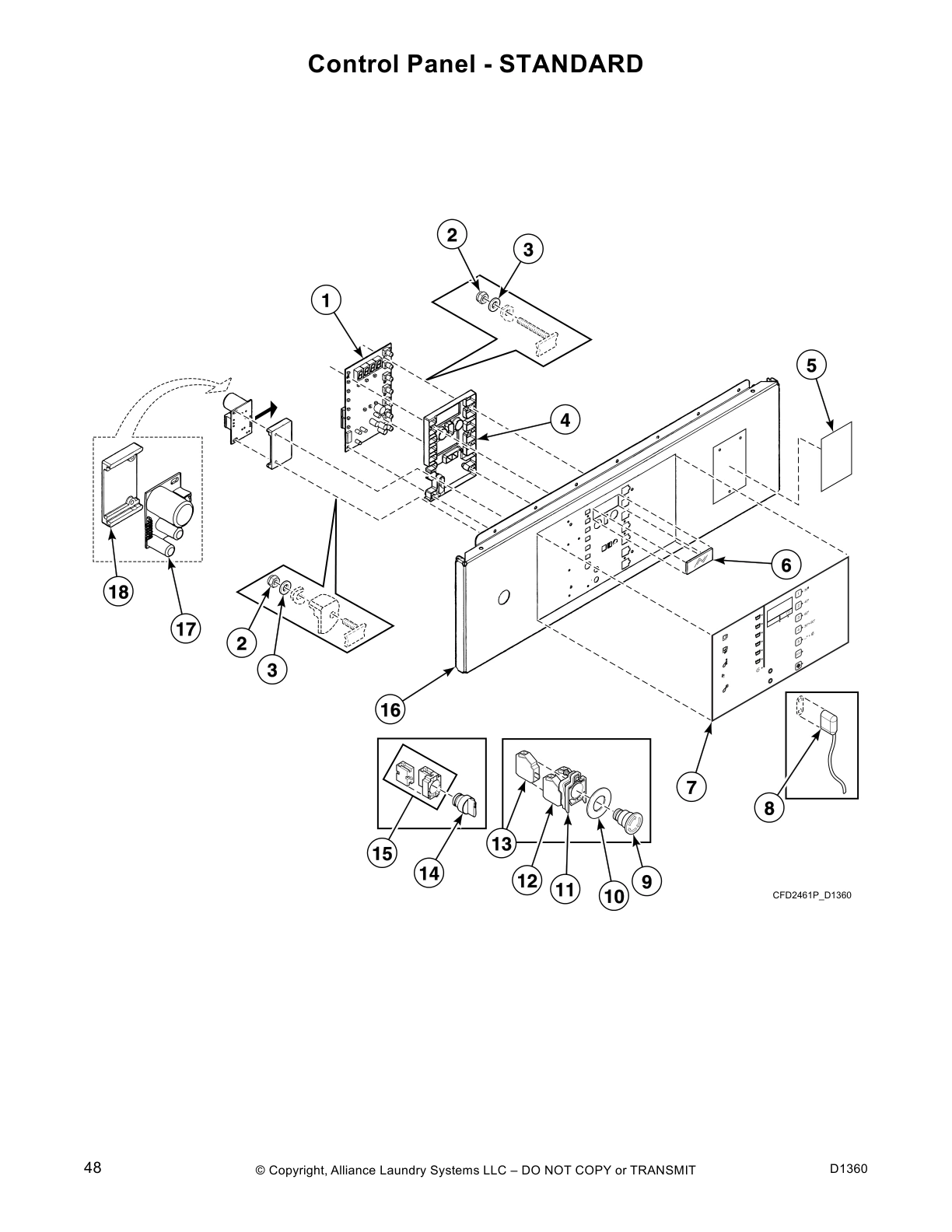

Control Panel - STANDARD

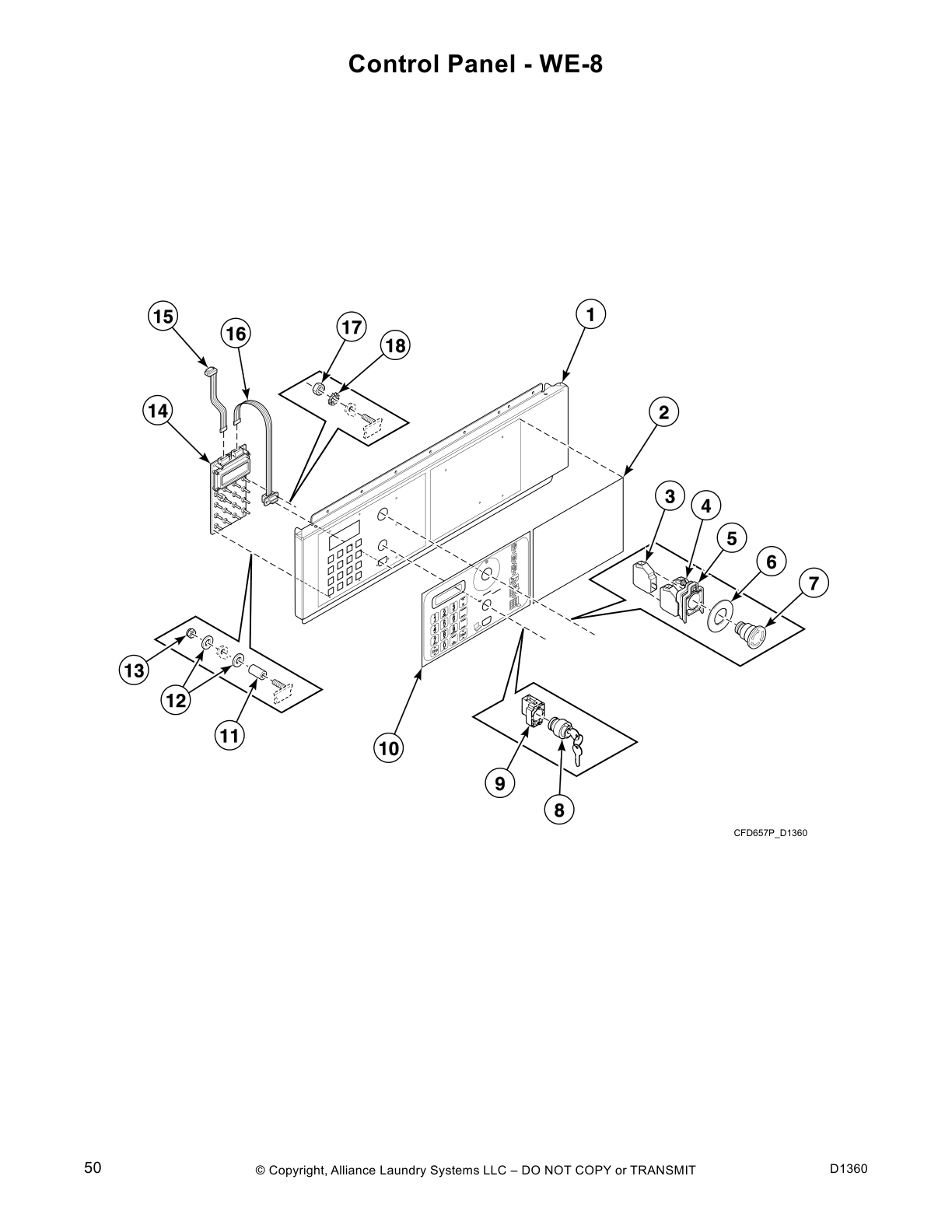

Control Panel - WE-8

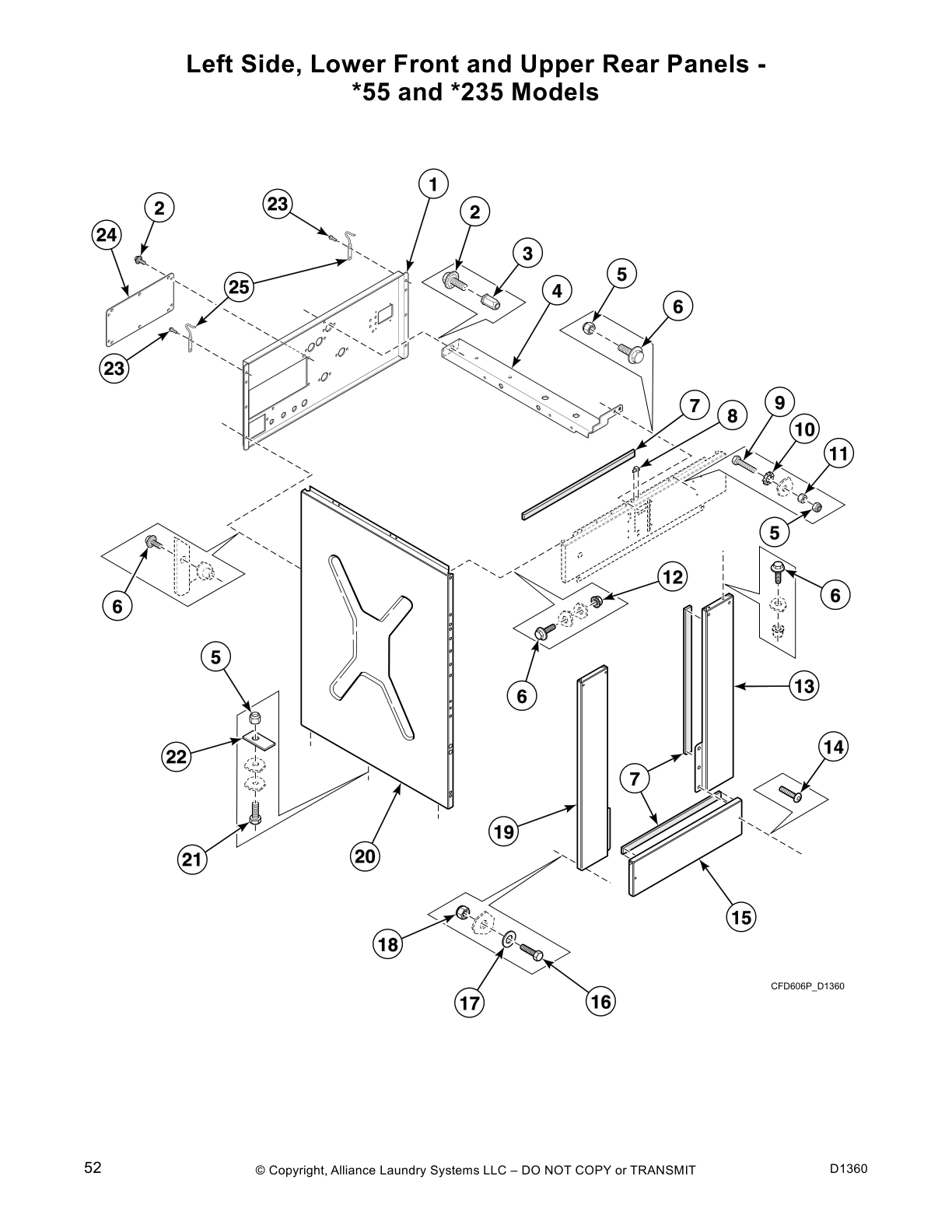

Left Side, Lower Front and Upper Rear Panels -
*55 and *235 Models

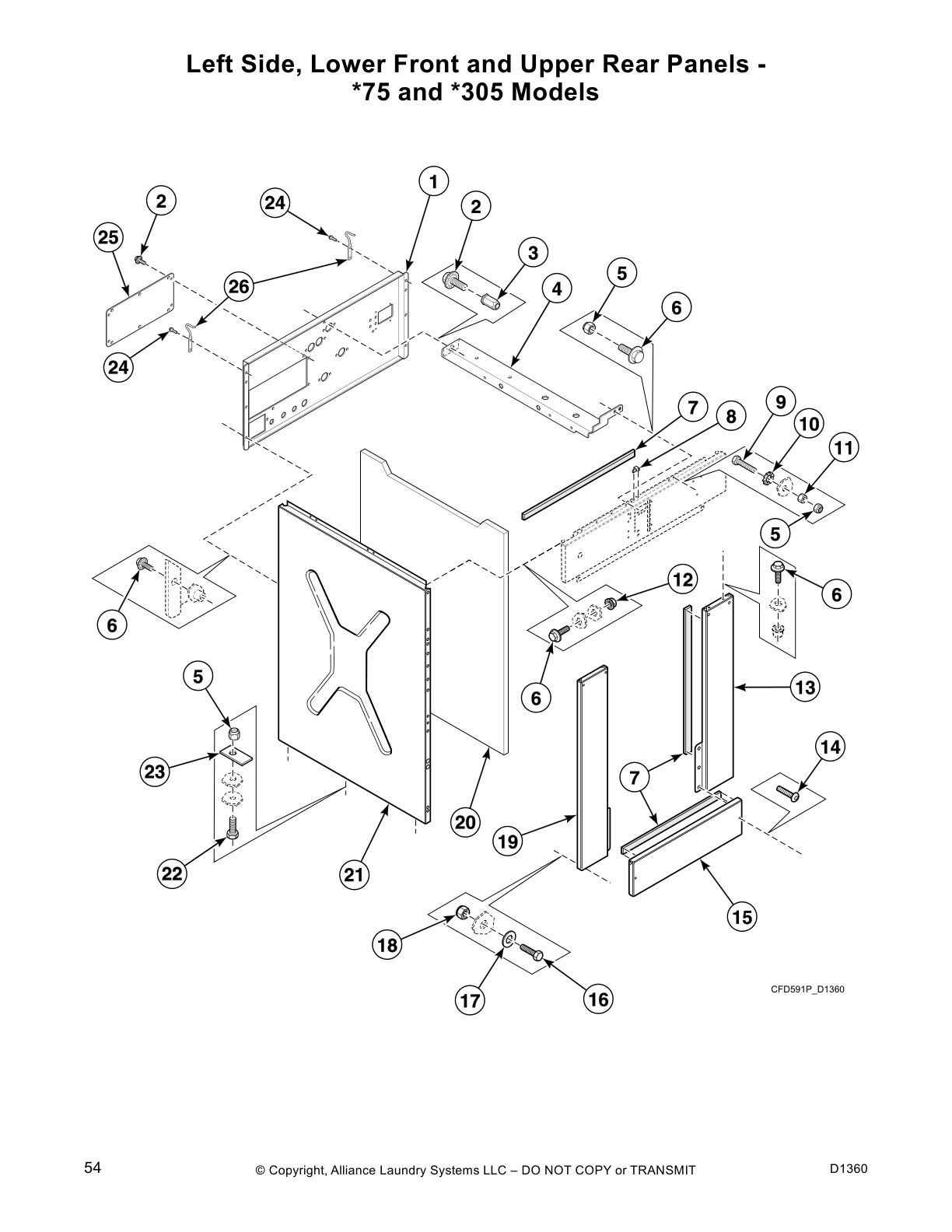

Left Side, Lower Front and Upper Rear Panels -
*75 and *305 Models

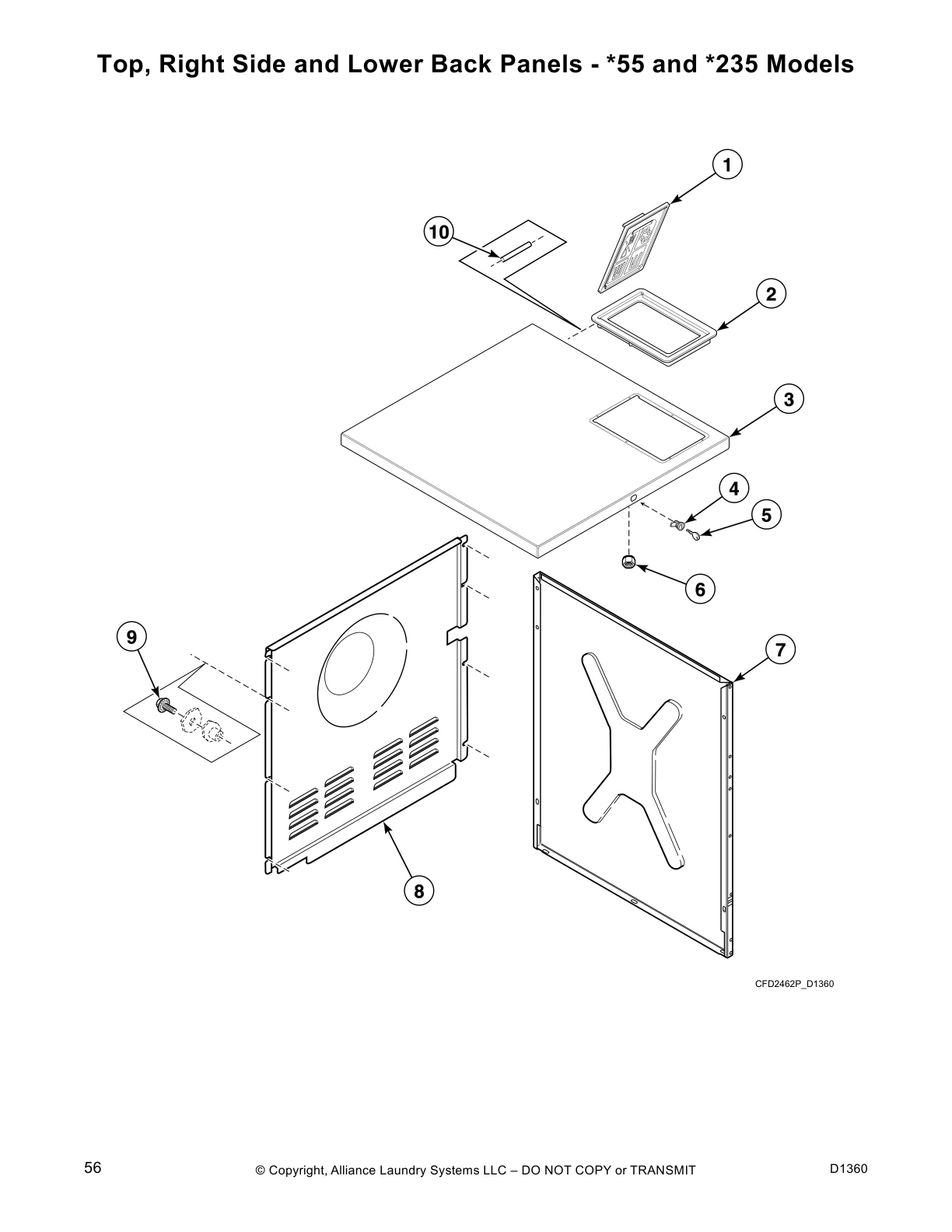

Top, Right Side and Lower Back Panels - *55 and *235 Models

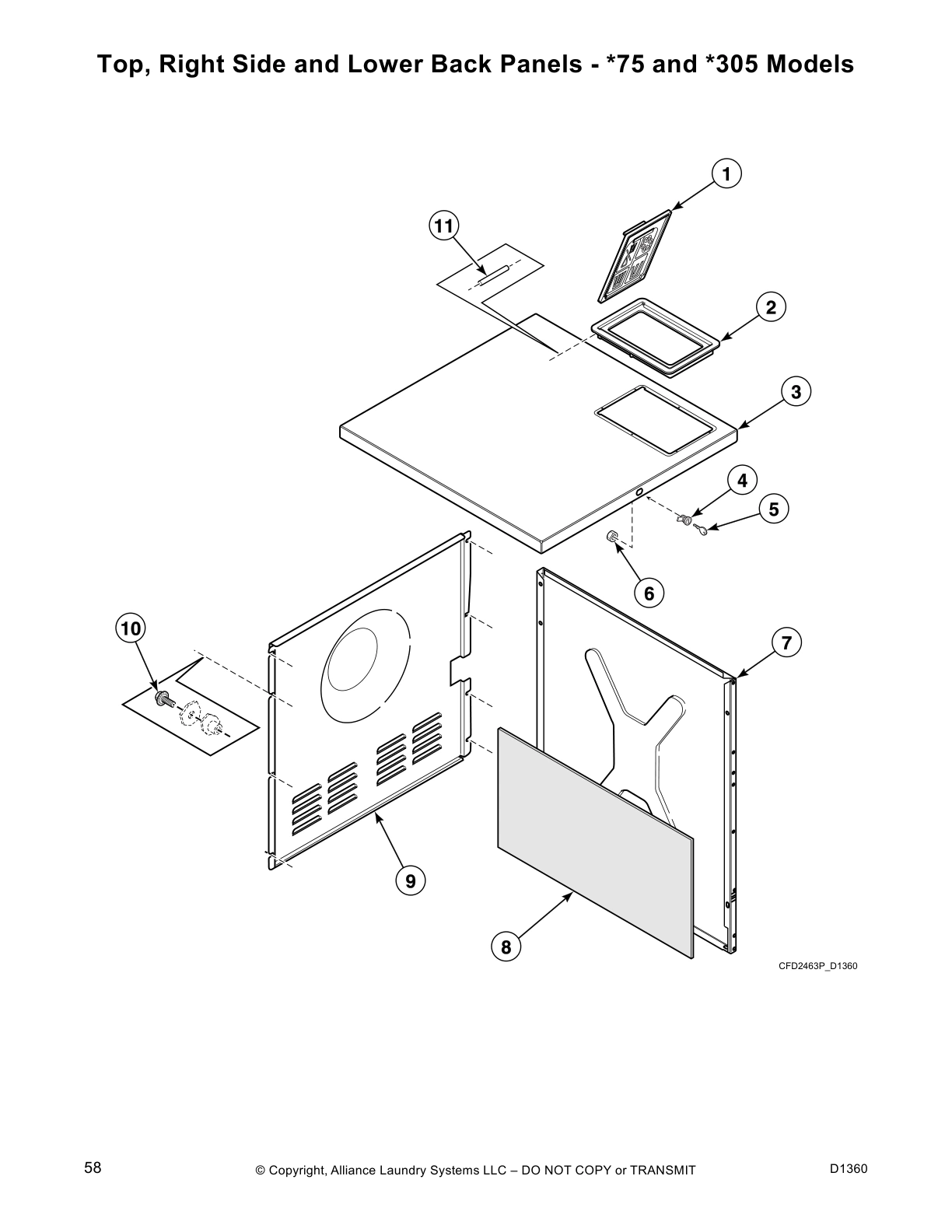

Top, Right Side and Lower Back Panels - *75 and *305 Models

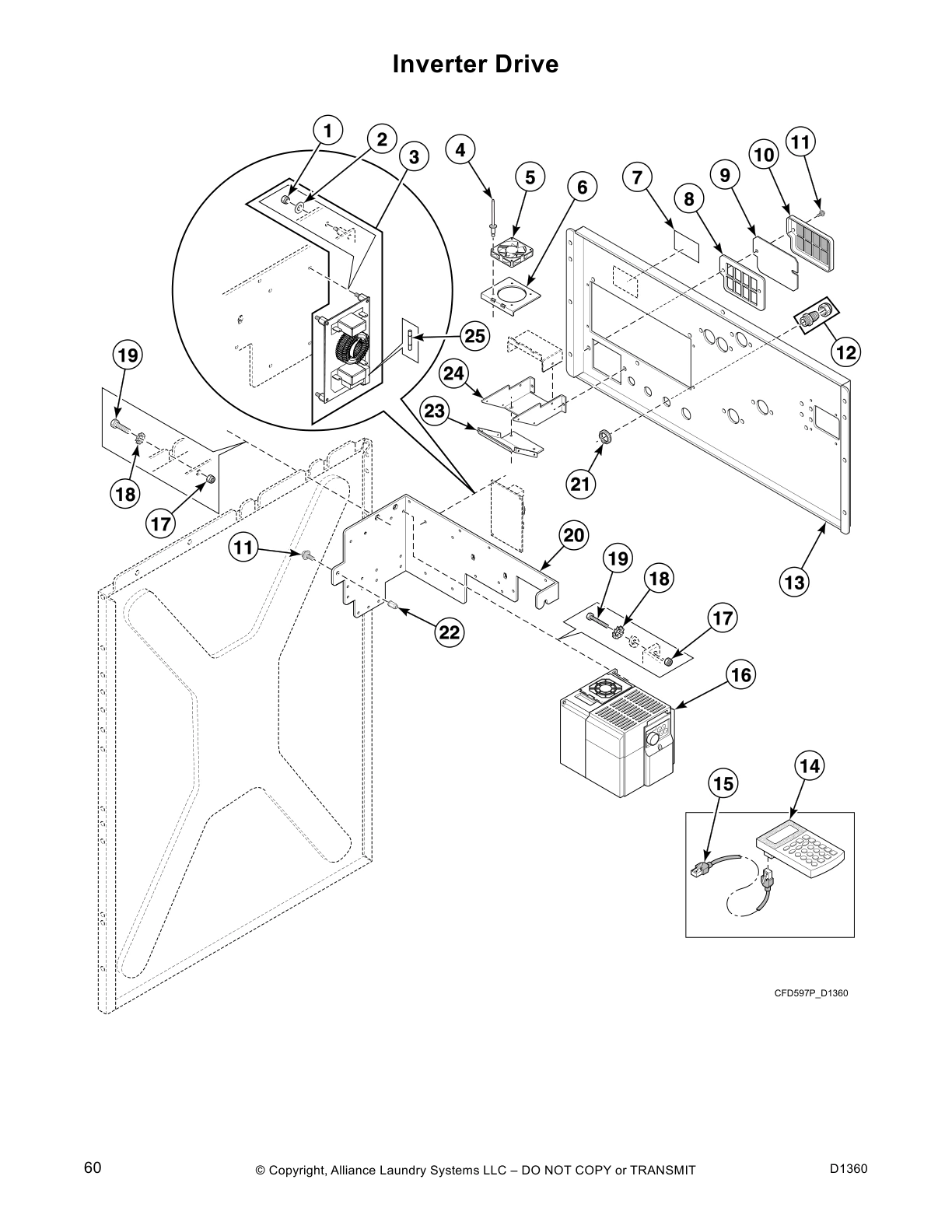

Inverter Drive

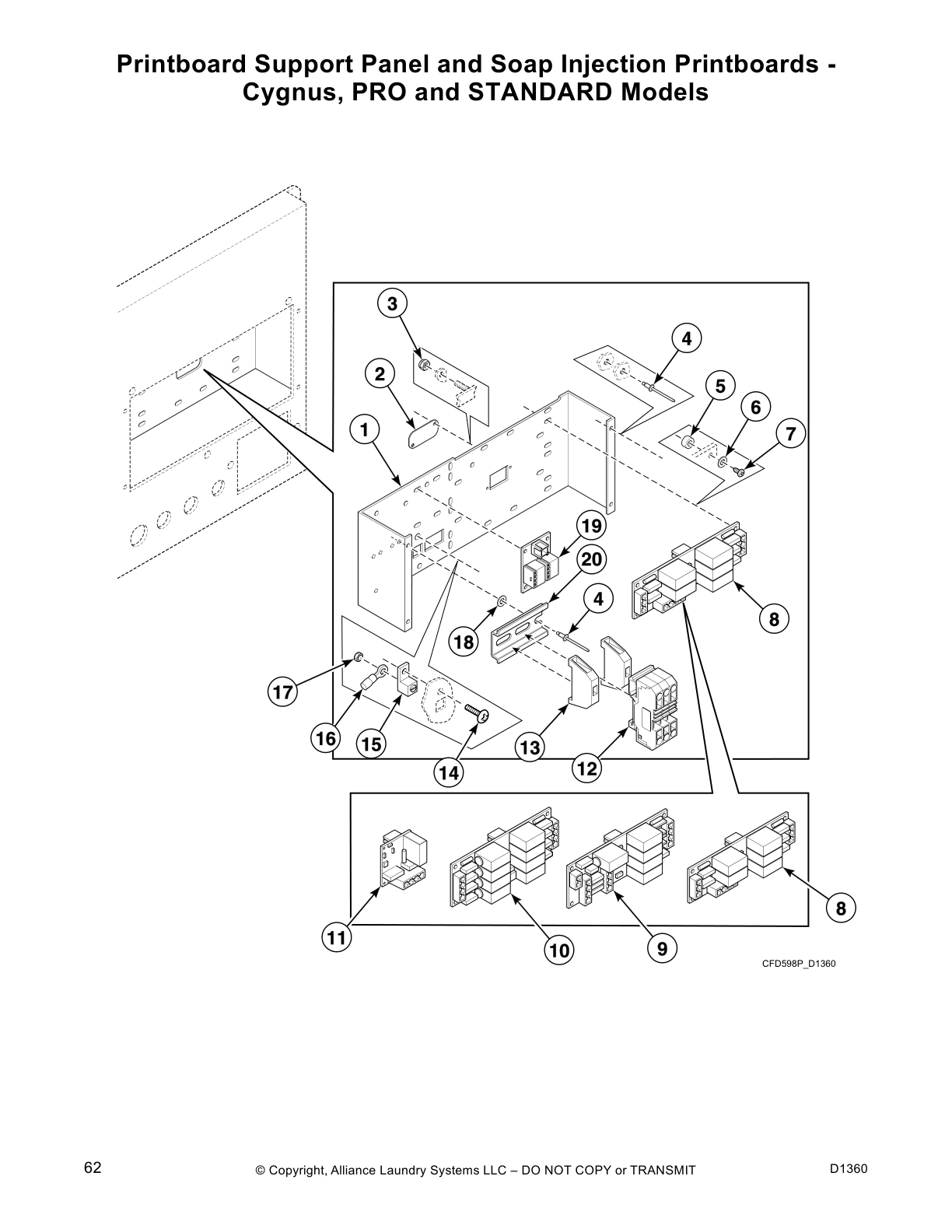

Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models

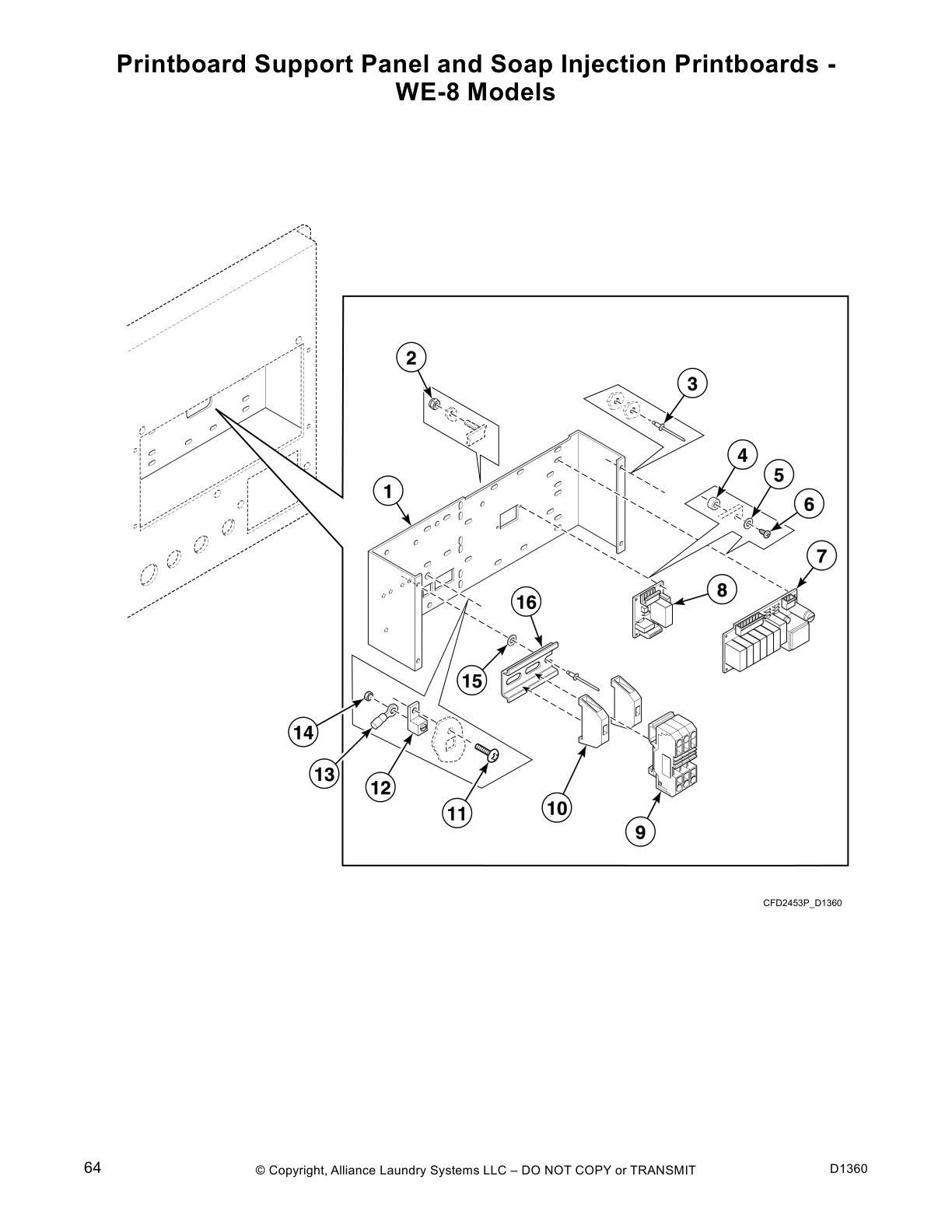

Printboard Support Panel and Soap Injection Printboards -
WE-8 Models

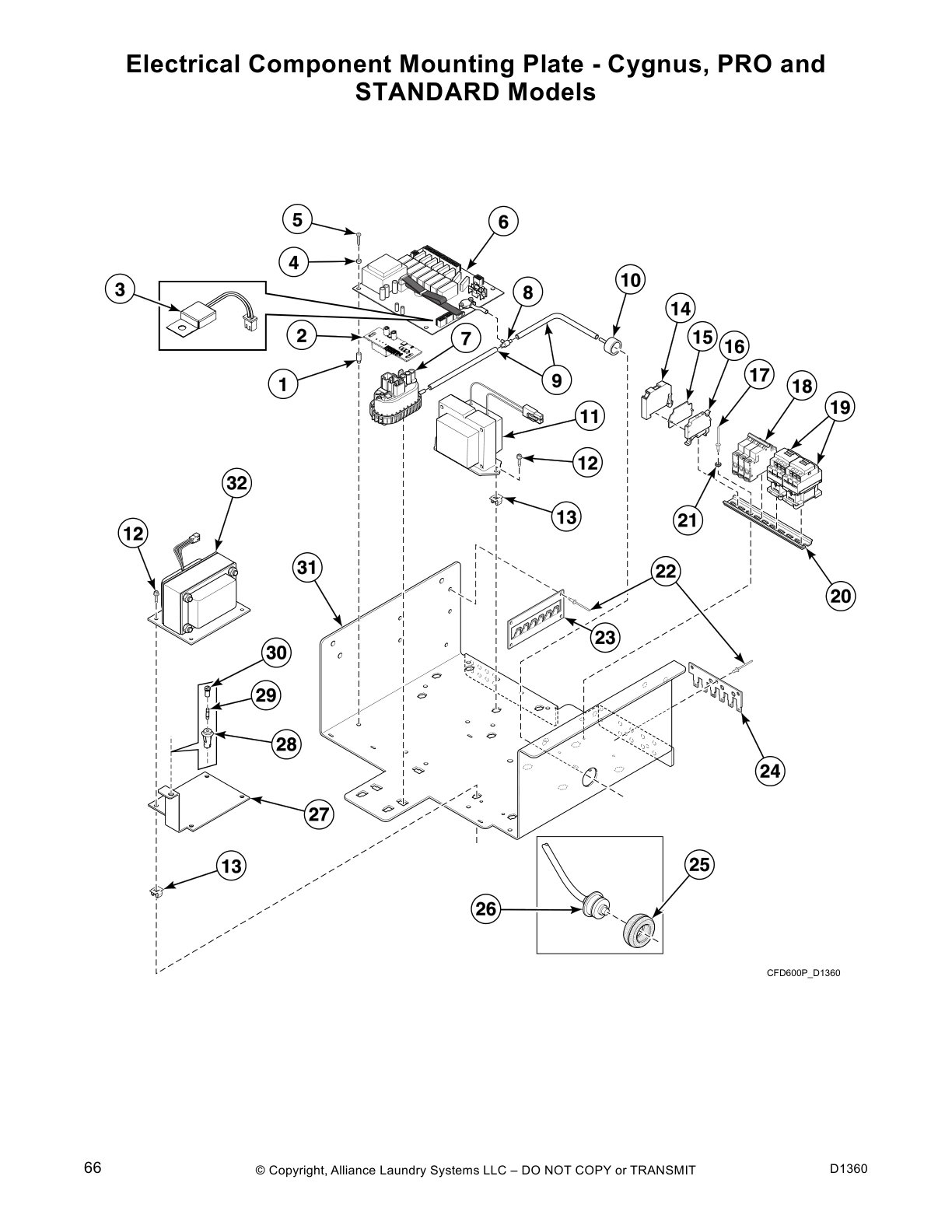

Electrical Component Mounting Plate - Cygnus, PRO and
STANDARD Models

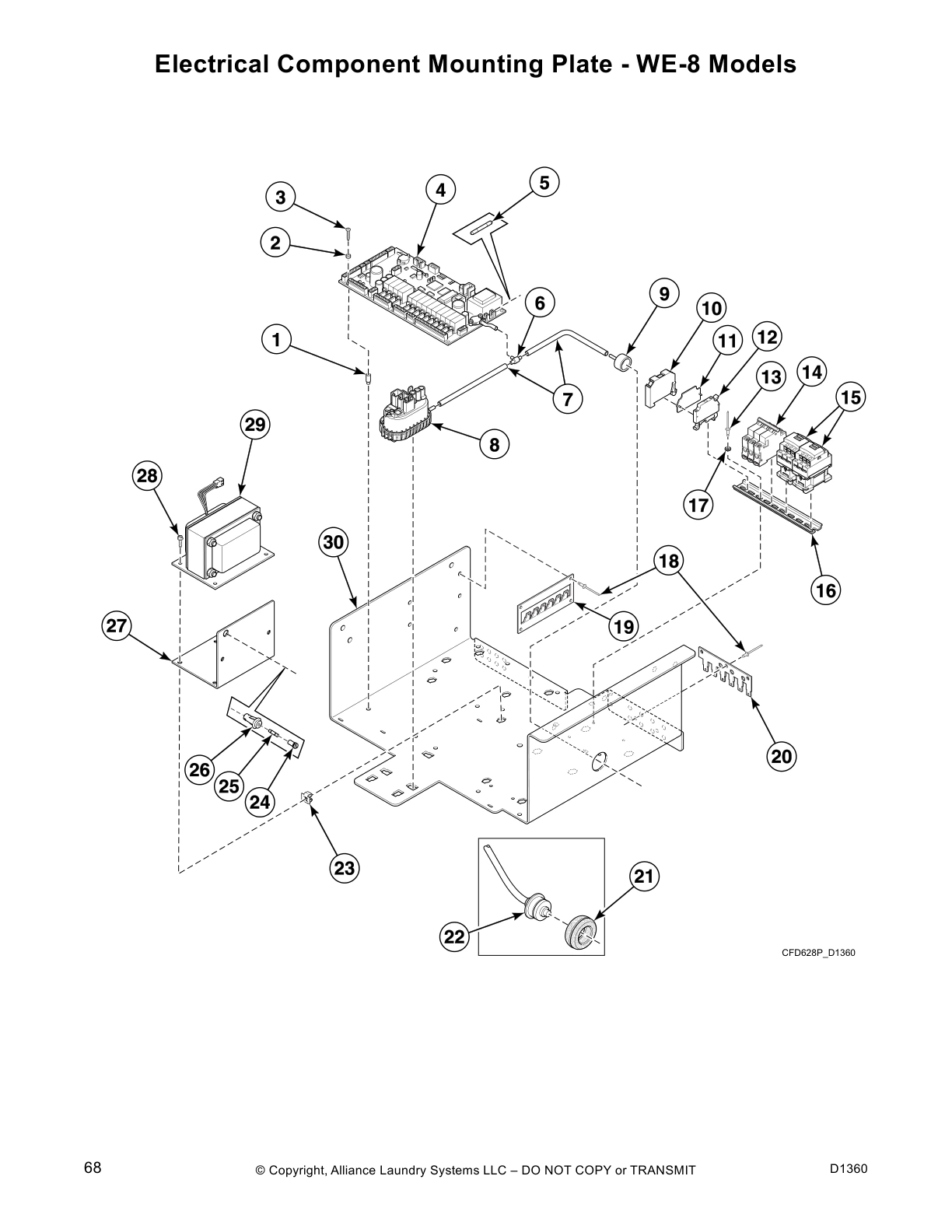

Electrical Component Mounting Plate - WE-8 Models

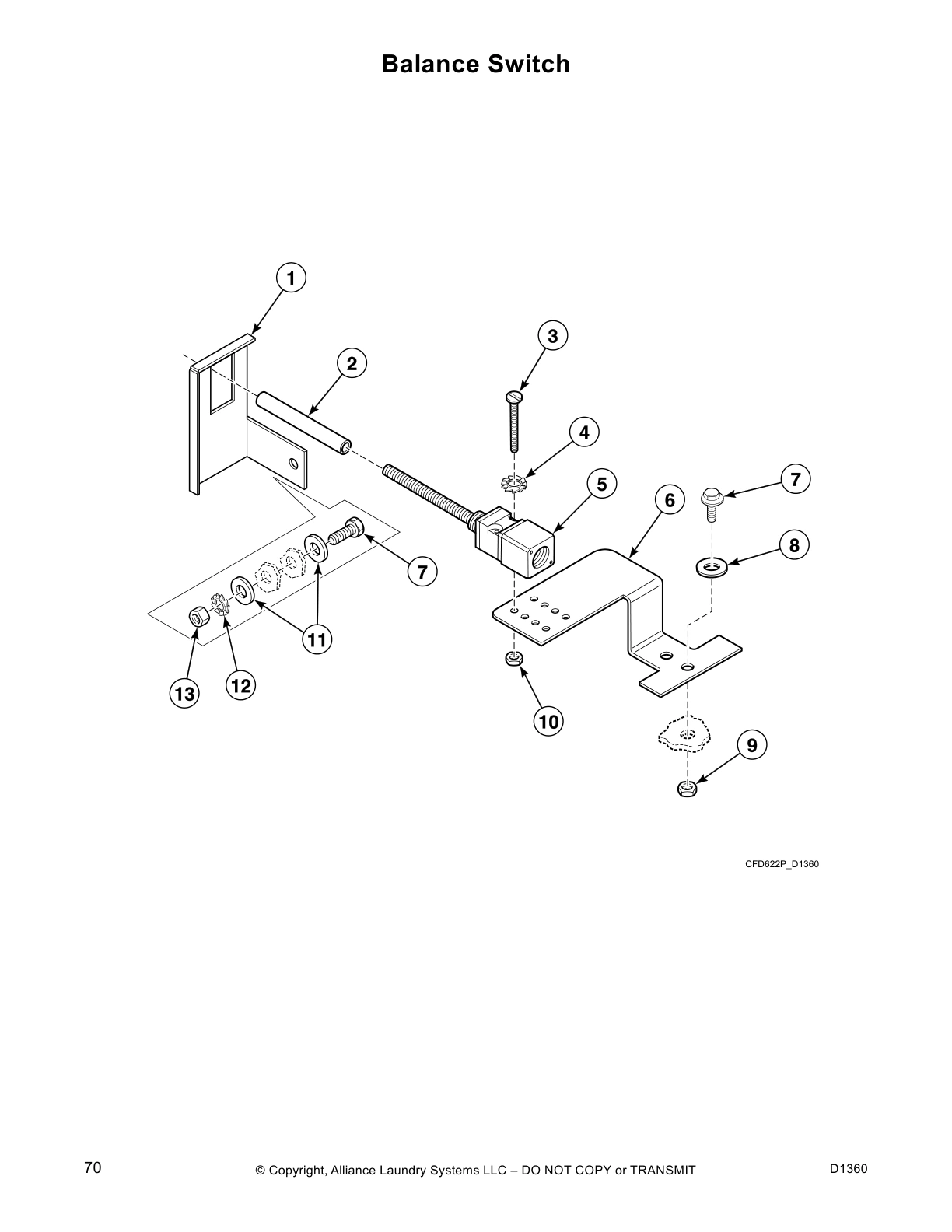

Balance Switch

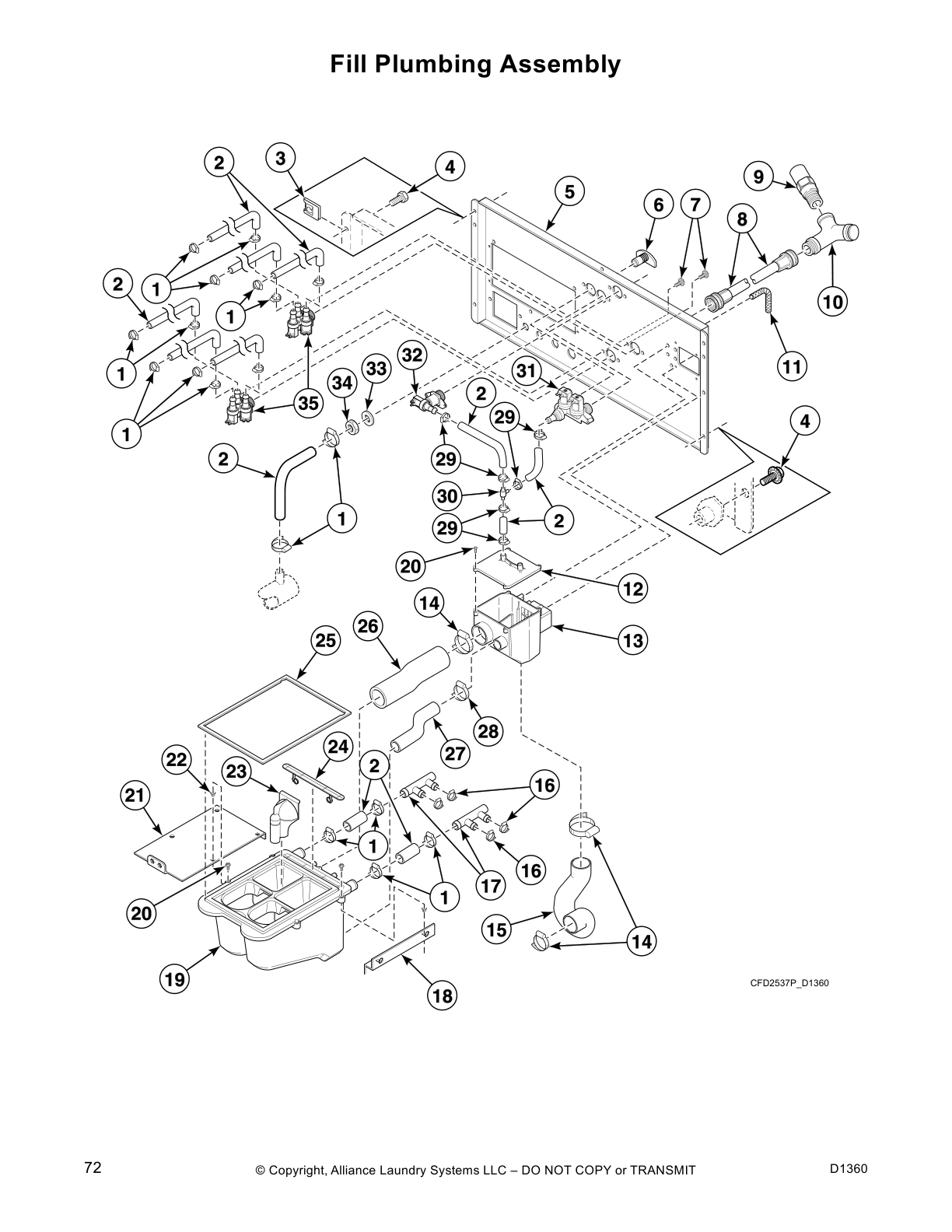

Fill Plumbing Assembly

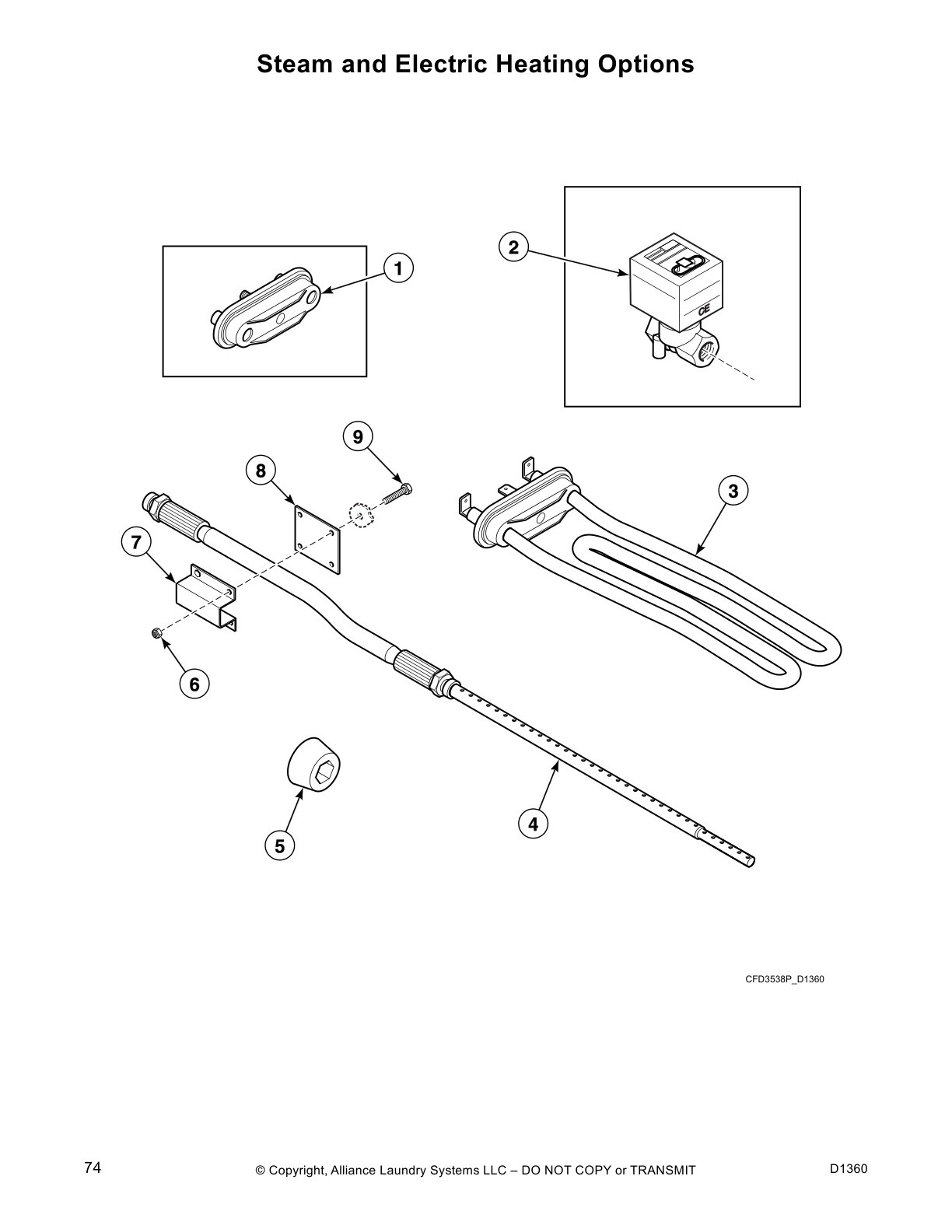

Steam and Electric Heating Options

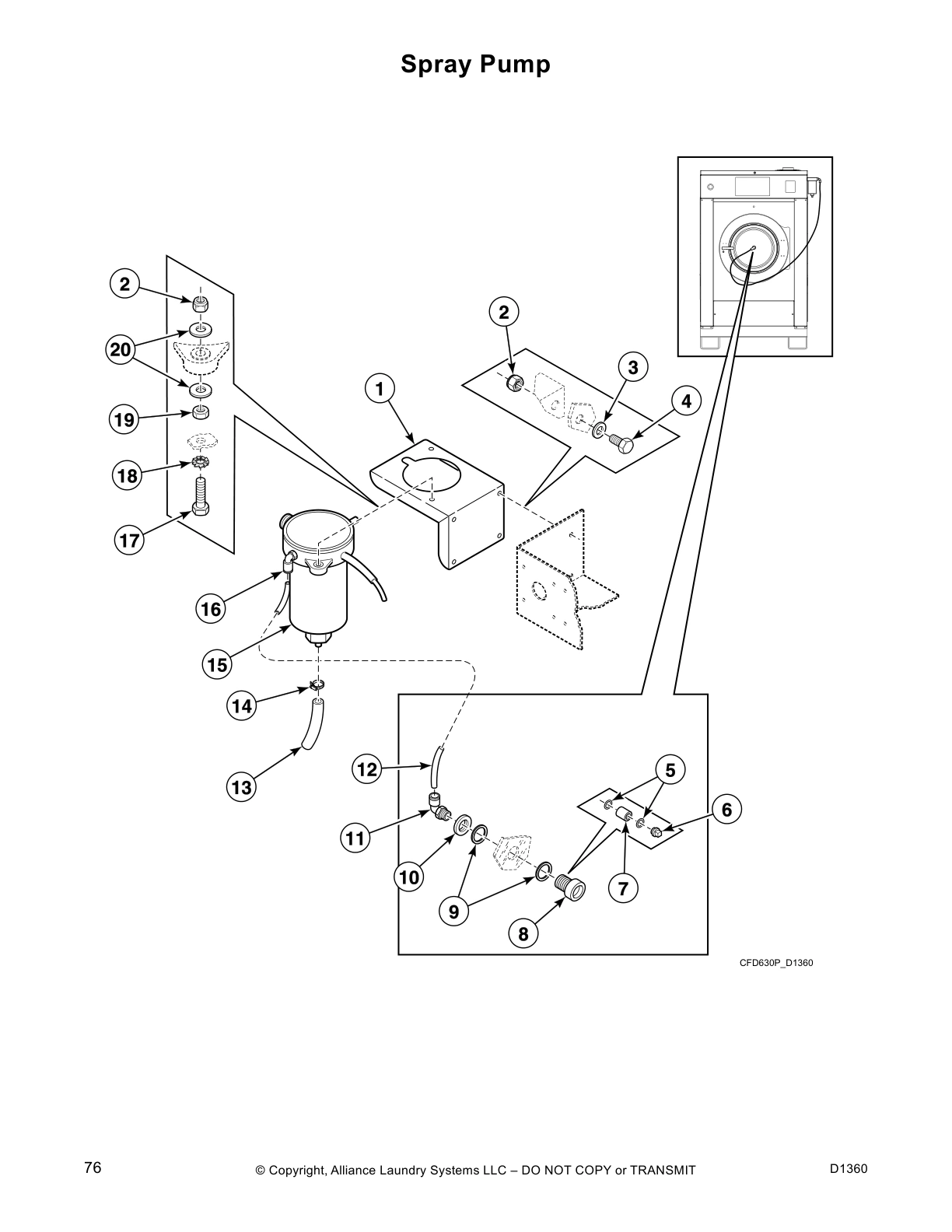

Spray Pump
Common parts from model Speed Queen SXE075P Washer
SPQ 385P4-1 SPQ 385P4-1 Contact Us For Availability
Heat Harness SPQ B12455905 Contact Us For Availability
Heating Harness SPQ B12455805 Contact Us For Availability
Electric Heat Harness SPQ B12382302 Contact Us For Availability
Relay SPQ B12349704 Contact Us For Availability
SPQ B12348506 SPQ B12348506 Contact Us For Availability
1
Nut SPQ 204/00019/00 Contact Us For Availability
1
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
1
Drum SPQ B12327301 Contact Us For Availability
1
Bolt SPQ 206/00122/00 Contact Us For Availability
1
Motor Plate SPQ 115/10117/00 Contact Us For Availability
1
Operating Panel SPQ B12436501 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element Plug SPQ F360202 Contact Us For Availability
2
SPQ B12511601 SPQ B12511601 Contact Us For Availability
2
O-Ring SPQ 204/00009/00 Contact Us For Availability
2
Pulley SPQ 206/00047/00 Contact Us For Availability
2
Key SPQ 212/00026/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Rivet SPQ 204/00116/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
2
Thermostat SPQ 225/10004/00 Contact Us For Availability
2
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
2
Access Cover SPQ F8047901 Contact Us For Availability
2
Steam Valve SPQ 209/00476/00 Contact Us For Availability
3
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
3
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
3
Bolt SPQ 217/00021/00 Contact Us For Availability
3
Drive Source Harness SPQ 204/00011/00 Contact Us For Availability
3
Bolt SPQ 207/00018/00 Contact Us For Availability
3
Washer SPQ 223/00041/00 Contact Us For Availability
3
Heating Element SPQ 209/00562/20 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
SPQ 204/00113/00 SPQ 204/00113/00 Contact Us For Availability
4
SPQ 246/00092/00 SPQ 246/00092/00 Contact Us For Availability
4
Out-of-Balance Switch Harness SPQ 203/00006/00 Contact Us For Availability
4
SPQ 227/00163/00 SPQ 227/00163/00 Contact Us For Availability
4
Pressure Hose SPQ 209/00372/01 Contact Us For Availability
4
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
4
Heating Element SPQ 209/00581/10 Contact Us For Availability
5
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
5
Door Hinge Blocking Plate SPQ 205/00104/00 Contact Us For Availability
5
Bearing Replacement Tool Kit SPQ 224/00052/00 Contact Us For Availability
5
Roller Bearing SPQ 212/00005/00 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
Steam Injector SPQ 119/00087/50 Contact Us For Availability
5
SPQ 223/00177/00 SPQ 223/00177/00 Contact Us For Availability
6
SPQ 115/00151/00 SPQ 115/00151/00 Contact Us For Availability
6
Bearing Replacement Kit SPQ 224/00051/00 Contact Us For Availability
6
SPQ 206/00072/00 SPQ 206/00072/00 Contact Us For Availability
6
SPQ 223/00071/00 SPQ 223/00071/00 Contact Us For Availability
6
Key Switch Harness SPQ 209/00520/00 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
Steam Connection Plug SPQ 206/00178/00 Contact Us For Availability
7
SPQ 206/00071/00 SPQ 206/00071/00 Contact Us For Availability
7
Pulley SPQ 207/00110/00 Contact Us For Availability
7
SPQ 226/00152/00 SPQ 226/00152/00 Contact Us For Availability
7
SPQ 223/00328/00 SPQ 223/00328/00 Contact Us For Availability
7
Door Hinge Spacer SPQ B12565001 Contact Us For Availability
7
Nut SPQ 206/00101/00 Contact Us For Availability
7
Side Panel SPQ 133/00126/00 Contact Us For Availability
7
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
7
SPQ 211/00126/00 SPQ 211/00126/00 Contact Us For Availability
8
SPQ B12460901 SPQ B12460901 Contact Us For Availability
8
SPQ 226/00150/00 SPQ 226/00150/00 Contact Us For Availability
8
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
8
Control Supply Harness SPQ 223/00035/02 Contact Us For Availability
8
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
8
E-Stop Drive Harness SPQ 209/00326/20 Contact Us For Availability
8
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
8
SPQ 209/00438/50 SPQ 209/00438/50 Contact Us For Availability
8
SPQ F200166 SPQ F200166 Contact Us For Availability
8
Bracket Support SPQ 111/00155/10 Contact Us For Availability
9
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
9
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
9
SPQ B12612101 SPQ B12612101 Contact Us For Availability
9
SPQ B12381103 SPQ B12381103 Contact Us For Availability
9
SPQ 223/00176/00 SPQ 223/00176/00 Contact Us For Availability
10
Bolt SPQ 224/00046/00 Contact Us For Availability
10
Washer SPQ 203/00001/00 Contact Us For Availability
10
Bolt SPQ 206/00006/00 Contact Us For Availability
10
Drain Tub to Drain Valve Hose SPQ B12403201 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
10
Hose Fitting SPQ 44069101 Contact Us For Availability
11
Washer SPQ 201/00010/00 Contact Us For Availability
11
Door Front Panel SPQ 111/32945/00 Contact Us For Availability
11
Washer SPQ 201/00202/00 Contact Us For Availability
11
Bolt SPQ 206/00004/00 Contact Us For Availability
11
Screw SPQ 206/00056/00 Contact Us For Availability
11
Drain Valve Plate Assembly SPQ 114/00010/00 Contact Us For Availability
11
Washer SPQ 202/00104/00 Contact Us For Availability
11
Spacer SPQ 211/00140/00 Contact Us For Availability
11
Soap Injector Coupling SPQ 223/00182/00 Contact Us For Availability
12
Bolt SPQ 206/00009/00 Contact Us For Availability
12
Counterweight SPQ 115/00136/00 Contact Us For Availability
12
Out-of-Balance Switch Boot SPQ 203/00003/00 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Connection Clamp Fuse Holder SPQ 260/00036/00 Contact Us For Availability
12
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
12
Soap Injector Hose SPQ 223/00180/00 Contact Us For Availability
13
Nut SPQ 204/00111/00 Contact Us For Availability
13
Screw SPQ 204/00004/00 Contact Us For Availability
13
Rivet SPQ 208/00017/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
14
Washer SPQ 206/00066/00 Contact Us For Availability
14
Washer SPQ 206/00003/00 Contact Us For Availability
14
Nut SPQ 202/00002/00 Contact Us For Availability
14
Manifold SPQ 223/00011/00 Contact Us For Availability
14
Cable Tie SPQ F140605 Contact Us For Availability
15
Ball Bearing SPQ 112/00004/00 Contact Us For Availability
15
Bolt SPQ 111/32943/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
16
Tub Front Ring Clamp SPQ 206/00032/00 Contact Us For Availability
16
Bearing Housing Assembly SPQ 206/00010/00 Contact Us For Availability
16
Left Front Panel SPQ 206/00042/00 Contact Us For Availability
16
Inverter Drive SPQ F8420922 Contact Us For Availability
16
Dispenser Assembly SPQ F8333201 Contact Us For Availability
16
Soap Injector Elbow Coupling SPQ 223/00181/00 Contact Us For Availability
17
Bolt SPQ 205/00103/00 Contact Us For Availability
17
Overflow Hose SPQ 223/00012/00 Contact Us For Availability
17
Telem Sticker SPQ 204/00008/00 Contact Us For Availability
17
Washer SPQ F8420921 Contact Us For Availability
17
Washer SPQ 202/00004/00 Contact Us For Availability
17
Water Hose SPQ F8047401 Contact Us For Availability
18
Side Panel SPQ 204/00109/00 Contact Us For Availability
18
Tub SPQ 231/00010/00 Contact Us For Availability
18
Washer SPQ 203/00004/00 Contact Us For Availability
18
Door Glass Seal SPQ B12389701 Contact Us For Availability
18
Thermostat Grommet SPQ 223/00123/00 Contact Us For Availability
18
Programming Key Contact Switch SPQ 203/00007/00 Contact Us For Availability
18
Noise Filter SPQ 204/00114/00 Contact Us For Availability
19
Tub Tightening Ring SPQ 131/00010/00 Contact Us For Availability
19
Roller Bearing SPQ 212/10036/01 Contact Us For Availability
19
Nut SPQ 204/00106/00 Contact Us For Availability
19
Outlet Pipe Plate Assembly SPQ 111/32948/50 Contact Us For Availability
19
Siphon Cover SPQ 223/00044/00 Contact Us For Availability
20
Soap Injector Orifice Nipple SPQ 202/00101/00 Contact Us For Availability
20
Tub Mount Rings Bracket SPQ B12330601 Contact Us For Availability
21
Tub Front Panel Clip SPQ 115/00163/00 Contact Us For Availability
21
Drain Valve to Drain Tube Hose SPQ 223/00131/00 Contact Us For Availability
22
Gasket SPQ 115/00125/00 Contact Us For Availability
22
Pressure Hose SPQ 209/00051/11 Contact Us For Availability
22
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
22
E-Stop Drive Fan Harness SPQ 211/00170/00 Contact Us For Availability
23
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
23
Fuse SPQ 70329501 Contact Us For Availability
23
Dispenser Gasket SPQ F8047801 Contact Us For Availability
24
Fuse Holder Body SPQ 802492 Contact Us For Availability
24
Expansion Clip SPQ F8308301 Contact Us For Availability
25
Transformer SPQ 70329401P Contact Us For Availability
25
Water Inlet Tee SPQ 223/00223/00 Contact Us For Availability
26
Main Control SPQ F8401301 Contact Us For Availability
28
Mixing Valve SPQ 223/00013/00 Contact Us For Availability
30
Pressure Switch Hose Tee SPQ B12565801 Contact Us For Availability
30
Nut SPQ F8434002 Contact Us For Availability
31
Prewash and Mainwash Nozzle SPQ F8434001 Contact Us For Availability
32
Bolt SPQ 223/00050/01 Contact Us For Availability
33
Water Hose SPQ 201/00002/00 Contact Us For Availability
34
Inlet Valve Harness SPQ 204/00201/00 Contact Us For Availability
NI
SPQ 212/00007/00 SPQ 212/00007/00 Contact Us For Availability
NI
SPQ F405P4 SPQ F405P4 Contact Us For Availability
NI
SPQ 385P4P SPQ 385P4P Contact Us For Availability
NI
SPQ 892P3 SPQ 892P3 Contact Us For Availability
NI
SPQ B12382104 SPQ B12382104 Contact Us For Availability
NI
Door Lock Harness SPQ B12495002 Contact Us For Availability
NI
E-Stop Harness SPQ B12495501 Contact Us For Availability
NI
SPQ B12348903 SPQ B12348903 Contact Us For Availability
NI
SPQ B12348902 SPQ B12348902 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12501502 SPQ B12501502 Contact Us For Availability
NI
SPQ B12495601 SPQ B12495601 Contact Us For Availability
NI
SPQ B12348104 SPQ B12348104 Contact Us For Availability
NI
SPQ B12349902 SPQ B12349902 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ B12349204 SPQ B12349204 Contact Us For Availability
NI
Steam Bracket SPQ 111/00155/00 Contact Us For Availability
NI
Steam Heat Kit SPQ B12551001 Contact Us For Availability
NI
Steam Valve Harness SPQ B12455904 Contact Us For Availability
NI
Steam Heat Harness SPQ B12455804 Contact Us For Availability
NI
Branch Harness SPQ B12381301 Contact Us For Availability
NI
SPQ B12349604 SPQ B12349604 Contact Us For Availability
NI
SPQ B12348501 SPQ B12348501 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
× ![]()
