Model Speed Queen SXA075P Washer – Common Parts & Diagrams
Frame
Shock Absorber

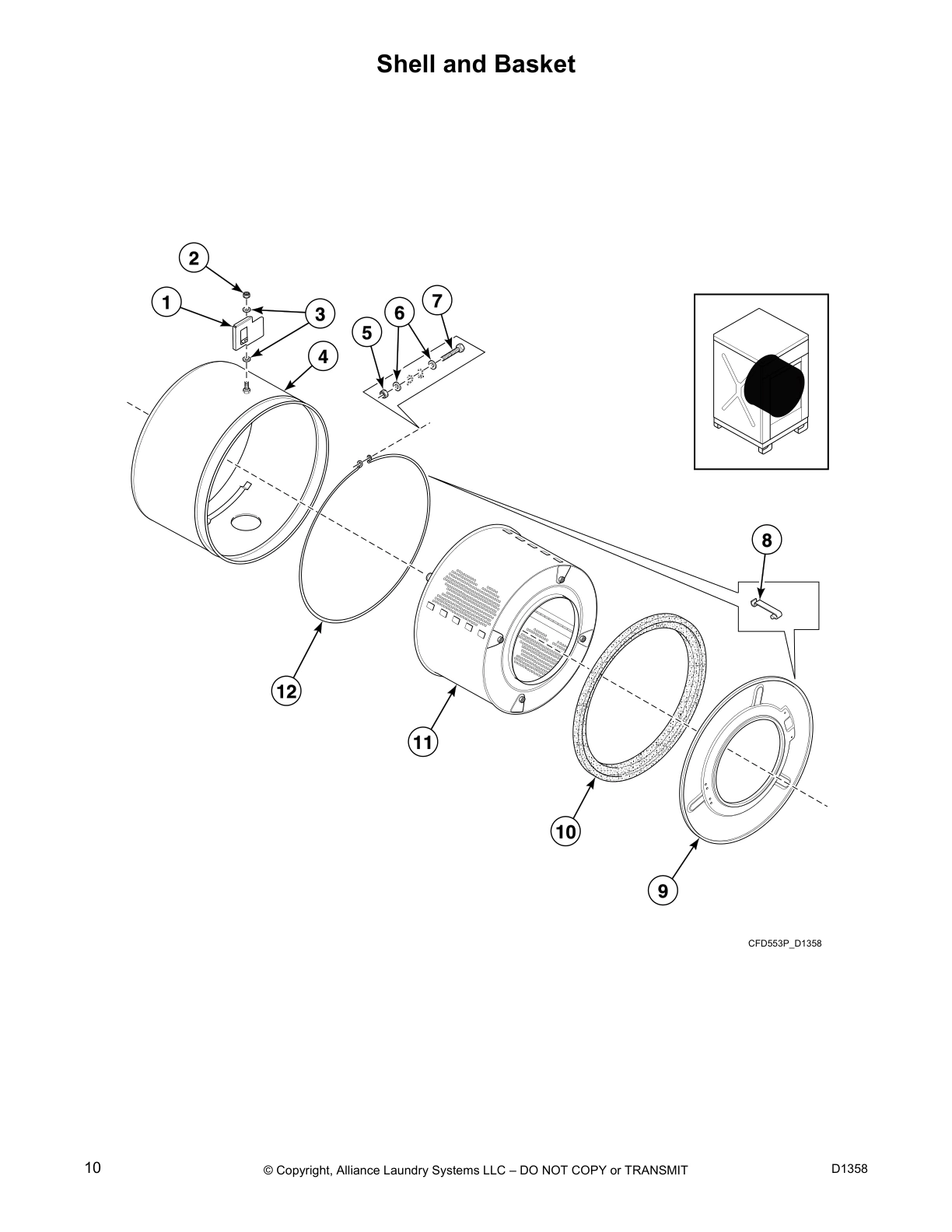

Shell and Basket

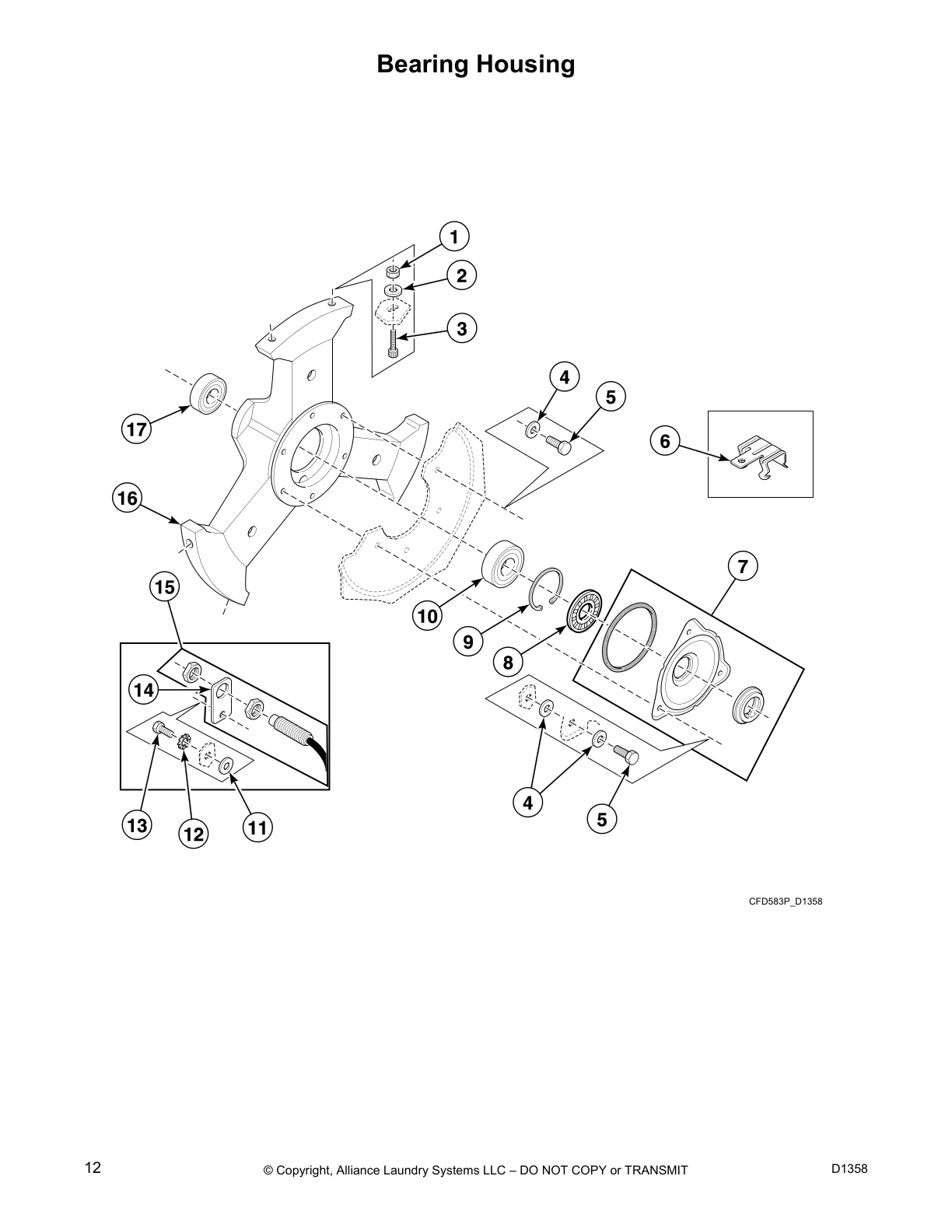

Bearing Housing

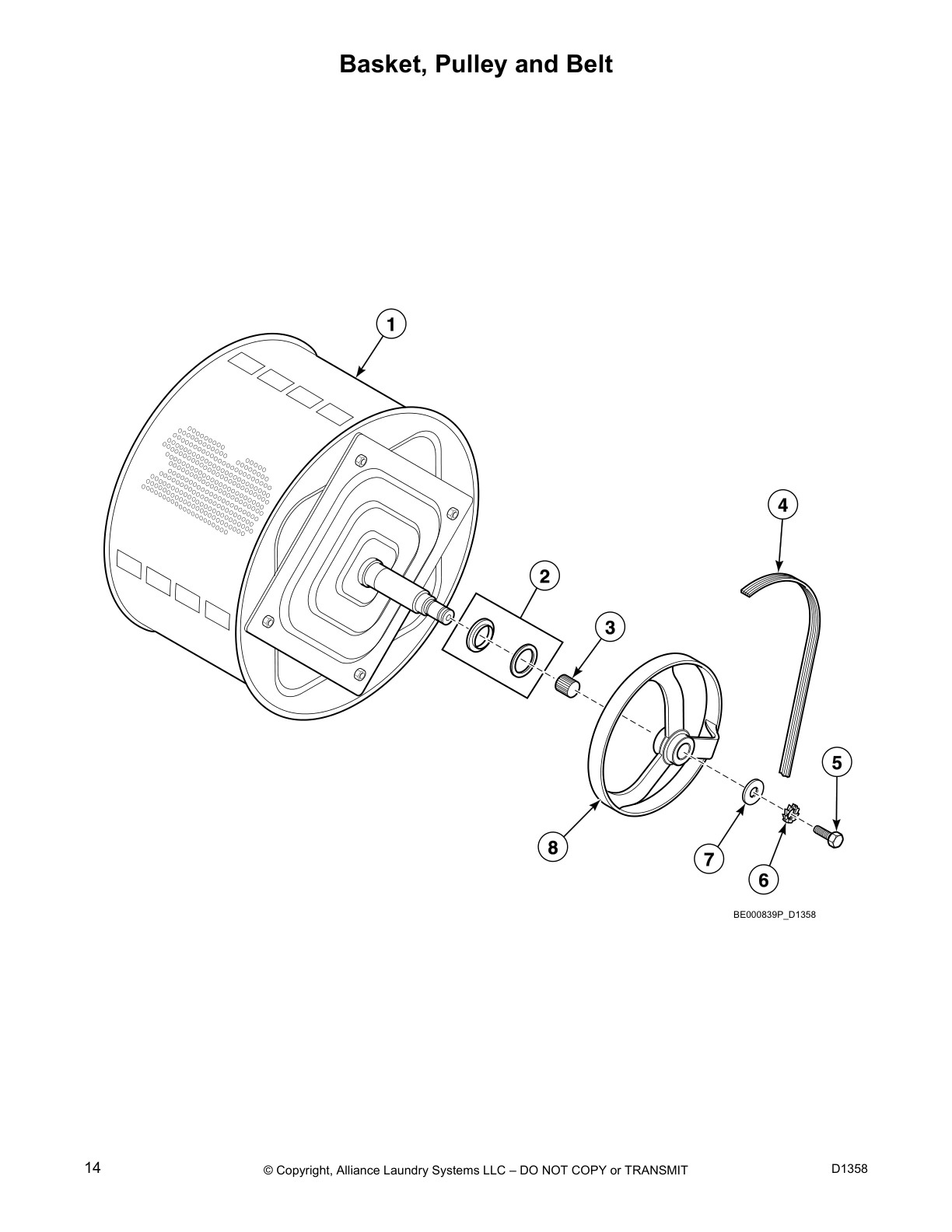

Basket, Pulley and Belt

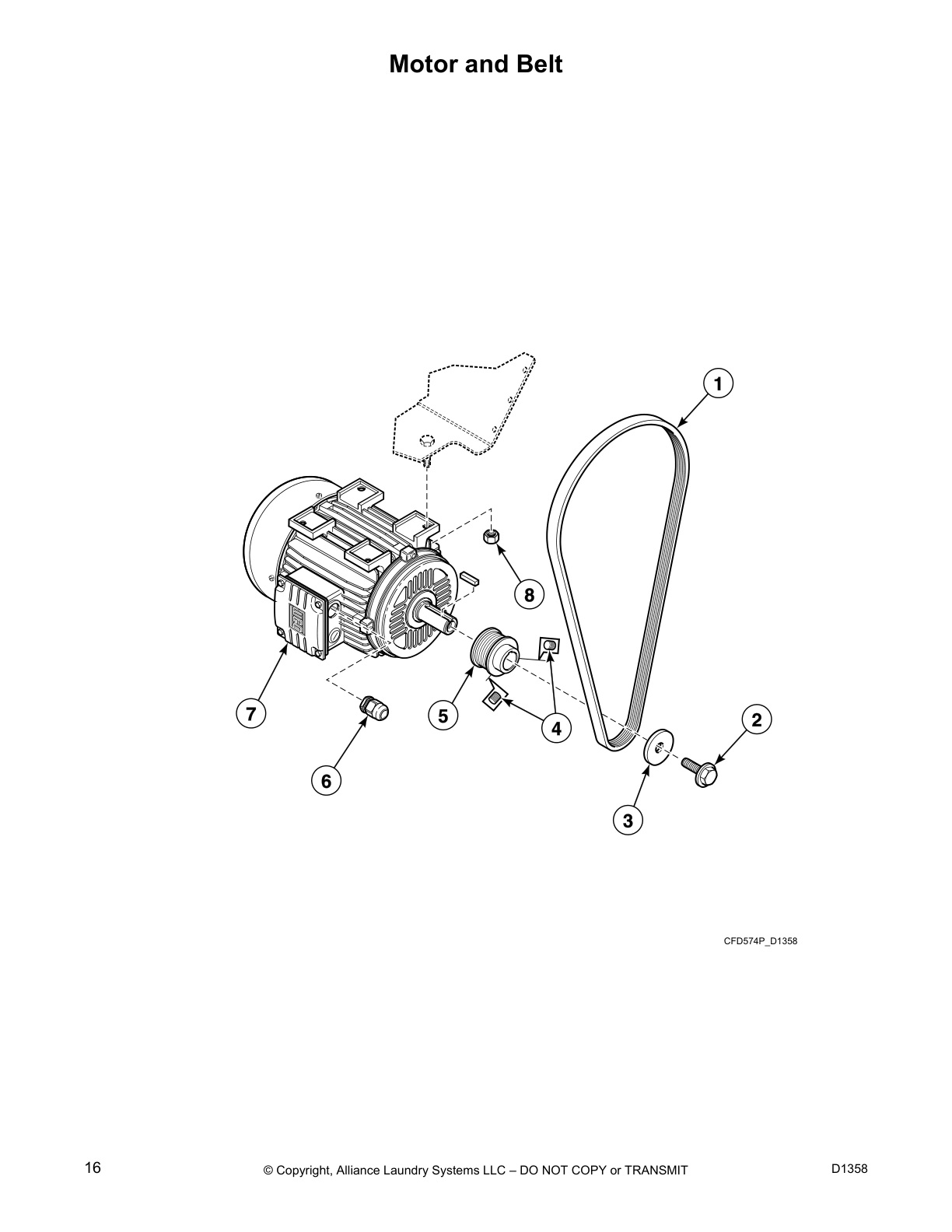

Motor and Belt

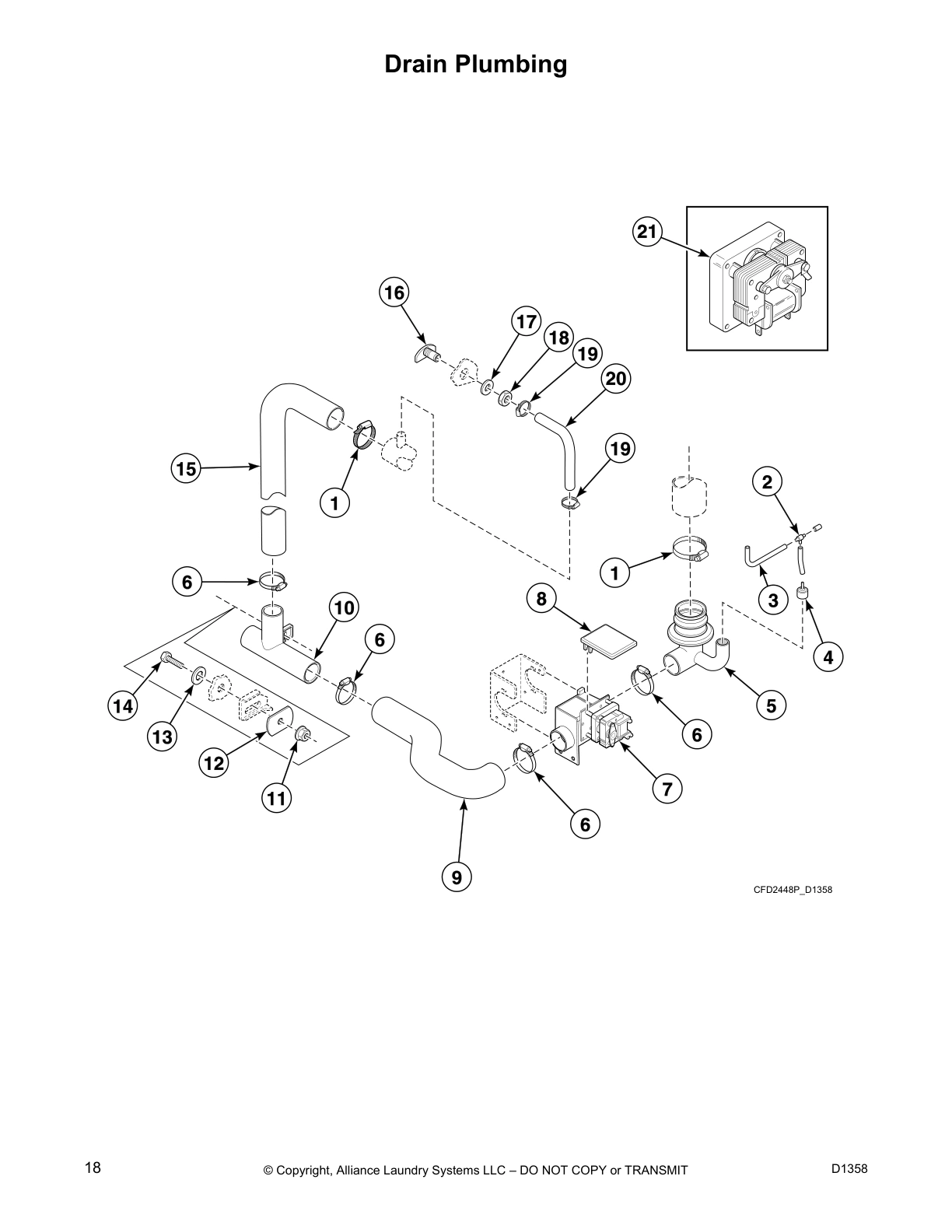

Drain Plumbing

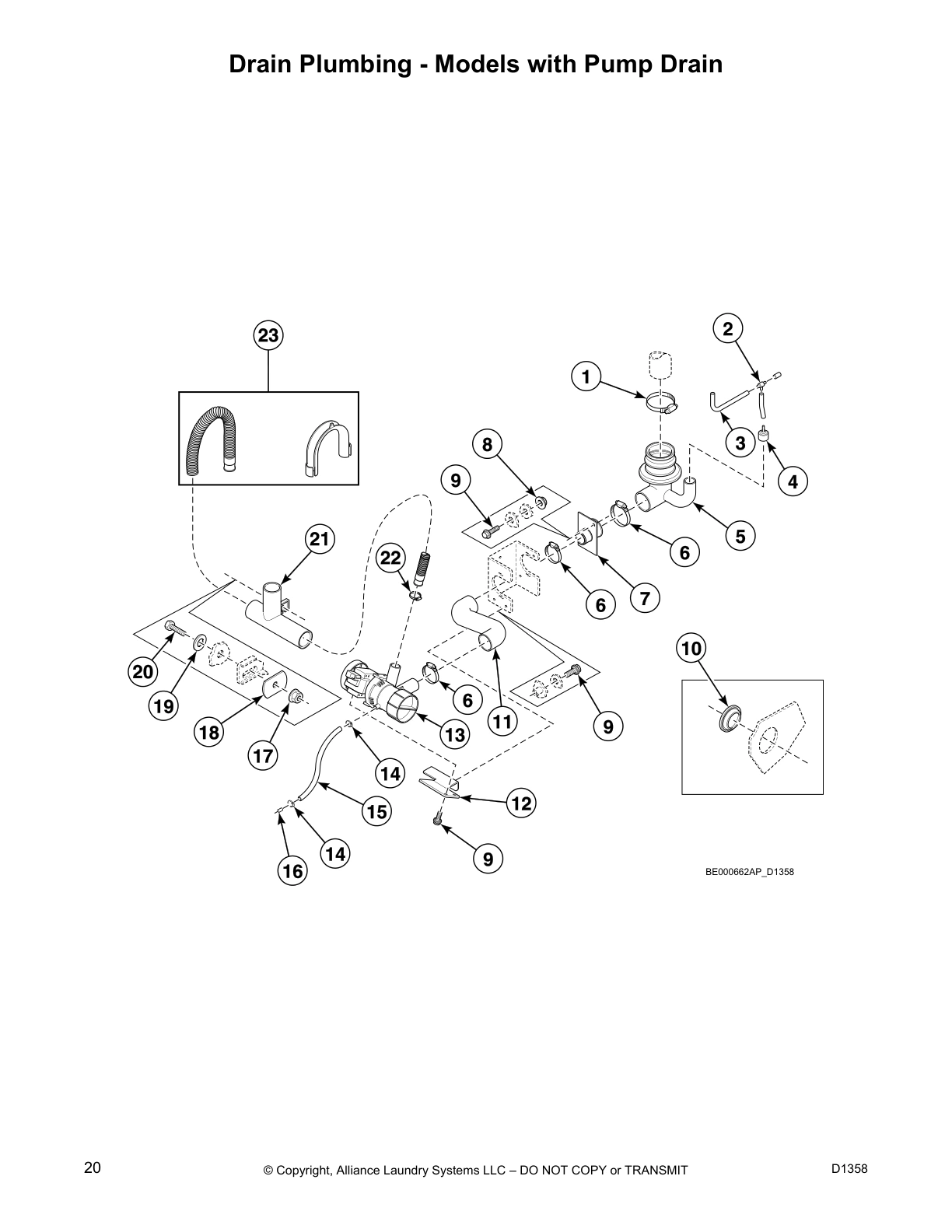

Drain Plumbing - Models with Pump Drain

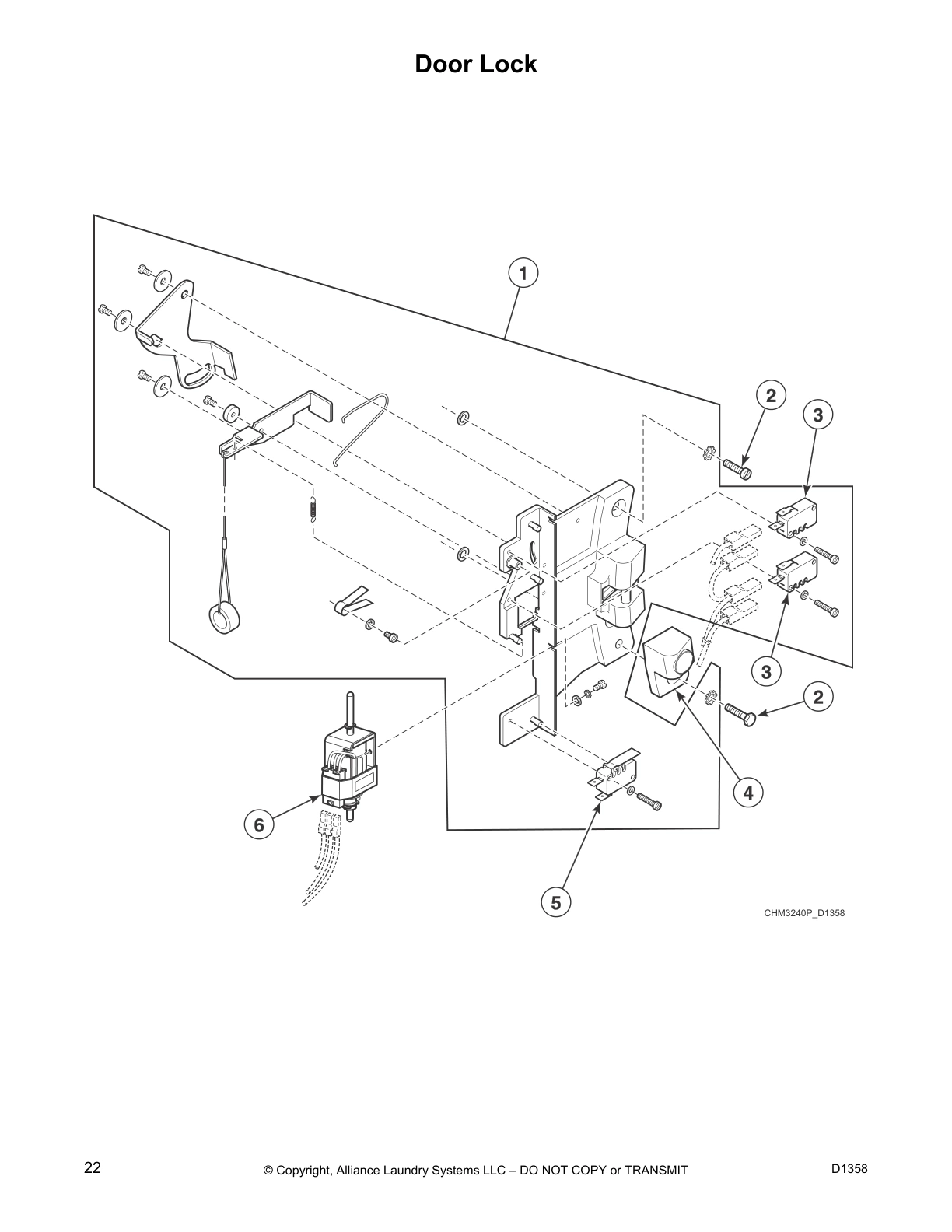

Door Lock

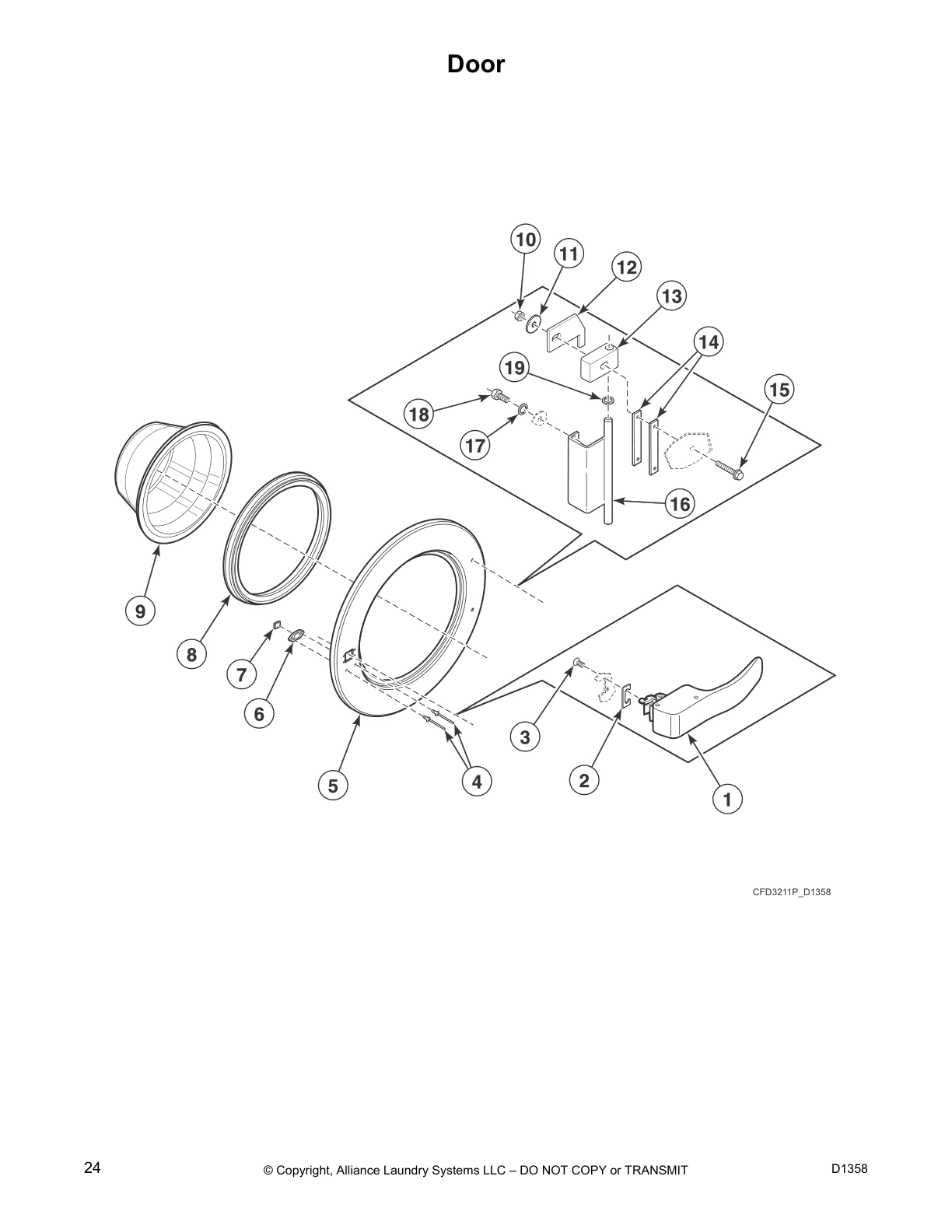

Door

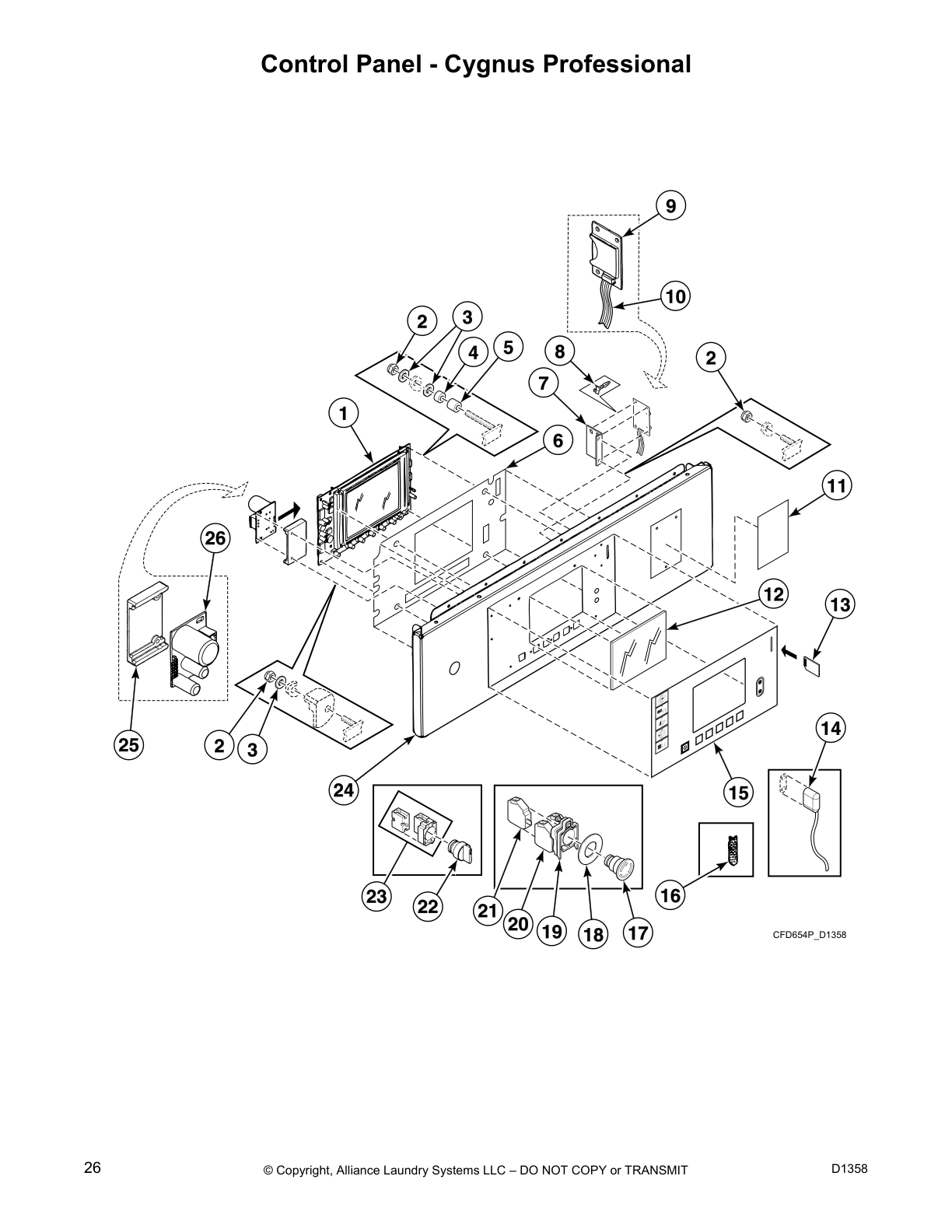

Control Panel - Cygnus Professional

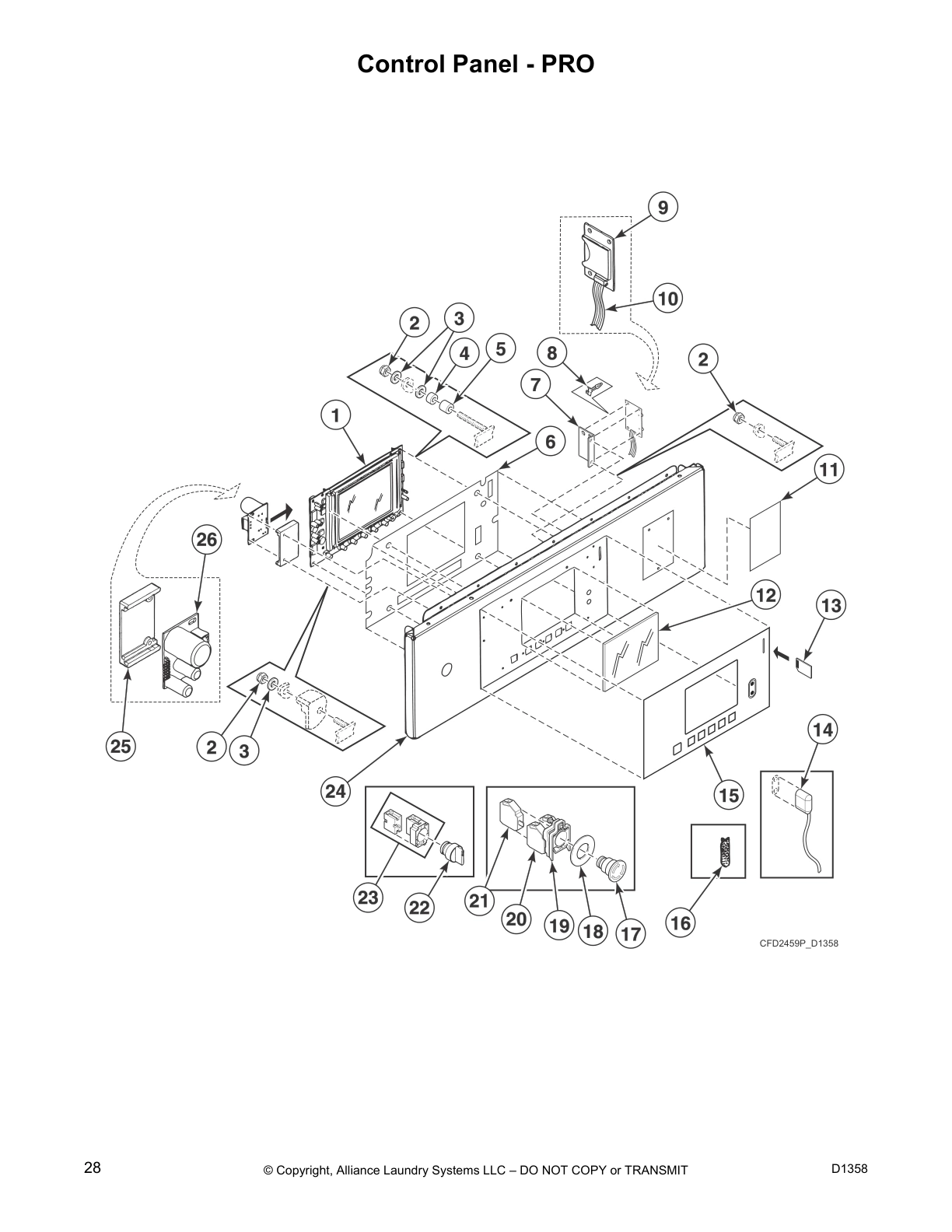

Control Panel - PRO

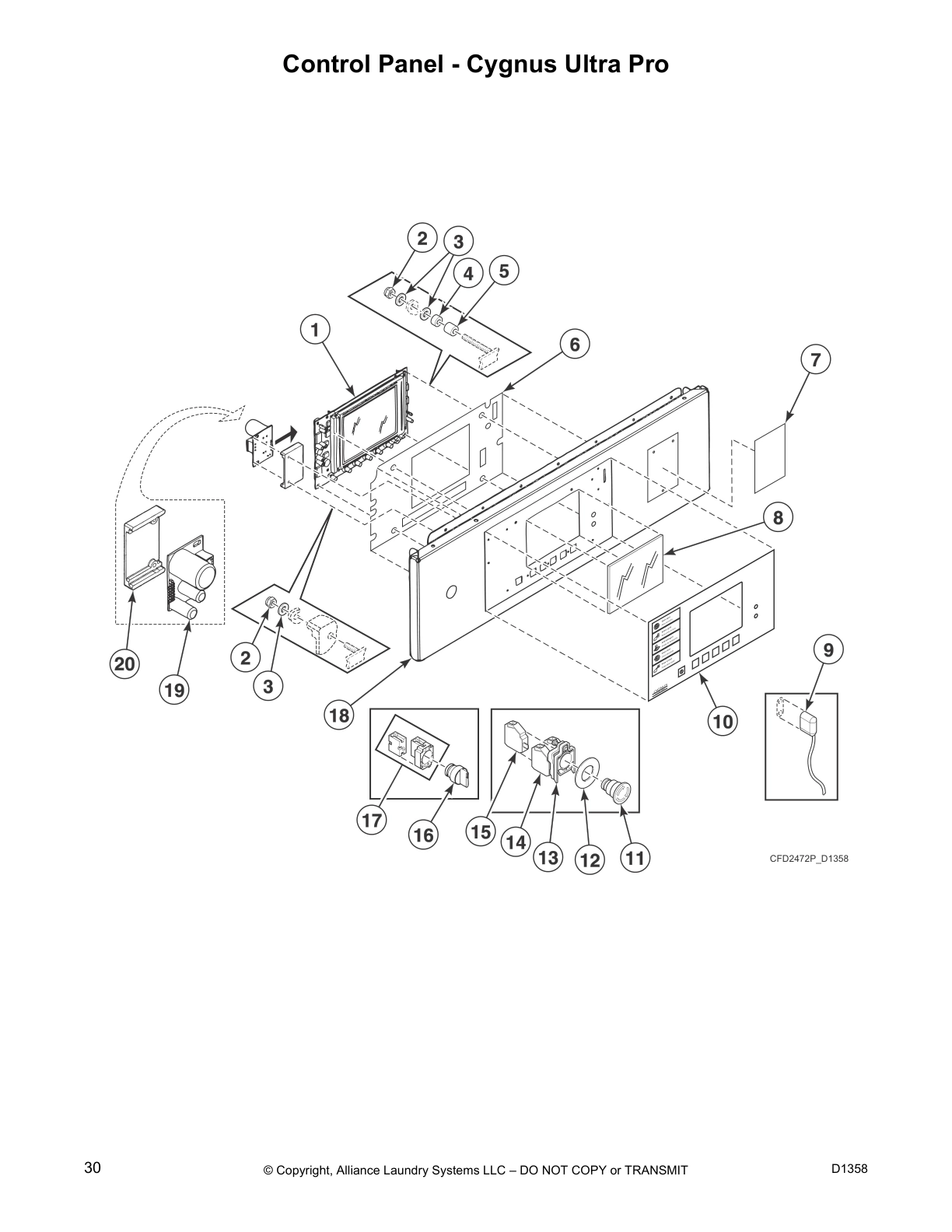

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

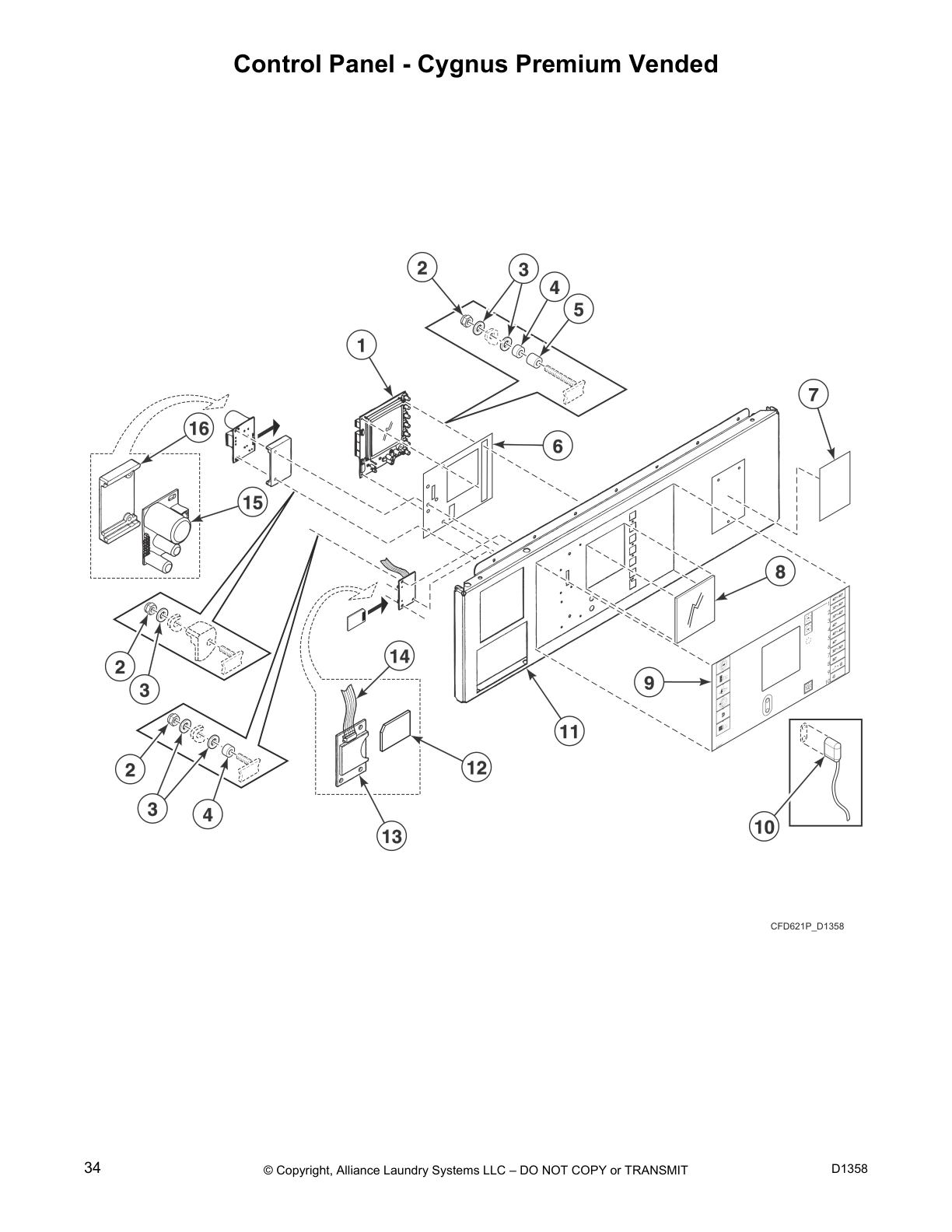

Control Panel - Cygnus Premium Vended

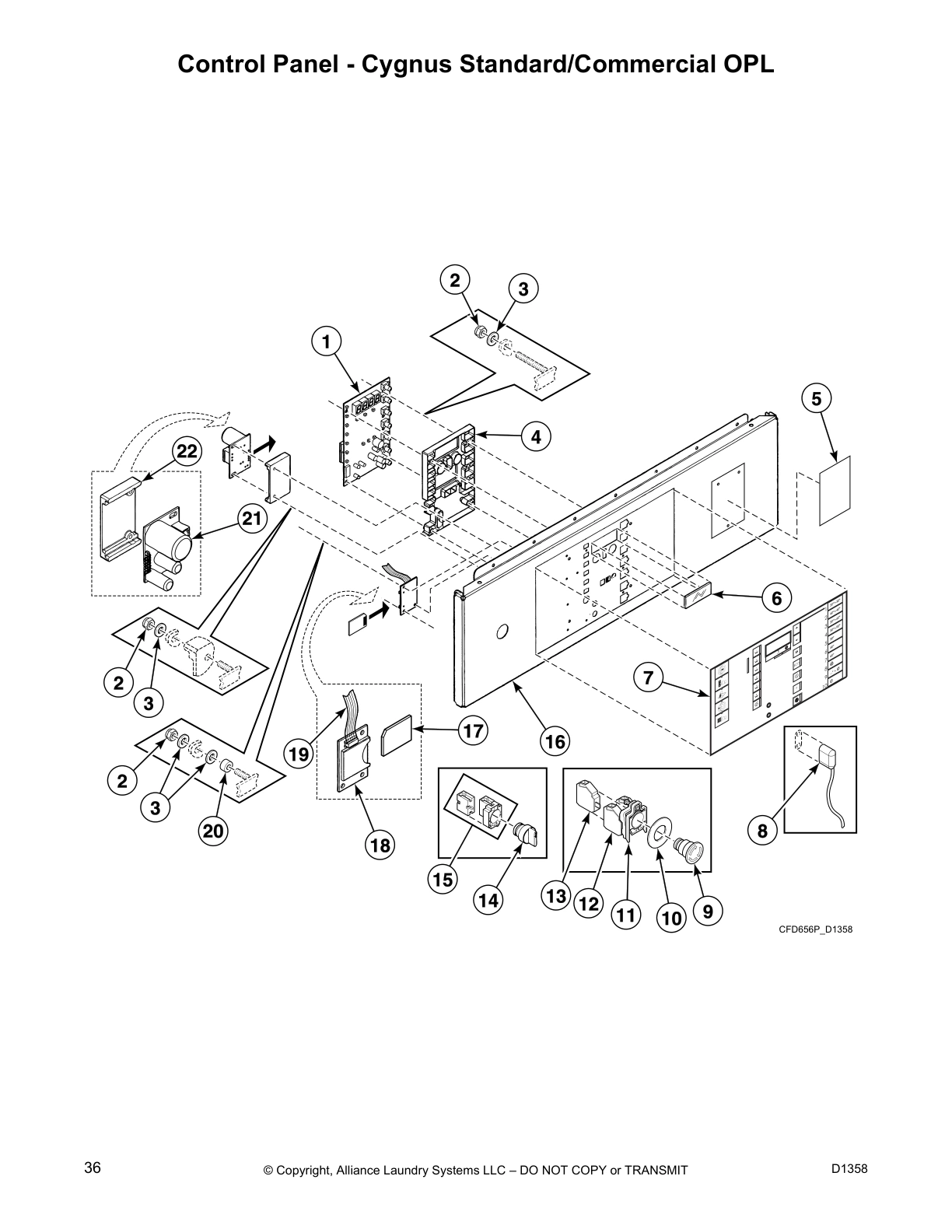

Control Panel - Cygnus Standard/Commercial OPL

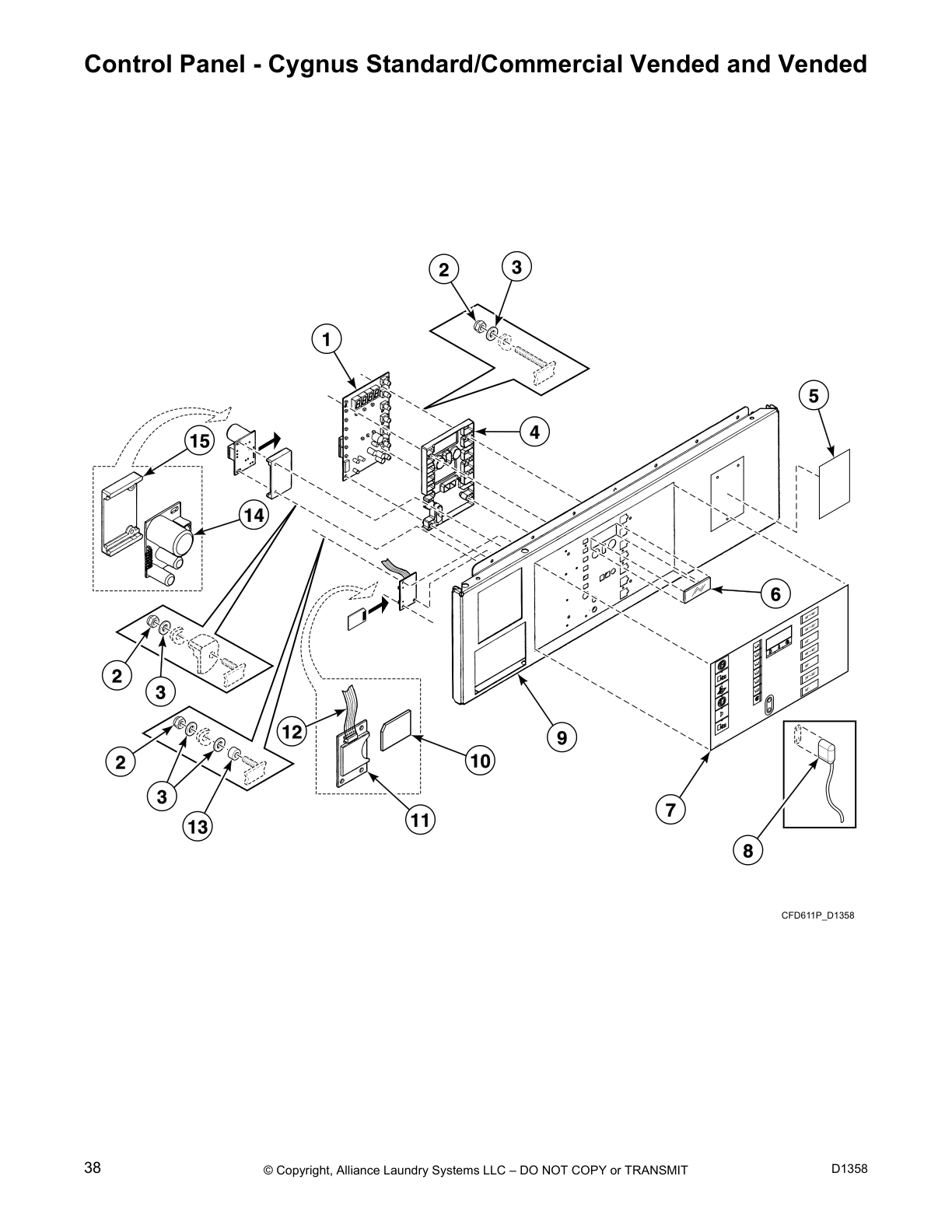

Control Panel - Cygnus Standard/Commercial Vended and Vended

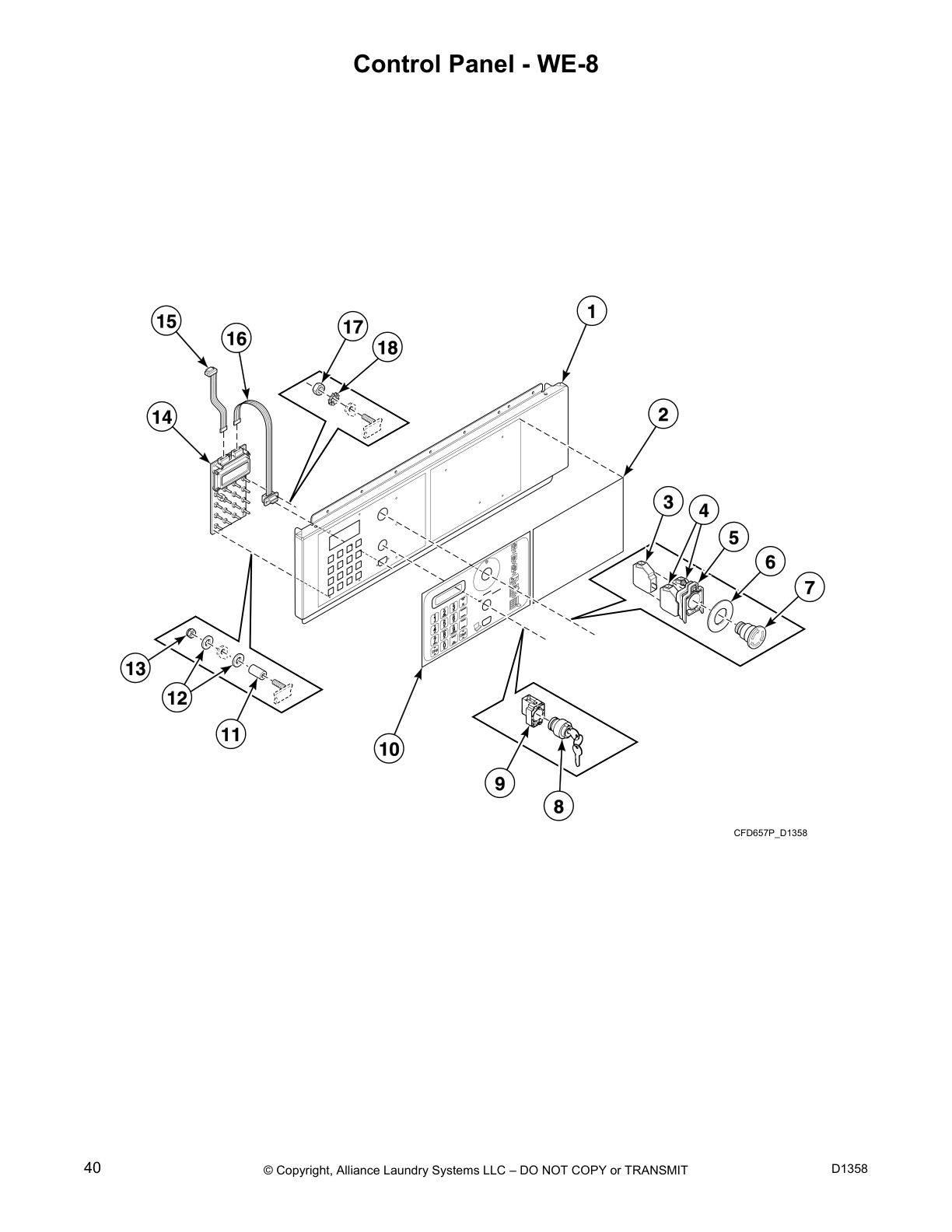

Control Panel - WE-8

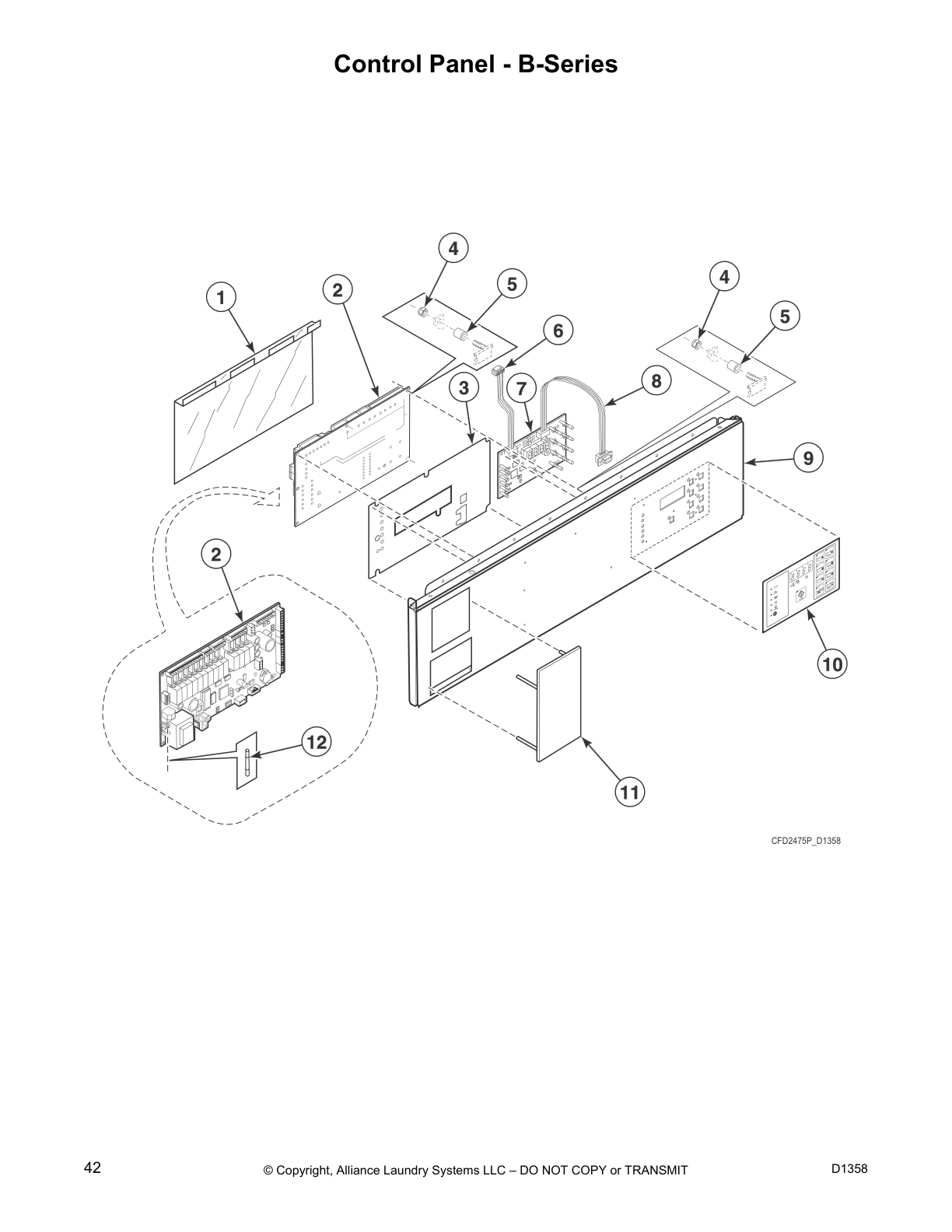

Control Panel - B-Series

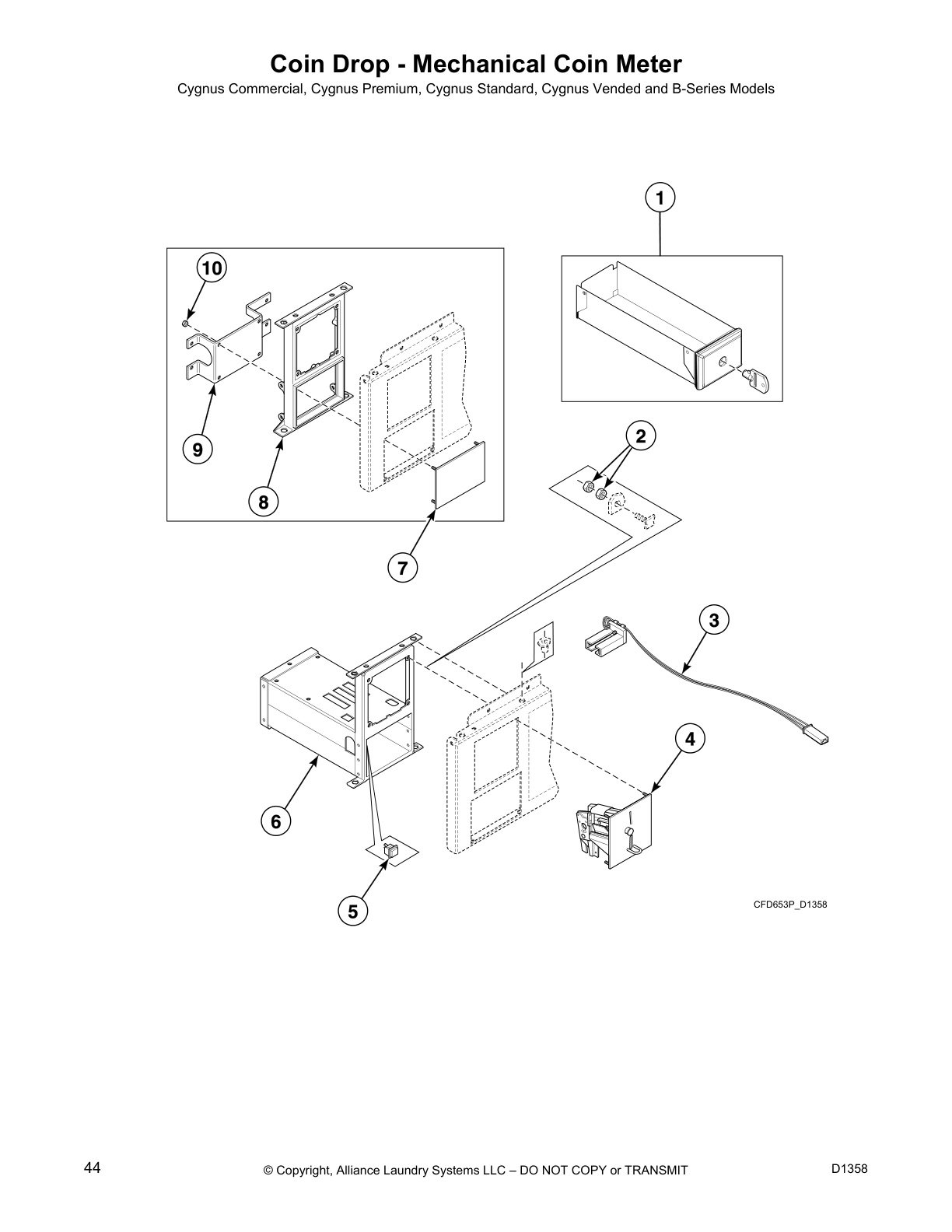

Coin Drop - Mechanical Coin Meter

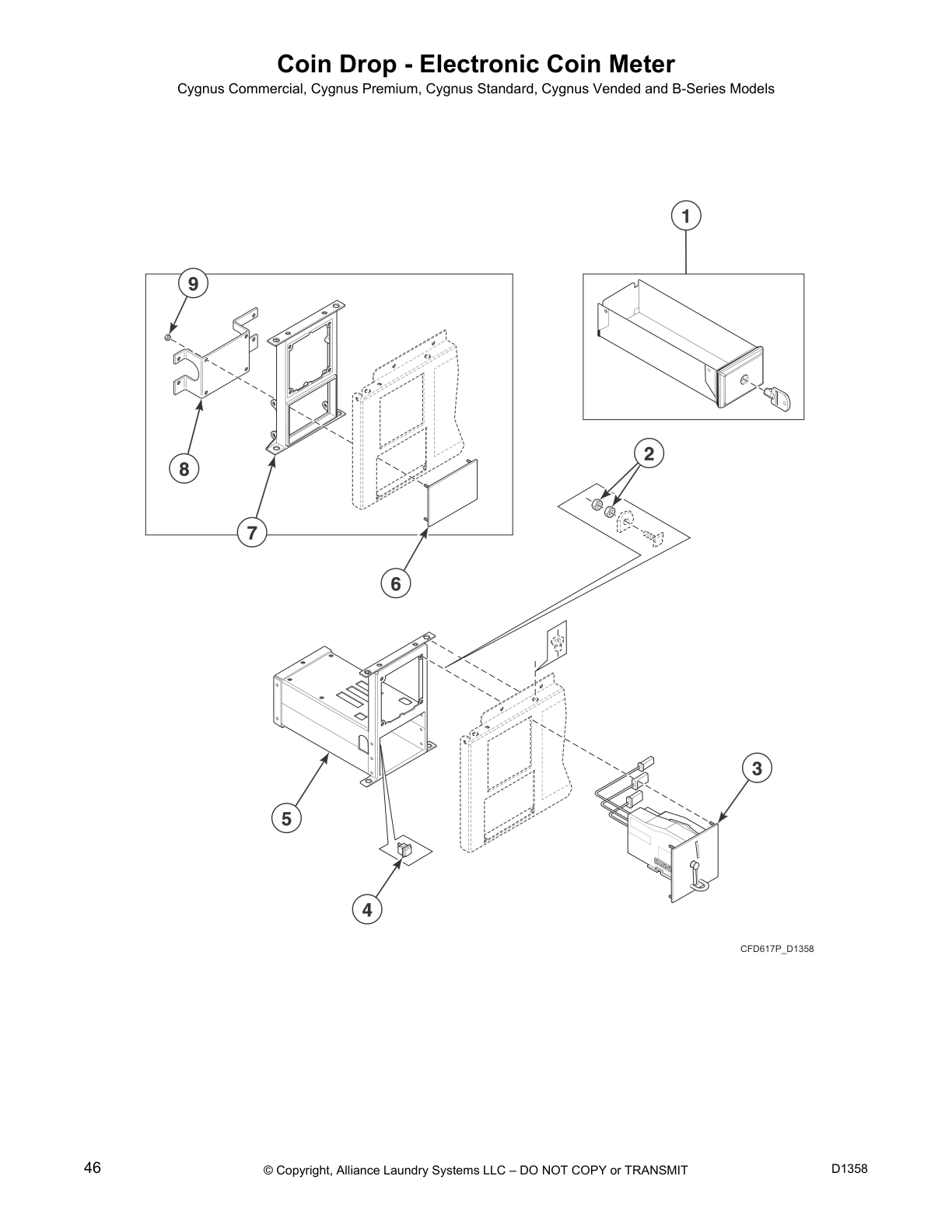

Coin Drop - Electronic Coin Meter

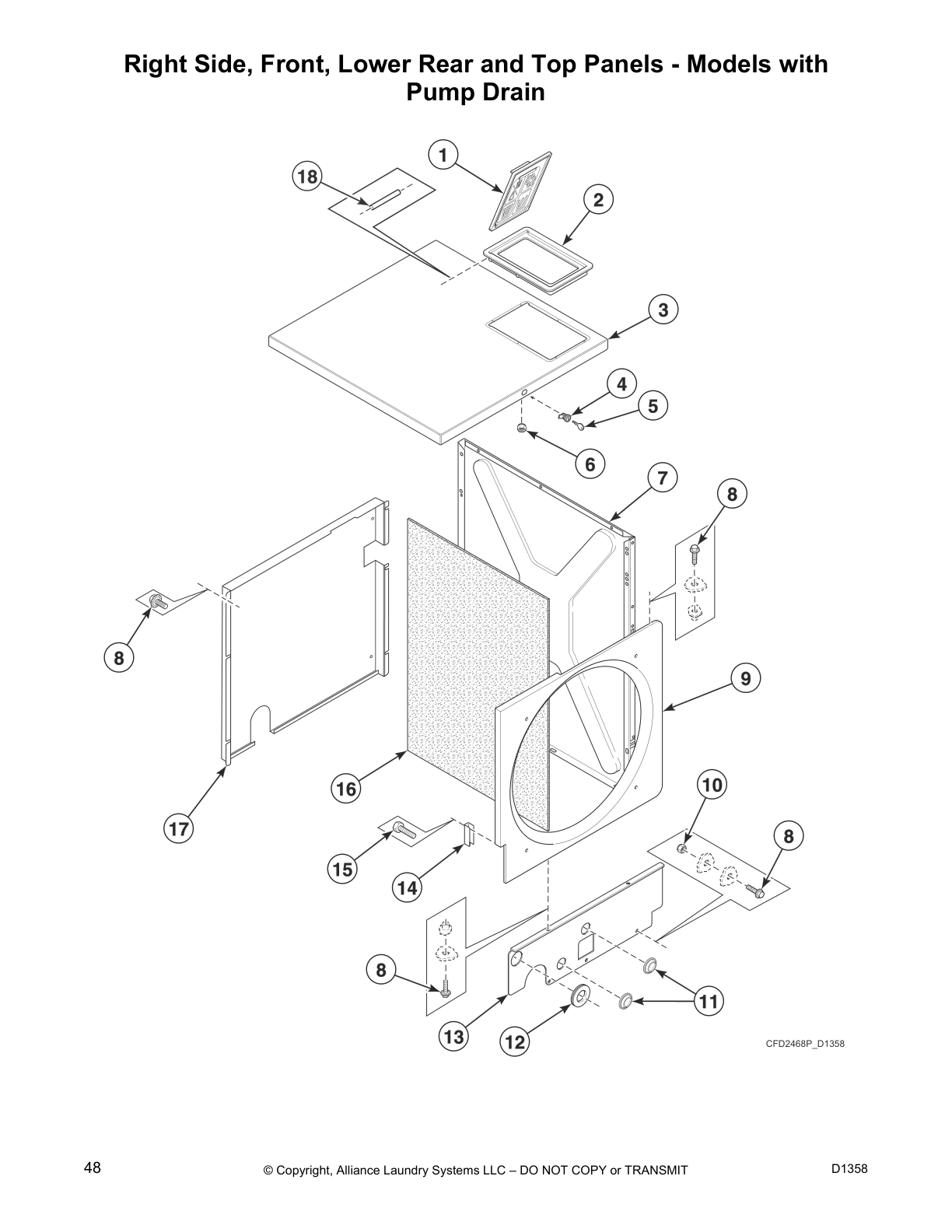

Right Side, Front, Lower Rear and Top Panels - Models with
Pump Drain

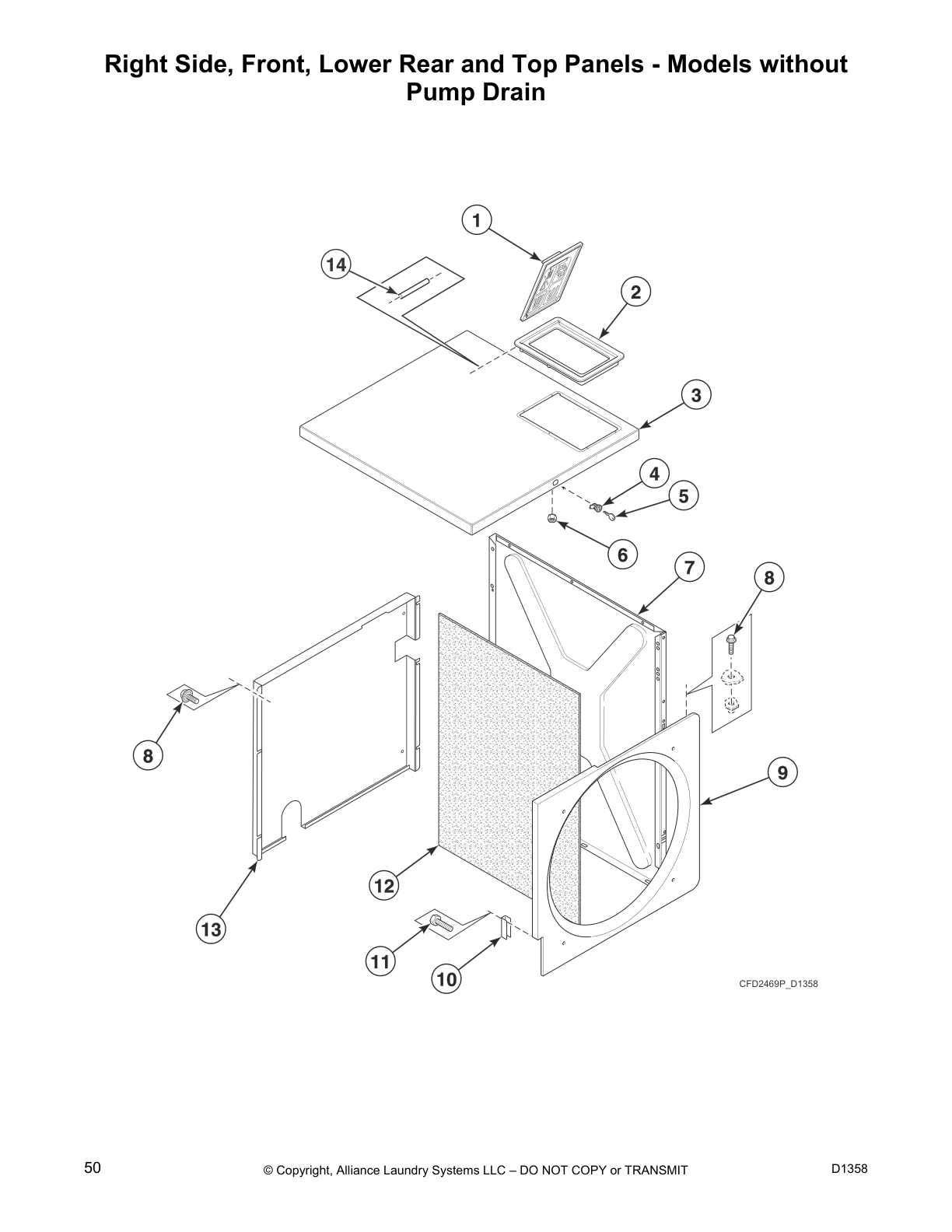

Right Side, Front, Lower Rear and Top Panels - Models without
Pump Drain

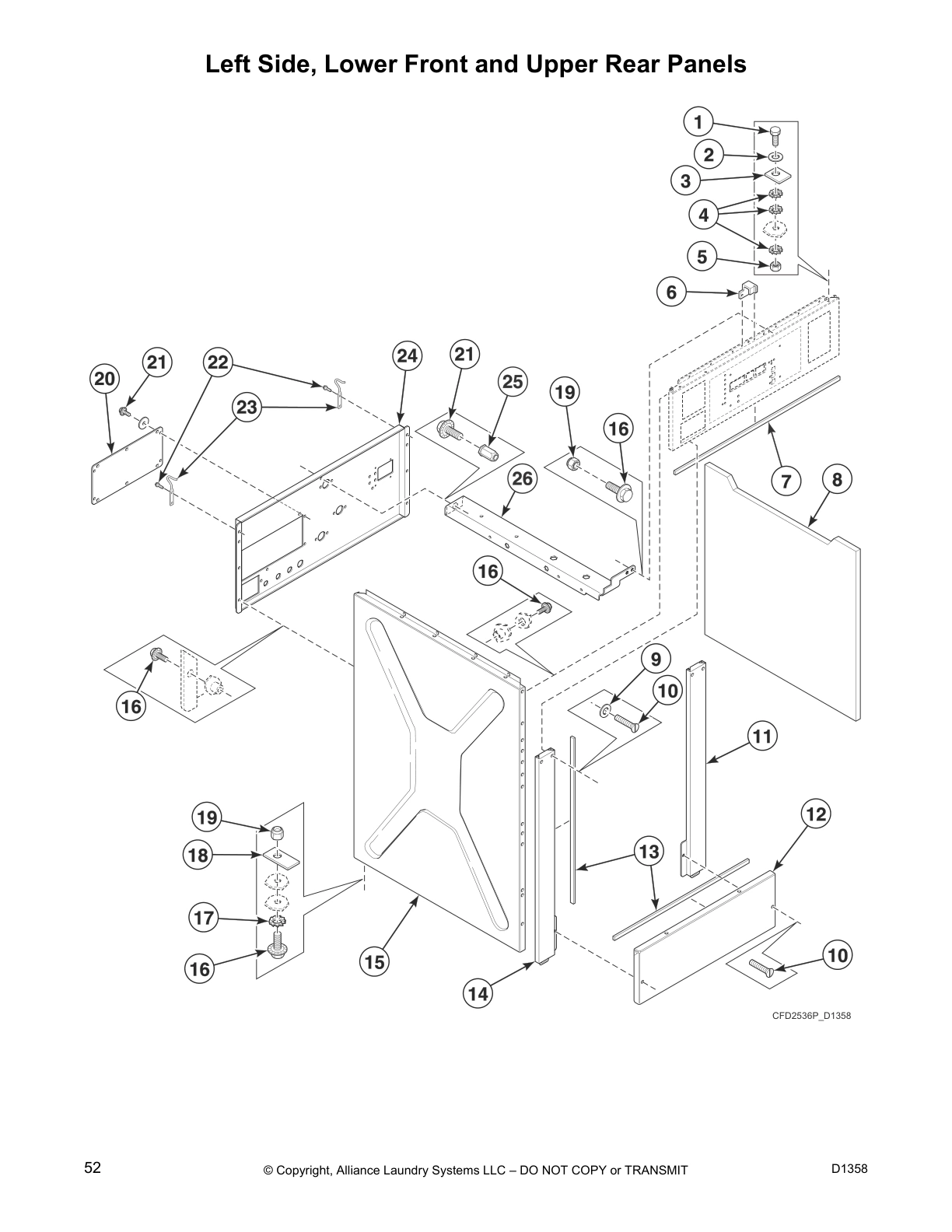

Left Side, Lower Front and Upper Rear Panels
Inverter Drive

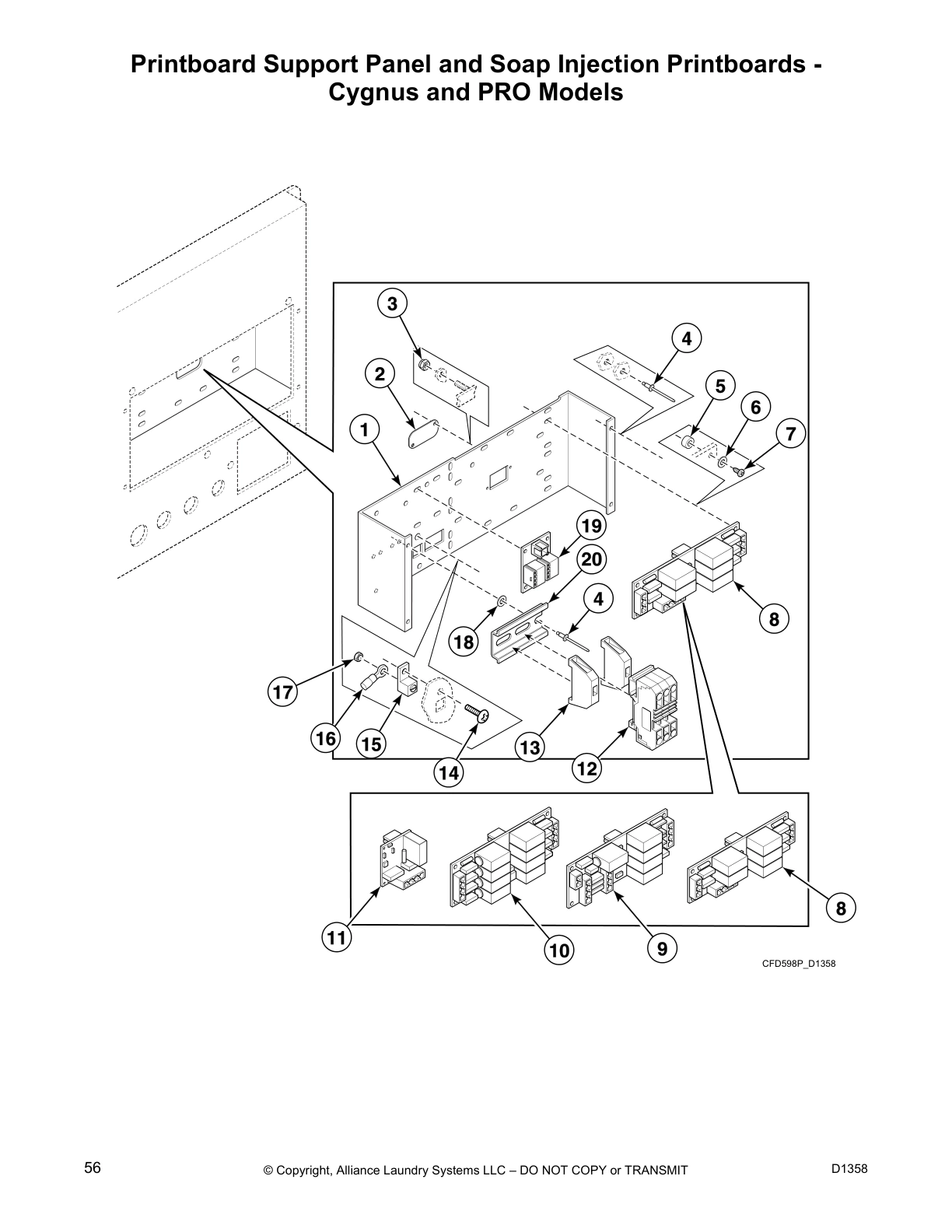

Printboard Support Panel and Soap Injection Printboards -
Cygnus and PRO Models
Printboard Support Panel and Soap Injection Printboards -

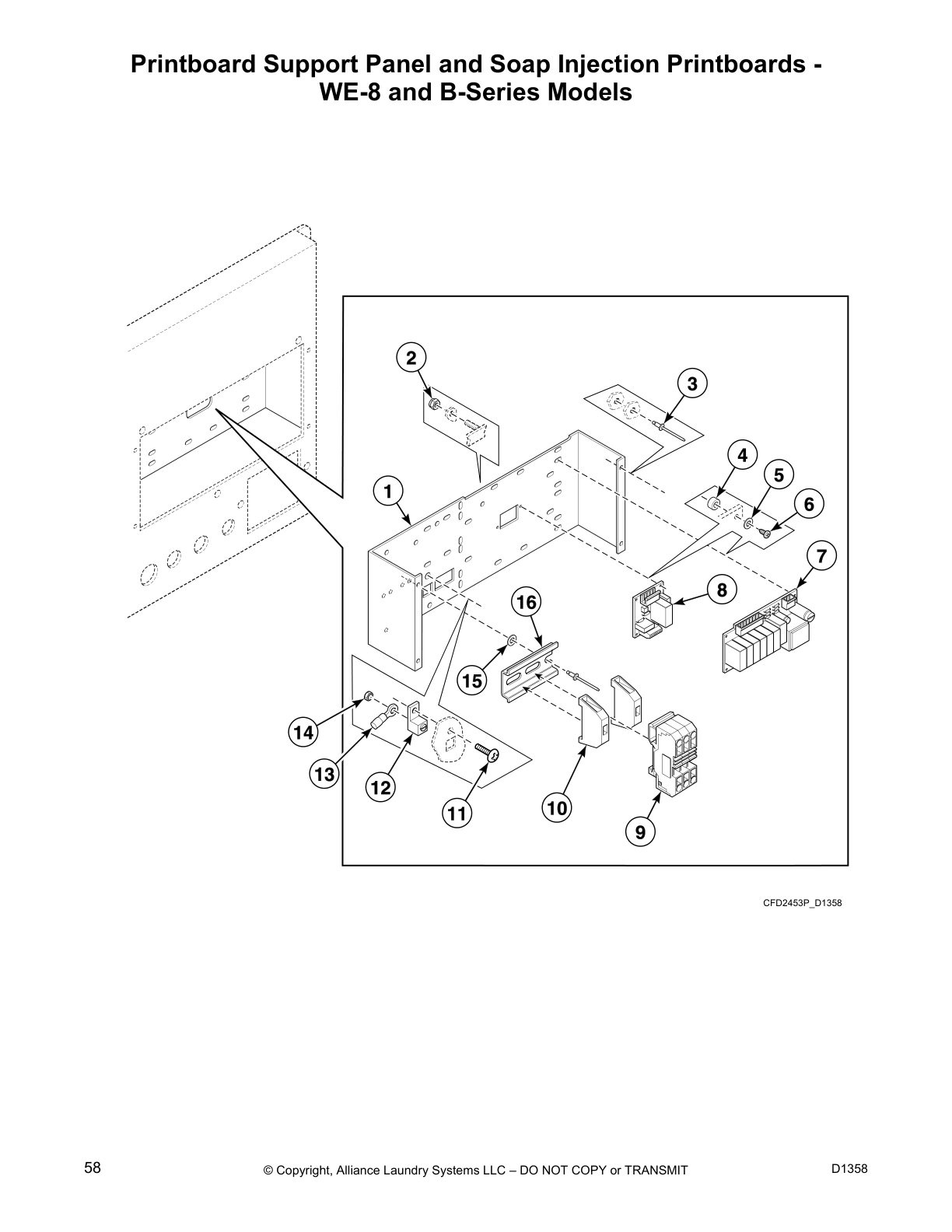

WE-8 and B-Series Models

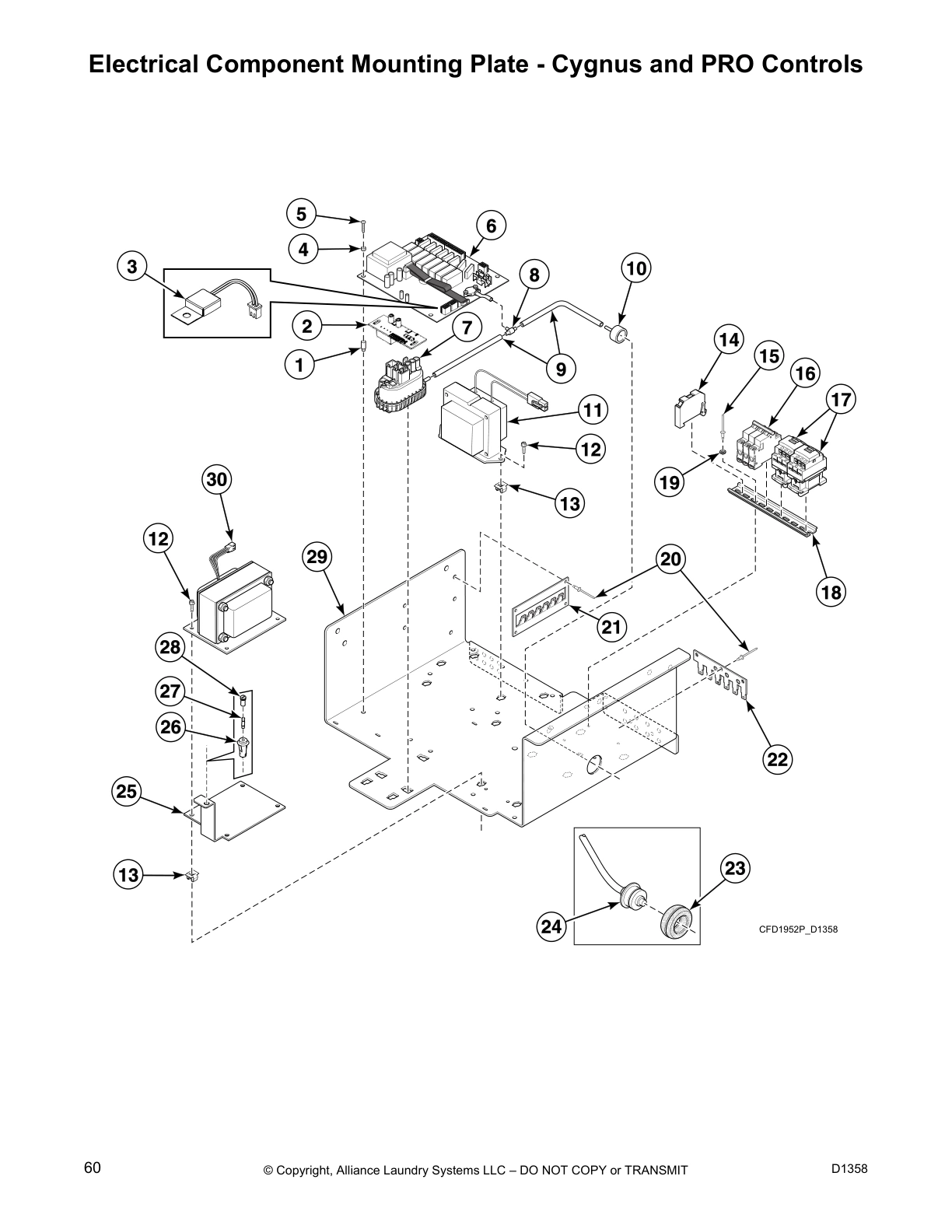

Electrical Component Mounting Plate - Cygnus and PRO Controls

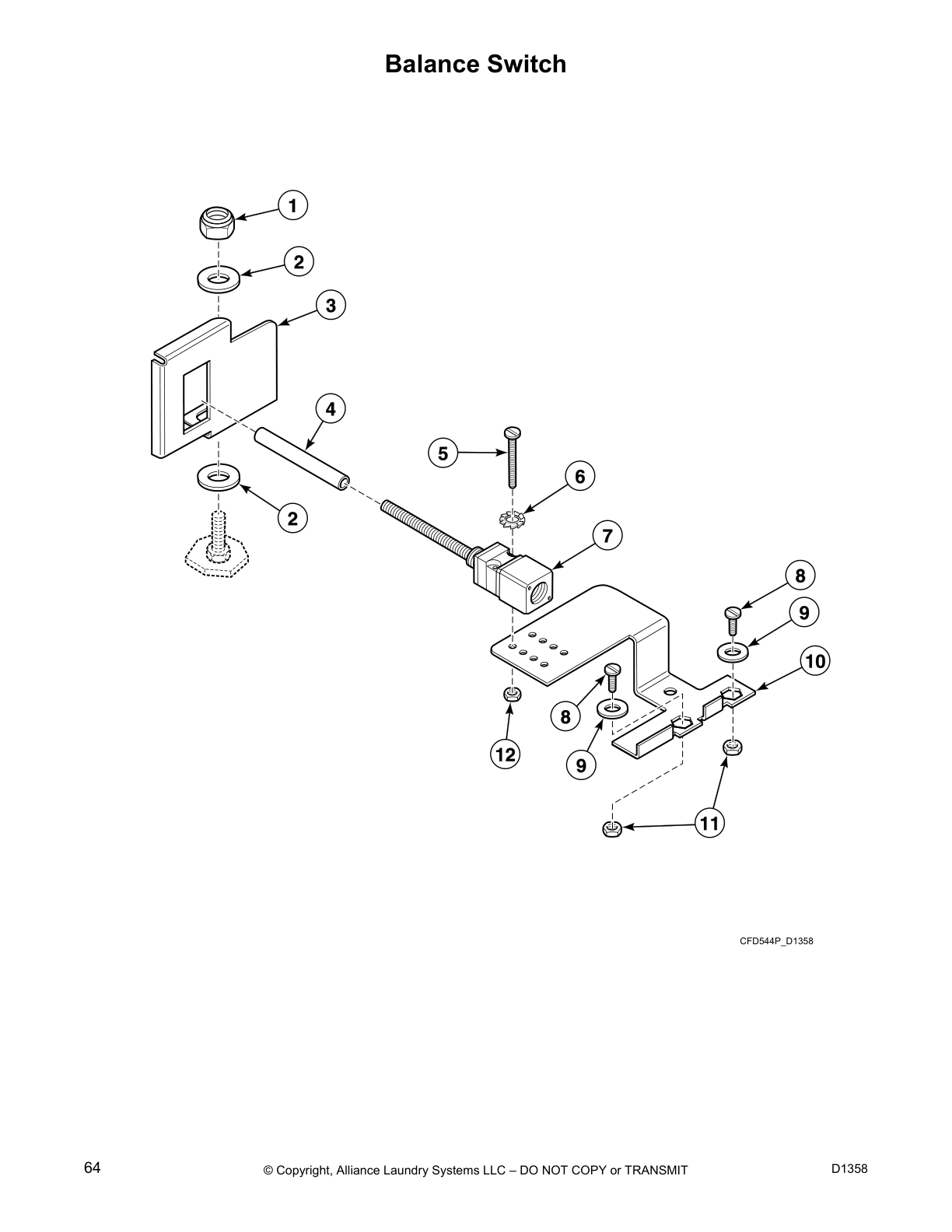

Balance Switch

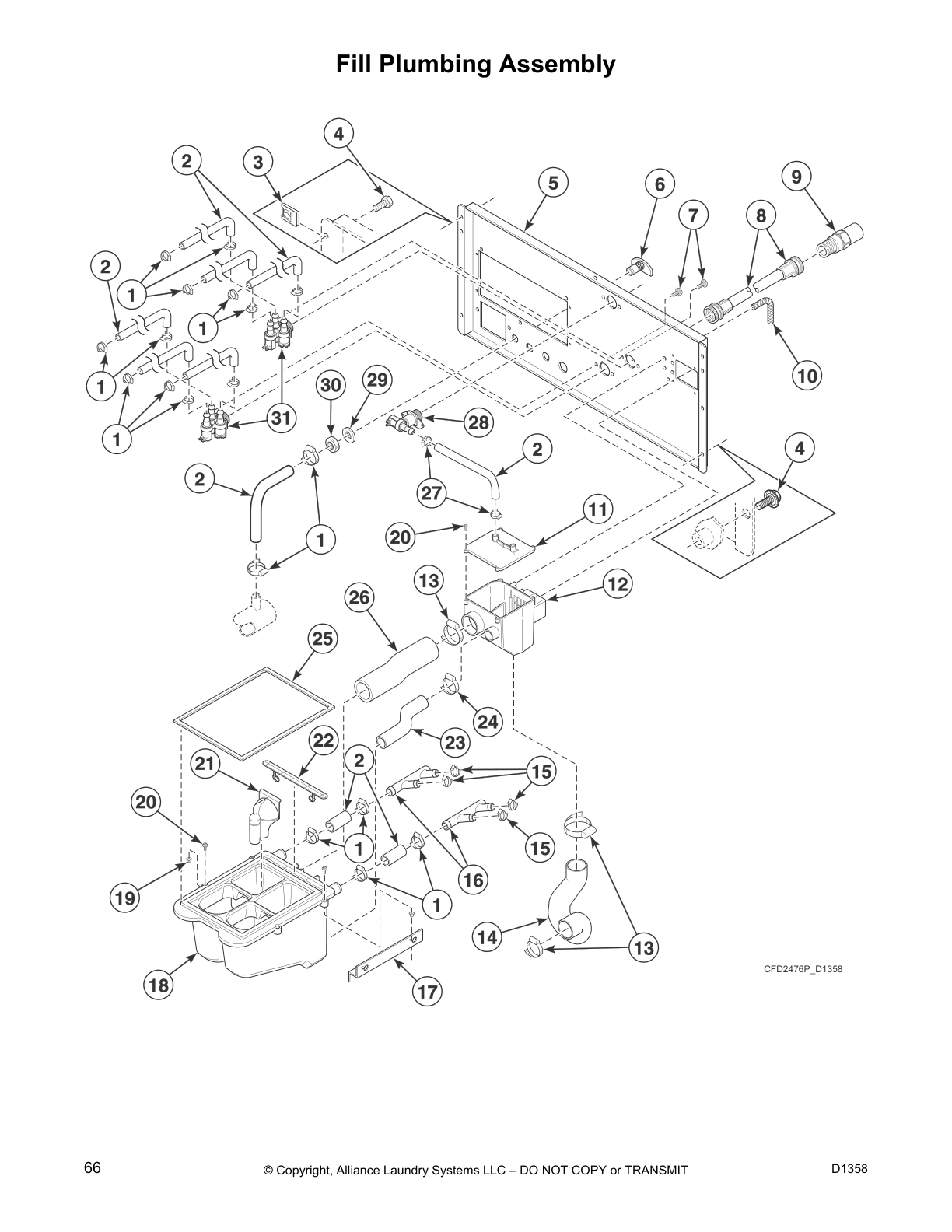

Fill Plumbing Assembly

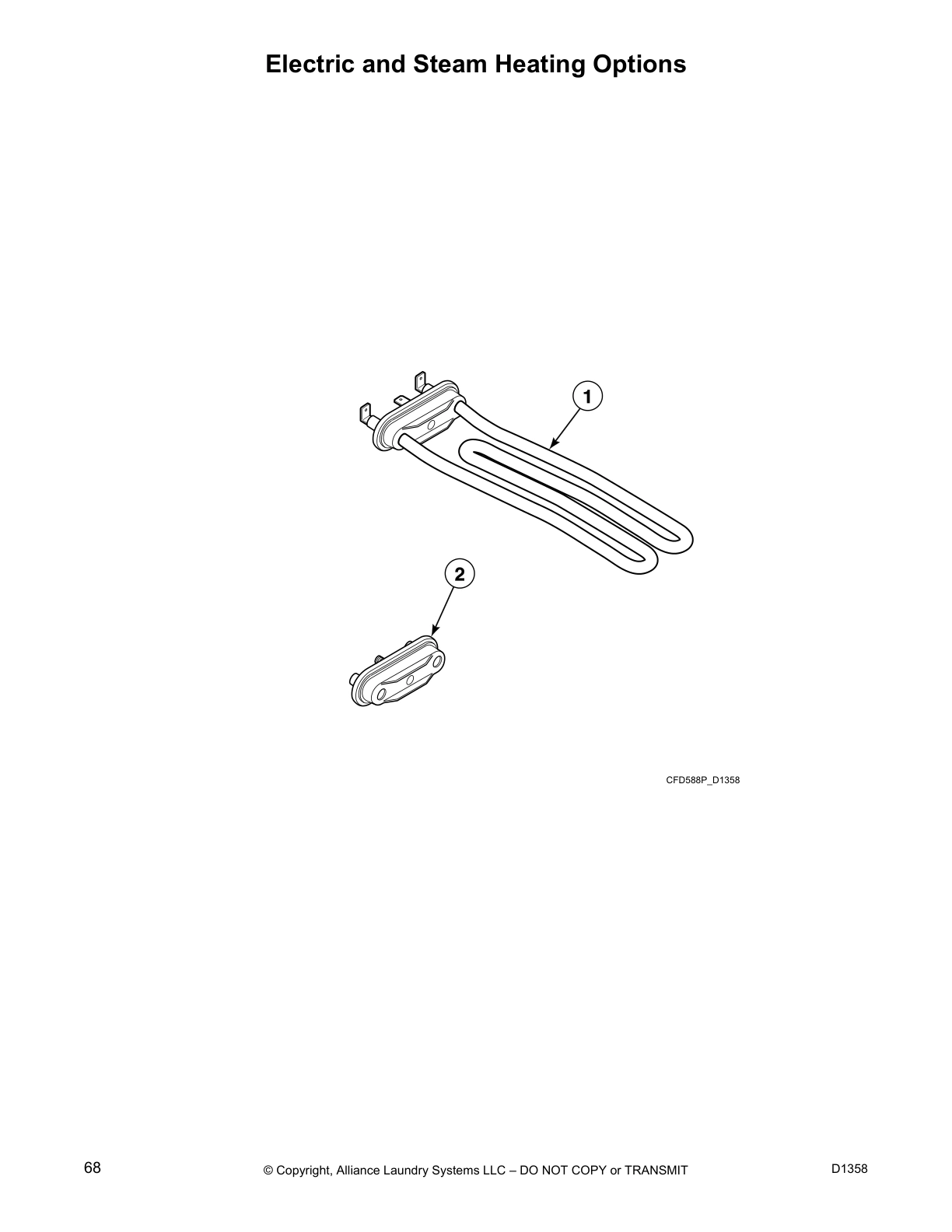

Electric and Steam Heating Options
Common parts from model Speed Queen SXA075P Washer
SPQ 247/00002/03 SPQ 247/00002/03 Contact Us For Availability
SPQ B12501502 SPQ B12501502 Contact Us For Availability
Strain Relief Connector SPQ F140329 Contact Us For Availability
Steam Valve Harness SPQ B12382302 Contact Us For Availability
Steam Heat Harness SPQ B12349704 Contact Us For Availability
Branch Harness SPQ B12348505 Contact Us For Availability
Relay SPQ B12348502 Contact Us For Availability
1
Shock Absorber SPQ SPPRI611001025 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Basket Kit SPQ B12542701 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
2
Out-of-Balance Switch Boot SPQ 201/00010/00 Contact Us For Availability
2
Retaining Ring SPQ 204/00009/00 Contact Us For Availability
2
Pressure Switch Hose Tee SPQ 201/00007/00 Contact Us For Availability
2
Seal Plate Assembly SPQ 201/00012/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Rivet SPQ 204/00116/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
2
Access Cover SPQ F8047901 Contact Us For Availability
2
Heating Element SPQ 209/00564/20 Contact Us For Availability
3
Screw SPQ 111/01854/00 Contact Us For Availability
3
Lip Seal SPQ 206/00053/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Pressure Switch Cap SPQ 899P3 Contact Us For Availability
3
E-Stop Drive Fan Harness SPQ 209/00468/00 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
Washer SPQ 201/00015/00 Contact Us For Availability
4
Retaining Ring SPQ 201/00201/00 Contact Us For Availability
4
Screw SPQ 206/00058/00 Contact Us For Availability
4
Drive Source Harness SPQ 227/00242/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
5
Bolt SPQ 206/00004/00 Contact Us For Availability
5
Motor Pulley SPQ 255/00012/00 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
5
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
5
Out-of-Balance Switch Harness SPQ 207/00018/00 Contact Us For Availability
6
Bearing Kit SPQ 224/00052/00 Contact Us For Availability
6
Washer SPQ 203/00001/00 Contact Us For Availability
6
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
6
SPQ B12389701 SPQ B12389701 Contact Us For Availability
6
Key Switch Harness SPQ 209/00520/00 Contact Us For Availability
6
Side Panel SPQ B12509101 Contact Us For Availability
6
Nut SPQ 44088801 Contact Us For Availability
6
SPQ 204/00107/00 SPQ 204/00107/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
7
Suspension Spring SPQ 247/00009/00 Contact Us For Availability
7
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
7
Bearing Replacement Tool Kit SPQ 224/00051/00 Contact Us For Availability
7
Pulley SPQ 201/00003/00 Contact Us For Availability
7
Motor SPQ B12510501 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
SPQ 203386 SPQ 203386 Contact Us For Availability
8
Shock Absorber SPQ 247/00002/01 Contact Us For Availability
8
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
8
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
8
Nut SPQ 204/00109/00 Contact Us For Availability
8
SPQ F200133600 SPQ F200133600 Contact Us For Availability
8
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
8
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
8
E-Stop Drive Harness SPQ 209/00326/20 Contact Us For Availability
8
SPQ F8201001 SPQ F8201001 Contact Us For Availability
8
SPQ B12339301 SPQ B12339301 Contact Us For Availability
8
SPQ 209/00438/50 SPQ 209/00438/50 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
9
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
9
SPQ B12349202 SPQ B12349202 Contact Us For Availability
10
Bearing SPQ F100137P Contact Us For Availability
10
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Screw SPQ B12500701 Contact Us For Availability
10
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
10
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
11
Drain Hose SPQ 223/00307/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Spacer SPQ 211/00140/00 Contact Us For Availability
11
Grommet SPQ 223/00198/00 Contact Us For Availability
11
Washer SPQ 204/00005/00 Contact Us For Availability
11
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
12
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00181/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Pump Support SPQ 111/00288/10 Contact Us For Availability
12
Fuse SPQ 209/00372/01 Contact Us For Availability
12
Lower Front Panel SPQ 111/00285/00 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00007/00 Contact Us For Availability
13
Speed Detector Bracket SPQ 205/00104/00 Contact Us For Availability
13
Pump SPQ 209/00647/00 Contact Us For Availability
13
Manifold SPQ 223/00011/00 Contact Us For Availability
14
Screw SPQ 152/00055/00 Contact Us For Availability
14
Nut SPQ 206/00101/00 Contact Us For Availability
14
Clamp SPQ 209/00646/00 Contact Us For Availability
14
Door Hinge Spacer SPQ 117/00011/00 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Pipe SPQ 223/00009/00 Contact Us For Availability
15
Screw SPQ 207/00126/00 Contact Us For Availability
15
Side Panel SPQ 111/10089/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Rivet SPQ 208/00017/00 Contact Us For Availability
15
Dispenser Assembly SPQ F8333201 Contact Us For Availability
16
Stopper SPQ 223/00159/00 Contact Us For Availability
16
Door Hinge SPQ 221/00005/00 Contact Us For Availability
16
Washer SPQ 111/60031/00 Contact Us For Availability
16
Inverter Drive SPQ F8645001P Contact Us For Availability
16
Water Hose SPQ F8047401 Contact Us For Availability
17
Caddy Bracket SPQ F100136P Contact Us For Availability
17
Nut SPQ 223/00162/00 Contact Us For Availability
17
Bolt SPQ 202/00101/00 Contact Us For Availability
17
Telem Sticker SPQ 204/00008/00 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 205/00105/00 Contact Us For Availability
17
Inverter Drive SPQ F8644901P Contact Us For Availability
18
Nut SPQ 203/00004/00 Contact Us For Availability
18
Siphon Cover SPQ 223/00044/00 Contact Us For Availability
18
Door Handle Stop SPQ 205/00107/00 Contact Us For Availability
18
Programming Key Contact Switch SPQ 203/00007/00 Contact Us For Availability
18
Washer SPQ 204/00114/00 Contact Us For Availability
19
Top Cover Hinge SPQ 101/00007/00 Contact Us For Availability
19
Drain Valve Motor SPQ F200205 Contact Us For Availability
19
Magnet Holder SPQ 202/00104/00 Contact Us For Availability
19
Washer SPQ 202/00004/00 Contact Us For Availability
20
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
21
Drain Piece SPQ 206/00033/00 Contact Us For Availability
21
Tub to Drain Valve Hose SPQ 209/00051/11 Contact Us For Availability
21
Dispenser Gasket SPQ F8047801 Contact Us For Availability
22
Drain Pipe Kit SPQ 223/00146/00 Contact Us For Availability
22
Rivet SPQ 211/00170/00 Contact Us For Availability
22
Water Valve Adapter SPQ 223/00223/00 Contact Us For Availability
23
Top Cover Latch SPQ 202/00003/00 Contact Us For Availability
24
Fuse Holder Body SPQ 70329401P Contact Us For Availability
24
Washer SPQ F8308301 Contact Us For Availability
25
Nut SPQ 223/00013/00 Contact Us For Availability
25
Air Duct SPQ 204/00011/00 Contact Us For Availability
25
Side Panel Gasket SPQ F8258601 Contact Us For Availability
26
Fuse SPQ 802492 Contact Us For Availability
27
Fuse Holder Cap SPQ 70329501 Contact Us For Availability
27
3-Way Valve SPQ 223/00050/01 Contact Us For Availability
28
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
28
Transformer SPQ F8401301 Contact Us For Availability
29
Bolt SPQ 204/00201/00 Contact Us For Availability
30
Pressure Switch Hose Tee SPQ 223/00123/00 Contact Us For Availability
30
Check Valve Kit SPQ F8286402P Contact Us For Availability
31
Inlet Valve Harness SPQ 223/00001/04 Contact Us For Availability
NI
Spring Holder Top SPQ 247/00001/01 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ F407P4 SPQ F407P4 Contact Us For Availability
NI
SPQ 380P3P SPQ 380P3P Contact Us For Availability
NI
SPQ 380P3-1 SPQ 380P3-1 Contact Us For Availability
NI
SPQ 206/00105/00 SPQ 206/00105/00 Contact Us For Availability
NI
Door Lock Harness SPQ B12495002 Contact Us For Availability
NI
E-Stop Harness SPQ B12495501 Contact Us For Availability
NI
SPQ B12348903 SPQ B12348903 Contact Us For Availability
NI
SPQ B12348902 SPQ B12348902 Contact Us For Availability
NI
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12495601 SPQ B12495601 Contact Us For Availability
NI
SPQ B12349902 SPQ B12349902 Contact Us For Availability
NI
Heating Element Plug SPQ F360202 Contact Us For Availability
NI
DIN Connector SPQ F140609P Contact Us For Availability
NI
Heat Harness SPQ B12455802 Contact Us For Availability
NI
Power Jumper Harness SPQ B12381202 Contact Us For Availability
NI
Electric Heat Harness SPQ B12349604 Contact Us For Availability
NI
Branch Harness SPQ B12348504 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
× ![]()
