Model Maytag SX25SW REFRIGERATOR – Common Parts & Diagrams
01 - BACK UNIT
02 - CONTROLS & CABINET (REF/FZR)

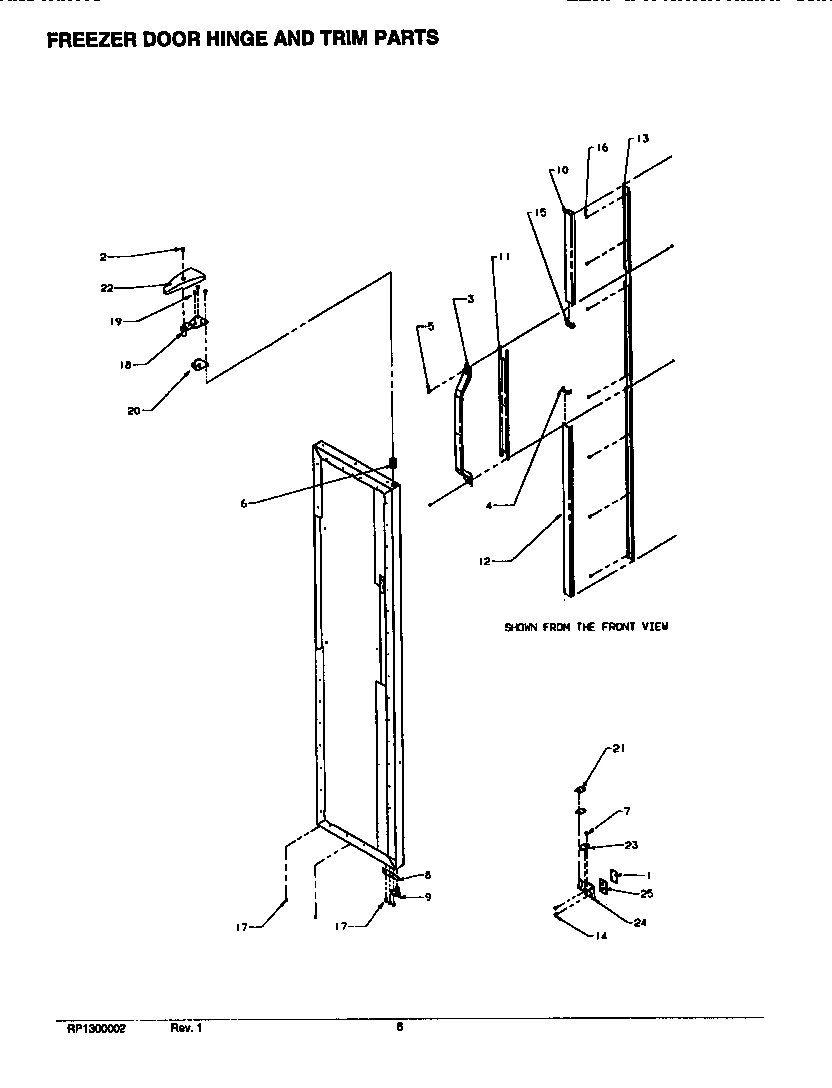

03 - DOOR HINGE & TRIM (FZR)

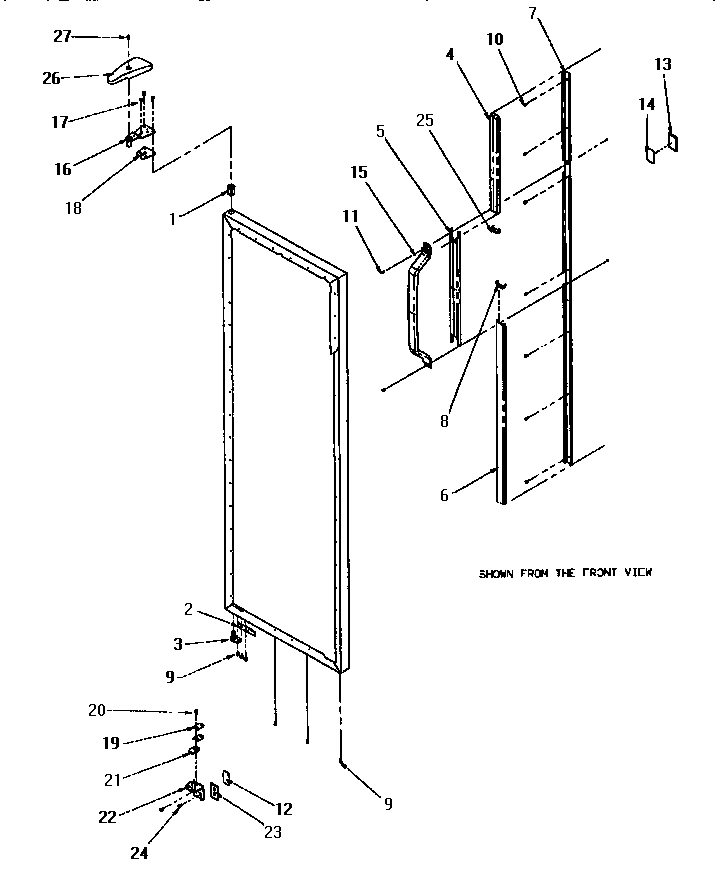

04 - DOOR HINGE & TRIM (REF)
05 - DRAIN & ROLLERS & CABINET BACK

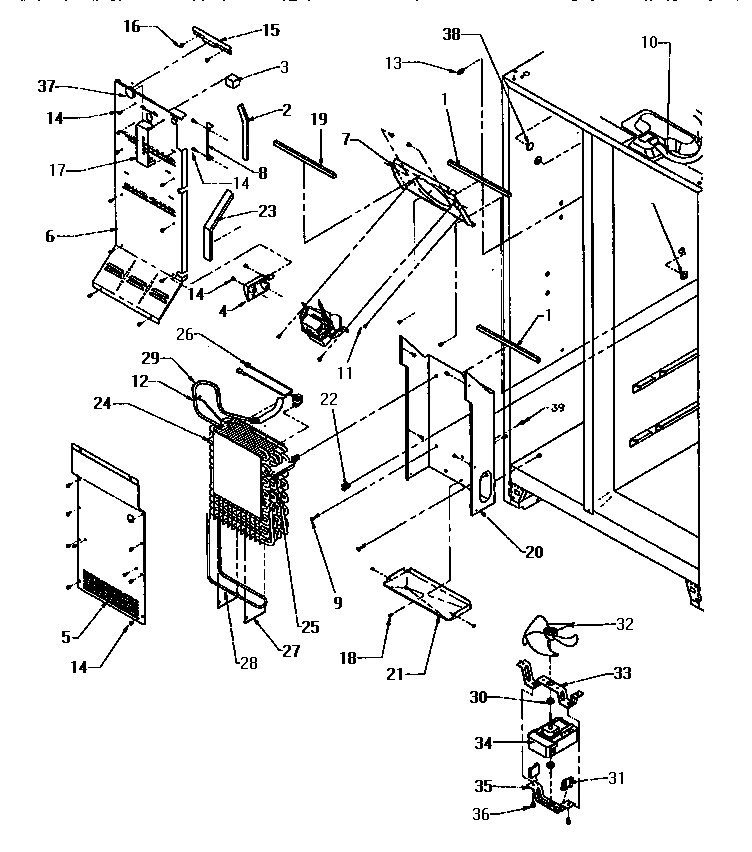

06 - EVAP & AIR HANDLING (FZR)

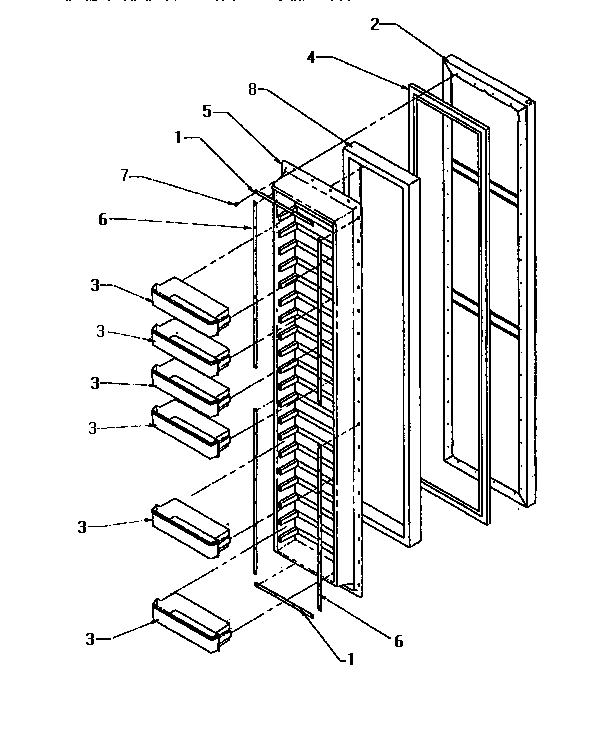

07 - FZ DOOR
08 - FZ SHELVING & REF LIGHT

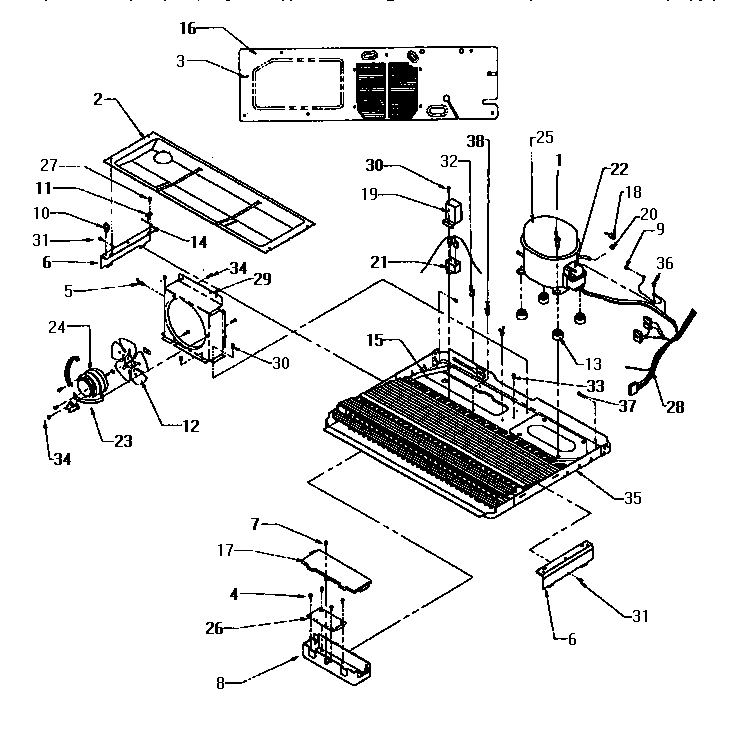

09 - MACHINE COMPARTMENT

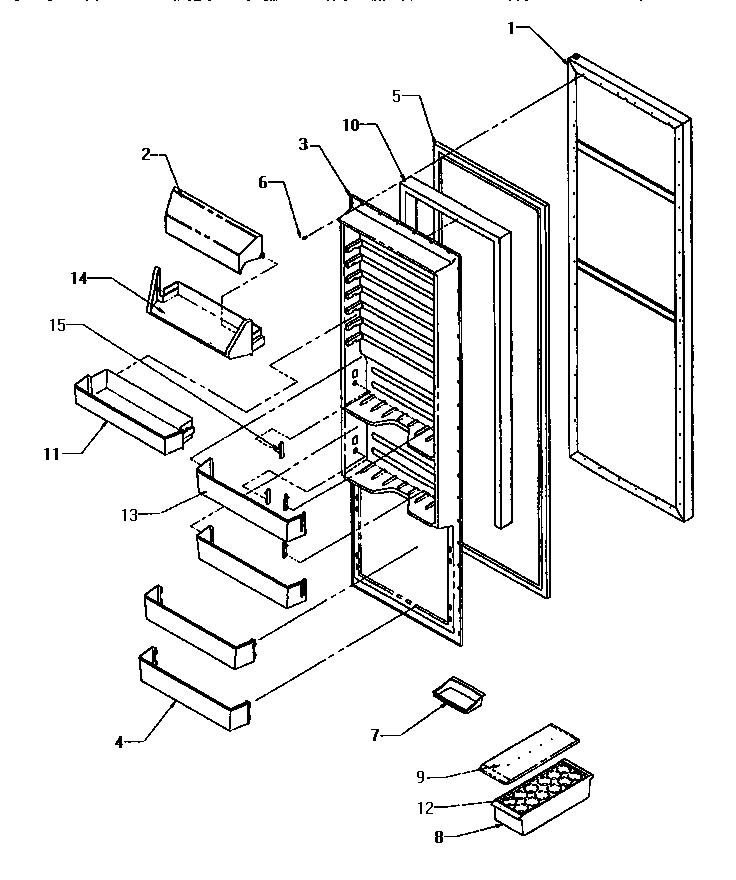

10 - REF DOOR

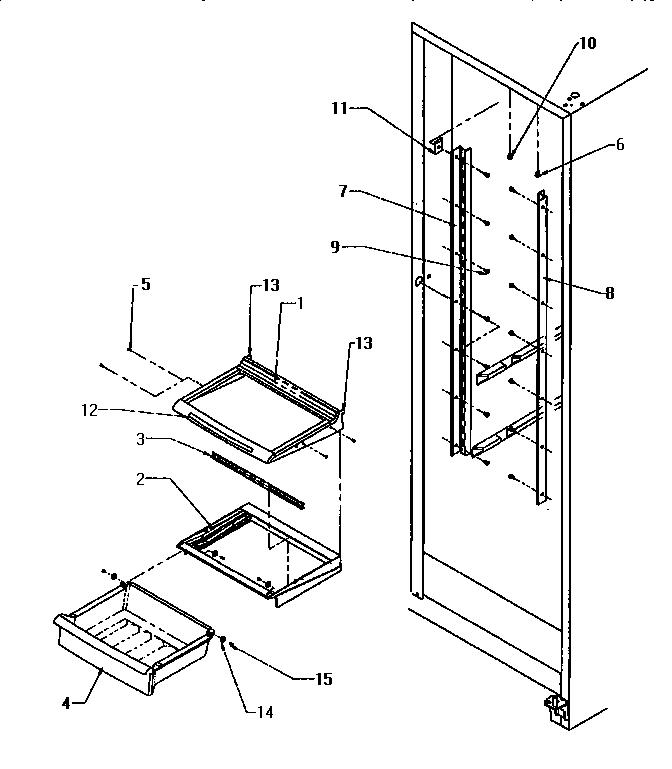

11 - SHELVING & DRAWERS (REF)

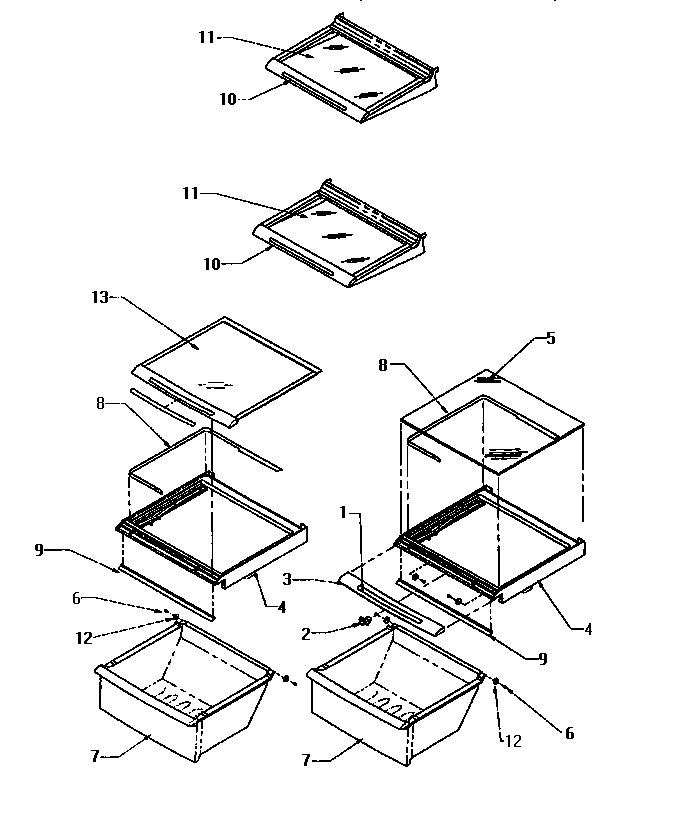

12 - SHELVING & DRAWERS (REF)
Common parts from model Maytag SX25SW REFRIGERATOR
NOTE 2: WHEN REPLACING THE CONDENSER/BASEPAN MAY NOTE: Contact Us For Availability
1
MAY 10470302 MAY 10470302 Contact Us For Availability
1
MAY 10393802 MAY 10393802 Contact Us For Availability
1
MAY B8386608 MAY B8386608 Contact Us For Availability
1
MAY C8982801 MAY C8982801 Contact Us For Availability
1
MAY M0221523 MAY M0221523 Contact Us For Availability
1
MAY 10881301W MAY 10881301W Contact Us For Availability
1
MAY 10809508 MAY 10809508 Contact Us For Availability
1
MAY 10954012 MAY 10954012 Contact Us For Availability
2
MAY M0117301 MAY M0117301 Contact Us For Availability
2
MAY C8972405 MAY C8972405 Contact Us For Availability
2
MAY A3080001 MAY A3080001 Contact Us For Availability
2
MAY B8386602 MAY B8386602 Contact Us For Availability
2
MAY 10881501W MAY 10881501W Contact Us For Availability
2
MAY 12011902 MAY 12011902 Contact Us For Availability
2
MAY 10507901 MAY 10507901 Contact Us For Availability
2
MAY 10527307 MAY 10527307 Contact Us For Availability
2
MAY 10783803 MAY 10783803 Contact Us For Availability
2
MAY 10852501 MAY 10852501 Contact Us For Availability
3
MAY 10916505 MAY 10916505 Contact Us For Availability
3
MAY A3187703 MAY A3187703 Contact Us For Availability
3
MAY D7751402 MAY D7751402 Contact Us For Availability
3
MAY C8742401 MAY C8742401 Contact Us For Availability
3
MAY C8976102 MAY C8976102 Contact Us For Availability
3
MAY 10523906 MAY 10523906 Contact Us For Availability
3
MAY 12015001 MAY 12015001 Contact Us For Availability
3
MAY 10866101 MAY 10866101 Contact Us For Availability
3
MAY 10876302 MAY 10876302 Contact Us For Availability
3
MAY 10872201 MAY 10872201 Contact Us For Availability
4
MAY 10974001 MAY 10974001 Contact Us For Availability
4
MAY 10923101 MAY 10923101 Contact Us For Availability
4
MAY 10810308 MAY 10810308 Contact Us For Availability
4
MAY M0286708 MAY M0286708 Contact Us For Availability
4
MAY D7786902 MAY D7786902 Contact Us For Availability
4
MAY 10359702 MAY 10359702 Contact Us For Availability
4
MAY 12012502 MAY 12012502 Contact Us For Availability
4
MAY 10521808 MAY 10521808 Contact Us For Availability
4
MAY 10784201 MAY 10784201 Contact Us For Availability
4
MAY 10782901 MAY 10782901 Contact Us For Availability
5
MAY M0232317 MAY M0232317 Contact Us For Availability
5
MAY B5705320 MAY B5705320 Contact Us For Availability
5
MAY 10810401 MAY 10810401 Contact Us For Availability
5
MAY M0520102 MAY M0520102 Contact Us For Availability
5
MAY 10655902 MAY 10655902 Contact Us For Availability
5
MAY 10522001 MAY 10522001 Contact Us For Availability
5
MAY 10941101 MAY 10941101 Contact Us For Availability
5
MAY M0585403 MAY M0585403 Contact Us For Availability
5
MAY 10359701 MAY 10359701 Contact Us For Availability
5
MAY M0238229 MAY M0238229 Contact Us For Availability
5
MAY Y10370066 MAY Y10370066 Contact Us For Availability
6
MAY M0310319 MAY M0310319 Contact Us For Availability
6
MAY D7868606 MAY D7868606 Contact Us For Availability
6
MAY 10810508 MAY 10810508 Contact Us For Availability
6
MAY M1205302 MAY M1205302 Contact Us For Availability
6
MAY D7821168 MAY D7821168 Contact Us For Availability
6
MAY D7828601 MAY D7828601 Contact Us For Availability
6
MAY M0219730 MAY M0219730 Contact Us For Availability
6
MAY 10493301 MAY 10493301 Contact Us For Availability
6
MAY M0581001 MAY M0581001 Contact Us For Availability
6
MAY 10495701 MAY 10495701 Contact Us For Availability
6
MAY M0238105 MAY M0238105 Contact Us For Availability
7
MAY M0104101 MAY M0104101 Contact Us For Availability
7
SCREW 1`` MAY M0211021 Contact Us For Availability
7
MAY 10852214 MAY 10852214 Contact Us For Availability
7
MAY M1200004 MAY M1200004 Contact Us For Availability
7
MAY 10890202 MAY 10890202 Contact Us For Availability
7
MAY 10493201 MAY 10493201 Contact Us For Availability
7
MAY M0216517 MAY M0216517 Contact Us For Availability
7
MAY 10310901 MAY 10310901 Contact Us For Availability
7
MAY D7789808 MAY D7789808 Contact Us For Availability
7
MAY 10783201 MAY 10783201 Contact Us For Availability
8
DRIER MAY B2150504 Contact Us For Availability
8
MAY D7785401 MAY D7785401 Contact Us For Availability
8
MAY 10953117 MAY 10953117 Contact Us For Availability
8
MAY M1200202 MAY M1200202 Contact Us For Availability
8
MAY D7838302 MAY D7838302 Contact Us For Availability
8
MAY 10495901 MAY 10495901 Contact Us For Availability
8
MAY 10423128 MAY 10423128 Contact Us For Availability
8
MAY D7789809 MAY D7789809 Contact Us For Availability
8
MAY 10882701 MAY 10882701 Contact Us For Availability
9
MAY 10547001 MAY 10547001 Contact Us For Availability
9
MAY 10178001 MAY 10178001 Contact Us For Availability
9
MAY M0585206 MAY M0585206 Contact Us For Availability
9
MAY 10527401 MAY 10527401 Contact Us For Availability
9
MAY C8973404 MAY C8973404 Contact Us For Availability
9
MAY M0211016 MAY M0211016 Contact Us For Availability
9
MAY M0253916 MAY M0253916 Contact Us For Availability
9
MAY 10436404 MAY 10436404 Contact Us For Availability
9
MAY 10968801 MAY 10968801 Contact Us For Availability
10
MAY M0103904 MAY M0103904 Contact Us For Availability
10
SEE NOTE MULLION-VERTICAL, WHITE -- (SEE NOTE MAY Y00000000 Contact Us For Availability
10
MAY 10810307 MAY 10810307 Contact Us For Availability
10
MAY 10505101 MAY 10505101 Contact Us For Availability
10
MAY 10575901 MAY 10575901 Contact Us For Availability
10
MAY D7760102 MAY D7760102 Contact Us For Availability
10
MAY M0580007 MAY M0580007 Contact Us For Availability
10
MAY M0118703 MAY M0118703 Contact Us For Availability
10
MAY B0523563 MAY B0523563 Contact Us For Availability
10
MAY 10954013 MAY 10954013 Contact Us For Availability
11
MAY C8960601 MAY C8960601 Contact Us For Availability
11
MAY A3044208 MAY A3044208 Contact Us For Availability
11
MAY M0223230 MAY M0223230 Contact Us For Availability
11
MAY M0102303 MAY M0102303 Contact Us For Availability
11
MAY 10014715 MAY 10014715 Contact Us For Availability
11
MAY M0585601 MAY M0585601 Contact Us For Availability
11
MAY 10520208 MAY 10520208 Contact Us For Availability
11
MAY C8992301 MAY C8992301 Contact Us For Availability
11
MAY 10809602 MAY 10809602 Contact Us For Availability
12
MAY A3189336 MAY A3189336 Contact Us For Availability
12
MAY 10383201 MAY 10383201 Contact Us For Availability
12
MAY 10860201 MAY 10860201 Contact Us For Availability
12
MAY 10810507 MAY 10810507 Contact Us For Availability
12
MAY M0204339 MAY M0204339 Contact Us For Availability
12
MAY C3680304 MAY C3680304 Contact Us For Availability
12
MAY 10518701 MAY 10518701 Contact Us For Availability
12
MAY 10436505 MAY 10436505 Contact Us For Availability
12
MAY 10954009 MAY 10954009 Contact Us For Availability
12
ROLLER, PAN MAY 10481001 Contact Us For Availability
13
MAY B5794201 MAY B5794201 Contact Us For Availability
13
MAY 10852213 MAY 10852213 Contact Us For Availability
13
MAY 10992001 MAY 10992001 Contact Us For Availability
13
MAY M0322202 MAY M0322202 Contact Us For Availability
13
MAY D7725401 MAY D7725401 Contact Us For Availability
13
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
13
MAY 10520411 MAY 10520411 Contact Us For Availability
13
MAY 10846403 MAY 10846403 Contact Us For Availability
13
MAY 10846404 MAY 10846404 Contact Us For Availability
13
MAY 10783103 MAY 10783103 Contact Us For Availability
14
MAY 10178504 MAY 10178504 Contact Us For Availability
14
MAY C3615024 MAY C3615024 Contact Us For Availability
14
MAY 10992101 MAY 10992101 Contact Us For Availability
14
MAY 12023401 MAY 12023401 Contact Us For Availability
14
MAY M0321202 MAY M0321202 Contact Us For Availability
14
MAY M0270508 MAY M0270508 Contact Us For Availability
14
MAY 10525101 MAY 10525101 Contact Us For Availability
15
MAY M0220634 MAY M0220634 Contact Us For Availability
15
MAY C8977301 MAY C8977301 Contact Us For Availability
15
MAY 10809004 MAY 10809004 Contact Us For Availability
15
MAY C8971902 MAY C8971902 Contact Us For Availability
15
MAY C8976201 MAY C8976201 Contact Us For Availability
15
MAY A0282803 MAY A0282803 Contact Us For Availability
15
MAY 10851302 MAY 10851302 Contact Us For Availability
15
MAY 10202001 MAY 10202001 Contact Us For Availability
16
MAY M0211018 MAY M0211018 Contact Us For Availability
16
MAY 10860101 MAY 10860101 Contact Us For Availability
16
MAY M0209616 MAY M0209616 Contact Us For Availability
16
MAY 10559905 MAY 10559905 Contact Us For Availability
17
MAY B8345401 MAY B8345401 Contact Us For Availability
17
MAY M0226331 MAY M0226331 Contact Us For Availability
17
MAY 10187501 MAY 10187501 Contact Us For Availability
17
MAY D7827402 MAY D7827402 Contact Us For Availability
17
MAY B5733302 MAY B5733302 Contact Us For Availability
17
MAY 10497801 MAY 10497801 Contact Us For Availability
18
MAY M0216539 MAY M0216539 Contact Us For Availability
18
MAY 10495803 MAY 10495803 Contact Us For Availability
18
MAY B8389001 MAY B8389001 Contact Us For Availability
18
MAY 10505002 MAY 10505002 Contact Us For Availability
18
MAY 10098801 MAY 10098801 Contact Us For Availability
18
MAY 10377015 MAY 10377015 Contact Us For Availability
19
MAY C8902601 MAY C8902601 Contact Us For Availability
19
MAY B8387701 MAY B8387701 Contact Us For Availability
19
MAY B8387702 MAY B8387702 Contact Us For Availability
19
MAY 10508104 MAY 10508104 Contact Us For Availability
19
MAY B8386607 MAY B8386607 Contact Us For Availability
19
MAY 12013002 MAY 12013002 Contact Us For Availability
19
MAY 10266402 MAY 10266402 Contact Us For Availability
20
MAY D7547412 MAY D7547412 Contact Us For Availability
20
MAY M0220418 MAY M0220418 Contact Us For Availability
20
MAY M0253942 MAY M0253942 Contact Us For Availability
20
MAY 10893802 MAY 10893802 Contact Us For Availability
20
MAY 10991802 MAY 10991802 Contact Us For Availability
20
MAY 10097202 MAY 10097202 Contact Us For Availability
21
MAY 10176602 MAY 10176602 Contact Us For Availability
21
MAY D7748301 MAY D7748301 Contact Us For Availability
21
MAY 10508001 MAY 10508001 Contact Us For Availability
21
MAY D7850202 MAY D7850202 Contact Us For Availability
21
MAY C8931604 MAY C8931604 Contact Us For Availability
22
MAY D7788201 MAY D7788201 Contact Us For Availability
22
MAY 10496108 MAY 10496108 Contact Us For Availability
22
MAY 10860102 MAY 10860102 Contact Us For Availability
22
MAY 10623003 MAY 10623003 Contact Us For Availability
22
MAY 10757301 MAY 10757301 Contact Us For Availability
23
MAY 10862706 MAY 10862706 Contact Us For Availability
23
MAY 10399501 MAY 10399501 Contact Us For Availability
23
MAY 10399502 MAY 10399502 Contact Us For Availability
23
MAY 10906502 MAY 10906502 Contact Us For Availability
23
MAY A3189335 MAY A3189335 Contact Us For Availability
23
MAY 10796001 MAY 10796001 Contact Us For Availability
23
MAY 10496501 MAY 10496501 Contact Us For Availability
24
MAY M0233847 MAY M0233847 Contact Us For Availability
24
MAY 10496107 MAY 10496107 Contact Us For Availability
24
MAY 10187601 MAY 10187601 Contact Us For Availability
24
MAY 10629601 MAY 10629601 Contact Us For Availability
24
MAY 10014716 MAY 10014716 Contact Us For Availability
24
MAY 10884501 MAY 10884501 Contact Us For Availability
25
MAY D7795825 MAY D7795825 Contact Us For Availability
25
MAY 10953118 MAY 10953118 Contact Us For Availability
25
MAY 10906501 MAY 10906501 Contact Us For Availability
25
MAY 10906503 MAY 10906503 Contact Us For Availability
25
MAY 10629001 MAY 10629001 Contact Us For Availability
25
MAY D7297603 MAY D7297603 Contact Us For Availability
25
MAY 10927302 MAY 10927302 Contact Us For Availability
26
MAY 10177901 MAY 10177901 Contact Us For Availability
26
MAY 10849401 MAY 10849401 Contact Us For Availability
26
MAY 12017804 MAY 12017804 Contact Us For Availability
26
MAY D7716407 MAY D7716407 Contact Us For Availability
26
MAY 10461504 MAY 10461504 Contact Us For Availability
27
MAY D7822404 MAY D7822404 Contact Us For Availability
27
MAY M0219546 MAY M0219546 Contact Us For Availability
27
MAY M0213529 MAY M0213529 Contact Us For Availability
28
MAY 10428405 MAY 10428405 Contact Us For Availability
28
MAY 12012103 MAY 12012103 Contact Us For Availability
28
MAY 10949201 MAY 10949201 Contact Us For Availability
29
MAY R0170057 MAY R0170057 Contact Us For Availability
29
MAY 12013901 MAY 12013901 Contact Us For Availability
29
MAY 10602404 MAY 10602404 Contact Us For Availability
30
MAY A1017202 MAY A1017202 Contact Us For Availability
30
MAY 12012803 MAY 12012803 Contact Us For Availability
30
MAY M0216716 MAY M0216716 Contact Us For Availability
31
MAY A1047901 MAY A1047901 Contact Us For Availability
31
MAY 10991403 MAY 10991403 Contact Us For Availability
31
MAY A4539601 MAY A4539601 Contact Us For Availability
32
MAY 10890101 MAY 10890101 Contact Us For Availability
32
MAY 12012802 MAY 12012802 Contact Us For Availability
32
MAY M0110505 MAY M0110505 Contact Us For Availability
33
MAY M0232903 MAY M0232903 Contact Us For Availability
33
MAY 10656101 MAY 10656101 Contact Us For Availability
33
MAY 10991402 MAY 10991402 Contact Us For Availability
34
MAY 10654206 MAY 10654206 Contact Us For Availability
34
MAY M0223803 MAY M0223803 Contact Us For Availability
35
MAY 10656001 MAY 10656001 Contact Us For Availability
35
MAY 10544108 MAY 10544108 Contact Us For Availability
36
MAY M0224416 MAY M0224416 Contact Us For Availability
36
MAY M0231604 MAY M0231604 Contact Us For Availability
37
MAY B5636301 MAY B5636301 Contact Us For Availability
37
MAY M0211357 MAY M0211357 Contact Us For Availability
38
MAY M0310709 MAY M0310709 Contact Us For Availability
38
MAY M0585401 MAY M0585401 Contact Us For Availability
39
MAY M0580002 MAY M0580002 Contact Us For Availability
40
MAY 10033201 MAY 10033201 Contact Us For Availability
NI
MAY 10527501 MAY 10527501 Contact Us For Availability
NI
MAY A4554806 MAY A4554806 Contact Us For Availability
NI
MAY C8956101 MAY C8956101 Contact Us For Availability
NI
MAY 10882801 MAY 10882801 Contact Us For Availability
NI
MAY 10882803 MAY 10882803 Contact Us For Availability
× ![]()
