Model Maytag SX19NW REFRIGERATOR – Common Parts & Diagrams
01 - BACK UNIT
02 - DRAIN AND ROLLERS

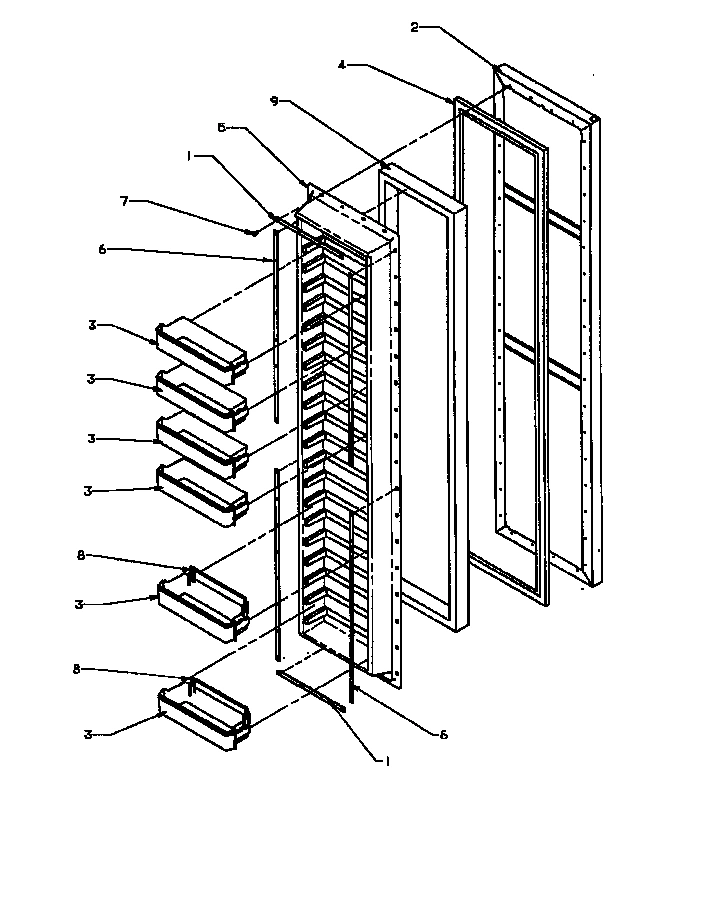

03 - FZ DOOR

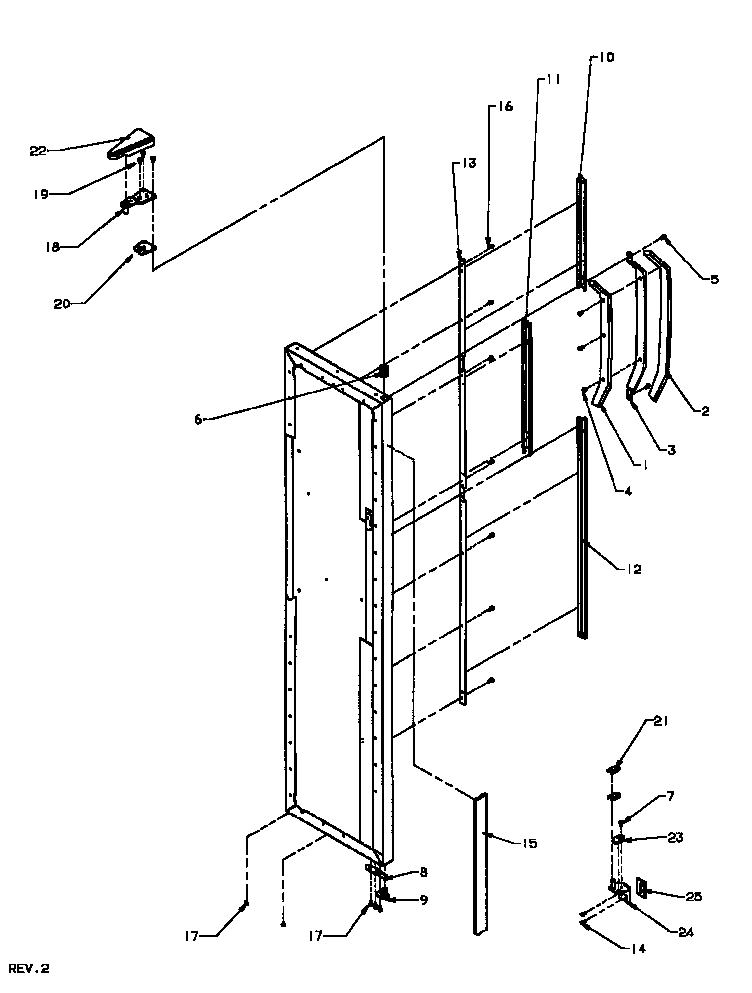

04 - FZ DOOR HINGE AND TRIM PARTS

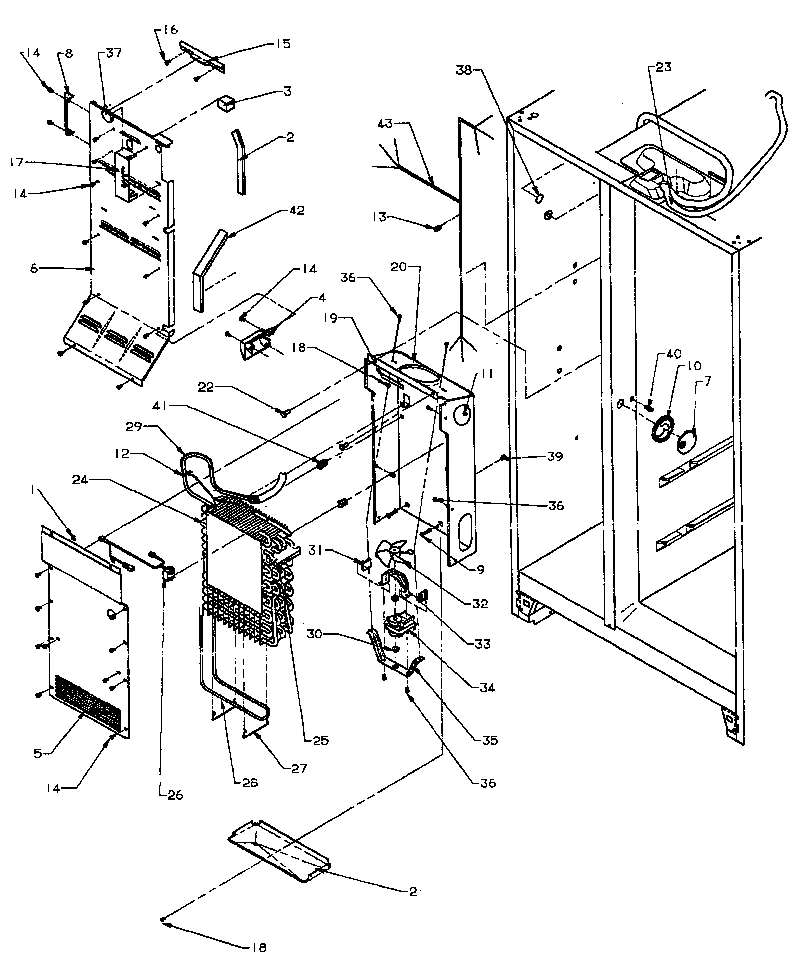

05 - FZ EVAP AND AIR HANDLING

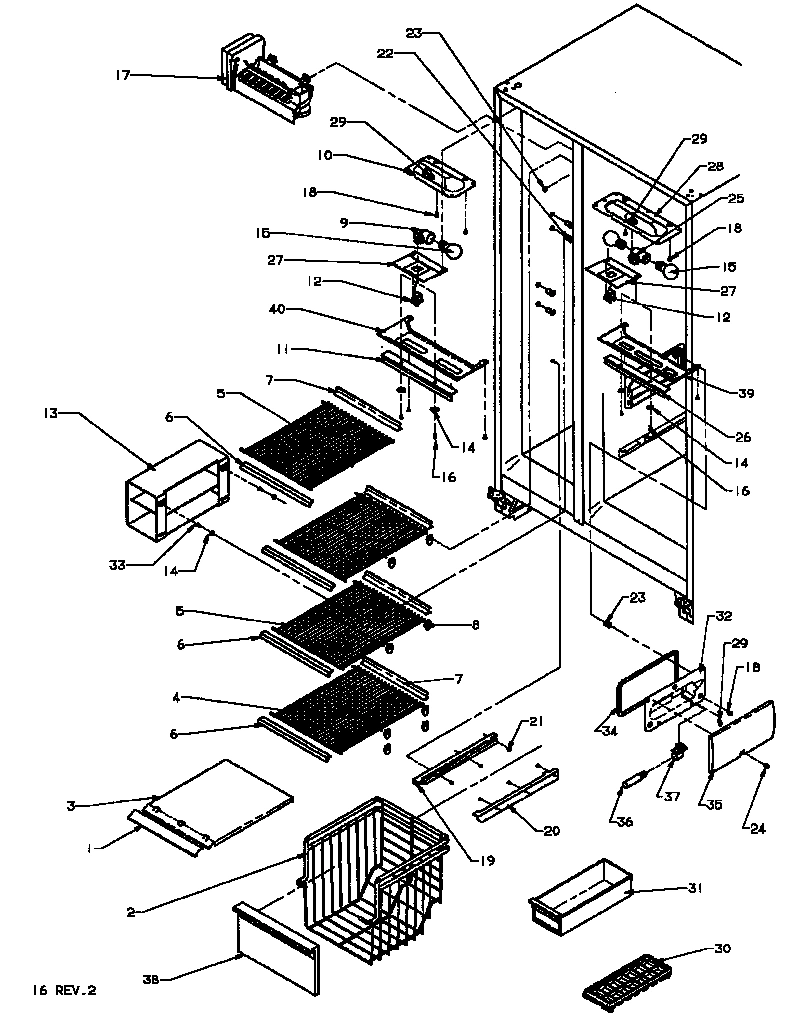

06 - FZ SHELVING AND REF LIGHT

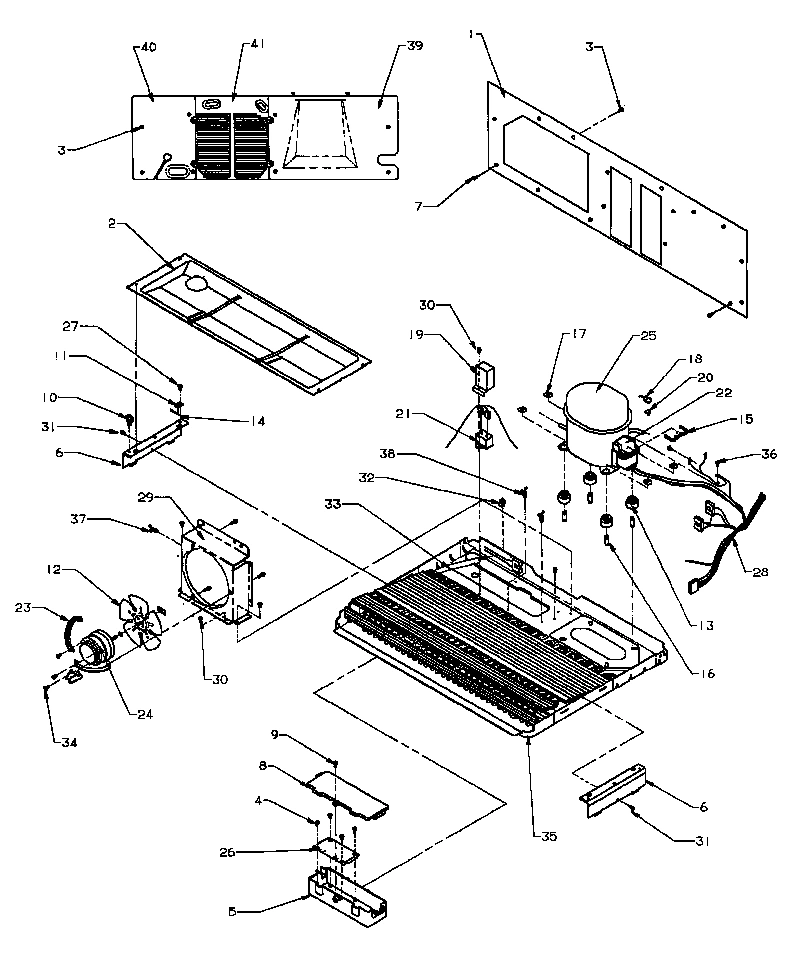

07 - MACHINE COMPARTMENT

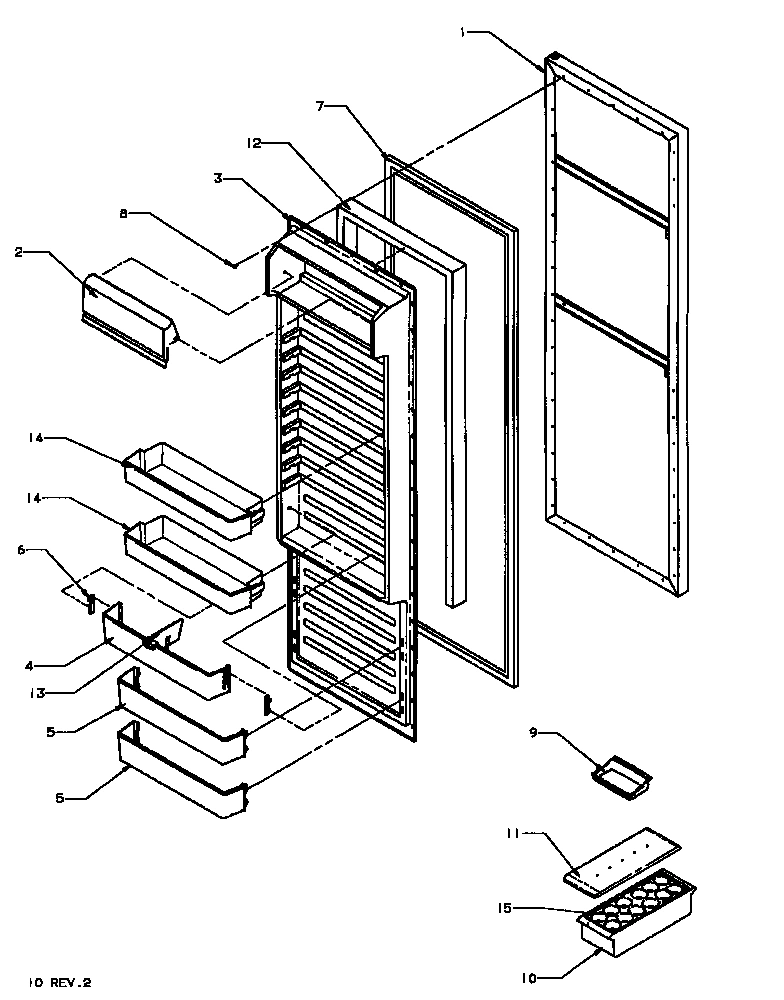

08 - REF DOOR

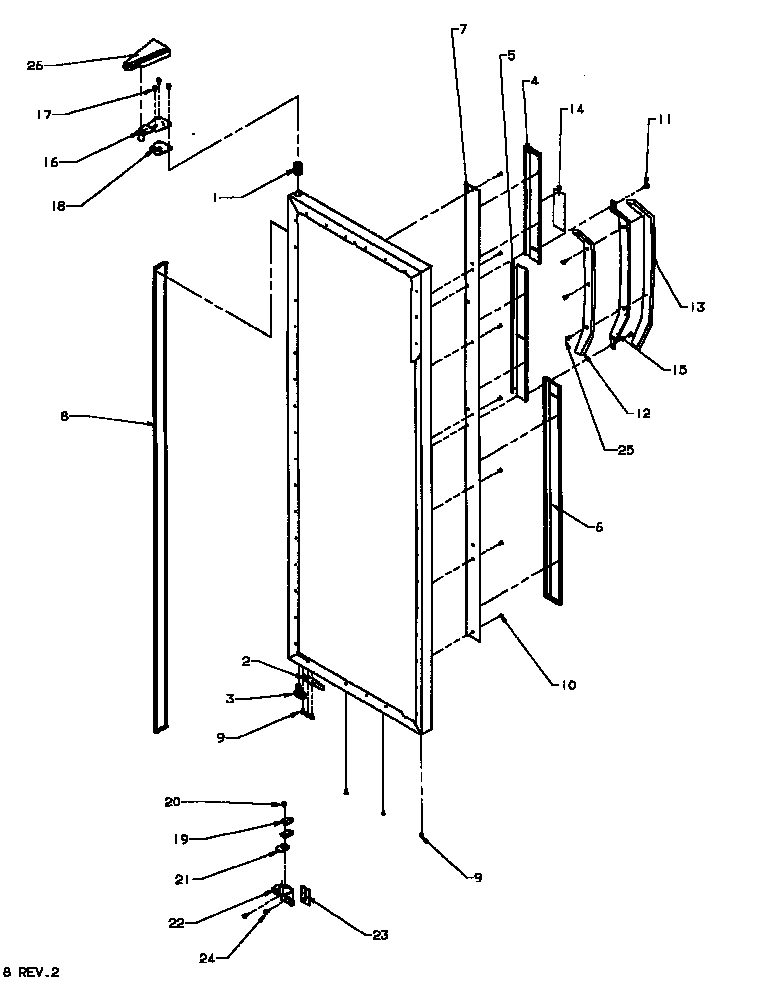

09 - REF DOOR HINGE AND TRIM PARTS

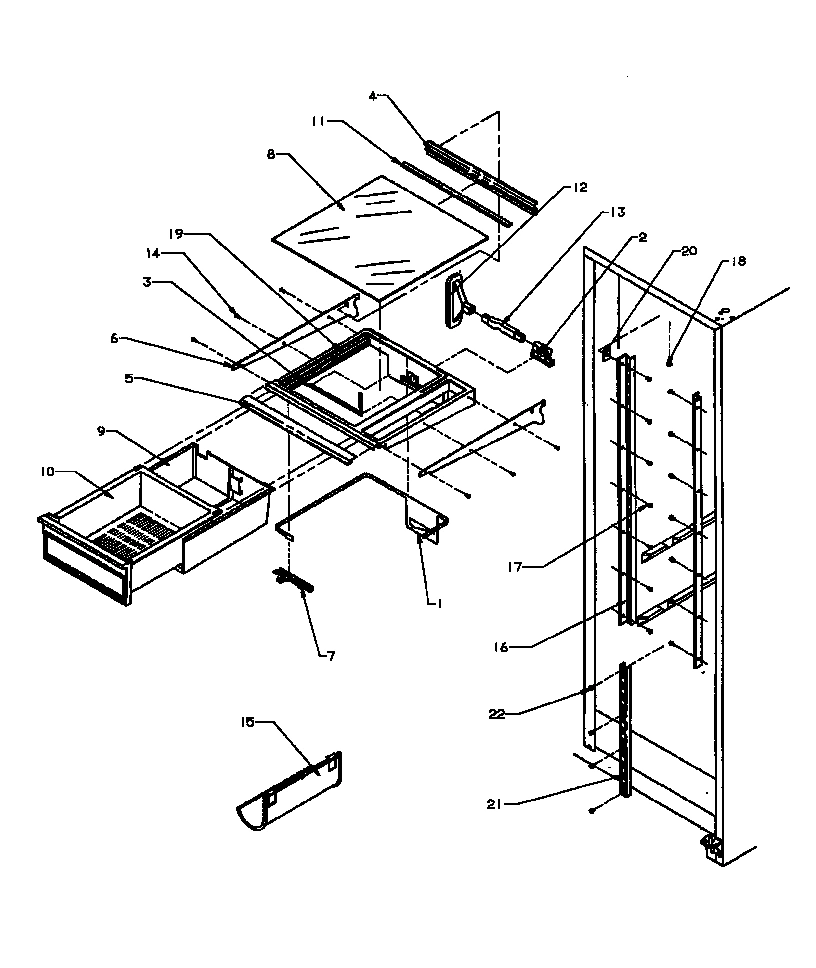

10 - REF SHELVING AND DRAWERS

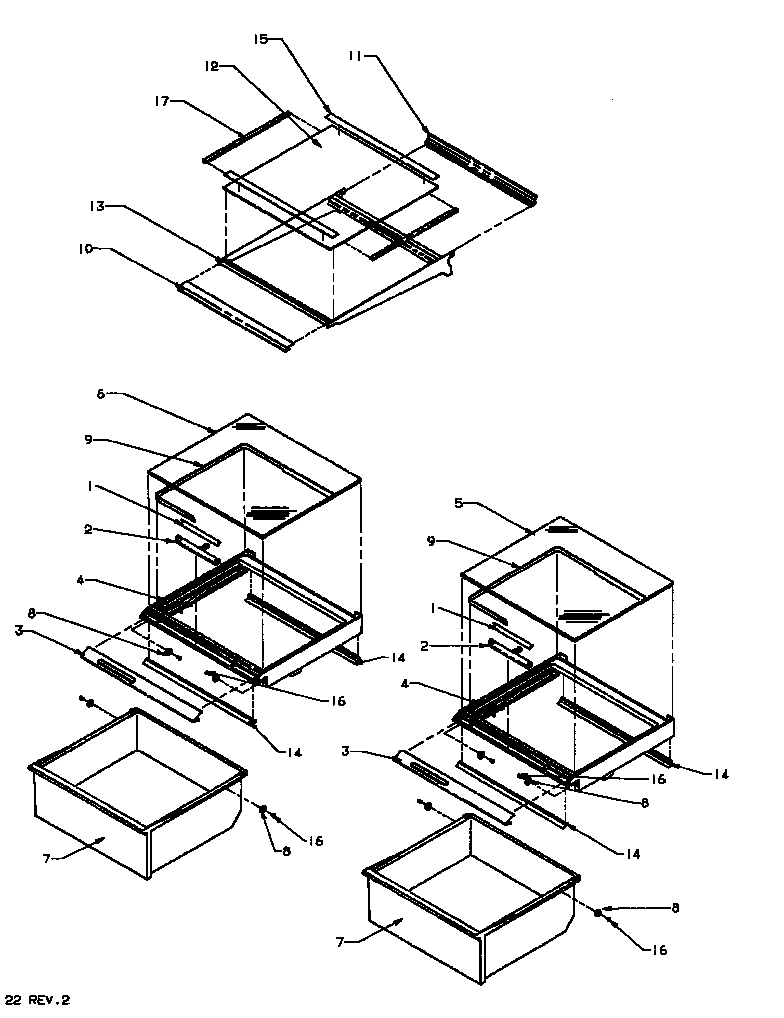

11 - REF SHELVING AND DRAWERS

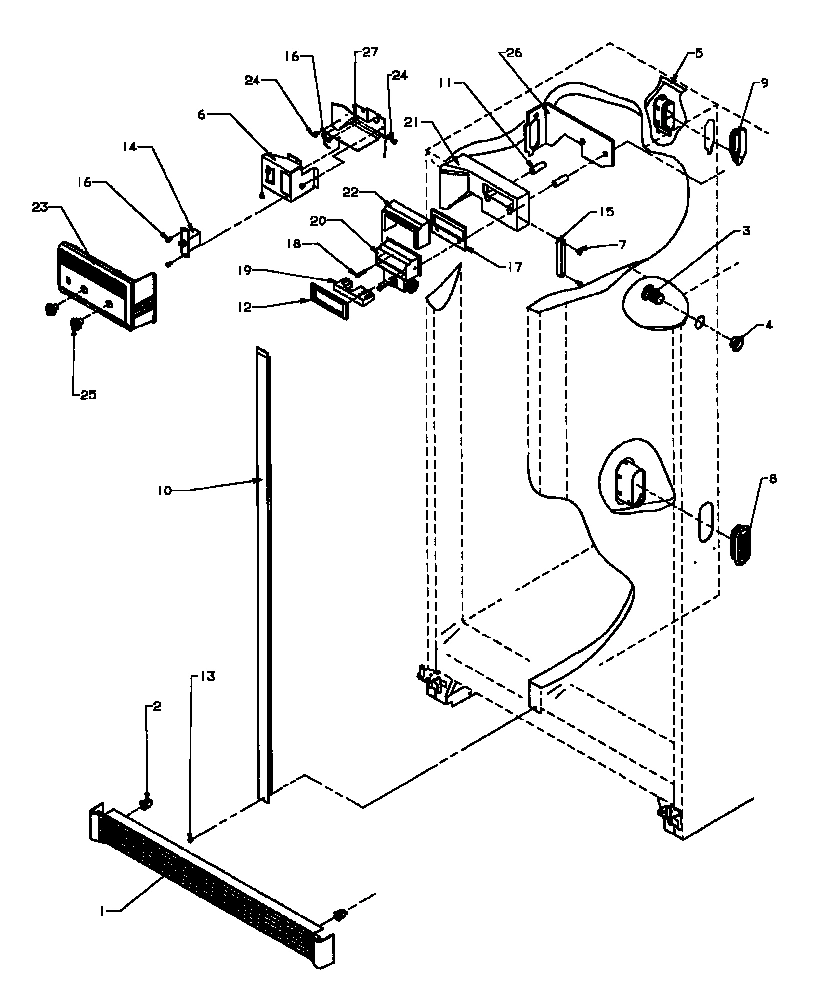

12 - REF/FZ CONTROLS AND CABINET PARTS
Common parts from model Maytag SX19NW REFRIGERATOR
1
MAY C8982801 MAY C8982801 Contact Us For Availability
1
MAY 10393802 MAY 10393802 Contact Us For Availability
1
MAY B8324801 MAY B8324801 Contact Us For Availability
1
MAY D7616690 MAY D7616690 Contact Us For Availability
1
MAY 10580901L MAY 10580901L Contact Us For Availability
1
MAY 10580901W MAY 10580901W Contact Us For Availability
1
MAY D7859504 MAY D7859504 Contact Us For Availability
1
MAY 10199910 MAY 10199910 Contact Us For Availability
1
MAY 10492002 MAY 10492002 Contact Us For Availability
1
MAY 10492004 MAY 10492004 Contact Us For Availability
2
MAY A3080001 MAY A3080001 Contact Us For Availability
2
MAY 10547301L MAY 10547301L Contact Us For Availability
2
MAY 10547301W MAY 10547301W Contact Us For Availability
2
MAY C8972402 MAY C8972402 Contact Us For Availability
2
MAY B8386602 MAY B8386602 Contact Us For Availability
2
MAY D7820803 MAY D7820803 Contact Us For Availability
2
MAY 10507902 MAY 10507902 Contact Us For Availability
2
MAY 10581005 MAY 10581005 Contact Us For Availability
2
MAY D7869101 MAY D7869101 Contact Us For Availability
2
MAY 10289908 MAY 10289908 Contact Us For Availability
2
MAY M0117301 MAY M0117301 Contact Us For Availability
3
MAY C8742401 MAY C8742401 Contact Us For Availability
3
MAY 10523904 MAY 10523904 Contact Us For Availability
3
MAY D7751402 MAY D7751402 Contact Us For Availability
3
MAY C8976102 MAY C8976102 Contact Us For Availability
3
MAY D7781502 MAY D7781502 Contact Us For Availability
3
MAY 10579901 MAY 10579901 Contact Us For Availability
3
MAY A3030353 MAY A3030353 Contact Us For Availability
3
MAY 10524302 MAY 10524302 Contact Us For Availability
3
MAY A3187702 MAY A3187702 Contact Us For Availability
4
MAY M0286708 MAY M0286708 Contact Us For Availability
4
MAY 10359702 MAY 10359702 Contact Us For Availability
4
MAY D7786901 MAY D7786901 Contact Us For Availability
4
MAY D7788312 MAY D7788312 Contact Us For Availability
4
MAY 10580303 MAY 10580303 Contact Us For Availability
4
MAY D7852008 MAY D7852008 Contact Us For Availability
4
MAY D7852010 MAY D7852010 Contact Us For Availability
4
MAY C8990406 MAY C8990406 Contact Us For Availability
4
MAY 10470101 MAY 10470101 Contact Us For Availability
4
MAY 10470102 MAY 10470102 Contact Us For Availability
4
MAY A3187801 MAY A3187801 Contact Us For Availability
5
MAY M0520102 MAY M0520102 Contact Us For Availability
5
MAY 10522001 MAY 10522001 Contact Us For Availability
5
MAY D7865914 MAY D7865914 Contact Us For Availability
5
MAY D7788313 MAY D7788313 Contact Us For Availability
5
MAY 10495901 MAY 10495901 Contact Us For Availability
5
MAY 10580103 MAY 10580103 Contact Us For Availability
5
MAY D7853803 MAY D7853803 Contact Us For Availability
5
MAY D7853805 MAY D7853805 Contact Us For Availability
5
MAY 10049959 MAY 10049959 Contact Us For Availability
5
MAY 10370046 MAY 10370046 Contact Us For Availability
5
MAY B5705320 MAY B5705320 Contact Us For Availability
6
MAY 10110601 MAY 10110601 Contact Us For Availability
6
MAY M1205302 MAY M1205302 Contact Us For Availability
6
MAY D7828601 MAY D7828601 Contact Us For Availability
6
MAY D7821127 MAY D7821127 Contact Us For Availability
6
MAY 10049937 MAY 10049937 Contact Us For Availability
6
MAY 10495701 MAY 10495701 Contact Us For Availability
6
MAY 10202001 MAY 10202001 Contact Us For Availability
6
MAY D7792803 MAY D7792803 Contact Us For Availability
6
MAY D7792805 MAY D7792805 Contact Us For Availability
6
MAY D7862988 MAY D7862988 Contact Us For Availability
6
MAY D7862989 MAY D7862989 Contact Us For Availability
6
MAY Y10370045 MAY Y10370045 Contact Us For Availability
6
MAY D7868606 MAY D7868606 Contact Us For Availability
7
MAY M1200004 MAY M1200004 Contact Us For Availability
7
MAY C8913609 MAY C8913609 Contact Us For Availability
7
SCREW 1`` MAY M0211021 Contact Us For Availability
7
MAY 10359705 MAY 10359705 Contact Us For Availability
7
MAY D7793202 MAY D7793202 Contact Us For Availability
7
MAY D7859402 MAY D7859402 Contact Us For Availability
7
MAY 10471908 MAY 10471908 Contact Us For Availability
8
MAY M1200202 MAY M1200202 Contact Us For Availability
8
MAY M0219730 MAY M0219730 Contact Us For Availability
8
MAY 10237602 MAY 10237602 Contact Us For Availability
8
MAY D7838302 MAY D7838302 Contact Us For Availability
8
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
8
MAY 10497801 MAY 10497801 Contact Us For Availability
8
MAY 10370048 MAY 10370048 Contact Us For Availability
8
ROLLER, PAN MAY 10481001 Contact Us For Availability
8
MAY D7785401 MAY D7785401 Contact Us For Availability
9
MAY M0585206 MAY M0585206 Contact Us For Availability
9
MAY M0211018 MAY M0211018 Contact Us For Availability
9
MAY 10527401 MAY 10527401 Contact Us For Availability
9
MAY C8973404 MAY C8973404 Contact Us For Availability
9
MAY M0216517 MAY M0216517 Contact Us For Availability
9
MAY 10310901 MAY 10310901 Contact Us For Availability
9
MAY D7698112 MAY D7698112 Contact Us For Availability
9
MAY 10519307 MAY 10519307 Contact Us For Availability
9
MAY D7785501 MAY D7785501 Contact Us For Availability
10
MAY 10505101 MAY 10505101 Contact Us For Availability
10
MAY D7852103 MAY D7852103 Contact Us For Availability
10
MAY D7852105 MAY D7852105 Contact Us For Availability
10
MAY D7760102 MAY D7760102 Contact Us For Availability
10
SEE NOTE MULLION-VERTICAL, WHITE MAY Y00000000 Contact Us For Availability
10
MAY M0118703 MAY M0118703 Contact Us For Availability
10
MAY 10423120 MAY 10423120 Contact Us For Availability
10
MAY D7698342 MAY D7698342 Contact Us For Availability
10
MAY 10049958 MAY 10049958 Contact Us For Availability
11
MAY M0102303 MAY M0102303 Contact Us For Availability
11
MAY M0211030 MAY M0211030 Contact Us For Availability
11
MAY D7853903 MAY D7853903 Contact Us For Availability
11
MAY D7853905 MAY D7853905 Contact Us For Availability
11
MAY 10014707 MAY 10014707 Contact Us For Availability
11
MAY M0585601 MAY M0585601 Contact Us For Availability
11
MAY 10436404 MAY 10436404 Contact Us For Availability
11
MAY 10043101 MAY 10043101 Contact Us For Availability
11
MAY C8913610 MAY C8913610 Contact Us For Availability
11
MAY A3044208 MAY A3044208 Contact Us For Availability
12
MAY M0310319 MAY M0310319 Contact Us For Availability
12
MAY M0204339 MAY M0204339 Contact Us For Availability
12
MAY D7863002 MAY D7863002 Contact Us For Availability
12
MAY D7863004 MAY D7863004 Contact Us For Availability
12
MAY D7792703 MAY D7792703 Contact Us For Availability
12
MAY D7792705 MAY D7792705 Contact Us For Availability
12
MAY C3680304 MAY C3680304 Contact Us For Availability
12
MAY 10518701 MAY 10518701 Contact Us For Availability
12
MAY B0523563 MAY B0523563 Contact Us For Availability
12
MAY 10546701 MAY 10546701 Contact Us For Availability
12
MAY 10370047 MAY 10370047 Contact Us For Availability
12
MAY 10383201 MAY 10383201 Contact Us For Availability
13
MAY D7863102 MAY D7863102 Contact Us For Availability
13
MAY D7863104 MAY D7863104 Contact Us For Availability
13
MAY D7792902 MAY D7792902 Contact Us For Availability
13
MAY M0322202 MAY M0322202 Contact Us For Availability
13
MAY D7620104 MAY D7620104 Contact Us For Availability
13
MAY B8333401 MAY B8333401 Contact Us For Availability
13
MAY 10169004 MAY 10169004 Contact Us For Availability
13
MAY D7869001 MAY D7869001 Contact Us For Availability
13
MAY 10579111 MAY 10579111 Contact Us For Availability
14
MAY 10277304 MAY 10277304 Contact Us For Availability
14
MAY M0321202 MAY M0321202 Contact Us For Availability
14
MAY M0209616 MAY M0209616 Contact Us For Availability
14
MAY M0270508 MAY M0270508 Contact Us For Availability
14
MAY 10580003 MAY 10580003 Contact Us For Availability
14
MAY C8984306 MAY C8984306 Contact Us For Availability
14
MAY M0230028 MAY M0230028 Contact Us For Availability
14
MAY 10523402 MAY 10523402 Contact Us For Availability
14
MAY D7718402 MAY D7718402 Contact Us For Availability
14
MAY C3615024 MAY C3615024 Contact Us For Availability
15
MAY C8971903 MAY C8971903 Contact Us For Availability
15
MAY D7826603 MAY D7826603 Contact Us For Availability
15
MAY C8974102 MAY C8974102 Contact Us For Availability
15
MAY C8976201 MAY C8976201 Contact Us For Availability
15
MAY A0282803 MAY A0282803 Contact Us For Availability
15
MAY YB8358601 MAY YB8358601 Contact Us For Availability
15
MAY 10436504 MAY 10436504 Contact Us For Availability
15
MAY 10448901 MAY 10448901 Contact Us For Availability
15
MAY A3189355 MAY A3189355 Contact Us For Availability
15
MAY C8977301 MAY C8977301 Contact Us For Availability
16
MAY B2150503 MAY B2150503 Contact Us For Availability
16
MAY 10495803 MAY 10495803 Contact Us For Availability
16
MAY M0219546 MAY M0219546 Contact Us For Availability
16
MAY B8384901 MAY B8384901 Contact Us For Availability
16
MAY D7789805 MAY D7789805 Contact Us For Availability
16
MAY D7789806 MAY D7789806 Contact Us For Availability
16
MAY M0238105 MAY M0238105 Contact Us For Availability
17
MAY 10547001 MAY 10547001 Contact Us For Availability
17
MAY 10703701 MAY 10703701 Contact Us For Availability
17
MAY M0226331 MAY M0226331 Contact Us For Availability
17
MAY D7827402 MAY D7827402 Contact Us For Availability
17
MAY B8385001 MAY B8385001 Contact Us For Availability
17
MAY M0211016 MAY M0211016 Contact Us For Availability
17
MAY 10635802 MAY 10635802 Contact Us For Availability
17
MAY B8345401 MAY B8345401 Contact Us For Availability
18
MAY A3189357 MAY A3189357 Contact Us For Availability
18
MAY 10505002 MAY 10505002 Contact Us For Availability
18
MAY B8389001 MAY B8389001 Contact Us For Availability
18
MAY 10098801 MAY 10098801 Contact Us For Availability
18
MAY M0211017 MAY M0211017 Contact Us For Availability
18
MAY M0580007 MAY M0580007 Contact Us For Availability
18
MAY 10377003 MAY 10377003 Contact Us For Availability
18
MAY M0216539 MAY M0216539 Contact Us For Availability
19
MAY M0103904 MAY M0103904 Contact Us For Availability
19
MAY 10508102 MAY 10508102 Contact Us For Availability
19
MAY B8387701 MAY B8387701 Contact Us For Availability
19
MAY B8387702 MAY B8387702 Contact Us For Availability
19
MAY A3189362 MAY A3189362 Contact Us For Availability
19
MAY 10619601 MAY 10619601 Contact Us For Availability
19
MAY 10266401 MAY 10266401 Contact Us For Availability
19
MAY D7853303 MAY D7853303 Contact Us For Availability
19
MAY C8902601 MAY C8902601 Contact Us For Availability
20
MAY M0253942 MAY M0253942 Contact Us For Availability
20
MAY D7865808 MAY D7865808 Contact Us For Availability
20
MAY 10619602 MAY 10619602 Contact Us For Availability
20
MAY C8931502 MAY C8931502 Contact Us For Availability
20
MAY C8992301 MAY C8992301 Contact Us For Availability
20
MAY D7547411 MAY D7547411 Contact Us For Availability
21
MAY 10508001 MAY 10508001 Contact Us For Availability
21
MAY D7748301 MAY D7748301 Contact Us For Availability
21
MAY D7850202 MAY D7850202 Contact Us For Availability
21
MAY C8931602 MAY C8931602 Contact Us For Availability
21
MAY D7749902 MAY D7749902 Contact Us For Availability
22
MAY M0580003 MAY M0580003 Contact Us For Availability
22
MAY C8973701 MAY C8973701 Contact Us For Availability
22
MAY C8960801 MAY C8960801 Contact Us For Availability
22
MAY 10496105 MAY 10496105 Contact Us For Availability
22
MAY D7788201 MAY D7788201 Contact Us For Availability
23
MAY 10399501 MAY 10399501 Contact Us For Availability
23
MAY 10399502 MAY 10399502 Contact Us For Availability
23
MAY 10581401 MAY 10581401 Contact Us For Availability
23
MAY 10496501 MAY 10496501 Contact Us For Availability
23
MAY D7790330 MAY D7790330 Contact Us For Availability
24
MAY M0233847 MAY M0233847 Contact Us For Availability
24
MAY 10496104 MAY 10496104 Contact Us For Availability
24
MAY M0232903 MAY M0232903 Contact Us For Availability
24
MAY 10629601 MAY 10629601 Contact Us For Availability
24
MAY 10448603 MAY 10448603 Contact Us For Availability
25
MAY M0215116 MAY M0215116 Contact Us For Availability
25
MAY 10629001 MAY 10629001 Contact Us For Availability
25
MAY 10507802 MAY 10507802 Contact Us For Availability
25
MAY D7795822 MAY D7795822 Contact Us For Availability
26
MAY 10504309 MAY 10504309 Contact Us For Availability
26
MAY 10504311 MAY 10504311 Contact Us For Availability
26
MAY 10544001 MAY 10544001 Contact Us For Availability
26
MAY 10014709 MAY 10014709 Contact Us For Availability
26
MAY 10461505 MAY 10461505 Contact Us For Availability
26
MAY D7819101 MAY D7819101 Contact Us For Availability
27
MAY D7297603 MAY D7297603 Contact Us For Availability
27
MAY M0213529 MAY M0213529 Contact Us For Availability
27
MAY D7822403 MAY D7822403 Contact Us For Availability
28
MAY 10428405 MAY 10428405 Contact Us For Availability
28
MAY D7716404 MAY D7716404 Contact Us For Availability
28
MAY 10704201 MAY 10704201 Contact Us For Availability
29
MAY R0170049 MAY R0170049 Contact Us For Availability
29
MAY B5733302 MAY B5733302 Contact Us For Availability
29
MAY 10602404 MAY 10602404 Contact Us For Availability
30
MAY A1017202 MAY A1017202 Contact Us For Availability
30
MAY D7725401 MAY D7725401 Contact Us For Availability
30
MAY M0216716 MAY M0216716 Contact Us For Availability
31
MAY A1047901 MAY A1047901 Contact Us For Availability
31
MAY 10423117 MAY 10423117 Contact Us For Availability
31
MAY A4539603 MAY A4539603 Contact Us For Availability
32
FAN-EVAP MAY C8795501 Contact Us For Availability
32
MAY M0110505 MAY M0110505 Contact Us For Availability
33
MAY C8881301 MAY C8881301 Contact Us For Availability
33
MAY M0219559 MAY M0219559 Contact Us For Availability
34
MAY C8891605 MAY C8891605 Contact Us For Availability
34
MAY M0223803 MAY M0223803 Contact Us For Availability
35
MAY D7767703 MAY D7767703 Contact Us For Availability
35
MAY 10580402 MAY 10580402 Contact Us For Availability
36
MAY M0219916 MAY M0219916 Contact Us For Availability
36
MAY M0253916 MAY M0253916 Contact Us For Availability
37
MAY B5636301 MAY B5636301 Contact Us For Availability
38
MAY M0310709 MAY M0310709 Contact Us For Availability
38
MAY D7820721 MAY D7820721 Contact Us For Availability
38
MAY M0585401 MAY M0585401 Contact Us For Availability
39
MAY M0580002 MAY M0580002 Contact Us For Availability
39
MAY 10493201 MAY 10493201 Contact Us For Availability
39
MAY 10578701 MAY 10578701 Contact Us For Availability
40
MAY 10493301 MAY 10493301 Contact Us For Availability
40
MAY 10578801 MAY 10578801 Contact Us For Availability
41
MAY 10623003 MAY 10623003 Contact Us For Availability
41
MAY 10470508 MAY 10470508 Contact Us For Availability
43
MAY 10704001 MAY 10704001 Contact Us For Availability
NI
MAY 10527501 MAY 10527501 Contact Us For Availability
NI
MAY A4554806 MAY A4554806 Contact Us For Availability
NI
MAY C8956101 MAY C8956101 Contact Us For Availability
NI
MAY 10543735 MAY 10543735 Contact Us For Availability
NI
MAY 10543736 MAY 10543736 Contact Us For Availability
NI
MAY 10582420 MAY 10582420 Contact Us For Availability
× ![]()
