Model Electrolux SWXG831DS0 LAUNDRY CENTER – Common Parts & Diagrams

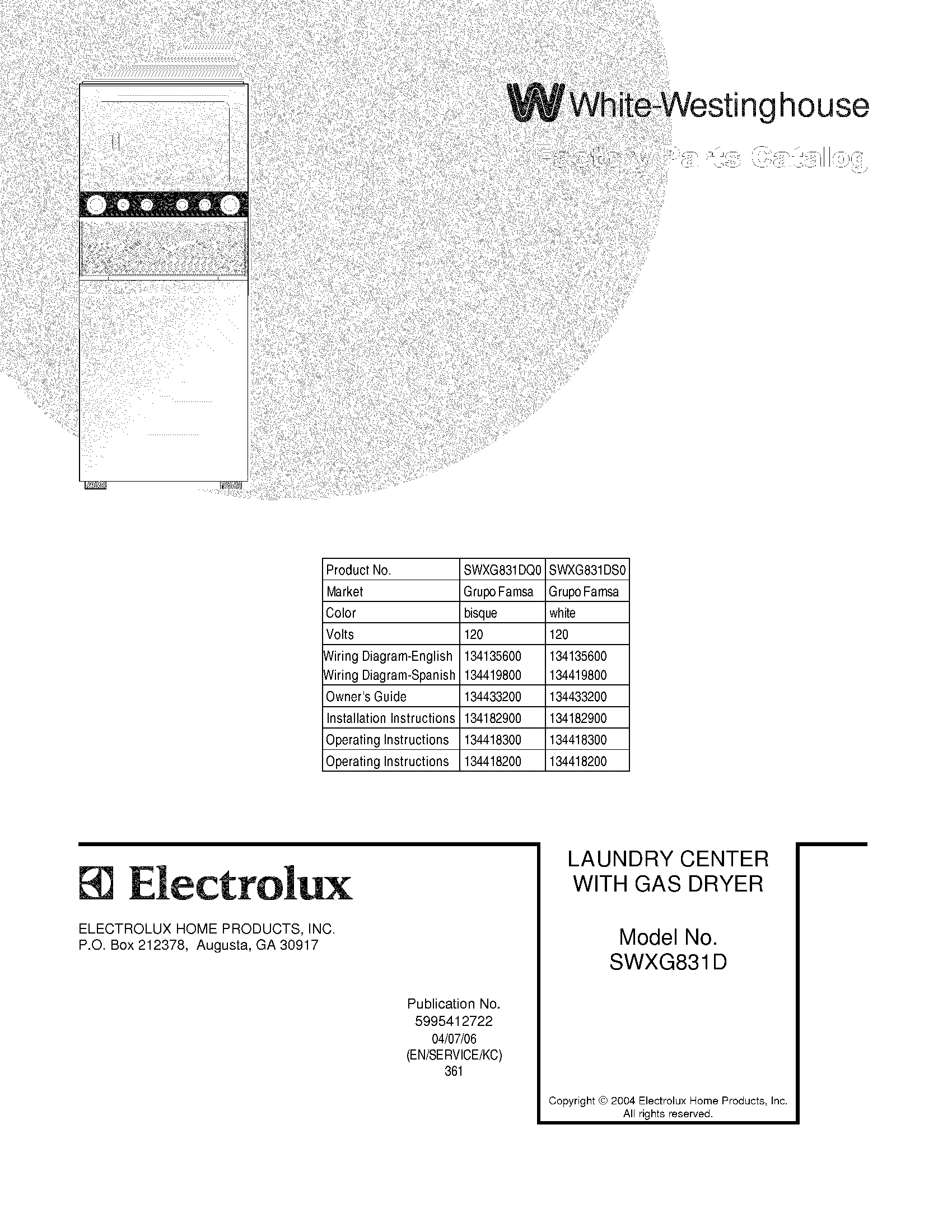

01 - COVER

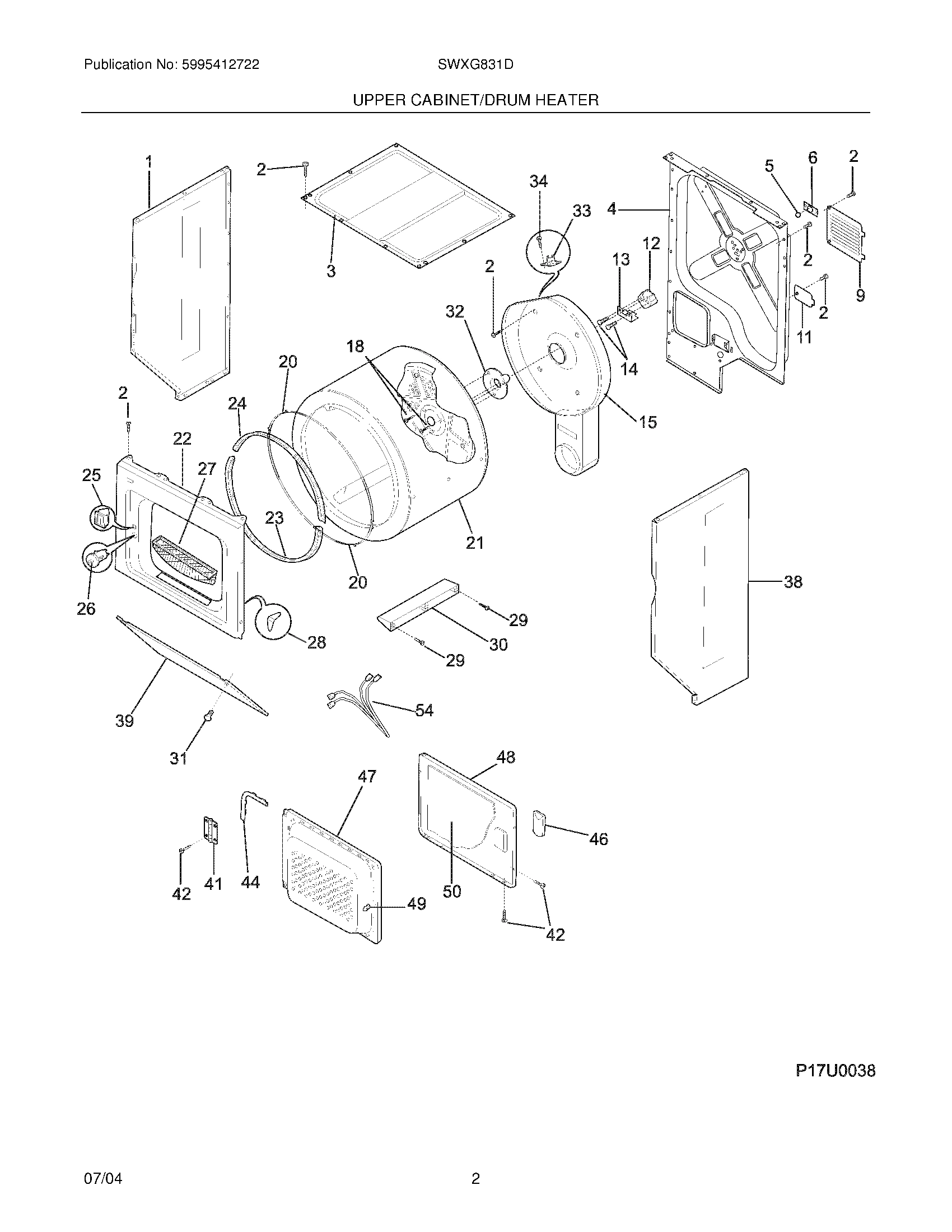

03 - UPPER CABINET/DRUM HEATER
05 - MOTOR/BLOWER/BELT
07 - CONTROL PANEL
09 - LOWER CABINET/TOP
11 - MOTOR/TUB
13 - TRANSMISSION
14 - WIRING DIAGRAM
15 - WIRING DIAGRAM
Common parts from model Electrolux SWXG831DS0 LAUNDRY CENTER
1
Cap,agitator ,standard,slim WCI 3204395 No Longer Available
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
SEAL-AIR DUCT WCI 131295200 Contact Us For Availability
1
WCI 5303297139 WCI 5303297139 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
3
WCI 131398303 WCI 131398303 Contact Us For Availability
3
Panel,top WCI 131883301 Contact Us For Availability
3A
Bumper,lid ,front WCI 134075500 Contact Us For Availability
4
Fastener,push-in WCI 131362400 Contact Us For Availability
5
Grommet,hinge WCI 5303208743 Contact Us For Availability
6
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
6
WCI 134197900 WCI 134197900 Contact Us For Availability
7
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
8
WCI 131758600 WCI 131758600 Contact Us For Availability
8
WCI 3205245 WCI 3205245 Contact Us For Availability
9
WCI 131111501 WCI 131111501 Contact Us For Availability
10
WCI 131628900 WCI 131628900 Contact Us For Availability
11
Screw,lid strike mtg ,6-20B X 0.375 WCI 3204368 Contact Us For Availability
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
14
WCI 131658101 WCI 131658101 Contact Us For Availability
15
THERMOSTAT CONTROL WCI 131322600 Contact Us For Availability
15
WCI 5303207394 WCI 5303207394 Contact Us For Availability
16
WCI 131545101 WCI 131545101 Contact Us For Availability
18
WCI 131557201 WCI 131557201 Contact Us For Availability
18
WCI 131413600 WCI 131413600 Contact Us For Availability
20
WCI 131288101 WCI 131288101 Contact Us For Availability
20
Screw,tub bearing ,8-12B x 0.750 WCI 3205150 Contact Us For Availability
21
WCI 131873304 WCI 131873304 Contact Us For Availability
21
WCI 134122532 WCI 134122532 Contact Us For Availability
21A
WCI 131977201 WCI 131977201 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 134031600 WCI 134031600 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
25
WCI 131976804 WCI 131976804 Contact Us For Availability
26
Seal Assy,tub ,transmission WCI 5303279394 Contact Us For Availability
27
WCI 131892100 WCI 131892100 Contact Us For Availability
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
29
WCI 131498301 WCI 131498301 Contact Us For Availability
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
30
WCI 131862900 WCI 131862900 Contact Us For Availability
31
WCI 131288211 WCI 131288211 Contact Us For Availability
32
WCI 131777700 WCI 131777700 Contact Us For Availability
33
WCI 5304406099 WCI 5304406099 Contact Us For Availability
33
Spring,torsional WCI 3204425 Contact Us For Availability
34
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
Washer,spring type WCI 5303161306 Contact Us For Availability
38
WCI 5303318708 WCI 5303318708 Contact Us For Availability
38
WCI 5303286537 WCI 5303286537 Contact Us For Availability
38
WCI 5303311213 WCI 5303311213 Contact Us For Availability
39
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
41
WCI 131513300 WCI 131513300 Contact Us For Availability
42
WCI 131104303 WCI 131104303 Contact Us For Availability
43
Pad,leveling leg ,front WCI 131422100 Contact Us For Availability
45
Pin,panel locator ,side WCI 131346400 Contact Us For Availability
46
HANDLE-DOOR, WHITE WCI 131789400 Contact Us For Availability
48
WCI 131789303 WCI 131789303 Contact Us For Availability
50
WCI 134101800 WCI 134101800 Contact Us For Availability
51
WCI 134164400 No Longer Available
53
WCI 5304401845 WCI 5304401845 Contact Us For Availability
54
WCI 3204394 WCI 3204394 Contact Us For Availability
54
Wiring Harness,door switch ,w/o light WCI 131498900 Contact Us For Availability
NI
WCI 134101400 WCI 134101400 Contact Us For Availability
NI
Insert,spring adjuster ,vertical WCI 5303212877 Contact Us For Availability
NI
Orifice,natural gas ,size 44 WCI 5303207410 Contact Us For Availability
NI
Cushion,drain hose ,base WCI 131663500 Contact Us For Availability
NI
WCI 134169500 WCI 134169500 Contact Us For Availability
× ![]()
