Model Whirlpool SVE47600W ELECTRIC RANGE – Common Parts &amp; Diagrams

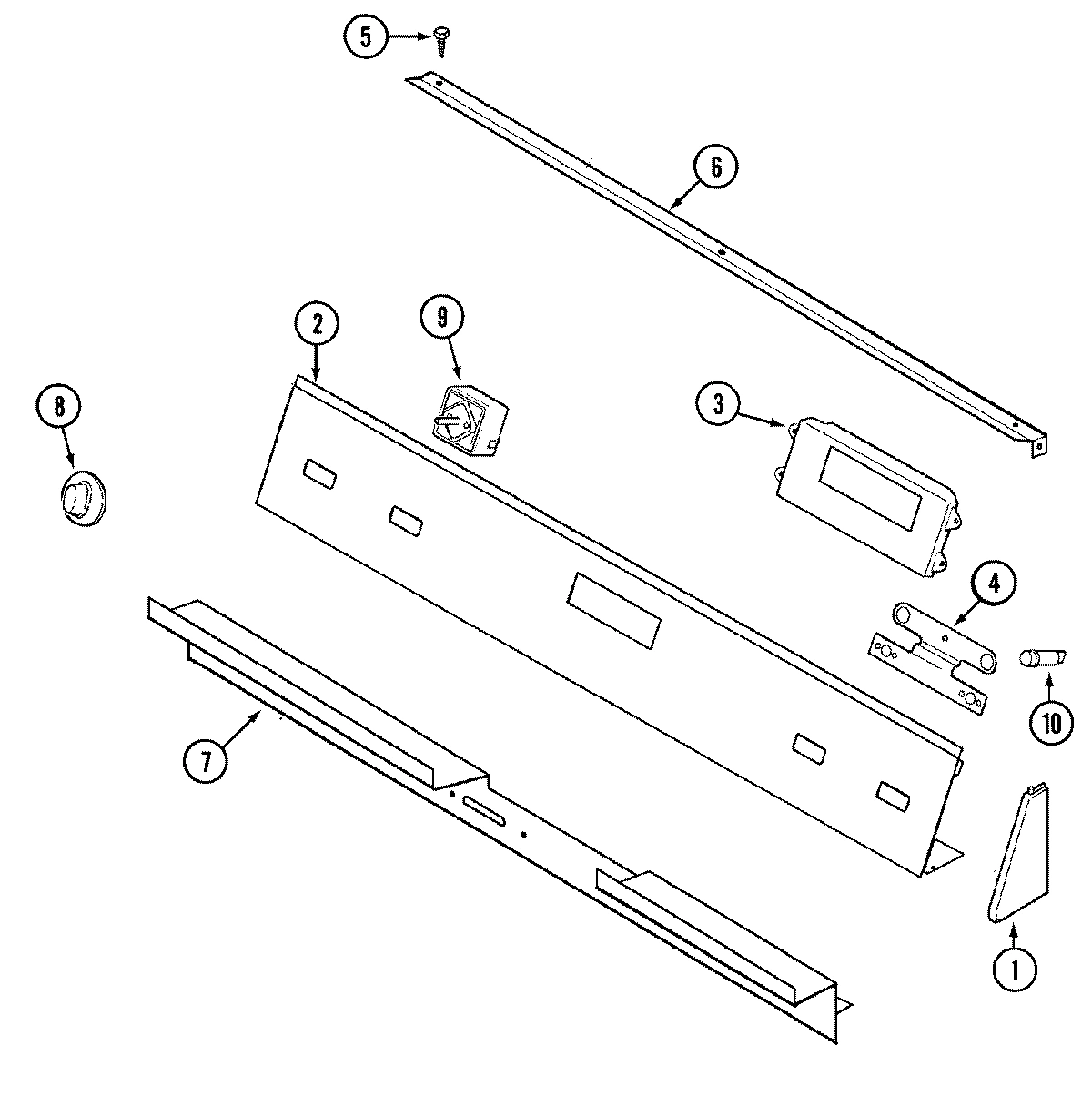

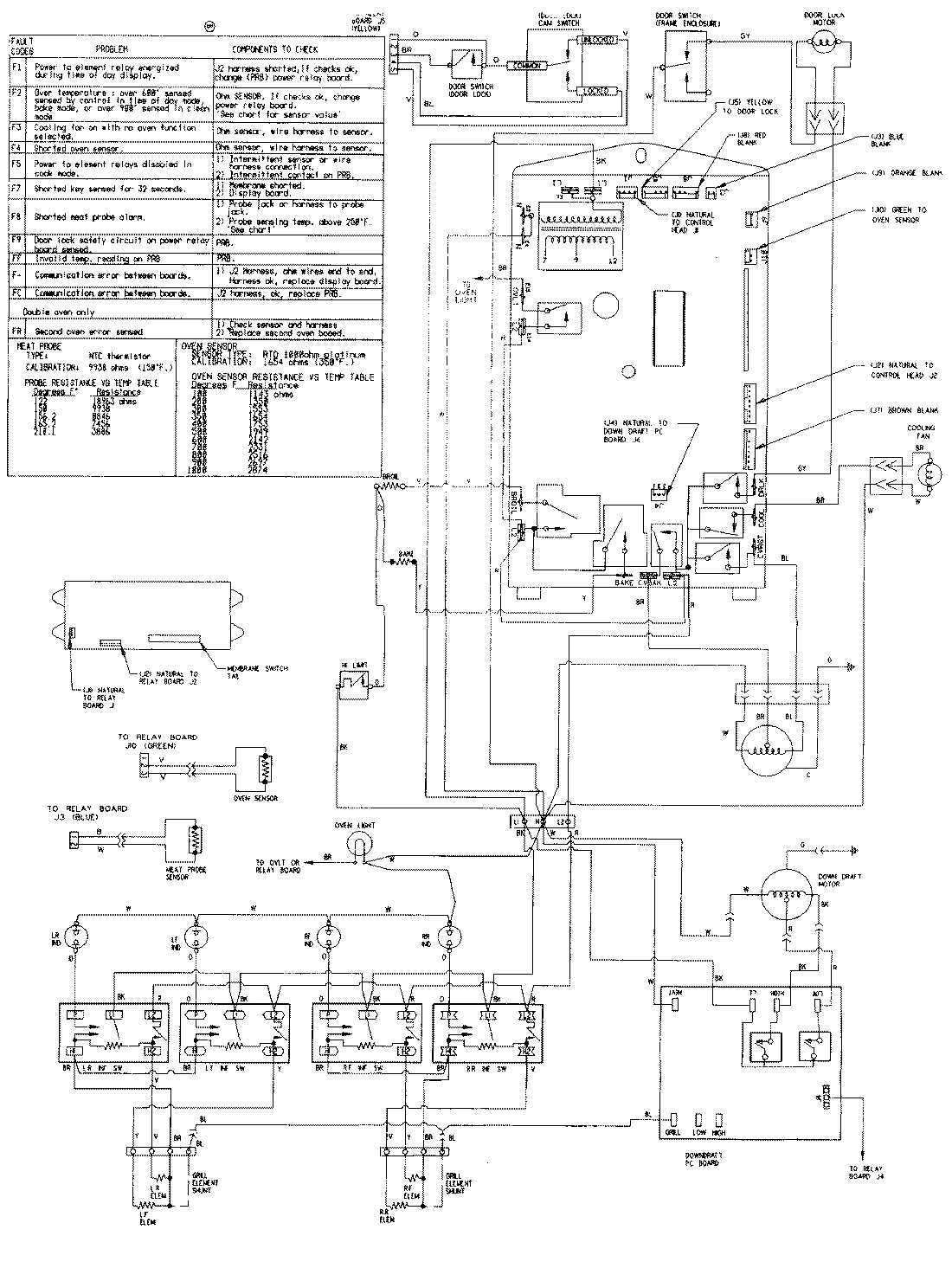

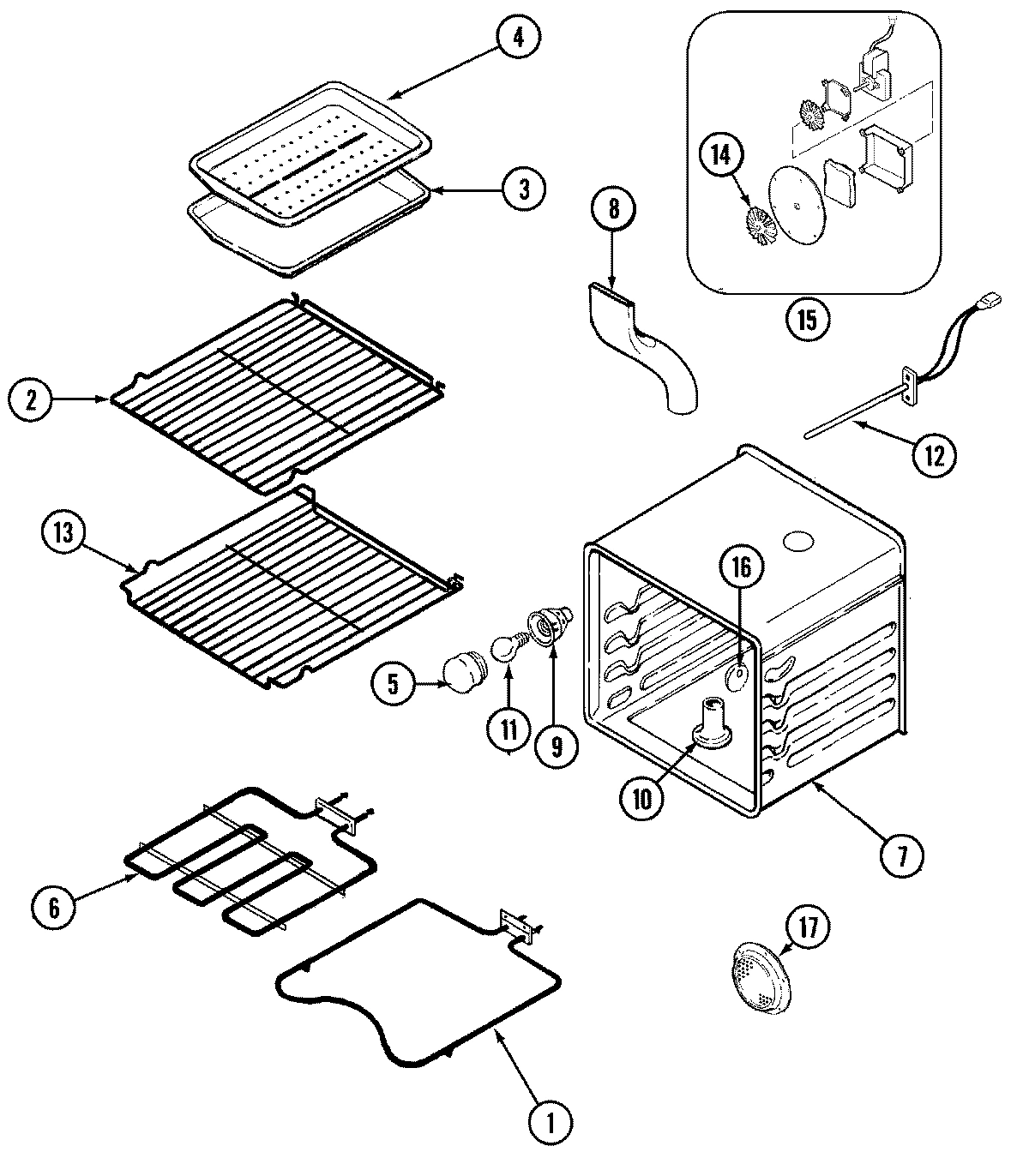

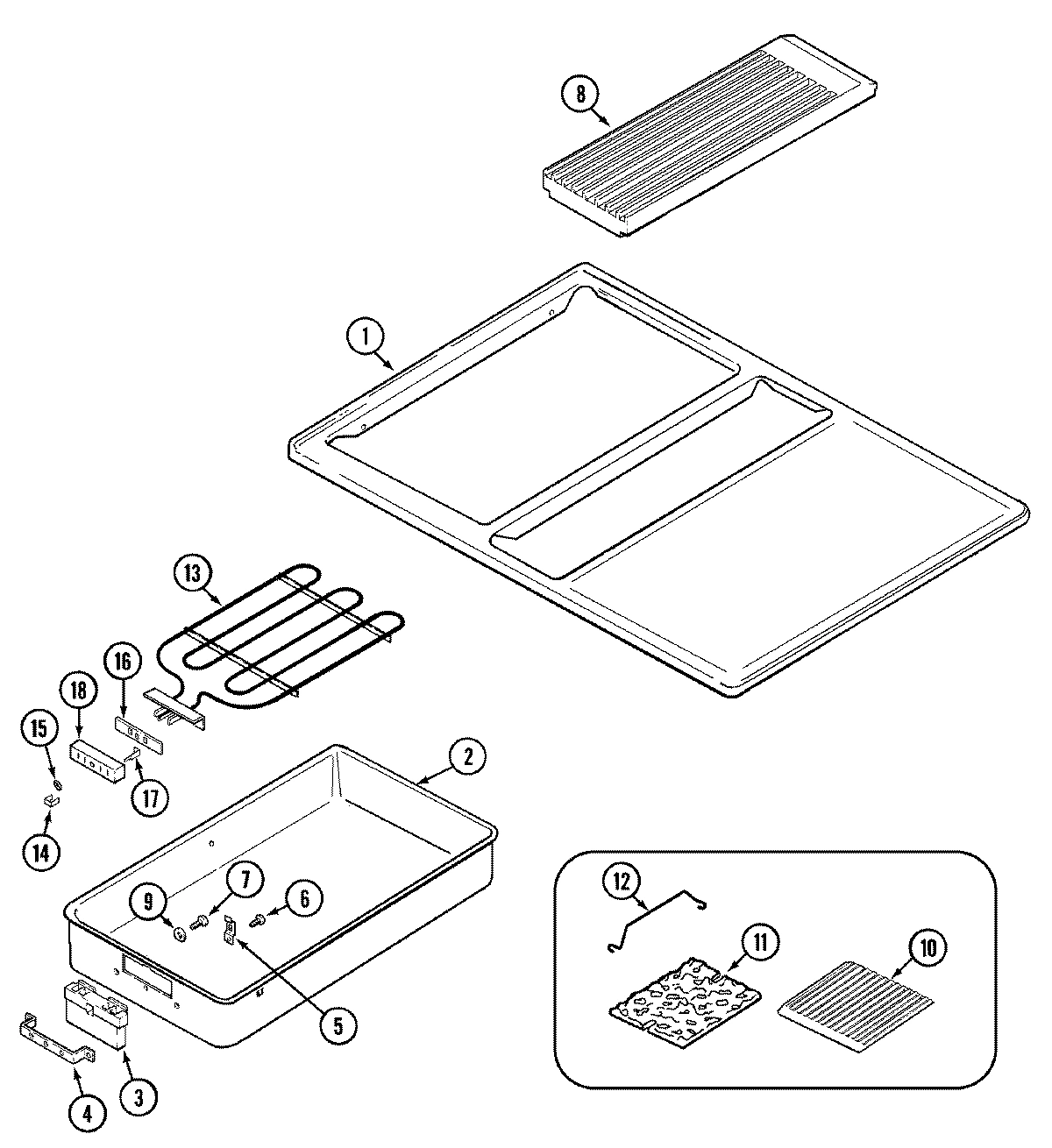

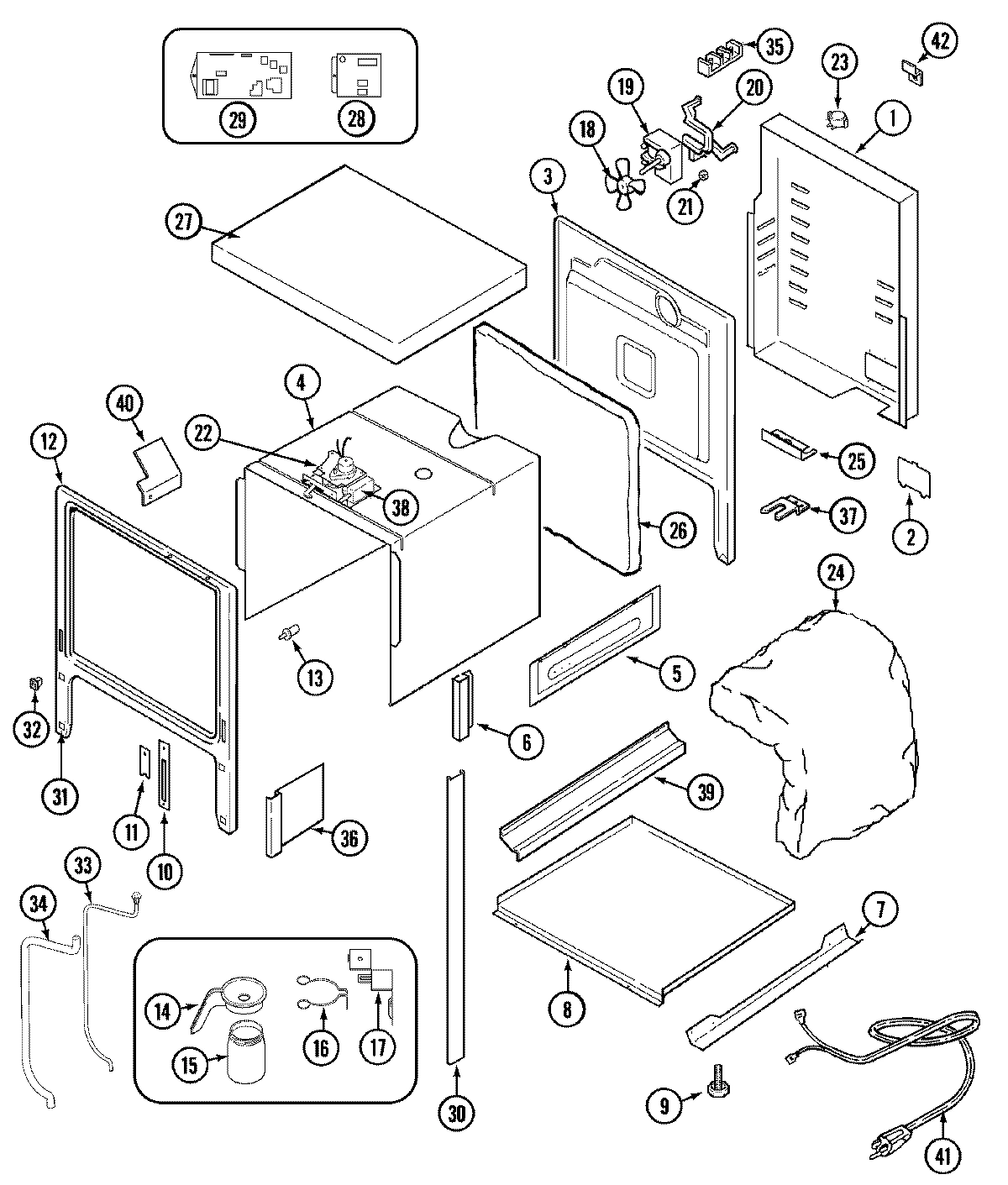

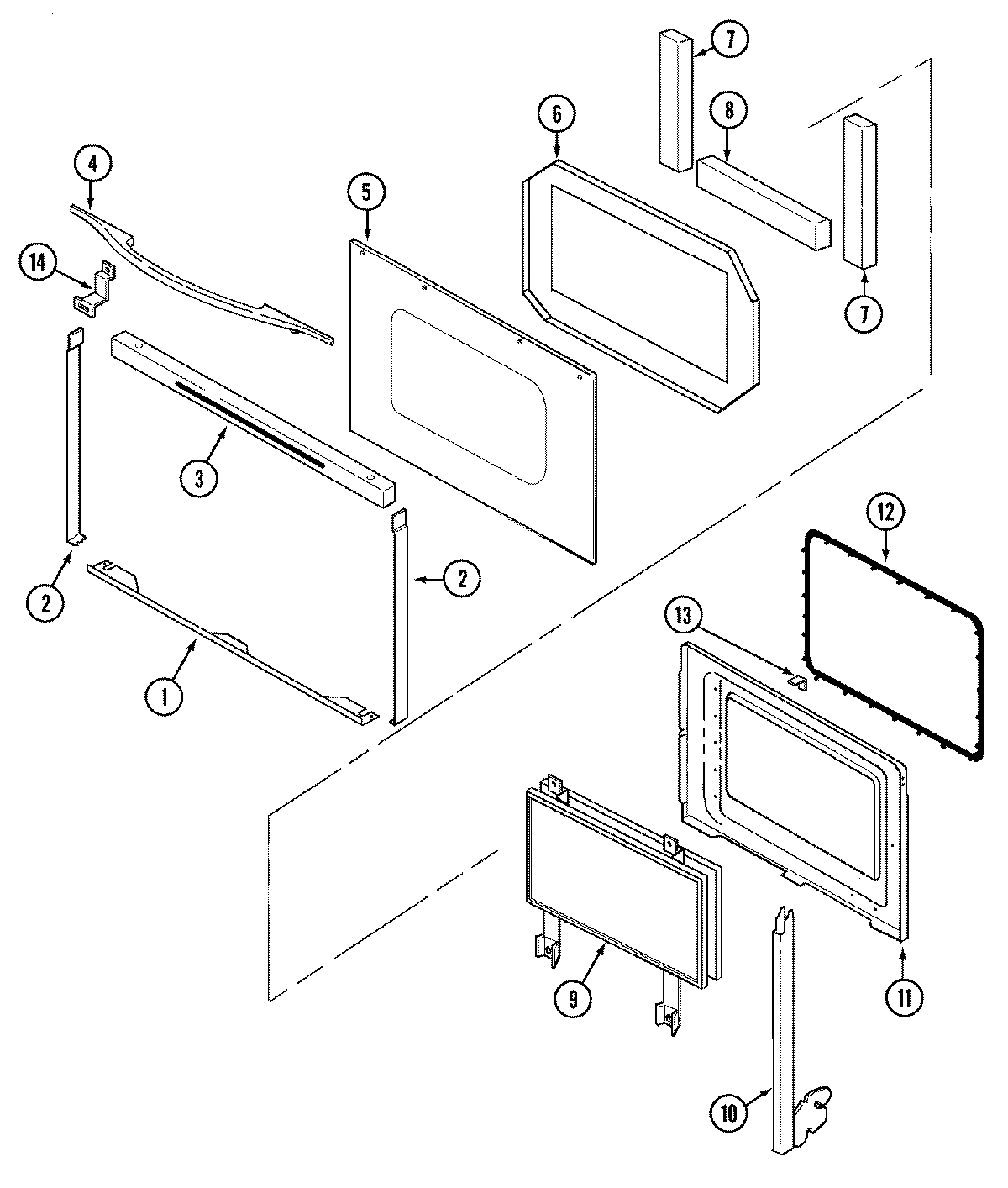

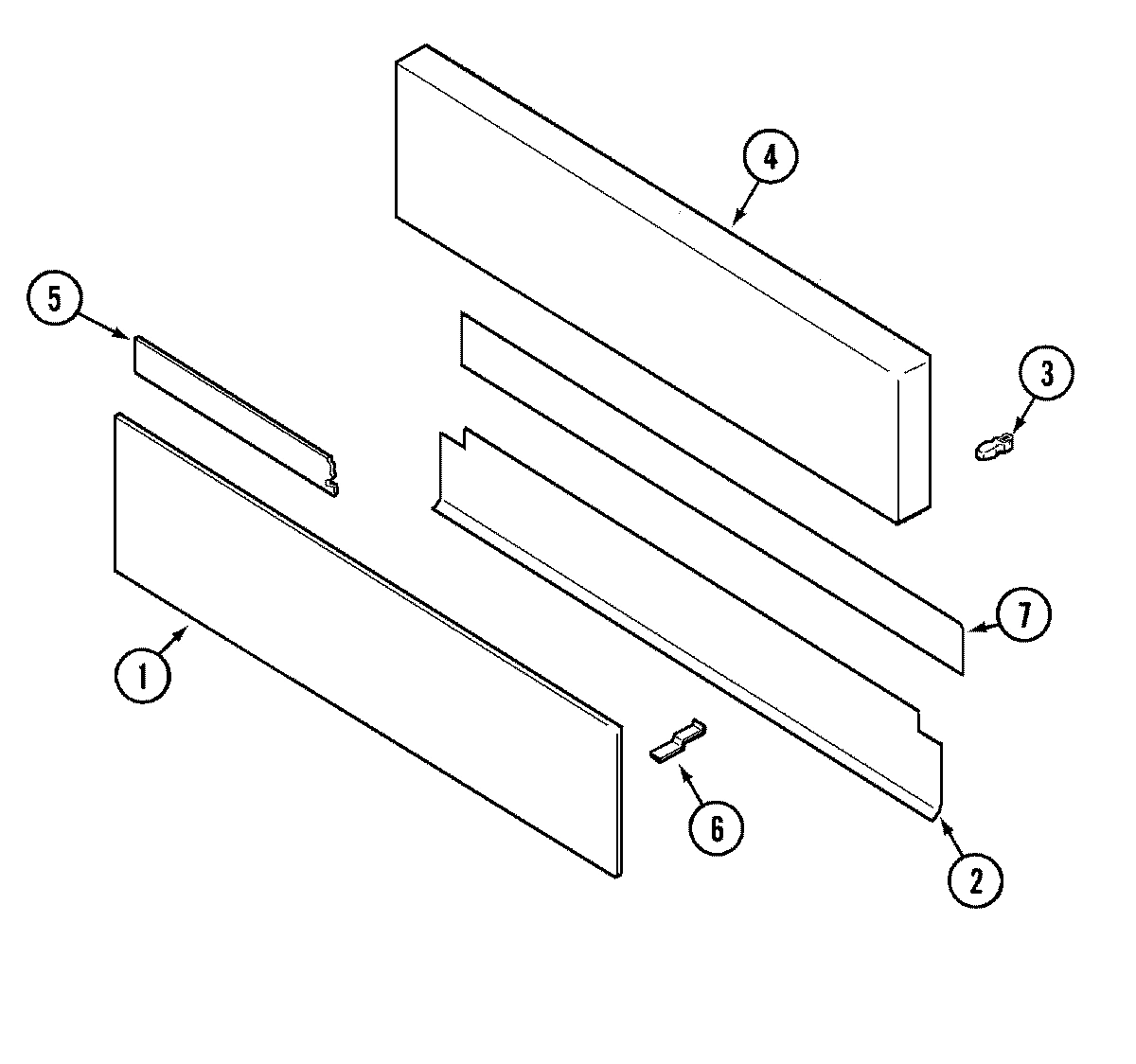

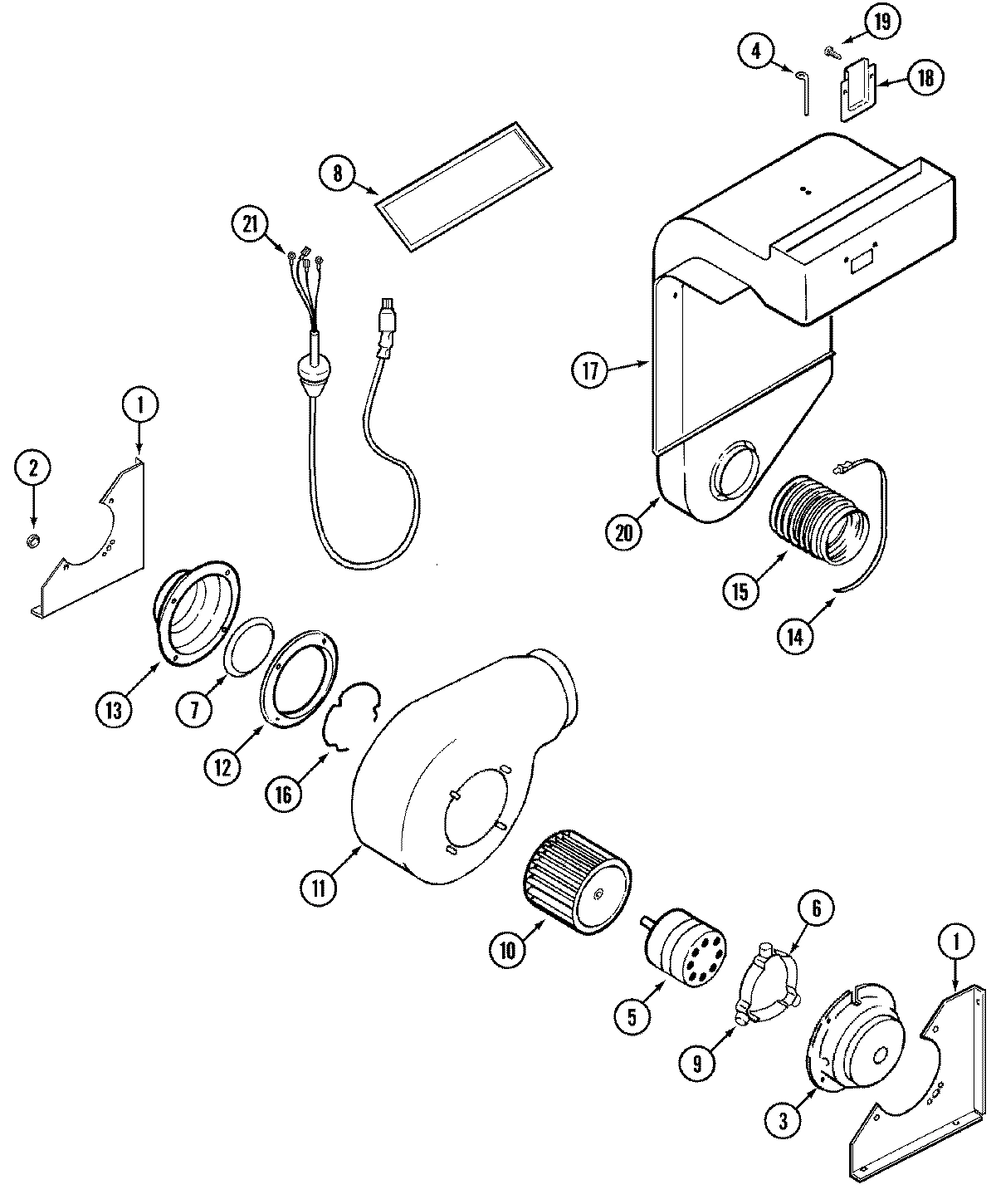

1

PANEL, FRONT (WHT) WPL 71002096 Contact Us For Availability

1

TOP, MAIN (STNLS) WPL 71002062 Contact Us For Availability

1

END CAP (RT-WHT) WPL 71002038 Contact Us For Availability

1

END CAP (LT-WHT) WPL 71002039 Contact Us For Availability

1

END CAP (LT-WHT) WPL 71003012 Contact Us For Availability

1

END CAP (RT-WHT) WPL 71003013 Contact Us For Availability

1

TRIM, DOOR (LWR-WHT) WPL 71002081 Contact Us For Availability

1

COVER, MAIN BACK WPL 71002065 Contact Us For Availability

2

WPW10282527 Whirlpool Oven Rack Backorder WPL WPW10282527 $75.42

2

EXTRUSION, KICK PANEL (WHT) WPL 71002210 Contact Us For Availability

2

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

2

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

2

SWITCH, MEMBRANE ASY. WPL 71002116 Contact Us For Availability

2

TRIM, DOOR (SIDE-WHT) WPL 71002083 Contact Us For Availability

2

PANEL, ACCESS WPL 71002066 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

3

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

3

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $61.49

3

WP71001799-includeCORE Whirlpool WP71001799 C Backorder WPL WP71001799-includeCORE $284.17

3

WP71002097 Whirlpool Door Striker In Stock WPL WP71002097 $5.09

3

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $41.18

3

COVER, MOTOR WPL 71002107 Contact Us For Availability

3

CONTACT/WIRE ASSY. (BLU) WPL 71002326 Contact Us For Availability

3

CONTACT/WIRE ASSY. (BRN) WPL 71002604 Contact Us For Availability

3

CONTACT/WIRE ASSY. (VLT) WPL 71002605 Contact Us For Availability

3

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

3

SCREW WPL 71001827 Contact Us For Availability

3

TRIM, DOOR (TOP-WHT) WPL 71002085 Contact Us For Availability

3

BACK, MAIN WPL 71003032 Contact Us For Availability

4

STOP, FILTER WPL 71002113 Contact Us For Availability

4

FRAME, BASE DOOR (WHT) WPL 71002094 Contact Us For Availability

4

BRACKET WPL Y702698 Contact Us For Availability

4

BRACKET, LOCK LIGHT WPL 71002046 Contact Us For Availability

4

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

4

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

4

HANDLE, DOOR (WHT) WPL 71001836 Contact Us For Availability

4

SCREW WPL 71002087 Contact Us For Availability

4

PANEL (SIDE-TOP-SIDE) WPL 71002068 Contact Us For Availability

5

74004835 Whirlpool Clip In Stock WPL 74004835 $5.00

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $44.32

5

WPW10201322 Whirlpool Blower Motor Backorder WPL WPW10201322 $221.74

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

SCREW (WHT) WPL Y04100724 Contact Us For Availability

5

GLASS, DOOR (WHT) WPL 71002089 Contact Us For Availability

5

SPACER, FRAME WPL 71002795 Contact Us For Availability

5

PANEL, SIDE (RT) WPL 71002069 Contact Us For Availability

5

PANEL, SIDE (LT) WPL 71002070 Contact Us For Availability

6

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

PIN, PIVOT WPL 71002104 Contact Us For Availability

6

SUPPORT, CONTROL PANEL WPL 71002043 Contact Us For Availability

6

RETAINER, INSULATION WPL 71002791 Contact Us For Availability

6

RECEPTACLE, HINGE ASSY. WPL 71002075 Contact Us For Availability

6

RECEPTACLE, HINGE WPL 71002206 Contact Us For Availability

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.55

7

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

7

PANEL, KICK (LT.GREY) WPL 71002099 Contact Us For Availability

7

TRIM, CONTROL PANEL (WHT) WPL 71002045 Contact Us For Availability

7

TRIM, CONTROL PANEL (WHT) WPL 71003017 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71001165 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003005 Contact Us For Availability

7

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

7

RAIL, BOTTOM WPL 71002076 Contact Us For Availability

8

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.42

8

GRILL, AIR (WHT) WPL 71002064 Contact Us For Availability

8

KNOB, SWITCH (GRAY) WPL 71002057 Contact Us For Availability

8

KNOB, SWITCH (WHT) WPL 71002713 Contact Us For Availability

8

TUBE, VENT WPL 71002115 Contact Us For Availability

8

INSULATION, DOOR (BTM) WPL 71001838 Contact Us For Availability

8

PANEL, BOTTOM WPL 71002071 Contact Us For Availability

9

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

9

74009648 Whirlpool Glass Inner Door Backorder WPL 74009648 $72.13

9

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $46.34

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.32

9

NUT WPL 707161 Contact Us For Availability

9

SCREW WPL Y707402 Contact Us For Availability

9

WASHER WPL Y707664 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

LEVELER, LEG WPL Y04100573 Contact Us For Availability

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

GRATE, GRILL (EXCALIBUR) WPL Y04100367 Contact Us For Availability

LIGHT, LOCK WPL 71001301 Contact Us For Availability

TUBE, VENT WPL 71002079 Contact Us For Availability

HINGE, DOOR WPL 71002090 Contact Us For Availability

PLATE, HINGE COVER WPL 71002072 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

PLATE, ROCK WPL 708929 Contact Us For Availability

HARNESS, CONTROL (J2) WPL 71002048 Contact Us For Availability

HARNESS, SUPPLY (J1) WPL 71002049 Contact Us For Availability

HARNESS, DOOR LOCK WPL 71002050 Contact Us For Availability

HARNESS, COOLING FAN WPL 71002051 Contact Us For Availability

HARNESS, DOWN DRAFT (J4) WPL 71002052 Contact Us For Availability

HARNESS, OVEN SENSOR (J10) WPL 71002053 Contact Us For Availability

HARNESS, INFINITE WPL 71002054 Contact Us For Availability

HARNESS, HI-LIMIT WPL 71002059 Contact Us For Availability

HARNESS, CONVECT WPL 71002117 Contact Us For Availability

HARNESS, HI-LIMIT WPL 71003030 Contact Us For Availability

HARNESS, DOOR LOCK WPL 71003181 Contact Us For Availability

HARNESS, OVEN LAMP WPL 71003182 Contact Us For Availability

HARNESS, CONTROL WPL 71003186 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

LINER, OVEN DOOR WPL 71001187 Contact Us For Availability

LINER, DOOR WPL 71002964 Contact Us For Availability

PLATE, HINGE RETAINER WPL 71002077 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

WP71001841 Whirlpool Door Seal Backorder WPL WP71001841 $74.65

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

MANUAL, USE & CARE WPL 71002662 Contact Us For Availability

FRAME, OVEN WPL 71001186 Contact Us For Availability

FRAME, OVEN WPL 71003087 Contact Us For Availability

WP5700M426-60 Whirlpool Heating Element Backorder WPL WP5700M426-60 $174.65

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

MANUAL, SERVICE-NO REFUND WPL 16009097 Contact Us For Availability

PLATE, LATCH WPL 71001831 Contact Us For Availability

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

CLIP, SHUNT WPL Y700450 Contact Us For Availability

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

BRACKET, TOP TRIM WPL 71002086 Contact Us For Availability

TOP, DRAIN JAR WPL 71002170 Contact Us For Availability

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $35.95

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $10.83

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

INSULATOR WPL Y700449 Contact Us For Availability

WIRE, GROUND WPL 702643 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

SPRING, DRAIN JAR WPL 71002171 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Y708572 Whirlpool Spade Contact In Stock WPL Y708572 $5.22

PLENUM (UPR) WPL 71002109 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

PLATE, CONVECTION (FRT) WPL 71001854 Contact Us For Availability

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

BRACKET, DRAIN TUBE WPL 71002169 Contact Us For Availability

18

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $40.86

18

COVER, VENT WPL Y702475 Contact Us For Availability

18

BLADE, FAN WPL 71001852 Contact Us For Availability

19

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

19

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

20

PLENUM (LWR) WPL 71002110 Contact Us For Availability

20

BRACKET, FAN WPL 71001853 Contact Us For Availability

21

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

21

CORD, POWER (D/DRAFT MOTOR) WPL 71002112 Contact Us For Availability

22

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

23

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $84.36

24

INSULATION (WRAP) WPL 71001817 Contact Us For Availability

25

BRACKET, ELECTRIC MTG WPL 71002960 Contact Us For Availability

26

INSULATION, BACK WPL 71002073 Contact Us For Availability

27

INSULATION (TOP-BACK) WPL 71002227 Contact Us For Availability

28

BOARD, RELAY (DOWNDRAFT) WPL 71002035 Contact Us For Availability

28

SHIELD, REALY (3.53X3) WPL 74004837 Contact Us For Availability

29

BOARD, RELAY(BAKE/BROIL CONV.) WPL 71002594 Contact Us For Availability

30

CLIP, SIDE TRIM WPL 71002074 Contact Us For Availability

30

TRIM, SIDE WPL 71002078 Contact Us For Availability

30

TRIM, SIDE (WHT) WPL 71002647 Contact Us For Availability

31

GROMMET, BASE DOOR WPL 71002105 Contact Us For Availability

31

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

32

LATCH, BASE DOOR WPL 71002106 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

DRAIN CLEANOUT ASSY. WPL 71002402 Contact Us For Availability

TUBE, DRAIN WPL 71002642 Contact Us For Availability

34

INSULATION, DRAIN TUBE WPL 71002173 Contact Us For Availability

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

36

TAPE, DBL. SIDED WPL 704827K Contact Us For Availability

36

PANEL, KICK (SIDE/WHT) WPL 71002103 Contact Us For Availability

37

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.51

37

BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability

38

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

39

GUARD, WIRE (RT) WPL 71002208 Contact Us For Availability

40

GUARD, WIRE WPL 71002114 Contact Us For Availability
