Model Whirlpool SVD8310SK DUEL FUEL RANGE – Common Parts &amp; Diagrams

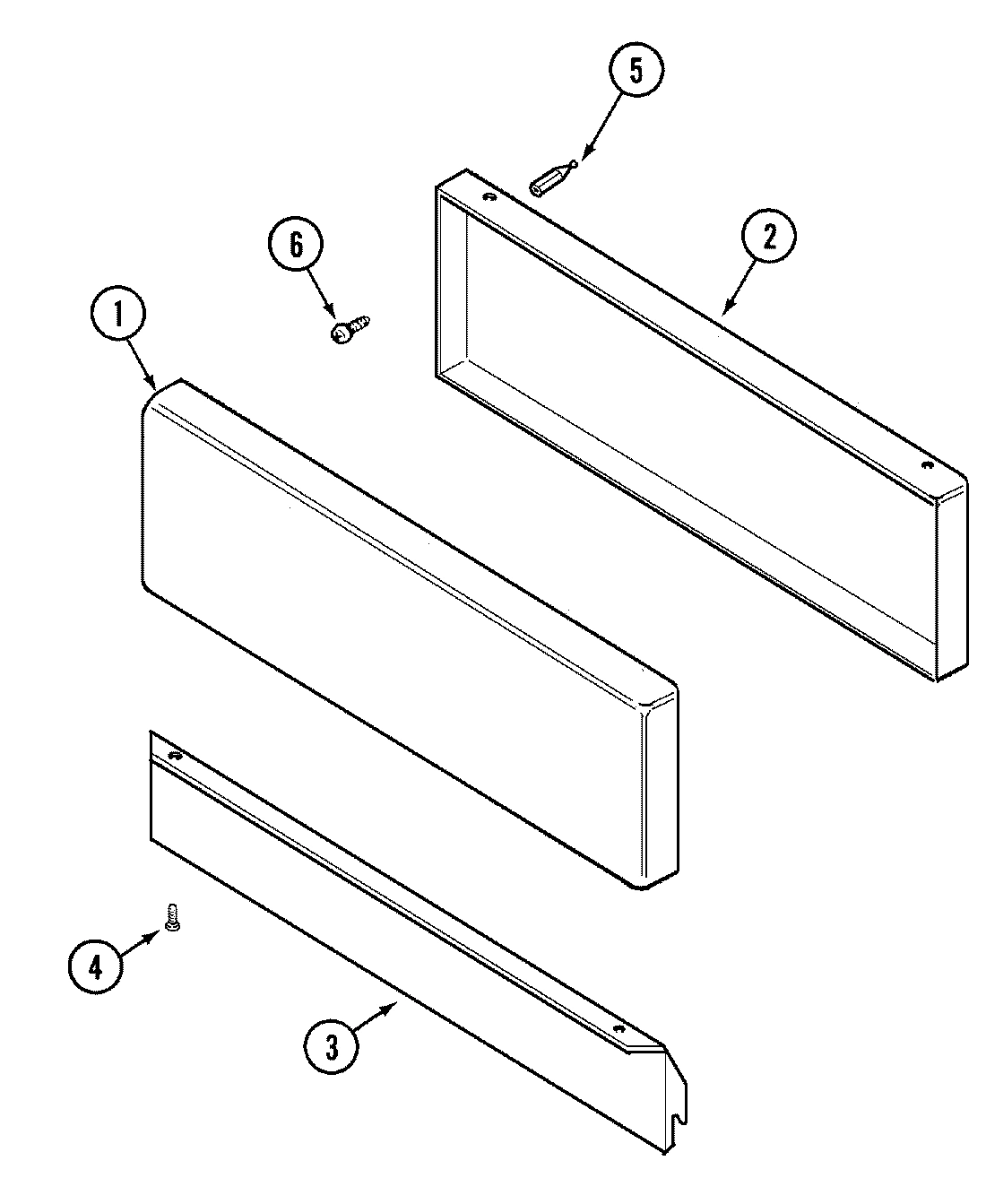

1

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

1

Y712601 Whirlpool Burner Grille Backorder WPL Y712601 $173.03

1

SUPPORT, BRACKET (C.P.) WPL Y04100651 Contact Us For Availability

1

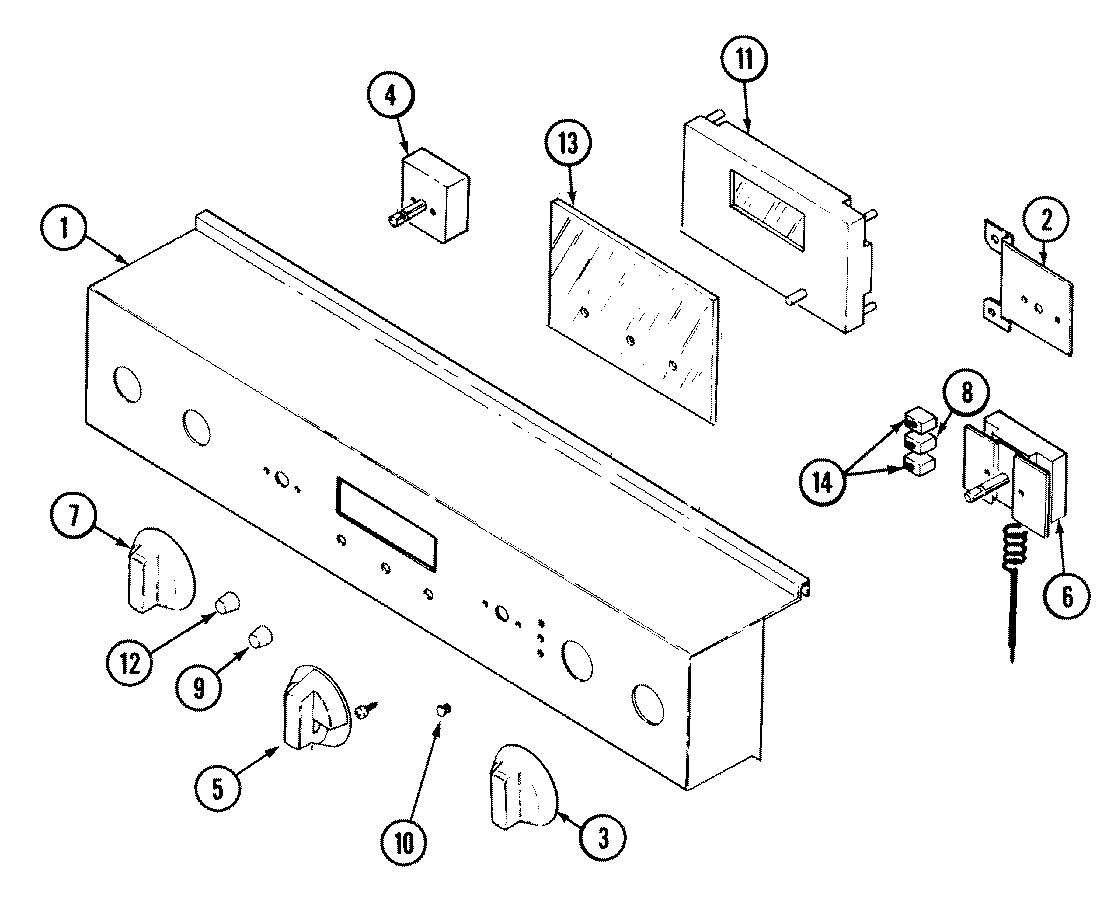

CONTROL PANEL WPL Y04100746 Contact Us For Availability

1

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

1

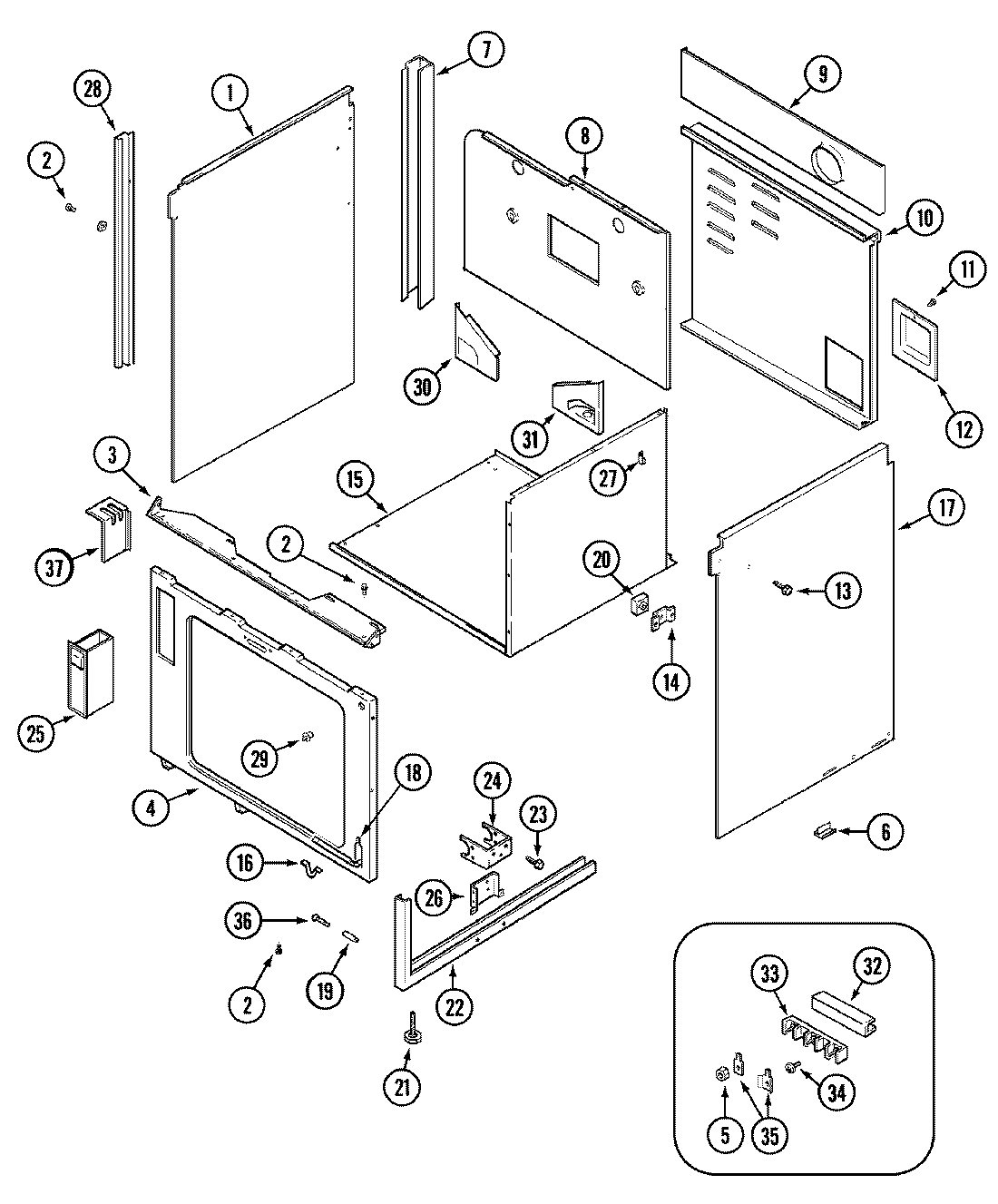

PANEL, SIDE (LH) WPL Y04100629 Contact Us For Availability

1

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

1

PANEL, TOP WPL 704669 Contact Us For Availability

1

COVER, BASE (CPR) WPL 71001914 Contact Us For Availability

1

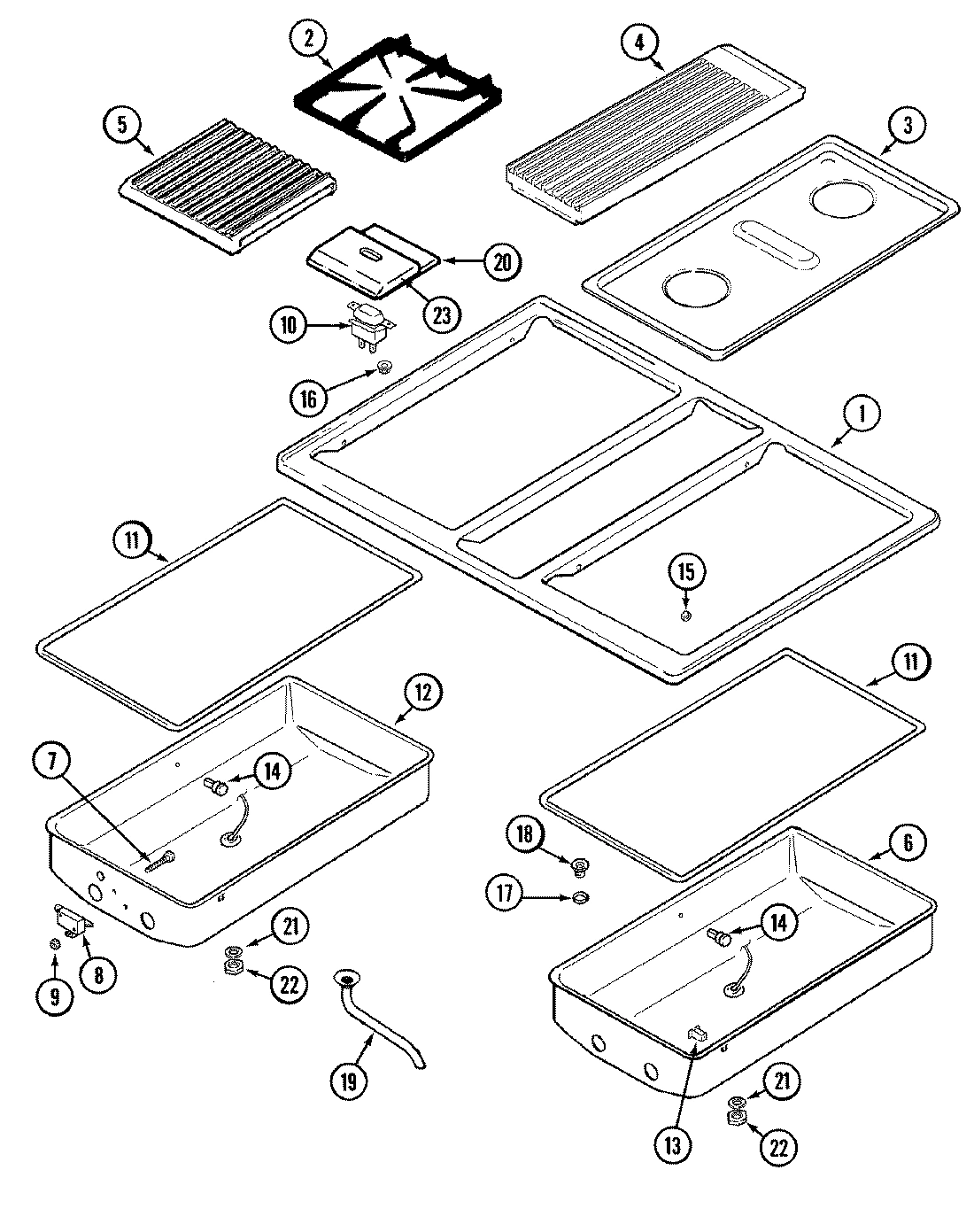

TOP, STAINLESS STEEL WPL 712600 Contact Us For Availability

1

WASHER, ALUM WPL 71001403 Contact Us For Availability

1

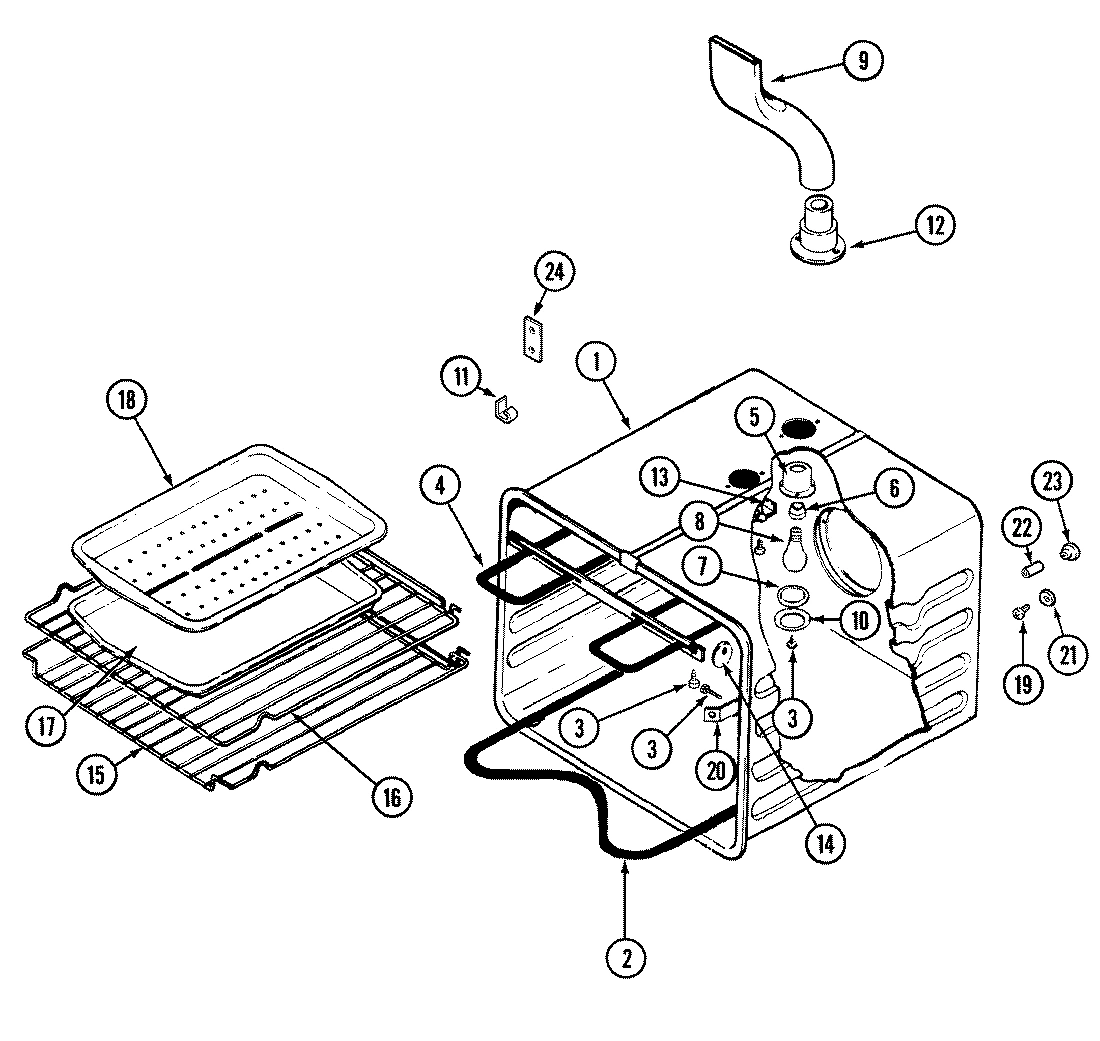

OVEN LINER ASSY-27`` GENERIC WPL 71002818 Contact Us For Availability

1

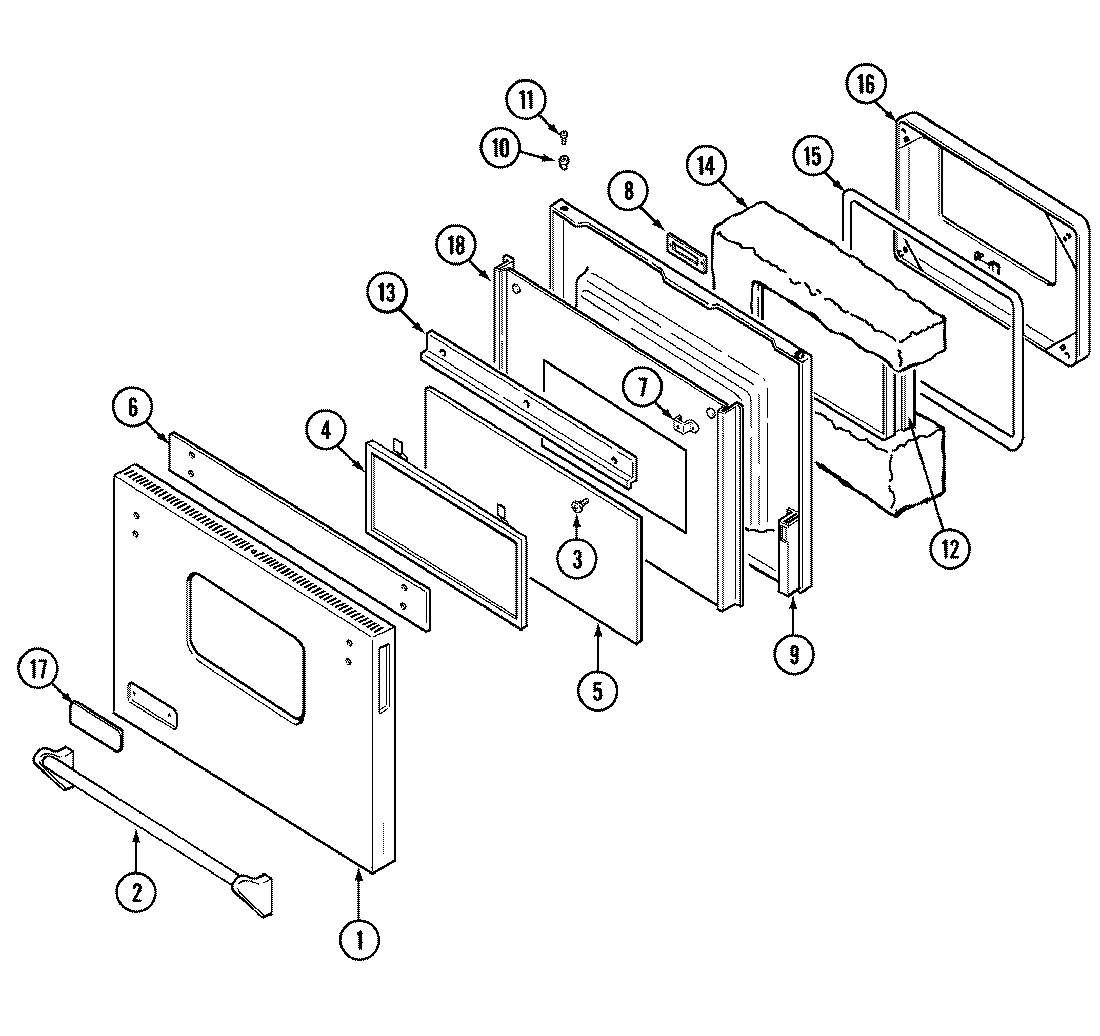

INSERT, DOOR WPL 04100738 Contact Us For Availability

1

COVER, DOOR (CPR) WPL 71001909 Contact Us For Availability

2

12001481 Whirlpool Burner Grate 2 Per Package Backorder WPL 12001481 $166.35

2

74005189 Whirlpool Rear Burner Backorder WPL 74005189 $163.73

2

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $2.60

2

WPY04100021 Whirlpool Bake Element Backorder WPL WPY04100021 $112.12

2

BRACKET, CLOCK WPL 703667 Contact Us For Availability

2

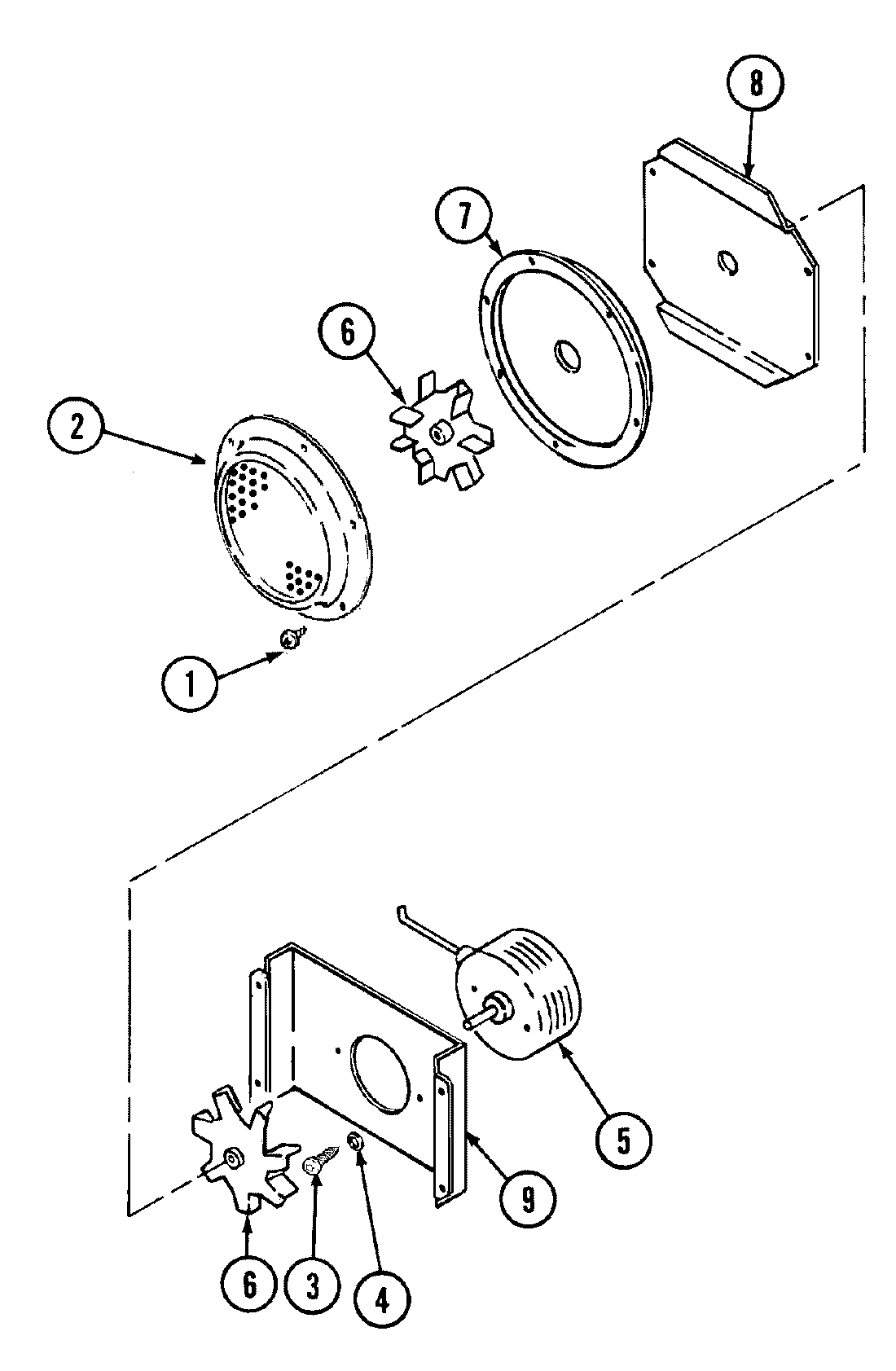

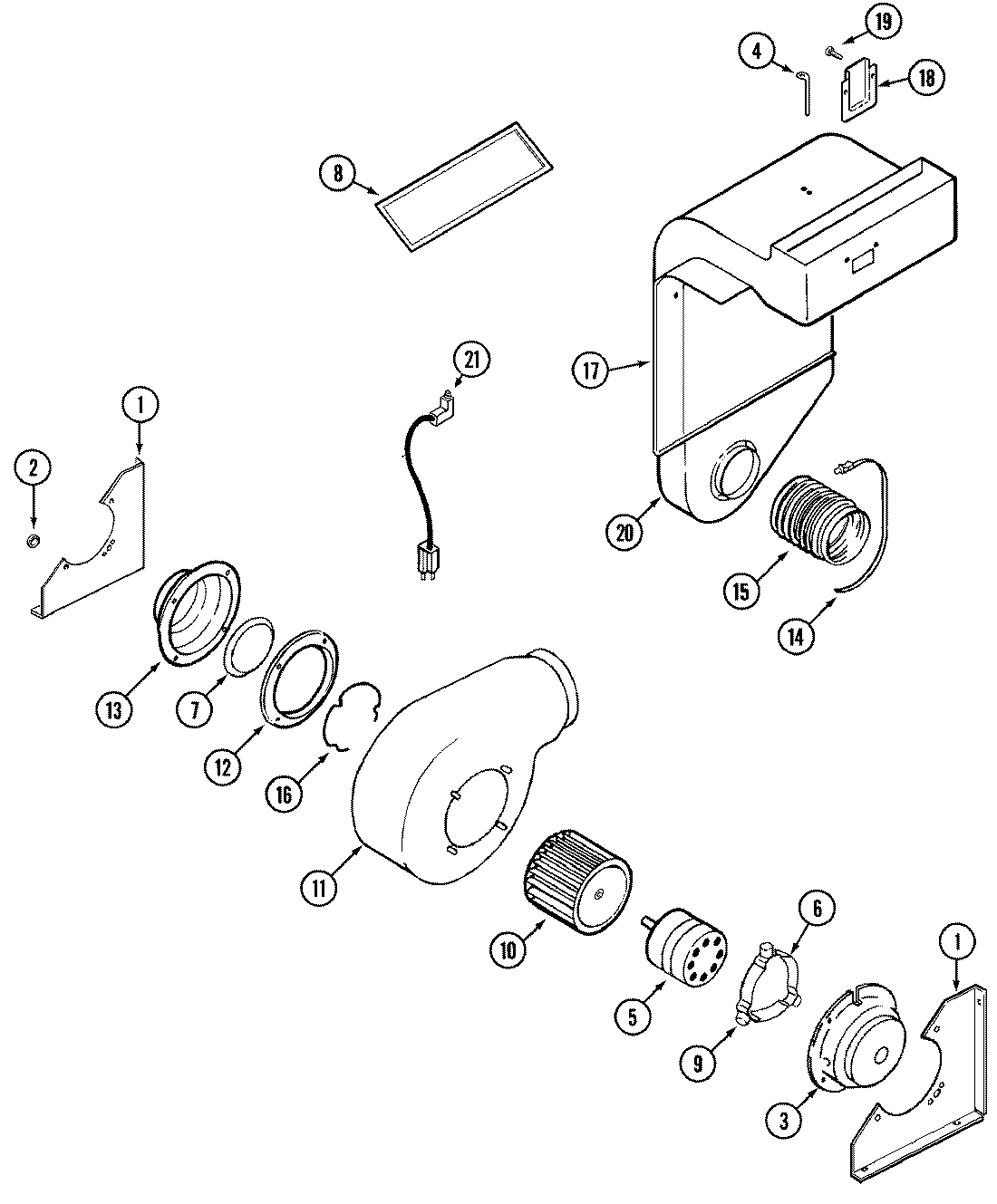

MOTOR, FAN WPL Y702549 Contact Us For Availability

2

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

2

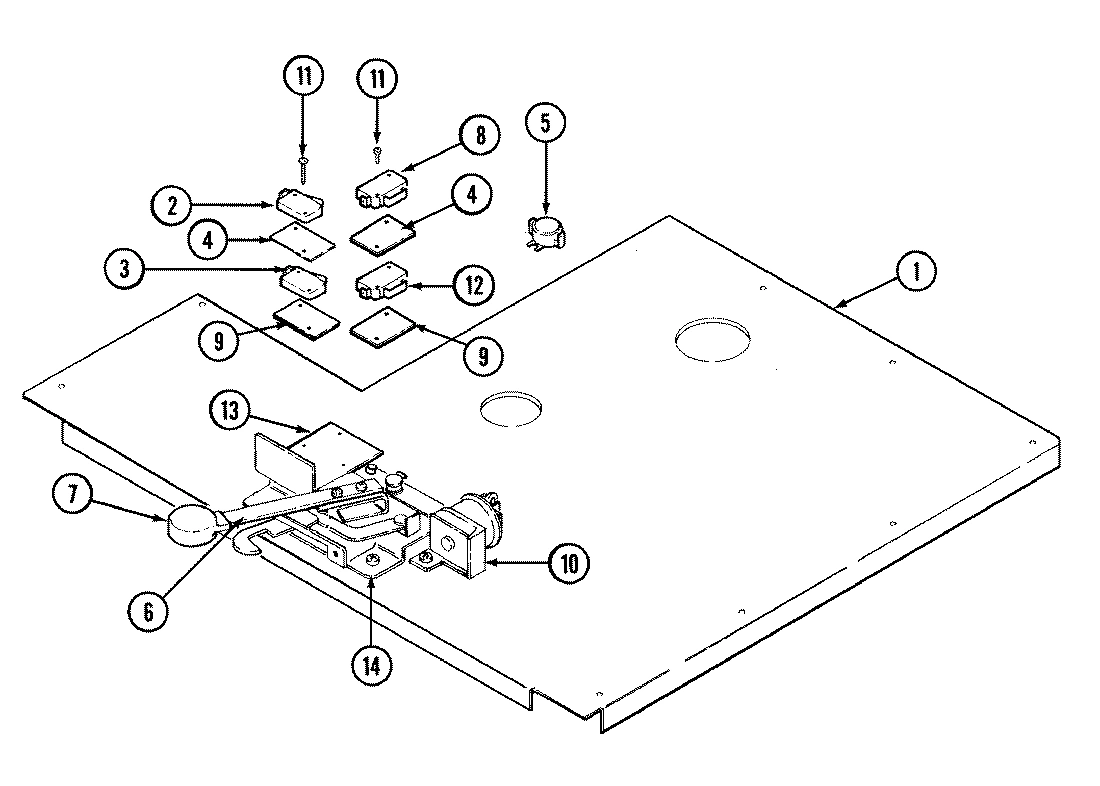

SWITCH, DOOR WPL 702806 Contact Us For Availability

2

LINER, DOOR WPL Y702341 Contact Us For Availability

2

HANDLE WPL 04100741 Contact Us For Availability

2

SCREW, 10-24 PAN WPL 04100745 Contact Us For Availability

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

3

WP71002179 Whirlpool Surface Igniter Backorder WPL WP71002179 $170.57

3

KNOB, SELECTOR WPL Y04100753 Contact Us For Availability

3

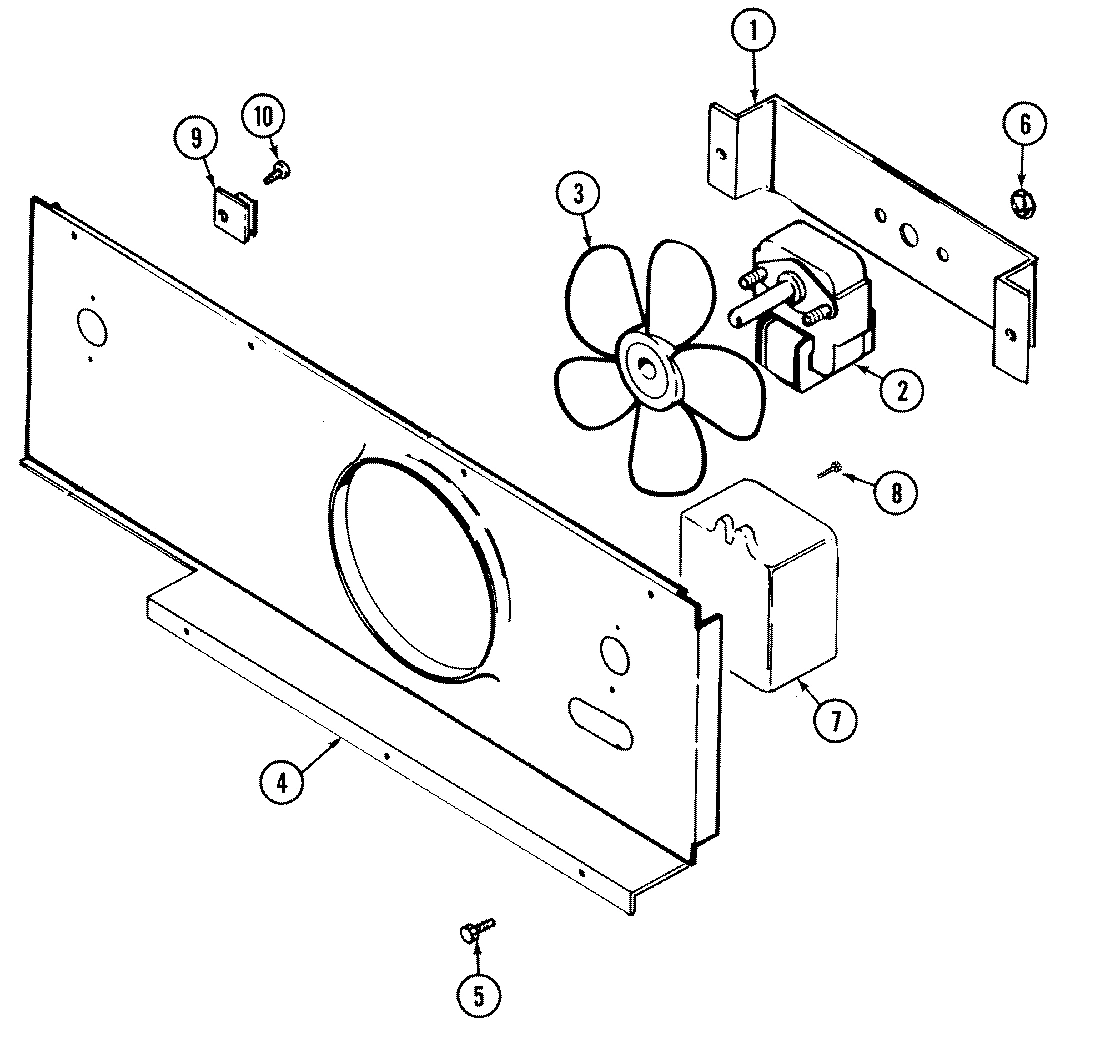

BLADE, FAN WPL Y702525 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability

3

PANEL, KICK WPL Y702744 Contact Us For Availability

3

SCREW WPL 71001395 Contact Us For Availability

4

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.79

4

WP3801F403-80 Whirlpool Bracket Backorder WPL WP3801F403-80 $33.50

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $74.79

4

SWITCH, SELECTOR WPL Y703673 Contact Us For Availability

4

CLOSURE, FRONT WPL 702329 Contact Us For Availability

4

INSULATOR WPL Y702350 Contact Us For Availability

4

GRILL, AIR (BLK) WPL Y04100630 Contact Us For Availability

4

WIRE, GROUND WPL 702643 Contact Us For Availability

4

WINDOW PACK (OUTER)----NA WPL 04100739 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.60

5

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $86.20

5

MOTOR WPL Y704759 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

KNOB, T-STAT WPL Y04100752 Contact Us For Availability

5

NUT WPL 707161 Contact Us For Availability

5

MOTOR, CONVECT WPL Y703035 Contact Us For Availability

5

STUD, BALL WPL Y702633 Contact Us For Availability

5

GRATE, GRILL WPL Y04100054 Contact Us For Availability

5

CLIP, SPRING WPL 704549 Contact Us For Availability

5

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

5

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.52

6

WP7505P283-60 Whirlpool Top Burner In Stock WPL WP7505P283-60 $194.53

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

THERMOSTAT WPL Y703674 Contact Us For Availability

6

CLIP, SPRING WPL Y702476 Contact Us For Availability

6

SCREW, SET WPL 701709 Contact Us For Availability

6

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

6

SCREW WPL 707407 Contact Us For Availability

6

LEVER, LATCH (BLK) WPL Y704227 Contact Us For Availability

6

PAN, GRILL (RT) WPL 704925 Contact Us For Availability

6

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

6

HEATSINK, CNC WPL 04100742 Contact Us For Availability

7

WP71001057 Whirlpool Control Knob In Stock WPL WP71001057 $13.47

7

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

7

RELAY WPL Y704923 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

7

SPRING, KNOB WPL 701671 Contact Us For Availability

7

KNOB (BLK) WPL Y703932 Contact Us For Availability

7

SCREW WPL 702380 Contact Us For Availability

7

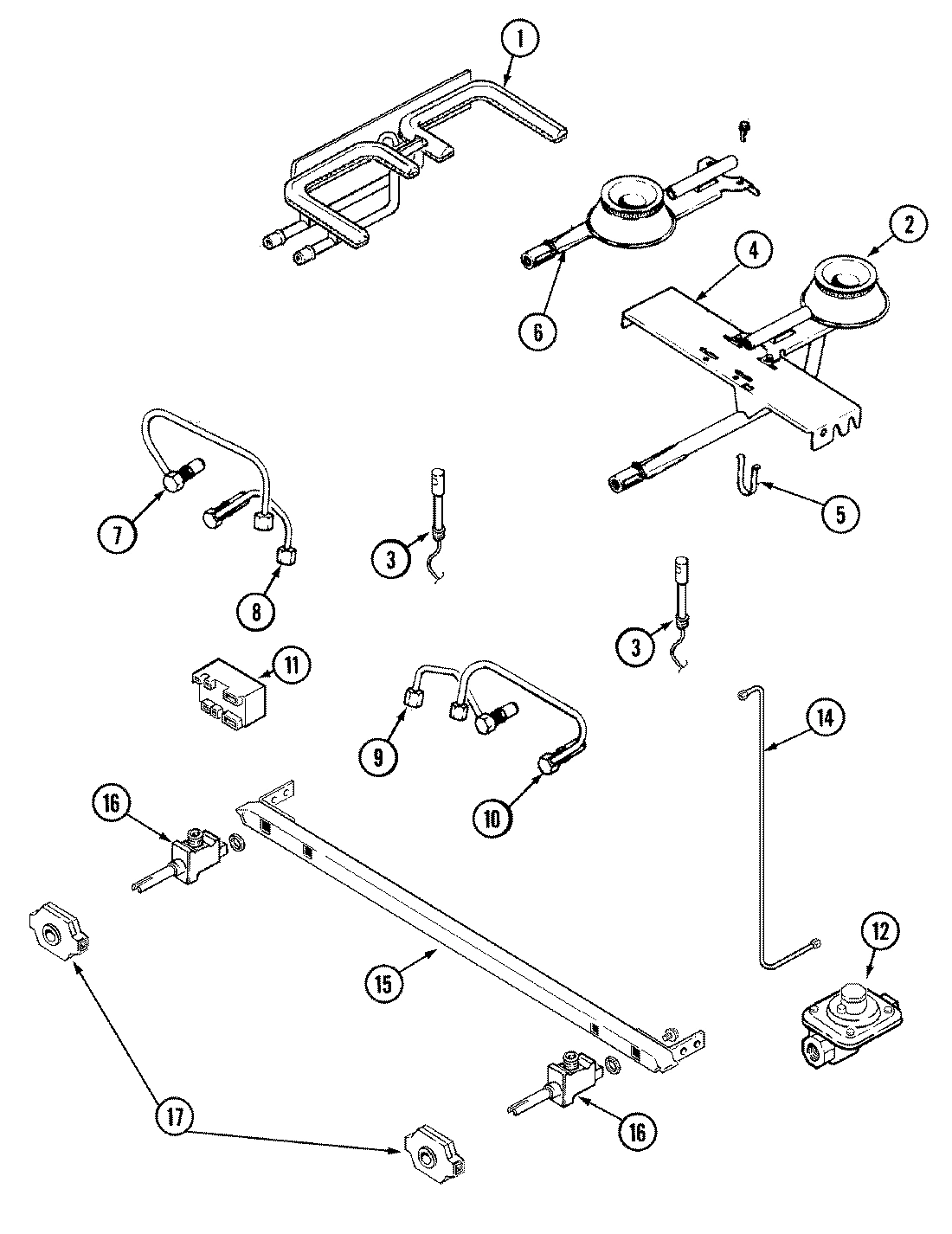

TUBE, BURNER (LF) WPL Y04100757 Contact Us For Availability

7

LENS, LIGHT WPL Y704143 Contact Us For Availability

7

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

8

7403P620-60 Whirlpool Switch Backorder WPL 7403P620-60 $62.96

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

8

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.86

8

SCREW WPL 703534 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

GROMMET WPL Y704978 Contact Us For Availability

8

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

8

SWITCH, LATCH WPL Y703732 Contact Us For Availability

8

INSULATOR, SWITCH WPL Y704534 Contact Us For Availability

8

TUBE, BURNER (LR) WPL Y04100756 Contact Us For Availability

8

BUTTON, BUMPER WPL 71001175 Contact Us For Availability

8

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.43

9

PLATE, BACK WPL Y702345 Contact Us For Availability

9

CLIP, CABLE WPL 704940 Contact Us For Availability

9

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

9

WASHER (TEFLON) WPL 715617 Contact Us For Availability

9

NUT WPL Y704522 Contact Us For Availability

9

TUBE, BURNER (RF) WPL 04100759 Contact Us For Availability

9

TUBE, VENT WPL 702290 Contact Us For Availability

9

LINER, OVEN DOOR WELD WPL 712189 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.60

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $86.22

LENS, INDICATOR LIGHT WPL 74004897 Contact Us For Availability

COVER, REAR WPL 704294 Contact Us For Availability

PIN, COTTER WPL Y701686 Contact Us For Availability

SOLENOID WPL Y702526 Contact Us For Availability

SWITCH, FAN (BLACK) WPL Y704221 Contact Us For Availability

TUBE, BURNER (RR)----NA WPL 04100758 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

NUT, PUSH IN WPL 701643 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

CLOCK KIT, ELECTRONIC WPL 12200028 Contact Us For Availability

SCREW WPL 702807 Contact Us For Availability

SEAL, PAN WPL Y704979 Contact Us For Availability

MODULE, SPARK WPL Y704540 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $7.70

RING, INLET WPL Y704758 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

PAN, GRILL WPL Y704924 Contact Us For Availability

REGULATOR, PRESSURE WPL Y04100249 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

PACK, WINDOW WPL 703804 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

LENS, TIMER----NA WPL 04100132 Contact Us For Availability

SHIELD, SWITCH WPL 701706 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

SCREW WPL Y705019 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

RETAINER, GLASS WPL 71001290 Contact Us For Availability

SCREW (10-24) WPL 71001723 Contact Us For Availability

71001764 Whirlpool Locator PIN Backorder WPL 71001764 $5.23

Y052721 Whirlpool Nut Backorder WPL Y052721 $15.09

CLAMP, HOSE WPL Y702331 Contact Us For Availability

LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability

BRACKET WPL 704337 Contact Us For Availability

LATCH, DOOR WPL 71001168 Contact Us For Availability

TUBE, SUPPLY WPL Y04100760 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

INSULATION, OVEN DOOR WPL 04100555 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $94.71

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

NUT, PUSH WPL Y04100035 Contact Us For Availability

MANIFOLD WPL 04100755 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

Y04100184 Whirlpool Gas Valve In Stock WPL Y04100184 $147.39

RACK, OVEN WPL Y704660 Contact Us For Availability

VALVE, GAS (LT) WPL Y04100187 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

WIRE, BROWN WPL 04100748 Contact Us For Availability

WIRE, BLUE WPL 04100749 Contact Us For Availability

WIRE, ORANGE WPL 04100750 Contact Us For Availability

WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability

HARNESS, WIRE WPL Y04100747 Contact Us For Availability

BRACKET, HAT WPL 702658 Contact Us For Availability

PALNUT WPL Y705023 Contact Us For Availability

SCREW, VALVE WPL 7101P04460 Contact Us For Availability

PLUG, DOOR WPL 71003297 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.60

WPY704513 Whirlpool Oven Igniter Switch Backorder WPL WPY704513 $91.26

PLENUM, UPPER WPL 712025 Contact Us For Availability

MANUAL, USE & CARE WPL 71001917 Contact Us For Availability

COOKBOOK WPL 71002648 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

NAMEPLATE (J/A) WPL 71001894 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

HARNESS, WIRE WPL 04100723 Contact Us For Availability

BAFFLE, DOOR WPL 71001294 Contact Us For Availability

12001809 Whirlpool Oven LP Conversion Kit Backorder WPL 12001809 $29.93

SPACER WPL 702745 Contact Us For Availability

CLIP, LOOP WPL 704941 Contact Us For Availability

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

SCREW WPL 705170 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

BRACKET, FILLER WPL Y04100754 Contact Us For Availability

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

CORD, RECEPTACLE----NA WPL 04100504 Contact Us For Availability

RELIEF, STRAIN WPL Y04100503 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

LEVELER, LEG WPL Y04100573 Contact Us For Availability

LOCKWASHER WPL 704568 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

22

CLIP----S WPL 708763 Contact Us For Availability

22

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

22

SPACER WPL 705252 Contact Us For Availability

23

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

23

ESCUTCHEON WPL 71001916 Contact Us For Availability

23

NUT, TEE WPL 715294 Contact Us For Availability

24

U-BRACKET WPL Y704932 Contact Us For Availability

24

COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability

25

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

26

BRACKET, SUPPORT WPL Y704933 Contact Us For Availability

27

CLIP, SCREW DOWN WPL 705290 Contact Us For Availability

28

TRIM, SIDE WPL 702337 Contact Us For Availability

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

INSULATOR WPL 702898 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $11.40

35

STRAP, GROUND WPL Y702335 Contact Us For Availability

36

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.60

37

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

NI

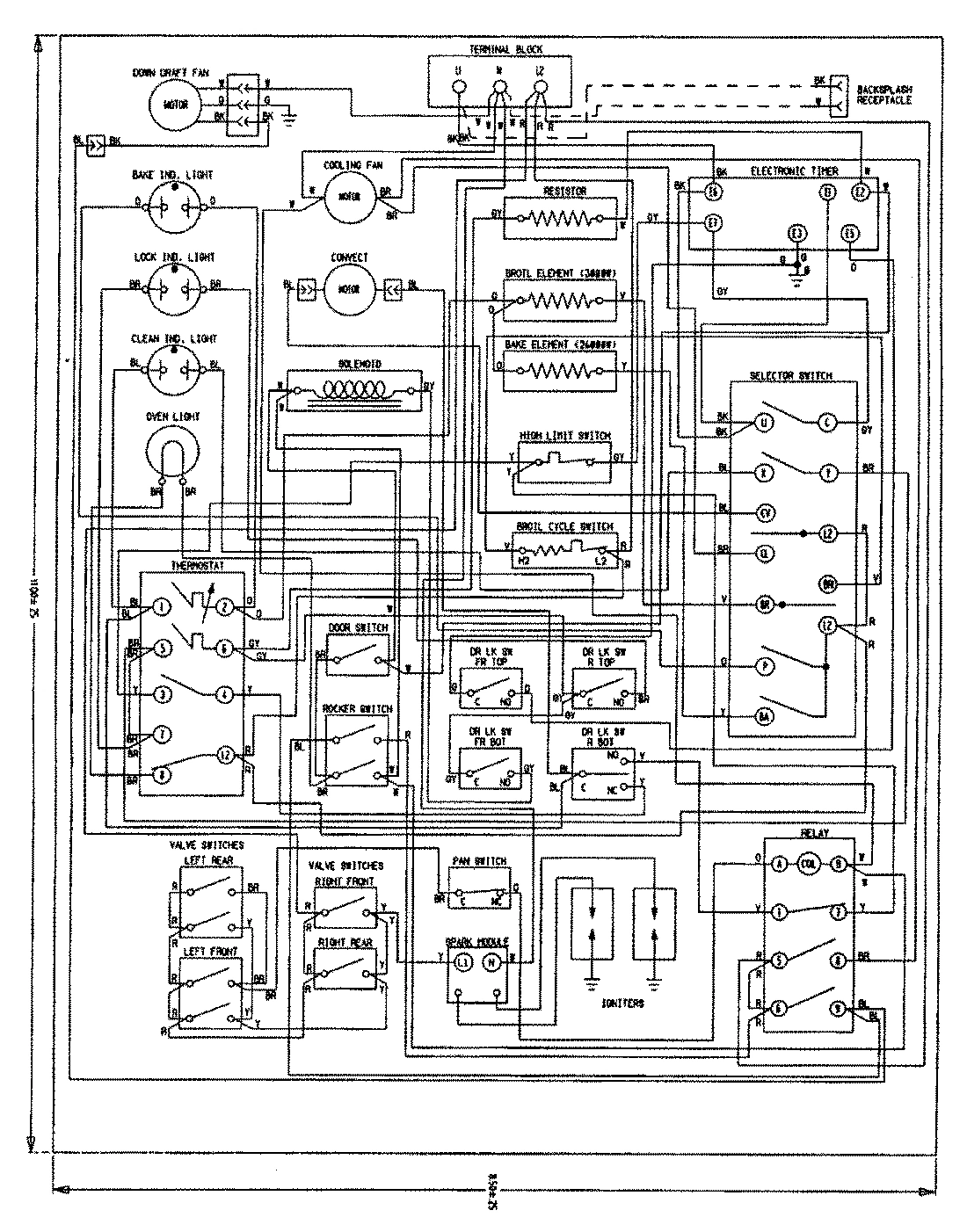

WIRING INFORMATION WPL 15002660 Contact Us For Availability
