Model Electrolux SU24D5TLB DISHWASHER – Common Parts & Diagrams

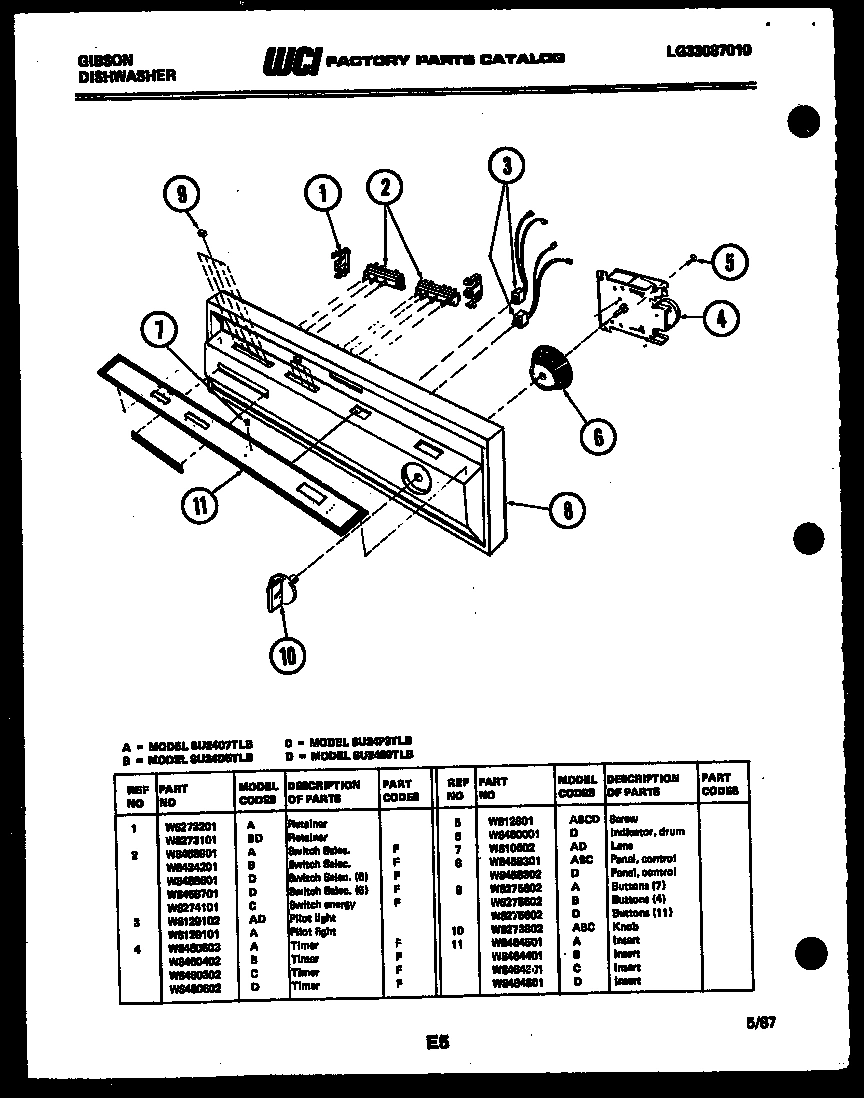

02 - CONSOLE AND CONTROL PARTS
03 - OUTER DOOR PARTS

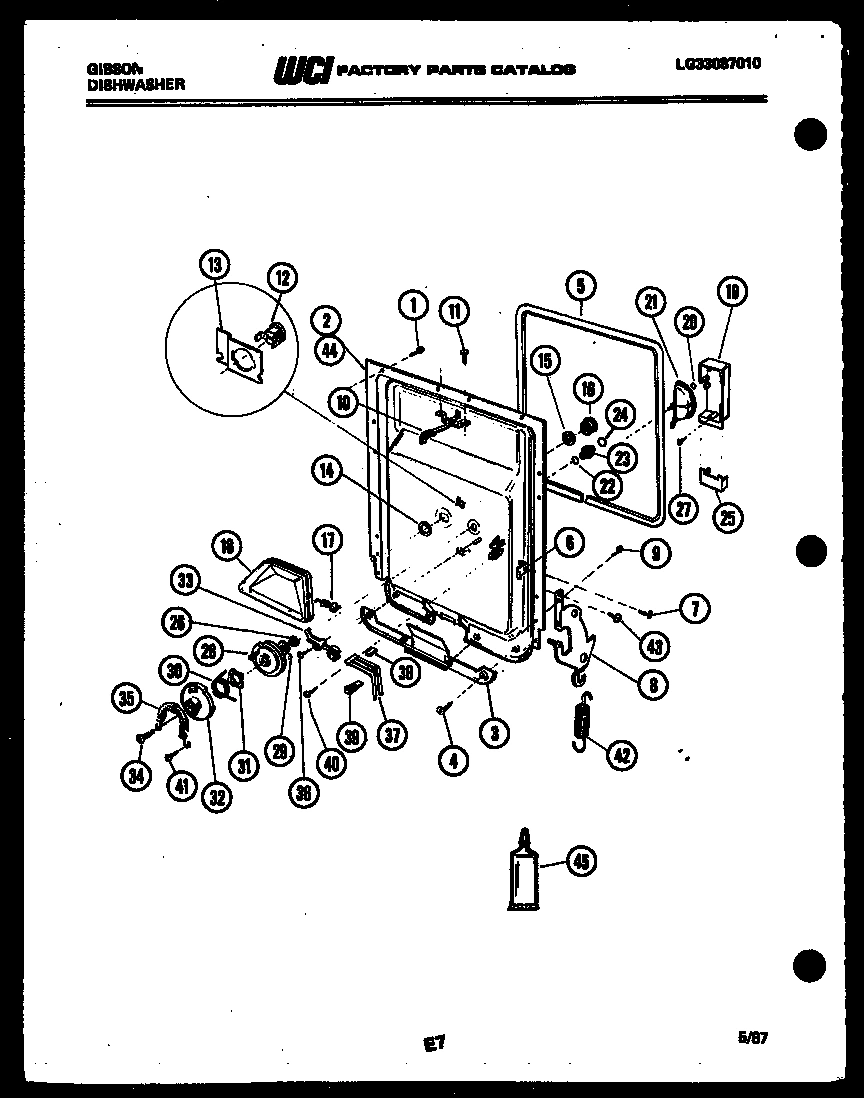

04 - INNER DOOR PARTS

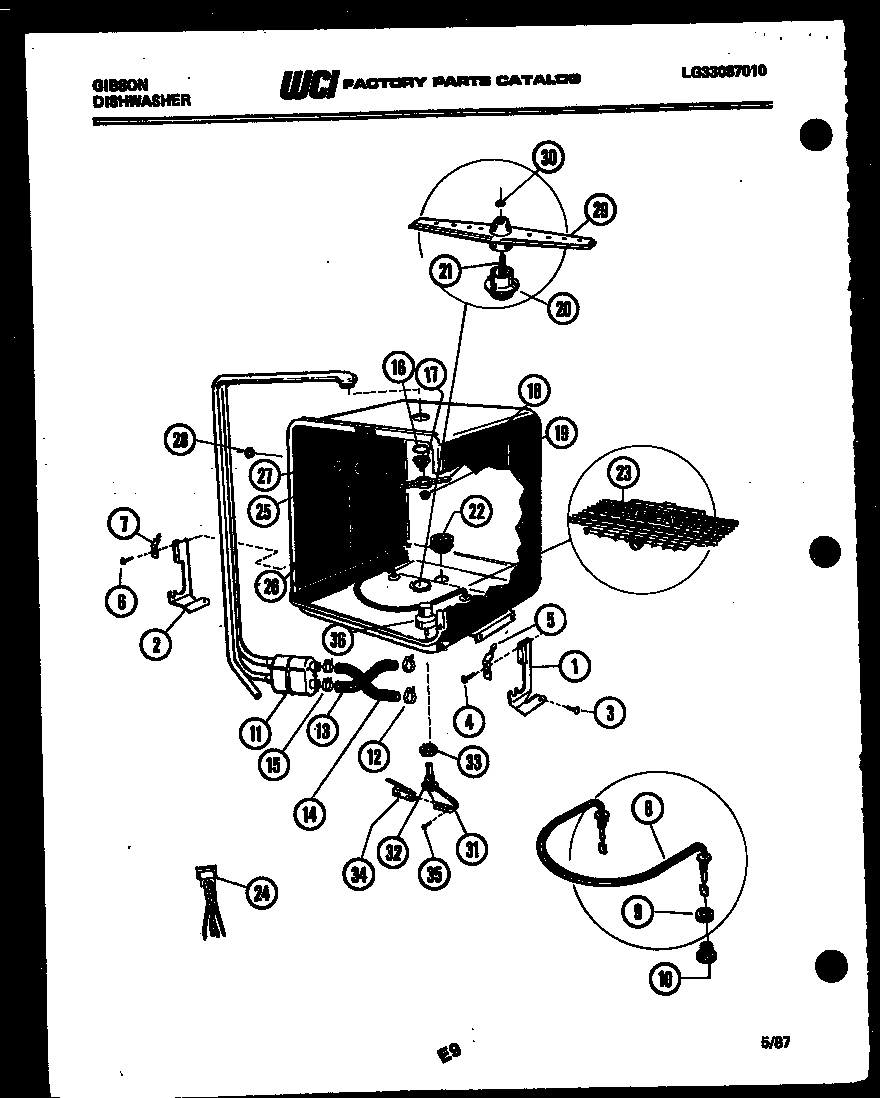

05 - INNER TUB PARTS

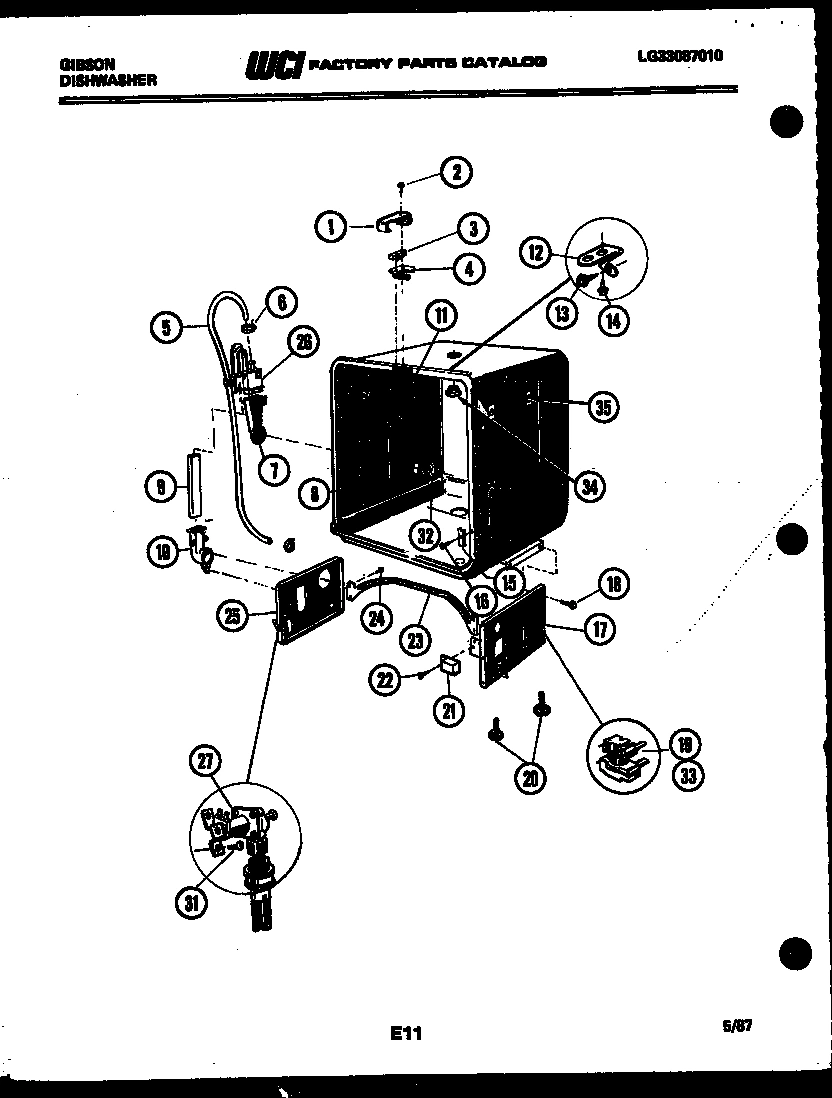

06 - TUB AND FRAME PARTS

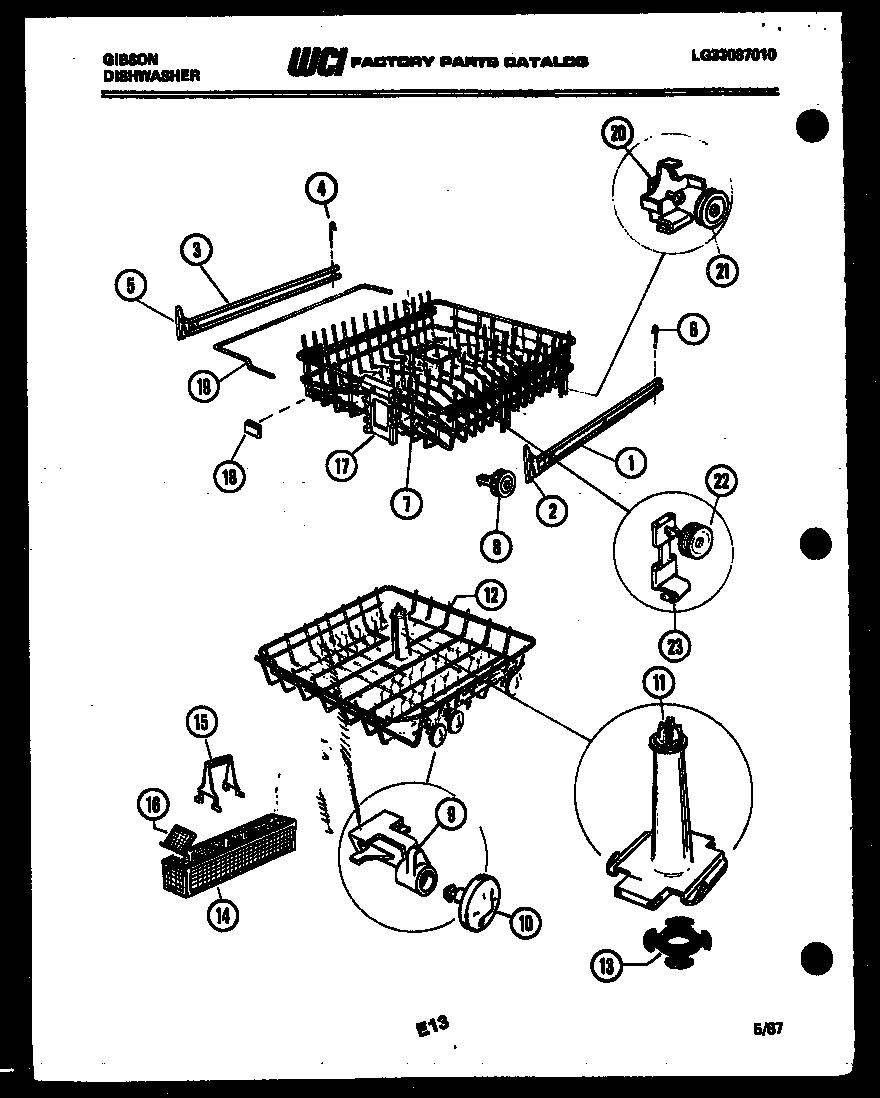

07 - RACKS AND TRAYS

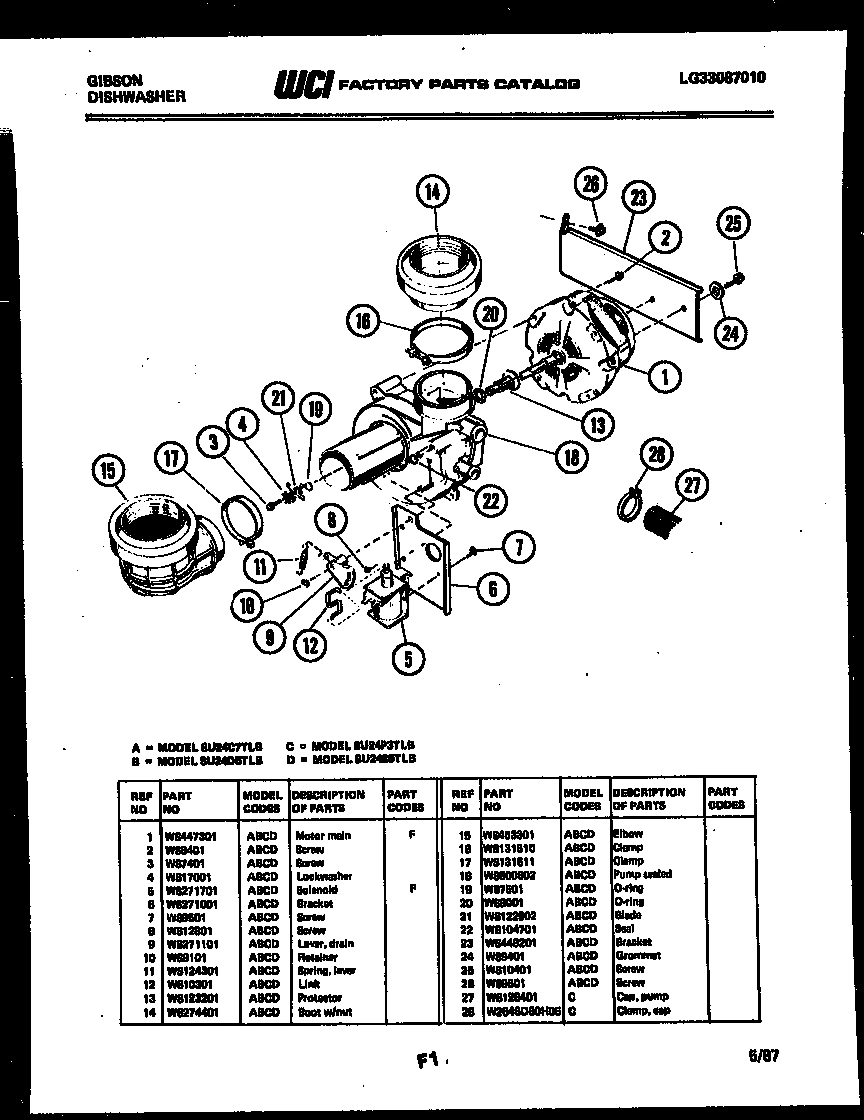

08 - MOTOR PUMP PARTS

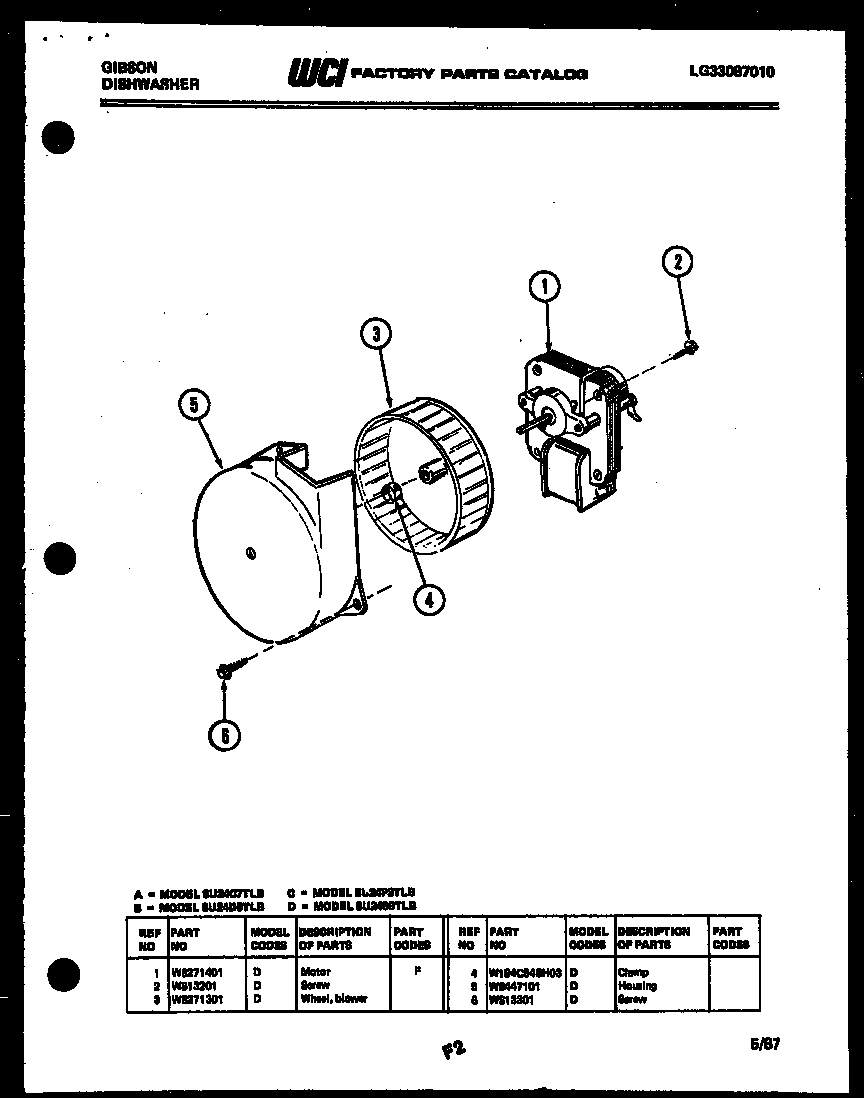

09 - POWER DRY MOTOR AND PARTS
Common parts from model Electrolux SU24D5TLB DISHWASHER
1
RETAINER WCI WS273101 Contact Us For Availability
1
PANEL, FRONT WHTE WCI WS443116 Contact Us For Availability
1
WCI WS12901 WCI WS12901 Contact Us For Availability
1
WCI WS442403 WCI WS442403 Contact Us For Availability
1
WCI WS125101 WCI WS125101 Contact Us For Availability
1
GUIDE WCI WS277001 Contact Us For Availability
1
WCI WS447301 WCI WS447301 Contact Us For Availability
1
WCI WS271401 WCI WS271401 Contact Us For Availability
2
SWITCH SELEC. WCI WS434201 Contact Us For Availability
2
PANEL, DOOR WCI WS704201 Contact Us For Availability
2
WCI WS442404 WCI WS442404 Contact Us For Availability
2
WCI WS13501 WCI WS13501 Contact Us For Availability
2
WCI WS276901 WCI WS276901 Contact Us For Availability
2
SCREW WCI WS8401 Contact Us For Availability
2
WCI WS13201 WCI WS13201 Contact Us For Availability
3
WCI WS277601 WCI WS277601 Contact Us For Availability
3
WCI WS466801 WCI WS466801 Contact Us For Availability
3
WCI WS123401 WCI WS123401 Contact Us For Availability
3
GUIDE WCI WS277002 Contact Us For Availability
3
WCI WS7401 WCI WS7401 Contact Us For Availability
3
WHEEL, BLOWER WCI WS271301 Contact Us For Availability
4
WCI WS460402 WCI WS460402 Contact Us For Availability
4
TRIM, DOOR WCI WS443210 Contact Us For Availability
4
WCI WS13001 WCI WS13001 Contact Us For Availability
4
WCI WS275502 WCI WS275502 Contact Us For Availability
4
WCI WS17001 WCI WS17001 Contact Us For Availability
4
WCI W194C546H03 WCI W194C546H03 Contact Us For Availability
5
WCI WS443204 WCI WS443204 Contact Us For Availability
5
WCI WS277901 WCI WS277901 Contact Us For Availability
5
WCI WS128603 WCI WS128603 Contact Us For Availability
5
WCI WS276902 WCI WS276902 Contact Us For Availability
5
WCI WS271701 WCI WS271701 Contact Us For Availability
5
WCI WS447101 WCI WS447101 Contact Us For Availability
6
WCI WS122401 WCI WS122401 Contact Us For Availability
6
CLAMP (2) WCI W194C546H12 Contact Us For Availability
6
WCI WS118201 WCI WS118201 Contact Us For Availability
6
WCI WS271001 WCI WS271001 Contact Us For Availability
7
WCI WS130601 WCI WS130601 Contact Us For Availability
7
WCI WS270101 WCI WS270101 Contact Us For Availability
7
WCI WS703402 WCI WS703402 Contact Us For Availability
8
WCI WS12801 WCI WS12801 Contact Us For Availability
8
WCI WS458301 WCI WS458301 Contact Us For Availability
8
PANEL, TOE WCI WS442702 Contact Us For Availability
8
HINGE, DOOR R.H. WCI WS442311 Contact Us For Availability
8
WCI WS900194 WCI WS900194 Contact Us For Availability
8
GASKET, INLET WCI WS8601 Contact Us For Availability
8
ROLLER WCI WS1133590 Contact Us For Availability
8A
HINGE, DOOR L.H. WCI WS442312 Contact Us For Availability
9
WCI WS7101 WCI WS7101 Contact Us For Availability
9
WCI WS124601 WCI WS124601 Contact Us For Availability
9
WCI WS404501 WCI WS404501 Contact Us For Availability
9
WCI WS271101 WCI WS271101 Contact Us For Availability
9A
BUTTONS (4) WCI WS275602 Contact Us For Availability
10
WCI WS273802 WCI WS273802 Contact Us For Availability
10
TRIM, END WCI WS443206 Contact Us For Availability
10
WCI WS457802 WCI WS457802 Contact Us For Availability
10
WCI WS273301 WCI WS273301 Contact Us For Availability
10
WHEEL (9) WCI WS251901 Contact Us For Availability
10
WCI WS8101 WCI WS8101 Contact Us For Availability
11
WCI WS464401 WCI WS464401 Contact Us For Availability
11
SCREW, LATCH WCI WS13602 Contact Us For Availability
11
FILTER WCI WS457901 Contact Us For Availability
11
WCI WS275401 WCI WS275401 Contact Us For Availability
11
WCI WS124301 WCI WS124301 Contact Us For Availability
12
TRIM, BOTTOM WCI WS443205 Contact Us For Availability
12
BRACKET WCI W689B594H01 Contact Us For Availability
12
WCI WS703502 WCI WS703502 Contact Us For Availability
12
WCI WS10301 WCI WS10301 Contact Us For Availability
12A
WCI W2646D60H03 WCI W2646D60H03 Contact Us For Availability
13
PNL. SERVC. WHTE WCI WS443609 Contact Us For Availability
13
WCI WS125801 WCI WS125801 Contact Us For Availability
13
HOSE, PORT WCI WS274201 Contact Us For Availability
13
WCI WC418701 WCI WC418701 Contact Us For Availability
13
WCI W194C658H02 WCI W194C658H02 Contact Us For Availability
13
WCI WS123201 WCI WS123201 Contact Us For Availability
14
TRIM, TOP WCI WS443208 Contact Us For Availability
14
WCI WC411209 WCI WC411209 Contact Us For Availability
14
WCI WS128301 WCI WS128301 Contact Us For Availability
14
WCI WS16001 WCI WS16001 Contact Us For Availability
14
WCI WS274401 WCI WS274401 Contact Us For Availability
15
WCI WS443901 WCI WS443901 Contact Us For Availability
15
WCI WS100401 WCI WS100401 Contact Us For Availability
15
CLAMP, TOP WCI W2646D60H05 Contact Us For Availability
15
WCI WS15901 WCI WS15901 Contact Us For Availability
15
WCI W194C580H03 WCI W194C580H03 Contact Us For Availability
15
WCI WS453301 WCI WS453301 Contact Us For Availability
16
INSERT, DOOR (ALMD/BLCK) WCI WS271205 Contact Us For Availability
16
WCI WS250004 WCI WS250004 Contact Us For Availability
16
WCI WS12401 WCI WS12401 Contact Us For Availability
16
WCI WS131510 WCI WS131510 Contact Us For Availability
17
INSERT, SERV. PNL. (ALMD/BLCK) WCI WS271206 Contact Us For Availability
17
WCI WS250402 WCI WS250402 Contact Us For Availability
17
WCI WS273401 WCI WS273401 Contact Us For Availability
17
WCI WS442502 WCI WS442502 Contact Us For Availability
17
WCI WS131511 WCI WS131511 Contact Us For Availability
18
WCI WS401001 WCI WS401001 Contact Us For Availability
18
WASHARM 3RD LVL. WCI WS456201 Contact Us For Availability
18
WCI WS800602 WCI WS800602 Contact Us For Availability
19
WCI WS401511 WCI WS401511 Contact Us For Availability
19
WCI WS128201 WCI WS128201 Contact Us For Availability
19
WCI WS269102 WCI WS269102 Contact Us For Availability
19
WCI WS7501 WCI WS7501 Contact Us For Availability
20
WCI WS8001 WCI WS8001 Contact Us For Availability
20
WCI WS900203 WCI WS900203 Contact Us For Availability
20
WCI WS17601 WCI WS17601 Contact Us For Availability
21
WCI WS401606 WCI WS401606 Contact Us For Availability
21
WCI WS131701 WCI WS131701 Contact Us For Availability
21
WCI WS269001 WCI WS269001 Contact Us For Availability
21
WCI WS122902 WCI WS122902 Contact Us For Availability
22
WCI WC507906 WCI WC507906 Contact Us For Availability
22
WCI WS272801 WCI WS272801 Contact Us For Availability
22
SEAL WCI WS104701 Contact Us For Availability
23
WCI WS251001 WCI WS251001 Contact Us For Availability
23
WCI WS465801 WCI WS465801 Contact Us For Availability
23
WCI WS268901 WCI WS268901 Contact Us For Availability
23
WCI WS449201 WCI WS449201 Contact Us For Availability
24
WCI WC507907 WCI WC507907 Contact Us For Availability
24
WCI WS9401 WCI WS9401 Contact Us For Availability
25
WCI WS265804 WCI WS265804 Contact Us For Availability
25
WCI WS116201 WCI WS116201 Contact Us For Availability
25
WCI WS467401 WCI WS467401 Contact Us For Availability
25
SCREW WCI WS10401 Contact Us For Availability
26
WCI WS9501 WCI WS9501 Contact Us For Availability
26
WCI WS102301 WCI WS102301 Contact Us For Availability
26
SCREW WCI WS5401 Contact Us For Availability
26
WCI WS270201 WCI WS270201 Contact Us For Availability
27
WCI WS4203 WCI WS4203 Contact Us For Availability
27
WCI WS462001 WCI WS462001 Contact Us For Availability
28
WHEEL, CLUTCH WCI WS406501 Contact Us For Availability
28
WCI WS10201 WCI WS10201 Contact Us For Availability
29
WCI WS105601 WCI WS105601 Contact Us For Availability
29
WCI WS461001 WCI WS461001 Contact Us For Availability
30
WCI WS102701 WCI WS102701 Contact Us For Availability
31
WCI WS115301 WCI WS115301 Contact Us For Availability
31
WCI WS451601 WCI WS451601 Contact Us For Availability
32
WCI WS406601 WCI WS406601 Contact Us For Availability
32
WCI WS11301 WCI WS11301 Contact Us For Availability
32
WCI WS8701 WCI WS8701 Contact Us For Availability
33
WCI WS253102 WCI WS253102 Contact Us For Availability
33
WCI WS125401 WCI WS125401 Contact Us For Availability
33
SCREW, RELAY WCI WS6902 Contact Us For Availability
34
WCI WS402701 WCI WS402701 Contact Us For Availability
34
SWITCH, FLOAT WCI WS277801 Contact Us For Availability
35
WCI WS102602 WCI WS102602 Contact Us For Availability
35
WCI WS413103 WCI WS413103 Contact Us For Availability
35
CHANNEL WCI WS10101 Contact Us For Availability
36
SCREW WCI WC402701 Contact Us For Availability
36
WCI WS457701 WCI WS457701 Contact Us For Availability
37
WCI WS102501 WCI WS102501 Contact Us For Availability
38
WCI WS126001 WCI WS126001 Contact Us For Availability
39
WCI WS126101 WCI WS126101 Contact Us For Availability
40
WCI WS13101 WCI WS13101 Contact Us For Availability
41
WCI WS12902 WCI WS12902 Contact Us For Availability
42
SPRING WCI WS271802 Contact Us For Availability
43
WCI WS12601 WCI WS12601 Contact Us For Availability
45
SEALANT REPAIR WCI WS900113 Contact Us For Availability
× ![]()
