Model Electrolux SU24D5KYGA DISHWASHER – Common Parts & Diagrams
02 - CONTROL PARTS
03 - CAM
04 - DOOR PARTS

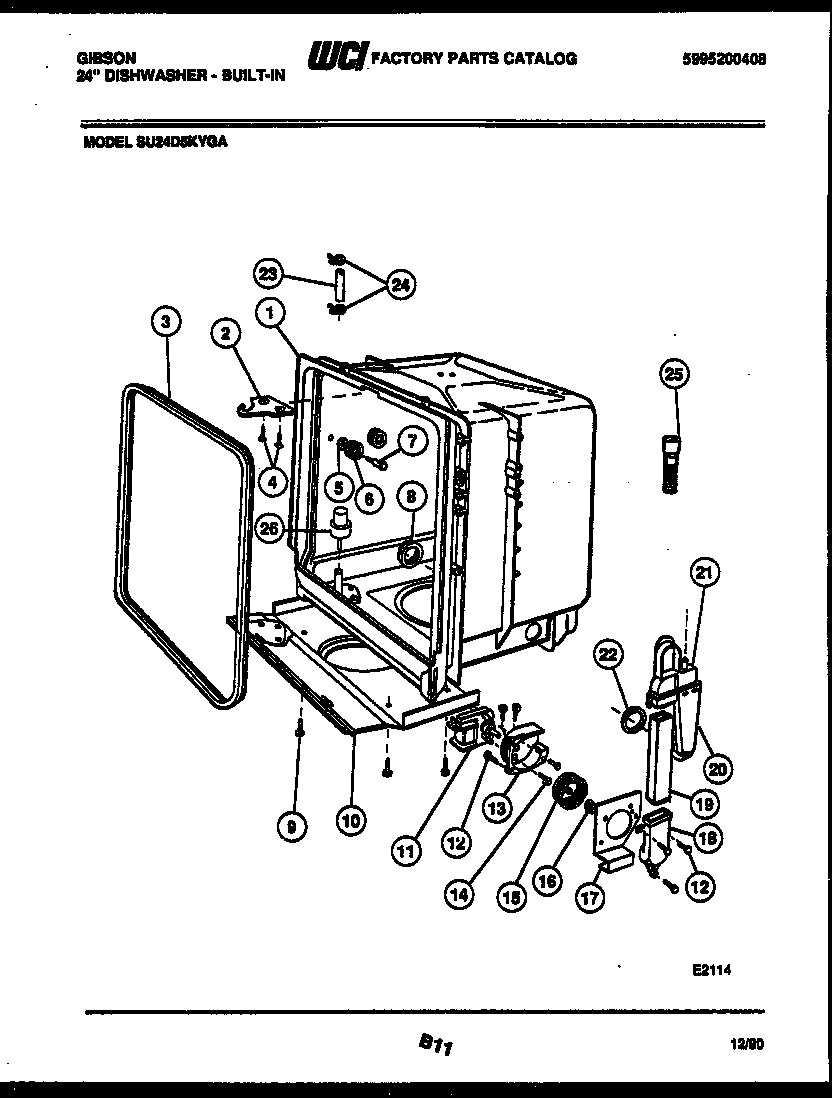

05 - TUB AND FRAME PARTS

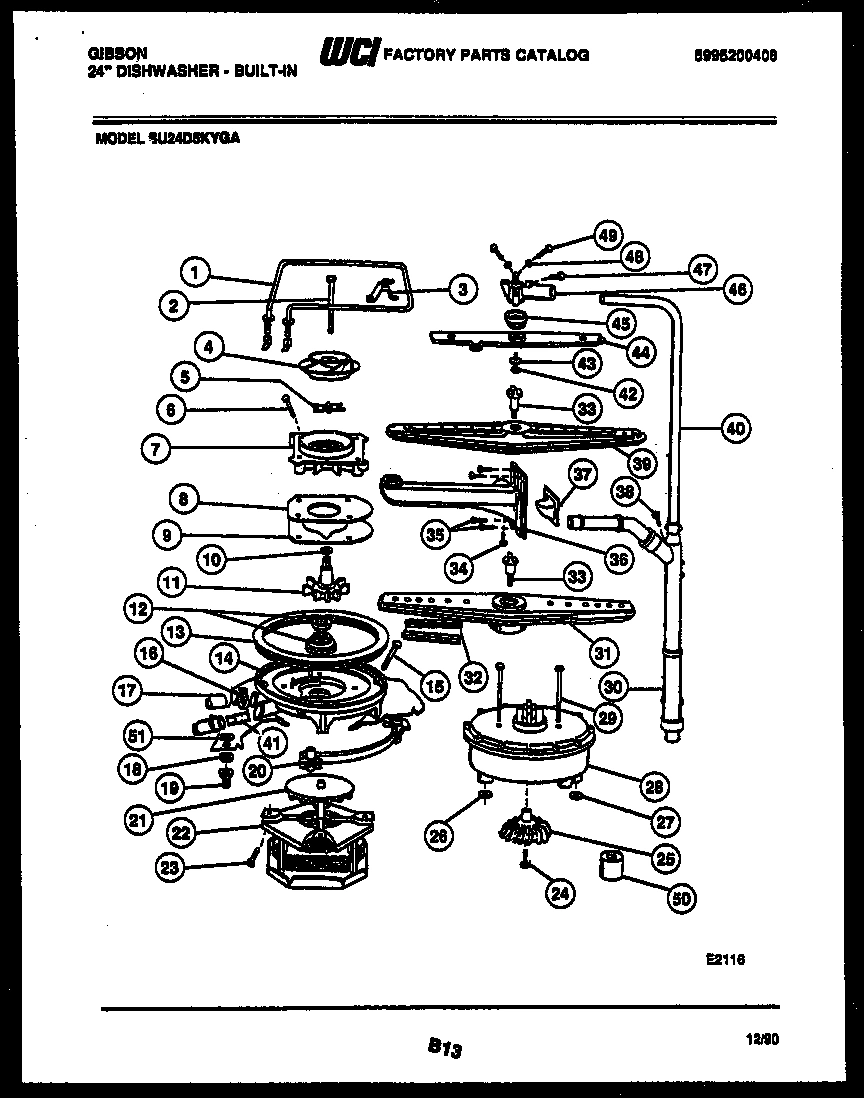

06 - MOTOR PUMP PARTS

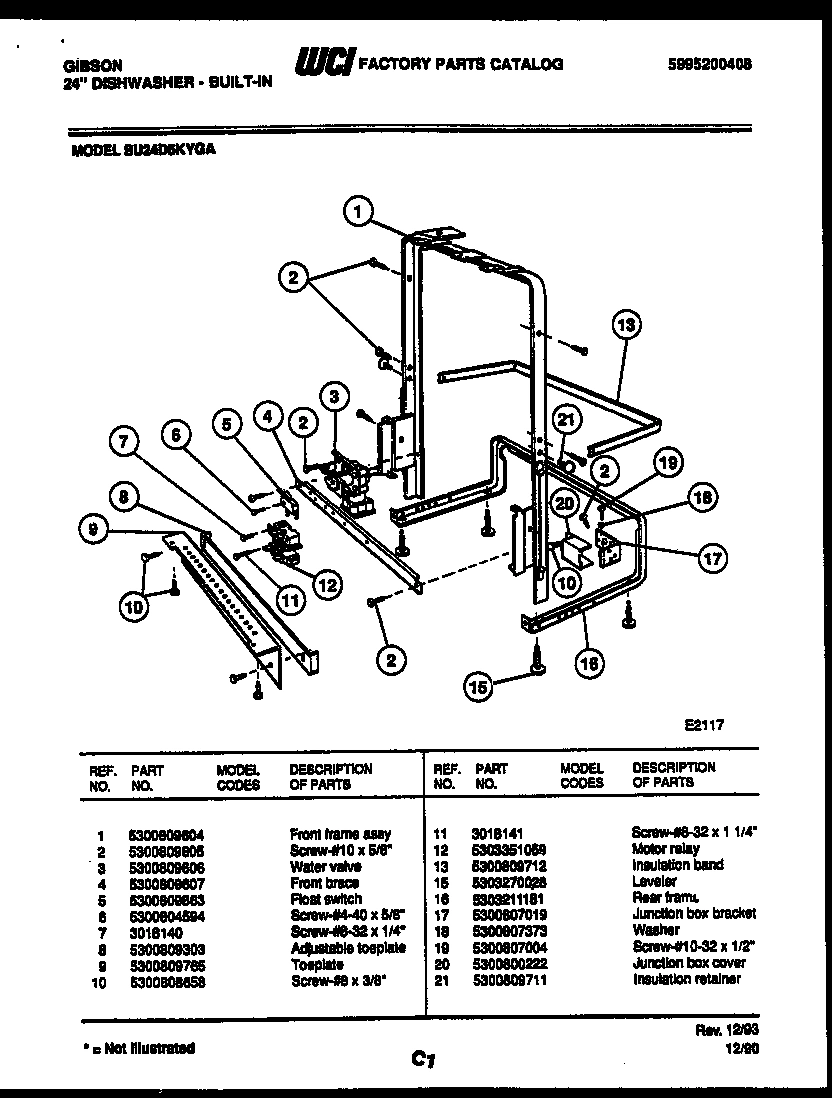

07 - POWER DRY AND MOTOR PARTS
Common parts from model Electrolux SU24D5KYGA DISHWASHER
*33897
WCI 5300809781 WCI 5300809781 Contact Us For Availability
1
WCI 5300809989 WCI 5300809989 Contact Us For Availability
1
WCI 5300809584 WCI 5300809584 Contact Us For Availability
1
LOWER RACK ASSY WCI 5300810001 Contact Us For Availability
2
WCI 5300806353 WCI 5300806353 Contact Us For Availability
2
WCI 5300809610 WCI 5300809610 Contact Us For Availability
3
WCI 5300809611 WCI 5300809611 Contact Us For Availability
3
WCI 5300809704 WCI 5300809704 Contact Us For Availability
3
HEATER BRACKET WCI 5300809585 Contact Us For Availability
3
UPPER RACK ASSY WCI 5303270295 Contact Us For Availability
4
WCI 5300809918 WCI 5300809918 Contact Us For Availability
4
WCI 5300809612 WCI 5300809612 Contact Us For Availability
5
WCI 5300809863 WCI 5300809863 Contact Us For Availability
6
WCI 5300804594 WCI 5300804594 Contact Us For Availability
6
WCI 5300807359 WCI 5300807359 Contact Us For Availability
6
WCI 5300809941 WCI 5300809941 Contact Us For Availability
7
WCI 5303270034 WCI 5303270034 Contact Us For Availability
7
WCI 5300809969 WCI 5300809969 Contact Us For Availability
7
WCI 5300809921 WCI 5300809921 Contact Us For Availability
8
SCREW-8 X 5/8`` WCI 5300808749 Contact Us For Availability
8
WCI 5300809724 WCI 5300809724 Contact Us For Availability
8
WCI 5300809006 WCI 5300809006 Contact Us For Availability
8
HANDLE-SILVERWARE BASKET WCI 3206178 Contact Us For Availability
9
WCI 5300809605 WCI 5300809605 Contact Us For Availability
9
WCI 5300809007 WCI 5300809007 Contact Us For Availability
9
WCI 2645039H08 WCI 2645039H08 Contact Us For Availability
10
WCI 5300808956 WCI 5300808956 Contact Us For Availability
10
WCI 5300809614 WCI 5300809614 Contact Us For Availability
10
WCI 5300806521 WCI 5300806521 Contact Us For Availability
10
SHELF-CUP WCI 5303270296 Contact Us For Availability
11
PUMP IMPELLER KIT WCI 5300809910 Contact Us For Availability
11
THERMOSTAT RETAINER WCI 5300809097 Contact Us For Availability
11
WCI 5300809725 WCI 5300809725 Contact Us For Availability
11
BRACKET-CUP SHELF WCI 5300809506 Contact Us For Availability
12
WCI 5300803903 WCI 5300803903 Contact Us For Availability
12
WCI 08016001 WCI 08016001 Contact Us For Availability
13
DOOR PANEL TRIM-LH WCI 5300809912 Contact Us For Availability
13
WCI 5300809726 WCI 5300809726 Contact Us For Availability
14
WCI 5300805631 WCI 5300805631 Contact Us For Availability
14
WCI 5300809731 WCI 5300809731 Contact Us For Availability
14
PUMP HOUSING WCI 5300809591 Contact Us For Availability
15
WCI 08016015 WCI 08016015 Contact Us For Availability
15
WCI 5303270032 WCI 5303270032 Contact Us For Availability
15
WCI 5300807268 WCI 5300807268 Contact Us For Availability
16
WCI 5300809933 WCI 5300809933 Contact Us For Availability
16
WCI 5300809728 WCI 5300809728 Contact Us For Availability
16
WCI 5300808186 WCI 5300808186 Contact Us For Availability
17
WCI 5300809934 WCI 5300809934 Contact Us For Availability
17
WCI 5300809615 WCI 5300809615 Contact Us For Availability
17
WCI 5300809628 WCI 5300809628 Contact Us For Availability
18
WCI 5300809029 WCI 5300809029 Contact Us For Availability
18
WCI 5300809729 WCI 5300809729 Contact Us For Availability
18
WCI 5300809983 WCI 5300809983 Contact Us For Availability
19
SCREW-6-32 X 1`` WCI 5300808618 Contact Us For Availability
19
WCI 5300809617 WCI 5300809617 Contact Us For Availability
20
WCI 5300808712 WCI 5300808712 Contact Us For Availability
20
WCI 5300809616 WCI 5300809616 Contact Us For Availability
20
WCI 5300809590 WCI 5300809590 Contact Us For Availability
21
WCI 5300809366 WCI 5300809366 Contact Us For Availability
21
WCI 5300808715 WCI 5300808715 Contact Us For Availability
21
WATER INLET CAP WCI 5300809730 Contact Us For Availability
22
WCI 5300809618 WCI 5300809618 Contact Us For Availability
22
WCI 5303270029 WCI 5303270029 Contact Us For Availability
23
WCI 5300807262 WCI 5300807262 Contact Us For Availability
23
WCI 5300809619 WCI 5300809619 Contact Us For Availability
23
WCI 5300809022 WCI 5300809022 Contact Us For Availability
24
DOOR & ACCESS PANEL INSERT WCI 5300808908 Contact Us For Availability
24
CLAMP WCI 5300807813 Contact Us For Availability
24
SCREW-8 X 3/4`` WCI 5300809073 Contact Us For Availability
25
WCI 5300806753 WCI 5300806753 Contact Us For Availability
25
WCI 5300809014 WCI 5300809014 Contact Us For Availability
26
WCI 5300809898 WCI 5300809898 Contact Us For Availability
26
WCI 5300809861 WCI 5300809861 Contact Us For Availability
26
WCI 5300809016 WCI 5300809016 Contact Us For Availability
27
WCI 5300809782 WCI 5300809782 Contact Us For Availability
27
WCI 5300809015 WCI 5300809015 Contact Us For Availability
28
WCI 5300809011 WCI 5300809011 Contact Us For Availability
29
WCI 5300809916 WCI 5300809916 Contact Us For Availability
29
SCREW-10 X 2 7/8`` WCI 5300809012 Contact Us For Availability
30
WCI 5300809705 WCI 5300809705 Contact Us For Availability
30
DELIVERY TUBE ASSY KIT WCI 5300808805 Contact Us For Availability
31
WCI 83212-5 WCI 83212-5 Contact Us For Availability
31
SPRAY ARM ASSY WCI 5300810015 Contact Us For Availability
32
WCI 5300809773 WCI 5300809773 Contact Us For Availability
32
WCI 5300809938 WCI 5300809938 Contact Us For Availability
33
DOOR PANEL TRIM-RH WCI 5300809911 Contact Us For Availability
33
WCI 5300809018 WCI 5300809018 Contact Us For Availability
34
WCI 5300807347 WCI 5300807347 Contact Us For Availability
34
WCI 530806656 WCI 530806656 Contact Us For Availability
35
ACCESS PANEL TRIM-LH WCI 5300809915 Contact Us For Availability
35
SCREW-8 X 5/8`` WCI 5300805106 Contact Us For Availability
36
WCI 5300809019 WCI 5300809019 Contact Us For Availability
36
WCI 5300809108 WCI 5300809108 Contact Us For Availability
37
ACCESS PANEL TRIM-TOP WCI 5300808346 Contact Us For Availability
37
WCI 5300805781 WCI 5300805781 Contact Us For Availability
38
ACCESS PANEL TRIM-RH WCI 5300809914 Contact Us For Availability
38
SCREW-8 X 1/2`` WCI 5300806656 Contact Us For Availability
39
ACCESS PANEL TRIM-BOTTOM WCI 5300809994 Contact Us For Availability
39
WCI 5300809021 WCI 5300809021 Contact Us For Availability
40
WCI 5300807224 WCI 5300807224 Contact Us For Availability
41
WCI 5300809937 WCI 5300809937 Contact Us For Availability
42
SCREW-8 X 1 1/4`` WCI 5300808466 Contact Us For Availability
43
WCI 5300808465 WCI 5300808465 Contact Us For Availability
44
SPRAY ARM SEAL ASSY WCI 5300808463 Contact Us For Availability
45
WCI 5300808462 WCI 5300808462 Contact Us For Availability
46
WCI 5300808464 WCI 5300808464 Contact Us For Availability
47
SCREW, 8 X 7/16`` WCI 5300806976 Contact Us For Availability
48
WCI 5300809044 WCI 5300809044 Contact Us For Availability
49
SCREW-8 X 5/8`` WCI 5300806901 Contact Us For Availability
50
WCI 5300803923 WCI 5300803923 Contact Us For Availability
51
WASHER WCI 5300809587 Contact Us For Availability
× ![]()
