Model Electrolux SU180MXRH3 DISHWASHER – Common Parts & Diagrams
02 - DOOR PARTS
03 - TUB AND FRAME PARTS

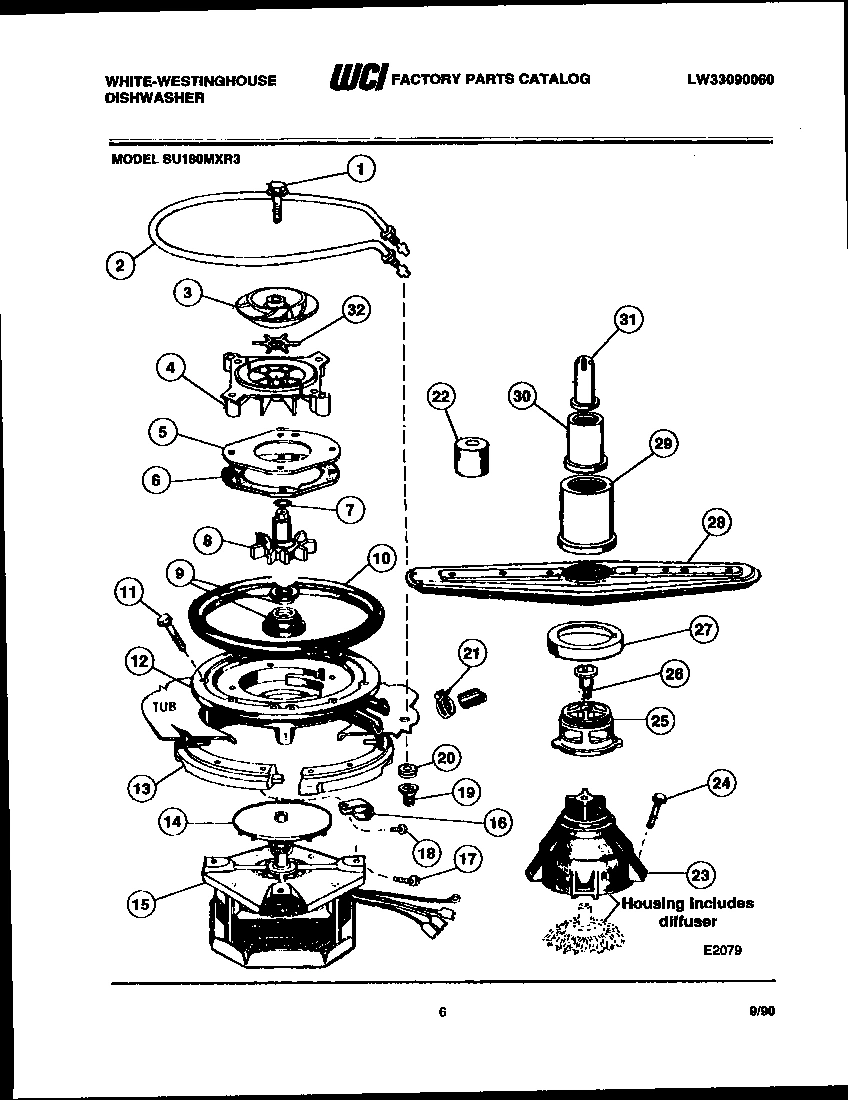

04 - MOTOR PUMP PARTS

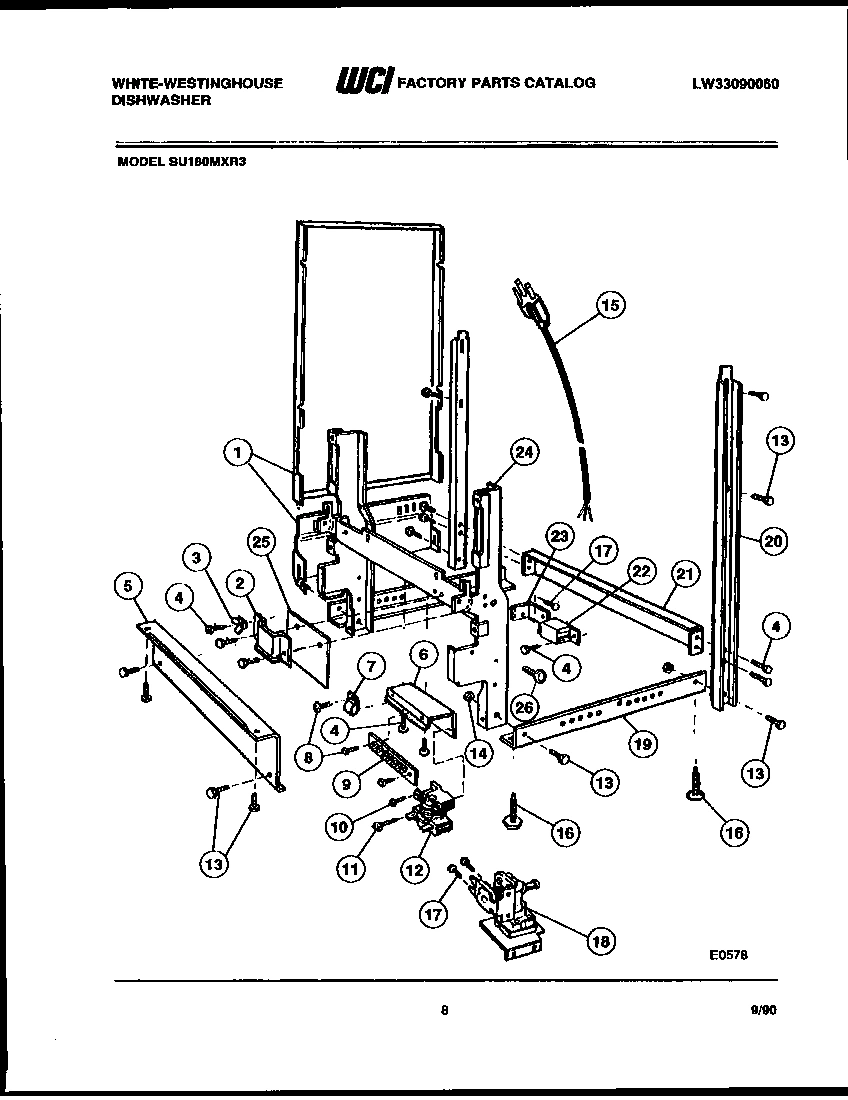

05 - POWER DRY AND MOTOR PARTS

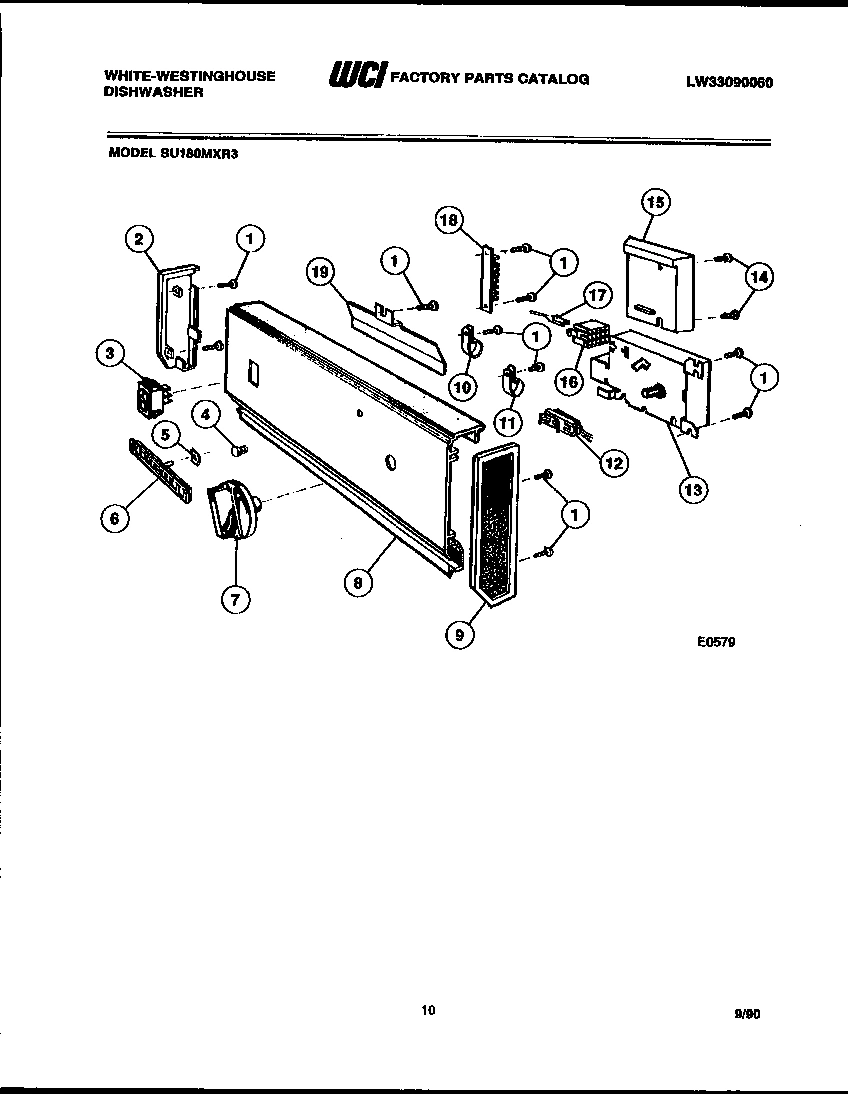

06 - CONSOLE AND CONTROL PARTS

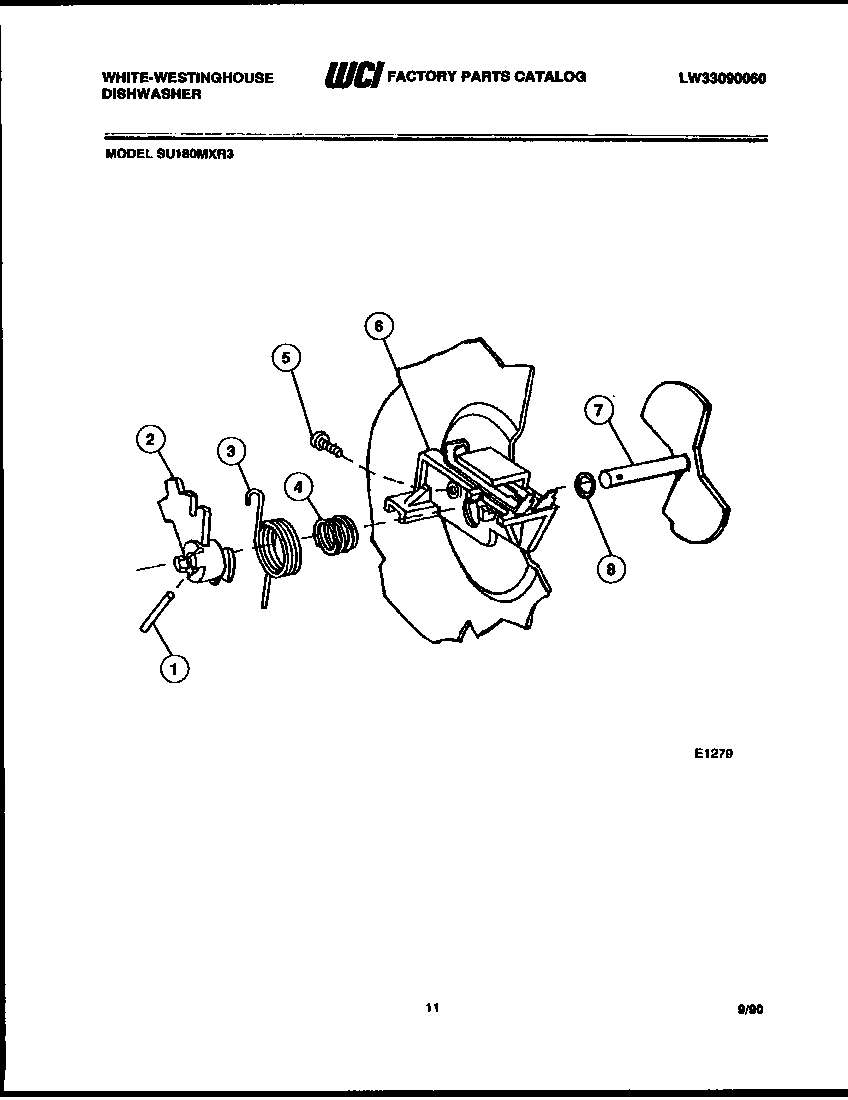

07 - CAM

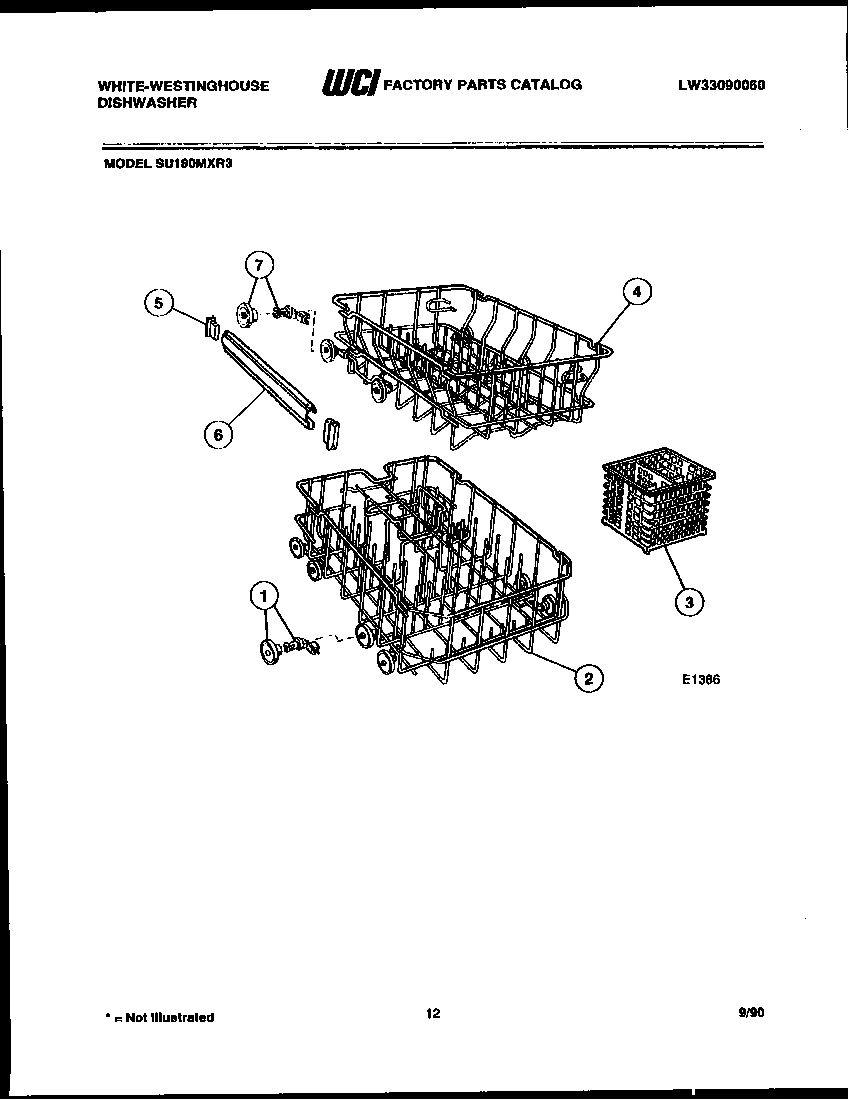

08 - RACKS AND TRAYS
Common parts from model Electrolux SU180MXRH3 DISHWASHER
1
SCREW WCI 5300806353 Contact Us For Availability
1
PLATE - LATCH WCI 5300808868 Contact Us For Availability
1
WCI 3018191 WCI 3018191 Contact Us For Availability
1
WCI 5300809175 WCI 5300809175 Contact Us For Availability
1
PIN WCI 5300808827 Contact Us For Availability
2
WCI 5300808289 WCI 5300808289 Contact Us For Availability
2
HEATER (INCLUDES 19 AND 20) WCI 5300806864 Contact Us For Availability
2
CLAMP WCI 5300806723 Contact Us For Availability
2
WCI 5300808694 WCI 5300808694 Contact Us For Availability
2
LOWER RACK ASSY WCI 5300809641 Contact Us For Availability
3
WCI 5300809918 WCI 5300809918 Contact Us For Availability
3
TERMINAL - GORUND WCI 5300808933 Contact Us For Availability
3
WCI 5300808854 WCI 5300808854 Contact Us For Availability
3
SPRING-CAM WCI 5300805227 Contact Us For Availability
3
SILVERWARE BASKET WCI 5300808845 Contact Us For Availability
4
HOSE - DRAIN WCI 5300809112 Contact Us For Availability
4
WCI 5300809921 WCI 5300809921 Contact Us For Availability
4
WCI 5300809740 WCI 5300809740 Contact Us For Availability
4
SPRING - COMPRESSION WCI 5300806567 Contact Us For Availability
4
UPPER RACK WCI 5300809647 Contact Us For Availability
5
WCI 5300807073 WCI 5300807073 Contact Us For Availability
5
WCI 5300807884 WCI 5300807884 Contact Us For Availability
5
WCI 5300807559 WCI 5300807559 Contact Us For Availability
5
WCI 5300808475 WCI 5300808475 Contact Us For Availability
5
SCREW WCI 5300809029 Contact Us For Availability
6
STRIKE - DOOR WCI 5300807015 Contact Us For Availability
6
BRACKET WCI 5300807849 Contact Us For Availability
6
GRILLE - VENT WCI 5300808477 Contact Us For Availability
6
WCI 5300809072 WCI 5300809072 Contact Us For Availability
6
RACK SLIDE WCI 5300809928 Contact Us For Availability
7
WCI 5300806521 WCI 5300806521 Contact Us For Availability
7
KNOB-TIMER WCI 5300809495 Contact Us For Availability
7
LID - DISPENSER WCI 5300809028 Contact Us For Availability
7
WHEEL AND BUSHING ASSY - UPPER RACK WCI 5300809873 Contact Us For Availability
8
PUMP SEAL KIT - INCLUDES 7 AND 9 WCI 5300809909 Contact Us For Availability
8
SCREW WCI 5300807501 Contact Us For Availability
8
WCI 5300805763 WCI 5300805763 Contact Us For Availability
8
WCI 5300809652 WCI 5300809652 Contact Us For Availability
8
WCI 5300806647 WCI 5300806647 Contact Us For Availability
9
WCI 5300803903 WCI 5300803903 Contact Us For Availability
9
PLATE - TAPPING WCI 5300807038 Contact Us For Availability
9
WCI 5300807486 WCI 5300807486 Contact Us For Availability
9
WCI 5300808693 WCI 5300808693 Contact Us For Availability
10
WCI 5300809008 WCI 5300809008 Contact Us For Availability
10
WASHER WCI 5300809044 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
10
WCI 5300805584 WCI 5300805584 Contact Us For Availability
11
WCI 3014699 WCI 3014699 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
12
SCREW AND WASHER KIT (INCLUDES 10) WCI 5300808564 Contact Us For Availability
12
WCI 5300809919 WCI 5300809919 Contact Us For Availability
12
RELAY - MOTOR WCI 5300805255 Contact Us For Availability
12
LIGHT WCI 5300809317 Contact Us For Availability
13
WCI 5300809861 WCI 5300809861 Contact Us For Availability
13
CLAMP RING (2) WCI 5300807712 Contact Us For Availability
13
WCI 5300806889 WCI 5300806889 Contact Us For Availability
13
WCI 5300809759 WCI 5300809759 Contact Us For Availability
14
WCI 5300809366 WCI 5300809366 Contact Us For Availability
14
SCREW WCI 5300806894 Contact Us For Availability
14
NUT WCI 5300804619 Contact Us For Availability
15
TUB AND GASKET ASSY WCI 5300809716 Contact Us For Availability
15
MOTOR ASSY - INCLUDES 1, 10, 24 WCI 5300809985 Contact Us For Availability
15
POWER CORD KIT (USE ONLY WHERE LOCAL CODES PE WCI 5300808395 Contact Us For Availability
15
PAN-SPLASH WCI 5300807425 Contact Us For Availability
16
ARM ASSY-RH WCI 5300807538 Contact Us For Availability
16
PLATE - FLOAT WCI 5300808064 Contact Us For Availability
16
WCI 5300809422 WCI 5300809422 Contact Us For Availability
16
BLOCK - 18 PIN WCI 5300809883 Contact Us For Availability
17
GASKET - FLOAT WCI 5300808063 Contact Us For Availability
17
SCREW WCI 5300803311 Contact Us For Availability
17
SCREW WCI 5300809022 Contact Us For Availability
17
SCREW WCI 5300807004 Contact Us For Availability
17
TERMINAL WCI 5300809885 Contact Us For Availability
18
ARM ASSY-LH WCI 5300807539 Contact Us For Availability
18
WCI 5300807599 WCI 5300807599 Contact Us For Availability
18
SCREW WCI 5300807270 Contact Us For Availability
18
VALVE - WATER WCI 5300809241 Contact Us For Availability
18
TERMINAL BOARD WCI 5300808483 Contact Us For Availability
19
WCI 83350-2 WCI 83350-2 Contact Us For Availability
19
SIDE BASE ANGLE KIT WCI 5300809543 Contact Us For Availability
19
SHIELD-VENT WCI 5300808574 Contact Us For Availability
20
HEATER GROMMET WCI 5300806833 No Longer Available
20
SCREW WCI 5300803319 Contact Us For Availability
20
SUPPORT CHANNEL WCI 5300808670 Contact Us For Availability
21
CLIP WCI 5300808115 Contact Us For Availability
21
WCI 5300808186 WCI 5300808186 Contact Us For Availability
21
WCI 3018150 WCI 3018150 Contact Us For Availability
22
TIRM - DOOR - RH WCI 5300809912 Contact Us For Availability
22
WCI 5300807759 WCI 5300807759 Contact Us For Availability
22
WCI 5300803923 WCI 5300803923 Contact Us For Availability
22
COVER - BOX WCI 5300800222 Contact Us For Availability
23
WCI 83212-5 WCI 83212-5 Contact Us For Availability
23
WCI 5300807600 WCI 5300807600 Contact Us For Availability
23
UPPER HOUSING ASSY WCI 5300809953 Contact Us For Availability
23
BRACKET - BOX WCI 5300807019 Contact Us For Availability
24
SWITCH - FLOAT WCI 5300809863 Contact Us For Availability
24
WCI 5300809636 WCI 5300809636 Contact Us For Availability
24
SCREW WCI 5300807359 Contact Us For Availability
24
HINGE WCI 5300809212 Contact Us For Availability
25
TRIM-DOOR BOTTOM WCI 5300809637 Contact Us For Availability
25
SCREW WCI 5300809864 Contact Us For Availability
25
WCI 5303943010 WCI 5303943010 Contact Us For Availability
25
SHIELD WCI 5300809144 Contact Us For Availability
26
FLOAT SWITCH KIT (INCLUDES 13, 16, 17, 22, 24 WCI 5300809859 Contact Us For Availability
26
WCI 5300809018 WCI 5300809018 Contact Us For Availability
26
RETAINER-INSULATION WCI 5300809711 Contact Us For Availability
27
WCI 5300809550 WCI 5300809550 Contact Us For Availability
27
ROD WCI 5300809634 Contact Us For Availability
27
WCI 5300808924 WCI 5300808924 Contact Us For Availability
28
TUB GASKET AND WIRE ASSY (INCLUDES 8 AND 27) WCI 5300809633 Contact Us For Availability
28
TRIM - DOOR - LH WCI 5300809911 Contact Us For Availability
28
SPRAY ARM ASSY WCI 5300808848 Contact Us For Availability
29
SPRING-DOOR WCI 5300807601 No Longer Available
29
WCI 5300805669 WCI 5300805669 Contact Us For Availability
29
WCI 5300808178 WCI 5300808178 Contact Us For Availability
30
GASKET-INLET WCI 5300803573 Contact Us For Availability
30
WCI 5300808179 WCI 5300808179 Contact Us For Availability
31
INLET WATER WCI 5300806470 Contact Us For Availability
31
WCI 5300808849 WCI 5300808849 Contact Us For Availability
32
NUT WCI 5300806291 Contact Us For Availability
33
TUBING - INLET (INCLUDES 34) WCI 5300807891 Contact Us For Availability
34
CLAMP WCI 5300807813 Contact Us For Availability
× ![]()
